| HP ProLiant DL580 Generation 3 (G3)
| ||||||||||||||||||||||||||||||||||||||||||||
|
What's New
|
|
|
|

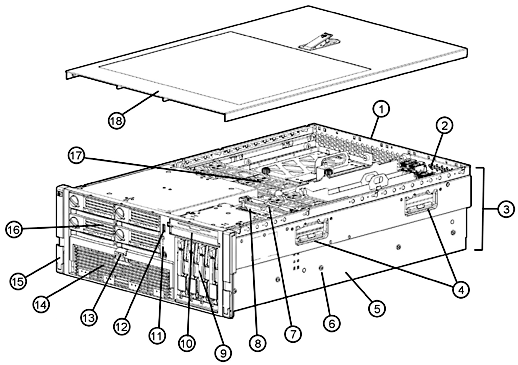

At A Glance The ProLiant DL580 G3 server is an enterprise class, 4-way server designed for maximum scalability and high availability. Its radically redesigned chassis offers unsurpassed flexibility and serviceability in a versatile, rack-optimized form factor. Based upon the latest industry standard processing, memory, I/O and networking technologies, the ProLiant DL580 G3 provides the highest levels of performance demanded by today's compute intensive applications. Unparalleled high availability features, including front-accessible Hot Plug RAID Memory, integrated Ultra320 Smart Array 6i controller or Smart Array P600/256 BBWC Controller (SAS), duplex drive cage, and hot-plug redundant components, guarantee maximum uptime. Integrated Lights-Out (iLO) technology allows remote administration from a standard web-browser without ever having to visit the server. Within the 4U dense form factor, it's highly expandable architecture provides maximum application deployment flexibility with the ability to add PCI-Express, hot plug PCI-X or battery-backed write cache options. Innovative new features, such as the ability to access processors, memory, hard drives, and power supplies while the unit remains secured in the rack, enable rapid response to service events, radically decreasing overall IT costs and server downtime.
|
|
|
Standard Features
| Processor One or more of the following depending on Model |
NOTE: A HP ProLiant DL580 G3 Dual-core Processor Blank Kit is required if upgrading a DL580G3 system with less than 4 Dual-core processors. |
| 64-bit Dual-core Intel® Xeon™ Processor 7040 (3.00 GHz, 2x2M L2 Cache, 667MHz FSB) | |
| 64-bit Dual-core Intel® Xeon™ Processor 7020 (2.66 GHz, 2x1M L2 Cache, 667MHz FSB) | |
| 64-bit Intel® Xeon™ Processor MP 3.33 GHz, 8MB L3 cache, 667MHz FSB | |
| 64-bit Intel® Xeon™ Processor MP 3.00 GHz, 8MB L3 cache, 667MHz FSB | |
| 64-bit Intel® Xeon™ Processor MP 2.83 GHz, 4MB L3 cache, 667MHz FSB | |
| 64-bit Intel® Xeon™ Processor MP 3.66 GHz, 1MB L2 cache, 667MHz FSB | |
| 64-bit Intel® Xeon™ Processor MP 3.16 GHz, 1MB L2 cache, 667MHz FSB | |
| | |
| Upgradeability | Utilize the HP ProLiant DL580 G3 to enable transitions to new industry technologies such as Dual-core processing, Serial-attached SCSI and SATA drives, and PCI Express | ||
| All U320 Models upgradeable to SAS/SATA | |||
| | |||
| Chipset | Industry Standard Intel E8500
Chipset NOTE: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/ |
|
|
|
| Memory One of the following depending on Model |
Type | PC2-3200R 400MHz DDR2 | |
| Standard (1P base models) |
1024 MB | ||
| Standard (2P base models) |
2048 MB | ||
| Maximum | 64 GB | ||
| NOTE: 64 GB achieved with use of four memory cartridges and sixteen 4 GB PC2-3200 Memory Modules. The HP ProLiant DL580 G3 will accept both single rank and dual rank DIMMs in all sockets. | |||
|
|
|||
| Network Controller | Embedded NC7782 PCI-X Gigabit Server Adapter |
|
|
|
|
Expansion Slots with
No Mezzanine Option |
Bus speed
|
Bus number
|
Hot Plug
|
PCI Voltage
|
Notes
|
|
1
|
N/A
|
N/A
|
N/A
|
N/A
|
Standard
|
|
2
|
N/A
|
N/A
|
N/A
|
N/A
|
Standard
|
|
3
|
64-bit / 133 MHz PCI-X
|
12
|
No
|
3.3 Volt
|
Standard
|
|
4
|
64-bit / 133 MHz PCI-X
|
15
|
No
|
3.3 Volt
|
Standard
|
|
5
|
64-bit / 133 MHz PCI-X
|
19
|
No
|
3.3 Volt
|
Standard
|
|
6
|
64-bit / 100 MHz PCI-X
|
22
|
No
|
3.3 Volt
|
Standard
|
|
7
|
64-bit / 100 MHz PCI-X
|
22
|
No
|
3.3 Volt
|
Standard
|
|
Expansion Slots with
PCI-X Mezzanine Option |
Bus speed
|
Bus number
|
Hot Plug
|
PCI Voltage
|
Notes
|
|
1
|
64-bit / 133 MHz PCI-X
|
6
|
Yes
|
3.3 Volt
|
Optional
|
|
2
|
64-bit / 133 MHz PCI-X
|
9
|
Yes
|
3.3 Volt
|
Optional
|
|
3
|
64-bit / 133 MHz PCI-X
|
13
|
No
|
3.3 Volt
|
Standard
|
|
4
|
64-bit / 133 MHz PCI-X
|
16
|
No
|
3.3 Volt
|
Standard
|
|
5
|
64-bit / 133 MHz PCI-X
|
20
|
No
|
3.3 Volt
|
Standard
|
|
6
|
64-bit / 100 MHz PCI-X
|
23
|
No
|
3.3 Volt
|
Standard
|
|
7
|
64-bit / 100 MHz PCI-X
|
23
|
No
|
3.3 Volt
|
Standard
|
|
Expansion Slots with
PCI Express X4 Mezzanine Option |
Bus speed
|
Bus number
|
Hot Plug
|
PCI Voltage
|
Notes
|
|
1
|
PCI Express X4
|
5
|
No
|
N/A
|
Optional
|
|
2
|
PCI Express X4
|
8
|
No
|
N/A
|
Optional
|
|
3
|
64-bit / 133 MHz PCI-X
|
12
|
No
|
3.3 Volt
|
Standard
|
|
4
|
64-bit / 133 MHz PCI-X
|
15
|
No
|
3.3 Volt
|
Standard
|
|
5
|
64-bit / 133 MHz PCI-X
|
19
|
No
|
3.3 Volt
|
Standard
|
|
6
|
64-bit / 100 MHz PCI-X
|
22
|
No
|
3.3 Volt
|
Standard
|
|
7
|
64-bit / 100 MHz PCI-X
|
22
|
No
|
3.3 Volt
|
Standard
|
|
Expansion Slots with
PCI Express X8 Mezzanine Option |
Bus speed
|
Bus number
|
Hot Plug
|
PCI Voltage
|
Notes
|
|
1
|
PCI Express X8
|
5
|
No
|
N/A
|
Optional
|
|
2
|
N/A
|
N/A
|
N/A
|
N/A
|
Standard
|
|
3
|
64-bit / 133 MHz PCI-X
|
12
|
No
|
3.3 Volt
|
Standard
|
|
4
|
64-bit / 133 MHz PCI-X
|
15
|
No
|
3.3 Volt
|
Standard
|
|
5
|
64-bit / 133 MHz PCI-X
|
19
|
No
|
3.3 Volt
|
Standard
|
|
6
|
64-bit / 100 MHz PCI-X
|
22
|
No
|
3.3 Volt
|
Standard
|
|
7
|
64-bit / 100 MHz PCI-X
|
22
|
No
|
3.3 Volt
|
Standard
|
| Manageability | Integrated Lights-Out (iLO) Standard Management (ASIC on the System Board) |
|
|
|
| Storage Controllers | Smart Array 6i Controller (integrated on system board) | ||
| HP Smart Array P600/256 BBWC Controller (in a slot) and 8-Bay SAS Drive Cage (SAS models only) | |||
|
|
|||
| Storage Data Protection | The Battery-Backed Write Cache (BBWC) Enabler for the embedded Smart Array 6i Controller protects up to 128-MB write cache memory from hard boot, power, controller, or system board failures. | ||
| |||
| NOTE: Safely transport your write cache data to another HP ProLiant DL580 G3 in the data center by removing the BBWC Enabler and 6i Controller Memory Module simultaneously (connected by short cable). | |||
| | |||
| Storage | Diskette Drive | None Standard - Optional Slimline Floppy Drive available (ejectable) |
| Optical Drive | Slimline DVD-ROM Drive Standard on all models (ejectable) | |
| Hard Drives | None ship standard | |
| Hard Disk Drive Backplane |
Internal Wide Ultra3/U320 backplane
supports up to four hard disk drives and is easily configurable to support
simplex (4x1) or duplex mode (2x2) Standard shipping configuration is the duplex mode. |
|
| NOTE: Does not apply to 8-Bay SAS Drive Cage | ||
|
|
||
| Maximum Internal Storage Type | Hot Plug SCSI |
1.20TB | 4 x 300GB Ultra320 drives (internal hot plug Ultra3 drive cage) |
| Hot Plug SAS | 1,168TB | 8 x 146GB SFF SAS drives (internal hot plug) | |
|
|
|||
| Interfaces | Serial | 1 |
| Pointing Device (Mouse) | 1 | |
| Graphics | 1 | |
| Keyboard | 1 | |
| USB 2.0 Ports | 3 total: 1 front; 2 rear NOTE: Please see the following URL for additional information regarding USB support: http://h18004.www1.hp.com/products/servers/platforms/usb-support.html |
|
| iLO Remote Management | 1 | |
| Network RJ-45 | 2 | |
|
|
||
| Graphics | Integrated ATI Rage XL Video Controller with 8-MB SDRAM Video Memory |
|
|
|
| Form Factor | Rack (4U = 7 inches), ships
with Quick Deploy Sliding Rail System, an ambidextrous cable management
arm and quick release levers for fast and easy serviceability and in-rack
tool-less access to major components. Space saving form factor (4U) provides space efficiencies while providing maximum deployment flexibility. |
|
|
|
|
ProLiant Essentials Foundation Pack Software |
| ||||
| |||||
| |||||
| |||||
| |||||
| |||||
| NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more information. NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials. | |||||
| | |||||
| Industry Standard Compliance | ACPI 1.0a. Compliant |
| PCI 2.2 Compliant | |
| PXE Support | |
| WOL Support | |
| Physical Address Extension (PAE) Support | |
| Microsoft® Logo certifications | |
| USB 2.0 Support | |
|
|
|
| Remote Management | Integrated
Lights Out (iLO) Standard Management:
Integrated Lights
Out Advanced Pack (optional) Remote Graphical Console:
|
| | |
| Intelligent Manageability | HP Systems Insight Manager SmartStart Redundant ROM Remote Flash ROM Management Agents Integrated Management Log (IML) Automatic Server Recovery-2 (ASR-2) ROM-Based Setup Utility (RBSU) Dynamic Sector Repairing (with Smart Array Controllers) Drive Parameter Tracking (with Smart Array Controllers) Pre-Failure Warranty (covers processors, SCSI/SAS hard drives and memory) Redundant/adaptive load balancing NIC Support Hot Spare Boot NOTE: Upon the event of a failed processor or VRM in a multi-processing environment, the system will automatically reboot and use the remaining good processor(s). |
|
|
|
| Availability |
|
|||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||
| Serviceability |
|
|
|
|
| Security | Power-on password Keyboard password Diskette drive control Diskette boot control Network Server Mode Serial interface control Administrator's password Disk configuration lock Removable Diskette drive (optional) Removable CD-ROM or DVD drive |
|
|
|
| Power Regulator | Power Regulator is a new operating system-independent power management feature of HP ProLiant servers that enables dynamic or static changes in CPU performance and power states. In dynamic power mode, Power Regulator automatically adjusts the server's power usage and performance to match CPU application activity. This improves server energy efficiency by giving CPUs full power for applications when they need it and enabling power savings without performance degradation when application activity is reduced. |
|
|
|
| Power Supply | 910W (low line), 1300W (high
line) with 12V main output. Size is 2.8"(H) X 4.9"(W) X 7.5"(L).
NOTE: One Hot Plug Power Supply ships standard with 1P base models (optional Redundant Hot Plug Power Supply Option Kit). NOTE: Two Hot Plug Power Supplies ship standard with 2P base models. |
|
|
|
| UPS and PDU Power Cord Matrix |
Please see the UPS and PDU cable
matrix that lists cable descriptions, requirements, and specifications for
UPS and PDU units: ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf. |
|
|
|
| System Fans | Standard | 6 Hot plug, redundant fans (individually removable) |
| Maximum | 6 Hot plug, redundant fans (individually removable) | |
|
|
||
| Required Cabling | For required cabling
information, refer to the HP Web site at http://h18000.www1.hp.com/products/servers/proliantDL580/. |
| | |
| OS Support | Windows Server 2003 Microsoft Windows 2000 Red Hat Enterprise Linux SUSE Linux Enterprise Server Novell Netware Sun Solaris Intel Platform Edition VMware Virtualization Software |
| NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos. | |
| NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant DL580, please see: http://www.hp.com/support. | |
| NOTE: For more Linux OS support & certification information, please visit our the ProLiant & Bladesystem Server Linux matrix http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html | |
| NOTE: For more
complete and up-to-date information on how to buy server operating systems
from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html. |
|
|
|
|
| Rack Airflow Requirements | Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors. |
| CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment: | |
|
|
| CAUTION: Always
use blanking panels to fill all remaining empty front panel U-spaces in
the rack. This arrangement ensures proper airflow. Using a rack without
blanking panels results in improper cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: http://www5.HP.com/products/servers/proliantdl580/index.html. |
|
|
|
|
| Rack Mounting Requirements |
HP ProLiant DL580 G3 rack models provide tool-free support for racks
with square or round mounting holes (including Compaq/HP 7000, 9000, 10000,
HP/E series and H9 series) with an adjustment range from 24" - 36"
in depth. The ambidextrous cable management arm can be mounted on either
the left or right side for improved cable management. |
|
|
|
| Factory Express Portfolio for Servers and Storage | HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and storage
products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches. For more information on Factory Express services for your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express. |
|
|
|
| HP Enterprise Configurator |
The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. |
|
|
|
| Service and Support |
This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. NOTE: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack. HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs. To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime. Enhanced Care - Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.
Continuous Care - Recommended service delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.
Total Care - Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services
Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of ProLiant servers - and free customers IT support staff to focus on what they do best, their business.
|
|
NOTE: For a complete listing of service
offerings and information visit: |
|
|
Solutions
| Solutions |
The HP ProLiant DL580 G3 server is an enterprise class, 4-way server designed
for maximum scalability and high availability. It's radically redesigned chassis
offers unsurpassed flexibility and serviceability in a versatile, rack-optimized
form factor. Space-constrained corporate data
centers and service providers
Database, Messaging and Business Applications
Server
Consolidation
For more solutions visit: http://www.hp.com/solutions/proliantdl580. |
|
|
Models
| Serial Attached SCSI (SAS) Models | ||
| DL580R03 X3.00-8MB, 2GB (2P) SAS 391088-001 |
Processor(s) | (2) 64-bit Intel Xeon MP Processors 3.00 GHz (up to 4 supported) |
| Cache Memory | 8MB level 3 cache | |
| Memory | (1) Memory Cartridge (up to
4 supported) 2GB (2 x 1GB) PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
|
| Network Controller | Embedded NC7782 PCI-X Gigabit Server Adapter | |
| Storage Controller | Smart Array P600/256 BBWC Controller | |
| Manageability | Integrated Lights-Out (iLO) Standard Management | |
| Hard Drives | None ship standard | |
| Internal Storage | 1.168TB max (with optional SAS hard drives) | |
| Power Supply | (2) Hot Plug Redundant Power Supplies | |
| Optical Drive | Slimline DVD-ROM Drive (8X/24X) (ejectable) | |
| Diskette Drive | None ship standard (optional Ejectable Slimline Floppy Drive) | |
| Form Factor | Rack 4U | |
|
|
||
| SCSI Models | ||
| DL580R03 X7040
DC, 2GB (2P) 399779-001 | Processor(s) | 2) 64-bit Dual-core Intel Xeon
7040 Processors 3.00 GHz (up to 4 supported) |
| Cache Memory | 2x2MB level 2 cache | |
| Memory | (1)
Memory Cartridge (up to 4 supported) 2GB (2 x 1GB) PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities | |
| Network Controller | Embedded NC7782 PCI-X Gigabit Server Adapter | |
| Storage Controller | Smart Array 6i Controller (Ultra320, integrated on system board) with 128MB Battery Backed Write Cache | |
| Manageability | Integrated Lights-Out (iLO) Standard Management | |
| Hard Drives | None ship standard | |
| Internal Storage | 1.2TB max (with optional U320 Universal Hot Plug hard drives, upgradeable to SAS) | |
| Power Supply | (2) Hot Plug Redundant Power Supplies | |
| Optical Drive | Slimline DVD-ROM Drive (8X/24X) (ejectable) | |
| Diskette Drive | None ship standard (optional Ejectable Slimline Floppy Drive) | |
| Form Factor | Rack 4U | |
| | ||
| DL580R03
3.33 GHz-8MB, 2GB (2P) 364635-001 | Processor(s) | (2) Intel Xeon MP Processors 3.33 GHz (up to 4 supported) |
| Cache Memory | 8MB level 3 cache | |
| Memory | (1)
Memory Cartridge (up to 4 supported) 2GB (2 x 1GB) PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities | |
| Network Controller | Embedded NC7782 PCI-X Gigabit Server Adapter | |
| Storage Controller | Smart Array 6i Controller (Ultra320, integrated on system board) | |
| Manageability | Integrated Lights-Out (iLO) Standard Management | |
| Hard Drives | None ship standard | |
| Internal Storage | 1.2TB max (with optional U320 Universal Hot Plug hard drives, upgradeable to SAS) | |
| Power Supply | (2) Hot Plug Redundant Power Supplies | |
| Optical Drive | Slimline DVD-ROM Drive (8X/24X) (ejectable) | |
| Diskette Drive | None ship standard (optional Ejectable Slimline Floppy Drive) | |
| Form Factor | Rack 4U | |
| | ||
| DL580R03
3.00 GHz-8MB, 2GB (2P) 364634-001 | Processor(s) | (2) Intel Xeon MP Processor 3.00 GHz (up to 4 supported) |
| Cache Memory | 8MB level 3 cache | |
| Memory | (1)
Memory Cartridge (up to 4 supported) 2GB (2 x 1GB) PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities | |
| Network Controller | Embedded NC7782 PCI-X Gigabit Server Adapter | |
| Storage Controller | Smart Array 6i Controller (Ultra320, integrated on system board) | |
| Manageability | Integrated Lights-Out (iLO) Standard Management | |
| Hard Drives | None ship standard | |
| Internal Storage | 1.2TB max (with optional U320 Universal Hot Plug hard drives, upgradeable to SAS) | |
| Power Supply | (2) Hot Plug Redundant Power Supplies | |
| Optical Drive | Slimline DVD-ROM Drive (8X/24X) (ejectable) | |
| Diskette Drive | None ship standard (optional Ejectable Slimline Floppy Drive) | |
| Form Factor | Rack 4U | |
| | ||
| DL580R03
X7020 DC, 1GB (1P) 399778-001 | Processor(s) | (1) 64-bit Dual-core Intel Xeon
7020 Processor 2.66 GHz (up to 4 supported) |
| Cache Memory | 2x1MB level 2 cache | |
| Memory | (1)
Memory Cartridge (up to 4 supported) 1 GB (2 x 512 MB) PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities | |
| Network Controller | Embedded NC7782 PCI-X Gigabit Server Adapter | |
| Storage Controller | Smart Array 6i Controller (Ultra320, integrated on system board) | |
| Manageability | Integrated Lights-Out (iLO) Standard Management | |
| Hard Drives | None ship standard | |
| Internal Storage | 1.2TB max (with optional U320 Universal Hot Plug hard drives, upgradeable to SAS) | |
| Power Supply | (1) Hot Plug Redundant Power Supply | |
| Optical Drive | Slimline DVD-ROM Drive (8X/24X) (ejectable) | |
| Diskette Drive | None ship standard (optional Ejectable Slimline Floppy Drive) | |
| Form Factor | Rack 4U | |
| | ||
| DL580R03
2.83 GHz-4MB 1GB (1P) 364633-001 | Processor(s) | (1) Intel Xeon MP Processor 2.83 GHz (up to 4 supported) |
| Cache Memory | 4MB level 3 cache | |
| Memory | (1)
Memory Cartridge (up to 4 supported) 1 GB (2 x 512 MB) PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities | |
| Network Controller | Embedded NC7782 PCI-X Gigabit Server Adapter | |
| Storage Controller | Smart Array 6i Controller (Ultra320, integrated on system board) | |
| Manageability | Integrated Lights-Out (iLO) Standard Management | |
| Hard Drives | None ship standard | |
| Internal Storage | 1.2TB max (with optional U320 Universal Hot Plug hard drives, upgradeable to SAS) | |
| Power Supply | (1) Hot Plug Redundant Power Supply | |
| Optical Drive | Slimline DVD-ROM Drive (8X/24X) (ejectable) | |
| Diskette Drive | None ship standard (optional Ejectable Slimline Floppy Drive) | |
| Form Factor | Rack 4U | |
| | ||
| DL580R03
3.66 GHz-1MB 1GB (1P) 385999-001 | Processor(s) | (1) Intel Xeon MP Processors 3.66 GHz (up to 4 supported) |
| Cache Memory | 1MB level 2 cache | |
| Memory | (1)
Memory Cartridge (up to 4 supported) 1 GB (2 x 512 MB) PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities | |
| Network Controller | Embedded NC7782 PCI-X Gigabit Server Adapter | |
| Storage Controller | Smart Array 6i Controller (Ultra320, integrated on system board) | |
| Manageability | Integrated Lights-Out (iLO) Standard Management | |
| Hard Drives | None ship standard | |
| Internal Storage | 1.2TB max (with optional U320 Universal Hot Plug hard drives, upgradeable to SAS) | |
| Power Supply | (1) Hot Plug Power Supply | |
| Optical Drive | Slimline DVD-ROM Drive (8X/24X) (ejectable) | |
| Diskette Drive | None ship standard (optional Ejectable Slimline Floppy Drive) | |
| Form Factor | Rack 4U | |
| | ||
| DL580R03 3.16
GHz-1MB 1GB (1P) 377239-001 |
Processor(s) | (1) Intel Xeon MP Processors 3.16 GHz (up to 4 supported) |
| Cache Memory | 1MB level 2 cache | |
| Memory | (1) Memory Cartridge (up to
4 supported) 1 GB (2 x 512 MB) PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
|
| Network Controller | Embedded NC7782 PCI-X Gigabit Server Adapter | |
| Storage Controller | Smart Array 6i Controller (Ultra320, integrated on system board) | |
| Manageability | Integrated Lights-Out (iLO) Standard Management | |
| Hard Drives | None ship standard | |
| Internal Storage | 1.2TB max (with optional U320 Universal Hot Plug hard drives, upgradeable to SAS) | |
| Power Supply | (1) Hot Plug Power Supply | |
| Optical Drive | Slimline DVD-ROM Drive (8X/24X) (ejectable) | |
| Diskette Drive | None ship standard (optional Ejectable Slimline Floppy Drive) | |
| Form Factor | Rack 4U |
|
|
Configuration Information - Factory Integrated Models
| NOTE:
HP does not allow factory integration of options into standard models
listed above. Configure-to-order servers must start with a CTO Chassis. NOTE: This product offering does not support HP Factory Express Server Configuration Level 1. NOTE: FIO indicates that this option only available as a Factory Installable Option. |
|||
| Step 1: Base Configuration | |||
| Models | HP ProLiant DL580 G3 Highly Serviceable Rack Chassis |
364636-405
|
|
| Factory Integrated Model ships with: | |||
| Embedded NC7782 PCI-X Gigabit Server Adapter | |||
| Ultra320 Smart Array 6i Controller (integrated on system board) | |||
| Five Standard 64-bit non-hot plug PCI-X slots (3 x 133MHz, 2 x 100MHz) | |||
| One (1) Hot Plug Power Supply with one (1) low line NEMA power cord and One high-line IEC power cord | |||
| Six (1) Redundant Hot Plug Fans | |||
| Wide Ultra3/U320 Duplex Drive Cage (can be Simplex configured) | |||
| Integrated Lights-Out (iLO) Standard Management | |||
| Rack (4U), 7-inch | |||
|
|
|||
| Step 2: Choose Required Options (only one of the following from each list unless otherwise noted) | |||
| Processors | 64-bit Dual-core
Intel® Xeon™ 7040 (3.00GHz, 2x2M L2) 580 G3 FIO NOTE: If more than one processor is desired, additional processor selections would be 399889-B21. If High Performance Pack features are desired, select 404082-001 and any desired additional processors. |
399889-L22
|
|
| 64-bit Dual-core
Intel® Xeon™ 7020 (2.66GHz, 2x1M L2) 580 G3 FIO NOTE: If more than one processor is desired, additional processor selections would be 399888-B21. |
399888-L22
|
||
| 64-bit Intel® Xeon™
3.33-8M 580 G3 FIO NOTE: If more than one processor is desired, additional processor selections would be 348111-B21. If High Performance Pack features are desired, select 391717-001 and any desired additional processors. |
348111-L22
|
||
| 64-bit Intel® Xeon™
3.00-8M 580 G3 FIO NOTE: If more than one processor is desired, additional processor selections would be 348110-B21. If High Performance Pack features are desired, select 391718-001(U320) or 393768-001(SAS) and any desired additional processors. |
348110-L22
|
||
| 64-bit Intel® Xeon™
2.83-4M 580 G3 FIO NOTE: If more than one processor is desired, additional processor selections would be 348109-B21. |
348109-L22
|
||
| 64-bit Intel® Xeon™
3.66-1M 580 G3 FIO NOTE: If more than one processor is desired, additional processor selections would be 385903-B21. |
385903-L22
|
||
| 64-bit Intel® Xeon™
3.16-1M 580 G3 FIO NOTE: If more than one processor is desired, additional processor selections would be 375369-B21. |
375369-L22
|
||
| Base Memory | 8 GB (2 x 4 GB 2RANK)
PC2-3200R 400MHz DDR2 Option Kit NOTE: Requires baffled Memory Board Replacement Cover - included in kit. |
404122-B21
|
|
| 4 GB (2 x 2 GB 2RANK)
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities NOTE: If 2GB DIMM's are desired, 2GB 2RANK DIMM's are recommended with the HP ProLiant DL580 G3. However, 2GB 1RANK DIMM's are also supported for commonality with other HP ProLiant servers. |
375004-B21
|
||
| 4 GB (2 x 2 GB 1RANK)
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities.
NOTE: If 2GB DIMM's are desired, 2GB 2RANK DIMM's are recommended with the HP ProLiant DL580 G3. However, 2GB 1RANK DIMM's are also supported for commonality with other HP ProLiant servers. |
343057-B21
|
||
| 2 GB (2 x 1 GB 1RANK) PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
343056-B21
|
||
| 1 GB (2 x 512 MB 1RANK) PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
343055-B21
|
||
| Optical Drive | Slimline CD-RW/DVD-ROM 24X Combo Drive Option Kit (Servers) |
331903-B21
|
|
| Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers) |
264007-B21
|
||
| HP DVD+R/RW 8X Slim |
383975-B21
|
||
|
|
|||
| Step 3: Choose Additional Factory Integratable Options | |||
| High Performance Model Options |
The HP ProLiant DL580 G3 Performance Packs include the latest performance technologies
and enterprise class availability features pre-installed for convenience and value.
In addition to the standard features listed in Step 1, the Performance Packs include
the following:
|
||
| DL580G3 X7040 (3.00 GHz, 2x2MB L2 Cache) HPM Performance Pack |
404082-001 | ||
| DL580G3 X3.33 GHz/667-8MB HPM Performance Pack |
391717-001 | ||
| DL580G3 X3.00 GHz/667-8MB HPM Performance Pack |
391718-001 | ||
| DL580G3 X3.00 GHz/667-8MB
HPM SAS Performance Pack NOTE: 8-Bay SAS/SATA Cage (379090-B21) not included but is required, please include in order. SAS Performance pack includes the Smart Array P600/256 BBWC Controller. |
393768-001 | ||
| SAS Options | 8-Bay SAS/SATA
Cage Option Kit NOTE: Required to configure all SAS models. NOTE: May be ordered with a SAS/SATA Controller such as the Smart Array P600/256 BBWC Controller and the desired quantity of SFF SAS Universal Hard Drives/SFF SATA hard drives OR may be ordered with one of the following SAS Starter Kits. |
379090-B21 | |
| SAS
Starter Kit - 36 GB NOTE: Includes Smart Array P600/256 BBWC Controller and (2) 36GB SFF SAS Universal Hard Drives. |
396221-B21 | ||
| SAS
Starter Kit - 72 GB NOTE: Includes Smart Array P600/256 BBWC Controller and (2) 72GB SFF SAS Universal Hard Drives. |
396220-B21 | ||
|
| |||
| Step 4: Choose Additional Options for Factory Integration |
| NOTE: For additional options, please refer to the "Options" section below. |
|
|
Options
| NOTE: Some options may not be integrated at the factory. Contact your local sales representative for additional information. | |||
| ProLiant DL580 Unique Options | Hot Plug 64-bit/133MHz
PCI-X Mezzanine Option NOTE: Adds two Hot Plug PCI-X slots. |
377520-B21
|
|
| PCI Express X4 Mezzanine
Option NOTE: Adds two PCI Express (X4) I/O slots. Each slot will accept PCI Express cards with X1 through X8 connectors and utilize X4 lanes. |
377522-B21
|
||
| PCI Express X8 Mezzanine
Option NOTE: Adds one PCI Express (X8) I/O slot. The slot will accept PCI Express Cards with X1 through X8 connectors and utilize X8 lanes. |
389876-B21
|
||
| DL580 G3 Memory Board NOTE: The HP ProLiant DL580 G3 utilizes up to four Memory Boards that support up to four DIMMs each. These memory boards are Front accessible providing unsurpassed levels of memory protection as well as scalability for the most memory-intensive applications. See Memory Configuration Diagram. NOTE: One Memory Board ships standard with all models. |
364639-B21
|
||
|
|
|||
| ProLiant
Essentials Value Pack Software |
ProLiant Essentials Intelligent Networking Pack | ||
| ProLiant Essentials
Intelligent Networking Pack - Windows Edition, Single Server License NOTE: For use with a single server. Contains one license with a unique license activation key and documentation. |
436225-B21
|
||
| NOTE: For additional ProLiant Intelligent Networking Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12062_na/12062_na.HTML | |||
| ProLiant Essentials Intelligent Networking Pack - Linux Edition, Single Server License |
436229-B21
|
||
| NOTE:
For additional ProLiant Intelligent Networking Pack - Linux License Kits
please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12327_na/12327_na.HTML |
|||
| ProLiant Essentials Rapid Deployment Pack Windows Edition and Linux Edition Release | |||
| Rapid Deployment
Pack, Single-Server License NOTE: This license allows 1 server to be deployed and managed via RDP. |
267196-B21
|
||
| ProLiant Essentials Rapid Deployment Pack - Physical Media Kit |
434559-B21
|
||
| ProLiant Essentials Rapid Deployment Pack Flatpack - single-server license |
434560-B21
|
||
| NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.HTML | |||
| ProLiant Essentials Workload Management Pack | |||
| ProLiant Essentials Workload Management Pack, Single Server License |
303284-B21
|
||
| NOTE: For additional ProLiant Workload Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11452_na/11452_na.HTML | |||
| ProLiant Essentials Virtualization Management Software | |||
| ProLiant Essentials
Virtual Machine Management Pack, Single-Server License NOTE: For use with a single server. Contains one license with a unique license activation key and documentation. |
435661-B21
|
||
| ProLiant Essentials
Server Migration Pack, Single-Migration License NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation. NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005. |
435663-B21
|
||
| HP ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition. 1 Year Unlimited Migration License |
412982-B21
|
||
| ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition, Single-Migration License |
412978-B21
|
||
| NOTE: For additional ProLiant Essentials Virtualization Management Software License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_na/12328_na.HTML | |||
| ProLiant Essentials Vulnerability and Patch Management Pack | |||
| ProLiant Essentials
Vulnerability and Patch Management Pack, Single-Server License NOTE: For use with a single server. Contains one license with a unique license activation key and documentation. |
371645-B21
|
||
| NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12111_na/12111_na.HTML | |||
| NOTE:
Flexible and volume quantity license kits are available for ProLiant
Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials. |
|||
|
|
|||
| Remote Management | Integrated Lights-Out Advanced Pack | ||
| Integrated Lights-Out
Advanced Pack, 1 server Featuring: Sophisticated virtual administration features for ultimate control of servers in the data centers and remote sites. |
263825-B21
|
||
| NOTE: For additional Integrated Light-Out Advanced Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11052_na/11052_na.HTML | |||
|
|
|||
| Processor | Dual-core Intel Xeon 7040 (3.00GHz-2x2MB)
Processor Option Kit NOTE: This processor option kit (PN 399889-B21) supports the HP ProLiant ML570 G3 and the HP ProLiant DL580 G3. |
399889-B21 |
| Dual-core Intel Xeon 7020 (2.66GHz-2x1MB)
Processor Option Kit NOTE: This processor option kit (PN 399888-B21) supports the HP ProLiant ML570 G3 and the HP ProLiant DL580 G3. |
399888-B21 | |
| HP DL580 G3 DC Processor Blank
Kit NOTE: This kit contains 3 processor blanks. These blanks are required only when a HP ProLiant DL580 G3 server is being upgraded and will be populated with less than 4 Dual-core processors. |
407556-B21 | |
| Intel Xeon MP X3.33 GHz-8MB Processor Option Kit | 348111-B21 | |
| Intel Xeon MP X3.00 GHz-8MB Processor Option Kit |
348110-B21
|
|
| Intel Xeon MP X2.83 GHz-4MB Processor Option Kit |
348109-B21
|
|
| Intel Xeon MP X3.66 GHz-1MB Processor Option Kit |
385903-B21
|
|
| Intel Xeon MP X3.16 GHz-1MB Processor Option Kit |
375369-B21
|
|
|
|
||
|
Memory (DIMMs) |
8 GB (2 x 4 GB 2RANK) PC2-3200R
400MHz DDR2 Option Kit NOTE: Requires baffled Memory Board Replacement Cover - included in kit. |
404122-B21
|
| 4 GB (2 x 2 GB 2RANK) PC2-3200R
400MHz DDR2 Option Kit NOTE: With Advanced ECC and online spare memory capabilities. 2GB 2RANK DIMM's are recommended with the HP ProLiant DL580 G3. However, 2GB 1RANK DIMM's are also supported for commonality with other HP ProLiant servers. |
375004-B21
|
|
| 4 GB (2 x 2 GB 1RANK) PC2-3200R
400MHz DDR2 Option Kit NOTE: With Advanced ECC and online spare memory capabilities. |
343057-B21
|
|
| 2 GB (2 x 1 GB 1RANK) PC2-3200R
400MHz DDR2 Option Kit NOTE: With Advanced ECC and online spare memory capabilities. |
343056-B21
|
|
| 1 GB (2 x 512 MB 1RANK) PC2-3200R
400MHz DDR2 Option Kit NOTE: With Advanced ECC and online spare memory capabilities. |
343055-B21
|
|
| DL580 G3 Memory Board NOTE: The HP ProLiant DL580 G3 utilizes up to four Memory Boards that support up to four DIMMs each. These memory boards are Front accessible providing unsurpassed levels of memory protection as well as scalability for the most memory-intensive applications. See Memory Configuration Diagram. NOTE: One Memory Board ships standard with all models. |
364639-B21
|
|
|
|
||
| Diskette Drive | Slimline Floppy Diskette Drive
Option Kit NOTE: Ejectable drive. |
390164-B21
|
|
|
||
| Optical Drives | Slimline CD-RW/DVD-ROM Combo Drive
Option Kit NOTE: Ejectable drive. |
331903-B21
|
| Slimline DVD-ROM Drive (8X/24X)
Option Kit NOTE: Ejectable drive. |
264007-B21 | |
| HP
DVD+R/RW 8X Slim
NOTE: Ejectable drive |
383975-B21 | |
|
|
||
| SAS Drive Cage | 8-Bay SAS/SATA Cage Option Kit NOTE: The SAS/SATA Cage can be used in conjunction with a SAS/SATA Controller such as the Smart Array P600/256 BBWC Controller to upgrade all U320 models to SAS. The SAS Model ships standard with these items. |
379090-B21
|
|
|
||
| Hard Drives | Ultra320 SCSI - Universal Hot Plug | |
| HP 300GB U320 10K Universal HDD |
350964-B22
|
|
| HP 146GB U320 10K Universal HDD |
286716-B22
|
|
| HP 72GB U320 10K Universal HDD |
286714-B22
|
|
| HP 300GB U320 15K Universal HDD |
411089-B22
|
|
| HP 146GB U320 15K Universal HDD |
347708-B22
|
|
| HP 72GB U320 15K Universal HDD |
286778-B22
|
|
| HP 36GB U320 15K Universal HDD |
286776-B22
|
|
| NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. | ||
| NOTE: Please see
the Hard Drive QuickSpecs for Technical Specifications such as capacity,
height, width, interface, transfer rate, seek time, physical configuration,
and operating temperature: http://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.HTML |
||
| SFF SAS Hot Plug | ||
| HP 146GB 3G SAS 10K SFF SP HDD |
431958-B21
|
|
| HP 72GB 3G SAS 10K SFF SP HDD |
375861-B21
|
|
| HP 72GB 3G SAS 15K SFF SP HDD |
431935-B21
|
|
| HP 36GB 3G SAS 10K SFF SP HDD |
375859-B21
|
|
| HP 36GB 3G SAS 15K SFF SP HDD |
431933-B21
|
|
| NOTE: Please see
the SAS Hard Drive QuickSpecs for Technical Specifications such as capacity,
height, width, interface, transfer rate, seek time, physical configuration,
and operating temperature: http://h18000.www1.hp.com/products/quickspecs/12224_na/12224_na.HTML |
||
| SFF SATA Hot Plug | ||
| HP 60GB 1.5G SATA 5.4K SFF HDD |
379306-B21 |
|
| NOTE: SATA drives
have a 1 year warranty. Please see the SATA Hard Drive QuickSpecs for Technical
Specifications such as capacity, height, width, interface, transfer rate,
seek time, physical configuration, and operating temperature: http://h18000.www1.hp.com/products/quickspecs/11940_na/11940_na.HTML |
||
|
|
||
| Storage Controllers | SAS Controllers | |
| Smart Array P600 Controller | ||
| HP Smart Array P600/256 BBWC Controller NOTE: The Smart Array P600 Controller supports internal and external Serial Attached SCSI and Serial ATA drives. It is supported in all HP ProLiant DL580 G3 Models. Ships standard on SAS Model. NOTE: Internal usage of the Smart Array P600 Controller requires the 8-Bay SAS/SATA Drive Cage Option Kit. Ships standard on SAS Model. |
337972-B21
|
|
| 512MB DDR BBWC Upgrade |
372538-B21
|
|
| NOTE:
Please see the following QuickSpecs for Technical Specifications and additional
information: http://h18000.www1.hp.com/products/quickspecs/12247_na/12247_na.HTML (Smart Array P600 Controller) |
||
| SAS HBA | ||
| HP SC44Ge Host Bus Adapter |
416096-B21
|
|
| HP 8 Internal Port SAS HBA with RAID |
347786-B21
|
|
| NOTE: Please see
the following QuickSpecs for additional information: http://h18004.www1.hp.com/products/quickspecs/12617_na/12617_na.html (SC44Ge HBA) http://h18004.www1.hp.com/products/quickspecs/12332_na/12332_na.html (SAS HBA) |
||
| SCSI Controllers | ||
| 128MB Battery-Backed Write Cache
with Battery Housing NOTE: This Battery-Backed Write Cache Enabler Option Kit is for the integrated Smart Array 6i Controller. This BBWC ships standard on 2P Model with 3.33GHz/8MB processors. |
346914-B21
|
|
| Smart Array 6402/128 Controller |
273915-B21
|
|
| Smart Array 6404/256 Controller | 273914-B21 | |
| Smart Array 641 Controller |
291966-B21
|
|
| Smart Array 642 Controller |
291967-B21
|
|
| 128MB
Battery-Backed Cache Enabler NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller. |
351580-B21
|
|
| DL580
G3 Cable Assembly, SCSI, Ultra3, LVDS NOTE: All HP ProLiant DL580 G3 models ship standard with the integrated Smart Array 6i Controller, which has been designed to deliver maximum performance and availability across the internal SCSI Duplex backplane. |
288874-B21
|
|
|
||
| The backplane is easily configured to simplex mode by means of a simple switch duplex to simplex) located on the top of the backplane itself. | ||
| Ultra320 Expansion Module for
SA-6402 |
273911-B21
|
|
| 64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2 | 374654-B21 | |
| NOTE: Please see
the following QuickSpecs for Technical Specifications and additional information: http://h18000.www.1.hp.com/products/quickspecs/12030_na/12030_na.HTML (Smart Array 6i) http://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.HTML (Smart Array 6400 Series) http://h18000.www1.hp.com/products/quickspecs/12067_na/12067_na.HTML (Smart Array 641) http://h18000.www1.hp.com/products/quickspecs/12069_na/12069_na.HTML (Smart Array 642) http://h18000.www1.hp.com/products/quickspecs/11943_na/11943_na.HTML (Single Channel U320 SCSI G2 HBA) |
||
|
|
||
|
Communications |
HP NC110T PCI Express Gigabit Server Adapter |
434905-B21
|
| HP NC150T PCI 4-port Gigabit 1000T
Combo Switch Adapter |
367132-B21
|
|
| HP NC310F PCI-X 1000SX Gigabit Server Adapter |
368169-B21
|
|
| HP NC340T PCI-X 4-port 1000T Gigabit Server Adapter |
391661-B21
|
|
| HP NC360T PCI Express Dual Port Gigabit Server Adapter |
412648-B21
|
|
| HP NC373F PCI Express Multifunction Gigabit Server Adapter |
394793-B21
|
|
| HP NC373T PCI Express Multifunction Gigabit Server Adapter |
394791-B21
|
|
| HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter |
394795-B21
|
|
| HP NC510F PCIe 10 Gigabit Server
Adapter NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510F adapter. |
414126-B21
|
|
| HP NC510C PCIe 10 Gigabit Server
Adapter NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510C adapter. |
414129-B21
|
|
| HP NC7771 PCI-X 1000T Gigabit Server Adapter |
290563-B21
|
|
|
|
||
| Redundant Options | 910W (low line), 1300W (high
line) Hot Plug Redundant Power Supply NOTE: Includes Nema 5-15P to IEC320-C19. |
348114-001
|
| 910W (low line), 1300W (high line)
Hot Plug Redundant Power Supply NOTE: Includes C14 to C19 IEC cable. |
348114-B21
|
|
|
|
||
|
Tape Drives |
| ||||||||||||||||||||||||||||
| | |||||||||||||||||||||||||||||
| Tape Autoloaders |
HP StorageWorks DAT Autoloader | |
| HP StorageWorks DAT 72x10 tape autoloader | AE313A | |
| HP StorageWorks 1/8 Tape Autoloader | ||
| HP StorageWorks 1/8 Ultrium 920 G2 Tape Autoloader | AH165A | |
| HP StorageWorks 1/8 Ultrium 448 G2 Tape Autoloader | AH164A | |
| HP StorageWorks 1/8 Ultrium 232 G2 Tape Autoloader | AH163A | |
| HP StorageWorks 1/8 G2 Tape Autoloader
Rack Kit NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions |
AH166A | |
| NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs | ||
|
|
||
|
Tape Libraries |
HP StorageWorks MSL2024 Tape Library | |
| HP StorageWorks MSL2024 1 Ultrium 960 Drive Library | AG115A | |
| HP StorageWorks MSL2024 1 Ultrium 960 4GB FC Drive Library | AG326B | |
| HP StorageWorks MSL2024 1 Ultrium 920 Drive Library | AH169A | |
| HP StorageWorks MSL2024 2 Ultrium 920 Drive Library | AH170A | |
| HP StorageWorks MSL2024 1 Ultrium 448 Drive Library | AG116A | |
| HP StorageWorks MSL2024 2 Ultrium 448 Drive Library | AG117A | |
| HP StorageWorks MSL4048 Tape Library | ||
| HP StorageWorks MSL4048 1 Ultrium 448 Drive Library |
AG320A
|
|
| HP StorageWorks MSL4048 2 Ultrium 448 Drive Library |
AG321A
|
|
| HP StorageWorks MSL4048 1 Ultrium 920 Drive Library | AH171A | |
| HP StorageWorks MSL4048 2 Ultrium 920 Drive Library | AH172A | |
| HP StorageWorks MSL4048 1 Ultrium 960 Drive Library |
AG322A
|
|
| HP StorageWorks MSL4048 1 Ultrium 960 4GB FC Drive Library | AG324B | |
| HP StorageWorks MSL4048 2 Ultrium 960 Drive Library |
AG323A
|
|
| HP StorageWorks MSL4048 2 Ultrium 960 4GB FC Drive Library | AG325B | |
| HP StorageWorks MSL6000 Tape Library | ||
| Ultrium 960 technology | ||
| HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library | AD606B | |
| HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library | AD608B | |
| HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library | AD607B | |
| HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library | AD609B | |
| Ultrium 460 technology | ||
| HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library | AD598B | |
| HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library | AD600B | |
| HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library | AD599B | |
| HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library | AD601B | |
| NOTE: Please reference the MSL2024, MSL4048 and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs. | ||
|
|
||
|
HP Data Protector Express Software | HP
DP Express Backup Server Upgrade for ProLiant Software |
BB117AP |
| HP DP Express Package for Microsoft Small Business Server | BB118AA | |
NOTE: Please
see the HP Data Protector Express QuickSpecs for additional information regarding
the purchase of HP Data Protector Express software: NOTE: To obtain a free licensed copy of HP Data Protector Express for ProLiant edition software, please visit the "Protect Your Data" link accessible from your ProLiant server's System Management Homepage (SMH) software (SmartStart 7.5 or later). | ||
| | ||
|
Cluster Options |
ProLiant Cluster Starter Kit |
364023-B22
|
| NOTE: For additional
information regarding the ProLiant Cluster Starter Kit please see the following
QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11935_na/11935_na.html |
||
| HP HA/F200 for Entry SAN Cluster |
364026-B22 |
|
| NOTE: For additional
information regarding the ProLiant Cluster for Entry Level SAN please see
the following QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11932_na/11932_na.html |
||
| ProLiant Cluster HA/F500 for the Enterprise SAN | 364024-B21 | |
| NOTE: For additional
information regarding the ProLiant Cluster HA/F500 for Enterprise SAN please
see the following QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11933_na/11933_na.html |
||
| HP Serviceguard for Linux ProLiant
Cluster A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (2 node
license cluster kit) |
305199-B26 | |
| HP Serviceguard for Linux A.11.16
for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (single license version)
|
307754-B26 | |
| HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription | T2798AA#001 | |
| HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription | T2798AA#003 | |
| NOTE: For additional
information regarding the HP Serviceguard for Linux License, please see
the following QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11518_na/11518_na.html NOTE: For configuration/certification options for the HP Parallel Database Cluster for Oracle RAC please go to: http://www.hp.com/solutions/highavailability/oracle |
||
|
|
||
|
HP StorageWorks Modular Smart Array 20 | HP
StorageWorks Modular Smart Array 20 NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. | 335921-B21 |
| HP StorageWorks Modular Smart
Array 20 Starter Kit NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. Includes Smart Array 6402/128 Controller. | 366172-B21 | |
| NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 3.5” Hot Plug Hard Drives. | ||
| | ||
| HP StorageWorks Modular Smart Array 30 | HP
StorageWorks Modular Smart Array 30 SB NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies | 302969-B21 |
| HP StorageWorks Modular Smart
Array 30 DB NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies | 302970-B21 | |
| NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 Hot Plug Hard Drives. | ||
| | ||
|
HP StorageWorks Modular Smart Array 50 |
HP StorageWorks Modular Smart
Array 50 Enclosure |
364430-B21
|
| NOTE: Please see
the Modular Smart Array 50 QuickSpecs for additional options and configuration
information at http://h18000.www1.hp.com/products/quickspecs/12245_na/12245_na.HTML |
||
|
|
||
|
HP StorageWorks Modular Smart Array 500 |
HP StorageWorks Modular Smart Array 500 Generation 2 |
335880-B21
|
| NOTE: Please see
the Modular Smart Array 500 Generation 2 QuickSpecs for additional information
including configuration steps and additional options needed for a complete
solution at: http://h18000.www1.hp.com/products/quickspecs/11956_na/11956_na.HTML |
||
|
|
||
|
HP StorageWorks Modular Smart Array 1000 |
HP StorageWorks Modular Smart Array 1000 |
201723-B22 |
| NOTE:
Please see the Modular Smart Array 1000 QuickSpecs for additional options
and configuration information at: http://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML | ||
| | ||
|
HP StorageWorks Modular Smart Array 1500 cs |
Modular Smart Array 1500 Controller Shelf |
AA986A |
| NOTE: Please see
the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options
and configuration information at: http://www.hp.com/go/MSA1500cs |
||
|
|
||
|
StorageWorks |
NOTE: For the complete listing of Fibre Channel Host Bus Adapters for Windows 2000, Windows Server 2003 and Linux, please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html | |
| HP StorageWorks FC2142SR 4Gb PCI-e HBA |
A8002A
|
|
| HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e HBA |
A8003A
|
|
| HP StorageWorks FC1142SR 4Gb PCI-e HBA |
AE311A
|
|
| HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBA |
AE312A
|
|
| HP StorageWorks FC2143 4Gb PCI-X 2.0 -to-Fibre Channel HBA |
AD167A
|
|
| HP StorageWorks FC2243 Dual Channel 4Gb PCI-X 2.0 HBA |
AD168A
|
|
| HP StorageWorks FC1143 4Gb PCI-X 2.0 HBA |
AB429A
|
|
| HP StorageWorks FC1243 Dual Channel 4Gb PCI-X 2.0 HBA |
AE369A
|
|
|
|
||
|
Uninterruptible Power Systems – Rack |
HP, R1.5kVA UPS, 1U |
AF419A
|
| HP R3000 VA UPS, 2U, L5-30 NOTE: Replaces non-RoHs compliant part number 192186-001. |
AF422A | |
| HP R3000 VA UPS, 2U, L6-20 NOTE: Replaces non-RoHs compliant part number 192186-002. |
AF423A | |
| HP R5500 VA UPS NOTE: Replaces non-RoHs compliant part number 326529-D71. |
AF426A
|
|
|
|
||
| HP Monitored Power Distribution Unit (PDU) | HP Monitored Power Distribution Unit: Full Rack Version | |
| HP 17.3 kVA S2324 Monitored PDU-
dual input, 3U, 24A NOTE: Replaces non-RoHs compliant part number 370959-D71. |
AF503A
|
|
| HP 8.3 kVA S1324 Monitored PDU-
single input, 3U, 24A NOTE: Replaces non-RoHs compliant part number 370960-D71. |
AF504A
|
|
| HP 16.6 kVA S2140 Monitored PDU-
dual input, 1U, 40A NOTE: Replaces non-RoHs compliant part number 37061-D71. |
AF505A
|
|
| HP 8.6 S1140 Monitored PDU- single
input, 1U, 40A NOTE: Replaces non-RoHs compliant part number 370962-D71. |
AF506A
|
|
| HP Monitored Power Distribution Unit: Half Rack Version | ||
| HP 17.3 kVA S348 Monitored PDU- single input, 3-phase, 60A |
AF916A
|
|
| HP 4.9kVA S124 Monitored PDU-
single input, 1U, 24A |
AF914A
|
|
|
|
||
|
Modular Power Distribution Units 1U/0U
|
3.6kVA Model - mPDU, 16A, High
|
252663-B24
|
| 2.8 kVA Model - mPDU, 24A, Low |
252663-D71
|
|
| 4.9kVA Model - mPDU, 24A, High
|
252663-D72
|
|
| 8.3kVA Model - mPDU, 40A, High
|
252663-B21
|
|
| 8.3kVA
Model - mPDU, 40A, High (power cord attached) |
252663-D73
|
|
| 8.3kVA Model - mPDU 40A, High
(core only) |
252663-D75
|
|
| 4.9kVA Model - mPDU 24A, High (core only) |
252663-D74
|
|
| NOTE: Please see
the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs
for additional options including cables: http://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.HTML |
||
|
|
||
| USB Options | USB 2-Button Optical Scroll Mouse (Carbonite/Silver) |
DC172B
|
| HP USB 04 Standard Keyboard | DT528A#xxx | |
| USB 2.0 4-port HUB | DG954A | |
| HP 1GB Drive Key II- USB 2.0 Flash Drive | AG382AA | |
| HP 512MB DriveKey II- USB Flash Drive | ED516AA | |
|
|
||
| HP Rack 5000 Series (Graphite Metallic) | HP
5642 Rack-Unassembled NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color: http://h18000.www1.hp.com/products/quickspecs/12074_na/12074_na.HTML NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower. |
358254-B21 |
|
| ||
|
HP Rack 10000 G2 Series |
10642 G2 (42U) Rack Cabinet - Pallet |
AF001A
|
| 10642 G2 (42U) Rack Cabinet - Shock Pallet |
AF002A
|
|
| 10642 G2 (42U) Rack Cabinet - Crated |
AF003A
|
|
| 10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet |
AF004A
|
|
| 10636 G2 (36U) Rack Cabinet - Pallet |
AF011A
|
|
| 10636 G2 (36U) Rack Cabinet - Shock Pallet |
AF012A
|
|
| 10636 G2 (36U) Rack Cabinet - Crated |
AF013A
|
|
| 10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet |
AF014A
|
|
| 10622 G2 (22U) Rack Cabinet -
Pallet |
AF021A
|
|
| 10622 G2 (22U) Rack Cabinet -
Shock Pallet |
AF022A
|
|
| 10842 G2 (42U) 800mm Wide Rack
Cabinet - Pallet |
AF041A
|
|
| 10842 G2 (42U) 800mm Wide Rack
Cabinet - Shock Pallet |
AF042A
|
|
| 10647 G2 (47U) Rack Cabinet - Pallet |
AF031A
|
|
| NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed. | ||
| NOTE: Please see
the Rack 10000 G2 QuickSpecs for Technical Specifications such as height,
width, depth, weight, and color: http://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.HTML |
||
| NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower. | ||
|
|
||
|
HP Rack 10000 Series |
10642 (42U) Infrastructure Rack (Low Voltage) |
379006-001
|
| 10642 (42U) Infrastructure Rack (High Voltage) |
379005-001
|
|
| HP Rack S10614 (14U) Rack Cabinet – Shock Pallet |
292302-B22
|
|
|
HP Rack 10842 (42U, 800mm wide) – Pallet |
257415-B21 |
|
|
HP Rack 10842 (42U, 800mm wide) – Shock Pallet |
257415-B22 |
|
|
HP Rack 10647 (47U) – Pallet |
245160-B21 |
|
|
HP Rack 10647 (47U) – Crated |
245160-B23 |
|
|
HP Rack 10622 (22U) – Pallet |
245163-B21 |
|
|
HP Rack 10622 (22U) – Shock Pallet |
245163-B22 |
|
|
HP Rack 10622 (22U) – Crated |
245163-B23 |
|
|
NOTE: xxxxxx-B21 (pallet) used to ship empty racks shipped on a truck. -B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty racks. |
|
|
|
NOTE: Please see the Rack 10000 QuickSpecs
for Technical Specifications such as height, width, depth, weight, and
color: |
|
|
|
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower. |
|
|
|
|
||
|
Keyboards and Monitors |
TFT7210R Rack Mounted 17" Monitor |
348373-B21
|
| TFT7600 Rackmount Keyboard Monitor |
AG052A
|
|
| 1U Rackmount Keyboard with USB |
AG072A
|
|
| NOTE: For additional information regarding Rack Options, please see the following URL: http://www.hp.com/go/rackandpower. | ||
|
|
||
| HP KVM Switch Options | 2x1x16 IP Console Switch with Virtual Media |
AF601A
|
| 4x1x16 IP Console Switch with Virtual Media |
AF602A
|
|
| 2x16 Server Console Switch with Virtual Media |
AF600A
|
|
| PS/2 Virtual Media Interface Adapter,
1 pack NOTE: Requires PS/2 and one USB port on server. |
AF604A
|
|
| Server Console Switch (KVM), 0 x 1 x 8 port |
336044-B21
|
|
| Server Console Switch (KVM), 0 x 2 x 16 port |
336045-B21
|
|
| PS/2 Interface Adapter, 1 pack |
262588-B21
|
|
| PS/2 Interface Adapter, 8 pack |
262587-B21
|
|
| USB Interface Adapter, 1 pack |
336047-B21
|
|
| Serial Interface adapter - 1 Pack with power supply |
373035-B21
|
|
| NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm. | ||
| HP 1x 4 Server Console Switch |
AF611A
|
|
| PS2 Server Console Cable, 6 ft,
2 pack |
AF612A
|
|
| USB Server Console Cable, 6 ft, 2 pack |
AF613A
|
|
| NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm. | ||
|
|
||
|
HP Serial Console Server Options |
HP 16 Port Serial Console Server |
AF101A
|
| HP 48 Port Serial Console Server |
AF102A
|
|
| Serial Adapter, RJ45-DB9 DCE Female, 1 Pack |
AF103A
|
|
| Serial Adapter, RJ45-DB9 DCE Female, 8 Pack |
AF110A
|
|
| NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm. | ||
| NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm. | ||
|
|
||
|
Service and Support Offerings (HP Care Pack Services) |
|
|||||||||||
|
||||||||||||
|
||||||||||||
|
||||||||||||
|
|
Memory
| HP ProLiant DL580
G3 2P Models including SAS Models NOTE: Memory configurations listed do not apply to "Factory Integrated Models". |
|
Standard Memory Standard Memory Plus Optional Memory and Optional
Memory Boards NOTE: Memory must be added in banks of two DIMMS. This chart does not represent all possible memory configurations. Additional requirements may apply to enable Advanced Memory Protection features. |
|
Standard Memory |
Standard Memory Board (Slots) |
||||
|
Standard
|
2 GB
|
1 |
2 |
3 |
4 |
|
1 GB
|
1 GB
|
Empty
|
Empty
|
||
|
Optional Memory Summary |
Standard Memory Board (Slots) |
||||
|
Optional (Standard Memory Plus Optional
Memory Boards and Optional Memory)
|
58 GB
|
1 |
2 |
3 |
4 |
|
1 GB
|
1 GB
|
4 GB
|
4 GB
|
||
|
Optional Second Memory Board (Slots)
|
|||||
|
1
|
2
|
3
|
4
|
||
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
Optional Third Memory Board (Slots)
|
|||||
|
1
|
2
|
3
|
4
|
||
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
Optional Fourth Memory Board (Slots)
|
|||||
|
1
|
2
|
3
|
4
|
||
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
Maximum Memory Summary |
Standard Memory Board (Slots) |
||||
|
Maximum (Standard Memory Replaced with Optional
Memory with Optional Memory board)
|
64 GB
|
1 |
2 |
3 |
4 |
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
Optional Second Memory Board (Slots)
|
|||||
|
1
|
2
|
3
|
4
|
||
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
Optional Second Memory Board (Slots)
|
|||||
|
1
|
2
|
3
|
4
|
||
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
Optional Second Memory Board (Slots)
|
|||||
|
1
|
2
|
3
|
4
|
||
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
| HP ProLiant DL580
G3 1P Models NOTE: Memory configurations listed do not apply to "Factory Integrated Models". |
| Standard
Memory Standard Memory
Plus Optional Memory and Optional Memory Boards |
|
Standard Memory |
Standard Memory Board (Slots) |
||||
|
Standard
|
1 GB
|
1 |
2 |
3 |
4 |
|
512MB
|
512MB
|
Empty
|
Empty
|
||
|
Optional Memory Summary |
Standard Memory Board (Slots) |
||||
|
Optional (Standard Memory Plus Optional Memory
Boards and Optional Memory)
|
57 GB
|
1 |
2 |
3 |
4 |
|
512MB
|
512MB
|
4 GB
|
4 GB
|
||
|
Optional Second Memory Board (Slots)
|
|||||
|
1
|
2
|
3
|
4
|
||
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
Optional Third Memory Board (Slots)
|
|||||
|
1
|
2
|
3
|
4
|
||
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
Optional Fourth Memory Board (Slots)
|
|||||
|
1
|
2
|
3
|
4
|
||
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
Maximum Memory Summary |
Standard Memory Board (Slots) |
||||
|
Maximum (Standard Memory Replaced with Optional Memory
with Optional Memory board)
|
64 GB
|
1 |
2 |
3 |
4 |
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
Optional Second Memory Board (Slots)
|
|||||
|
1
|
2
|
3
|
4
|
||
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
Optional Second Memory Board (Slots)
|
|||||
|
1
|
2
|
3
|
4
|
||
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
Optional Second Memory Board (Slots)
|
|||||
|
1
|
2
|
3
|
4
|
||
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
||
|
The following memory options are available from HP: |
|
|
343055-B21
|
|
343056-B21
|
|
343057-B21
|
|
375004-B21
|
|
404122-B21 |
| NOTE: The HP ProLiant
DL580 G3 utilizes up to four Memory Boards that support up to four DIMMs
each. These memory boards are Front accessible providing unsurpassed levels
of memory protection as well as scalability and serviceability for the most
memory-intensive applications. NOTE: One Memory Board ships standard with all models. |
|
|
364639-B21
|
|
|
Storage
|
1 |

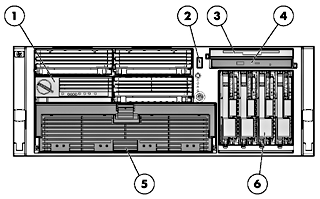

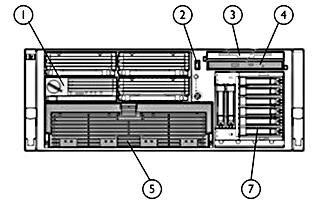

Front-accessible DL580 G3 Memory Board, one standard, up to four configurable |
|
2 |
Front-accessible USB 2.0 Port | |
|
3
|
Slimline 1.44-MB Diskette Drive (ejectable, optional) | |
|
4
|
Slimline DVD-ROM Drive (8X/24X) (ejectable, standard) | |
|
5
|
Front-accessible DL580 G3 Processor Board (allows front access to processors and Processor Power Modules) | |
|
6
|
Ultra320 Drive Cage (Duplex or Simplex configurable). Duplex is standard shipping configuration OR |
|
7 |
8-Bay SAS/SATA Drive Cage. Supports up to 8 Small Form Factor (SFF) SAS or SATA Hot Plug Drives. |
|
|
||||
| Drive Support | ||||
|
|
||||
|
Quantity |
Position |
|
||
|
Slimline Drives (ejectable) |
|
|||
| 1.44-MB Slimline Diskette Drive | Up to 2 | 3 or 4 | Integrated | |
| IDE slimline CD-ROM Drive | Up to 2 | 3 or 4 | Integrated IDE | |
| Slimline DVD-ROM Drive (8X/24X) Option Kit | Up to 2 | 3 or 4 | Integrated IDE | |
| NOTE: The HP ProLiant DL580 G3 can support a maximum of two Slimline drives (ejectable). Additional configuration settings may be required if running 2 Diskette Drives. When running 1 diskette drive, the top bay is the default location, but can be changed with additional configuration settings. | ||||
|
|
||||
| Hard Drives | ||||
| Ultra320 Hot Pluggable Drives | ||||
| Quantity Supported |
Position Supported |
Controller |
||
| 300GB U320 10K 146GB U320 10K 72GB U320 10K 300GB U320 15K 146GB U320 15K 72GB U320 15K 36GB U320 15K |
Up to 4 | 6 | Smart Array 6i Plus Controller
(integrated on system board) Smart Array 6402/128 Controller Smart Array 641 Controller Smart Array 642 Controller 64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2 |
|
|
|
||||
| SFF SAS Hot Pluggable Drives | ||||
| Quantity Supported |
Position Supported |
Controller |
||
| 146GB 3G SAS 10K SP 72GB 3G SAS 10K SP 72GB 3G SAS 15K SP 36GB 3G SAS 10K SP 36GB 3G SAS 15K SP |
Up to 8 | 7 | HP Smart Array P600/256 BBWC Controller | |
|
|
||||
| SFF SATA Hot Pluggable Drives | ||||
| Quantity Supported |
Position Supported |
Controller |
||
| 60GB 1.5G SATA 5.4K | Up to 8 | 7 | SHP Smart Array P600/256 BBWC Controller | |
|
|
||||
|
External Storage | ||||
| Quantity |
Position |
| ||
| Modular Smart Array 30 Family |
Up to 28 | External |
Smart Array 6402/128 Controller Smart Array 6404/256 Controller Smart Array 642 Controller 64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2 |
|
| Modular Smart Array 50 Enclosure | Up to 14 | External | HP Smart Array P600/256 BBWC Controller | |
| Modular Smart Array 500 G2 | Please see the Modular Smart Array 500 G2 QuickSpecs below to determine configuration requirements | External | Please see the Modular Smart Array 500 G2 QuickSpecs (URL below) for the latest list of supported HBAs | |
| Modular Smart Array 1000 | Please see the Modular Smart Array 1000 QuickSpecs below to determine configuration requirements | External | Please see the Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of supported HBAs | |
| Modular Smart Array 1500 cs | Please see the Modular Smart Array 1500 cs QuickSpecs below to determine configuration requirements | External | Please see the Modular Smart Array 1500 cs QuickSpecs (URL below) for the latest list of supported HBAs | |
| Modular
Smart Array 500 G2: http://h18000.www1.hp.com/products/quickspecs/11956_na/11956_na.HTML Modular Smart Array 1000: http://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML Modular Smart Array 1500 cs: http://www.hp.com/go/MSA1500cs | ||||
| | ||||
|
Maximum Storage Capacity – (External Enclosure Attached) |
||
|
Internal |
1.20TB (4 x 300GB Ultra320 SCSI Drives) | |
| External | 117.60TB (28 x (14 x 300GB Ultra320 SCSI Drives)) | |
| Total | 119.80TB | |
|
|
||
|
Maximum Storage Capacity - (Using SAS internal with External SAS Enclosure Attached) |
||
|
Internal |
1.168TB (8 x 146GB SFF SAS Drives) | |
| External | 20.440TB (14 MSA50 Enclosures x 10 x 146GB SFF SAS Drives) | |
| Total | 21.608TB | |
|
|
||
| Tape Drives, Tape Autoloaders, & Tape Libraries | |||
|
NOTE: For an up-to-date listing of
the latest O/S Support details for each of the Tape Drives listed below,
please see the following: NOTE: For an
up-to-date listing of the latest O/S Support details for each of the Tape
Autoloaders and Tape Libraries listed below, please see the following: NOTE: For complete listing of tape drive
offerings see http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html |
|||
|
Position |
Controller |
Controller Part |
|
| HP StorageWorks Tape Drives,
External DAT 24 USB DAT 40 USB DAT 72 USB |
External
|
USB 2.0 Port |
N/A
|
| HP StorageWorks Tape Drives,
External Ultrium 232 Ultrium 448 Ultrium 460 Ultrium 920 Ultrium 960 DAT 40 DAT 72 DLT VS160 SDLT 600 |
External
|
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2 |
374654-B21
|
| HP StorageWorks Autoloaders,
External DAT 72x10 Autoloader 1/8 G2 Tape Autoloader |
External
|
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2 |
374654-B21
|
| HP StorageWorks SCSI Rack-Mount
Tape Drive Enclosures 1U Rack-Mount Kit 3U Rack-Mount Kit |
External
|
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2 |
374654-B21
|
| HP StorageWorks USB Rack-Mount
Tape Drive Enclosures 1U Rack-Mount Kit |
External
|
USB 2.0 Port |
N/A
|
| HP StorageWorks Tape Libraries,
External MSL2024 (Ultrium 448, Ultrium 920 and 960-based) MSL4048 (Ultrium 448, Ultrium 920 and 960-based) MSL6000 (Ultrium 960 and 460-based) MSL6000 (SDLT 600-based) |
External
|
Please consult the EBS connectivity matrix at http://www.hp.com/go/ebs for detailed connectivity information. |
N/A
|
|
|
Power Specifications
| Part Number | 348114-001 |
| Operational Input Voltage Range (V rms) | 90 to 264 |
| Frequency Range (Nominal) (Hz) | 47 to 63 (50/60) |
|
|
| Nominal Input Voltage (Vrms) |
100
|
115
|
208
|
220
|
230
|
240
|
| Max Rated Output Wattage Rating |
910
|
910
|
1300
|
1300
|
1300
|
1300
|
| Nominal Input Current (A rms) |
11.9
|
10.2
|
7.7
|
7.3
|
6.9
|
6.6
|
| Max Rated Input Wattage Rating (Watts) |
1163
|
1148
|
1566
|
1566
|
1548
|
1548
|
| Max. Rated VA (Volt-Amp) |
1186
|
1172
|
1598
|
1598
|
1579
|
1579
|
|
Efficiency (%) |
80
|
81
|
83
|
83
|
84
|
84
|
| Power Factor |
0.98
|
0.98
|
0.98
|
0.98
|
0.98
|
0.98
|
|
Leakage Current (mA) |
.43
|
.50
|
.90
|
.96
|
1.00
|
1.04
|
| Maximum Inrush Current (A peak) |
100
|
100
|
100
|
100
|
100
|
100
|
|
Maximum Inrush Current duration |
10
|
10
|
10
|
10
|
10
|
10
|
|
|
| Standard Rack Model Power Cords / Jumper Cords | Description |
|
|
Nema 5-15P to IEC320-C19 IEC320-C14 to IEC320-C19 Jumper Cord |
|
Optional Power Cords and Jumper Cords |
Description |
Option Kit Part Number
|
| Nema 5-15P to IEC320-C19 |
235603-001
|
|
| Nema 6-20P to IEC320-C19 |
235604-001
|
|
| IEC320-C19, 20A, 250V |
340653-001
|
|
| IEC320-C19 to IEC320-C14 Jumper
(10A, IEC, 6 ft/2.0m) |
313227-B21
|
|
| IEC320-C19 to IEC320-C14 Jumper (10A, IEC, 12ft/3.7m) |
313228-B21
|
|
| IEC320-C19 to IEC320-C20 Jumper (16A, IEC, 8ft/2.5m) |
295633-B22
|
|
|
Technical Specifications
|
System Unit Rack |
Chassis Footprint (HxWxD) |
6.94 x 19 x 26.5 in (17.6 x 48.3 x 67.3 cm) |
||
|
Weight |
80 lb (36.3 kg) | |||
|
Input Requirements |
Rated Input Voltage | 100 to 120 VAC/200 to 240 VAC | ||
| Rated Input Frequency | 50 to 60 Hz | |||
| Input Power | 1148W @ 115 VAC/1566W @ 220 VAC | |||
| Rated Input Current | 12A (100 to 127 VAC), 8.0A (200 to 240 VAC) | |||
| Max BTU Rating | 5457 BTU | |||
| Power Supply Output Power (per power supply) | Rated Steady-State Power | 910W/1300W (lowline/highline) | ||
| Maximum Peak Power | 910W/1300W (lowline/highline) | |||
| Temperature Range | Operating | 50° to 95° F (10° to 35° C) | ||
| Non-operating | -20° to 140° F (-29° to 60° C) | |||
| Shipping | -22° to 122° F (-30° to 50° C) | |||
|
Relative Humidity |
Operating | 10% to 70% | ||
| Non-operating | 5% to 95% | |||
|
Maximum Wet Bulb Temperature |
101.7° F (38.7° C) | |||
| Acoustic Noise
|
NOTE: Listed are the declared A-weighted sound power levels LWAd and the declared average bystander position sound pressure levels LpAm when operating in a 23° C ambient environment. Noise emissions were measured in accordance with ECMA 74 and declared in accordance with ECMA 109. | |||
| Idle (Fixed Disk Drives Spinning) | ||||
| L WAd (BELS) | 7.8 | |||
| L pAm (dBA) | 60 | |||
| NOTE: These values apply to 4U rack configuration. The configuration tested included 4 processors, 4 15,000 rpm hard drives, (also 8 SFF SAS hard drives), 2 power supplies, and 6 system fans. | ||||
|
|
||||
|
24X Max (or higher) IDE CD-ROM Drive Slim Line |
Disk | Applicable Disk | CD-DA, CD-ROM (Mode 1 and 2) |
| CD-XA, CD-I (Mode 2, Form 1 and 2) | |||
| Photo CD (Single and Multi-session) | |||
| Mixed Mode (Audio and Data combined) | |||
| Capacity | 540 MB (Mode 1, 12 cm) | ||
| 650 MB (Mode 2, 12 cm) | |||
| Diameter | 4.7 x 3.15 in (12 x 8 cm) | ||
| Rotational Speed | 4200 rpm maximum | ||
| Center Hole | 0.6 in (15 mm) diameter | ||
| Thickness | 0.05 in (1.2 mm) | ||
| Track Pitch | 1.6 µm | ||
| Block Size | Mode 1 | 2,048 | |
| Mode 2 | 2,340, 2,336, 1,024 bytes | ||
| CD-DA | 2,352 bytes | ||
| CD-XA | 2,328 bytes | ||
| Interface | IDE (ATAPI) | ||
| Access Times (typical) | Random | 100 ms | |
| Full-Stroke | 2000 ms | ||
| Audio Output Level | Line-Out | 0.7 VRMS at 47 kOhms | |
| Headphone | 0.6 VRMS at 32 kOhms (maximum volume) | ||
| Data Transfer Rate | Sustained | 150 KB/s (sustained 1X) | |
| Burst | 2100 to 3600 KB/s | ||
| Cache Buffer | 128 KB | ||
| Start-up Time (typical) | < 7seconds | ||
| Stop Time | < 4seconds | ||
| Laser Parameters | Type | Semiconductor Laser GaA1As | |
| Wave Length | 780 ± 25 nm | ||
| Divergence Angle | 53.5° ± 1.5° | ||
| Output Power | 0.14 mW | ||
| Operating Conditions | Temperature | 41° to 113° F (5° to 45° C) | |
| Humidity | 10% to 80% | ||
| Dimensions |
(HxWxD, maximum) |
1.69 x 5.75 x 8.19 in (4.29 x 15 x 20.8 cm) | |
| Weight | 2.66 lb (1.2 kg) | ||
|
|
|||
|
Slimline CD-RW/DVD-ROM 24X Combo Drive (Multibay) | Shipping Dimensions | 13.88 x 11.38 x 9.25 in (35.26 x 28.91 x 23.50 cm) | |||
|
Shipping Weight | 5 lb (2.27 kg) | ||||
| Disk |
Applicable Disk |
DVD-ROM | |||
| DVD-R (Read Only) | |||||
| 2.6 GB/side DVD-RAM (Read Only) | |||||
| 5.2 GB/side DVD-RAM (Read Only) | |||||
| CD-ROM Mode-1 data disc | |||||
| CD-ROM Mode-2 data disc | |||||
| CD Audio disc | |||||
| CD-Extra | |||||
| CD-RW | |||||
| CD-R | |||||
| CD Text | |||||
| PhotoCD | |||||
| CD-I (mode 2) | |||||
| CD-I Ready | |||||
| CD-Bridge | |||||
|
Capacity | DVD-ROM | DVD-SL | 4.7 GB/side | ||
| DVD-DL | 8.5 GB/side | ||||
| Double Sided | 9.40 GB/side | ||||
| DVD-R | 3.95 GB/side | ||||
| DVD-RAM | 2.6 GB/side and 5.2 GB/ | ||||
| CD-ROM | Mode-1 | 650 MB (550 MB) | |||
| Mode-2 | 742 MB (640 MB) | ||||
| Block Size | DVD | 2,048 bytes | |||
| CD | 2,352 (Mode-0) | ||||
| 2352,
2340, 2336, 2048 bytes (Mode-1) | |||||
| 2352,
2340, 2336, 2048 bytes (Mode-2) | |||||
| Diameter |
120 mm (4.7 in), 80 mm (3.1 in)(with adapter at vertical mounting mode) | ||||
| Loading Mechanism | Tray type |
| |||
| Interface |
EIDE (ATAPI) |
| |||
| Access Times (typical) | Random |
DVD-ROM < 120 ms, CD-ROM < 110 ms | |||
| Full-Stroke |
DVD-ROM < 240 ms, CD-ROM < 160 ms | ||||
|
Audio Output Level (typical) |
Line-out | CD 0.7 Vrms at 47 Kohms Load | |||
| Data Transfer Rate (sustained) | DVD-ROM |
Single Layer | 10.8 MB/sec. Max. | ||
| DVD-RAM | 2.77 MB/sec. Max | ||||
|
CD-ROM | 7.2 MB/sec. Max. | ||||
| Cache Buffer | 2 MB | ||||
| Spin-up Time (typical) |
less than 10 seconds |
| |||
| MTBF |
120,000 Power On Hours (POH) |
| |||
| Ambient Temperature |
Operating | -22° to 140° F (-30° to 60° C) | |||
| Relative Humidity | Operating |
10% to 80% | |||
|
|
Storage/Transportation | 5% to 95% | |||
| Dimensions |
(HxWxD, maximum) |
0.5 x 5.04 x 5.1 in (12.7 x 128 x 129.4 mm) | |||
| Option Kit Contents | DVD-ROM drive with installation guide, warranty card, registration card | ||||
| | |||||
| Integrated Lights-Out Standard (integrated on system board) | Architecture | 32-bit PCI-based health and remote management ASIC (Application Specific Integrated Circuit) |
| Processor | 32-bit RISC processor core running at 66 MHz | |
| Upgradability | Option firmware upgradable via flash ROM. | |
| Video Support | Utilizes the host server's embedded video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600 (256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256 colors) | |
| Interfaces | One Ethernet network connection (10/100 Mb/s) | |
| Memory | 2-MB Flash ROM | |
| 8-MB SDRAM | ||
| Operating System Support | Microsoft Windows NT 4.0 Server | |
| Windows NT 4.0 Enterprise Edition | ||
| Windows 2000 Server | ||
| Windows 2000 Advanced Server | ||
| Red Hat 7.x | ||
| SuSE 7.0 | ||
| Novell NetWare 5.x, 6.x | ||
| Client Browser Support | Microsoft Internet Explorer 5.5 or later. | |
| iLO Standard Features | Virtual Text Remote Console | |
| Virtual Power Button Control | ||
| Dedicated LAN Connectivity | ||
| Secure access using web browser | ||
| Secure access using Secure Shell (SSH) client | ||
| Serial connectivity | ||
| Automatic IP Configuration via DHCP/DNS/WINS | ||
| Industry Standard 128-bit Secure Sockets Layer (SSL) Security | ||
| IML and iLO Event Logging | ||
| Support for up to 12 user accounts with customizable access privileges | ||
| iLO Advanced Features (optional) | Virtual Graphical Remote Console | |
| Virtual Floppy drive | ||
| Virtual CD-ROM drive | ||
| Directory Integration | ||
| Terminal Services Integration | ||
|
|
||
|
Smart Array 6i Controller (Ultra320), Integrated
|
Data Compatible with all Smart Array Controllers | Yes |
| Instant Upgrades to other Smart Array Controllers | Yes | |
| Consistent Software Manageability Tools | Yes | |
| PCI-X Bus | 64-bit, 100 MHz (integrated on system board) | |
| Electrical Protocol | Low Voltage Differential (LVD) | |
| SCSI Protocols Supported | Ultra320, Ultra3, Ultra2 | |
| SCSI Peak Data Transfer Rate | 320 MB/s per channel | |
| Channels |
2 | |
| SCSI Ports (external/internal) | 2 Internal Only | |
| Logical Drives | Supports up to 32 RAID volumes | |
| Cache | 64 MB Read Cache | |
| Battery-Backed Write Cache | Yes, with installation of Battery-Backed Write Cache Enabler, up to 128MB | |
| RAID Support | 0, 1, 1+0, 5 | |
| Online Configuration | Yes | |
| Online Capacity Expansion | Yes | |
| Logical Drive Capacity Extension | Yes | |
| Online Stripe Size Migration | Yes | |
| Online RAID Level Migration | Yes | |
| Online Spare Support | Yes | |
| Automatic Data Recovery | Yes | |
| Drive Roaming | Yes | |
| Redundant Controllers | No | |
|
|
||
| Smart Array P600
Controller (SAS models only) |
Disk Drive and Enclosure Protocol Support | 3 Gbps SAS (Serial Attached SCSI) 1.5 Gbps SATA (Serial AT Attachment) |
| Architecture |
1.5 Gb SATA | |
| SAS Connectors |
1 internal SFF8484 & 1 external
SFF8470 / internal SFF8484 shared x4 Wide SAS Ports 12 Gbps per x4 Wide SAS Port (4 x 3 Gbps) |
|
| Data Transfer Method |
64-bit wide, PCIX 133 MHz (1 GB/s maximum bandwidth) | |
| PCI Bus Speed |
PCIX-133 and 3.3 volt PCI compatibility only | |
| Memory Bus Speed | DDR-266 and 72 bit wide bus | |
| PCI |
64-bit, 133-MHz PCI-X (1 GB/s maximum bandwidth) | |
| Simultaneous Drive Transfer Ports | PCI-X and 3.3 volt PCI compatibility only | |
| Port Transfer Rate | 2 x4 Wide SAS Ports | |
| Software upgradeable Firmware |
12 Gb/s per x4 Wide SAS Port (4 x 3 Gb/s) | |
| Cache Memory |
Yes | |
| Logical Drives Supported |
256 MB Read/Write (512-MB module
upgrade available); ECC protection, battery-backed, and removable |
|
| Maximum Capacity |
Up to 32 logical drives Up to 2.2 TB per logical drive |
|
| Memory Addressing |
2.7 TB (38 x 72 GB) 64-bit, supporting servers memory greater than 4 GB |
|
| RAID Support | RAID 6 (Advanced Data Guarding) RAID 5 (Distributed Data Guarding) RAID 1+0 (Striping & Mirroring) RAID 0 (Striping) |
|
| Upgradeable Firmware Disk Drive and |
4-MB flashable ROM | |
| Enclosure Protocol Support | 3 Gb SAS and 1.5 Gb SATA | |
|
|
||
|
Embedded NC7782 |
Network Interface | 10Base-T/100Base-TX/1000Base-TX | ||
| Compatibility | IEEE 802.3 10Base-T | |||
| IEEE 802.3ab 1000Base-T | ||||
| IEEE 802.3u 100Base-TX | ||||
| Data Transfer Method | 64-bit/133MHz PCI-X | |||
| Network Transfer Rate | 10Base-T (Half-Duplex) | 10 Mb/s | ||
| 10Base-T (Full-Duplex) | 20 Mb/s | |||
| 100Base-TX (Half-Duplex) | 100 Mb/s | |||
| 100Base-TX (Full-Duplex) | 200 Mb/s | |||
| 1000Base-TX (Half and Full-Duplex) | 2000 Mb/s | |||
| Connector | RJ-45 | |||
| Cable Support | 10Base-T |
Categories 3, 4, or 5 UTP; up to 328 ft (100 m) | ||
| 100Base-TX |
Category 5 or higher UTP; up to 328 ft (100 m) | |||
| 1000Base-TX | Category 5 or higher UTP; up to 328 ft (100 m) | |||
|
|
||||
