   Proliant ML370 G4 QuickSpecs  US QuickSpecs
  ML370 G4 Hard Drives   ML370 G4 Processors   ML370 G4 Memory
  ML370 G4 Controllers   ML370 G4 Networking   ML370 G4 Power Supplies
  ML370 G4 Quickspecs   ML370 G4 Quickspecs-Options   ML370 G4 Options
contents
 Overview      Standard Features      Serial Models for 2.5-inch SCSI/ATA      Ultra320 SCSI Models (Processors with 2MB Level 2 cache)      Configuration Information - Factory Integrated Models (North America only)      ML370 G4 Options      ML370 G4 Memory      Storage      Power Specifications      ML370 G4 QuickSpecs images/line.gif (50 bytes)

Proliant ML370 G4 Overview

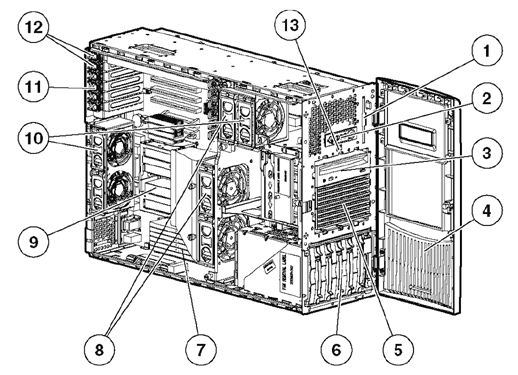

HP ProLiant ML370 Generation 4 (G4)

Ultra320 SCSI model shown above
1. 1.44 MB Diskette Drive
2. Front Panel LEDs (show server status)
3. 48X MAX CD-ROM
4. Front Bezel
5. Removable Media Bays
6. Six Hot Plug Ultra320 Drive Bays
7. 8 PC2-3200R Memory Slots
8.
Hot Plug Fans (standard)
9.
Intel Xeon Processors
10.
Hot Plug Redundant Fans (Optional)
11. 2 PCI-Express Non-hot plug slots
12. 4 PCI-X 64-Bit/100-MHz Non-hot plug slots
13. USB 2.0 (on the front)Port

What's New
  • Dual-core 2.8GHz Intel Xeon processors with 2x2MB Level 2 cache (4MB total) are available on Factory Integrated models.

At A Glance

The flagship ML370 G4 provides industry-leading management, performance and availability in a dual processor expansion server engineered to excel in a variety of environments - from corporate work groups in growing businesses to critical remote sites requiring continuous accessibility and uptime.

  • Processors:
    • Systems support up to two Intel Xeon Processors with Hyperthreading Technology (2 processors standard on all High Performance models)
    • Single-core and Dual-core Intel Xeon Processors with 2MB Level 2 cache offer blazing performance increases
      • Dual-core: 2.8 GHz with 2x2MB L2 (4MB total)
      • Single-core: 3.8 GHz, 3.6 GHz, 3.4 GHz, 3.2 GHz, 3.0 GHz and 2.8 GHz
    • Preconfigured High Performance models save valuable deployment time at a discounted bundle price
  • Memory:
    • Maximum 16 GB of 2-way interleaved PC2-3200R 400MHz DDR2 memory with Advanced ECC capabilities;
    • 1 GB (2 x 512 MB) standard,
    • 2 GB (2 x 1024 MB) standard on all High Performance models
  • Storage Controller:
    • Integrated Dual Channel Ultra320 SCSI Adapter
    • Ultra320 High Performance Models ship with the Smart Array 6404/128 Controller
    • SAS Array and SAS High Performance Models ship with the Smart Array P600/256 BBWC Controller
  • Internal Drive Support:
    • (8) small form factor (SFF) hot-plug drive bays for serial models or (6) hot-plug Ultra320 SCSI drive bays
    • 2-bay Ultra320 drive cage to support a total of 8 Ultra320 hot plug drives included on Ultra320 High Performance models
    • Optional duplex drive backplane splits the standard Ultra320 drive cage (2:4) into two separate data channels
  • Network Controller:
    • Integrated NC7781 PCI-X Gigabit Server Adapter
  • Expansion Slots:
    • 6 expansion slots - 2 PCI-Express x4 and 4 PCI-X 64-Bit/100-MHz (3 PCI-X slots and 2 PCI-Express slots available on all High Performance and Array models)
  • USB 2.0 Ports:
    • 3 Total: (1) front; (2) rear accessible ports
  • Redundancy:
    • Optional Hot plug redundant power supplies and cooling fans (Hot plug redundant fans and power supplies included on all High Performance models)
  • Management:
    • Powerful Integrated Lights-Out remote management technology embedded
    • HP Integrated Lights-Out firmware includes HP Power Regulator for ProLiant - server level, policy based power management for industry leading energy efficiency and savings on system power and cooling costs. Also, introducing support for the draft DMTF System Management Architecture for Server Hardware Command Line Protocol standard
    • HP Systems Insight Manager
    • SmartStart 7.1+
  • Form Factor:
    • 5U Tower and Rack Models
  • Deployment/Serviceability:
    • Quick Deploy Rail System includes sliding universal rails, an ambidextrous cable management arm and quick release levers for fast and easy serviceability and in-rack tool-less access to major components
    • Tool-free serviceability
    • Diagnostic and Unit ID LEDs
  • Warranty:
    • Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI/SAS hard drives. SATA hard drives have a one-year warranty.
contents
 Overview      Standard Features      Serial Models for 2.5-inch SCSI/ATA      Ultra320 SCSI Models (Processors with 2MB Level 2 cache)      Configuration Information - Factory Integrated Models (North America only)      ML370 G4 Options      ML370 G4 Memory      Storage      Power Specifications      ML370 G4 QuickSpecs images/line.gif (50 bytes)

Standard Features

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
Dual-core Intel Xeon Processor 2.8 GHz/800MHz -2x2MB L2 cache (4MB total)
Intel Xeon Processor 2.8 GHz/800MHz -2MB L2 cache
Intel Xeon Processor 3.0 GHz/800MHz -2MB L2 cache
Intel Xeon Processor 3.2 GHz/800MHz -2MB L2 cache
Intel Xeon Processor 3.4 GHz/800MHz -2MB L2 cache
Intel Xeon Processor 3.6 GHz/800MHz -2MB L2 cache
Intel Xeon Processor 3.8 GHz/800MHz -2MB L2 cache

NOTE: Up to 2 processors supported.
NOTE: High Performance configurations include two processors up to 3.6 GHz. Models available with either 2MB or 1MB of Level 2 cache.


Cache Memory
2MB Level 2 cache

Chipset
Intel E7520 Chipset
NOTE: For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.

Memory
One of the following depending on Model
Type Single-ranked 2-way interleaved PC2-3200R running at 400MHz
NOTE: HP ProLiant ML370 G4 does not support dual ranked DIMMs.
Standard 1 GB (2 x 512 MB)
Standard (High Performance SCSI models)
2 GB (2 x 1024 MB)
Standard (High Performance SAS models) 2 GB (4 x 512 MB)
Maximum 16 GB

Memory Protection
Advanced ECC and Online Spare capabilities

Network Controller Integrated NC7781 PCI-X Gigabit NIC (single port)

Expansion Slots
Slot
Number
Bus Speed
Bus Number*
Device Number**
Hot Plug
PCI Voltage
Notes
1
64-bit/100MHz PCI-X
3
1
no
3.3 Volt
Supported RILOE slot
2
64-bit/100MHz PCI-X
3
2
no
3.3 Volt

3
64-bit/100MHz PCI-X
7
1
no
3.3 Volt

4
64-bit/100MHz PCI-X
7
2
no
3.3 Volt

5
PCI Express x4
11
0
no
N/A

6
PCI Express x4
14
0
no
N/A

NOTE: Smart Array controller installed in Slot 1 on High Performance and Array models.
NOTE:
x8 cards are supported but will run at x4 speeds.
*NOTE: Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
**NOTE: Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
NOTE: All PCI-X slots can only accept universal keyed PCI cards running at 3.3 volts.

Remote Management

Integrated Lights-Out (iLO) Standard Management

  • Virtual Text Remote Console
  • Virtual Power Button Control
  • Virtual Unit Identification Light Control
  • Virtual Serial Port Redirection
  • Dedicated LAN Connectivity
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) Security
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privilege

Intelligent Manageability HP Systems Insight Manager
SmartStart
Management Agent
Redundant ROM
Remote Flash ROM
Remote Lights-Out Edition II (Optional)
ROM-Based Setup Utility (RBSU)
Integrated Management Log
Automatic Server Recovery (ASR)
Dynamic Sector Repairing (with Smart Array controller)
Drive Parameter Tracking (with Smart Array controller)
Hot Spare Boot
NOTE: Upon the event of a failed processor in a multi-processing environment, the system will automatically reboot and attempt to use the remaining good processor.
Pre-Failure Warranty (covers processors, SCSI/SAS hard drives and memory)

Storage Controller
One of the following depending on Model
Integrated Dual Channel Ultra320 SCSI Adapter
Smart Array 6402/128 Controller ship on Ultra320 High Performance Models
Smart Array P600/256 BBWC Controller ship on SAS High Performance and Array Models

Storage Diskette Drive 1.44MB Diskette Drive
Optical Drive 48x IDE CD-ROM Drive
Hard Drives None standard

Maximum Internal Storage Hot Plug Ultra320 SCSI
2.4TB 6 x 300GB Ultra320 SCSI with standard internal hot plug drive cage + 2 x 300GB Ultra320 SCSI with optional ML3xx Two Bay Hot Plug Ultra320 SCSI Drive Cage
Hot Plug SAS 1.168TB 8 x 146GB with standard internal hot plug Serial SCSI/ATA drive cage

Interfaces Parallel 1
Serial 2
Pointing Device (Mouse) 1
Graphics 1
Keyboard 1
Network RJ-45 1
iLO remote management port 1
USB 2.0 Ports

3 total: 2 on the rear and 1 on the front
NOTE: Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html
Dedicated USB 2.0 Port 1 internal for USB tape support

Graphics Integrated ATI Rage XL Video Controller with 8MB SDRAM Video Memory

Form Factor Tower or Rack (5U)

ProLiant Essentials Foundation Pack Software
HP Systems Insight Manager HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible environment to centrally manage servers, storage and other infrastructure devices across multiple operating system platforms.

Through a single management view, HP SIM provides core management services that include device discovery and identification, event views, health monitoring, inventory data collection, software version control and reporting. HP SIM is built on industry standards and is extensible with value-added ProLiant Essentials, Integrity Essentials and Storage Essentials software to meet individual management needs. For more details on HP SIM visit http://www.hp.com/go/hpsim.

HP SIM provides organizations with the following benefits:

  • Simplifies and consolidates infrastructure lifecycle management using task and query based functionality
  • Provides the foundation for infrastructure automation and virtualization
  • Enables IT management based on business processes not hardware platforms
  • Lowers infrastructure maintenance cost and frees resources for innovation
  • Maximizes resource utilization with virtualization technologies
  • Provides a central point of integration between infrastructure and Enterprise management tools such as HP OpenView
SmartStart SmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.10
Insight Management Agents Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers.

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack. For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at http://www.hp.com/servers/manage.

Subscriber's ChoiceSubscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and configuration utilitiesThe latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options available in SmartStart or downloadable from Software and Drivers download pages http://www.hp.com/go/support.
Insight Diagnostics Online EditionThe most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
Optional ProLiant Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

  • Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP includes the ProLiant Integration Module featuring ProLiant server pre-configured events for OS installation, and optimized software drivers, firmware and management agents. Every RDP disc includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with HP servers. For more information, visit: http://www.hp.com/servers/rdp.
  • Workload Management Pack – provides easier management of complex environments, improving overall server utilization and enabling Windows 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Performance Management Pack – identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Intelligent Networking Pack – detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions, plus it provides an extra layer of protection. The virus throttle feature of the solution slows the propagation of fast spreading virus
  • Vulnerability and Patch Management Pack – identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats
  • Virtual Machine Management Pack – provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.
  • Server Migration Pack – The Server Migration Pack automates the manual processes required for migrating servers between physical or virtual platforms (P2V, V2P, and V2V).
Optional Remote Management Packs
  • Integrated Lights-Out Advanced Pack – upgrades the Integrated Lights-Out processor to full virtual presence and control with graphical console and virtual media.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/ProLiantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/ProLiantessentials.

Industry Standard Compliance ACPI 1.0b Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
PXE Support

Security Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Disk configuration lock

Server Power Cords 110V NEMA 12ft. (3.66m) cords included in the United States; localized cables included with geographic specific models in other world regions. IEC 10 ft. (3.05m) cords also included with rack models. Localized cables included with geographic specific models in other world regions.

Power Supply 775 Watt-CE Mark Compliant Hot Plug Power Supply
Optional second Power Supply provides redundant capability

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

System Fans Three fans standard. Redundant fan kit includes three additional fans.

Required Cabling For external storage cabling information, refer to the Web site at
http://h18000.www1.hp.com/products/servers/ProLiantML370/.

OS Support Microsoft Windows 2000 Server
Windows Server 2003 Server
Novell NetWare
SCO OpenServer and OpenUNIX
LINUX (Red Hat, SuSE, United Linux)
VMware Virtualization Software
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html
NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant ML370 G4, please see: http://h18023.www1.hp.com/support/files/server/us/index.html
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at: http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html

Rack Airflow Requirements

Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

  • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
  • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: http://h18000.www1.hp.com/products/servers/ProLiantdl380/index.html.

Installation of HP ProLiant ML370 G4 servers with Round Hole, Third Party or Telco RacksProLiant rack mount servers and tower-to-rack kits include snap-on quick deploy side rails designed to accommodate both round and square hole rack rails. Telco rack solutions for ProLiant servers are available through the following URL: http://www.racksolutions.com/hp.

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express.


HP Enterprise Configurator The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.

HP ProLiant Smart Buys (NA only) The HP Smart Buy program offers mainstream business solutions at competitive prices with excellent availability and superior HP quality. It offers a wide range of industry-leading HP products at compelling prices, allowing you to receive richer configurations with additional options.
NOTE: ProLiant Smart Buys are available in NA only. For detailed specification information on ProLiant Smart Buys please click on the following link: ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf

Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Enhanced Care – Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.

  • 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years

Continuance Care – Recommended service delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.

  • 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years

Total Care – Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services

  • Support Plus 24 – Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays

Deployment Services – HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of ProLiant servers – and free customers IT support staff to focus on what they do best, their business.

  • Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays
NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack
contents
 Overview      Standard Features      Serial Models for 2.5-inch SCSI/ATA      Ultra320 SCSI Models (Processors with 2MB Level 2 cache)      Configuration Information - Factory Integrated Models (North America only)      ML370 G4 Options      ML370 G4 Memory      Storage      Power Specifications      ML370 G4 QuickSpecs images/line.gif (50 bytes)

Serial Models for 2.5-inch SCSI/ATA

NOTE: ProLiant Smart Buys are available in NA only. For detailed specification information on ProLiant Smart Buys please click on the following link: ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf.
contents
 Overview      Standard Features      Serial Models for 2.5-inch SCSI/ATA      Ultra320 SCSI Models (Processors with 2MB Level 2 cache)      Configuration Information - Factory Integrated Models (North America only)      ML370 G4 Options      ML370 G4 Memory      Storage      Power Specifications      ML370 G4 QuickSpecs images/line.gif (50 bytes)

Ultra320 SCSI Models (Processors with 2MB Level 2 cache)

High Performance
ML370T04 X3.4-2MB/800, 2GB

379916-xx1
ProcessorTwo Intel Xeon 3.4 GHz Processors standard
Cache Memory2MB level 2 cache
Memory2 GB (2 x 1024 MB) of 2-way interleaved capable PC2-3200R DDR2 running at 400MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit Server Adapter
Storage Controller Smart Array 6402/128 Controller installed in a PCI-X slot and the Integrated Dual Channel Ultra320 SCSI Adapter
Hard DriveNone ship standard
Internal Storage 2.4TB maximum (with optional Ultra320 hard drives and optional ML3xx Two Bay Hot Plug Ultra320 SCSI Drive Cage)
Optical Drive48x IDE CD-ROM Drive
Diskette Drive1.44 MB Diskette Drive
Form FactorTower (5U)

High Performance
ML370R04 X3.4-2MB/800, 2GB

379917-xx1

ProcessorTwo Intel Xeon 3.4 GHz Processors standard
Cache Memory2MB level 2 cache
Memory2 GB (2 x 1024 MB) of 2-way interleaved capable PC2-3200R DDR2 running at 400MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit Server Adapter
Storage Controller Smart Array 6402/128 Controller installed in a PCI-X slot and the Integrated Dual Channel Ultra320 SCSI Adapter
Hard DriveNone ship standard
AvailabilityHot Plug Redundant Fans and Power Supply included
Internal Storage 2.4TB maximum (with optional Ultra320 hard drives and optional ML3xx Two Bay Hot Plug Ultra320 SCSI Drive Cage)
Optical Drive48x IDE CD-ROM Drive
Diskette Drive1.44 MB Diskette Drive
Form FactorRack (5U)

ML370T04 X3.6-2MB/800, 1GB
379912-xx1


ProcessorOne Intel Xeon 3.6 GHz Processor standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory1 GB (2 x 512 MB) of 2-way interleaved capable PC2-3200R DDR2 running at 400MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit Server Adapter
Storage ControllerIntegrated Dual Channel Ultra320 SCSI Adapter
Hard DriveNone ship standard
Internal Storage 1.8TB maximum (with optional Ultra320 hard drives)
Optical Drive48x IDE CD-ROM Drive
Diskette Drive1.44 MB Diskette Drive
Form FactorTower (5U)

ML370R04 X3.6-2MB/800, 1GB
379913-xx1



ProcessorOne Intel Xeon 3.6 GHz Processor standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory1 GB (2 x 512 MB) of 2-way interleaved capable PC2-3200R DDR2 running at 400MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit Server Adapter
Storage ControllerIntegrated Dual Channel Ultra320 SCSI Adapter
Hard DriveNone ship standard
Internal Storage 1.8TB maximum (with optional Ultra320 hard drives)
Optical Drive48x IDE CD-ROM Drive
Diskette Drive1.44 MB Diskette Drive
Form FactorRack (5U)

ML370T04 X3.4-2MB/800, 1GB
379910-xx1




ProcessorOne Intel Xeon 3.4 GHz Processor standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory1 GB (2 x 512 MB) of 2-way interleaved capable PC2-3200R DDR2 running at 400MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit Server Adapter
Storage ControllerIntegrated Dual Channel Ultra320 SCSI Adapter
Hard DriveNone ship standard
Internal Storage 1.8TB maximum (with optional Ultra320 hard drives)
Optical Drive48x IDE CD-ROM Drive
Diskette Drive1.44 MB Diskette Drive
Form FactorTower (5U)

ML370R04 X3.4-2MB/800, 1GB
379911-xx1





ProcessorOne Intel Xeon 3.4 GHz Processor standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory1 GB (2 x 512 MB) of 2-way interleaved capable PC2-3200R DDR2 running at 400MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit Server Adapter
Storage ControllerIntegrated Dual Channel Ultra320 SCSI Adapter
Hard DriveNone ship standard
Internal Storage 1.8TB maximum (with optional Ultra320 hard drives)
Optical Drive48x IDE CD-ROM Drive
Diskette Drive1.44 MB Diskette Drive
Form FactorRack (5U)

ML370T04 X3.2-2MB/800, 1GB
379908-xx1






ProcessorOne Intel Xeon 3.2 GHz Processor standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory1 GB (2 x 512 MB) of 2-way interleaved capable PC2-3200R DDR2 running at 400MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit Server Adapter
Storage ControllerIntegrated Dual Channel Ultra320 SCSI Adapter
Hard DriveNone ship standard
Internal Storage 1.8TB maximum (with optional Ultra320 hard drives)
Optical Drive48x IDE CD-ROM Drive
Diskette Drive1.44 MB Diskette Drive
Form FactorTower (5U)

ML370R04 X3.2-2MB/800, 1GB
379909-xx1







ProcessorOne Intel Xeon 3.2 GHz Processor standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory1 GB (2 x 512 MB) of 2-way interleaved capable PC2-3200R DDR2 running at 400MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit Server Adapter
Storage ControllerIntegrated Dual Channel Ultra320 SCSI Adapter
Hard DriveNone ship standard
Internal Storage 1.8TB maximum (with optional Ultra320 hard drives)
Optical Drive48x IDE CD-ROM Drive
Diskette Drive1.44 MB Diskette Drive
Form FactorRack (5U)

ML370T04 X3.0-2MB/800, 1GB
379906-xx1








ProcessorOne Intel Xeon 3.0 GHz Processor standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory1 GB (2 x 512 MB) of 2-way interleaved capable PC2-3200R DDR2 running at 400MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit Server Adapter
Storage ControllerIntegrated Dual Channel Ultra320 SCSI Adapter
Hard DriveNone ship standard
Internal Storage 1.8TB maximum (with optional Ultra320 hard drives)
Optical Drive48x IDE CD-ROM Drive
Diskette Drive1.44 MB Diskette Drive
Form FactorTower (5U)

ML370R04 X3.0-2MB/800, 1GB
379907-xx1









Processor One Intel Xeon 3.0 GHz Processor standard (up to 2 supported)
Cache Memory 2MB level 2 cache
Memory 1 GB (2 x 512 MB) of 2-way interleaved capable PC2-3200R DDR2 running at 400MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit Server Adapter
Storage Controller Integrated Dual Channel Ultra320 SCSI Adapter
Hard Drive None ship standard
Internal Storage 1.8TB maximum (with optional Ultra320 hard drives)
Optical Drive 48x IDE CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Rack (5U)

Country Code Key

  Tower Code Key Rack Code Key
XX=00 U.S. English U.S. English
XX=01 Australia N/A
XX=03 UK N/A
XX=04 Germany N/A
XX=05 France N/A
XX=20 Brazil Brazil
XX=29 Japan Japan
XX=37 APD APD
XX=42 Europe Europe
XX=AA PRC PRC
contents
 Overview      Standard Features      Serial Models for 2.5-inch SCSI/ATA      Ultra320 SCSI Models (Processors with 2MB Level 2 cache)      Configuration Information - Factory Integrated Models (North America only)      ML370 G4 Options      ML370 G4 Memory      Storage      Power Specifications      ML370 G4 QuickSpecs images/line.gif (50 bytes)

Configuration Information - Factory Integrated Models (North America only)

NOTE: For Configure to Order requirements within EMEA region, please consult local Sales Contact.
NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order (CTO) servers must start with a CTO Chassis.
NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option only available as a Factory Installable Option.

Step 1: Base Configuration (choose one of the following configurable models)
Models HP ProLiant ML370G4 Ultra320 Rack CTO Chassis (North America) 360729-405
Factory Integrated Model ships with:
Integrated NC7781 PCI-X Gigabit Server Adapter
Integrated dual channel Ultra320 SCSI adapter
Six Hot Plug Ultra320 Drive Bays
6 expansion slots – 2 PCI-Express x4 and 4 PCI-X 64-bit 100 MHz
Integrated Lights-Out (iLO)
775 Watt-CE Mark Compliant Hot Plug Power Supply
Three fans
Rack (5U)

HP ProLiant ML370G4 Ultra320 Tower CTO Chassis (North America)
360730-405
Factory Integrated Model ships with:
Integrated NC7781 PCI-X Gigabit Server Adapter
Integrated dual channel Ultra320 SCSI adapter
Six Hot Plug Ultra320 Drive Bays
6 expansion slots – 2 PCI-Express x4 and 4 PCI-X 64-bit 100 MHz
Integrated Lights-Out (iLO)
775 Watt-CE Mark Compliant Hot Plug Power Supply
Three fans
Keyboard
2-button Mouse
Tower (5U)

HP ProLiant ML370G4 SAS Rack CTO Chassis (North America)
394121-405
Factory Integrated Model ships with:
Integrated NC7781 PCI-X Gigabit Server Adapter
Eight Hot Plug SFF Serial SCSI/ATA Drive Bays
5 expansion slots available – 2 PCI-Express x4 and 3 PCI-X 64-bit 100 MHz
Integrated Lights-Out (iLO)
775 Watt-CE Mark Compliant Hot Plug Power Supply
Three fans
Rack form factor (5U)

HP ProLiant ML370G4 SAS Tower CTO Chassis (North America)
394122-405
Factory Integrated Model ships with:
Integrated NC7781 PCI-X Gigabit Server Adapter
Eight Hot Plug SFF Serial SCSI/ATA Drive Bays
5 expansion slots available – 2 PCI-Express x4 and 3 PCI-X 64-bit 100 MHz
Integrated Lights-Out (iLO)
775 Watt-CE Mark Compliant Hot Plug Power Supply
Three fans
Tower form factor (5U)


Step 1A: If SAS Model, Choose SAS Starter Kit or Controller (only one of the following)
SAS Controller HP Smart Array P600/256 BBWC Controller
NOTE: This is a required selection if one of the two following SAS Starter Kits is not selected. If choosing this part number, 2.5" SAS hard drives must still be selected under Step 4.
337972-B21 337972-B21
SAS Starter KitNOTE: SAS Starter Kits are not compatible with the U320 SCSI models.
SAS Starter Kit – 36GB
NOTE: Includes Smart Array P600/256 BBWC Controller and (2) 36GB SFF SAS Universal Hard Drives.
396221-B21
SAS Starter Kit – 72GB
NOTE: Includes Smart Array P600/256 BBWC Controller and (2) 72GB SFF SAS Universal Hard Drives.
396220-B21

Step 2: Choose Required Options (only one of the following from each list)
Processors Intel X3.8GHz/800-2MB 370G4 FIO BASE 378752-B21
Intel X3.6GHz/800-2MB 370G4 FIO BASE 378751-B21
Intel X3.4GHz/800-2MB 370G4 FIO BASE 378750-B21
Intel X3.2GHz/800-2MB 370G4 FIO BASE 378749-B21
Intel X3.0GHz/800-2MB 370G4 FIO BASE 378748-B21
Intel X2.8GHz/800-2MB 370G4 FIO BASE 397645-B21
NOTE: One additional xxxxxx-B21 processor for each HP ProLiant ML370 server may be ordered. If selecting a Performance Pack option in Step 3 (380099-001, 383195-001, 384201-001), a second processor (311583-B21, 378750-B21, or 378751-B21) is included and should not be ordered.
Base Memory 1 GB of Advanced PC2 PC3200R DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
2 GB of Advanced PC2 PC3200R DDR2 SDRAM DIMM Memory Kit (2 x 1024 MB)
4 GB of Single-Ranked PC2 PC3200R DDR2 SDRAM DIMM Memory Kit (2 x 2048 MB)
Optical Drives HP ProLiant 48X CD w/o SCREWS
367920-B21
HP ProLiant 16X DVD-ROM Drive
CD-RW/DVD-ROM Combo Drive Option Kit
HP DVD+R/RW 16X Half Height

Step 3: Choose Additional Factory Integratable Options
Performance PacksThe HP ProLiant ML370 G4 Performance Packs are necessary to configure a HP ProLiant ML370 G4 High Performance Model which includes the latest performance technologies and enterprise class availability features pre-installed for convenience and value. The Ultra320 Performance Pack includes a 2nd processor, redundant fans and power supplies, extra 2-bay HDD drive cage and Smart Array 6402 controller with 128MB battery-backed write cache (installed in a PCI-X slot).
ML370G4 3.4 2M Ultra320 SCSI Perf. Pack, US 383195-001
NOTE: The SAS SCSI/ATA Performance Pack includes a 2nd processor, extra 1GB of memory, redundant fans and power supplies.
ML370G4 3.6 2M SAS SCSI/ATA Perf. Pack, US 384201-001

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Options" section below.
contents
 Overview      Standard Features      Serial Models for 2.5-inch SCSI/ATA      Ultra320 SCSI Models (Processors with 2MB Level 2 cache)      Configuration Information - Factory Integrated Models (North America only)      ML370 G4 Options      ML370 G4 Memory      Storage      Power Specifications      ML370 G4 QuickSpecs images/line.gif (50 bytes)

Options

NOTE: Some options may not be factory configurable. Please contact your local sales representative for additional information.
HP ProLiant ML370 Unique Options ML370 Tower to Rack Conversion Kit
356545-B21
G4 Hot Plug Redundant Power Supply Option Kit (U.S.)
356544-001
G4 Hot Plug Redundant Power Supply Option Kit (Australia)
356544-011
G4 Hot Plug Redundant Power Supply Option Kit (EURO)
356544-021
G4 Hot Plug Redundant Power Supply Option Kit (UK)
356544-031
G4 Hot Plug Redundant Power Supply Option Kit (Japan)
356544-291
G4 Hot Plug Redundant Power Supply Option Kit (IEC Cord only) (Worldwide)
356544-B21
Redundant Hot Plug Fan Option Kit
ML370 G4 SAS (Serial Attached SCSI/ATA) drive cage option
NOTE: Requires Smart Array P600/256 BBWC Controller installed in PCI-X slot.
NOTE: When 3 or more SAS hard drives are installed in the HP ProLiant ML370 G4 SAS-enabled Server, the system becomes an FCC Class A device.
383887-B21

ProLiant Essentials
Value Pack Software
ProLiant Essentials Intelligent Networking Pack
ProLiant Essentials Intelligent Networking Pack – Windows Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

436225-B21

NOTE: For additional ProLiant Intelligent Networking Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12062_div/12062_div.html
ProLiant Essentials Intelligent Networking Pack – Linux Edition, Single Server License
436229-B21
NOTE: For additional ProLiant Intelligent Networking Pack – Linux License Kits please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12327_div/12327_div.html
ProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation.
NOTE: The most recent version of the software can always be downloaded at http://www.hp.com/products/pmp.

306696-B21

NOTE: For additional ProLiant Performance Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11925_div/11925_div.html
ProLiant Essentials Rapid Deployment Pack Windows Edition Release
Rapid Deployment Pack, Single-Server License
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-B21

Rapid Deployment Pack, Single-Server License (Japan)
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-291

NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html
ProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management Pack, Single Server License
NOTE: For additional ProLiant Workload Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11452_div/11452_div.html
ProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

435661-B21

ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.
435663-B21
NOTE: For additional ProLiant Essentials Virtualization Management Software License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.html
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
371645-B21
NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12111_div/12111_div.html
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

Remote Management Integrated Lights-Out Advanced Pack
Integrated Lights-Out Advanced Pack, 1 server
Featuring: Sophisticated virtual administration features for ultimate control of servers in the data centers and remote sites.
263825-B21 263825-B21
NOTE: For additional Integrated Light-Out Advanced Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11052_div/11052_div.html

ProLiant Software Maintenance Subscription ProLiant Software Maintenance Subscription 355060-B21
ProLiant Software Maintenance Single Release 356573-B21
ProLiant Foundation Pack Single Release 356604-B21
NOTE: Please see the SmartStart QuickSpecs for additional information regarding the subscription purchase:
http://h18000.www1.hp.com/products/quickspecs/division/11073.html
(Worldwide)


Processor Dual-core Intel Xeon X2.8-2x2MB/800MHz Processor Option Kit
NOTE: This kit is not backwards compatible, existing systems cannot be upgraded.
399129-B21
Intel Xeon X3.8-2MB/800MHz Processor Option Kit 378752-B21
Intel Xeon X3.6-2MB/800MHz Processor Option Kit 378751-B21
Intel Xeon X3.4-2MB/800MHz Processor Option Kit 378750-B21
Intel Xeon X3.2-2MB/800MHz Processor Option Kit 378749-B21
Intel Xeon X3.0-2MB/800MHz Processor Option Kit 378748-B21
Intel Xeon X2.8-2MB/800MHz Processor Option Kit 397645-B21
Intel Xeon X3.6-1MB/800MHz Processor Option Kit 311584-B21
Intel Xeon X3.4-1MB/800MHz Processor Option Kit 311583-B21
Intel Xeon X3.2-1MB/800MHz Processor Option Kit 374492-B21

Memory

1 GB of Advanced PC2 PC3200R DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
2 GB of Advanced PC2 PC3200R DDR2 SDRAM DIMM Memory Kit (2 x 1024 MB)
4 GB of Single-Ranked PC2 PC3200R DDR2 SDRAM DIMM Memory Kit (2 x 2048 MB)
NOTE: The HP ProLiant ML370 G4 does not support dual ranked memory.

Internal Storage

ML3xx Two Bay Hot Plug Ultra320 SCSI Drive Cage
NOTE: The drive cage option kit (PN 244059-B21 244059-B21) has one 1" drive bay and one 1.6" drive bay, installed in two available removable media bays.
Duplex Ultra320 SCSI Backplane Option Kit
339323-B21
ML370 G4 SAS (Serial Attached SCSI/ATA) drive cage option
NOTE: Requires Smart Array P600 Controller installed in PCI-X slot.
NOTE: When 3 or more SAS hard drives are installed in the HP ProLiant ML370 G4 SAS-enabled Server, the system becomes an FCC Class A device.
383887-B21

Optical Drives

16X DVD-ROM Drive Option Kit (Carbon)
CD-RW/DVD-ROM Combo Drive Option Kit 331346-B21 331346-B21
HP DVD+R/RW 16X Half Height 383974-B21 383974-B21
HP ProLiant 48X CD w/o SCREWS 367920-B21

Hard Drives Ultra320 SCSI – Universal Hot Plug
HP 300GB U320 10K Universal HDD
HP 146GB U320 10K Universal HDD
HP 72GB U320 10K Universal HDD
HP 300GB U320 15K Universal HDD
HP 146GB U320 15K Universal HDD
HP 72GB U320 15K Universal HDD
HP 36GB U320 15K Universal HDD
NOTE: All Ultra320 Universal Hard Drives are backward compatible to Ultra2 or Ultra3 speeds.
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/11531_div/11531_div.html
(Worldwide)

SFF SATA Hot Plug
HP 60GB 1.5G SATA 5.4K SFF HDD
NOTE: SATA drives have a 1 year warranty. Please see the SATA Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/12091_div/12091_div.html (Worldwide)
SFF SAS – Universal Hot Plug
HP 146GB 3G SAS 10K SFF SP HDD
HP 72GB 3G SAS 10K SFF SP HDD
HP 36GB 3G SAS 10K SFF SP HDD

375859-B21 375859-B21

NOTE: All SAS Universal Hard Drives are supported ONLY by SAS models.
NOTE: Please see the SAS Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html (Worldwide)


Storage Controllers SAS Controllers
Smart Array P600 Controller
Smart Array P600/256 BBWC Controller
NOTE: Serial SCSI/ATA.
512MB DDR BBWC Upgrade
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12247_div/12247_div.html (Smart Array P600 Controller)

SCSI Controllers
Smart Array 6402/128 Controller
NOTE: Ultra320 SCSI.
Smart Array 6404/256 Controller
NOTE: Ultra320 SCSI.
Smart Array 641 Controller
NOTE: Ultra320 SCSI.
Smart Array 642 Controller
NOTE: Ultra320 SCSI.
128-MB BBWC (Battery-Backed Write Cache) Enabler
NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller.
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/11587_div/11587_div.html (Smart Array 6400 Series)
http://h18000.www1.hp.com/products/quickspecs/12067_div/12067_div.html (Smart Array 641)
http://h18000.www1.hp.com/products/quickspecs/12069_div/12069_div.html (Smart Array 642)
http://h18000.www1.hp.com/products/quickspecs/10429_div/10429_div.html
(SCSI Adapter)
http://h18000.www1.hp.com/products/quickspecs/11943_div/11943_div.html (Single Channel Ultra320 SCSI HBA)

SAS HBA
HP 8 Internal Port SAS HBA with RAID
NOTE: Please see the HBA QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/12332_div/12332_div.html
(8 Internal Port SAS HBA)


Communications HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter
HP NC310F PCI-X 1000SX Gigabit Server Adapter
HP NC320T PCI Express 1000T Gigabit Server Adapter
HP NC340T PCI-X 4-port 1000T Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
HP NC1020 PCI 1000T Gigabit Server Adapter
HP NC7771 PCI-X 1000T Gigabit Server Adapter
NOTE: Any NIC (except the NC1020 and the NC150T) on the option list can be used for redundancy with the embedded NC7781 Network Controller. When teaming with other NICs or with the embedded NIC, the lack of Jumbo Frames and LSO features on the NC1020 and NC150T will cause high end NICs to have those features disabled. (e.g. incompatibility issues with the other option NICs for that platform).

Redundant Options Hot Plug Redundant Power Supply Option Kit (NEMA cord) (U.S.)
356544-001
Hot Plug Redundant Power Supply Option Kit (Australia)
356544-011
Hot Plug Redundant Power Supply Option Kit (EURO)
356544-021
Hot Plug Redundant Power Supply Option Kit (UK)
356544-031
Hot Plug Redundant Power Supply Option Kit (Japan)
356544-291
Hot Plug Redundant Power Supply Option Kit (IEC cord only) (Worldwide)
356544-B21
Redundant Hot Plug Fan Option Kit

Management Options

Remote Insight Lights-Out Edition ll (NA, LA)
Remote Insight Lights-Out Edition ll (EMEA)
227251-021
Remote Insight Lights-Out Edition ll (APD, Japan)
227251-371

Tape Drives

NOTE: For the complete listing of Tape Drive offerings, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
For recommended tape drive offerings for this ProLiant server see the following:

Hot Plug Tape Drives
HP StorageWorks DAT 72 SCSI Hot-plug Tape Drive (Carbon)
NOTE: Not RoHS-compliant.
USB Tape Drives
HP StorageWorks DAT 72 USB Internal Tape Drive (Carbonite)

DW026A

SAS Tape Drives
NOTE: Connecting hard drive cage and SAS tape to the same SAS Controller using split cable (supplied with tape drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs into SAS drive connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard drive cage would mean drive bay 8 is deactivated.

HP StorageWorks Ultrium 920 SAS Internal Tape Drive
EH847A
HP StorageWorks Ultrium 920 SAS External Tape Drive
EH848A
Ultrium Tape Drives
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
HP StorageWorks Ultrium 460 Internal Tape Drive (Carbon)
HP StorageWorks Ultrium 448 Internal Tape Drive (Carbonite)
DW016A
HP StorageWorks Ultrium 960 Internal Tape Drive (Carbonite)
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
http://h18006.www1.hp.com/products/quickspecs/11739_div/11739_div.html
(Worldwide)
http://h18006.www1.hp.com/products/quickspecs/12128_div/12128_div.html
(Worldwide)
For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect.
DAT Drives
HP StorageWorks DAT 72 SCSI Internal Tape Drive (Carbon)
Q1522B
NOTE: Please see the DAT Tape Drive QuickSpecs for controllers, media, and other options:
http://h18000.www1.hp.com/products/quickspecs/11883_div/11883_div.html
(Worldwide)
For an up-to-date listing of the latest O/S and software support details for HP DAT drives, please visit: http://www.hp.com/go/connect
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U SCSI Rack-Mount kit
NOTE: The 1U Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232, Ultrium 448 and Ultrium 920 tape drives.
HP StorageWorks 1U USB Rack-Mount Kit
NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 24 USB, DAT 40 USB and DAT 72 USB tape drives.
HP StorageWorks 3U Rack-mount kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple LVD SCSI tape drives including DAT 40, DAT 72, DLT VS160, SDLT 320, SDLT 600, Ultrium 232, Ultrium 460, Ultrium 448, Ultrium 920 and Ultrium 960 tape drives.
274338-B22
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.html
(Worldwide)

Tape Autoloaders
HP StorageWorks DAT Autoloader
HP StorageWorks DAT 72x10 tape autoloader AE313A
HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 Ultrium 960 Tape Autoloader AF204A AF204A
HP StorageWorks 1/8 Ultrium 448 Tape Autoloader AF203A AF203A
HP StorageWorks 1/8 Ultrium 232 Tape Autoloader AF202A AF202A
1/8 Tape Autoloader Rackmount Kit
NOTE: Required to install the 1/8 tape autoloader in a standard 19-inch rack
C9268R C9268R
NOTE: Please reference the Tape Autoloader QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs

Tape Libraries HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library AG115A AG115A
HP StorageWorks MSL2024 1 Ultrium 960 4GB FC Drive Library AG326B
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library AG116A AG116A
HP StorageWorks MSL2024 2 Ultrium 448 Drive Library AG117A AG117A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 Ultrium 448 Drive Library AG320A
HP StorageWorks MSL4048 2 Ultrium 448 Drive Library AG321A
HP StorageWorks MSL4048 1 Ultrium 960 Drive Library AG322A
HP StorageWorks MSL4048 1 Ultrium 960 4GB FC Drive Library AG324B
HP StorageWorks MSL4048 2 Ultrium 960 Drive Library AG323A AG323A
HP StorageWorks MSL4048 2 Ultrium 960 4GB FC Drive Library AG325B
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library AD606B
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library AD608B
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library AD607B
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library AD598B
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library AD600B
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library AD599B
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library AD601B
NOTE: Please reference the MSL2024, MSL4048 and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs.

HP Data Protector Express Software HP DP Express Backup Server Upgrade for ProLiant Software
BB117AP
HP DP Express Package for Microsoft Small Business Server BB118AA

NOTE: Please see the HP Data Protector Express QuickSpecs for additional information regarding the purchase of HP Data Protector Express software:
http://h18000.www1.hp.com/products/quickspecs/12337_div/12337_div.html
(Worldwide)

NOTE: To obtain a free licensed copy of HP Data Protector Express for ProLiant edition software, please visit the "Protect Your Data" link accessible from your ProLiant server's System Management Homepage (SMH) software (SmartStart 7.5 or later).



Cluster Options ProLiant Cluster Starter Kit
364023-B22
NOTE: For additional information regarding the ProLiant Cluster Starter Kit please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11935_div/11935_div.html (Worldwide)
HP HA/F200 for Entry SAN Cluster

364026-B22

NOTE: For additional information regarding the ProLiant Cluster for Entry Level SAN please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11932_div/11932_div.html (Worldwide)
ProLiant Cluster HA/F500 for the Enterprise SAN
364024-B21
NOTE: For additional information regarding the ProLiant Cluster HA/F500 for Enterprise SAN please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11933_div/11933_div.html (Worldwide)
HP Serviceguard for Linux ProLiant Cluster A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (2 node license cluster kit)
305199-B26
HP Serviceguard for Linux A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (single license version)
307754-B26
HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription
T2798AA#001
HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription
T2798AA#003
NOTE: For additional information regarding the HP Serviceguard for Linux License, please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html (Worldwide)


HP StorageWorks Modular Smart Array 20HP StorageWorks Modular Smart Array 20
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
335921-B21 335921-B21
HP StorageWorks Modular Smart Array 20 Starter Kit
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. Includes Smart Array 6402/128 Controller.
366172-B21
NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 3.5" Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 30HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies
302970-B21
NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 50

HP StorageWorks Modular Smart Array 50 Enclosure

364430-B21 364430-B21

NOTE: Please see the Modular Smart Array 50 QuickSpecs for additional options and configuration information at
http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html (Worldwide)

HP StorageWorks Modular Smart Array 500

HP StorageWorks Modular Smart Array 500 Generation 2
335880-B21

NOTE: Please see the Modular Smart Array 500 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
http://h18000.www1.hp.com/products/quickspecs/11050_div/11050_div.html
(Worldwide)



HP StorageWorks Modular Smart Array 1000

HP StorageWorks Modular Smart Array 1000

201723-B22 201723-B22

NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at
http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.html (Worldwide)

HP StorageWorks Modular Smart Array 1500 cs

Modular Smart Array 1500 Controller Shelf

AA986A

NOTE: Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options and configuration information at:
http://www.hp.com/go/MSA1500cs

StorageWorks
Options

NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
HP StorageWorks FC2142SR 4Gb PCI-e HBA
HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e HBA
HP StorageWorks FC1142SR 4Gb PCI-e HBA
HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBA
HP StorageWorks FC2143 4Gb PCI-X 2.0 -to-Fibre Channel HBA
HP StorageWorks FC2243 Dual Channel 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1143 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1243 Dual Channel 4Gb PCI-X 2.0 HBA

Uninterruptible Power Supply - Tower

HP, T1500 UPS NA
AF406A
HP, T1500 UPS JPN
AF407A
HP, T1500 UPS INTL
AF408A
HP, R/T 2200 UPS NA
AF409A
HP, R/T 2200 UPS JPN
AF410A
HP, R/T 2200 UPS INTL
AF411A

Uninterruptible Power Systems - Rack UPS

HP, R1.5kVA UPS, 1U, NA
AF419A
HP, R1.5kVA UPS, 1U, INTL
AF418A
HP, R1.5kVA UPS, 1U, JPN/TW
AF421A
HP R3000 VA UPS, 2U, DTC, INTL
NOTE: Replaces non-RoHs compliant part numbers 192186-B31, 192186-B32, 192186-B33, 192186-AR1.
AF414A
HP R3000 VA UPS, 2U, L5-30, NA
NOTE: Replaces non-RoHs compliant part number 192186-001 192186-001.
AF422A
HP R3000 VA UPS, 2U, L6-20, NA
NOTE: Replaces non-RoHs compliant part number 192186-002 192186-002.
AF423A
HP R3000 VA UPS, 2U, L6-20, JPN
NOTE: Replaces non-RoHs compliant part number 192186-292.

AF424A
HP R3000 VA UPS, 2U, L5-30, JPN
NOTE: Replaces non-RoHs compliant part number 192186-291.
AF425A
HP R5500 VA UPS, INTL
NOTE: Replaces non-RoHs compliant part number 326529-B31.
AF416A
HP R5500 VA UPS, NA/JPN
NOTE: Replaces non-RoHs compliant part number 326529-D71 326529-D71.
AF426A

HP Monitored Power Distribution Unit (PDU) HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU- dual input, 3U, 24A (NA/JPN)
NOTE: Replaces non-RoHs compliant part number 370959-D71 370959-D71.
AF503A
HP 8.3 kVA S1324 Monitored PDU- single input, 3U, 24A (NA/JPN)
NOTE: Replaces non-RoHs compliant part number 370960-D71 370960-D71.
AF504A
HP 16.6 kVA S2140 Monitored PDU- dual input, 1U, 40A (NA/JPN)
NOTE: Replaces non-RoHs compliant part number 37061-D71.
AF505A
HP 8.6 S1140 Monitored PDU- single input, 1U, 40A (NA/JPN)
NOTE: Replaces non-RoHs compliant part number 370962-D71 370962-D71.
AF506A
HP 22.1 kVA S2316 Monitored PDU- dual input, 3U, 16A (INTL)
NOTE: Replaces non-RoHs compliant part number 370963-B31.
AF507A
HP 11 kVA S1316 Monitored PDU- single input, 3U, 16A (INTL)
NOTE: Replaces non-RoHs compliant part number 370964-B31.
AF508A
HP 14.7 kVA S2132 Monitored PDU- dual input, 1U, 32A (INTL)
NOTE: Replaces non-RoHs compliant part number 370965-B31.
AF509A
HP 7.3kVA S1132 Monitored PDU- single input, 1U, 32A (INTL)
NOTE: Replaces non-RoHs compliant part number 370966-B31.
AF510A

Modular Power Distribution Units 1U/0U
(up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with
the unit (optimized for 10000 and 9000 series racks).
HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC) (NA, Japan)

252663-D71 252663-D71

NOTE: The above mPDU may also be used to connect to the low volt model of the UPS R3000 XR.
HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC) (NA, Japan)
NOTE: L6-30 input.

252663-D72 252663-D72

HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int'l)

252663-B31

HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC) (WW)
NOTE: The 40A model has a hardwired input.

252663-B21 252663-B21

HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW)

252663-B24 252663-B24

HP Modular Power Distribution Units (mPDU), High Volt Model, 40A, Attached Cord (NA/JPN)
252663-D73
HP Modular Power Distribution Units (mPDU), High Volt Model, 40A, Attached Cord (Int'l)
252663-B32
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements. This model may also be used with the high volt UPSs R3000 XR.
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html (Worldwide)

USB Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
HP USB 04 Standard Keyboard
DT528A#xxx
USB 2.0 4-port HUB
DG954A
HP 1GB Drive Key II- USB 2.0 Flash Drive
AG382AA
HP 512MB DriveKey II- USB Flash Drive
ED516AA

Other ProLiant ML3xx Internal to External SCSI Cable Option Kit (VHDCI)
333370-B21
ProLiant ML3xx Internal to External SCSI Cable Option Kit (HD68)
159547-B22

Rack Conversion Kit

ML370 Tower to Rack Conversion Kit
356545-B21
Shipping Kit for Round Hole Racks
NOTE: Required when shipping server pre-installed in round hole rack. Square hole pre-configured rack shipping hardware included with server mounting rails.
371482-B21

HP Rack 5000 Series (Graphite Metallic) HP 5642 Rack-Unassembled
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.html (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.



HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)
10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html (Worldwide)

NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HP Rack 10000 Series
(Graphite Metallic)
10642 (42U) Infrastructure Rack (Low Voltage)
379006-001
10642 (42U) Infrastructure Rack (High Voltage)
HP S10614 (14U) Rack Cabinet - Shock Pallet
HP Rack 10842 (42U, 800mm wide) - Pallet
HP Rack 10842 (42U, 800mm wide) - Shock Pallet
HP Rack 10647 (47U) - Pallet
HP Rack 10647 (47U) - Crated
245160-B23
HP Rack 10622 (22U) - Pallet
HP Rack 10622 (22U) - Shock Pallet
HP Rack 10622 (22U) - Crated
245163-B23
NOTE: xxxxxx-B21 (pallet) used to ship empty racks shipped on a truck. -B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty racks.
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all HP equipment is qualified to be shipped in the Rack 10000 series.
NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.html (Worldwide)

NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.


Keyboards and Monitors

TFT7210R Rack Mounted 17" Monitor
NOTE: For a complete list of Monitors please view the following URL:
http://www.hp.com/go/kvm.
TFT7600 Rackmount Keyboard Monitor US
TFT7600 Rackmount Keyboard Monitor UK
AG053A
TFT7600 Rackmount Keyboard Monitor GR
AG054A
TFT7600 Rackmount Keyboard Monitor FR
AG055A
TFT7600 Rackmount Keyboard Monitor IT
AG056A
TFT7600 Rackmount Keyboard Monitor SP
AG057A
TFT7600 Rackmount Keyboard Monitor DEN
AG058A
TFT7600 Rackmount Keyboard Monitor NOR
AG059A
TFT7600 Rackmount Keyboard Monitor SE/FI
AG060A
TFT7600 Rackmount Keyboard Monitor SWI
AG061A
TFT7600 Rackmount Keyboard Monitor PORT
AG062A
TFT7600 Rackmount Keyboard Monitor BEL
AG063A
TFT7600 Rackmount Keyboard Monitor JPN2
AG064A
TFT7600 Rackmount Keyboard Monitor RUS
AG065A
TFT7600 Rackmount Keyboard Monitor INTL
AG066A
1U Rackmount Keyboard with USB, US
1U Rackmount Keyboard with USB, UK
AG073A
1U Rackmount Keyboard with USB, GR
AG074A
1U Rackmount Keyboard with USB, FR
AG075A
1U Rackmount Keyboard with USB, ITL
AG076A
1U Rackmount Keyboard with USB, SP
AG077A
1U Rackmount Keyboard with USB, DEN
AG078A
1U Rackmount Keyboard with USB, NOR
AG079A
1U Rackmount Keyboard with USB, SE/FI
AG080A
1U Rackmount Keyboard with USB, SWI
AG081A
1U Rackmount Keyboard with USB, PORT
AG082A
1U Rackmount Keyboard with USB, BEL
AG083A
1U Rackmount Keyboard with USB, JPN2
AG084A
1U Rackmount Keyboard with USB, RUS
AG085A
1U Rackmount Keyboard with USB, INTL
AG086A
  NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HP KVM Switch Options 2x1x16 IP Console Switch with Virtual Media
4x1x16 IP Console Switch with Virtual Media
2x16 Server Console Switch with Virtual Media
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
USB Interface Adapter, 1 pack
Serial Interface adapter - 1 Pack with power supply
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
HP 1x 4 USB/PS2 KVM Switch, TT (NA/JPN)
371301-D71
HP 1x 4 USB/PS2 KVM Switch, TT (AU/NZ)
371301-011
HP 1x 4 USB/PS2 KVM Switch, TT (UK)
371301-031
HP 1x 4 USB/PS2 KVM Switch, TT (EU)
371301-A21
HP 1x 4 USB/PS2 KVM Switch, RM (ALL)
371302-B21
HP PS2 KVM Cable with audio, 6', 2-pack
371730-B21
HP USB KVM Cable with audio, 6', 2-pack
371729-B21
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

HP Serial Console Server Options HP 16 Port Serial Console Server (worldwide)
HP 48 Port Serial Console Server (worldwide)
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4528E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4529E
Hardware Services 6-Hour Call to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4530E
Installation & Start-up Services
Hardware Installation, Electronic
U4538E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4539E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4540E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4541E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6311E
Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U8333E
NOTE: For more information, customer/resellers can contact http://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Serial Models for 2.5-inch SCSI/ATA      Ultra320 SCSI Models (Processors with 2MB Level 2 cache)      Configuration Information - Factory Integrated Models (North America only)      ML370 G4 Options      ML370 G4 Memory      Storage      Power Specifications      ML370 G4 QuickSpecs images/line.gif (50 bytes)

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

HP ProLiant ML370 G4 Models

Standard Memory
1 GB PC2-3200R Single-ranked Memory comes installed (2 x 512 MB SDRAM)
NOTE: HP ProLiant ML370 G4 does not support dual-ranked memory.

Standard Memory Replaced with Optional Memory
Up to 16 GB of memory is available with the removal of the standard 1 GB of memory and the optional installation of 16 GB PC2-3200R Memory Option Kit (8 x 2 GB)

NOTE: This chart does not represent all possible memory configurations.

Memory
Slot

1
2
3
4
5
6
7
8
Standard
1 GB
512 MB
512 MB
Empty
Empty
Empty
Empty
Empty
Empty
Optional
7 GB
512 MB
512 MB
1 GB
1 GB
1 GB
1 GB
1 GB
1 GB

Maximum

16 GB
2 GB
2 GB
2 GB
2 GB
2 GB
2 GB
2 GB
2 GB

Following are memory options available from HP:


  • 1 GB of Advanced PC2 PC3200R DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
343055-B21 343055-B21
  • 2 GB of Advanced PC2 PC3200R DDR2 SDRAM DIMM Memory Kit (2 x 1024 MB)
343056-B21 343056-B21
  • 4 GB of Single-Ranked PC2 PC3200R DDR2 SDRAM DIMM Memory Kit (2 x 2048 MB)
343057-B21 343057-B21
contents
 Overview      Standard Features      Serial Models for 2.5-inch SCSI/ATA      Ultra320 SCSI Models (Processors with 2MB Level 2 cache)      Configuration Information - Factory Integrated Models (North America only)      ML370 G4 Options      ML370 G4 Memory      Storage      Power Specifications      ML370 G4 QuickSpecs images/line.gif (50 bytes)

Storage

0 - 5
6 Hot Pluggable Hard Drive Bays
A
48x IDE CD-ROM Drive
B, C
Two available half height bays
D
1.44 MB Diskette Drive
0 - 5
6 x Hot Pluggable Hard Drive Bays
A
48x IDE CD-ROM Drive
B, C
Two available half height bays
D
1.44 Diskette Drive
0 - 7
8 x Hot Pluggable Hard Drive Bays
A
48x IDE CD-ROM Drive
B, C
Two available half height bays
D
1.44 Diskette Drive
0 - 7
8 x Hot Pluggable Hard Drive Bays
A
48x IDE CD-ROM Drive
B, C
Two available half height bays
D
1.44 Diskette Drive


Drive Support




Quantity
Supported

Position
Supported


Controller

Removable Media


1.44-MB Diskette Drive Up to 1 D Integrated
IDE CD-ROM Drive Up to 2 A, B Integrated IDE
DVD-ROM Drive Option Kit (optional) Up to 2 A, B Integrated IDE
ML3xx Two Bay Hot Plug Wide SCSI Drive Cage(optional) Up to 1 B, C Integrated SCSI or optional array controller

Hard Drives
Ultra320 Hot Pluggable Drives
  Quantity
Supported
Position
Supported

Controller
300GB U320 10K
146GB U320 10K
72GB U320 10K
300GB U320 15K
146GB U320 15K
72GB U320 15K
36GB U320 15K
Up to 8
(With optional ML3xx Two Bay Hot Plug SCSI Drive Cage)
0-7 Integrated Dual Channel Ultra320 SCSI Adapter
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 641 Controller
Smart Array 642 Controller

Serial-ATA (SATA) – Hot Plug Drives
  Quantity
Supported
Position
Supported

Controller
60GB 1.5G SATA 5.4K
Up to 80-7 Smart Array P600/256 BBWC Controller

SFF SAS – Hot Plug Drives
  Quantity
Supported
Position
Supported

Controller
146GB 3G SAS 10K SP
72GB 3G SAS 10K SP
36GB 3G SAS 10K SP
Up to 80-7 Smart Array P600/256 BBWC Controller

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter

  Modular Smart Array 20 Family 1 per external VHDCI SCSI connector External Smart Array 6402/128 Controller
Smart Array 6404/256 Controller


Modular Smart Array 30 Family

1 per external VHDCI SCSI connector

External

Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
  Modular Smart Array 50 Enclosure 1 per external VHDCI SCSI connector External Smart Array P600/256 BBWC Controller
  Modular Smart Array 500 G2 System
1 External Smart Array 642 Controller (used as Host Bus Adapter)
Please see the Modular Smart Array 500 G2 QuickSpecs for the latest list of supported HBAs: http://www.hp.com/go/msa500
  Modular Smart Array 1000 Please see the Modular Smart Array 1000 QuickSpecs link below to determine configuration requirements External Please see the Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1500 cs Please see the Modular Smart Array 1500 cs QuickSpecs link below to determine configuration requirements External Please see the Modular Smart Array 1500 cs QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1000: http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.html (Worldwide)
Modular Smart Array 1500 cs: http://www.hp.com/go/MSA1500cs

Tape Drives, Tape Autoloaders, & Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/division/10233.html (Worldwide)

NOTE:
For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/division/10809.html (Worldwide)

NOTE:
For complete listing of tape drive offerings see http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

NOTE: SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller using split cable (supplied with tape drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs into SAS drive connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard drive cage would mean drive bay 8 is deactivated.

For recommended tape drive offerings for this ProLiant server see the following:


Position
Supported
Controller
Controller Part Numbers
  HP StorageWorks Tape Drives, Hot Plug
DAT 40 Hot Plug
DAT 72 Hot Plug
0-5
NOTE: SCSI Models only.
Integrated Dual Channel Ultra320 SCSI Adapter
N/A
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2

HP StorageWorks Tape Drives, Internal
DAT 24 USB
DAT 40 USB
DAT 72 USB
B or C
USB 2.0 Port
N/A

HP StorageWorks Tape Drives, External
DAT 24 USB
DAT 40 USB
DAT 72 USB
External
USB 2.0 Port
N/A

HP StorageWorks Tape Drives, Internal
Ultrium 232
Ultrium 448
DAT 40
DAT 72
DLT VS160
B or C
USB 2.0 Port
N/A

HP StorageWorks Tape Drives, Internal
Ultrium 460
Ultrium 960
SDLT 320
SDLT 600
B and C
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2

HP StorageWorks Tape Drives, External
Ultrium 232
Ultrium 448
Ultrium 460
Ultrium 960
DAT 40
DAT 72
DLT VS160
SDLT 600
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2

HP StorageWorks Autoloaders, External
DAT 72x10 Autoloader
1/8 Tape Autoloader
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2

HP StorageWorks SCSI Rack-Mount Tape Drive Enclosures
1U Rack-Mount Kit
3U Rack-Mount Kit
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2

HP StorageWorks USB Rack-Mount Tape Drive Enclosures
1U Rack-Mount Kit
External
USB 2.0 Port
N/A

HP StorageWorks Tape Libraries, External
MSL2024 (Ultrium 448 and 960-based)
MSL4048 (Ultrium 448 and 960-based)
MSL6000 (Ultrium 960 and 460-based)
MSL6000 (SDLT 600-based)
External
Please consult the EBS connectivity matrix at http://www.hp.com/go/ebs for detailed connectivity information.
N/A
contents
 Overview      Standard Features      Serial Models for 2.5-inch SCSI/ATA      Ultra320 SCSI Models (Processors with 2MB Level 2 cache)      Configuration Information - Factory Integrated Models (North America only)      ML370 G4 Options      ML370 G4 Memory      Storage      Power Specifications      ML370 G4 QuickSpecs images/line.gif (50 bytes)

Power Specifications

Part Number 367242-001
Spare Kit 360623-B21
Operational Input Voltage Range (V rms) 90 to 264
Frequency Range (Nominal) (Hz) 47 to 63 (50/60)




Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
775
775
775
775
775
775
Nominal Input Current (A rms)
10.0
8.6
4.7
4.4
4.1
4.0
Max Rated Input Wattage Rating (Watts)
981
969
957
945
934
934
Max. Rated VA (Volt-Amp)
1001
989
976
964
963
953

Efficiency (%)

79
80
81
82
83
83

Power Factor

0.98
0.98
0.98
0.98
0.98
0.98

Leakage Current (mA)

0.43
0.50
0.65
0.96
1.00
1.04

Maximum Inrush Current (A peak)

30
30
30
30
30
30

Maximum Inrush Current duration (mS)

3
3
3
3
3
3
NOTES:
* - To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/powercalcs.asp.
To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML370 G4
- Click on: "Power Calculator" link. (You may need to scroll down to see it)

Power Cords (13 Cord Sets) Power Cord Part Number
Country
APD 139867-006
APD 100613-003
APD 100614-003
Australia 100611-007
Europe 100614-003
France 100614-003
Germany 100614-003
Japan 139867-006
PRC 139867-006
PRC 100613-003
PRC 100661-007
UK 100613-003
US 163719-002
contents
 Overview      Standard Features      Serial Models for 2.5-inch SCSI/ATA      Ultra320 SCSI Models (Processors with 2MB Level 2 cache)      Configuration Information - Factory Integrated Models (North America only)      ML370 G4 Options      ML370 G4 Memory      Storage      Power Specifications      ML370 G4 QuickSpecs images/line.gif (50 bytes)

Quickspecs

System Unit - Tower Dimensions 18.46 x 8.69 x 28 in (46.88 x 22.07 x 71.12 cm)
Weight 70 lb (31.75 kg) (without hard drives, no RPS)
Input Requirements Range Line Voltage 100-132 VAC, 200-240 VAC
Rated Input Voltage 7.5A (100VAC), 3.8A (200VAC)
Rated Input Frequency 50 to 60 Hz
Rated Input Current 735W
  Rated Input Power 1001W (100VAC)
BTU Rating 3,420 BTU/HR
Power Specifications To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/powercalcs.asp.
To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML370 G4
- Click on: "Power Calculator" link. (You may need to scroll down to see it)
SCSI Connectors Two Internal HD68 connectors (Option kits available for HD68 or VHDCI external connectors)
Power Supply Output Power Steady State Power 775W
Maximum Peak Power 775W
Temperature Range Operating 41° to 95° F (5° to 35° C)
Shipping -40° to 185° F (-40° to 85° C)
Relative Humidity
(non-condensing)
Operating 5% to 95%
Shipping 5% to 95%
Acoustic Noise Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)
5.9
L pAm (dBA)
41
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
6.0
L pAm (dBA)
42

System Unit - Rack Dimensions 8.69 x 19.0 x 25.75 in (22.07 x 48.26 x 65.43 cm)
Weight 65 lb (29.48) (without hard drives, no RPS)
Input Requirements Range Line Voltage 90 to 264 VAC
Rated Input Voltage 100 to 240 VAC
Rated Input Frequency 47 to 63 Hz
Rated Input Current 10A (110 V) to 4.8A (220 V)
Rated Input Power 1001W (100VAC)
BTU Rating 3,420 BTU/HR
SCSI Connectors Two Internal HD68 connectors (Option kits available for HD68 or VHDCI external connectors)
Power Supply Output Power Steady State Power 775W
Maximum Peak Power 775W
Temperature Range Operating 41° to 95° F (5° to 35° C)
Shipping -40° to 185° F (-40° to 85° C)
Relative Humidity
(non-condensing)
Operating 5% to 95%
Shipping 5% to 95%
Maximum Wet Bulb Temperature 101.7° F (38.7° C)
Acoustic Noise Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)
5.9
L pAm (dBA)
41
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
6.0
L pAm (dBA)
42

Optional Redundant Power Supply Input Requirements Rated Input Voltage 100 to 240 VAC
Rated Input Frequency 47 to 63 Hz
Rated Input Current 10A (110 V) to 4.8A (220 V)
Rated Input Power 1001W (100VAC)
BTU Rating 3,420 BTU/HR
Power Supply Output Power Steady State Power 775W
Maximum Peak Power 775W
Temperature Range Operating 41° to 95° F (5° to 35° C)
Shipping -40° to 185° F (-40° to 85° C)
Relative Humidity
(non-condensing)
Operating 5% to 95%
Shipping 5% to 95%
Maximum Wet Bulb Temperature 101.7° F (38.7° C)

Integrated Dual Channel Ultra320 SCSI Adapter Drives Supported Up to 28 SCSI devices (14 per channel)
Data Transfer Method
64-bit PCI bus-master
SCSI Channel Transfer Rate
320 MB/s per channel
Maximum Transfer Rate per PCI Bus (peak)
400 MB/s per channel
SCSI Protocols
Wide Ultra2 SCSI
Wide-Ultra SCSI-3
Ultra320 SCSI
Electrical Protocol
Low Voltage Differential (LVD)
SCSI Termination
Active Termination
External SCSI Connectors
Optional VHDCI and HD68 internal-to-external connectors
Internal SCSI Connectors Two 68-Pin Wide-Ultra SCSI-3 connectors

Smart Array P600 Controller
(SAS models only)
Disk Drive and Enclosure Protocol Support
3 Gbps SAS (Serial Attached SCSI)
1.5 Gbps Serial Advanced Technology Attachment (SATA)
Architecture
1.5 Gb SATA
SAS Connectors
1 internal SFF8484 & 1 external SFF8470 / internal SFF8484 shared x4 Wide SAS Ports
12 Gbps per x4 Wide SAS Port (4 x 3 Gbps)
Data Transfer Method
64-bit wide, PCIX 133 MHz (1 GB/s maximum bandwidth)
PCI Bus Speed PCIX-133 and 3.3 volt PCI compatibility only
Memory Bus Speed DDR-266 and 72 bit wide bus
PCI
64-bit, 133-MHz PCI-X (1 GB/s maximum bandwidth)
Simultaneous Drive Transfer Ports PCI-X and 3.3 volt PCI compatibility only
Port Transfer Rate 2 x4 Wide SAS Ports
Software upgradeable Firmware
12 Gb/s per x4 Wide SAS Port (4 x 3 Gb/s)
Cache Memory
Yes
Logical Drives Supported
256 MB Read/Write (512-MB module upgrade available);
ECC protection, battery-backed, and removable
Maximum Capacity
Up to 32 logical drives
Up to 2.2 TB per logical drive
Memory Addressing
2.7 TB (38 x 72 GB)
64-bit, supporting servers memory greater than 4 GB
RAID Support RAID 6 (Advanced Data Guarding)
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Upgradeable Firmware
Disk Drive and
4-MB flashable ROM
Enclosure Protocol Support 3 Gb SAS and 1.5 Gb SATA

Integrated NC7781
PCI-X Gigabit Server Adapter

Network Interface 10/100/1000-T
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method 64-bit/133MHz PCI-X
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
  1000BaseTX (Half and Full-Duplex) 2000 Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
  10/100/1000Base-TX Category 5 UTP; up to 328 ft (100 m)

Integrated Lights-Out (integrated on system board) Architecture 32-bit PCI-based health and remote management ASIC (Application Specific Integrated Circuit)
Processor 32-bit RISC processor core running at 66MHz
Upgradeability Option firmware upgradeable via flash ROM.
Video Support Utilizes the host server's embedded video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600 (256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256 colors)
Interfaces One dedicated Ethernet network connection (10/100 Mb/s)
One shared Ethernet network connection via one of the embedded 1Gb/s system network interfaces
Memory 2-MB Flash ROM
8-MB SDRAM
Operating System Support Microsoft Windows 2000 Server and Advanced Server, Microsoft Windows Server 2003, Standard Edition, Web Edition, Enterprise Edition, SBS Edition Red Hat AS 2.1
Red Hat Enterprise Linux L 3.0 (10/03) - WS, ES, AS SuSE Linux Enterprise Server 7,
United Linux 1.0 SP2 & SP3 (11/03) Novell NetWare 6.0, 6.5
Client System Support Windows 2000 and 2000 Professional
Windows 2003
Windows 2000 XP Professional Edition
Red Hat Advanced Server 2.1, Red Hat Linux V7.2, V7.3, V8.0
SuSE Linux Enterprise Server V7, V8
United Linux 1.0
Client Browser Support Microsoft Internet Explorer 6.0 or later.
Netscape Navigator 7.1 (on supported Linux client systems)
Mozilla 1.5 (for supported Linux client systems)
Command Line support Telnet, Secure Shell and serial port access
Security Secure Socket Layer
Secure Shell version 2
Directory Support Services Active Directory V1.0 (Windows 2000, 2003)
Directory Support Services
Driver Support
Novell eDirectory V8.6.2, V8.7 (Novell NetWare 5.X, 6.X, Red Hat 7.1, Windows 2000, Windows Server 2003)
Health Driver (iLO Advanced Server Management Controller Driver)
iLO Management Interface Driver
iLO Standard Management Virtual Text Remote Console
Virtual Power Button Control
Dedicated & shared LAN Connectivity
Browser and command line access
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Secure Shell Security
IML and iLO Event Logging
Support for up to 12 user accounts with customizable access privileges
iLO Advanced Features Virtual Graphical Remote Console
Virtual Floppy Drive

USAPartsDirect          Ph: 1.613.599.1287                   Fax: 1.613.599.8120
serversServers |bladesBlades | Hard DrivesU2/U3 |u320 Hard DrivesU320 |SAS/SATA Hard DrivesSAS/SATA |Fibre Hard DrivesFibre |MemoryMemory |ControllersControllers |Processors Processors |Tape DrivesTape Drives |Power SuppliesPower Supplies
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

Legal | Privacy | | Primary Site | Contact us | Site Problem?  |
