   Proliant ML350 G5 QuickSpecs  US QuickSpecs
  ML350 G5 Hard Drives   ML350 G5 Processors   ML350 G5 Memory
  ML350 G5 Controllers   ML350 G5 Networking   ML350 G5 Power Supplies
  ML350 G5 Quickspecs   ML350 G5 Quickspecs-Options   ML350 G5 Options
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML350 G5 Core Options      Additional Options      ML350 G5 Memory      Storage      Power Specifications      ML350 G5 QuickSpecs images/line.gif (50 bytes)

Proliant ML350 G5 Overview

HP ProLiant ML350 Generation 5 (G5)

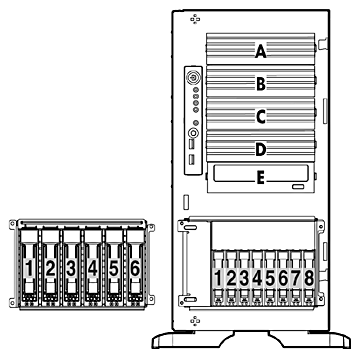

Proliant ML350 G5 Front View:Proliant ML350 G5 Rear View:

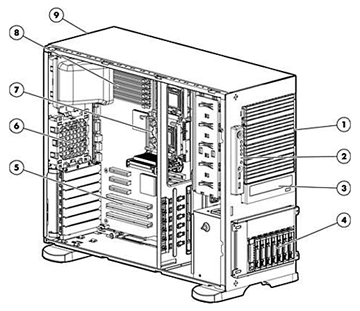

1. Five removable media bays1. Monitor port
2.Front display panel; includes power button, UID, two USB 2.0 ports, and system status LED's2.Serial port
3. USB ports
3. CD-ROM Drive (Dual-Core models), DVD-ROM Drive (Quad-Core models)4. Integrated Lights-Out 2 (iLO2) port
5.
Network port
4. Eight SFF (2.5") (shown) or six LFF (3.5") SAS or SATA Hot Plug drive bays
6.
PCI Express x4
7.
PCI-X 64/100
5.
Six expansion slots (three PCI Express, three PCI-X) 8.PCI-X 64/133
6.Two system fans standard with support for optional redundant system fans9.Access to add 2nd redundant power supply
10.Mouse port
7.Support for two Intel® Dual-Core or Quad-Core Xeon® 5000 sequence processors11.Keyboard port
12.Power
8.Eight PC2-5300 FB-DIMM (DDR2 667) memory sockets
9.Single Hot-Plug power supply standard, optional second redundant supply for availability

At A Glance
Building on a tradition of excellence, the HP ProLiant family introduces the fifth generation HP ProLiant ML350 server. The HP ProLiant ML350 G5 server provides Multi-Core performance, enterprise level management, and highly available redundant options in a modular server form factor. New for this generation is a smaller and quieter chassis, embedded Smart Array E200i Controller and 5 media bays.
  • Processors:
    • Quad-Core and Dual-Core Intel® Xeon® processors for blazing performance; systems support up to 2 processors
    • 1333/1066/667 MHz front side bus (FSB)
    • Intel® 5000Z chipset
  • Memory:
    • Eight PC2-5300 Fully Buffered DIMMs (DDR2 667) sockets with online-spare support for cost-effective memory configuration and expansion and 2:1 interleaving
    • Up to 16 GB of memory supported on Dual-Core 5000 and 5100 series
    • Up to 32 GB of memory supported on Dual-Core 5200 series, Quad-Core 5300 and 5400 series
  • Storage Controllers:
    • Entry Models: HP Smart Array E200i/64MB Controller (integrated SAS/SATA Hot-Plug Controller with RAID 0/1/1+0 support)
      • 128MB BBWC optional upgrade kit for RAID 5 support also available
    • Base Models: HP Smart Array E200i/128 BBWC Controller (RAID 0/1/1+0/5)
  • Internal Drive Support:
    • Up to eight SFF (2.5") or six LFF (3.5") Hot Plug Serial Attached SCSI (SAS) or Serial-ATA (SATA) hard drives
    • Maximum of 6TB of internal storage capacity (using Hot-Plug SATA drives)
  • Network Controller:
    • Embedded NC373i Multifunction Gigabit Network Adapter with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit
  • Expansion Slots:
    • Six total expansion slots
    • One 64-bit/133-MHz PCI-X; two 64-bit/100-MHz PCI-X; three x8 PCI Express (x4 speed)
    • Optional PCI-X Expander provides additional two 64-bit/100-MHz PCI-X slots by converting a single PCI Express slot
    • A single x8 PCI Express slot with x8 bus speed can be achieved by attaching the x4/x8 PCIE Bus Expander option kit. (Please see the chart and notes in the Expansion Slots under Standard Features below for more details)
  • USB Ports:
    • Six USB 2.0 ports: (2) front; (2) rear; (2) internal
  • Redundancy:
    • Optional Hot plug redundant power supplies
    • Support for optional redundant system fans
  • Infrastructure Management:
    • Convenient slide-out Systems Insight Display for quick and easy front view server diagnostics, along with status LEDs, Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU)
    • HP ProLiant Onboard Administrator (powered by the HP Integrated Lights-Out 2 management processor) for simplified server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration.
    • HP Insight Control a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, control and optimize your IT infrastructure through a single, simple management console. Insight Control supports both Windows and Linux-based central management servers.
    • HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. This ultimately enables them to dynamically keep pace with the organization's changing business requirements.
  • Operating Systems and Virtualization Software Support for ProLiant Servers:
    • Supports Windows, RHEL, SLES, OEL, NetWare
  • Deployment/Serviceability:
    • Optional parallel and second serial port available without using a PCI slot
    • Tool-free chassis entry and component access
    • Tool-free motherboard removal
    • Universal rail solution supporting both square and round hole rack environments
    • Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow for greater flexibility in performing defective parts replacement
  • Warranty:
    • This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
    • NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML350 G5 Core Options      Additional Options      ML350 G5 Memory      Storage      Power Specifications      ML350 G5 QuickSpecs images/line.gif (50 bytes)

Standard Features

NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/ERC/downloads/4AA0-6362ENW.pdf.
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
Quad-Core Processors
Quad-Core Intel® Xeon® Processor X5460 (3.16 GHz, 120 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5440 (2.83 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor L5420 (2.50 GHz, 50 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5405 (2.00 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor X5355 (2.66 GHz, 120 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5345 (2.33 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5335 (2.00 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5430 (2.66 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5420 (2.50 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5410 (2.33 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5320 (1.86 GHz, 80 Watts, 1066 FSB)
Quad-Core Intel® Xeon® Processor E5310 (1.60 GHz, 80 Watts, 1066 FSB)
Dual-Core Processors
Dual-Core Intel® Xeon® Processor X5260 (3.33 GHz, 80 Watts, 1333 FSB)
Dual-Core Intel® Xeon® Processor E5205 (1.86 GHz, 65 Watts, 1066 FSB)
Dual-Core Intel® Xeon® Processor 5160 (3.0 GHz, 80 Watts, 1333 FSB)
Dual-Core Intel® Xeon® Processor 5150 (2.66 GHz, 65 Watts, 1333 FSB)
NOTE: Available via Configure-To-Order only. See Factory Integrated Models section for more information.
Dual-Core Intel® Xeon® Processor 5140 (2.33 GHz, 65 Watts, 1333 FSB)
Dual-Core Intel® Xeon® Processor 5130 (2.00 GHz, 65 Watts, 1333 FSB)
Dual-Core Intel® Xeon® Processor 5120 (1.86 GHz, 65 Watts, 1066 FSB)

Cache Memory
One of the following depending on Model
12MB (2 x 6MB) Level 2 cache (5400 series)
8MB (2 x 4MB) Level 2 cache (5300 series)
6MB (1 x 6MB) Level 2 cache (5200 series)
4MB (1 x 4MB) Level 2 cache (5100 series)
4MB (2 x 2MB) Level 2 cache (5000 series)

Upgradeability Upgradeable to 2 processors (4 or 8 cores)
NOTE: Future upgradeable to Xeon® Series 5400/5300 Quad-Core processors (Please contact your regional sales support to determine quad core upgradeability. Some of the earlier shipping models may not support this upgrade). 5100 Dual-Core models are not upgradeable to the 5200 Dual-Core processors.

Chipset
Intel® 5000Z Chipset
NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.

Memory Protection
Online spare
Advanced ECC

ML350 G5 Memory
One of the following depending on model
TypePC2-5300 Fully Buffered DIMMs (DDR2-667)
Standard (Entry Models)512 MB (1 x 512 MB) on Dual-Core Models
1 GB (2 x 512 MB) on Quad-Core 5300 series
1 GB (2 x 512 MB) on Quad-Core 5400 series
Standard (Base Models)1 GB (2 x 512 MB) on Dual-Core Models
1 GB (2 x 512 MB) on Quad-Core 5300 series
2 GB (2 x 1 GB) on Quad-Core 5400 series
Maximum (Dual-Core 5000 & 5100 series)16 GB (8 x 2 GB)
Maximum (Dual-Core 5200, Quad-Core 5300 & 5400 series)32 GB (8 x 4 GB)

Network Controller Embedded NC373i Multifunction Gigabit Network Adapter with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit

Expansion Slots

Expansion
Slot #
Technology
Bus Width
Connector Width*
Bus Number**
Form Factor
Notes
6
PCI Express
x4
x8
15
Standard Height/Length
5
PCI Express
x4
x8
6
Standard Height/Length
4
PCI Express
x4
x8
9
Standard Height/Length
3
64-bit / 100MHz PCI-X
NA
NA
12
Standard Height/Length
PCI-X 100MHz
2
64-bit / 100MHz PCI-X
NA
NA
12
Standard Height/Length
PCI-X 100MHz
1
64-bit / 133MHz PCI-X
NA
NA
20
Standard Height/Length
PCI-X 133MHz
NOTES:
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).

Storage ControllerEntry ModelsHP Smart Array E200i/64MB Controller
Base ModelsHP Smart Array E200i/128 BBWC Controller
NOTE: Supports RAID 0/1/1+0 with 64MB of Cache, upgradeable to 128MB with BBWC for RAID 5 support.

Storage Diskette Drives None included standard
Optical Drive
One of the following depending on model
Quad-Core 5400 series: 16x SATA DVD-ROM drive
Quad-Core 5300 series: 16x PATA DVD-ROM drive
Dual-Core: 48x IDE CD-ROM drive
NOTE: Quad-Core 5400 series BTO Models are configured with SATA optical drive.
Hard Drives None included standard

Maximum Internal Storage
One of the following depending on model
Hot Plug LFF SATA 6TB 6 x 1TB
Hot Plug LFF SAS 6TB 6 x 1TB
Hot Plug SFF SATA 4.0TB 8 x 500GB
Hot Plug SFF SAS 4.0TB 8 x 500GB

Interfaces Parallel Optional parallel port available
Serial 1 (optional 2nd serial port available)
Pointing Device (Mouse) 1
Graphics 1
Keyboard 1
Network RJ-45 2 (1 dedicated for iLO 2)
USB 2.0 Ports 6 (2 front, 2 rear, 2 internal)
NOTE: Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html.

Graphics

Integrated ATI ES1000, 32MB video standard

  • 16 bit color: maximum resolution of 1600 x 1200
  • 32 bit color: maximum resolution of 1280 x 1024

NOTE: Maximum resolution available via iLO 2 remote console is 1280 x 1024.


Form Factor Tower or Rack (5U)

NOTE: Rack models (and rack conversion kit) support:

  • Square or round hole racks 24"- 36" deep, including HP Rack System /E and HP Systems
  • Telco racks with 3rd part option kit from Rack Solutions
    http://www.racksolutions.com/hp

HP Insight management software HP Insight Foundation

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters.

HP provides management solutions that are designed to simplify a server's installation, configuration and maintenance throughout the entire server lifecycle. This provides the customer with higher levels of operational efficiency and highly reliable systems: http://www.hp.com/go/foundation.

The foundation pack includes:

  • HP SmartStart
  • HP Management
  • HP ProLiant Firmware Maintenance

SmartStart version supported (minimum): SmartStart 7.60.
http://www.hp.com/servers/smartstart

ProLiant Onboard Administrator

HP ProLiant Onboard Administrator (powered by the HP Integrated Lights-Out 2 management processor) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP ProLiant Onboard Administrator functions without additional software, and can be accessed from any location via a web browser. It works hand-in-hand with HP Systems Insight Manager, Insight Control suites, and the Insight Dynamics for ProLiant helping customers unlock the value of the ProLiant platform and deliver the highest possible quality of IT service to the business. See: www.hp.com/go/ProLiantOA

HP Insight Control HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console.

Two versions of Insight Control are available, to serve environments requiring either a Linux-based or a Windows-based central management server: HP Insight Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.
HP Insight Dynamics for ProLiant HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. As a powerfully integrated by design toolkit to accelerate complex technology projects and simplify daily operations that ultimately enable IT Staff personnel to dynamically keep pace with the organizations changing business requirements. It enables them to plan capacity and power continuously, balance across physical and virtual resources, and ensure cost-effective high availability. It also enables IT organizations to provision infrastructure consistently and automatically from pools of shared resources using a self-service portal. Resources provisioned can range from a single virtual machine to complex multi-tier environments and their associated physical and virtual resource requirements. In addition to the previous functional benefits, it also provides a cost-effective disaster recovery for physical and virtual environments that works with HP StorageWorks Continuous Access software for both the Enterprise Virtual Array and the XP storage array allowing application environments to be reactivated in minutes with the touch of a button to a remote location.

NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics

Industry Standard Compliance ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
PCI-X 1.0a Compliant
Novell Certified
Microsoft® Logo certifications
USB 2.0

Availability Optional Hot-Plug, Redundant Power supply
Online-Spare Memory
Optional Dual Redundant System Fans

System Management HP Systems Insight Manager
SmartStart
Redundant ROM
System Firmware Update
ROMPaq
ProLiant RBSU (ROM-Based Setup Utility)
Automatic Server Recovery-2 (ASR-2)
Dynamic Sector Repairing (with Smart Array Controller)
Drive Parameter Tracking (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory, and SAS hard drives)

Security Power-on password
Setup password
Diskette boot control
Parallel and serial interface control
Disk configuration lock
Power switch security

Server Power CordsProLiant ML servers in a rack-mount configuration no longer ship standard with NEMA power cords that allow connection to 110V wall outlets in a home or office. These servers are primarily connected to PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a user wishes to power a ProLiant ML rack-mount server using a 110V receptacle (NEMA-15), the NEMA power cord must be ordered separately. The 12' cord (AF556A) or 6' cord (187335-001) can be purchased online at HP.COM. In a tower configuration, the servers ship standard with a 6' NEMA power cord. If customers require a local power cord, they can check the power cord matrix for the appropriate sku. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.

Power Supply 800 Watt-CE Mark Compliant Hot Plug Power Supply (1000 Watt high line)
Optional second Power Supply provides redundant capability
NOTE: Please see the "Power Specifications" section later in this document for low line and high line requirements.

System Fans 2 fans ship standard, dual redundant fans are optional, 4 fans total supported (does not include power supply or processor heat sink fans)

Required CablingFor required cabling information, refer to the HP ProLiant ML350 G5 cabling matrix at: http://www.hp.com/servers/proliantML350.
NOTE: Please see the "Storage" section of this QuickSpecs for important information on controllers and cables required to support SAS or SATA hard drives as well as storage management software available for SATA hard drives.

Operating Systems and Virtualization Software Support for ProLiant Servers Microsoft Windows Server
Microsoft Windows Server Hyper V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Enterprise Linux (OEL)
NetWare
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page www.hp.com/support/ML350G5.

Installation of Server into Telco Racks Support for all 2-post Telco racks requires the use of the HP ProLiant ML350 G5 rack kit and an additional option kit from Rack Solutions. http://www.hp.com/go/rackandpower

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.


HP Enterprise Configurator

The HP eConfigure-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator


Service and Support

HP Care Pack services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server and purchased at the same time or afterward that are internal to the enclosure. This also includes the 22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, and standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions, provides a range of support services designed to meet the varying needs of your business. Whether an SMB, or large global corporation, HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service - simplify ProLiant solution implementation, maintenance, and management.

  • Support - 3-Year 4-Hour response 24x7 Same Business Day Coverage only
  • Deployment Service - Installation and Start up only

Enhanced Service - optimize service level to increase IT performance and availability.

  • Support - 3-Year Support Plus 24 only

Refer to the information on "Installation & Start-Up" for service on ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.

NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML350 G5 Core Options      Additional Options      ML350 G5 Memory      Storage      Power Specifications      ML350 G5 QuickSpecs images/line.gif (50 bytes)

Models

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
NOTE: Please note that SFF tower or rack models can only be configured with SFF 2.5" SAS or SATA hard drives and LFF tower or rack models can be only configured with LFF 3.5" SAS or SATA hard drives.

HP ML350 G5 Entry Models

Tower
Quad-Core Models
HP ML350T05 E5420 LFF

458239-001
HP ML350T05 E5410 LFF
458244-001

Rack
Quad-Core Models HP ML350R05 E5420 LFF

458240-001

Processor(s)
One of the following depending on Model
(1) Quad-Core Intel® Xeon® E5420 Processor (2.50 GHz, 80 Watts, 1333 FSB)
(1) Quad-Core Intel® Xeon® E5410 Processor (2.33 GHz, 80 Watts, 1333 FSB)
Cache Memory 12MB (2 x 6MB) Level 2 cache - 5400 Series
Memory 1 GB (2 x 512 MB)
Network Controller Embedded NC373i Multifunction Gigabit Server Adapter
Storage ControllerSmart Array E200i/64 Controller (RAID 0/1/1+0)
Hard DriveNone Ship Standard; (0/6 LFF)
Internal Storage6TB LFF SATA
6TB LFF SAS
Optical Drive
One of the following depending on Mode
Quad-Core: 16x DVD-ROM standard
Dual-Core: 48x CD-ROM standard
PCI-Express SlotsSix expansion slots (three PCI Express, three PCI-X)
Power Supplies800-Watt CE-mark compliant Hot-Plug power supply
Optional second power supply provides redundant operation
Fans2 fans ship standard, 4 fans total supported (does not include power supply or processor heatsink fans)
Form Factor
One of the following depending on Model
Tower
Rack (5U), (8.75 in/22.25 cm)

HP ML350 G5 Base Models

Tower
Quad-Core Models
HP ML350T05 E5430 SFF

458238-001
HP ML350T05 E5420 SFF
458242-001
HP ML350T05 E5410 SFF
458246-001

Rack
Quad-Core Models
HP ML350R05 E5430 SFF

458237-001
HP ML350R05 E5420 SFF
458243-001

Processor(s)
One of the following depending on Model
(1) Quad-Core Intel® Xeon® E5430 Processor (2.66 GHz, 80 Watts, 1333 FSB)
(1) Quad-Core Intel® Xeon® E5420 Processor (2.50 GHz, 80 Watts, 1333 FSB)
(1) Quad-Core Intel® Xeon® E5410 Processor (2.33 GHz, 80 Watts, 1333 FSB)
Cache Memory 12MB (2 x 6MB) Level 2 cache
Memory 2 GB (2 x 1GB) standard
Network Controller Embedded NC373i Multifunction Gigabit Server Adapter
Storage Controller Smart Array E200i/128 BBWC Controller (RAID 0/1/1+0/5)
Hard Drive None Ship Standard; (0/8 SFF)
Internal Storage 4TB SFF SATA
4TB SFF SAS
Optical Drive
One of the following depending on Model
Quad-Core: 16x DVD-ROM standard
Dual-Core: 48x CD-ROM standard
PCI-Express Slots Six expansion slots (three PCI Express, three PCI-X)
Power Supplies 800-Watt CE-mark compliant Hot-Plug power supply
Optional second power supply provides redundant operation
Fans 2 fans ship standard, 4 fans total supported (does not include power supply or processor heatsink fans)
Form Factor
One of the following depending on Model
Tower
Rack (5U), (8.75 in/22.25 cm)
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML350 G5 Core Options      Additional Options      ML350 G5 Memory      Storage      Power Specifications      ML350 G5 QuickSpecs images/line.gif (50 bytes)

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start with a CTO Chassis.
NOTE: FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration (choose one of the following configurable models)
Models ML350 G5 Tower Models
LFF - 3.5" Drives
HP ProLiant ML350G5 LFF SAS/SATA Tower CTO Chassis
412645-B21
Includes:
Embedded NC373i Multifunction Gigabit Server Adapter
Integrated Smart Array E200i Controller
Six Hot-Plug (LFF) SAS/SATA Drive Bays
Six expansion slots: one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express (with x8 connectors)
Six USB ports
800W Hot-Plug Power Supply
Tower Form Factor
Keyboard
2-button Mouse

SFF - 2.5" Drives
HP ProLiant ML350G5 SFF SAS/SATA Tower CTO Chassis
395570-B21
Includes:
Embedded NC373i Multifunction Gigabit Server Adapter
Integrated Smart Array E200i Controller
Eight Hot-Plug (SFF) SAS/SATA Drive Bays
Six expansion slots: one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express (with x8 connectors)
Six USB ports
800W Hot-Plug Power Supply
Tower Form Factor
Keyboard
2-button Mouse

ML350 G5 Rack Models
LFF - 3.5" Drives
HP ProLiant ML350G5 LFF SAS/SATA Rack CTO Chassis
412644-B21
Includes:
Embedded NC373i Multifunction Gigabit Server Adapter
Integrated Smart Array E200i Controller
Six Hot-Plug (LFF) SAS/SATA Drive Bays
Six expansion slots: one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express (with x8 connectors)
Six USB ports
800W Hot-Plug Power Supply
Rack (5U) Form Factor

SFF - 2.5" Drives
HP ProLiant ML350G5 SFF SAS/SATA Rack CTO Chassis
395569-B21
Includes:
Embedded NC373i Multifunction Gigabit Server Adapter
Integrated Smart Array E200i Controller
Eight Hot-Plug (SFF) SAS/SATA Drive Bays
Six expansion slots: one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express (with x8 connectors)
Six USB ports
800W Hot-Plug Power Supply
Rack (5U) Form Factor

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors Quad-Core Processors
Quad-Core Intel® Xeon® Processor X5460 (3.16 GHz, 120 Watts, 1333 FSB) ML350G5 FIO Kit
Quad-Core Intel® Xeon® Processor E5440 (2.83 GHz, 80 Watts, 1333 FSB) ML350G5 FIO Kit
Quad-Core Intel® Xeon® Processor E5430 (2.66 GHz, 80 Watts, 1333 FSB) ML350G5 FIO Kit
Quad-Core Intel® Xeon® Processor L5420 (2.50 GHz, 50 Watts, 1333 FSB) ML350G5 FIO Kit 493459-B21 493459-B21
Quad-Core Intel® Xeon® Processor E5420 (2.50 GHz, 80 Watts, 1333 FSB) ML350G5 FIO Kit
Quad-Core Intel® Xeon® Processor E5410 (2.33 GHz, 80 Watts, 1333 FSB) ML350G5 FIO Kit 458267-B21 458267-B21
Quad-Core Intel® Xeon® Processor E5405 (2.00 GHz, 80 Watts, 1333 FSB) ML350G5 FIO Kit 458269-B21 458269-B21
Base Memory 1 GB FBD PC2-5300 2 x 512 MB Single Rank Kit
2 GB FBD PC2-5300 2 x 1 GB Dual Rank Kit
2 GB FBD PC2-5300 2 x 1 GB Low Power Single Rank Kit
4 GB FBD PC2-5300 2 x 2 GB Dual Rank Kit
4 GB FBD PC2-5300 2 x 2 GB Low Power Dual Rank Kit
8 GB FBD PC2-5300 2 x 4 GB Dual Rank Kit
8 GB FBD PC2-5300 2 x 4 GB Low Power Dual Rank Kit
NOTE: Memory Option Kits include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, please visit:
http://h18004.www1.hp.com/products/servers/platforms/energyefficient/.

Smart Array E200i Controller Cache

HP SA E200 64MB Cache FIO Kit
NOTE:
Select this option for RAID 0/1/1+0
128-MB Battery-Backed Write Cache (BBWC)
NOTE: Select this option for RAID 0/1/1+0/5.
Optical Drive 16X DVD-ROM Drive Option Kit (Carbon)
HP Half-Height SATA DVD-ROM Optical Drive
447326-B21
HP Half-Height SATA DVD RW Optical Drive
447328-B21

Step 3: Choose Additional Factory Integratable Options
Controllers

HP Smart Array P400/256 MB Controller
NOTE: SAS Controller supporting RAID 0/1/1+0/5.

HP Smart Array P600/256 BBWC Controller
NOTE: SAS Controller supporting RAID 0/1/1+0/5/6.
Smart Array 642 Controller
NOTE: U320 Controller.
Smart Array 6402/128 Controller
NOTE: U320 Controller.
Smart Array 6404/256 Controller
NOTE: U320 Controller.
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
HP Smart Array 6404/512 FIO CNTRLR
Insight Control suite HP Insight Control suite, No Media 1-Server License Factory-Integratable Option (FIO) including 1 year of 24x7 Technical Support and Updates 582765-B21

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML350 G5 Core Options      Additional Options      ML350 G5 Memory      Storage      Power Specifications      ML350 G5 QuickSpecs images/line.gif (50 bytes)

ML350 G5 Core Options

NOTE: Some options may not be factory configurable. Please contact your local sales representative for additional information.
HP ProLiant ML350 G5 Unique Options HP Redundant Fan ML350 G5 Kit
409579-B21
HP PCI-X Expander Kit (2 x 64-bit 100MHz PCI-X slots)
NOTE: The HP PCI-X Expander kit converts a single PCI Express slot (slot 6) into two full height, full length 64-bit 100MHz PCI-X slots.
NOTE: The HP PCI-X Expander kit can support a maximum of one (1) HP Smart array, HBA, or SCSI PCI-X adapter. Prioritize internal slots for use with PCI-X storage controllers. Please refer to the ML350G5 user guide for additional details.
HP Tower to Rack Conversion Kit - ML350 G5 Kit
NOTE: See "Redundant Options" section below for Hot Plug Redundant Power supplies.

Processors Quad-Core Processors
Quad-Core Intel® Xeon® Processor X5460 (3.16 GHz, 120 Watts, 1333 FSB) 493457-B21 493457-B21
Quad-Core Intel® Xeon® Processor E5440 (2.83 GHz, 80 Watts, 1333 FSB) 458257-B21 458257-B21
Quad-Core Intel® Xeon® Processor E5430 (2.66 GHz, 80 Watts, 1333 FSB) 458259-B21 458259-B21
Quad-Core Intel® Xeon® Processor L5420 (2.50 GHz, 50 Watts, 1333 FSB) 493459-B21 493459-B21
Quad-Core Intel® Xeon® Processor E5420 (2.50 GHz, 80 Watts, 1333 FSB) 458265-B21 458265-B21
Quad-Core Intel® Xeon® Processor E5410 (2.33 GHz, 80 Watts, 1333 FSB) 458267-B21 458267-B21
Quad-Core Intel® Xeon® Processor E5405 (2.00 GHz, 80 Watts, 1333 FSB) 458269-B21 458269-B21
Quad-Core Intel® Xeon® Processor X5355 (2.66 GHz, 120 Watts, 1333 FSB) 436015-B21 436015-B21
Quad-Core Intel® Xeon® Processor E5345 (2.33 GHz, 80 Watts, 1333 FSB) 436013-B21 436013-B21
Quad-Core Intel® Xeon® Processor E5335 (2.00 GHz, 80 Watts, 1333 FSB) 437444-B21 437444-B21
Quad-Core Intel® Xeon® Processor E5320 (1.86 GHz, 80 Watts, 1066 FSB) 435512-B21
Quad-Core Intel® Xeon® Processor E5310 (1.6 GHz, 80 Watts, 1066 FSB) 435513-B21 435513-B21
Dual-Core Processors
Dual-Core Intel® Xeon® Processor X5260 (3.33 GHz, 80 Watts, 1333 FSB) 493461-B21 493461-B21
Dual-Core Intel® Xeon® Processor E5205 (1.86 GHz, 65 Watts, 1066 FSB) 458725-B21 458725-B21

Memory (DIMMs)

1 GB FBD PC2-5300 2 x 512 MB Single Rank Kit
2 GB FBD PC2-5300 2 x 1 GB Dual Rank Kit
2 GB FBD PC2-5300 2 x 1 GB Low Power Single Rank Kit
4 GB FBD PC2-5300 2 x 2 GB Dual Rank Kit
4 GB FBD PC2-5300 2 x 2 GB Low Power Dual Rank Kit
8 GB FBD PC2-5300 2 x 4 GB Dual Rank Kit
8 GB FBD PC2-5300 2 x 4 GB Low Power Dual Rank Kit
NOTE: Memory Option Kits include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, please visit:
http://h18004.www1.hp.com/products/servers/platforms/energyefficient/


Smart Buy Memory (DIMMs)

1 GB FBD PC2-5300 2 x 512 MB Kit
397409-S21
2 GB FBD PC2-5300 2 x 1 GB Kit
397411-S21
4 GB FBD PC2-5300 2 x 2 GB Kit
397413-S21

Optical Drives

Floppy Drive ML350/370 G5 Kit
409582-B21
16X DVD-ROM Drive Option Kit (Carbon) 217053-B21 217053-B21
HP Half-Height SATA DVD-ROM Optical Drive 447326-B21
HP Half-Height SATA DVD RW Optical Drive 447328-B21
NOTE: Please note that some of the earlier BTO models may not support adding SATA Optical Drives. To ensure compatibility of the SATA Optical Drives, please add additional optical drives only on models with Quad-Core 5400 Series processors.

Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF Enterprise (ENT) Drives
NOTE: Please note that SFF 2.5" (small form factor) drives can only be installed on tower or rack models with SFF chassis (models).

HP 300GB 6G SAS 10K SFF DP ENT HDD
HP 300GB 3G SAS 10K SFF DP ENT HDD
HP 146GB 6G SAS 15K SFF DP ENT HDD
HP 146GB 3G SAS 15K SFF DP ENT HDD 504062-B21 504062-B21
HP 146GB 6G SAS 10K SFF DP ENT HDD
HP 146GB 3G SAS 10K SFF DP ENT HDD
HP 72GB 6G SAS 15K SFF DP ENT HDD 512545-B21 512545-B21
HP 72GB 3G SAS 15K SFF DP ENT HDD
HP 72GB 3G SAS 10K SFF DP ENT HDD 384842-B21 384842-B21
SAS Hot Plug 3.5" Enterprise (ENT) Drives
NOTE: Please note that LFF 3.5" (large form factor) drives can only be installed on tower or rack models with LFF chassis (models).
HP 600GB 6G SAS 15K 3.5" DP ENT HDD 516828-B21 516828-B21
HP 450GB 6G SAS 15K 3.5" DP ENT HDD 516816-B21 516816-B21
HP 450GB 3G SAS 15K 3.5" DP ENT HDD
HP 300GB 6G SAS 15K 3.5" DP ENT HDD
HP 300GB 3G SAS 15K 3.5" DP ENT HDD
HP 146GB 3G SAS 15K 3.5" DP ENT HDD 384854-B21 384854-B21
SAS Hot Plug SFF Midline (MDL) Drives
HP 500GB 6G SAS 7.2K SFF DP MDL HDD 507610-B21 507610-B21
SAS Hot Plug 3.5" Midline (MDL) Drives
HP 1TB 3G SAS 7.2K 3.5" DP MDL HDD 461137-B21 461137-B21
HP 750GB 3G SAS 7.2K 3.5" DP MDL HDD 461135-B21 461135-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html
SATA Hot Plug SFF Midline (MDL) Drives
HP 500GB 3G SATA 7.2K 2.5in MDL HDD 507750-B21 507750-B21
HP 160GB 3G SATA 7.2K 2.5in MDL HDD 530888-B21 530888-B21
SATA Hot Plug 3.5" Midline (MDL) Drives
HP 1TB 3G SATA 7.2K 3.5" MDL HDD 454146-B21 454146-B21
HP 750GB 3G SATA 7.2K 3.5" MDL HDD
HP 500GB 3G SATA 7.2K 3.5" MDL HDD 458928-B21 458928-B21
HP 250GB 3G SATA 7.2K 3.5" MDL HDD 458926-B21 458926-B21
SATA Hot Plug SFF Entry (ETY) Drives
HP 250GB 3G SATA 5.4K SFF ETY HDD 460355-B21 460355-B21
HP 120GB 1.5G SATA 5.4K SFF ETY HDD 458924-B21 458924-B21
SATA Hot Plug 3.5" Entry (ETY) Drives
HP 160GB 3G SATA 7.2K 3.5" ETY HDD
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html
3.5" SATA Hot Plug Drives
HP 750GB 1.5G SATA 7.2K 3.5" HDD 432341-B21 432341-B21
HP 500GB 1.5G SATA 7.2K 3.5" HDD 395473-B21 395473-B21
HP 250GB 1.5G SATA 7.2K 3.5" HDD 349239-B21 349239-B21
HP 160GB 1.5G SATA 7.2K 3.5" HDD 349238-B21 349238-B21
NOTE: The previous generation of 1.5G SATA drives are still supported. These drives can be purchased as an option, however they are no longer configurable.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18004.www1.hp.com/products/quickspecs/11940_na/11940_na.html

SATA Hot Plug Midline (MDL) Solid State Drives
HP 60GB 3G SATA 2.5in MDL 1y Wty SSD 572071-B21
HP 120GB 3G SATA 2.5in MDL 1y Wty SSD 572073-B21 572073-B21
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
HP 60GB 3G SATA 3.5in MDL 1y Wty SSD 570761-B21
HP 120GB 3G SATA 3.5in MDL 1y Wty SSD 570763-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13415_na/13415_na.html


Communications Gigabit Ethernet Adapters
HP NC112T PCIe Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC364T PCI Express Quad Port Gigabit Server Adapter
NOTE: Does not support Windows 2000.
NOTE: There is a maximum of five NC364T PCI Express Quad Port Gigabit Server Adapter NICs allowed in this server.
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
NOTE: Supported on a full length-full height slot only.
10 Gigabit Ethernet Adapters
HP NC522SFP Dual Port 10GbE Server Adapter
NOTE: A minimum of two gigabyte (2 GB) of server memory is required per each NC522SFP adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs

Power Supplies

Redundant Power Supply 350/370/380 G5 Kit (IEC Cord)
Redundant Power Supply 350/370/380 G5 Kit (NEMA Cord)
Power Options
Redundant Fan ML350 G5 Kit
409579-B21
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML350 G5 Core Options      Additional Options      ML350 G5 Memory      Storage      Power Specifications      ML350 G5 QuickSpecs images/line.gif (50 bytes)

Additional Options

HP Insight Software HP Insight Control server deployment
HP Insight Control server deployment, Electronic License including 1 year of 24x7 Technical Support and Updates T9082AAE
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Electronic software is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the Insight Control QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html

HP Insight Control for Linux
HP Insight Control for Linux, 1-server license, including one year of 24x7 Technical Support and Updates, Electronic T9084BAE
HP Insight Control for Linux, No Media, 1-Server license, including one year of 24x7 Technical Support and Updates 464423-B22
HP Insight Control for Linux, Media pack (DVD) - No licenses included
NOTE: Media pack DVD contains the ISO image for HP Insight Control for Linux, HP Systems Insight Manager, HP Insight Control power management, HP Insight Control virtual machine management, and an integrated installer. Servers must be acquired separately.
464422-B22
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic software is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single set of activation keys.
NOTE: For additional License Kits, including electronic licensing options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html

HP Integrated Lights-Out Advanced
HP Integrated Lights-Out Advanced, No Media, 1-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 server to be deployed and managed via HP iLO Advanced. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service
NOTE: For additional license kits, including electronic delivery options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_na/12362_na.html
512485-B21
HP Insight Rapid Deployment software
HP Insight Rapid Deployment software No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 server to be deployed and managed via RDP. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service
NOTE: For additional license kits, including electronic delivery options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.html
452151-B21

Storage Controllers SAS Controllers
Smart Array E200 Controller
HP Smart Array E200/128 BBWC Controller
Smart Array E500 Controller
HP Smart Array E500/256MB Controller
Smart Array P400 Controller
HP Smart Array P400/512MB BBWC Controller
NOTE: Supports RAID 0/1/1+0/5/6.
HP Smart Array P400/256MB Controller
NOTE: Supports RAID 0/1/1+0/5.
Smart Array P600 Controller
HP Smart Array P600/256 BBWC Controller
NOTE: Supports internal or external drive attach.
Smart Array P800 Controller

HP Smart Array P800/512 BBWC Controller
NOTE: Supports internal or external drive attach.
Optional Upgrades
128-MB Battery-Backed Write Cache (BBWC)
NOTE: Supports the Smart Array E200 Controller and Smart Array 642 Controller.
351580-B21 351580-B21
HP SA-P400 and SA-E500 24 In Battery Cable Kit
NOTE: This option kit contains a 24" battery cable and adhesive material for installing a battery into the server if a Smart Array P400 is integrated outside of the factory. For all solutions, please refer to the server QuickSpecs and User's Manual for detailed installation instructions.
417836-B21 417836-B21
512MB Battery-backed cache (BBWC) upgrade
NOTE: for Smart Array P400 Controller.
405148-B21 405148-B21
Battery-backed write cache (BBWC) upgrade
NOTE: for Smart Array P400 Controller.
383280-B21 383280-B21
512MB Battery-backed write cache (BBWC) upgrade
NOTE: For Smart Array P600 Controller.
372538-B21 372538-B21
NOTE: Please see the following QuickSpecs additional information: http://h18000.www1.hp.com/products/quickspecs/12460_na/12460_na.html
(Smart Array E200 Controller)
http://h18000.www1.hp.com/products/quickspecs/12700_na/12700_na.html
(Smart Array E500 Controller)
http://h18000.www1.hp.com/products/quickspecs/12400_na/12400_na.html
(Smart Array P400 Controller) http://h18000.www1.hp.com/products/quickspecs/12247_na/12247_na.html
(Smart Array P600 Controller)
http://h18000.www1.hp.com/products/quickspecs/12616_na/12616_na.html
(Smart Array P800 Controller)

SAS HBA
HP SC08Ge Host Bus Adapter
HP SC44Ge Host Bus Adapter
NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5 Gb/s, 3 Gb/s SAS.

416096-B21 416096-B21

HP 8 Internal Port SAS HBA with RAID
NOTE: Transfer rate: 1.5 Gb/s, 3 Gb/s SAS.
NOTE: Please see the HBA QuickSpecs for additional information: http://h18004.www1.hp.com/products/quickspecs/13082_na/13082_na.html
(SC08Ge HBA)
http://h18004.www1.hp.com/products/quickspecs/12617_na/12617_na.html
(SC44Ge HBA)
http://h18004.www1.hp.com/products/quickspecs/12332_na/12332_na.html
(8 Internal Port SAS HBA)

SCSI Controllers for External Drive/Storage Support
Smart Array 6402/128 Controller
NOTE:
Ultra320 SCSI.
Smart Array 6404/256 Controller
NOTE:
Ultra320 SCSI.
Smart Array 642 Controller
NOTE:
Ultra320 SCSI.
128MB Battery-Backed Write Cache (BBWC)
NOTE:
Supports the Smart Array E200 Controller and Smart Array 642 Controller.
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
SCSI HBA
HP SC11Xe Host Bus Adapter
NOTE: Recommended HBA for SCSI tape drive connect.
NOTE: Please see the following QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/11943_na/11943_na.html
(Single Channel Ultra320 SCSI HBA) http://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.html
(Smart Array 6400 Series)
http://h18000.www1.hp.com/products/quickspecs/12069_na/12069_na.html
(Smart Array 642)
http://h18000.www1.hp.com/products/quickspecs/12566_na/12566_na.html
(SC11Xe HBA)


PCI Option

HP x4-x8 PCI-E Bus Expander Option Kit
NOTE: The HP x4/x8 PCI Express Bus Expander kit converts 2 x4 PCI Express slots into a single x8 PCI Express slot for high performance x8 PCI Express cards.
403724-B21

Port Options

Parallel/Serial Port ML370/350 G5 Kit
401222-B21

Tape Storage NOTE: For the complete listing of Tape Drive offerings, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
Tape Drives
DAT USB Tape Drives
HP StorageWorks DAT 160 USB Internal Drive Q1580A
HP DAT 320 USB Internal Tape Drive AJ825A
DAT 320 USB External Tape Drive AJ823A
SAS Tape Drives
NOTE: For the ML350 G5, HP recommends purchasing the HP SC44Ge HBA (416096-B21 416096-B21) for a dedicated SAS HBA for tape.

HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
DW085A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
EH847A
HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive EH919A
HP DAT 320 SAS Internal Tape Drive AJ830A
DAT 320 WW SAS External Tape Drive AJ828A
NOTE: Please refer to the "Tape and Disk-Based Backup" table in the Storage section of this document for a list of SAS controllers with tape support.
For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect.
HP StorageWorks 1/8 G2 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader AK377A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader AH558A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions.
AH166A
NOTE: Please reference the Tape Autoloader QuickSpecs at: http://www.hp.com/go/automation for additional information needed to create a complete solution.
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library AK378A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library AH559A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library AK380A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library AH560A
NOTE: Please reference the MSL Tape Library QuickSpecs at: http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at: http://www.hp.com/go/ebs.

Disk-Based Backup RDX Removable Disk Backup
HP StorageWorks RDX500 Internal Removable Disk Backup System
NOTE: 500 GB of Disk Storage.
AJ934A
NOTE: Please see the HP RDX Removable Disk Backup System QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13036_na/13036_na.html

D2D Backup
HP StorageWorks D2D2502i Backup System
NOTE: 2 TB raw capacity/1.5 TB useable capacity.
EJ001A
HP StorageWorks D2D2504i Backup System
NOTE: 4 TB raw capacity/3 TB useable capacity.
EJ002A
NOTE: Please see the HP D2D Backup Systems QuickSpecs for additional information: http://www.hp.com/go/d2d.

StorageWorks Options StorageWorks Fibre Channel HBAs
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs
HP StorageWorks 81B PCI-e FC HBA Single Port AP769A AP769A
HP StorageWorks 82B PCI-e FC HBA Dual Port AP770A AP770A
HP StorageWorks 41B 4Gb PCI-e FC HBA AP767A AP767A
HP StorageWorks 42B 4Gb Dual-Port PCI-e FC HBA AP768A AP768A
Emulex Fibre Channel HBAs
HP StorageWorks 81E PCI-e FC HBA Single Port AJ762A AJ762A
HP StorageWorks 82E PCI-e FC HBA Dual Port AJ763A AJ763A
HP StorageWorks FC2142 4Gb PCI-e HBA A8002A A8002A
HP StorageWorks FC2242 Dual Channel 4Gb PCI-e HBA A8003A A8003A
QLogic Fibre Channel HBAs
HP StorageWorks 81Q PCI-e FC HBA Single Port AK344A AK344A
HP StorageWorks 82Q PCI-e FC HBA Dual Port AJ764A AJ764A
HP StorageWorks FC1142 4Gb PCI-e HBA AE311A AE311A
HP StorageWorks FC1242 Dual Channel 4Gb PCI-e HBA AE312A AE312A
StorageWorks SCSI HBA
HP U320e SCSI Host Bus Adapter
NOTE: Recommended HBA for MSL SCSI Tape Library connect.
AH627A AH627A

HP StorageWorks Modular Smart Array

MSA SAN Storage Arrays
HP StorageWorks Modular Smart Array 20
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 3.5" Hot Plug Hard Drives.
HP StorageWorks 50 Modular Smart Array 364430-B21 364430-B21
NOTE: Please see the Modular Smart Array 50 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/12245_na/12245_na.html
HP StorageWorks 60 Modular Smart Array 418408-B21 418408-B21
NOTE: Please see the Modular Smart Array 60 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/12627_na/12627_na.html
HP StorageWorks 70 Modular Smart Array 418800-B21 418800-B21
NOTE: Please see the Modular Smart Array 70 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/12652_na/12652_na.html
HP 2012sa Single Controller Modular Smart Array AJ752A AJ752A
HP 2012sa Dual Controller Modular Smart Array AJ753A AJ753A
NOTE: Please see the Modular Smart Array 2000sa QuickSpecs for additional options and configuration information at:
http://h18000.www1.hp.com/products/quickspecs/13045_na/13045_na.html


Uninterruptible Power Systems HP Tower UPS
HP T1500 G3 UPS Models
HP T1500 G3 UPS AF450A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13160_na/13160_na.html

NOTE: For additional information on HP Uninterruptable Power Systems please go to: www.hp.com/servers/rackups.
HP Rack-mountable UPS
HP R1500 G2 UPS
HP, R1.5kVA UPS, 1U AF419A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12507_na/12507_na.html

HP R3000 UPS
HP R3000 VA UPS, 2U, Low voltage L5-30 AF422A
HP R3000 VA UPS, 2U, High voltage L6-20 AF423A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/10671_na/10671_na.html

HP R/T3000 Uninterruptible Power System (UPS)
HP R/T3000 UPS, Low voltage AF452A
HP R/T3000 UPS, High voltage AF453A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13417_na/13417_na.html

HP Rack-Mountable R5500 UPS
HP R5500 VA UPS AF426A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/11871_na/11871_na.html

NOTE: For additional information on HP Uninterruptable Power Systems please go to: www.hp.com/servers/rackups.

Power Distribution Units Monitored PDUs
HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU- dual input, 3Ø, 24A
AF503A
HP 8.6 kVA S1324 Monitored PDU- single input, 3Ø, 24A
AF504A
HP 16.6 kVA S2140 Monitored PDU- dual input, 1Ø, 40A
AF505A
HP 8.3 S1140 Monitored PDU- single input, 1Ø, 40A
AF506A
HP 4.9 kVA S124 Monitored PDU- single input, 1Ø, 24A
AF914A

Modular PDUs 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 G2 and 9000 series racks).
3.6kVA Model - mPDU, 16A, High
2.8 kVA Model - mPDU, 24A, Low

252663-D71 252663-D71

4.9kVA Model - mPDU, 24A, High

252663-D72 252663-D72

8.3kVA Model - mPDU, 40A, High

252663-B21 252663-B21

8.3kVA Model - mPDU, 40A, High (power cord attached)

252663-D73

8.3kVA Model - mPDU 40A, High (core only)
252663-D75
4.9kVA Model - mPDU 24A, High (core only)
252663-D74
NOTE: For additional information on HP Power Distribution Units including accessories please go to: www.hp.com/go/pdu

HP Rack Series

HP Rack 5000 Series (Graphite Metallic)
HP 5642 Rack-Unassembled 358254-B21 358254-B21
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12074_na/12074_na.html

HP Rack 10000 G2 Series (Carbon/Graphite Metallic)
HP S10614 (14U) Rack Cabinet - Shock Pallet 292302-B22 292302-B22
10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
10622 G2 (22U) Rack Cabinet - Pallet
AF021A
10622 G2 (22U) Rack Cabinet - Shock Pallet
AF022A
10642 G2 (42U) Rack Cabinet 1200mm Deep - Shock Pallet AF034A
10642 G2 (42U) Rack Cabinet 1200mm Deep - Pallet AF038A
10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet
AF041A
10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet
AF042A
10647 G2 (47U) Rack Cabinet - Pallet
AF031A
10647 G2 (47U) Rack Cabinet 1200mm Deep - Shock Pallet
NOTE: Due to handling and shipping requirements, AF044A is only orderable through HP Factory Express. It is not for direct sales. Customer site surveys are required before an order is approved. CTO orders may require additional lead time.
AF044A
10647 G2 (47U) Rack Cabinet 1200mm Deep - Pallet AF045A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels).

NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.html

NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HP Rack Options Keyboards and Monitors
TFT7600 Rackmount Keyboard Monitor
HP TAA TFT7600 Rkmntkybd 17in Monitor AG067A
1U Rackmount Keyboard with USB
NOTE: For additional information regarding Rack Options, please see the following URL: http://www.hp.com/go/rackandpower.
HP KVM Switch Options
2x1x16 IP Console Switch with Virtual Media AF601A AF601A
4x1x16 IP Console Switch with Virtual Media AF602A AF602A
2x16 Server Console Switch with Virtual Media AF600A AF600A
0x2x16 KVM Server Console G2 Switch with Virtual Media and CAC AF618A
0x2x32 KVM Server Console G2 Switch with Virtual Media and CAC AF619A
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
AF604A AF604A
1x1Ex8 KVM IP Console Switch G2 with Virtual Media and CAC AF620A
2x1Ex16 KVM IP Console Switch G2 with Virtual Media and CAC AF621A
4x1Ex32 KVM IP Console Switch G2 with Virtual Media and CAC AF622A
Server console switch 0x2x8 AF616A
Server console switch 0x2x16 AF617A
HP TAA Server console switch 0x2x16 AF626A
PS/2 Interface Adapter, 1 pack 262588-B21 262588-B21
PS/2 Interface Adapter, 8 pack 262587-B21 262587-B21
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
HP 1x4 Console Switch AF611A AF611A
PS2 Server Console Cable, 6 ft, 2 pack AF612A AF612A
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
HP Serial Console Server Options
HP 16 Port Serial Console Server AF101A AF101A
HP 48 Port Serial Console Server AF102A AF102A
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack AF103A AF103A
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

Rack Kits

HP ML350 G5 Tower to Rack Conversion Kit

USB and SD Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
USB 1.44-MB External Diskette Drive (Carbonite)
DC141B
HP USB 04 Standard Keyboard
DT528A# ABA
HP 1GB USB 2.0 Floppy Drive Key
442085-B21

Service and Support Offerings
(HP Care Pack Services)
Hardware Services On-site Service
NOTE: To attach 3 year, 4-Hour On-site Service to Smart Buy servers, Smart Buy Care Packs must be used. For other service levels, order standard Care Pack part numbers.
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years (Electronic)
U4512E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (Electronic)
U4513E
NOTE: Use one of the following Smart Buy Care Packs to attach 3 year, 4-Hour On-site Service to Smart Buy servers. For other service levels, order standard Care Pack part numbers.
ML350 Smart Buy 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, ElectronicUE901E
ML350 Smart Buy 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, ElectronicUE902E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years (Electronic)
U4514E
O/S and Hardware Installation

Hardware Installation (Electronic)

U4522E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays. (Electronic)
U4523E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays. (Electronic)
U4524E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4525E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6308E
Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U8330E
NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML350 G5 Core Options      Additional Options      ML350 G5 Memory      Storage      Power Specifications      ML350 G5 QuickSpecs images/line.gif (50 bytes)

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

HP ProLiant ML350 G5 Memory Configuration
The HP ProLiant ML350 G5 requires memory interleaving when more than one DIMM is installed. For interleaving, DIMMs must be configured in identical pairs. The system will not boot properly if multiple DIMMs of varying density or type are installed in the system.

Standard Memory
All HP ProLiant ML350 G5 models ship with PC2-5300 Fully Buffered DIMMs (DDR2-667).
Entry models include a single 512 MB DIMM (Dual-Core) or two 512 MB DIMMs (Quad-Core).
Base models include two 512 MB DIMMs (1 GB total memory) or two 1 GB DIMMs (2 GB total memory)
Factory Integrated Models include the memory capacity of your choice.

Common Memory Configuration
Valid DIMM pair combinations use slots 1/5, slots 2/6, slots 3/7, and slots 4/8. Maximum supported memory is 16 GB for Dual-Core 5000 and 5100 series models and 32 GB on Quad-Core 5300 and 5400 series models.
NOTE: Chart does not represent all possible memory configurations.


Memory
Slot
  1A 2B 3C 4D 5A 6B 7C 8D
Standard 1 GB
512 MB
Empty
Empty
Empty
512 MB
Empty
Empty
Empty
Optional 13 GB
512 MB
2 GB
2 GB
2 GB
512 MB
2 GB
2 GB
2 GB
Maximum 32 GB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB


Following are memory options available from HP:



1 GB FBD PC2-5300 2 x 512 MB Single Rank Kit

397409-B21 397409-B21

2 GB FBD PC2-5300 2 x 1 GB Dual Rank Kit

397411-B21 397411-B21

2 GB FBD PC2-5300 2 x 1 GB Low Power Single Rank Kit

461826-B21 461826-B21

4 GB FBD PC2-5300 2 x 2 GB Dual Rank Kit

397413-B21 397413-B21

4 GB FBD PC2-5300 2 x 2 GB Low Power Dual Rank Kit

461828-B21 461828-B21

8 GB FBD PC2-5300 2 x 4 GB Dual Rank Kit

397415-B21 397415-B21

8 GB FBD PC2-5300 2 x 4 GB Low Power Dual Rank Kit

466440-B21 466440-B21
NOTE: Memory Option Kits include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, please visit: http://h18004.www1.hp.com/products/servers/platforms/energyefficient/.

Online spare memory configuration
FBDIMMs can either be single-rank or dual-rank. Certain FBDIMM configuration requirements are based on these classifications. A dual-rank FBDIMM is similar to having two separate FBDIMMs, or ranks, on the same module. Although only a single FBDIMM module, a dual-rank FBDIMM acts as two separate FBDIMMs.

In online spare mode, a single rank of memory acts as the spare memory. For single-rank FBDIMMs, the entire FBDIMM acts as the spare memory. For a dual-rank FBDIMM, only half of the FBDIMM acts as the spare memory while the other half is available for operating system and application usage.

Online spare FBDIMM configuration requirements (in addition to general configuration requirements):

  • When only bank A is being used, it must be fully populated with dual-rank FBDIMMs.
  • For optimum memory usage, HP recommends all FBDIMMs be the same size with the same HP part number. If different sized FBDIMMs are used, a portion of the installed memory may not be utilized.

In online spare mode, FBDIMMs must be populated as specified in the following table:

  • Configuration 1 (Bank A only) is only supported if using bank A, populated with dual-rank FBDIMMs.
  • After installing FBDIMMs, use RBSU to configure the system for online spare memory support.
Bank A
1A and 5A
Bank B
2B and 6B
Bank C
3C and 7C
Bank D
4D and 8D
X
X
X
X
X
X
X
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML350 G5 Core Options      Additional Options      ML350 G5 Memory      Storage      Power Specifications      ML350 G5 QuickSpecs images/line.gif (50 bytes)

Storage

1 - 6
6 x 3.5" (LFF) Hot-Plug SAS/SATA hard drive bays
Or

1 - 8
8 x 2.5" (SFF) Hot-Plug SAS/SATA hard drive bays
A,B,C,D
Available half height media bays
E
Optical Drive


Drive Support




Quantity
Supported

Position
Supported


Controller

Removable Media


1.44-MB Diskette Drive Up to 1 A, B, C, D, E Integrated SATA Controller
IDE (ATAPI) CD-ROM Drive Up to 1 A, B, C, D, E
Integrated SATA Controller
HP DVD±R/RW 16X Half Height Up to 1 A, B, C, D, E Integrated SATA Controller
DVD-ROM Drive Option Kit Up to 1 A, B, C, D, E Integrated SATA Controller
HP Half-Height SATA DVD-ROM Optical Drive Up to 1 A, B, C, D, E Integrated SATA Controller
HP Half-Height SATA DVD RW Optical Drive Up to 1 A, B, C, D, E Integrated SATA Controller

ML350 G5 Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF Enterprise (ENT) Drives
  Quantity
Supported
Position
Supported

Controller
300GB 6G SAS 10K DP
300GB 3G SAS 10K DP
146GB 6G SAS 15K DP 146GB 3G SAS 15K DP
146GB 6G SAS 10K DP
146GB 3G SAS 10K DP 72GB 6G SAS 15K DP
72GB 3G SAS 10K DP
72GB 3G SAS 15K DP
Up to 8 SFF 1-8 HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

SAS Hot Plug SFF Midline (MDL) Drives
  Quantity
Supported
Position
Supported

Controller
500GB 6G SAS 7.2K DP Up to 8 SFF 1-8 HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

SAS Hot Plug 3.5" Enterprise (ENT) Drives
  Quantity
Supported
Position
Supported

Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
450GB 3G SAS 15K DP
400GB 3G SAS 10K DP
300GB 6G SAS 15K DP
300GB 3G SAS 15K DP
146GB 3G SAS 15K DP
Up to 6 LFF 1-6 HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

SAS Hot Plug SFF Midline (MDL) Drives
  Quantity
Supported
Position
Supported

Controller
500GB 6G SAS 7.2K DP Up to 8 1-8 HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller

SAS Hot Plug 3.5" Midline (MDL) Drives
  Quantity
Supported
Position
Supported

Controller
1TB 3G SAS 7.2K DP
750GB 3G SAS 7.2K DP
Up to 6 LFF 1-6 HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

SATA Hot Plug SFF Midline (MDL) Drives
  Quantity
Supported
Position
Supported

Controller
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 8 SFF 1-8 HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

SATA Hot Plug SFF Entry (ETY) Drives
  Quantity
Supported
Position
Supported

Controller
250GB 3G SATA 5.4K
120GB 1.5G SATA 5.4K
Up to 8 1-8 HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
NOTE: HP Systems Insight Manager should not be used to view the status of SATA hard drives and SATA RAID configurations.

SATA Hot Plug 3.5" Entry (ETY) Drives
  Quantity
Supported
Position
Supported

Controller
160GB 3G SATA 7.2K Up to 6 1-6 HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

SATA Hot Plug 3.5" Midline (MDL) Drives
  Quantity
Supported
Position
Supported

Controller
1TB 3G SATA 7.2K
750GB 3G SATA 7.2K
500GB 3G SATA 7.2K
250GB 3G SATA 7.2K
Up to 6 1-6 HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

3.5” SATA Hot Plug Drives
  Quantity
Supported
Position
Supported

Controller
750GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
Up to 6 1-6 HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

SATA Hot Plug Midline (MDL) Solid State Drives
  Quantity
Supported
Position
Supported

Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 8 1-8 HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
  Quantity
Supported
Position
Supported

Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 6 1-6 HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter

20 Modular Smart Array
Up to 2
External
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
50 Modular Smart Array
Up to 2
Up to 4
Up to 4
External
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800
60 Modular Smart Array
Up to 4
Up to 8
Up to 8
External
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800 Controller
HP Smart Array E500/256 BBWC Controller
70 Modular Smart Array
Up to 2
Up to 4
Up to 4
External
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800 Controller
HP Smart Array E500/256 BBWC Controller
HP 2000sa Modular Smart Array Controller
Up to 4
External
HP SC08Ge Host Bus Adapter

Tape and Disk-Based Backup
NOTE: For a complete listing of compatible tape and disk-based backup offerings, please visit: www.hp.com/go/connect.

Position
Supported
Controller
Part Number
Internal USB Tape Drives
DAT 40 USB
DAT 72 USB
DAT 160 USB
A,B,C,DUSB 2.0 PortN/A

USB Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U Rack-Mount Kit
ExternalUSB 2.0 PortN/A

SCSI Tape Drives, Internal
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
DAT 40
DAT 72
DAT 160
A,B,C,D HP SC11Xe Host Bus Adapter 412911-B21 412911-B21

SCSI Tape Drives, Internal
LTO-3 Ultrium 960
LTO-4 Ultrium 1840
A+B or C+D HP SC11Xe Host Bus Adapter 412911-B21 412911-B21

SCSI Tape Drives, External
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 960
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External HP SC11Xe Host Bus Adapter 412911-B21 412911-B21

SAS Tape Drives, Internal
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1760 SAS
A,B,C,DHP SC44Ge Host Bus Adapter416096-B21 416096-B21

SAS Tape Drives, Internal
LTO-4 Ultrium 1840 SAS
A+B or C+DHP SC44Ge Host Bus Adapter 416096-B21 416096-B21

SAS Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1760 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC44Ge Host Bus Adapter

SCSI Tape Automation, External
DAT 72x10 Autoloader 1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
MSL6000
External
HP SC11Xe Host Bus Adapter
HP U320e SCSI Host Bus Adapter
NOTE: Recommended for MSL tape libraries.
AH627A AH627A

SAS Tape Automation, External
1/8 G2 Autoloader
MSL2024
MSL4048
ExternalHP SC44Ge Host Bus Adapter 416096-B21 416096-B21

HP StorageWorks Fibre Tape Automation, External
MSL2024
MSL4048
MSL8096
MSL6000
External Please consult the EBS connectivity matrix at: http://www.hp.com/go/ebs for detailed connectivity information N/A

HP StorageWorks RDX Removable Disk Backup System, Internal
RDX160
RDX320
RDX500
A,B,C,DUSB 2.0 PortN/A

HP StorageWorks D2D Backup Systems
D2D120
D2D130
D2D2500i
D2D4000i
ExternalEmbedded Network ControllerN/A
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML350 G5 Core Options      Additional Options      ML350 G5 Memory      Storage      Power Specifications      ML350 G5 QuickSpecs images/line.gif (50 bytes)

Power Specifications

Part Number 380622-001
Spare Kit 403781-001
Operational Input Voltage Range (Vrms) 90 - 264
Frequency Range (Nominal) (Hz)

47 - 63 (50 / 60)


Nominal Input Voltage (Vrms)

100
120
208
220
230
240
Max Rated Output Wattage Rating
800
950
1000
1000
1000
1000
Nominal Input Current (A rms)
10.0
8.8
5.85
5.5
5.2
4.97
Max Rated Input Wattage Rating (Watts)
980
1035
1193
1186
1172
1169
Max. Rated VA (Volt-Amp)
1000
1056
1217
1210
1196
1193

Efficiency (%)

81.5
82
84
84
85
85.5

Power Factor

0.98
0.98
0.98
0.98
0.98
0.98

Leakage Current (mA)

0.44
0.52
0.91
0.96
1.00
1.04

Maximum Inrush Current (A peak)

30
30
30
30
30
30

Maximum Inrush Current duration (milliseconds)

3
3
3
3
3
3

NOTE: To review typical system power ratings use the HP Power Advisor which is available online located at url: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor

To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML350 G5
- Click on: "Power Calculator" link. (You may need to scroll down to see it)
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML350 G5 Core Options      Additional Options      ML350 G5 Memory      Storage      Power Specifications      ML350 G5 QuickSpecs images/line.gif (50 bytes)

Quickspecs

System Unit Tower Dimensions
(H x W x D)
(with feet/bezel)
18.39 x 8.59 x 23.46 in (46.7 x 21.8 x 59.6 cm)
Rack Dimensions
(H x W x D)
(with feet/bezel)
8.54 x 17.5 x 21.9 in. (21.7 x 44.5 x 55.7cm)
Tower Weight
(approximate)
Maximum
(all hard drives, power supplies, and processors installed)
67 lb (30.4 kg)
Minimum
(one hard drive, power supply, and processor installed)

50 lb (22.7 kg)

Rack Weight
(approximate)
Maximum
(all hard drives, power supplies, and processors installed)
61 lb (27.7 kg)
Minimum
(one hard drive, power supply, and processor installed)

44 lb (20.0 kg)

Max Input Requirements
(per power supply)
Rated Line Voltage100 VAC, 120 VAC
200 - 240 VAC
Rated Input Current10A (at 100 VAC)
9A (at 120 VAC)
6.1A (at 200 VAC)
Rated Input Frequency50 to 60 Hz
Rated Input Power980W (at 100 VAC)
1035W (at 120 VAC)
1170W (at 240 VAC)
BTU RatingBTU/HR3350 BTU/hr (at 100 VAC)
3530 BTU/hr (at 120 VAC)
3990 BTU/hr (at 240 VAC)
Power Specifications
NOTE: To review typical system power ratings use the HP Power Advisor which is available online located at url: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor

- Click on the system of interest. Example: ML350 G5
- Follow the instructions of the next screens.

Power Supply Output
(per power supply)
Rated Steady-State Power

800 W (at 100 VAC)
850 W (at 120 VAC)
1000 W (at 200-240 VAC)
Maximum Peak Power 800 W (at 100 VAC)
850 W (at 120 VAC)
1000 W (at 200-240 VAC)

System Inlet Temperature

Operating10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
AltitudeOperating3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic NoiseListed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
L WAd
5.2 B
L pAm
35 dBA
Operating

L WAd
5.3 B
L pAm
35 dBA
Emissions Classification
(EMC)
FCC RatingClass B
Normative StandardsCISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Smart Array E200i Controller Disk Drive and Enclosure Interface
3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology Attachment)

SAS Connectors

2 internal (SFF8484) x4 wide port connectors

Cache Memory Speed

DDR-1/266 MHz provides up to 4.2 GB/s maximum bandwidth.

Server Interface

x4 2.5G PCIe provides 2GB/s maximum bandwidth.

SAS Speed

x8 3G SAS provides 2.4GB/s maximum bandwidth.

Cache Memory

40-bit 64MB ECC read cache or
40-bit 128MB ECC battery backed, transportable read/write cache

Logical Volumes Supported

Up to 32 logical volumes

Maximum Volume Capacity

4.5TB (6 x 750GB SATA)

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space
RAID Support RAID 5 (Distributed Data Guarding)
RAID 1, 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Upgradeable Firmware Upgradeable Firmware

Embedded NC373i Multifunction Gigabit Server AdapterNetwork Interface10Base-T/100Base-TX/1000Base-TX
CompatibilityIEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer MethodPCI Express, four lanes (x4)
Network Transfer Rate10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex)20 Mb/s
100Base-TX (Half-Duplex)100 Mb/s
100Base-TX (Full-Duplex)200 Mb/s
1000Base-TX (Half and Full-Duplex)2000Mb/s
ConnectorRJ-45
Cable Support10Base-TCategories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TXCategory 5 UTP; up to 328 ft (100 m)

Environment-friendly Products and ApproachEnd-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


USAPartsDirect          Ph: 1.613.599.1287                   Fax: 1.613.599.8120
serversServers |bladesBlades | Hard DrivesU2/U3 |u320 Hard DrivesU320 |SAS/SATA Hard DrivesSAS/SATA |Fibre Hard DrivesFibre |MemoryMemory |ControllersControllers |Processors Processors |Tape DrivesTape Drives |Power SuppliesPower Supplies
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

Legal | Privacy | | Primary Site | Contact us | Site Problem?  |
