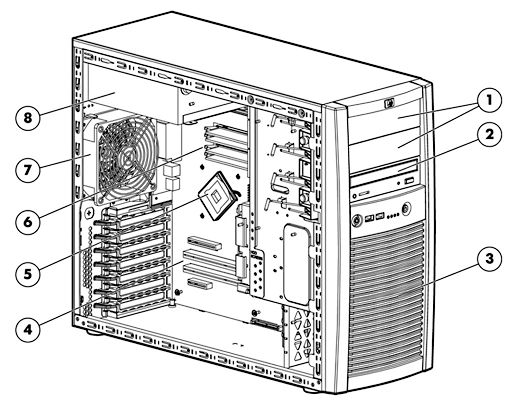

5. Processor Socket (Intel®
Pentium® D or Pentium® 4)
2. 48x IDE (ATAPI) CD-ROM
6. Four DIMM Sockets for up
to 8GB DDR2 memory

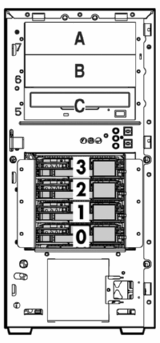

3. Four Hot-Plug Drive Bays
7. System Fan
4. Four Expansion Slots (Two
PCI-X, Two PCI Express)
8. 370W Power Supply
What's New
Support for Dual-core Intel® Pentium® D
900 Series processors with 2 x 2M cache
At A Glance
The HP ProLiant ML310 G3 is an affordable, single processor
tower server designed to provide the solid network foundation essential
to fuel thriving small offices. Dual-core Intel Pentium D or Pentium 4
processing power combines with industry-leading management and essential
data protection features for a secure, affordable platform that helps
you run your business efficiently.
Processors:
Supports a single Intel® Pentium® D
800 or 900 Series, Pentium® 4 600 Series, or Celeron D®
300 Series processor
800MHz Front Side Bus (FSB)
o Intel E7230 Chipset
Memory:
Up to 8GB of PC2-4200 533MHz unbuffered DDR2
SDRAM with advanced ECC capabilities and optional interleaving
Storage Controller:
SCSI Models: Single Channel U320 SCSI Adapter
in PCI-X slot
SATA Models: Four Channel embedded SATA Controller
Internal Drive Support:
Supports up to four hot plug U320 SCSI, SAS,
or SATA hard drives for up to 3TB internal storage
Integrated 256KB level 2 ECC
cache (Celeron D models)
Memory Protection
Advanced ECC
Memory
Type
PC2-4200 unbuffered DDR2 SDRAM
(533MHz)
Standard
512 MB (1 x 512 MB)
Maximum
8 GB
Network Controller
Embedded NC320i PCIe Gigabit
Server Adapter
Expansion Slots
Slot Number
Bus Speed
Maximum Card Length
Hot Plug
Connector Type
4
PCI Express x4
12.3
No
x8
3
64-bit/100MHz PCI-X
12.3
No
3.3V
2
64-bit/100MHz PCI-X
12.3
No
3.3V
1
PCI Express x1
12.3
No
x1
Storage Controllers One of the following depending on Model
The HP ProLiant
ML310 G3 offers both SCSI and Serial models. SCSI models support U320 SCSI hard
drives. Serial models support Serial Attached SCSI (SAS) and Serial ATA (SATA)
hard drives. Use of SAS hard drives in Serial models requires installation of
a SAS controller or HBA.
Single
Channel Ultra320 SCSI Adapter (in PCI-X slot) (SCSI Models)
Integrated
four port SATA controller with integrated SATA RAID 0, 1 (SATA Models) NOTE: Use of the embedded SATA RAID feature requires installation
of a driver from a floppy drive. The supported floppy drive can be a USB
floppy drive, half-height internal floppy drive, or virtual floppy via Integrated
Lights-Out 2 (iLO 2).
NOTE: See
the "Storage" section of these QuickSpecs for information on controllers
and cables required to support SATA and SAS hard drive configurations
Storage
Optical
Drive
48x IDE (ATAPI) CD-ROM
Drive
Diskette Drive
Optional
1.44 MB Diskette Drive NOTE: A diskette
device is required to configure the embedded SATA RAID feature.
Maximum Internal
Storage
Hot Plug SCSI
1.2TB
4 x 300GB U320 SCSI
Hot Plug SAS (3.5")
1.2TB
4 x 300GB SAS
Hot Plug SATA (3.5")
3.0TB
4 x 750GB SATA
NOTE:
See the "Storage" section of these QuickSpecs for information
on controllers and cables required to support SATA and SAS hard drive configurations
Integrated ATI ES1000 Video
Controller with 16-MB SDRAM Video Memory
Form Factor
5U Tower
Optional Tower-to-Rack Enabling Kit available
ProLiant Essentials
Foundation Pack Software
HP Systems Insight Manager
HP Systems Insight Manager
(HP SIM) provides a unified, secure and extensible environment to
centrally manage servers, storage and other infrastructure devices
across multiple operating system platforms.
Through a single management view, HP SIM provides core management
services that include device discovery and identification, event
views, health monitoring, inventory data collection, software version
control and reporting. HP SIM is built on industry standards and
is extensible with value-added ProLiant Essentials, Integrity Essentials
and Storage Essentials software to meet individual management needs.
For more details on HP SIM visit http://www.hp.com/go/hpsim.
HP SIM provides organizations with the following benefits:
Simplifies and consolidates infrastructure lifecycle management
using task and query based functionality
Provides the foundation for infrastructure automation and virtualization
Enables IT management based on business processes not hardware
platforms
Lowers infrastructure maintenance cost and frees resources for
innovation
Maximizes resource utilization with virtualization technologies
Provides a central point of integration between infrastructure
and Enterprise management tools such as HP OpenView
Insight Management Agents
Insight Management Agents
should be installed on all HP servers to present system instrumentation,
health and configuration information into HP Systems Insight Manager
and the HP System Management Homepage. The HP System Management Homepage
aggregates systems data from Insight Management Agents and other HP
management tools, providing a consolidated browser-based interface
for managing individual servers.
Insight Management Agents and The HP System Management Homepage
are included on ProLiant Support Packs, and can also be installed
using the server profiles provided with the ProLiant Essentials
Rapid Deployment Pack. For additional information about the Management
Agents and the HP System Management Homepage please visit the management
Web site at http://www.hp.com/servers/manage.
SmartStart
SmartStart
is a tool that simplifies server setup, providing a rapid way to deploy consistent
server configurations. For more information, please visit the SmartStart Web site
at http://www.hp.com/servers/manage. Latest SmartStart version supported:
SmartStart 7.5
Minimum SmartStart version supported: SmartStart 7.4
Subscriber's Choice
Subscriber's
Choice Driver and Support Alerts/Notifications is a web-based email subscription
service that provides automatic delivery of software and driver change notifications
for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available,
on a weekly or monthly basis.
ROMPaq,
support software, and configuration utilities
The
latest software, drivers, and firmware fully optimized and tested for your ProLiant
server and options available in SmartStart or downloadable from Software and Drivers
download pages, linked from the SmartStart website at http://www.hp.com/servers/smartstart.
Integrated Lights-Out 2 Standard
(iLO 2)
Standard remote management
functionality that enables remote control of system power and access to the system
serial console and event logs regardless of server status. Firmware preinstalled
on servers. Also, updates downloadable from the Software and Drivers web pages
and on the ProLiant Software Maintenance Pack.
Survey Utility and diagnostics
utilities
The most advanced
configuration analysis, reporting and troubleshooting utilities used by HP and
at your fingertips, available in SmartStart.
Optional ProLiant Essentials
Value Packs
Optional software offerings that selectively extend the functionality
of an Adaptive Infrastructure to address specific business problems
and needs:
Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken network linkages and steers traffic to the optimum route
based on network conditions, plus it provides an extra layer of
protection. The virus throttle feature of the solution slows the
propagation of fast spreading virus.
Vulnerability and Patch Management Pack - identifies and remediates
software security vulnerabilities due to missing patches as well
operating system configurations that can be exploited by viruses,
worms, and other blended threats.
Virtual Machine Management Pack - provides central management
and control of virtual machines from Microsoft and VMware. Integrated
approach provides the ability to manage both physical and virtual
resources from a single management console.
Server Migration Pack - The Server Migration Pack automates
the manual processes required for migrating servers between physical
or virtual platforms (P2V, V2P, and V2V).
Optional Remote Management
Packs
Integrated Lights-Out Advanced Pack - upgrades the Integrated
Lights-Out processor to full virtual presence and control with
graphical console and virtual media.
NOTE: Flexible
and volume quantity license kits are available for ProLiant Essentials Value
Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials
Industry Standard Compliance
ACPI V1.0b Compliant
PCI 3.0 Compliant
PCI-X 1.0 Compliant
PCI-Express 1.0a Compliant
PXE Support
WOL Support
Microsoft Logo certifications
Novell Logo certifications
USB 2.0
Manageability
HP Systems Insight Manager
Online ROM Flash Utility
Automatic Server Recovery-2 (ASR-2)
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory and SCSI and SAS hard drives)
BIOS Serial Console
Security
Power-on password
Setup password
Diskette boot control
Power switch security
Server Power Cords
All models ship with one 1.8m
(6 foot) standard low-line power cord.
Microsoft Windows Server 2003
(Standard Web Edition)
Microsoft Small Business Server 2003
Microsoft Windows 2000 Server
Novell NetWare
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
SCO OpenServer
HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and storage
products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple
configuration, racking, installation, complex configuration and design services as well
as individual factory services, such as image loading, asset tagging, and
custom packaging. HP products supported through Factory Express include a wide
array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant
Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000,
VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to http://www.hp.com/go/factory-express.
KVM Switches, Serial Console Servers, Rackmount Monitors, Keyboards:
For additional information regarding KVM switches, Serial Console
servers, rack mount monitors, keyboards and all related options please
see the following URL: http://www.hp.com/go/kvm.
HP Enterprise Configurator
The HP eCo-Enterprise Configurator
now provides factory default racking for our HP hardware portfolio. This
approach is aligned with our strategic direction to meet the needs and expectations
of our valued customers. If you require "custom" rack configuration,
please contact HP's Customer Business Center or an Authorized Partner for
assistance.
HP ProLiant Smart Buys (NA
only)
The HP Smart Buy program offers mainstream business solutions at competitive
prices with excellent availability and superior HP quality. It offers
a wide range of industry-leading HP products at compelling prices, allowing
you to receive richer configurations with additional options.
This product is covered by a global limited warranty and supported by
HP Services and a worldwide network of resellers and service providers.
Hardware diagnostic support and repair is available for three years from
date of purchase. Support for software and initial setup is available
for 90 days from date of purchase. Additional support may be covered under
the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services or customized service
agreements.
HP Care Pack services include coverage for the HP branded hardware options
qualified for the server, purchased at the same time or afterward, internal
to the enclosure, as well as 22" and smaller external monitors and
tower UPS options up to 3kVA; these items will be covered at the same
service level and for the same coverage period as the server. Coverage
of UPS Battery is not included, standard warranty terms & conditions
apply. For servers or storage systems installed within a rack, service
also covers all HP qualified rack options installed within the same rack.
HP services provide continuous care and support expertise with committed
response designed to meet your IT and business needs.
To fully capitalizing on your HP ProLiant servers' capabilities requires
a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of multi
vender support solutions provides a range of support services designed
to meet the varying needs of business. Whether an SMB or large global
corporation HP has a ProLiant server support offer to help you speedily
deploy and maximize system uptime.
Enhanced Care - Minimum recommended service support offer designed to
ensure customers have access to expert assistance, whenever they need
it.
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years
Continuous Care - Recommended service delivering cost-effective support
options designed to extend HP Services committed response and guaranteed
fix times, designed to speed problem identification and resolution.
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage,
3 Years
Total Care - Highest HP Support service level recommend to help increase
IT performance and availability with comprehensive, integrated hardware
and software services
Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft
O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response
time incl. HP holidays
Deployment Services - HP Installation and Start Up services designed
to take time, risk, and worry out of the deployment of ProLiant servers
- and free customers IT support staff to focus on what they do best, their
business.
Installation & Start-Up of a ProLiant server and Microsoft
or Linux O/S per the Customer Description and/or Data Sheet. To be delivered
on a scheduled basis 8am-5pm, M-F, excl. HP holidays
Single Channel Ultra320 SCSI
Adapter (in PCI-X slot)
Hard Drives
None ship standard (up to 4
hot plug SCSI drives supported)
Internal Storage
1.2TB maximum hot plug SCSI
Optical Drive
48x IDE (ATAPI) CD-ROM Drive
Diskette Drive
None ship standard (Optional
1.44 MB Diskette Drive)
Form Factor
Tower (5U) (Tower to Rack Enabling
Kit available)
ML310T03 p650
HP-SCSI
393459-001
Processor(s)
Intel Pentium 4 650 (3.4 GHz/800)
Cache Memory
2MB L2
Memory
512 MB (1 x 512 MB)
Network Controller
Embedded NC320i PCIe Gigabit
Server Adapter
Storage Controller
Single Channel Ultra320 SCSI
Adapter (in PCI-X slot)
Hard Drives
None ship standard (up to 4
hot plug SCSI drives supported)
Internal Storage
1.2TB maximum hot plug SCSI
Optical Drive
48x IDE (ATAPI) CD-ROM Drive
Diskette Drive
None ship standard (Optional
1.44 MB Diskette Drive)
Form Factor
Tower (5U) (Tower to Rack Enabling
Kit available)
ML310T03 p640
HP-SCSI
394320-001
Processor(s)
Intel Pentium 4 640 (3.2 GHz/800)
Cache Memory
2MB L2
Memory
512 MB (1 x 512 MB)
Network Controller
Embedded NC320i PCIe Gigabit
Server Adapter
Storage Controller
Single Channel Ultra320 SCSI
Adapter (in PCI-X slot)
Hard Drives
None ship standard (up to 4
hot plug SCSI drives supported)
Internal Storage
1.2TB maximum hot plug SCSI
Optical Drive
48x IDE (ATAPI) CD-ROM Drive
Diskette Drive
None ship standard (Optional
1.44 MB Diskette Drive)
Form Factor
Tower (5U) (Tower to Rack Enabling
Kit available)
Hot Plug Serial Models (SATA/SAS) NOTE: Embedded
controller does not support hot plug nor LED status.
ML310T03 p930
HP-SATA/SAS 410192-001
Processor(s)
Dual
Core Intel Pentium D 930 (3.0 GHz/800)
Cache
Memory
2 x 2MB L2
Memory
512
MB (1 x 512 MB)
Network
Controller
Embedded NC320i PCIe Gigabit
Server Adapter
Storage
Controller
Integrated four port
SATA controller with integrated SATA RAID 0, 1 NOTE:
Use of the embedded SATA RAID feature requires installation of a driver from a
floppy drive. The supported floppy drive can be a USB floppy drive,half-height
internal floppy drive, or virtual floppy via Integrated Lights-Out 2 (iLO 2).
Hard Drives
None
ship standard (up to 4 hot plug SATA or SAS drives supported) NOTE:
See the "Storage" section of these QuickSpecs for information on controllers and
cables required to support SATA or SAS drive configurations
Internal Storage
3.0TB maximum (hot plug SATA)
Optical
Drive
48x IDE (ATAPI) CD-ROM
Drive
Diskette Drive
None ship standard (Optional
1.44 MB Diskette Drive)
Form
Factor
Tower (5U) (Tower to
Rack Enabling Kit available)
ML310T03
p650 HP-SATA/SAS 393460-001
Processor(s)
Intel
Pentium 4 650 (3.4 GHz/800)
Cache
Memory
2MB L2
Memory
512
MB (1 x 512 MB)
Network
Controller
Embedded NC320i PCIe Gigabit
Server Adapter
Storage
Controller
Integrated four port
SATA controller with integrated SATA RAID 0, 1 NOTE:
Use of the embedded SATA RAID feature requires installation of a driver from a
floppy drive. The supported floppy drive can be a USB floppy drive,half-height
internal floppy drive, or virtual floppy via Integrated Lights-Out 2 (iLO 2).
Hard Drives
None
ship standard (up to 4 hot plug SATA or SAS drives supported) NOTE:
See the "Storage" section of these QuickSpecs for information on controllers and
cables required to support SATA or SAS drive configurations
Internal Storage
3.0TB maximum (hot plug SATA)
Optical
Drive
48x IDE (ATAPI) CD-ROM
Drive
Diskette Drive
None ship standard (Optional
1.44 MB Diskette Drive)
Form
Factor
Tower (5U) (Tower to
Rack Enabling Kit available)
ML310T03
p640 HP-SATA/SAS 394321-001
Processor(s)
Intel
Pentium 4 640 (3.2 GHz/800)
Cache
Memory
2MB L2
Memory
512
MB (1 x 512 MB)
Network
Controller
Embedded NC320i PCIe Gigabit
Server Adapter
Storage
Controller
Integrated four port
SATA controller with integrated SATA RAID 0, 1 NOTE:
Use of the embedded SATA RAID feature requires installation of a driver from a
floppy drive. The supported floppy drive can be a USB floppy drive,half-height
internal floppy drive, or virtual floppy via Integrated Lights-Out 2 (iLO 2).
Hard Drives
None
ship standard (up to 4 hot plug SATA or SAS drives supported) NOTE:
See the "Storage" section of these QuickSpecs for information on controllers
and cables required to support SATA or SAS drive configurations
Internal Storage
3.0TB maximum (hot plug SATA)
Optical
Drive
48x IDE (ATAPI) CD-ROM
Drive
Diskette Drive
None ship standard (Optional
1.44 MB Diskette Drive)
Configuration Information - Factory Integrated Models
NOTE:
All configure-to-order servers must start with a CTO Chassis. Use the following
section to order a server customized to your requirements with options integrated
at the factory. The options you select in steps 2 and 3 will be integrated with
the base configuration you select in step 1. Additional options selected in Step
4 will also be integrated when applicable. NOTE: Standard models of
this product offering (see previous section of this document) do not support HP
Factory Express Server Configuration Level 1. NOTE: FIO indicates that
this option only available as a Factory Installable Option.
Step
1: Base Configuration
Models
HP
ProLiant ML310 G3 CTO Chassis HP-SCSI
393494-B21
HP
ProLiant ML310 G3 CTO Chassis HP-SATA/SAS
393495-B21
Factory
Integrated Models ship with:
Embedded NC320i PCIe Gigabit Server
Adapter
Integrated Four Channel SATA
Controller (HP-SATA/SAS chassis only)
370 Watts, PFC (Power Factor
Correcting)
Keyboard
and Mouse
Step 2: Choose Required
Options (only one of the following from each list unless otherwise noted)
Processors
Intel Celeron D 331 (2.66 GHz/533
- 256K cache), FIO
406032-B21
Intel Pentium D 920 (2.8 GHz/800
- 2 x 2MB L2) DC, FIO
410115-B21
Intel Pentium D 930 (3.0 GHz/800
- 2 x 2MB L2) DC, FIO
410116-B21
Intel Pentium D 940 (3.2 GHz/800
- 2 x 2MB L2) DC, FIO
SAS HBAs and Controllers NOTE: A SAS HBA or Controller is
required if SAS hard drives are selected. SAS HBAs and Controllers support
both SAS and SATA hard drives.
HP 4-port SATA/SAS cable (target
fan cable) NOTE: This cable is required when
the HP 6-port SATA RAID controller is installed on hot plug SATA/SAS models
of the ML310 G3. See the "Storage" section of these QuickSpecs for information
on controllers and cables required to support SATA drive configurations.
389653-B21
Modems
Agere 2006 PCI Hi-Speed 56K Sof
FIO NOTE: This part number must be used for factory integration. For
field integration (or as an additional "ship along" option) choose
EK694AA.
440519-B21
Step 4: Choose Additional Options
for Factory Integration
NOTE: For additional
options, please refer to the "Options" section below.
NOTE:
Some options may not be factory configurable. Please contact your local
sales representative for additional information.
ProLiant
Essentials
Value Pack Software
NOTE:Single Server Licenses are designed for
use with a single server. Single Server Licenses contain one license with
a unique license activation key and documentation. Flexible and volume quantity
license kits are available for ProLiant Essentials Value Packs. Refer to
http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information.
ProLiant Essentials
Intelligent Networking Pack
ProLiant Essentials
Intelligent Networking Pack - Windows Edition, Single Server License NOTE: For use with a single server. Contains one license with a unique
license activation key and documentation.
ProLiant Essentials
Server Migration Pack, Single-Migration License NOTE: Contains one license, enabling
1 server migration, with a unique license activation key and documentation. NOTE: This license allows 1 server to be migrated from a physical
server to a virtual machine. Or this license can be used to migrate a virtual
machine from one virtualization layer i.e. VMware GSX to a different virtualization
layer such as VMware ESX or Microsoft Virtual Server 2005.
Integrated Lights-Out
Advanced Pack, 1 server Featuring: Sophisticated
virtual administration features for ultimate control of servers in the data
centers and remote sites.
NOTE: This cable
is required when the HP 6-port SATA RAID controller is installed on hot
plug SATA/SAS models of the ML310 G2. See the "Storage" section
of these QuickSpecs for information on controllers and cables required to
support SATA drive configurations.
Storage Controllers
SCSI Controllers
NOTE: The following
Storage Controllers are qualified for SCSI drives only. They do not support
SATA or SAS Drives.
NOTE: In compliance
with the European Union's Reduction of Hazardous Substances (RoHS) initiative,
the Smart Array 641, 642, 6402, and 6404 RAID controllers will not be installed
in ProLiant ML310 G3 servers sold on or after July 1, 2006. Installation
of these options into the ProLiant ML310 G3 would create a non-compliant
server configuration.
Smart Array P400 Battery Attach
Kit NOTE: This option kit contains a
24" battery cable and adhesive material for installing a battery into
the server if a Smart Array P400 is integrated outside of the factory. For
all solutions, please refer to the server QuickSpecs and User's Manual for
detailed installation instructions.
HP 6-port SATA RAID Controller NOTE: See the "Storage" section of
these QuickSpecs for information on controllers and cables required to support
SATA drive configurations. NOTE: Please see the following QuickSpecs for additional information: http://h18004.www1.hp.com/products/quickspecs/12091_na/12091_na.html
(6-port SATA RAID Controller)
NOTE: In compliance
with the European Union's Reduction of Hazardous Substances (RoHS) initiative,
the HP 6-port SATA RAID Controller will not be installed in ProLiant ML310
G3 servers sold on or after July 1, 2006. Installation of this option into
the ProLiant ML310 G3 would create a non-compliant server configuration.
Communications
HP NC110T PCI Express Gigabit
Server Adapter
434905-B21
HP NC150T PCI 4-port Gigabit 1000T
Combo Switch Adapter
HP StorageWorks 1U SCSI
Rack-Mount kit NOTE: The 1U Rack-Mount Kit
can support up to (2) half-height tape drives and is compatible with
multiple Single-Ended and LVD SCSI tape drives including the DAT 24,
DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232, Ultrium
448 and Ultrium 920 tape drives.
HP StorageWorks 1U USB Rack-Mount
Kit NOTE: The 1U USB Rack-Mount
Kit can support up to (2) half-height tape drives and is compatible
with the DAT 24 USB, DAT 40 USB and DAT 72 USB tape drives.
HP StorageWorks 3U Rack-mount
kit NOTE: The 3U Rack-mount Kit can support up to (2) full-height
or (4) half-height tape drives and compatible with multiple LVD SCSI
tape drives including DAT 40, DAT 72, DLT VS160, SDLT 320, SDLT 600,
Ultrium 232, Ultrium 460, Ultrium 448, Ultrium 920 and Ultrium 960
tape drives.
HP StorageWorks 1/8 Ultrium 920
G2 Tape Autoloader
AH165A
HP StorageWorks 1/8 Ultrium 448
G2 Tape Autoloader
AH164A
HP StorageWorks 1/8 Ultrium 232
G2 Tape Autoloader
AH163A
HP StorageWorks 1/8 G2 Tape Autoloader
Rack Kit NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch
rack; includes rails and rackmount instructions
AH166A
NOTE: Please
reference the 1/8 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
Tape Libraries
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium
960 Drive Library
HP StorageWorks MSL4048 2 Ultrium
960 4GB FC Drive Library
AG325B
HP StorageWorks MSL6000 Tape
Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium
960 Dr LVDS Library
AD606B
HP StorageWorks MSL6030 1 Ultrium
960 Dr FC Library
AD608B
HP StorageWorks MSL6030 2 Ultrium
960 Dr LVDS Library
AD607B
HP StorageWorks MSL6030 2 Ultrium
960 Dr FC Library
AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium
460 Dr LVDS Library
AD598B
HP StorageWorks MSL6030 1 Ultrium
460 Dr FC Library
AD600B
HP StorageWorks MSL6030 2 Ultrium
460 Dr LVDS Library
AD599B
HP StorageWorks MSL6030 2 Ultrium
460 Dr FC Library
AD601B
NOTE: Please reference
the MSL2024, MSL4048, and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
HP
Data Protector Express Software
HP
DP Express Backup Server Upgrade for ProLiant Software
BB117AP
HP DP Express Package for Microsoft
Small Business Server
NOTE:
To obtain a free licensed copy of HP Data Protector Express for ProLiant edition
software, please visit the "Protect Your Data" link accessible from
your ProLiant server's System Management Homepage (SMH) software (SmartStart 7.5
or later).
Uninterruptible Power Systems – Tower Supply
HP T500 UPS 120 V
361475-001
HP T750 UPS, Low Voltage
378439-D71
HP, T1000 UPS
AF403A
HP, T1500 UPS
AF406A
HP, R/T 2200 UPS
AF409A
Rack Kits
ProLiant Rack Enabling Kit (RoHS
Compliant)
417705-B21
NOTE: This is
a 5U Rack Enabling Kit that supports the HP ProLiant ML110 and HP ProLiant
ML310 servers. NOTE: Support for racks with round or square mounting holes (including
all Compaq and HP Rack System /E and HP Systems), with an adjustment range
of 24" - 36".
Other
Internal to External SCSI Cable
Option Kit (HD68)
159547-B22
Internal to External SCSI Cable
Option Kit (VHDCI)
333370-B21
USB Options
USB Optical Scroll Mouse (Carbonite)
DD441B
HP USB 04 Standard Keyboard
DT528A#xxx
USB 2.0 4-port HUB
DG954A
HP 1GB Drive Key II- USB 2.0 Flash
Drive
AG382AA
HP 512MB DriveKey II- USB Flash
Drive
ED516AA
Service
and Support Offerings (HP Care Pack Services)
Hardware Services
On-site Service
Next Business Day On-site
Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
U4445E
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
U4446E
4-Hour
On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4447E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4448E
Installation &
Start-up Services
Hardware Installation, Electronic
U4456E
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays, Electronic
U4457E
Support Plus
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4458E
Support Plus 24
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4459E
Onsite HW support 24x7,
4hr response and SuSE Linux SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6306E
Onsite HW support 24x7,
4hr response and Red Hat ES Linux SW Tech support offsite, onsite
at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant ML310 G3 Models
Standard Memory
All HP ProLiant ML310 G3 models ship with unbuffered, Advanced ECC PC2-4200
DDR2 SDRAM running at 533MHz.
Standard models include a single 512 MB DIMM. Factory Integrated Models
include the memory capacity of your choice.
Standard Memory Replaced with Optional Memory
Up to 8 GB memory is available with the optional installation of four
2 GB PC2-4200 Unbuffered Advanced ECC DDR2 SDRAM DIMM kits.
DIMM upgrades do not need to be installed in pairs
although installation of pairs (an equal size DIMM for each channel) provides
the best performance. The BIOS will detect the DIMM population and initialize
the system accordingly as follows:
Single-channel mode - DIMMs installed for one
channel only
Dual-channel asymmetric mode - DIMMs installed
for both channels but of unequal channel capacities.
Dual-channel interleaved mode (recommended)
- DIMMs installed for both channels and offering equal channel capacities,
providing the highest performance.
The first DIMM should be installed in Socket 1. A DIMM
should not be installed in Socket 2 without a DIMM in Socket 1. Likewise
a DIMM should not be installed in Socket 4 without a DIMM in Socket 3.
A DIMM need not be installed in Socket 2 in order to install a DIMM in
Socket 3.
Table 3-1shows some of the suggested memory configurations
for these systems. NOTE: Table 3-1 does not list all
possible configurations. Balanced-capacity, dual-channel loading yields
best performance.
300GB 3G SAS 3.5" 15K SP
146GB 3G SAS 3.5" 15K SP
72GB 3G SAS 3.5" 15K SP
36GB 3G SAS 3.5" 15K SP
Up to 4
0-3
Smart Array P600/256 BBWC Controller
HP 8 Internal Port SAS HBA with RAID
NOTE:
Use of SAS hard drives in SATA/SAS models requires installation of the controllers
listed above.
Hot Plug SATA - (Hot Plug
SATA/SAS Models Only)
Quantity
Supported
Position
Supported
Controller
750GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
80GB 1.5G SATA 7.2K
Up to 4
0-3
Integrated four port SATA Controller
HP 6-port SATA RAID controller
Smart Array P600/256 BBWC Controller
HP 8 Internal Port SAS HBA with RAID
NOTE:
Hot plug capability and drive LED status support requires installation of
the HP 6-port SATA RAID Controller, the Smart Array P600 Controller, or
a SAS HBA. NOTE: The HP 4-port SATA/SAS
target fan cable (P/N 389653-B21) is required when the HP 6-port SATA RAID
controller (P/N 372953-B21) is installed.
NOTE:
Support for either one internal or one external SCSI channel is available.
To use the channel for external connection, order an internal-to-external
SCSI cable option kit (PN 159547-B22 or 333370-B21).
Power
Supply Output Power
Rated
Steady-State Power
350W
Maximum Peak Power
370W
Temperature Range
Operating
50°
to 93° F (10° to 35° C)
Shipping
-40°
to 150° F (-40° to 66° C)
Relative
Humidity (non-condensing)
Operating
20%
to 80%
Non-operating
5%
to 90%
Acoustic
Noise
Idle (Fixed Disk
Drives Spinning)
L WAd
(BELS)
5.7
L pAm
(dBA)
40
Operating (Random
Seeks to Fixed Disks)
L
WAd (BELS)
5.7
L
pAm (dBA)
40
48X Max IDE (ATAPI)
CD-ROM Drive
Disk
Applicable Disk
CD-ROM, CD-XA, CD-DA (Mode 1, Mode
2, Form 1 and 2)
Photo CD (Single and Multi-session)
Mixed Mode (Audio and Data combined)
CD-R
Capacity
540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
Block Size
Mode 1
2,048 bytes
Mode 2
2,340 bytes, 2,336 bytes
CD-DA
2,352 bytes
CD-XA
2,328 bytes
Interface
IDE (ATAPI)
Access Times(typical)
Random
<100 ms
Full-Stroke
<150 ms
Data Transfer Rate
Sustained
3000 to 7200 KB/s (20X to 48X)
Burst
150 KBps to 7,200 KBps
Bus Rate
16.7 MBps
Cache Buffer
128 KB
Start-up Time (typical)
< 7seconds
Stop Time
< 4seconds
Laser Parameters
Type
Semiconductor Laser GaA1As
Wave Length
780 ± 25 nm
Operating Conditions
Temperature
41° to 113° F (5° to
45° C)
Humidity
10% to 80%
Dimensions
(HxWxD, maximum)
1.7 x 5.85 x 8.11 in (4.29 x 14.86
x 20.60 cm)
Weight
2.09 lb (0.95 kg)
Embedded NC320i PCIe Gigabit Server Adapter
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method
Single lane (x1), 100MHz PCI Express
Reference Clock
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and Full-Duplex)
2000Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to
328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100
m)
Integrated 4 Channel SATA Controller (SATA Models only)
Drives Supported
Up to 4 SATA hard drives (1 drive/channel)
Channels
4
Storage Capacity
2 TB
Maximum SATA Channel Transfer Rate
150 MB/s per channel
SATA Protocols
SATA-1a
Internal SATA Connectors
One 4-lane connector (all four channels)
RAID levels supported
RAID 0, RAID 1
Single Channel Ultra320 SCSI Adapter (SCSI Models only)
Drives Supported
Up to 15 SCSI devices Wide
Data Transfer Method
64-bit/100-MHz PCI bus-master
SCSI Channel Transfer Rate
320 MB/s per channel
Maximum Transfer Rate per PCI
Bus (peak)
1033 MB/s per channel
SCSI Protocols
Ultra320, Wide Ultra3, Wide Ultra2,
Wide Ultra SCSI-3, Fast-Wide SCSI-2, and Fast SCSI-2
Fast SCSI-2
Electrical Protocol
Low Voltage Differential (LVD)
SCSI Termination
Active Termination
External SCSI Connectors
None
NOTE: To implement
an external SCSI connection, install an optional controller or internal-to-external
SCSI option kit (part number 159547-B22 for HD68 or 333370-B21 for VHDCI).
Canadian Site
DL QuickSpecs
Search:
US QuickSpecs
393354-B21
© 2013 USA PartsDirect
