Dual-Core Intel® Pentium® D processors 800 or 900 sequence
Single-Core Intel® Celeron® D processors
Memory
512 MB Standard / 8 GB Maximum of PC2-5300 DDR2 667 MHz ECC unbuffered
Memory
Storage Controller:
4 Port SATA controller with Embedded RAID on Motherboard
HP 8 Internal Port SAS HBA with RAID
Internal Drive Support:
4 HDD Support:
2TB SATA max storage (utilizing 500GB CTO HDD)
1.2TB SAS max storage (4 x 300GB)
Network Controller:
Embedded NC320i PCIe Gigabit Server Adapter
Expansion Slots:
Two 32-bit/33MHz PCI at 3.3V slot
Two PCI-Express slots (x4 and x8, both in an x8 connector).
USB Ports:
Six total USB ports (2 internal, 2 front, 2 rear)
Form Factor:
Micro ATX tower
Management:
Standard IPMI reporting
Lights Out 100c Remote Management Card (Optional)
Warranty:
Protected by HP Services and a worldwide network of HP Authorized
Channel Partners, including a one-year, limited warranty, Next Business
Day 1, year on-site limited Global warranty. Certain restrictions
and exclusions apply. SATA hard drives have a one year warranty
Embedded IPMI standard reporting
Optional HP ProLiant Lights-Out 100c Remote Management Card
Security
Power-on password
Setup password
Server Power Cords
12' country specific, lowline
NEMA power cord.
NOTE:
Rack models ship standard with a 12' IEC cable. Most redundant power
supply options ship with a 6' country specific power cord. Localized cables
included with geographic specific models in other world regions.
Power Supply
370 Watts
System Fans
1 – non-redundant system
fan shipped standard
1 – non-redundant CPU heatsink
fan shipped standard
OS
Support
Microsoft Windows Server
2003: Standard & Enterprise Edition (32 and 64 bit) Microsoft Windows
Small Business Server 2003 Microsoft Windows 2003 Server, Web Edition Microsoft
Windows Server 2008 Novell NetWare 6.5 SBS (only after SP6 release) RedHat
Enterprise Linux SUSE Linux Enterprise Server
NOTE:
For an up-to-date listing of the latest ML110 G4 OS support matrix, please
see: http://www.hp.com/go/supportos NOTE: For an up-to-date listing of the latest software and drivers available
for your server, please select your server: http://h20000.www2.hp.com/bizsupport/TechSupport/Product.jsp?lang=en&cc= us&taskId=135&prodTypeId=15351&prodCatId=241435 NOTE: Drivers may also found on the base media for some Linux OS's. When
configuring your server, please consult your base media driver base, or visit
HP.com at: http://h18023.www1.hp.com/support/files/server/us/index.html NOTE: For more Linux OS support & certification information, please
visit our the ProLiant & Bladesystem Server Linux matrix: http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html NOTE: When installing a Windows OS Environment and configuring the
embedded SATA RAID, AHCI, or SAS controllers, installation of a driver from a
diskette device is required. The optional USB floppy drive (part number DC361B)
is required on the ML110 G4 to accomplish this operation. NOTE: Netware
6.5 SP6 is not supported with the embedded SATA RAID.
Factory Express
Portfolio for Servers and Storage
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and/or storage products. Customers
can choose how their factory solutions are built, tested, integrated,
shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging and custom packaging
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers, as well as, the MSA1000, VA7xxx, EVA,
XP, rackable tape libraries and configurable network switches.
For more information
on Factory Express services for your specific server model please contact
your sales representative or go to http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eCo-Enterprise Configurator now provides factory default racking
for our HP hardware portfolio. This approach is aligned with our strategic
direction to meet the needs and expectations of our valued customers.
If you require "custom" rack configuration, please contact HP's
Customer Business Center or an Authorized Partner for assistance.
Service and Support
This product is covered by a global limited warranty and supported by
HP Services and a worldwide network of HP Authorized Channel Partners.
Hardware diagnostic support and repair is available for one year from
date of purchase. Support for software and initial setup is available
for 90 days from date of purchase. Additional support may be covered under
the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services or customized service
agreements.
HP Care Pack Services provide total care and support expertise with committed
response designed to meet your IT and business needs.
HP Care Pack services include coverage for the HP branded hardware options
qualified for the server that are purchased at the same time or afterward
and internal to the enclosure. It also includes the 22" and smaller
external monitors and tower UPS options up to 3kVA. These items will be
covered at the same service level and for the same coverage period as
the server. Coverage of UPS Battery is not included and standard warranty
terms & conditions apply. For servers or storage systems installed
within a rack, service also covers all HP qualified rack options installed
within the same rack.
To fully capitalize on your HP ProLiant servers' capabilities requires
a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of multi
vender support solutions provides a range of support services designed
to meet the varying needs of business. Whether an SMB or large global
corporation HP has a ProLiant server support offer to help you speedily
deploy and maximize system uptime.
Recommended Service - Simplify ProLiant solution implementation,
maintenance and management.
Support Service -3 Year, 9x5 Next Business Day coverage, excluding
HP holidays only
Deployment Service - Hardware Installation only
Enhanced Service - Optimize service level to increase IT performance
and availability
Support Service - 3 Year 13x5 Same Business Day, 4-Hour response coverage
Deployment Service - Installation and Start-up only
Installation & Start-Up of a ProLiant server and Microsoft or Linux
O/S per the Customer Description and/or Data Sheet. To be delivered on
a scheduled basis 8am-5pm, M-F, excl. HP holidays.
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section.
SATA Models
HP ML110G4 P925 512MB, NHP 160GB SATA (1P) 440288-001
Processor(s) One of the following depending on Model
One (1) Dual-Core Intel® Pentium® D Processor 925 (3.0 GHz, 800 MHz FSB)
Cache Memory One of the following depending on Model
2 x 2MB Level 2 cache (Pentium
915 & Pentium 925)
1 x 2MB shared Level 2 cache (Xeon 3040)
Memory
512 MB PC2-5300 ECC (DDR2-667Mhz)
(1 x 512 MB)
Storage Controller
HP Embedded 4 Port SATA Controller
with embedded RAID
Hard Drive
160GB SATA HDD
Internal Storage
Maximum 1TB (4 x 250GB) SATA
Optical Drive
48x CD-ROM
Form Factor
Micro ATX Tower
SAS Models
HP ML110G4 3040, 512MB, NHP-SAS (1P)
432126-001
Processor(s) One of the following depending on Model
NOTE: This section
lists some of the steps required to configure a Factory Integrated Model.
To ensure only valid configurations are ordered, HP recommends the use of
an HP approved configurator. Contact your local sales representative for
information on CTO product offerings and requirements. NOTE: HP does not allow factory integration of options into standard
models listed above.
Configure-to-order servers must start with a CTO Chassis. NOTE: This product offering does not support HP Factory Express Server
Configuration Level 1. NOTE: FIO indicates that this option is a Factory Installable Option.
Step 1:
Base Configuration
Models
HP ProLiant ML110 G4 Tower Chassis
(North America)
417710-B21
Factory Integrated Models
ship with:
Embedded NC320i PCIe Gigabit Server
Adapter
Keyboard and Mouse
370 Watts, PFC (Power Factor Correcting)
Tower Form Factor (4U)
Step 2: Choose Required
Options (only one of the following from each list unless otherwise noted)
NOTE: For the
installation of Windows and other OS's, a floppy drive (DC361B) may be required
to complete driver installation. A USB drive key may not work to complete
driver installation.
Step 3: Choose Additional Options
for Factory Integration NOTE: For additional options, please
refer to the "Options" section below. NOTE: Some options may not be factory integratable. Please contact
your local sales representative for additional information.
Operating Systems
Pre-install Microsoft Windows
2003 SBS Standard Edition
NOTE: For the
installation of Windows and other OS's, a floppy drive may be required to
complete driver installation. A USB drive key may not work to complete driver
installation.
Hard
Drives
Serial – ATA (SATA)
– Non-Hot Plug (SATA Models Only)
NOTE: When purchasing
systems with the 500GB Non-Hot Plug SATA drives, please reference the Configuration
Information Section of this QuickSpecs to order via Configuration to Order. NOTE: The purchase of additional SATA hard drives requires the purchase
of additional HP 1-Port SATA RAID Cables, (P/N 413748-B21)
Serial Attached SCSI (SAS)
Non-Hot Plug (SAS Models Only)
NOTE: The purchase
of SAS hard drives requires the purchase of HP Internal SAS/SATA 4-Port
Cable (P/N 430479-B21). This cable is standard in the SAS BTO model. NOTE: The purchase of SAS HBA or array controller is required.
NOTE: Supports
the Smart Array E200 Controller, Smart Array 641 Controller and Smart Array
642 Controller.
HP
1-Port SATA RAID Cable NOTE: The purchase of SATA hard drives requires the purchase of the
HP 1-Port SATA RAID Cable (P/N 430479-B21) for each additional hard drive.
413748-B21
HP
Internal SAS/SATA 4-Port Cable
NOTE: The purchase of a SAS Storage Controller requires the purchase
of HP SAS/SATA 4-Port Cable (P/N 430479-B21)
430479-B21
NOTE: SAS Storage
Controllers will run both SATA and SAS drives.
Communications
HP NC110T PCI Express Gigabit
Server Adapter NOTE: Does not support Windows 2000.
434905-B21
HP NC360T PCI Express Dual Port
Gigabit Server Adapter
NOTE: For additional
information regarding KVM Switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
512 MB of PC2-5300 DDR2 SDRAM
running at 512 MB with ECC capabilities Memory installed (1 x 512 MB SDRAM
DIMM).
Standard Memory Plus Optional
Memory
Up to 5120 MB memory is available
with the optional installation of PC2-5300 un-buffered ECC DDR2 SDRAM DIMM
Memory kits.
Standard Memory Replaced
with Optional Memory
Up to 8192 MB of memory is available
with the removal of the standard 512 MB of memory and the optional installation
of PC2-5300 un-buffered ECC DDR2 SDRAM DIMM Memory kits.
NOTE: The below
chart does not represent all possible memory configurations. NOTE: In memory configurations requiring 2 DIMM and 4 DIMM configurations,
the memory must be paired for optimal performance. This means that DIMMs
in slot 1 and 3 have to be identical, in slot 2 and 4 have to be identical.
(For example, the Optional memory configuration shown below)
3.5-inch
80GB 7.2K, SATA
160GB 7.2K, SATA
250GB 7.2K SATA
500GB 7.2K SATA
Up to 4
3,4,5,6
4 Port SATA controller with Embedded
RAID on Motherboard
Hard Drives (SAS Models only)
SAS – Non-Hot Plug
Quantity
Supported

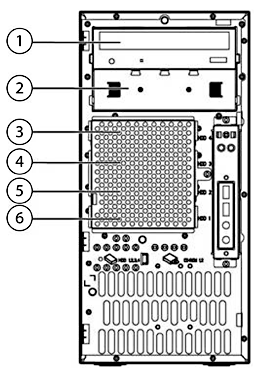

Position
Supported
Controller
3.5-inch
72GB 15K SAS
145GB 15K SAS
300GB 15K SAS
Up to 4
3,4,5,6
HP 8 Internal Port SAS HBA with
RAID (0,1)
Maximum Storage
Capacity – SATA/SAS Models
Internal
SATA
1TB (4x250GB (BTO)
2TB (4 x 500GB (CTO)
SAS
1.2TB (4x300GB)
Total
SATA
1TB (4x250GB (BTO)
2TB (4 x 500GB (CTO)
SAS
1.2TB (4x300GB)
Tape Drives and D2D Backup System
NOTE:
A SCSI controller needs to be purchased to operate internal SCSI devices
in the SATA Models. NOTE: For an up-to-date listing of the latest O/S Support details
for each of the Tape Drives listed below, please see the following: http://h18000.www1.hp.com/products/quickspecs/Division/10233.html
(Worldwide)
Position
Supported
Controller
Controller/HBA Option Kit Part Number
Internal USB Tape Drives
DAT 24 USB
DAT 40 USB
DAT 72 USB
2
USB 2.0 port
N/A
External USB Tape Drives
DAT 40 USB
DAT 72 USB
DAT160 USB
System Leakage with all power supplies loaded
(mA)
0.75mA@240V
0.45mA@120V
System Inrush Current with all power supplies
loaded (A)
80A
Power cord requirements
Nema 5-15P to IEC320-C13
IEC320-C13 to IEC320-C14
**Power shown is for
a fully configured system consisting of (1) CPU, (4) double-sided DIMMs,
(4) HDDs, (1) CD-ROM, (1) DVD-ROM, (4) PCI cards, and (1) power supply.
Single lane (x1),
100MHz PCI Express Reference Clock
Network Transfer
Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and Full-Duplex)
2000Mb/s
Connector
RJ-45 connector
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to
328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100
m)
Environment-friendly Products and Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
Canadian Site
DL QuickSpecs
Search:
US QuickSpecs
432806-B21
© 2013 USA PartsDirect
