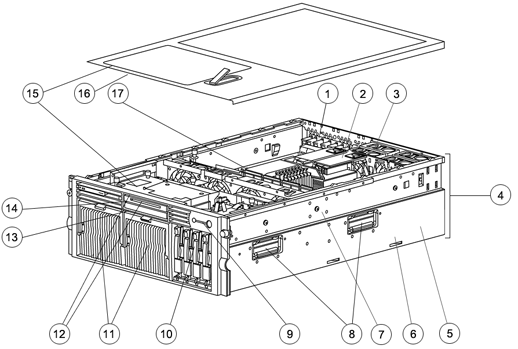

4. Up to 128 GB of PC2700 DDR SDRAM with Advanced
ECC, running at 266 MHz, 64 GB of PC2700 running at 333
MHz or 32 GB of PC3200 running at 400 MHz
5. Hot Plug Redundant Fans (standard)
6. 4U (7" Height) Rack Form Factor
7. Tool-less "Snap In" rail solution
8. Server Lifting Handle
9. Front Panel LED Display (internal and external
health, Unit ID light) and Power Button
10. Ultra320 Drive Cage, capable
of simplex or duplex configuration, upgradeable to Small Form
Factor (SFF) Serial Attached SCSI (SAS) drive technology
11. Dual 870-Watt Hot Plug Redundant
Power Supplies (hi/lo line auto-sensing
12. Two Universal Media Bays:
24X CD-ROM IDE and 1.44 MB Diskette Drive (standard)
13. Multi-Bay floppy and CD-ROM
drives, standard on most models
14. QuickFind Diagnostic Display
(viewable through the Top Access Panel)
15. Removable Top Access Panel
16. Integrated Lights-Out (iLO)- not shown
17. Dual Port NC7782 embedded
NIC - not shown
What's New
Support for Dual-Core AMD Opteron Model 885 processor,
running at 2.6 GHz (two or four processors supported) with PC3200 or
PC2700 memory
At
A Glance
The ProLiant DL585, the best performing x86 4-processor server in the
industry, now supports the new AMD Opteron Dual-Core processor further
increasing the performance leadership of this system. Dual-Core AMD Opteron
processors enable a huge boost in performance. Depending on the application
and environment, customers can expect to see anywhere from 15 to 65% performance
improvement in the same 4U chassis!
The DL585 was the first Tier 1 server in the industry supporting 4 AMD
Opteron processors and the first platform which demonstrated Dual-Core
Opteron processors in August 2004. It continues to maintain performance
leadership, especially with a variety of 32-bit benchmarks. The 128GB
memory footprint enables most applications to run faster or support more
users than other systems. The DL585 combines AMD Opteron processor technology,
best-in-class management and outstanding uptime features in an enterprise-class
system ideal for large data center deployments.
Processors:
AMD Opteron 800 series up to 2.6 GHz Dual-Core processors OR
AMD Opteron 800 series up to 2.8 GHz single core processors
Two or four total processors supported
AMD Opteron 8000 chipset supporting up to 1 GHz HyperTransport
Memory:
4 GB of PC3200 DDR SDRAM, running at 400 MHz, expandable to 32
GB
2 GB of PC2700 DDR SDRAM, running at 333 MHz, expandable to 128
GB with support for PC2700 DDR with Advanced ECC SDRAM (64 GB running
at 333 MHz or 128 GB running at 266 MHz)
Storage Controller:
Integrated Smart Array 5i Plus Controller (Dual Channel, Ultra3)
with 64 MB total memory on 5i Plus Memory Module
Up to 1.20TB (4 x 300GB Ultra320 SCSI hard drives)
Up to 1.168TB (8 x 146GB SFF SAS hot plug drives)
Or support for one DAT hot plug tape drive and two hot plug
hard drives
Multi-Bay floppy and CD-ROM drives
Network Controller:
Embedded NC7782 PCI-X Gigabit Server Adapter
Expansion Slots:
Eight total full length slots: six 64-bit/100 MHz PCI-X; two
64-bit/133 MHz PCI-X
USB 1.0 Ports:
Two total: 2 rear ports
Redundancy:
Redundant hot plug power supplies and fans
Management:
Integrated Lights-Out Standard Management (iLO) on system board
Innovative diagnostic lighting (QuickFind Diagnostic Display)
for rapid response to service events
Form Factor:
Delivering maximum performance in a versatile, rack optimized
form factor
Deployment/Serviceability:
Tool-less and virtually cable-less internal design
Rapid Deployment racking solution (rack rails and cable management)
Warranty:
Protected by HP Services and a worldwide network of resellers
and service providers. Three-year Next Business Day, on-site limited
global warranty. Certain restrictions and exclusions apply. Pre-Failure
Notification on processors, memory, and SCSI/SAS hard drives. SATA
hard drives have a one-year warranty.
Processor Two or four of the following depending on Model
AMD Opteron model 885, Dual-core
running at 2.6 GHz (2 or 4 supported)
AMD Opteron model 880, Dual-core
running at 2.4 GHz (2 or 4 supported)
AMD Opteron model 875, Dual-core
running at 2.2 GHz (2 or 4 supported)
AMD Opteron model 865, Dual-core
running at 1.8 GHz (2 or 4 supported)
AMD
Opteron model 854, running at 2.8 GHz (2 or 4 supported)
AMD
Opteron model 852, running at 2.6 GHz (2 or 4 supported)
AMD
Opteron model 850, running at 2.4 GHz (2 or 4 supported)
AMD
Opteron model 848, running at 2.2 GHz (2 or 4 supported)
Cache
Memory
1MB Integrated
Level 2 Cache
Upgradeability
Upgradeable to quad
processing
Upgradeable to SAS
drive technology
Chipset
AMD Opteron 8000
series chipset
Memory Protection & Functionality
Advanced ECC
Memory
Type
PC2100 DDR SDRAM, running at 266 MHz
PC2700
DDR SDRAM, running at 333 MHz
PC3200
DDR SDRAM, running at 400 MHz
Standard
One of the following depending on Model
2 GB (2 x 512 MB x 2 Processor Boards) (PC2100 or PC2700 DDR SDRAM)
4 GB (2 x 1024
MB x 2 Processor Boards) (PC3200 DDR SDRAM)
8
GB (8 x 1024 MB x Processor Boards) (PC3200 DDR SDRAM)
Maximum
32
GB (PC3200 DDR SDRAM)
128
GB (PC2700 DDR SDRAM) NOTE: PC2700 only supported on 2.4 GHz and faster single core models
and all dual core models. Also PC3200 only supported on 2.6 GHz single core
models and all dual core models.
Network Controller
Embedded
NC7782 PCI-X Gigabit Server Adapter
Expansion Slots
Bus speed
Bus number
Hot Plug
PCI Voltage
1
64-bit / 133 MHz PCI-X
5
No
3.3 Volt
2
64-bit / 133 MHz PCI-X
6
No
3.3 Volt
3
64-bit / 100 MHz PCI-X
7
No
3.3 Volt
4
64-bit / 100 MHz PCI-X
7
No
3.3 Volt
5
64-bit / 100 MHz PCI-X
8
No
3.3 Volt
6
64-bit / 100
MHz PCI-X
8
No
3.3 Volt
7
64-bit / 100 MHz PCI-X
3
No
3.3 Volt
8
64-bit / 100 MHz PCI-X
3
No
3.3 Volt
NOTE: All slots can accept
universal keyed PCI cards.
Default bus assignment. Inserting cards with PCI bridges may alter the
actual bus assignment number.
Slots are enumerated differently based on the operating system. Microsoft
operating systems enumerate from lowest to highest Device ID by bus (starting
with the lowest bus).
Manageability
Integrated Lights-Out
(iLO) Standard Management (ASIC on the System Board)
Storage Controllers
Smart Array 5i Plus
Controller (integrated on system board), Dual Channel, Ultra3 (supports
RAID 0, 1, 1+0, and 5 across internal hard disk drives) with 64 MB of memory.
64-MB total memory for code, transfer buffers, and read/write cache
on the 5i Plus Memory Module
Connector for Battery Backed Write Cache (BBWC) Enabler
NOTE:
The Smart Array 5i Plus Controller is integrated on the system board and
is designed to support the duplex/simplex drive cage. An external SCSI port
is not available on the HP ProLiant DL585. External SCSI solutions require
the addition of a PCI or PCI-X option card.
Storage Data Protection
The
Battery-Backed Write
Cache (BBWC) Enabler protects up to 64 MB write cache memory from
hard boot, power, controller, or system board failures.
Standard on all HP ProLiant DL585 Models
Battery charge/life: Up to 72 hours/3 years
Transportable data protection
Increases overall controller performance
NOTE:
Safely transport your write cache data to another HP ProLiant DL585
in the data center by removing the BBWC Enabler and 5i Plus Memory Module
simultaneously (connected by short cable).
Storage
Diskette Drive
1.44 MB Diskette Drive (slimline)
– ejectable for security and serviceability
Optical Drive
24x IDE CD-ROM Drive (slimline)
– ejectable for security and serviceability
Hard Drives
None ship standard

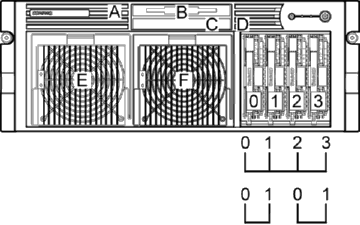

Hard Disk Drive Backplane
Internal Wide Ultra3
backplane supports up to four hard disk drives and is easily configurable
to support simplex (4x1) or duplex mode (2x2) Standard shipping configuration
is the duplex mode. NOTE: Optional SCSI cable assembly
(PN 365483-B21) is required for connecting Smart Array Controller in a PCI
slot to internal hard drive backplane. Duplex configuration requires two
such kits.
Maximum
Internal Storage Type
Hot Plug
SCSI
1.20TB
4
x 300GB Ultra320 drives (internal hot plug Ultra3 or Ultra320 drive cage)
Integrated 1280 x 1024, 16M
color on PCI local bus, 8 MB of SDRAM video memory
Form Factor
Rack (4U = 7 inches), ships
with sliding rails and cable management system
Space saving form factor (4U) provides space efficiencies while providing
maximum deployment flexibility
ProLiant Essentials
Foundation Pack Software
HP
Systems Insight Manager
HP Systems Insight Manager
(HP SIM) provides a unified, secure and extensible environment to
centrally manage servers, storage and other infrastructure devices
across multiple operating system platforms.
Through a single management view, HP SIM provides core management
services that include device discovery and identification, event
views, health monitoring, inventory data collection, software version
control and reporting. HP SIM is built on industry standards and
is extensible with value-added ProLiant Essentials, Integrity Essentials
and Storage Essentials software to meet individual management needs.
For more details on HP SIM visit http://www.hp.com/go/hpsim.
HP SIM provides organizations with the following benefits:
Simplifies and consolidates infrastructure lifecycle management
using task and query based functionality
Provides the foundation for infrastructure automation and virtualization
Enables IT management based on business processes not hardware
platforms
Lowers infrastructure maintenance cost and frees resources for
innovation
Maximizes resource utilization with virtualization technologies
Provides a central point of integration between infrastructure
and Enterprise management tools such as HP OpenView
SmartStart
SmartStart
is a tool that simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please visit the SmartStart
Web site at http://www.hp.com/servers/smartstart. SmartStart version supported (minimum): SmartStart
7.00.
Insight
Management Agents
Insight Management Agents
should be installed on all HP servers to present system instrumentation,
health and configuration information into HP Systems Insight Manager
and the HP System Management Homepage. The HP System Management Homepage
aggregates systems data from Insight Management Agents and other HP
management tools, providing a consolidated browser-based interface
for managing individual servers,
Insight Management Agents and The HP System Management Homepage
are included on ProLiant Support Packs, and can also be installed
using the server profiles provided with the ProLiant Essentials
Rapid Deployment Pack. For additional information about the Management
Agents and the HP System Management Homepage please visit the management
Web site at http://www.hp.com/servers/manage.
Subscriber's Choice
Subscriber's
Choice Driver and Support Alerts/Notifications is a web-based email subscription
service that provides automatic delivery of software and driver change notifications
for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available,
on a weekly or monthly basis.
ROMPaq,
support software, and configuration utilities
The
latest software, drivers, and firmware fully optimized and tested for your ProLiant
server and options available in SmartStart or downloadable from Software and Drivers
download pages, linked from the SmartStart website at http://www.hp.com/servers/smartstart.
Survey Utility and diagnostics
utilities
The most advanced
configuration analysis, reporting and troubleshooting utilities used by HP and
at your fingertips, available in SmartStart.
Optional
ProLiant Essentials Value Packs
Optional software offerings
that selectively extend the functionality of an Adaptive Infrastructure
to address specific business problems and needs:
Rapid Deployment Pack (RDP) is an automated deployment and
provisioning solution for all ProLiant servers. RDP includes the
ProLiant Integration Module featuring ProLiant server pre-configured
events for OS installation, and optimized software drivers, firmware
and management agents. Every RDP disc includes 10-node trial licenses
for evaluation purposes. RDP requires a license for each server
deployed and is available for purchase with HP servers. For more
information, visit: http://www.hp.com/servers/rdp.
Workload Management Pack - provides easier management of complex
environments, improving overall server utilization and enabling
Windows® 2000 customers for the first time to confidently deploy
multiple applications on a single multiprocessor ProLiant Server.
Performance Management Pack - a performance management solution
that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better
utilize their valuable resources.
Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken network linkages and steers traffic to the optimum route
based on network conditions, plus it provides an extra layer of
protection. The virus throttle feature of the solution slows the
propagation of fast spreading virus.
Vulnerability and Patch Management Pack - identifies and remediates
software security vulnerabilities due to missing patches as well
operating system configurations that can be exploited by viruses,
worms, and other blended threats.
Virtual Machine Management Pack - provides central management
and control of virtual machines from Microsoft and VMware. Integrated
approach provides the ability to manage both physical and virtual
resources from a single management console.
Server Migration Pack - The Server Migration Pack automates
the manual processes required for migrating servers between physical
or virtual platforms (P2V, V2P, and V2V).
Optional Remote Management
Packs
Integrated Lights-Out Advanced Pack - upgrades the Integrated
Lights-Out processor to full virtual presence and control with
graphical console and virtual media.
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more information. NOTE: For more information regarding ProLiant Essentials Software, please
see the following URL: http://www.hp.com/servers/proliantessentials.
Industry Standard Compliance
ACPI 1.0a. Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Physical Address Extension (PAE)
Support
Microsoft® Logo certifications
Remote Management
Integrated Lights-Out (iLO)
Standard Management
Virtual Text Remote Console
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for 12 user accounts with customizable access privileges
Integrated Lights-Out (iLO) Advanced Pack (supports Advanced features
such as Graphical Remote Console and Virtual Floppy - available as a separate
option)
Intelligent Manageability
Automatic Server Recovery-2
(ASR-2)
HP Systems Insight Manager
Redundant ROM
Remote Flash ROM
ROM-Based Setup Utility (RBSU)
Integrated Management Log (IML)
Dynamic sector repairing and drive parameter tracking (with Smart Array
controllers)
Redundant/adaptive load balancing NIC Support
Availability
Smart Array 5i Plus Controller with standard Battery Backed Write
Cache (BBWC) Enabler provides transportable data protection and increases
overall controller performance. Up to 64MB Battery Backed Write Cache
protection available on all HP ProLiant DL585 models.
Up to four Ultra320 SCSI Hard Drives
Duplex or Simplex SCSI Backplane (Duplex configuration is standard)
Dual Hot Plug Redundant Power Supplies (standard)
PCI-X Technology (six 64-bit/100-MHz and two 64-bit/133 MHz PCI-X
slots available)
Smart Array 5i Plus Controller with 64 MB of Battery Backed Write
Cache (BBWC) Enabler provides transportable data protection and increases
overall controller performance.
Fans are 7+1 hot plug redundant and individually removable.
Serviceability
Innovative Diagnostic Lighting
QuickFind Diagnostic Display - precisely depicts all major subsystems
of the server (PCI-X I/O, Memory, CPU, Redundant Cooling, Interlock,
Thermtrip) and gives instant visual indication of fault status. Located
on top front of server.
Tool-less, virtually cable-less interior design
Tool-less access to interior of server
Two ejectable, Universal Media Bay media drives (diskette and
CD-ROM standard with support for optional DVD-ROM drives) are removable
without the use of tools
Front access power supplies
PCI Card Guides locks full length PCI cards in place during transit
SCSI Duplex/Simplex Drive Cage connects directly to system board
- no cables. NOTE: Configure your SCSI
Duplex/Simplex Drive Cage by means of simple switch (duplex to simplex)
located on the cage itself. System ships standard in Duplex mode.
Eight individually removable fans connect without cables to the
system board
Tool-less removal of system board
Quick Deploy Rails
Tool-less design "snap in" rail
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
Network Server Mode
Serial interface control
Administrator's password
Disk configuration lock
Removable Diskette drive
Removable CD-ROM drive
Power Supply
Dual 870-Watt Hot Plug Redundant
Power Supplies (hi/lo line auto-sensing)
Microsoft Windows 2000 Server
Microsoft Windows 2000 Advanced Server
Windows Server 2003, Standard Edition
Windows Server 2003, Enterprise Edition
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware Virtualization Software
Solaris 10 32/64-bit
Microsoft Windows 2000 Server (licensed by core)
Microsoft Windows 2000 Advanced Server (licensed by core)
Windows Server 2003, Standard Edition (licensed by processor socket)
Windows Server 2003, Enterprise Edition (licensed by processor socket)
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware Virtualization Software
Solaris 10 32/64-bit
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION: If
a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing
front and rear doors, you must allow 5,350 sq cm (830 square inches)
of hole evenly distributed from top to bottom to permit adequate airflow
(equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component
and the side panels of the rack must be a minimum of 7 cm (2.75 inches).
CAUTION: Always
use blanking panels to fill all remaining empty front panel U-spaces in
the rack. This arrangement ensures proper airflow. Using a rack without
blanking panels results in improper cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation
Guide or the Documentation CD provided with the server, or to the server
documentation located in the Support section at the following URL: http://www5.hp.com/products/servers/proliantdl585/index.html.
Rack Mounting Requirements
HP ProLiant DL585 rack models
provide tool-free support for square hole racks (including Compaq/HP 7000,
9000, 10000 and H9 series) with an adjustment range from 28" - 29"
in depth.
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP,
rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model, please contact your sales representative or go to http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eCo-Enterprise Configurator
now provides factory default racking for our HP hardware portfolio. This
approach is aligned with our strategic direction to meet the needs and expectations
of our valued customers. If you require "custom" rack configuration,
please contact HP's Customer Business Center or an Authorized Partner for
assistance.
Service and Support
This product is covered by a global limited warranty and supported by
HP Services and a worldwide network of resellers and service providers.
Hardware diagnostic support and repair is available for three years from
date of purchase. Support for software and initial setup is available
for 90 days from date of purchase. Additional support may be covered under
the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services or customized service
agreements.
HP Care Pack services include coverage for the HP branded hardware options
qualified for the server, purchased at the same time or afterward, internal
to the enclosure, as well as 22" and smaller external monitors and
tower UPS options up to 3kVA; these items will be covered at the same
service level and for the same coverage period as the server. Coverage
of UPS Battery is not included, standard warranty terms & conditions
apply. For servers or storage systems installed within a rack, service
also covers all HP qualified rack options installed within the same rack.
HP services provide continuous care and support expertise with committed
response designed to meet your IT and business needs.
To fully capitalizing on your HP ProLiant servers' capabilities requires
a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of multi
vender support solutions provides a range of support services designed
to meet the varying needs of business. Whether an SMB or large global
corporation HP has a ProLiant server support offer to help you speedily
deploy and maximize system uptime.
Enhanced Care - Minimum recommended service support offer designed to
ensure customers have access to expert assistance, whenever they need
it.
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years
Continuous Care - Recommended service delivering cost-effective support
options designed to extend HP Services committed response and guaranteed
fix times, designed to speed problem identification and resolution.
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage,
3 Years
Total Care - Highest HP Support service level recommend to help increase
IT performance and availability with comprehensive, integrated hardware
and software services
Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft
O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response
time incl. HP holidays
Deployment Services - HP Installation and Start Up services designed
to take time, risk, and worry out of the deployment of ProLiant servers
- and free customers IT support staff to focus on what they do best, their
business.
Installation & Start-Up of a ProLiant server and Microsoft
or Linux O/S per the Customer Description and/or Data Sheet. To be delivered
on a scheduled basis 8am-5pm, M-F, excl. HP holidays
Designed for enterprise customers
with growing data centers and application and Internet service providers
that require a rack optimized 4-processor server that delivers maximum performance
and high availability for highly complex, business critical applications.
Specifically, the HP ProLiant DL585 would be excellent for running the following
types of applications:
Configuration Information - Factory Integrated Models (North America only)
NOTE:
For Configure to Order requirements within EMEA region, please consult
local Sales Contact.
NOTE: HP does not allow factory integration of options into standard
models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE:
This product offering does not support HP Factory Express Server Configuration
Level 1. NOTE: FIO indicates that this option only available as a Factory
Installable Option.
Step
1: Base Configuration
Models
HP ProLiant DL585
Rack CTO Chassis (North America)
390524-405
Factory Integrated
Models ship with:
1.44 MB Diskette Drive
Embedded NC7782 PCI-X Gigabit Server Adapter
Smart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed
Write Cache Enabler (integrated on system board)
Integrated Lights-Out (iLO) Standard management (integrated on system
board)
Two 870W Hot Plug Redundant Power Supplies (low line or high line)
Rack 4U Form Factor
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted)
Processors
AMD Opteron 885 2.6
GHz-1 MB Dual-core PC2700 Processor Option Kit NOTE: If four processors are desired,
select one 407660-B21 and two 407660-B21.
407660-B21
AMD Opteron 885 2.6
GHz-1 MB Dual-core PC3200 Processor Option Kit NOTE: If four processors are desired,
select one 407661-B21 and two 407661-B21.
407661-B21
AMD O880 2.4 GHz/1000
Dual-core 1 MB PC 3200 DL585 FIO BASE NOTE: If four processors are desired,
select one 397844-B21 and two 397844-B21.
397844-B21
AMD O880 2.4 GHz/1000
Dual-core 1 MB PC 2700 DL585 FIO BASE NOTE: If four processors are desired,
select one 397843-B21 and two 397843-B21.
397843-B21
AMD O854 2.8/1000
1 MB PC2700 DL585 FIO BASE NOTE: If four processors are desired,
select one 397820-B21 and two 397820-B21.
397820-B21
AMD O875 2.2 GHz/1000
Dual-core 1 MB PC3200 DL585 FIO BASE NOTE: If four processors are desired,
select one 383393-B21 and two 383393-B21.
383393-B21
AMD O854 2.8 GHz/1000
1 MB PC3200 DL585 FIO BASE NOTE: If four processors are desired,
select one 397821-B21 and two 397821-B21.
397821-B21
AMD O875 2.2 GHz/1000
Dual-core 1 MB PC2700 DL585 FIO BASE NOTE: If four processors are desired,
select one 383391-B21 and two 383391-B21.
383391-B21
AMD O865 1.8 GHz/1000
Dual-core 1 MB PC3200 DL585 FIO BASE NOTE: If four processors are desired,
select one 383392-B21 and two 383392-B21.
383392-B21
AMD O865 1.8 GHz/1000
Dual-core 1 MB PC2700 DL585 FIO BASE NOTE: If four processors are desired,
select one 383390-B21 and two 383390-B21.
NOTE:
Memory must be ordered in like-pairs, i.e. two of the same size.
NOTE:
For max memory performance with PC2700 (333 MHz), -002 or greater processor
boards should be used in conjunction with no more than 6 PC2700 DIMMs per
processor. 2.4 GHz SKUs and faster SKUs ship standard with -002 or greater
processor boards.
Step
3: Choose Additional Options for Factory Integration
SAS
Options

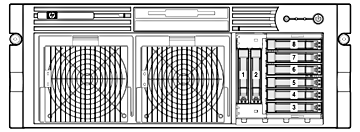

8-Bay
SAS/SATA Cage Option Kit NOTE: May be ordered with a SAS/SATA
Controller such as the Smart Array P600/256 BBWC Controller and the desired
quantity of SFF SAS Universal Hard Drives/SFF SATA hard drives OR may be
ordered with one of the following SAS Starter Kits.
379090-B21
SAS Starter Kit -
36GB NOTE: Includes HP Smart Array P600/256 BBWC Controller and (2) 36GB
SFF SAS Universal Hard Drives.
396221-B21
SAS
Starter Kit - 72GB NOTE: Includes HP Smart Array P600/256
BBWC Controller and (2) 72GB SFF SAS Universal Hard Drives.
396220-B21
Step
4: Choose Additional Options for Factory Integration
NOTE:
Some options may not be factory integratable. Please contact your local
sales representative for additional information.
ProLiant
DL585 Unique Options
AMD Opteron 885 2.6
GHz-1 MB Dual-core PC2700 Processor Option Kit NOTE: This Opteron 885 2.6 GHz Dual-core
PC2700 processor Option kit (PN 407660-B21) comes standard with the 011974-503
processor/memory board.
407660-B21
AMD Opteron 885 2.6
GHz-1 MB Dual-core PC3200 Processor Option Kit NOTE: This Opteron 885 2.6 GHz Dual-core
PC3200 processor Option kit (PN 407661-B21) comes standard with the 012567-501
processor/memory board.
407661-B21
AMD Opteron 880 2.4
GHz-1 MB Dual-core PC3200 Processor Option Kit NOTE: This Opteron 880 2.4 GHz Dual-core
PC3200 processor Option kit (PN 397844-B21) comes standard with the 012567-501
processor/memory board.
397844-B21
AMD Opteron 880 2.4
GHz-1 MB Dual-core PC2700 Processor Option Kit NOTE:This
Opteron 880 2.4 GHz Dual-core PC2700 processor Option kit (PN 397843-B21)
comes standard with the 011974-503 processor/memory board.
397843-B21
AMD Opteron 875 2.2
GHz-1 MB Dual-core PC3200 Processor Option Kit NOTE: This Opteron 875 2.2 GHz Dual-core
PC3200 processor Option kit (PN 383393-B21) comes standard with the 012567-501
processor/memory board.
383393-B21
AMD Opteron 875 2.2
GHz-1 MB Dual-core PC2700 Processor Option Kit NOTE: This Opteron 875 2.2 GHz Dual-core
PC2700 processor Option kit (PN 383391-B21) comes standard with the 011974-503
processor/memory board.
383391-B21
AMD Opteron 865 1.8
GHz-1 MB Dual-core PC3200 Processor Option Kit NOTE: This Opteron 865 1.8 GHz Dual-core
PC3200 processor Option kit (PN 383392-B21) comes standard with the 012567-501
processor/memory board.
383392-B21
AMD Opteron 865 1.8
GHz-1 MB Dual-core PC2700 Processor Option Kit NOTE: This Opteron 865 1.8 GHz Dual-core
PC2700 processor Option kit (PN 383390-B21) comes standard with the 011974-503
processor/memory board.
383390-B21
AMD Opteron 854 2.8
GHz-1 MB PC3200 processor Option Kit NOTE: This Opteron 854 2.8 GHz PC3200
processor Option kit (PN 397821-B21) comes standard with the 012567-501
processor/memory board.
397821-B21
AMD Opteron 854 2.8
GHz-1 MB PC2700 processor Option Kit NOTE: This Opteron 854 2.8 GHz PC2700
processor Option kit (PN 397820-B21) comes standard with the 011974-503
processor/memory board.
397820-B21
AMD Opteron 852 2.6
GHz-1 MB PC3200 Processor Option Kit NOTE: This Opteron 852 2.6 GHz PC3200
processor Option kit (PN 381477-B21) comes standard with the 012567-501
processor/memory board.
381477-B21
AMD Opteron 852 2.6
GHz-1 MB PC2700 Processor Option Kit NOTE: This Opteron 852 2.6 GHz PC2700
processor Option kit (PN 381476-B21) comes standard with the 011974-503
processor/memory board.
381476-B21
AMD Opteron 850 2.4
GHz-1 MB Processor Option Kit NOTE: This Opteron 850 2.4 GHz processor
Option kit (PN 366725-B21) comes standard with the 011974-503 processor/memory
board.
366725-B21
AMD Opteron 848 2.2
GHz-1 MB Processor Option Kit NOTE: This Opteron 848 2.2 GHz processor
Option kit (PN 359708-B21) comes standard with the 011974-503 processor/memory
board.
359708-B21
AMD Opteron 844 1.8
GHz-1 MB Processor Option Kit NOTE: This Opteron 844 1.8 GHz processor
Option kit (PN 359707-B21) comes standard with the 011974-503 processor/memory
board.
359707-B21
NOTE:
Must order two kits to expand the system from 2 to 4 processors
ProLiant
Essentials
Value Pack Software
ProLiant Essentials
Intelligent Networking Pack
ProLiant Essentials
Intelligent Networking Pack - Windows Edition, Single Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
ProLiant Essentials
Performance Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key, HP Management
CD and documentation. NOTE: The most recent version of the software can always be downloaded
at http://www.hp.com/products/pmp.
ProLiant Essentials
Virtual Machine Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
435661-B21
ProLiant
Essentials Server Migration Pack, Single-Migration License NOTE: Contains one license, enabling 1 server migration, with a unique
license activation key and documentation. NOTE: This license allows 1 server to be migrated from a physical
server to a virtual machine. Or this license can be used to migrate a virtual
machine from one virtualization layer i.e. VMware GSX to a different virtualization
layer such as VMware ESX or Microsoft Virtual Server 2005.
ProLiant Essentials
Vulnerability and Patch Management Pack
ProLiant Essentials
Vulnerability and Patch Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials.
Remote Management
Integrated Lights-Out Advanced
Pack
Integrated Lights-Out Advanced
Pack, 1 server Featuring: Sophisticated virtual administration features for ultimate
control of servers in the data centers and remote sites.
NOTE: The PC2700
DDR SDRAM DIMM Memory Kits are supported by the 2.4 GHz and faster models
only.
NOTE: For max
memory PC2700 performance (333 MHz), -002 or greater processor boards must
be used in conjunction with no more than 6 PC2700 DIMMs per processor board.
8-Bay SAS/SATA Cage Option Kit NOTE: The SAS/SATA Cage must be used
in conjunction with a SAS/SATA Controller such as the Smart Array P600/256
BBWC Controller to upgrade all U320 models to SAS.
NOTE: All U320
Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller or U320 SCSI HBA to support
U320 transfer rates.
NOTE: SATA drives
have a 1 year warranty. Please see the SATA Hard Drive QuickSpecs for Technical
Specifications such as capacity, height, width, interface, transfer rate,
seek time, physical configuration, and operating temperature: http://h18000.www1.hp.com/products/quickspecs/12091_div/12091_div.html
(Worldwide)
NOTE:
Please see the SFF SAS Hard Drive QuickSpecs for Technical Specifications
such as capacity, height, width, interface, transfer rate, seek time, physical
configuration, and operating temperature: http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html
(Worldwide)
DL585
Cable Assembly, SCSI, Ultra3, LVDS NOTE: All DL585 models ship standard with the integrated Smart Array
5i Plus Controller, which has been designed to deliver maximum performance
and availability across the internal SCSI Duplex backplane.
365483-B21
The Ultra3 SCSI cable is required only if the customer chooses to
bypass the Smart Array 5i Plus Controller and connect slot-based SCSI
adapters or RAID controllers to the internal SCSI Duplex backplane.
Two cables are required to maintain the standard, duplexed configuration
of the backplane.
One cable is required if the simplex configuration is chosen.
The backplane is easily configured to simplex mode by means of a simple
switch duplex to simplex) located on the top of the backplane itself.
HP
Smart Array P600/256 BBWC Controller NOTE: The Smart Array P600 Controller supports
internal and external Serial Attached SCSI and Serial ATA drives. It is
supported in all HP ProLiant DL585 Models. NOTE: Internal usage of the Smart Array P600 Controller requires
the 8-Bay SAS/SATA Drive Cage Option Kit.
NOTE: The following tape drives are recommended for use
with this HP ProLiant server.
USB Tape Drives
HP StorageWorks DAT 72 USB
Internal Tape Drive (Carbonite) NOTE: HP recommends combining
this tape drive with the 1U USB Rack-Mount kit ( A8007A) for a complete
rack-mount solution.
DW026A
Ultrium Tape Drives
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
NOTE: HP recommends combining this tape drive with the 1U SCSI Rack-Mount
kit ( A7445B) for a complete rack-mount solution.
For an up-to-date
listing of the latest O/S and software support details for HP Ultrium
tape drives, please visit: http://www.hp.com/go/connect
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U SCSI
Rack-Mount kit NOTE: The 1U Rack-Mount Kit can support up to (2) half-height
tape drives and is compatible with multiple Single-Ended and LVD SCSI
tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160,
Ultrium 215, Ultrium 232, Ultrium 448 and Ultrium 920 tape drives.
HP StorageWorks 1U USB Rack-Mount
Kit NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height
tape drives and is compatible with the DAT 24 USB, DAT 40 USB and
DAT 72 USB tape drives.
HP StorageWorks 3U Rack-mount
kit NOTE: The 3U Rack-mount Kit can support up to (2) full-height
or (4) half-height tape drives and compatible with multiple LVD SCSI
tape drives including DAT 40, DAT 72, DLT VS160, SDLT 320, SDLT 600,
Ultrium 232, Ultrium 460, Ultrium 448, Ultrium 920 and Ultrium 960
tape drives.
HP StorageWorks 1/8 Ultrium
920 G2 Tape Autoloader
AH165A
HP StorageWorks 1/8 Ultrium
448 G2 Tape Autoloader
AH164A
HP StorageWorks 1/8 Ultrium
232 G2 Tape Autoloader
AH163A
HP StorageWorks 1/8 G2 Tape
Autoloader Rack Kit NOTE: Required to install the 1/8 G2 Autoloaders in a standard
19-inch rack; includes rails and rackmount instructions
AH166A
NOTE: Required
to install the 1/8 tape autoloader in a standard 19-inch rack NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at
http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
Tape Libraries
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium
960 Drive Library
HP StorageWorks MSL4048 2 Ultrium
960 4GB FC Drive Library
AG325B
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium
960 Dr LVDS Library
AD606B
HP StorageWorks MSL6030 1 Ultrium
960 Dr FC Library
AD608B
HP StorageWorks MSL6030 2 Ultrium
960 Dr LVDS Library
AD607B
HP StorageWorks MSL6030 2 Ultrium
960 Dr FC Library
AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium
460 Dr LVDS Library
AD598B
HP StorageWorks MSL6030 1 Ultrium
460 Dr FC Library
AD600B
HP StorageWorks MSL6030 2 Ultrium
460 Dr LVDS Library
AD599B
HP StorageWorks MSL6030 2 Ultrium
460 Dr FC Library
AD601B
NOTE: Please reference
the MSL2024, MSL4048 and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
HP
Data Protector Express Software
HP
DP Express Backup Server Upgrade for ProLiant Software
BB117AP
HP DP Express Package for Microsoft
Small Business Server
NOTE:
To obtain a free licensed copy of HP Data Protector Express for ProLiant edition
software, please visit the "Protect Your Data" link accessible from
your ProLiant server's System Management Homepage (SMH) software (SmartStart 7.5
or later).
HP StorageWorks Modular Smart
Array 500 Generation 2 NOTE: Please see the Modular Smart
Array 500 Generation 2 QuickSpecs for additional information including configuration
steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/11956_div/11956_div.html
(Worldwide)
NOTE: Please see
the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options
and configuration information at: http://www.hp.com/go/MSA1500cs
Uninterruptible Power Systems – Rack
HP, R1.5kVA UPS, 1U, NA
AF419A
HP, R1.5kVA UPS, 1U, INTL
AF418A
HP, R1.5kVA UPS, 1U, JPN/TW
AF421A
HP R3000 VA UPS, 2U, DTC, INTL NOTE: Replaces non-RoHs compliant
part numbers 192186-B31, 192186-B32, 192186-B33, 192186-AR1.
AF414A
HP R3000 VA UPS, 2U, L5-30, NA NOTE: Replaces non-RoHs compliant
part number 192186-001.
AF422A
HP R3000 VA UPS, 2U, L6-20, NA NOTE: Replaces non-RoHs compliant
part number 192186-002.
AF423A
HP R3000 VA UPS, 2U, L6-20, JPN NOTE: Replaces non-RoHs compliant
part number 192186-292.
AF424A
HP R3000 VA UPS, 2U, L5-30, JPN NOTE: Replaces non-RoHs compliant
part number 192186-291.
AF425A
HP R5500 VA UPS, INTL NOTE: Replaces non-RoHs compliant
part number 326529-B31.
AF416A
HP R5500 VA UPS, NA/JPN NOTE: Replaces non-RoHs compliant
part number 326529-D71.
AF426A
HP Monitored Power
Distribution Unit (PDU)
HP Monitored Power Distribution
Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU-
dual input, 3U, 24A (NA/JPN) NOTE: Replaces non-RoHs compliant
part number 370959-D71.
AF503A
HP 8.3 kVA S1324 Monitored PDU-
single input, 3U, 24A (NA/JPN) NOTE: Replaces non-RoHs compliant
part number 370960-D71.
AF504A
HP 16.6 kVA S2140 Monitored PDU-
dual input, 1U, 40A (NA/JPN) NOTE: Replaces non-RoHs compliant
part number 37061-D71.
AF505A
HP 8.6 S1140 Monitored PDU- single
input, 1U, 40A (NA/JPN) NOTE: Replaces non-RoHs compliant
part number 370962-D71.
AF506A
HP 22.1 kVA S2316 Monitored PDU-
dual input, 3U, 16A (INTL) NOTE: Replaces non-RoHs compliant
part number 370963-B31.
AF507A
HP 11 kVA S1316 Monitored PDU-
single input, 3U, 16A (INTL) NOTE: Replaces non-RoHs compliant
part number 370964-B31.
AF508A
HP 14.7 kVA S2132 Monitored PDU-
dual input, 1U, 32A (INTL) NOTE: Replaces non-RoHs compliant
part number 370965-B31.
AF509A
HP 7.3kVA S1132 Monitored PDU-
single input, 1U, 32A (INTL) NOTE: Replaces non-RoHs compliant
part number 370966-B31.
AF510A
HP Monitored Power Distribution
Unit: Half Rack Version
HP 17.3 kVA S348 Monitored PDU-
single input, 3-phase, 60A (NA/JPN)
HP 22 kVA S332 Monitored PDU-
single input, 3-phase, 32A (INTL)
AF917A
HP 4.9kVA S124 Monitored PDU-
single input, 1U, 24A (NA/JPN)
AF914A
HP 7.3kVA S132 Monitored PDU-
single input, 1U, 32A (INTL) NOTE: Replaces non-RoHs compliant
part number 370966-B31.
AF915A
Modular Power Distribution Units 1U/0U (Up to 32 outlets) NOTE: 1U/0U mounting brackets
shipped with
the unit (optimized for 10000 and 9000 series racks).
3rd Party Rack Kit (ALL) NOTE: The rack kit (PN 287528-B21)
provides support for any rack, square hole or round hole, (including HP
Rack System /E and HP Systems), with an adjustment range from 23 ½"
- 34" deep. NOTE: The Third party rack kit is
required for round hole racks or for square hole racks that do not conform
to the adjustment range of the standard rail that ships with the server.
NOTE: xxxxxx-B21 (pallet) used to ship
empty racks shipped on a truck. -B22 (shock pallet) used to ship racks
with equipment installed (by custom systems, VARs and Channels).
xxxxxx-B23 (crated) used for air shipments of empty racks.
NOTE: It is mandatory to use a shock
pallet in order to ship racks with equipment installed.
NOTE: Cat5e cables
are required to connect Interface Adapters to Console Switches. Cat5e cables
can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
NOTE: Cat5e cables
are required to connect Serial Adapters to Serial Console Servers. Additional
Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE:
For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following
URL: http://www.hp.com/go/kvm.
Service
and Support Offerings (HP Care Pack Services)
Hardware Services On-site
Service
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
U4607E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
U4608E
Hardware Services 6-Hour
Call to Repair On-site Service
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4609E
Installation & Start-up
Services
Hardware Installation, Electronic
U4617E
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays, Electronic
U4618E
Support Plus
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4619E
Support Plus 24
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4620E
Onsite HW support 24x7,
4hr response and SuSE Linux SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6316E
Onsite HW support 24x7,
4hr response and Red Hat AS Linux SW Tech support offsite, onsite
at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models."
HP ProLiant DL585
2P Models
Standard Memory
4 GB PC3200 Double Data Rate (DDR) SDRAM (Registered SDRAM) memory running
at 400 MHz or
2 GB PC2100 Double Data Rate (DDR) SDRAM (Registered SDRAM) memory running
at 266 MHz or
2 GB PC2700 Double Data Rate (DDR) SDRAM (Registered SDRAM) memory running
at 333 MHz with Advanced ECC
Rules:
Must install a minimum of
2 DIMMs in the processor memory board in slot 2
DIMMs on a processor memory
board must be installed in pairs and in bank order
All DIMMs on a processor memory
board must be of the same size (512 MB, 1 GB, or 2 GB)
Each processor memory board
can have different amounts of memory, ex. Processor memory board 2 =
(4) 1 GB, Processor memory board 1 = (2) 512 MB, Processor memory board
4 = no memory
PC2700 memory support requires -002 or greater processor
boards
333 MHz memory performance requires no more than
6 PC2700 DIMMs per processor board; any more will result in the memory
slowing down to 266 MHz
PC3200 memory, running at 400 MHz will be supported
on a PC3200-only processor board (012567-001) with 4 DIMM slots, resulting
in a system max of 32 GB with 4 processors
The
following memory options are available from HP:
1 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
Smart
Array 5i Plus Controller (integrated on system board) Smart Array 6402/128
Controller Smart Array 6404/256 Controller Smart Array 641 Controller
Smart Array 642 Controller
NOTE:
All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds.
U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to
support U320 transfer rates.
SATA
- Hot Plug Drives
Quantity Supported
Position Supported
Controller
60GB 1.5G SATA 5.4K
8
1,
2, 7, 5, 3, 8, 6, 4 (should be populated in this order)
HP Smart Array P600/256 BBWC Controller
SFF
SAS - Hot Plug Drives
Quantity Supported
Position Supported
Controller
146GB 3G SAS 10K SP
72GB 3G SAS 10K SP
72GB 3G SAS 15K SP 36GB 3G SAS 10K SP
36GB 3G SAS 15K SP
8
1, 2, 7, 5, 3, 8, 6, 4 (should be populated in this order)
4 processors, 32 memory modules, 4 hard drives,
8 PCI-X expansion cards, 8 hot plug fans, and 2 hot plug power supplies.
Power
Supply Specification
Part
number
192147-001
Spare
Kit
278535-B21
Operational Input Voltage
Range ( Vrms )
90
- 264
Frequency
Range (Nominal) ( Hz )
47
- 63 ( 50 / 60 )
Nominal
Input Voltage ( Vrms )
100
115
208
220
230
240
Max
Rated Output Wattage Rating
870
870
870
870
870
870
Nominal
Input Current ( A rms )
12.0
10.4
5.7
5.3
5.1
4.9
Max
Rated Input Wattage Rating ( Watts )
1192
1184
1160
1145
1145
1145
Max. Rated VA (Volt-Amp)
1204
1196
1184
1168
1168
1168
Efficiency
( % )
73
73.5
75
76
76
76
Power
Factor
0.99
0.98
Leakage Current
( mA )
0.43
0.50
0.90
0.96
1.00
1.04
Max.
Inrush Current (A peak )
25
25
25
25
25
25
Max.
Inrush Current duration ( mS )
3
System
Specifications DL585 Fully Configured
Processor
Memory
HDD
PCI
PS
4
32
4
8
2
Nominal Input Voltage ( Vrms )
100
115
208
220
230
Fully Loaded System Input Wattage (W)
1135
1096
1059
1055
1050
Fully
Loaded System Input Current ( A rms )
11.4
9.6
5.2
4.9
4.7
Fully
Loaded System Thermal ( BTU-Hr )
3870
3736
3611
3596
3582
Fully
Loaded System VA ( Volt-Amp )
1141
1101
1080
1076
1072
System
Leakage with all power supplies loaded (mA)
0.87
1.00
1.81
1.91
2.00
System
Inrush Current with all power supplies loaded (A)
50
50
50
50
50
Power cord requirements
Nema 5-15P to IEC320-C19
Option no. 235603-001 /
Spare no: 237457-001
PDU Jumper Cord IEC320-C19 to IEC320-C20
Option no 295633-B21. /
Spare no.: 295508-001
*NOTE: - To review typical system power ratings use the Active
Answers Power Calculator which is available via the online tool located
at url: http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls
To drill down to calculators:
- Click on: “ProLiant Servers”
- Click on the Server of interest. Example: DL585
- Click on: “Power Calculator” link. (You may need to scroll down
to see it)
Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Fully Loaded System Input Wattage (W)
954
928
890
890
890
879
Fully Loaded System Input Current (A rms)
10
8.5
4.4
4.1
4.0
3.7
Fully Loaded System Thermal (BTU- Hr)
3253
3163
3063
3063
3063
2996
Fully Loaded System VA (Volt-Amp)
1004
976
909
909
909
897
System Leakage with all power supplies loaded (mA)
.87
1.00
1.81
1.91
2.00
2.09
System Inrush Current with all power supplies loaded (A)
To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL585
- Click on: "Power Calculator" link (You may need to scroll
down to see it.)
To review typical system power ratings use the Active Answers Power Calculator
which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/powercalcs.asp.
To drill down to calculators:
Click on: "ProLiant Servers"
Click on the Server of interest. Example: DL585
Click on: "Power Calculator" link (You may need to scroll
down to see it.)
Power Supply Output
Power (per power supply)
Rated Steady-State
Power
800W/800W (lowline/highline)
Maximum Peak Power
800W/800W (lowline/highline)
Temperature Range
Operating
50° to 95° F (10°
to 35° C)
Non-operating
-20° to 140° F (-29°
to 60° C)
Shipping
-22° to 122° F (-30°
to 50° C)
Relative Humidity
(non-condensing)
Operating
10% to 70%
Non-operating
5% to 95%
Maximum Wet Bulb Temperature
101.7° F (38.7°
C)
Acoustic Noise
NOTE:
Listed are the declared A-weighted sound power levels LWAd and the declared
average bystander position sound pressure levels LpAm when operating in
a 23° C ambient environment. Noise emissions were measured in accordance
with ECMA 74 and declared in accordance with ECMA 109.
Idle (Fixed Disk Drives
Spinning)
L WAd (BELS)
7.3
L pAm (dBA)
55
Operating Minimum (Random Seeks
to Fixed Disks)
L WAd (BELS)
7.3
L pAm (dBA)
55
NOTE: These values apply to 4U rack configuration with the Health
Driver Fan Control active. Configuration tested included 2 AMD Opteron
2.2 GHz processors, 1 15 krpm hard drive, 2 power supplies, 4 memory/IO
fans and 4 CPU fans.
24X Max (or higher) IDE CD-ROM Drive Slim Line
Disk
Applicable Disk
CD-DA, CD-ROM (Mode 1 and 2)
CD-XA, CD-I (Mode 2, Form 1 and
2)
Photo CD (Single and Multi-session)
Mixed Mode (Audio and Data combined)
Capacity
540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
Diameter
4.7 x 3.15 in (12 x 8 cm)
Rotational Speed
4200 rpm maximum
Center Hole
0.6 in/15 mm diameter
Thickness
1.2 mm
Track Pitch
1.6 µm
Block Size
Mode 1
2,048
Mode 2
2,340, 2,336, 1,024 bytes
CD-DA
2,352 bytes
CD-XA
2,328 bytes
Interface
IDE (ATAPI)
Access Times (typical)
Random
100 ms
Full-Stroke
2000 ms
Audio Output Level
Line-Out
0.7 Vrms at 47 kOhms
Headphone
0.6 Vrms at 32 kOhms (maximum volume)
Data Transfer Rate
Sustained
150 KB/s (sustained 1X)
Burst
2100 to 3600 KB/s
Cache Buffer
128 KB
Start-up Time (typical)
< 7seconds
Stop Time
< 4seconds
Laser Parameters
Type
Semiconductor Laser GaA1As
Wave Length
780 ± 25 nm
Divergence Angle
53.5° ± 1.5°
Output Power
0.14 mW
Operating Conditions
Temperature
41° to 113° F (5° to 45° C)
Humidity
10% to 80%
Dimensions
(HxWxD, maximum)
1.69 x 5.75 x 8.19 in (4.29 x 15
x 20.8 cm)
Weight
2.66 lb (1.2 kg)
Slimline CD-RW/DVD-ROM 24X Combo Drive (Multibay)
Shipping
Dimensions
13.88 x 11.38
x 9.25 in (35.26 x 28.91 x 23.50 cm)
Shipping Weight
5 lb (2.27
kg)
Disk
Applicable Disk
DVD-ROM
DVD-R (Read Only)
2.6 GB/side DVD-RAM
(Read Only)
5.2 GB/side DVD-RAM
(Read Only)
CD-ROM Mode-1 data
disc
CD-ROM
Mode-2 data disc
CD
Audio disc
CD-Extra
CD-RW
CD-R
CD
Text
PhotoCD
CD-I
(mode 2)
CD-I
Ready
CD-Bridge
Capacity
DVD-ROM
DVD-SL
4.7
GB/side
DVD-DL
8.5
GB/side
Double
Sided
9.40 GB/side
DVD-R
3.95
GB/side
DVD-RAM
2.6
GB/side and 5.2 GB/
CD-ROM
Mode-1
650
MB (550 MB)
Mode-2
742
MB (640 MB)
Block
Size
DVD
2,048
bytes
CD
2,352
(Mode-0)
2352,
2340, 2336, 2048 bytes (Mode-1)
2352,
2340, 2336, 2048 bytes (Mode-2)
Diameter
120 mm, 80 mm (with adapter at vertical mounting mode)
Loading
Mechanism
Tray type
Interface
EIDE (ATAPI)
Access Times
(typical)
Random
DVD-ROM < 120 ms, CD-ROM < 110 ms
Full-Stroke
DVD-ROM < 240 ms, CD-ROM < 160 ms
Audio Output Level (typical)
Line-out
CD
0.7 Vrms at 47 Kohms Load
Data
Transfer Rate (sustained)
DVD-ROM
Single Layer
10.8 MB/sec.
Max.
DVD-RAM
2.77
MB/sec. Max
CD-ROM
7.2
MB/sec. Max.
Cache
Buffer
2 MB
Spin-up Time (typical)
less than 10 seconds
MTBF
120,000 Power On Hours (POH)
Ambient Temperature
Operating
-22°
to 140° F (-30° to 60° C)
Relative
Humidity
Operating
10% to 80%
Storage/Transportation
5%
to 95%
Dimensions
(HxWxD, maximum)
0.5 x 5.04 x 5.1 in (12.7x128x129.4 mm)
Option
Kit Contents
DVD-ROM
drive with installation guide, warranty card, registration card
Integrated Lights-Out
Standard (integrated on system board)
Architecture
32-bit PCI-based health and remote
management ASIC (Application Specific Integrated Circuit)
Processor
32-bit RISC processor core running
at 66 MHz
Upgradeability
Option firmware upgradeable via
flash ROM.
Video Support
Utilizes the host server's embedded
video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600
(256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256
colors)
Interfaces
One Ethernet network connection
(10/100 Mb/s)
Memory
2-MB Flash ROM
8-MB SDRAM
Operating System Support
Windows 2000 Server
Windows 2000 Advanced Server
Red Hat 7.x
SuSE 7.0
Client Browser Support
Microsoft Internet Explorer 5.5
or later.
iLO Standard Features
Virtual Text Remote Console
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure
Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for up to 12 user accounts
with customizable access privileges
iLO Advanced Features
(optional)
Virtual Graphical Remote Console
Virtual Floppy Drive
Integrated Smart Array 5i Plus Controller
Data Compatible with all Smart
Array Controllers
Yes
Instant Upgrades to other Smart
Array Controllers
Yes
Consistent Software Manageability
Tools
Yes
PCI-X Bus
64-bit, 100 MHz (integrated on
system board)
PCI-X Peak Data Transfer Rate
800 MB/s
SCSI Protocols Supported
Ultra3, Ultra2
SCSI Peak Data Transfer Rate
160 MB/s per channel
NOTE: For ProLiant
servers having TWO internal drive bays on separate SCSI ports: SCSI Peak
Data Transfer Rate is 320 MB/s total; 160 MB/s per channel and Channels
is 2.
Channels
2 (only one connected)
NOTE: For ProLiant
servers having two internal drive bays on separate SCSI ports: SCSI Peak
Data Transfer Rate is 320 MB/s total; 160 MB/s per channel and Channels
is 2.
SCSI Ports (external/internal)
0/1
NOTE: For ProLiant
servers having two internal drive bays on separate SCSI ports: SCSI Peak
Data Transfer Rate is 320 MB/s total; 160 MB/s per channel and Channels
is 2.
Drives Supported (maximum)
2
NOTE: Maximum
is the total number of internal drives on each specific ProLiant server.
Cache
64 MB Read and/or Write Cache
Battery-Backed Write Cache
Yes, with installation of Battery-Backed
Write Cache Enabler, up to 64 MB
Canadian Site
DL QuickSpecs
Search:
US QuickSpecs
371047-B21
© 2013 USA PartsDirect
