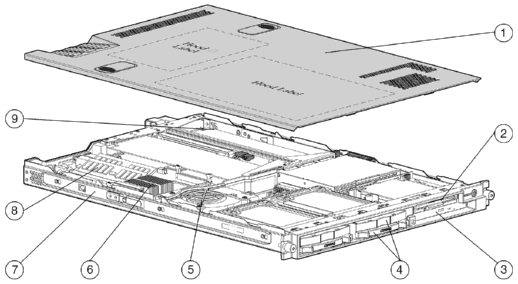

Continuing to innovate highly manageable, performance
driven, rack-optimized server for space constrained, scale-out environments
Intel® Pentium III FC-PGA 1.40-GHz processor
(dual capability)
512-KB level 2 ECC cache
1U Rack form factor (1.75")
ServerWorks HE- SuperLite Chipset
Triple Peer PCI Architecture with 133-MHz Front Side
Bus
Integrated Lights-Out (iLO) Management (ASIC on motherboard)
Smart Array 5i Controller (integrated on system board)
Two full length expansion PCI slots: 64-bit/66-MHz
Two USB ports
200-Watt Power Supply
256-MB PC133-MHz Registered ECC SDRAM memory, (2
x 1 Interleaved Memory), expandable to 4 GB
Two Compaq NC7780 PCI-X 10/100/1000-T Server Adapters
Wide Ultra3 SCSI Drive Cage standard supports up
to two 1" Wide Ultra3/Ultra320 hot plug hard drives
Internal hot plug capacity up to 293.6 GB (2 x 146.8-GB
1" HD)
Exceptional serviceability with optional sliding
rails, cable management and in-rack, tool-free service ability access
Automatic Server Recovery (ASR), ROM Based Setup
Utility (RBSU) Insight Manager7, Status LEDs including system health
and UID and SmartStart
Protected by HP Services, including a three-year,
next business day on-site limited global warranty and extended Pre-Failure
Warranty which covers processors, memory, and hard drives — Certain
restrictions and exclusions apply. Consult the HP Customer Support Center
at 1-800-345-1518 for details.
ServerWorks
HE- SuperLite Chipset NOTE: For more
information regarding ServerWorks, please see the following URL: http://www.serverworks.com/products/overview.html. NOTE:
This Web site is available in English only.
Memory
Standard
256 MB (2 x 128-MB,
PC133-MHz Registered ECC SDRAM memory)
Maximum
4 GB
Network Controller
Two Compaq NC7780
PCI-X 10/100/1000-T Server Adapter NOTE: The ProLiant DL360 Generation
2 (G2) does not support 64-Bit/133MHz PCI-X bus speeds and will run at 64-Bit/66MHz.
Expansion Slots
I/O (2 Total)
PCI Voltage
64-bit, 66MHz
2
3.3 Volt
Manageability
Integrated Lights-Out (iLO) Management (ASIC on motherboard)
Storage Controllers
Smart Array 5i Controller
(integrated on system board) NOTE: The ProLiant DL360 Generation
2 (G2) does not offer an external SCSI port.
Insight Manager 7 helps
maximize system uptime and performance and reduces the cost of maintaining
the IT infrastructure by providing proactive notification of problems
before those problems result in costly downtime and reduced productivity.
Insight Manager 7 is easy to set up and provides rapid access to detailed
fault and performance information gathered by the Management Agents.
One-click access to the Integrated Lights-Out or Remote Insight Lights
Out Edition board allows systems administrators to take full graphical
control of ProLiant servers in remote locations or lights-out data
centers. Finally, Insight Manager 7 in concert with the Version Control
Agents and Version Control Repository Manager enables systems administrators
to version manage and update system software across groups of ProLiant
servers.
SmartStart
SmartStart is a tool that
simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please
visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart
5.30.
Management Agents
The Management Agents
form the foundation for HP's Intelligent Manageability strategy. They
provide direct, browser-based access to in-depth instrumentation built
into HP servers, workstations, desktops, and portables, and send alerts
to Insight Manager 7 and other enterprise management applications
in case of subsystem or environmental failures. For additional information
about the Management Agents and other management products from HP,
please visit the management Web site at http://www.hp.com/servers/manage.
ActiveUpdate
Active Update is a web-based
application that keeps IT managers directly connected to HP for proactive
notification and delivery of the latest software updates.
ROMPaq,
support software, and
configuration utilities
The latest software, drivers,
and firmware fully optimized and tested for your ProLiant server and
options.
Survey Utility and diagnostics
utilities
The most advanced configuration
analysis, reporting and troubleshooting utilities used by HP and at
your fingertips.
Optional
ProLiant Essentials Value Packs
Optional software offerings
that selectively extend the functionality of an Adaptive Infrastructure
to address specific business problems and needs:
Rapid Deployment Pack – an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
Workload Management Pack – provides easier management of
complex environments, improving overall server utilization and
enabling Windows® 2000 customers for the first time to confidently
deploy multiple applications on a single multiprocessor ProLiant
Server.
Performance Management Pack – a performance management
solution that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better
utilize their valuable resources.
NOTE: Flexible
and volume quantity license kits are available for ProLiant Essentials Value
Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials
Industry Standard
Compliance
ACPI 1.0b Compliant
PCI 2.2 Compliant
Microsoft® Logo certifications
USB 1.1
Manageability
Integrated Lights-Out (iLO)*
Virtual Text Remote Console
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for up to 12 user accounts with customizable access privileges
Automatic Server Recovery (ASR)
Integrated Lights-Out Management
Insight Manager 7
Management Agents
Redundant ROM
Remote ROM Flash
Integrated Management Log
Drive Parameter Tracking (with Smart Array Controllers)
Dynamic Sector Repairing (with Smart Array Controllers)
Hot Spare Boot (NOTE: Upon the event
of a failed processor or VRM in a multi-processing environment, the system
will automatically reboot and use the remaining good processor(s).)
Pre-Failure Warranty (covers processors, hard drives and memory)
*Advanced features such as Graphical Remote Console and Virtual Floppy available
as a separate option
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Removable CD/Floppy Drive Assembly
Serial interface control
Administrator's password
Disk configuration lock
Integrated Lights-Out has 12 customizable user accounts and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting
Server Power Cords
One Lowline power cord ships
standard.
Power Supply
Dual Input Voltage, Auto-sensing
200-Watt, 308-Watt peak input, 3 integrated fans with failure sensors, CE
Mark Compliant
System Fans
1 fan ships standard.
1 total supported internally..
Rack
9000 and 10000 series Cabinets The increasing power of new high-performance
processor technology requires increased cooling efficiency for rack-mounted servers.
The Compaq 9000 and 10000 Series Racks provide enhanced airflow for maximum cooling,
allowing these racks to be fully loaded with servers using the latest processors.
Rack 7000 series Cabinets When installing a server with
processors running at speeds of 550 MHz or greater in Compaq Rack 7000 series
racks with glass doors (165753-001 (42U), and 163747-001 (22U)), the new processor
technology requires the installation of High Airflow Rack Door Inserts 327281-B21
(42U), 327281-B22 (42U 6 pack), or 157847-B21 (22U)) to promote enhanced airflow
for maximum cooling.
CAUTION: If
a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
Front
and rear doors: If your 42U server rack includes closing front and rear doors,
you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from
top to bottom to permit adequate airflow (equivalent to the required 64 percent
open area for ventilation).
Side: The
clearance between the installed rack component and the side panels of the rack
must be a minimum of 2.75 inches (7 cm).
CAUTION:
Always use blanking panels to fill all remaining empty front panel U-spaces
in the rack. This arrangement ensures proper airflow. Using a rack without blanking
panels results in improper cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation Guide
or the Documentation CD provided with the server, or to the server documentation
located in the Support section at the following URL: http://h18000.www1.hp.com/products/servers/proliantdl360/index.html. NOTE:
This Web site is available in English only.
Service
and Support
HP Services
provides a three-year, limited warranty, including Pre-Failure Warranty (coverage
of hard drives, memory and processors) fully supported by a worldwide network
of resellers and service providers. HP technical assistance is available 7 x 24,
toll free in the United States and Canada. Telephone support services may be covered
under warranty or available for an additional fee. NOTE:
Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
A
full range of HP Care Pack packaged hardware and software services:
Installation
and start up
Extended coverage hours and enhanced response times
(1) Intel Pentium III FC-PGA
processor 1.40-GHz standard (up to 2 supported)
Cache Memory
512-KB level 2 ECC cache
Memory
256-MB (Standard) to 4-GB (Maximum)
PC133-MHz Registered ECC SDRAM
Network Controller
Two Compaq NC7780 PCI-X 10/100/1000-T
Server Adapters NOTE: The ProLiant DL360 Generation
2 (G2) does not support 64-Bit/133MHz PCI-X bus speeds and will run at 64-Bit/66MHz.
Storage Controller
Smart Array 5i Controller (integrated
on system board) NOTE: The ProLiant DL360 Generation
2 (G2) does not offer an external SCSI port.
Hard Drives
None ship standard
Internal Storage
Up to 293.6 GB maximum (with
optional hard drives)
Optical Drive
24x IDE CD-ROM Drive (Low-profile)
Form Factor
Rack (1U), (1.75-in/4.45 cm)
DL360R02 P1400-512KB,
256 MB, 3-Pack 251247-xx1
NOTE:
Available in North America only.
NOTE:
3-Pack includes the following configuration for each DL360 server.
Processor
(1) Intel Pentium III FC PGA2
processor 1.40-GHz standard (up to 2 supported)
Cache Memory
512-KB level 2 ECC cache
Memory
256-MB (Standard) to 4-GB (Maximum)
PC133-MHz Registered ECC SDRAM
Network Controller
Two Compaq NC7780 PCI-X 10/100/1000-T
Server Adapters NOTE: The ProLiant DL360 Generation
2 (G2) does not support 64-Bit/133MHz PCI-X bus speeds and will run at 64-Bit/66MHz.
Storage Controller
Smart Array 5i Controller (integrated
on system board) NOTE: The ProLiant DL360 Generation
2 (G2) does not offer an external SCSI port.
Hard Drives
None ship standard
Internal Storage
Up to 293.6 GB maximum (with
optional hard drives)
ProLiant Essentials Performance Management Pack v2.0, Single License
306696-B21
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information.
NOTE:
These Web sites are available in English only.
Software
HP digital asset protection
302316-001
Software – Secured Solutions
InterScan/Immunix Secured Solution
for hp ProLiant servers
307039-B21
NetServer to ProLiant
integrations services
HP NetServer to ProLiant
integration and assessment service
304164-002
NOTE:
HP identifies current levels of NetServer support, services, and management.
This service helps maximize customer’s ability to add ProLiant platforms
into their current environment.
HP TopTools to Insight
Manager 7 installation and startup service
304163-002
NOTE: Provides on-site
review, installation and configuration services for Insight Manager 7. HP
will also re-create, as closely as possible, the views and reports from
the customer’s current TopTools configuration. This service assures a smooth
transition to the ProLiant Essentials software.
HP NetServer to ProLiant
Essentials Rapid Deployment Pack installation and startup service
304162-002
NOTE: Install and configure
Rapid Deployment Pack in a test environment, then deploy a server image
to a maximum of 250 systems in the production environment. This service
helps to assure successful system deployment.
NOTE: All U320
Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller or U320 SCSI HBA to support
U320 transfer rates.
256-MB Battery-Backed Cache Module NOTE: This 256-MB Battery-Backed
Cache Module supports the Smart Array 5300 series controllers, MSA 1000
and the Smart Array Cluster Storage.
Compaq NC7770 PCI-X Gigabit Server Adapter NOTE: The ProLiant DL360 Generation
2 (G2) does not support 64-Bit/133-MHz PCI-X bus speeds and will run at
64-Bit/66-MHz.
244948-B21
DC Power Supply
DC Power Supply for the DL360 (48 V) NOTE: The ProLiant DL360 ships
with a 100-240 VAC power supply.
NOTE: The
3U Rackmount Kit (PN 274338-B21) can support up to (2) full-height
or (4) half-height tape drives and compatible with multiple internal
Single-Ended and LVD SCSI Tape Drives including the 12/24-GB DAT,
20/40-GB DAT, 20/40-GB DAT DDS-4 8 Cassette Autoloader, AIT 35-GB
LVD, AIT 50 GB, AIT 100 GB, 20/40-GB DLT, 40/80-GB DLT, SDLT 110/220-GB,
SDLT 160/320-GB, Ultrium 230, and Ultrium 460 Tape Drives.
5U
Rackmount Kit
274339-B21
NOTE: The
5U Rackmount Kit (PN 274339-B21) can support up to (4) full-height
tape drives and is compatible with all HP internal DLT/SDLT/Ultrium
tape drives including the 20/40-GB DLT, 35/70-GB DLT, 40/80-GB DLT,
SDLT 110/220-GB, SDLT 160/320, Ultrium 230, and Ultrium 460 tape drives.
NOTE: Options
include controller, solution kits, ACS. MA8000/EMA12000 includes controller
shelf, drive shelves, and cabinet. Packaging upgrade to RA8000/ESA12000.
NOTE: Models include:
Dual HSG80 controllers in each Model 2200 enclosure (2 pairs per single
bus configuration, 4 pairs per dual bus configuration) with 1GB cache per
controller pair, and 12 14-bay drive enclosures with redundant power supplies.
Configure-to-Order (CTO) builds are available. Options include ACS, platform
kits and software by HP.
NOTE:
This PDU has a detachable input power cord and allows for adaptability to
country specific power requirements. This model may also be used with the
high volt UPSs R3000 XR and R6000 For North America, need to order cable
PN 340653-001.
NOTE: This kit
allows you to mount the Modular PDUs in racks other than the 9000/10000
Series racks (any racks using the standard 19" rail). For more details
please refer the Modular PDU QuickSpecs.
4.5' IEC C 13 to IEC C14 PDU Jumper
Cable (1 per pack)
142257-006
4.5' IEC C 13 to IEC C14 PDU Jumper Cable (15 per pack)
NOTE: -B21 (pallet) used to ship empty racks
shipped on a truck -B22 (shock pallet) used to ship racks with equipment installed
(by custom systems, VARs and Channels) -B23 (crated) used for air shipments
of empty racks
NOTE:
It is mandatory to use a shock pallet in order to ship racks with equipment
installed. Not all Compaq equipment is qualified to be shipped in the Rack 10000
series
NOTE:
–B21 (pallet) used to ship empty racks shipped on a truck –B22 (shock
pallet) used to ship racks with equipment installed (by custom systems, VARs and
Channels) –B23 (crated) used for air shipments of empty racks
NOTE:
This kit can be used to connect 9000 and 10000 series racks of the same U
height together. Kit contents include hardware for connecting racks and a panel
to cover the 100mm gap at the rear of the two racks.
Rack Blanking Panels (4U) NOTE: The Rack Blanking Panels (PN 189453-B24)
contains 10 each of (4U).
189453-B24
Rack
Blanking Panels (5U) NOTE: The Rack Blanking Panels (PN 189453-B25)
contains 10 each of (5U).
189453-B25
9136 Extension Kit
218216-B21
9000/10000
Series Offset Baying Kit (42U) NOTE: This
kit can be used to connect 9000 and 10000 series racks of the same U height together.
Kit contents include hardware for connecting racks and a panel to cover the 100-mm
gap at the rear of the two racks.
Input Device Adjustable Rails NOTE: Input Device Adjustable Rails (287139-B21)
are for use ONLY with the TFT5110R, TFT5600RKM and integrated keyboard/drawer
which is used in mounting into third party racks.
287139-B21
Input
Device Telco Rail NOTE: Input Device
Telco Rails ( 287138-B21) are for use ONLY with the TFT5110R, TFT5600RKM and integrated
keyboard/drawer which is used in mounting into third party racks.
NOTE: The Compaq
ProLiant DL360 G2 ships with an IEC-IEC power cord used for rack mounting
with Power Distribution Units (PDUs). For stand-alone deployments or installation
without a rack, country-specific power cord options are available. U.S.
& Japan models will ship with two power cords: IEC-IEC (142257-002)
and North American C13-Nema 5-15P (103541-001) cords.
Power Cord, Euro, 10A 250 V Straight
(12 ft/3.7 m)
157215-021
Power Cord, UK, 10A 250 V Straight
(12 ft/3.7 m)
157216-031
Power Cord, Danish, 10A 250 V
Straight (12 ft/3.7 m)
157218-081
Power Cord, Swiss, 10A 250 V Straight
(12 ft/3.7 m)
157219-111
Power Cord, Italian, 10A 250 V
Straight (12 ft/3.7 m)
157217-061
Power Cord, South Africa, 10A
250 V Straight (12 ft/3.7 m)
157220-AR1
Service
and Support Offerings (HP Care Pack Services)
Hardware
Services 4-Hour On-site Service
5 x 9 Coverage, 3 Years (6-3
Part Number for U.S.)
162676-002
5 x 9 Coverage, 3 Years (6-3
Part Number for Canada)
162676-122
5 x 9 Coverage, 3 Years (6-3
Part Number for EMEA)
324416-002
7 x 24 Coverage, 3 Years (6-3
Part Number for U.S.)
162675-002
7 x 24 Coverage, 3 Years (6-3
Part Number for Canada)
162675-122
7 x 24 Coverage, 3 Years (6-3
Part Number for EMEA)
376910-022
Installation & Start-up
Services
Hardware
Installation (6-3 Part Number for U.S.)
401791-002
Hardware
Installation (6-3 Part Number for Canada)
401791-122
Hardware
Installation (6-3 Part Number for EMEA)
Quote
Server
Installation and Set-Up (Installation of the server, installation of the appropriate
service tools, check to ensure device SW and firmware is loaded and installation
of the operating system software (6-3 Part Number for EMEA)
204563-022
Pre-installation
planning; unpack equipment, install most current Compaq HW options internal to
server at same time of server installation; assemble & test; basic user information
provided; Install & configure basic functionality of Win NT Operating System
plus up to 1 day start-up activity, configure print & network access services,
and orientation (6-3 Part Number for U.S.)
240013-002
Pre-installation
planning; unpack equipment, install most current Compaq HW options internal to
server at same time of server installation; assemble & test; basic user information
provided; Install & configure basic functionality of Novell NetWare Operating
System plus up to 1 day start-up activity, configure print & network access
services, and orientation (6-3 Part Number for U.S.)
240008-002
HP
Care Pack Priority Services for ProLiant Servers – Priority Level
9 x 5 HW, 4-hr response, Next
Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for Windows
NT, Windows 2000, Professional, Server or Advanced Server Operating System, Next
Available Specialist (6-3 Part Number for U.S.)
239928-002
9
x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support
2-hr response for Novell NetWare Operating System, Next Available Specialist (6-3
Part Number for U.S.)
239968-002
5 x 9 4-hour H/W, 5 x 9 2-hour
O/S (NT & NetWare), Three Years (2-5-2 Part Number for Canada)
FP-CZ101-36
5
x 9 4-hour H/W, 5 x 9 2-hour O/S (NT & NetWare), Three Years (2-5-2 Part Number
for Canada)
FP-CZ101-36
5 x 9 4-hour H/W, 5 x 9 2-hour
O/S (NT & NetWare), Three Years (6-3 Part Number for Canada)
155323-122
5
x 9 4-hour H/W, 5 x 9 2-hour O/S (NT & NetWare), Three Years (6-3 Part Number
for EMEA)
179834-022
HP Care Pack Priority Services
for ProLiant Servers – Priority 24 Level
24 x 7 HW, 4-hr response, Named
HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Windows NT, Windows
2000, Professional, Server or Advanced Server Operating System, Next Available
Specialist (6-3 Part Number for U.S.)
239930-002
24
x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr
response for Novell NetWare Operating System, Next Available Specialist (6-3 Part
Number for U.S.)
239970-002
7 x 24 4-hour H/W, 7 x 24 2-hour
O/S (NT & NetWare), Three years (6-3 Part Number for EMEA)
179839-022
HP
Care Pack Priority Services for ProLiant Servers – Priority Plus Level
7
x 24 4-hour H/W, 7 x 24 1-hour O/S (NT & NetWare), SPS account review, Three
Years (6-3 Part Number for Canada)
155331-122
CarePaq
Priority Services for ProLiant Servers – Priority Silver
24 x 7 HW, 4-hr response, Named
HW engineer; 24 x 7 Silver Software Support, 1-hr response, Monday – Friday,
8AM – 5PM local time, 2-hr response after hours for Windows NT, Windows 2000,
Professional, Server or Advanced Server Operating System, Technical Account Manager,
Technical Newsletter, SW activity review, proactive patch notification, 1 System
Healthcheck per year (6-3 Part Number for U.S.)
239932-002
24
x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support
for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating
System (6-3 Part Number for U.S.)
239934-002
24
x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr
response, Monday – Friday, 8AM – 5PM local time, 2-hr response after
hours for Novell NetWare Operating System, Technical Account Manager, Technical
Newsletter, SW activity review (6-3 Part Number for U.S.)
239972-002
24
x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr
response, Monday – Friday, 8AM – 5PM local time, 2-hr response after
hours for Novell NetWare Operating System, Technical Account Manager, Technical
Newsletter, SW activity review (6-3 Part Number for U.S.)
239972-002
24
x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support
for Novell NetWare Operating System (6-3 Part Number for U.S.)
239974-002
HP
Care Pack Priority Services for ProLiant Servers – Priority Premier Level
7 x 24 2-hour H/W, 7 x 24 1-hour
O/S (NT & NetWare), SPS Account Review, Proactive Management Review, named
S/w rep, Three Years (6-3 Part Number for Canada)
155335-122
HP
Care Pack Priority Services for ProLiant Servers – Priority Executive Premier
Level
7 x 24 2-hour H/W, 7 x 24 30-minutes
O/S (NT & NetWare), SPS Account Review, Proactive Management Review, named
S/w rep, Three Years (6-3 Part Number for Canada)
Up to 2304-MB memory is available with the optional installation
of PC133-MHz Registered ECC SDRAM DIMM memory kits.
Standard Memory Replaced with Optional Memory
Up to 4096-MB of memory is available with the removal
of the standard 256-MB of memory and the optional installation of PC133-MHz
Registered ECC SDRAM DIMM memory kits.
NOTE: Chart does not represent all possible
configurations.
Memory
Slot
1
2
3
4
Standard
256 MB
128 MB
128 MB
Empty
Empty
Optional
2304 MB
128 MB
128 MB
1024 MB
1024 MB
Maximum
4096 MB
1024 MB
1024 MB
1024 MB
1024 MB
Following are memory options available from Compaq:
Smart Array 5i Controller (integrated on system board)
NOTE: The ProLiant DL360 Generation 2 (G2) does not offer an external
SCSI port.
64-bit/66-MHz Single Channel Wide Ultra3 SCSI
64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
NOTE: All U320
Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller or U320 SCSI HBA to support
U320 transfer rates.
External Storage
Quantity
Supported
Position
Supported
Controller
StorageWorks Enclosure 4300 Family (supports Ultra2/Ultra3 drives)
200 W NOTE:
308 W of Rated Input Power is for the Maximum Peak Output Power of 200 W.
BTU Rating
1050 BTUs/hr NOTE: The BTU Rating
listed is for the Rated Input Power of 200 W.
Power Supply Output
Power (per power supply)
Maximum Peak Power
200
W
Temperature
Range
Operating
50° to 95° F (10° to 35° C)
Shipping
-22° to
122° F (-30° to 50° C)
Relative Humidity (non-condensing)
Operating
8% to 90%
Shipping
5% to 95%
Maximum
Wet Bulb Temperature
Acoustic Noise
Idle (Fixed Disk Drives Spinning)
L WAd (BELS)
6.5
L pAm (dBA)
51
Operating (Random Seeks to Fixed Disks)
L WAd (BELS)
6.6
L pAm (dBA)
52
1.44-MB Diskette Drive
Diskette Size
3.5
in
LED Indicators (front panel)
Green
Read/Write Capacity per Diskette
(high/low density)
1.44
MB/720 KB
Drive Supported
One
Drive Height
11
mm
Drive Rotation
300 rpm
Transfer Rate (high/low)
500 K/250 K bits/s
Bytes/Sector
512
Sectors/Track (high/low)
18/9
Tracks/Side (high/low)
80/80
Access Times
Track-to-Track (high/low)
3/6 ms
Average (high/low)
94/169
ms
Settling Time
15 ms
Latency Average
100
ms
Cylinders
(high/low)
80/80
Read/Write
Heads
Two
Multibay 24X Max IDE CD-ROM Drive (Low Profile)
Disk
Applicable
Disk
CD-DA, CD-ROM (Mode
1 and 2)
CD-XA, CD-I (Mode 2, Form 1 and 2)
CD-I Ready, CD Extra, Video
CD, CD-Bridge
Photo CD (Single and Multi-session)
CD-WO
Capacity
550 MB (Mode 1, 12 cm)
640 MB (Mode 2, 12 cm)
Diameter
4.7 x 3.15 in/12 x 8 cm
Rotational Speed
4200 rpm maximum
Center Hole
0.6 in/15 mm diameter
Thickness
1.2 mm
Track Pitch
1.6 µm
Block Size
Mode 0
2,368, 2,352 bytes
Mode 1
2,352, 2,340,
2,336, 2,048 bytes
Mode 2
2,352, 2,340, 2,336, 2,048 bytes
Interface
IDE
(ATAPI)
Access Times (typical)
Random
< 140 ms
Full-Stroke
< 300 ms
Data Transfer Rate
Sustained
150 KB/s (sustained
1X)
Burst
2100 to 4800 KB/s
Cache Buffer
128
KB
Start-up Time (typical)
< 10 seconds
Stop Time
< 5 seconds
Operating Conditions
Temperature
41° to 120°
F 95° to 55° C)
Humidity
10% to 80%
Dimensions
(HxWxD, maximum)
0.5 x 5.16 x 5.12 in (1.27 x 13.1 x 13 cm)
Weight
< 0.75 lb (< 340 g)
Slim Line CD-RW/DVD-ROM 24X Combo Drive (Multibay)
Shipping
Dimensions
13.88 x 11.38
x 9.25 in (35.26 x 28.91 x 23.50 cm)
Shipping Weight
5 lb (2.27
kg)
Disk
Applicable Disk
DVD-ROM
DVD-R (Read Only)
2.6 GB/side DVD-RAM
(Read Only)
5.2 GB/side DVD-RAM
(Read Only)
CD-ROM Mode-1 data
disc
CD-ROM
Mode-2 data disc
CD
Audio disc
CD-Extra
CD-RW
CD-R
CD
Text
PhotoCD
CD-I
(mode 2)
CD-I
Ready
CD-Bridge
Capacity
DVD-ROM
DVD-SL
4.7
GB/side
DVD-DL
8.5
GB/side
Double
Sided
9.40 GB/side
DVD-R
3.95
GB/side
DVD-RAM
2.6
GB/side and 5.2 GB/
CD-ROM
Mode-1
650
MB (550 MB)
Mode-2
742
MB (640 MB)
Block
Size
DVD
2,048
bytes
CD
2,352
(Mode-0)
2352,
2340, 2336, 2048 bytes (Mode-1)
2352,
2340, 2336, 2048 bytes (Mode-2)
Diameter
120 mm, 80 mm (with adapter at vertical mounting mode)
Loading
Mechanism
Tray type
Interface
EIDE (ATAPI)
Access Times
(typical)
Random
DVD-ROM < 120 ms, CD-ROM < 110 ms
Full-Stroke
DVD-ROM < 240 ms, CD-ROM < 160 ms
Audio Output Level (typical)
Line-out
CD
0.7 Vrms at 47 Kohms Load
Data
Transfer Rate (sustained)
DVD-ROM
Single Layer
10.8 MB/sec.
Max.
DVD-RAM
2.77
MB/sec. Max
CD-ROM
7.2
MB/sec. Max.
Cache
Buffer
2 MB
Spin-up Time (typical)
less than 10 seconds
MTBF
120,000 Power On Hours (POH)
Ambient Temperature
Operating
-22°
to 140° F (-30° to 60° C)
Relative
Humidity
Operating
10% to 80%
Storage/Transportation
5%
to 95%
Dimensions
(HxWxD, maximum)
0.5 x 5.04 x 5.1 in (12.7x128x129.4 mm)
Option
Kit Contents
DVD-ROM
drive with installation guide, warranty card, registration card
Integrated Lights-Out (integrated on system board)
Architecture
32-bit
PCI-based health and remote management ASIC (Application Specific Integrated Circuit)
Processor
32-bit
RISC processor core running at 66MHz
Upgradability
Option
firmware upgradable via flash ROM.
Video
Support
Utilizes the host server's
embedded video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7 M colors), 800
x 600 (256 to 16.7 M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256
colors)
Interfaces
One
Ethernet network connection (10/100 Mb/s)
Memory
2-MB
Flash ROM 8-MB SDRAM
Operating
System Support
Microsoft Windows
NT 4.0 Server
Windows NT
4.0 Enterprise Edition
Windows
2000 Server
Windows
2000 Advanced Server
Windows
.NET Server
Windows
.NET Advanced Server
Red
Hat 7.x
SuSE
7.0
Caldera
Open Linux Server 3.1
Novell
NetWare 5.x, 6.x
NOTE:
The ProLiant DL360 Generation 2 (G2) does not offer an external SCSI port.
Client Browser Support
Microsoft
Internet Explorer 5.0 or later.
iLO
Standard Features
Virtual Text Remote
Console Virtual Power Button Control Dedicated LAN Connectivity Automatic
IP Configuration via DHCP/DNS/WINS Industry Standard 128-bit Secure Sockets
Layer (SSL) Security IML and iLO Event Logging Support for up to 12 user
accounts with customizable access privileges
iLO
Advanced Features
Virtual Graphical
Remote Console Virtual Floppy Drive Virtual CD Drive (free upgrade for
systems with licensed iLO Advanced)
Smart
Array 5i Controller (integrated on system board)
Protocol
Wide
Ultra3 SCSI
Processor
32-bit
RISC
XOR engine
Hardware
RAID
Electrical interface
Low
Voltage Differential (LVD)
Simultaneous
Drive Transfer Channels
2
Channel Transfer Rate
320
MB/s total; 160 MB/s per channel
SCSI
Port Connectors
One external
and one internal SCSI port NOTE: The
ProLiant DL360 Generation 2 (G2) does not offer an external SCSI port.
Memory
32
MB of DRAM used for code, transfer buffers, and non-battery-backed read cache
Peak transfer rate
160
MB/s
Logical Drives Supported
32
Software Upgradeable Firmware
YES
RAID Support
RAID
5 (Distributed Data Guarding) NOTE: A
minimum of 3 hard drives are required for RAID 5 and only 2 are supported on the
ProLiant DL360 Generation 2 (G2). Therefore RAID 5 is not supported on the ProLiant
DL360 Generation 2 (G2). RAID 1+0 (Striping and Mirroring) RAID
1 (Mirroring) RAID 0 (Stripping)
Disk
Drive and Enclosure Protocol Support
Ultra2
and Ultra3
Two Compaq NC7780 PCI-X 10/100/1000-T Server Adapters
Canadian Site
DL QuickSpecs
Search:
US QuickSpecs
327281-B21
© 2013 USA PartsDirect
