This document covers the HP Integrity BL860c server
blade only. For more information on HP BladeSystem c-Class Enclosures
and HP BladeSystem c-Class Interconnects and Mezzanine Components, please
see the following:

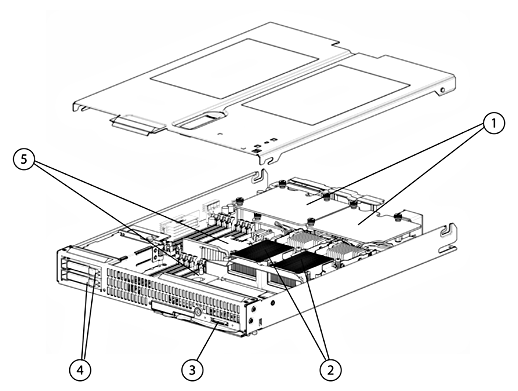

The HP Integrity BL860c delivers the performance,
reliability, and availability on 64-bit operating systems for the ultimate
in scalability and flexibility in deployment: HP-UX 11i v3/v2, 64-bit
versions of Red Hat and SUSE Linux, Microsoft Windows® Server 2008
for Itanium-based systems, Windows Server and 2003 for Itanium-based
systems (Enterprise and Datacenter editions), and OpenVMS v8.3. To further
enrich your cost-efficient, consolidated Integrity blade infrastructure,
HP Virtual Server Environment (VSE) can help with solution components
such as HP Integrity Virtual Machines, HP Integrity Essentials Capacity
Advisor and Virtualization Manager, HP-UX Workload Manager, HP VSE Reference
Architectures, and HP Serviceguard.
Processor:
Up to two Intel® Itanium® 9100
Series processors
Memory:
Up to 48 GB of memory. Supporting (12)
DDR2-533 ECC memory DIMMS
Storage Controller:
Embedded LSI 1068 SAS RAID Controller integrated
on system board
Standard RAID 1 controller
Internal Drive Support:
Supports up to (2) two small form factor
(SFF) SAS hot plug hard drives
Network Controller:
Four (4) Embedded Standard Gigabit Network
Adapter ports
Plus one (1) additional 10/100 NIC dedicated
to Integrity iLO 2 Management
Mezzanine Support:
Three (3) additional I/O expansion slots
via mezzanine cards.
Supports up to (3) mezzanine cards
HP NC532m Dual Port Flex-10 10GbE BL-c Adapter NOTE: Supported with
HP-UX 11i v3 and Windows; requires 2GB of system memory to be
ordered for each card in the blade. To obtain the software and
instructions required to run the NC532m in a Windows Integrity
environment, please contact: windows_integrity_nic@hp.com
HP BLc Emulex PLe1205 8Gb FC HBA (2-Port 8Gb Emulex FC HBA)
HP BLc Q MH 2562 8Gb FC HBA (2-Port 8Gb QLogic FC HBA)
HP BLc Emulex LPe1105 FC HBA Opt kit (2-Port 4Gb Emulex FC
HBA)
HP BLc QLogic QMH2462 FC HBA (4Gb 2-Port QLogic FC HBA)
HP Smart Array P700m/512 Controller
HP BLc 4X DDR IB Dual Port Mezz HCA Opt Kit
4X DDR InfiniBand (IB) Mezzanine (20
Gb/s) options for low latency server interconnectivity NOTE: For Linux
support See the HPC Cluster Platform 6000 at: http://www.hp.com/go/hptc
HP BladeSystem Infrastructure Management Software:
HP BladeSystem Integrated Manager in HP SIM
HP Insight Control Environment for BladeSystem
HP BladeSystem c-Class Onboard Administrator
HP BladeSystem c-Class Virtual Connect
Enterprise Management Software
Data Protector Software
GlancePlus Pak
Performance Manager and Agent
Virtualization with HP Virtual Server Environment,
www.hp.com/go/vse
Intelligent Control
HP Capacity Advisor
HP Virtualization Manager
HP-UX Workload Manager and HP Global Workload Manager
HP Systems Insight Manager
Partitioning Continuum
HP Integrity Virtual Machines (with HP-UX guest OS's and Windows
Guest OS's)
HP Process Resource Manager/pSets
Secure Resource Partitions
Continuous availability
HP Serviceguard for HP-UX 11i
HP Serviceguard Extensions for SAP
HP Serviceguard Extensions for Faster Failover
VSE Reference Architectures
VSE Suites including HP Capacity Advisor, HP Virtualization
Manager, HP Global Workload Manager, HP Integrity Virtual Machines,
and VSE Reference Architectures
Form Factor:
HP Integrity BL860c server blade is a
full-height, BladeSystem c-Class form factor. The BL860c server
blade plugs into the BladeSystem enclosure. In the c7000 enclosure,
8 server blades are supported per 10U enclosure. 4 enclosures can
be configured to a standard 42U rack; 32 BL860c server blades can
be configured in a fully populated rack. In the c3000 enclosure,
4 BL860c server blades are supported per 6U enclosure.
Warranty:
Protected by HP Services and a worldwide network
of HP Authorized Channel Partners. Three-year parts, 3 Year Labor
and 3 Year on-site limited global warranty. Certain restrictions
and exclusions apply. Hard drives have either a one year or three
year warranty; refer to specific hard drive QuickSpecs for details.
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section.
Upgradeable to two (2) processors
NOTE: The HP Integrity BL860c only
supports 1 or 2 processor configurations. Processors must be identical
Cache Memory
1.2 MB per Core Level 2 cache
memory
Chipset
HP zx2
Memory
Type
PC2-4200
DDR2 DIMMs (DDR2-533)
Minimum
2
GB (2 x 1 GB)
Maximum
48
GB (12 x 4 GB)
NOTE:
Memory modules are DIMM pairs. NOTE: Double Chip Spare is enabled
in a single memory module. Double Chip Spare requires identical DIMM types and
capacities
Network Adapter
Four (4) embedded NIC ports,
plus one (1) additional management NIC port:
Four (4) NIC ports via (2) Broadcom 5704 Dual Port Gigabit NIC
One (1) additional 10/100 NIC dedicated to Integrity iLO 2 Management
Up to twelve additional Gigabit
Ethernet ports via the NC364m Quad-port mezzanine adapter
Expansion Slots
Three Mezzanine slots (two (2)
Type II PCIe, one (1) Type I PCIe x4)
Integrated
ATI RN-50 1280 x 1024 x 16M color (32 MB DDR memory)
Graphics
Resolution Supported
Resolution
Color Depths
Depths 1280
x 1024, 16.7M , 64k, 256,16 1024 x 768, 16.7M, 64k, 256, 16 800 x 600,
16.7M, 64k, 256, 16 640 x 480, 16.7M, 64k, 256, 16
Fiber
Channel Support
Optional
Fibre Channel HBAs are supported by the HP Integrity BL860c. The mezzanine circuit
board connects directly to the server blade system board.
8Gb Fibre Channel
Host Bus Adapters:
QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
(PN 451871-B21)
Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
(PN 456972-B21)
8Gb Fibre Channel HBAs
feature:
8/4/2/1Gb/s auto negotiating speeds
Dual ports
for redundant path connections
Optimized for HP StorageWorks and supported
by third party SAN vendors
Support for HP-UX 11i v3, Microsoft®
Windows for Integrity (6.2)
NOTE:
8Gb FC HBAs are supported on BL860c models AD323B and AD217B. 8Gb FC HBAs
are supported on BL860c models AD323A and AD217A when configured with HP BL860c
System Board Upgrade Kit (AM333A).
4Gb Fibre Channel Host Bus Adapters:
Emulex LPe1105 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
(PN 403621-B21)
QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
(PN 403619-B21)
4Gb Fibre Channel
HBAs feature
Optimal performance utilizing PCI Express
4/2/1Gb/s
auto negotiating speeds
Dual-ports for redundant path connections
Two
FC HBAs per server blade provide redundant FC HBA support
Optimized for
HP StorageWorks and supported by third party SAN vendors
Support for HP-UX,
Microsoft® Windows® OpenVMS, and Linux operating systems environments.
HP-UX 11i v3 and v2 are supported on HP BLc QLogic QMH2462 FC HBA. HP-UX 11i v3
is supported on HP BLc Emulex LPe1105 FC HBA.
Smart Array Controller Support
Optional Smart Array Controller is supported by BL860c. The mezzanine
circuit board connects directly to the server blade system board.
HP Smart Array P700m/512 4-ports Ext PCIe x8 SAS Controller (PN 508226-B21)
Provides support for HP Zoned Storage for BladeSystem
Zoned Storage solution requires compatible HP StorageWorks 600 Modular
Disk System and HP StorageWorks 3Gb SAS BL Switch
Optional HP Smart Array P-Series Low Profile Battery (PN 452348-B21)
BBWC is required for RAID 6 and highly recommended for RAID 5
Support for HP-UX 11i v3; HP-UX 11i v2; Microsoft Integrity Windows
2008 and 2003 (6.2); and OpenVMS (8.3-1H1)
Provides support for HP StorageWorks MSA2000sa
Support for MSA2000sa also requires HP StorageWorks 3Gb SAS BL Switch
Optional HP Smart Array P-Series Low Profile Battery ( 452348-B21)
BBWC is required for RAID 6 and highly recommended for RAID 5
Support for HP-UX 11i v3 and Microsoft Integrity Windows 2008 and
2003 (6.2)
HP Integrity BL860c server blades are optimized for HP StorageWorks MSA,
EVA, and XP
HP USB Options
External USB DVD drive with 7 ft USB extension cable is supported with
c7000 enclosures.
The solution includes the following components:
External USB DVD drive with 9-inch USB cable
Power adaptor, power cable and USB Y-connector
7-foot USB extension cable
NOTE: The USB extension cable (PN SH046AA)
will be added automatically when the drive is ordered. NOTE: The USB Y-connector goes between the extension cable (SH046AA)
and the 9-inch USB cable fixed with DVD drive. NOTE: The Y-connector should NOT be placed between the server blade
and the 7-foot Extension cable
Integrity
Server Blades Management Software and HP Integrity Essentials Software Plug-ins
HP-UX
11i Management Software for HP Integrity BL860c Server Blade and HP BladeSystem
Getting
Started
HP Systems Insight Manager
HP Integrity Essentials
for HP-UX 11i
HP-UX 11i System Management
HP BladeSystem Integrated
Manager in HP System Insight Manager
HP Onboard Administrator
HP BladeSystem c-Class Onboard Administrator Firmware
HP BladeSystem c-Class Virtual Connect Firmware
HP Insight Control Environment for BladeSystem
Deploy
HP Ignite-UX
Software Distributor-UX
Software Package
Builder
Monitor
HP Systems Insight Manager
HP System Management Homepage
Glance Plus Pak
Performance Manager
and Agent
HP Serviceguard Manager
Control
HP Integrity Integrated Lights Out (iLO) 2 (Advanced Pack factory integrated
with BL860c), includes Integrity iLO 2Power Regulator which is supported by HP-UX
11i v3
Protect
HP-UX Bastille
Secure
Resource Partitions
Data Protector Software
Software Assistant
(SWA)
Security Patch Check and Patch Assessment Tool
Optimize
HP Capacity Advisory
HP Virtualization Manager
HP-UX
Workload Manager
HP Global Workload Manager
Process Resource
Manager
HP Insight Power Manager
Integrate
HP Business Technology Optimization
IT Management Software
HP Virtual Server Environment Suite for HP-UX 11i for HP Integrity server blades
Learn
More
HP-UX 11i on Integrity Server Blade
Microsoft ®Windows for
Integrity Management Software for HP Integrity BL860c Server Blade and HP BladeSystem
Get Started
HP Systems Insight Manager
HP Integrity
Essentials for Windows
HP BladeSystem Integrated Manager in HP Systems
Insight Manager
HP Onboard Administrator
HP BladeSystem c-Class
Onboard Administrator Firmware
HP BladeSystem c-Class Virtual Connect
Firmware
HP Insight Control Environment for BladeSystem
Deploy
Integrity Essentials Foundation Pack for Windows
Smart Setup
CD
Smart Setup Scripting Toolkit
HP Rapid Deployment Pack
Monitor
HP Systems Insight Manager
HP System Management Homepage
GlancePlus Pak
Performance Manager and Agent
Version Control
Repository Manager
NIC Configuration Utility
HP Performance
Management Pack
Control
HP Integrity Integrated
Lights Out (iLO) 2 (Advanced Pack factory integrated with BL860c), includes Integrity
iLO 2Power Regulator which is supported by Windows Server 2008
Protect
Data Protector Software
Optimize
HP Capacity Advisor
HP Virtualization Manager
HP Insight Power
Manager
Integrate
HP Business Technology Optimization
IT Management Software
SMS Inventory Tool for HP ProLiant and Integrity
Update
HP Management Packs for Microsoft Operations Manager 2005
HP Management Packs for Microsoft Operations Manager 2007
Learn
More
Windows for Integrity
Linux
for Integrity Management Software for HP Integrity BL860c Server Blade and HP
BladeSystem
Get
Started
HP Systems Insight Manager
HP Integrity Essentials
for Linux
HP BladeSystem Integrated Manager in HP Systems Insight Manager
HP Onboard Administrator
HP BladeSystem c-Class Onboard Administrator
Firmware
HP BladeSystem c-Class Virtual Connect Firmware
HP
Insight Control Environment for BladeSystem
Deploy
HP Integrity Essentials Foundation Pack for Linux
HP Rapid Deployment
Pack
Monitor
HP Systems Insight Manager
HP System Management Homepage
GlancePlus Pak
Performance Manager
and Agent
HP Serviceguard Manager
Control
HP Integrity Integrated Lights Out (iLO) 2 (Advanced Pack factory integrated
with BL860c)
Protect
Data Protector Software
Optimize
HP Integrity Essentials Capacity Advisor
HP Integrity Essentials
Virtualization Manager
HP Insight Power Manager (monitoring features
only)
Integrate
HP Business Technology Optimization
IT Management Software
Learn More
Linux for
Integrity
OpenVMS
Management Software for HP Integrity BL860c Server Blade and HP BladeSystem
Get Started
HP Systems Insight Manager
HP Integrity
Essentials for OpenVMS
HP BladeSystem Integrated Manager in HP Systems
Insight Manager
HP Onboard Administrator
HP BladeSystem c-Class
Onboard Administrator Firmware
HP BladeSystem c-Class Virtual Connect
Firmware
HP Insight Control Environment for BladeSystem
Deploy
PCSI and Secure Delivery
Monitor
HP Systems Insight Manager
HP System Management Homepage
GlancePlus
Pak
Performance Manager and Agent
Availability Manager
Control
HP Integrity Integrated Lights Out (iLO) 2 (Advanced Pack factory integrated
with BL860c)
Protect
Data Protector Software
Optimize
HP Integrity Essentials Capacity Advisor
HP Integrity Essentials
Virtualization Manager
HP Insight Power Manager (monitoring features
only)
Glossary
of Integrity Server Blades Management Software Product Description
HP
BladeSystem Integrated Manager in HP Systems Insight Manager
The HP BladeSystem Integrated Manager is a component in HP Systems Insight
Manager (SIM) that provides streamlined management for the entire HP BladeSystem
product family. The HP BladeSystem Integrated Manager enables users to quickly
navigate their HP blade environments including blade servers, enclosure infrastructures,
racks, and integrated switches, via automatically generated blade rack picture
views and hierarchical trees. Users are able to conveniently configure, deploy,
and manage individual or groups of blade systems. Additionally, users are able
to quickly set up logical collections of blade systems for convenient management
and control.
HP
Blades Visualization
Used by
System Administrators to identify, associate and group blades into collections,
using tables, trees, and picture views, and it can also be used to monitor performance
and launch Integrity Essentials. NOTE:
For more information about Manageability solutions for Integrity Servers go
to http://www.hp.com/go/integrityessentials
HP GlancePlus Pak
HP
GlancePlus Pak provides you with a single product for managing a system's availability
and performance. It is an integrated product that includes HP GlancePlus and HP
OpenView Performance Agent. As an integrated product, the GlancePlus Pak includes
the real-time diagnostic capabilities of GlancePlus and the historical data collection
capabilities of the Performance Agent. The performance agent is used with other
availability and performance management products, thus providing an integrated
real-time and historical performance management solution.
HP
Ignite-UX for HP-UX Deployments
HP
Ignite-UX is a free toolset that enables a network install of HP-UX onto multiple
PA-RISC and/or Integrity servers on a network. It can also be used to create custom
install configurations, or golden images, recover systems remotely, create custom
recovery media including tape, CD and DVD, and manage and monitor multiple client
installation sessions
HP
Capacity Advisor
HP Capacity
Advisor is the industry's first lightweight, integrated tool for ongoing capacity
planning, simulating placement of application workloads to help IT administrators
improve server utilization. Capacity Advisor provides planning capability for
the intelligent control of the HP Virtual Server Environment.
HP
Integrity Essentials Foundation Pack for Windows
The
HP Integrity Essentials Foundation Pack for Windows contains software designed
to simplify the installation, configuration, and management of Microsoft Windows
Server environments on HP Integrity Servers. The Smart Setup bootable utility
simplifies tasks including system and disk partitioning and the Integrity Support
Pack provides necessary drivers and management agents for use with your Windows
Server environments
HP
Integrity Essentials Foundation Pack for Linux
The HP Integrity Essentials Foundation Pack for Linux contains software designed
to simplify the installation, configuration, and management of Linux on HP Integrity
Servers with Linux in a Data Center. HPIEFPL simplifies tasks including system
and disk partitioning as well as prepares your system for installing either the
RHEL or SLES distribution.
The Smart Setup application is a bootable media
that HP recommends to be used prior to installing the operating system distribution.
This application media contains the latest documentation, firmware, and tools
to help configure and optimize your system. Smart Setup provides the following:
a system hardware inventory tool, tools to help configure system internal storage
arrays and adapters, installation of the hardware diagnostics tools, and tools
to launch the appropriate Red Hat or Novell distribution installer.
The
Support Pack component of HPIEFPL includes HP value added software that can be
used to either integrate with existing system management solutions or directly
manage an HP Integrity server. Following the installation of the Linux distribution
of choice, use the Management media to install additional tools, HP Insight Management
Agents, HP WBEM providers, and System Management Homepage (SMH).
HP
System Insight Manager
HP Insight Manager Agents
HP System Management
Homepage
Web-based Enterprise Management (WBEM) Solutions
HP Management
Base for Integrity Servers
OpenPegasus
HP Array Configuration
Utility
HP
Virtualization Manager
HP Virtualization
Manager is easy-to-use virtualization management software that reduces complexity
by providing unified visualization and management of physical and virtual servers.
Virtualization Manager provides a central point of control that allows you to
manage all the resources in your Virtual Server Environment (VSE). It is a powerful
way to connect IT resources to real business needs.
HP
Integrity Integrated Lights Out (iLO) 2 (Advanced Pack factory integrated with
BL860c)
HP Integrity Integrated
Lights Out (iLO) management processors make it simpler, faster, and less costly
to remotely manage your Integrity servers. HP Integrity iLO 2, the next generation
of iLO management processors, is available in the newest Integrity entry-class
servers. Integrity iLO 2 enables a complete remote console experience with the
Advanced Pack addition of Virtual Media and Integrated Remote Console (virtual
keyboard, video, and mouse). iLO 2 Advanced Pack also enables integration with
Insight Power Manager. Integrity BL860c ships with an Integrity iLO 2 Advanced
Pack license factory installed - no additional iLO licensing is needed.
HP Onboard Administrator
The Onboard Administrator for the HP BladeSystem enclosure is the brains of
the new c-Class infrastructure. Together with the enclosure's HP Insight Display,
the Onboard Administrator has been designed for both local and remote administration
of HP BladeSystem c-Class. This module and its firmware provides:
Wizards for simple, fast setup and configuration
Highly available
and secure access to the HP BladeSystem infrastructure
Security roles
for server, network, and storage administrators
Automated power and cooling
of the HP BladeSystem infrastructure
Agent-less device health and status
Thermal Logic power and cooling information and control
HP Serviceguard Manager
HP
Serviceguard Manager is a graphical user interface (GUI) that provides configuration,
administration, and monitoring capabilities for Serviceguard, Serviceguard Extension
for RAC, Metrocluster, and Continentalclusters. Using Serviceguard Manager, operators
see color-coded icons that provide a big-picture view of multiple clusters. From
this big-picture view, operators can drill down and proactively manage clusters,
systems (nodes), and packages that run applications.
HP
Systems Insight Manager
HP
Systems Insight Manager (HP SIM) provides a unified, secure and extensible environment
to centrally manage servers, storage and other infrastructure devices across multiple
operating system platforms.
HP
System Management Homepage
HP
System Management Homepage is a web-based interface that consolidates and simplifies
the management of individual ProLiant and Integrity servers running Microsoft
Windows or Linux operating systems, or HP 9000 and HP Integrity servers running
HP-UX 11i. By aggregating data from HP Insight Management Agents and other management
tools, the System Management Homepage provides a secure and intuitive interface
to review in-depth hardware configuration and status data, performance metrics,
system thresholds and software version control information. The System Management
Homepage can also be used to access the HP Lights-Out Management processor on
ProLiant and Integrity servers.
HP
Virtual Server Environment for HP Integrity
HP
Virtual Server Environment (VSE) for HP Integrity servers and blades provides
an automated infrastructure that can adapt in seconds with mission-critical reliability.
HP VSE allows you to optimize server utilization in real time by creating virtual
servers that can automatically grow and shrink based on business priorities and
service-level objectives.
HP-UX
Software Assistant (SWA)
HP-UX
Software Assistant (SWA) is a command-line based tool that consolidates and simplifies
patch management and security bulletin management on HP-UX systems. The SWA tool
is new for HP-UX releases as of January 2007, includes Security Patch Check (SPC),
and is the HP-recommended utility to use to maintain currency with HP-published
security bulletins for HP-UX software.
HP-UX
Workload Manager
HP-UX Workload
Manager (HP-UX WLM) is a resource management tool that provides automatic CPU
resource allocation and application performance management based on your service-level
objectives (SLOs) and business priorities. WLM is most effective managing applications
that are CPU-bound. It automatically adapts system or partition CPU resources
(cores) to the demands, SLOs, and priorities of the running applications. (A core
is the actual data processing engine within a processor, where a single processor
can have multiple cores, and a core can support multiple execution threads through
Hyper-Threading, introduced with HP-UX 11i v3, as discussed below.) It adjusts
the CPU allocation of a group of processes known as a workload, basing adjustment
on the current needs and performance of the applications in that workload.
HP-UX Global Workload Manager
HP
servers. Using these policies can increase system utilization and facilitate controlled
sharing of system resources. In addition, gWLM provides both real-time and historical
monitoring of the resource allocation.
gWLM consists of a VSE Central
Management Server, or CMS. You configure gWLM and monitor your workloads from
the system where the CMS software is installed. Also, you use agent software on
the systems where you have workloads you want gWLM to manage.
Insight
Management Agents
Insight
Management Agents should be installed on all HP servers to present system instrumentation,
health and configuration information into HP Systems Insight Manager and the HP
System Management Homepage. The HP System Management Homepage aggregates systems
data from Insight Management Agents and other HP management tools, providing a
consolidated browser-based interface for managing individual servers.
The
HP System Management Homepage (SMH) and OS instrumentation (WBEM providers) to
support management tools such as SMH and HP SIM are included in the HP-UX Operating
Environments
Insight Management Agents and The HP System Management Homepage
are included on ProLiant Support Packs, and can also be installed using the server
profiles provided with the Insight Essentials Rapid Deployment Pack
For
additional information about the Management Agents and the HP System Management
Homepage please visit the management Web site at http://www.hp.com/servers/manage.
Performance Manager and Agent
HP
Performance Manager, Agents, and Monitor combine to provide a powerful and flexible
distributed management solution. This solution is a single interface for centrally
monitoring, analyzing, and forecasting resource utilization for distributed multi-vendor
environments, enabling you to offer the best possible level of service in a cost-effective
manner.
Process Resource
Manager
HP Process Resource
Manager (HP PRM) is a resource management tool used to control the amount of resources
that processes use during peak system load. HP PRM can manage allocation of the
following resources:
CPU: Ensures a minimum allocation of CPU; can
also simultaneously cap CPU resource usage for each group in the configuration.
(Starting with HP-UX 11i v3, per-group capping is available.)
Memory:
Ensures a minimum allocation of private real memory; can also cap private memory
usage. Allows you to allocate an exact amount of shared memory.
Disk
bandwidth: Ensures a minimum allocation of disk bandwidth
Insight Essentials Performance
Management Pack (Windows for HP Integrity Servers only)
Performance
Management Pack detects, analyzes, and explains hardware bottlenecks on HP Integrity
servers running Windows.
Insight
Essentials Rapid Deployment Pack (designed for Windows and Linux for HP Integrity
Servers only)
Rapid Deployment
Pack (RDP) extends HP Systems Insight Manager with a complete deployment solution
for HP Integrity server blades running Linux or Windows. RDP provides a central
location to configure server hardware, deploy the Windows, Linux operating environments
and install HP Integrity Support Pack drivers using images and scripted profiles.
Secure Resource Partitions
One
method the HP VSE uses to improve server resource utilization is to consolidate
multiple applications within a single operating system image. Secure Resource
Partitions combine kernel level security and proven resource management to stack
multiple applications within the same operating system. HP Process Resource Manager
and HP-UX Workload Manager can dedicate specific resources to specific applications
within an operating system image, avoiding resource contention issues. Using HP-UX
11i V2 Security Containment, organizations can ensure that application instances
cannot access processes or files from other applications or the system. This ensures
that multiple application instances run securely in a consolidated environment,
providing the benefits of consolidation while preserving the security of a scale
out environment. For software licensing purposes, the maximum number of CPUs in
a Secure Resource Partition can be capped.
Software
Distributor-UX
Software Distributor
(SD) is the HP-UX administration tool set used to deliver and maintain HP-UX operating
systems and layered software applications. SD is delivered as part of HP-UX; you
do not need to download it separately.
OS Support
HP-UX 11i v3 Data Center Operating Environment
HP-UX 11i v3 Virtual Server Operating Environment
HP-UX 11i v3 High Availability Operating Environment
HP-UX 11i v3 Base Operating Environment
HP-UX 11i v2 Mission Critical Operating Environment
HP-UX 11i v2 Enterprise Operating Environment
HP-UX 11i v2 Foundation Operating Environment
HP-UX 11i v2 Technical Computing Operating Environment
Microsoft Windows Server 2008 for Itanium-based Systems
Microsoft Windows Server 2003 Database Edition for Itanium-based Systems
Microsoft Windows Server 2003 Enterprise Edition for Itanium-based Systems
Red Hat Enterprise Linux 4
Red Hat Enterprise Linux 5
Novell SUSE Linux Enterprise Server 10
OpenVMS v8.3 I64 Foundation Operating Environment for Itanium Servers
OpenVMS v8.3 I64 Enterprise Operating Environment for Itanium Servers
OpenVMS v8.3 I64 Mission Critical Operating Environment for Itanium Servers
NOTE:
For a more complete and up to date information on HP-UX 11i support, please
visit the HP-UX11i website at: http://www.hp.com/go/hpux11iblades
NOTE: For a more complete and up to date information on OpenVMS
support, please visit the HP-OpenVMS website at: http://www.hp.com/go/openvms NOTE: For a more complete and up to date information on Integrity Windows
support, please visit the HP Integrity Windows website at: http://www.hp.com/go/integrity/windows NOTE: For a more complete and up to date information on Linux Operating
Systems on Integrity or BladeSystem platforms, please visit the Integrity and
BladeSystem Linux matrix website: http://www.hp.com/go/lxintegritycert
Supported Software Options
HP Integrity Virtual Machines
HP Virtualization Manager
HP Capacity Advisor
HP Secure Resource Partition
HP-UX Workload Manager
HP Global Workload Manager
HP Virtual Server Environment Suite for HP-UX 11i for HP Integrity server
blades
HP Serviceguard for HP-UX 11i
HP Serviceguard Manager
HP Serviceguard Extensions for SAP
HP Serviceguard Extensions for Faster Failover
HP Integrity iLO 2 Power Regulator for HP-UX 11i v3 and Windows Server
2003 (provided with the Integrity iLO 2 Advanced Pack and included with
purchase of the BL860c
HP Insight Power Manager
GlancePlus Pak
Performance Manager and Agent
Intelligent Manageability
HP Integrity Integrated Lights-Out
2 (iLO 2) Advanced Pack (factory integrated with the HP Integrity BL860c)
Virtual serial console (Multiple,
mirrored sessions, with previous context and console log buffer)
Virtual Media (CD-ROM, DVD-ROM, and ISO file image)
Virtual Power Button Control
Integrated Remote Console (virtual KVM) for Windows environments
iLO 2 Power Regulator and integration with Insight Power Manager
Embedded system health and Integrity fault management Diagnostics and
troubleshooting:
virtual front panel
log access to Integrity SEL
FPL Blade power consumption reading
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS browser
Command Line and scripted access Industry Standard RC4, 128-bit Secure
Sockets Layer (SSL) and Secure Shell (SSH) Security
Directory Services Integration (LDAP)
Support for 19 user accounts with customizable access privileges
NOTE: iLO 2
Advanced Pack features such as Directory Services Integration (LDAP), Integrated
Remote Console for Windows and browser accessible Virtual Media are included
with the HP Integrity BL860c server blade.
Availability
Dual-Port Fibre Channel Mezzanine Card for redundant SAN connection Two
hot-plug SAS hard drive bays and integrated RAID (LSI 1068) controller on every
server blade
Memory double chip spare to overcome
two DRAM chip failures
Dynamic Processor resilience and deallocation with
HP-UX
Journal file system with HP-UX*
Auto
reboot
HP Serviceguard for HP-UX*
HP
Serviceguard Extension for RAC for HP-UX*
HP
Serviceguard Extension for SAP for HP-UX*
Serviceguard
Manager for HP-UX and Linux Clusters*
HP
Event Monitoring Service
HA Monitors for HP-UX
HA Toolkits for
HP-UX and Linux
HP Mirrordisk/UX*
(Included if purchase HP-UX 11i Enterprise or Mission-Critical OEs)
Extended
Campus Cluster*, HP Metrocluster*,
and HP Continentalclusters* for HP UX
HP
System Insight Manager (SIM) for proactive fault management
HP StorageWorks
Cluster Extension XP for Linux
HP Serviceguard Storage Management Suites
for HP-UX*
*Fee based software products
Industry Standard Compliance
ACPI 2.0 Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
USB 2.0 Support
Security
Hardware Security
Power-on password
Administrator's
password
Integrity Integrated Lights Out 2 has 19 customizable user accounts
and SSL encryption
Integrity Integrated Lights Out 2 can be disabled
via a Global Setting
SSL encryption on web console
Platform
security fundamentals
Designed for the optimal protection against both
external and internal threats, HP-UX 11i offers industry-leading breadth and depth
of UNIX security features. Focused on feature integration aimed at proactively
mitigating risk, reducing compliance cost and accelerating time to implementation,
HP-UX security solutions significantly lower IT costs. This set of fully integrated
and complementary features is designed to provide layered security with in-depth
protection of all your enterprise assets by protecting data, systems and identities.
For more details, visit www.hp.com/go/hpux11isecurity
EVFS
is an operating system service that fills the compliance need to store files in
a way that they cannot be read by unauthorized parties who obtain physical access
to storage. Files and databases from current applications can be encrypted without
changes to the application or underlying storage infrastructure. Read more
HP-UX
TCS provides software support for hardware-enforced key management on supported
HP Integrity servers. By providing a low-cost embedded security chip option (known
as a Trusted Platform Module) in its zx2-based Integrity servers, HP has established
a foundation for strong protection of sensitive information - including cryptographic
keys, such as for EVFS.
HP-UX 11i security
containment introduces three core technologies: compartments, fine-grained privileges,
and role-based access control. Together, these three components provide a highly
secure operating environment without requiring applications to be modified. Read
more
Protected Systems: Webserver
(PS-Webserver)
PS-Webserver
is a pre-configured secure Web services platform built on HP-UX. The secure architecture
and run time environment isolates the Internet from backend servers and isolates
the Web server from the intranet. Read more
Open SSL offers a general-purpose
cryptography library and implementation of the Secure Sockets Layer (SSL v2/v3)
and Transport Layer Security (TLS v1) protocols.
Secure Shell is a
powerful software-based approach to encrypted network security. It provides secured
remote login. Credentials and data sent over the network are encrypted by SSH-1
or SSH-2 protocols and decrypted once they reach their destination
IPSec
adds integrity protection and confidentiality to network communication over the
Internet and within the enterprise to applications which lack these capabilities
without modifying existing applications.
In
addition to the fully-supported features listed above, HP packages a number of
limited-support open source products that offer additional data security, including:
OpenSC/OpenCT, ClamAV, CyrusSASL, GnuPG, SSLDump, Stunnel, and Tripwire.
Bastille
is a very easy-to-use security hardening wizard (also known as a lockdown wizard)
that enhances the security of an HP-UX 11i host by turning off unneeded services,
tightening security configuration settings, configuring IPFilter, etc. It accommodates
the various degrees of hardening required for web, application and database servers,
and can walk a non-security expert through the hardening decisions.
HIDS enhances host-level
security with near real-time automatic monitoring of each configured host for
signs of potentially damaging intrusions. HIDS is a standard feature of HP-UX
11i, making HP the only systems vendor to offer its own host intrusion detection
product. Read more
Secure
Resource Partitions combine kernel level security (via Security Containment) and
proven resource management to stack multiple applications within the same operating
system.
IPFilter
is a stateful firewall (filters IP packets to control packet flow in or out of
the system; stateful simplifies and increases security of rule definitions by
allowing return traffic based on outbound rules without having to define broader
inbound rules). HP's unique dynamic connection allocation provides protection
from denial-of-service attacks. IPFilter provides increased security defense by
minimizing the number of server exposure points.
HP-UX SWA
is a command-line tool that consolidates, simplifies and helps automate patch
and security bulletin management on HP-UX systems. The SWA tool is the HP-recommended
utility to maintain currency with HP-published security bulletins for HP-UX software.
Install-time Security
(ITS) is available to customers running HP-UX 11i v2 or later releases of the
operating system, as an install option to lockdown systems during installation.
ITS makes HP-UX 11i more secure out-of-the-box when customers select higher security
levels. There are four choices, ranging from a highly locked down (DMZ) level
with a tightly configured IPFilter firewall blocking most inbound traffic (and
many services also disabled or secured) to a maximum compatibility level which
installs security tools, but doesn't apply a security level.
A site's
security policies may require users to authenticate before they can boot the system
into single-user mode. Previously, this feature was only available on a system
that had been converted to Trusted Mode. This product now provides secure single-user
mode with root password protection, but without the overhead of converting the
system to trusted mode.
Enhances
the system security of HP-UX 11i v2 and v3. Several security features previously
available only in trusted mode are now available on standard mode HP-UX 11i systems.
Features include enhanced password and user account security, such as password
expiration on inactivity history reuse restrictions, auditing, and much more.
Shadow Passwords
enhance system security by hiding user encrypted passwords in a shadow password
file. Encrypted passwords previously stored in the publicly readable /etc/passwd
file can be optionally moved to the /etc/shadow file, which is accessible only
by a privileged user.
The
Strong Random Number Generator provides a cryptographically strong, non-reproducible
source of true random numbers for applications with strong security requirements,
such as for generating encryption keys
In
addition to the fully-supported features listed above, HP packages a number of
limited-support open source products that offer additional system security, including:
Chkrootkit, PAM_passwdqc, DanteSOCKS, Snort, Nessus, Xinetd.
Providing
the most complete and integrated solution for security management, IdMI allows
administrators to enforce critical system access and authorizations. In addition
to integrated enforcement, with the bundled version of Select Access for IdMI,
customers benefit from single-vendor support for this mission critical capability.
Select
Access for IdMI is a follow-up product to the HP-UX Identity Management Integration
feature. This version of Select Access supports complete administration of HP-UX
security policy for both user authentication and access control privileged functions
within the OS. HP-UX security policy can be centrally controlled and managed through
Select Access.
HP-UX
RBAC (a component of security containment) is an alternative to the traditional
"all-or-nothing" root user model, which grants permissions to the root
user for all operations, and denies permissions to non-root users for certain
operations. HP-UX RBAC allows you to distribute administrative responsibilities
by creating roles with appropriate authorizations and assigning them to non-root
users and groups.
HP-UX 11i AAA Server
provides authentication, authorization and accounting services using the RADIUS
and EAP protocols to authenticate and authorize user access to network devices
and software applications. The AAA Server also generates usage logs for accounting,
auditing and billing purposes.
Red Hat Directory Server
Red
Hat Directory Server is a Lightweight Directory Access Protocol (LDAP) compliant
software server that centralizes user profiles, application settings, group data,
policies and access control information into a network-based registry. The server
is available on HP-UX 11i and operates on both HP 9000 and HP Integrity 64-bit
hardware server platforms.
With growth, consolidation
and a dynamic environment, enterprises need new technologies to manage and verify
security in their IT environments. In a highly distributed environment, local
processes, security practices and administration methods are often inconsistent,
repetitive and difficult to audit. With LDAP-UX Enterprise IT architects can use
LDAP directories as one tool to help unify and simplify many of the above-mentioned
practices
Kerberos Server provides
key distribution facilities to implement the Kerberos authentication protocol
in network-distributed enterprises. It operates with an LDAP directory providing
integrated identity management for authentication and access control.
In
addition to the fully-supported features listed above, HP packages a number of
limited-support open source products that offer additional identity management,
including: Perl-LDAP, sudo, and OpenSAML.
Common Criteria certification
HP-UX 11i v3, the latest
release of HP's strategic UNIX operating environment running on HP Integrity server
blades in evaluation for Common Criteria Certification.
Many enterprise
and government customers require this vendor-independent security certification
because it increases confidence in the product's security assurance, functionality,
quality and effectiveness. Many governments, including the United States, require
certification for government IT procurement.
Certification evaluations are only conducted by the evaluation agency
after release of the product. HP expects the certification for EAL4 Common
Criteria (ISO 15408) Assurance Level, augmented by ALC_FLR.3 (flaw remediation),
using the Controlled Access (CAPP), Role-Based Access Control (RBACPP)
Protection Profiles and nPartitions (nPars).
View the in-evaluation statement for more information.
The HP-UX 11i v2 operating system running on HP Integrity server blades
has been successfully evaluated against the requirements for the EAL4
Common Criteria (ISO 15408) Assurance Level, augmented by ALC_FLR.3 (flaw
remediation), using the Controlled Access (CAPP) and Role-Based Access
Control (RBAC) Protection Profiles. EAL4+ is sometimes used as the abbreviated
form for additional assurances. Details of the evaluation and evaluated
configuration are available at http://www.commoncriteriaportal.org/files/epfiles/CRP225.pdf
and http://www.commoncriteriaportal.org/files/epfiles/hp-ux11iv2.pdf.
Factory
Express Portfolio for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment
services for HP servers and storage products. Customers can choose how their factory
solutions are built, tested, integrated, shipped and deployed.
Factory
Express offers service packages for simple configuration, racking, installation,
complex configuration and design services as well as individual factory services,
such as image loading, asset tagging, and custom packaging. HP products supported
through Factory Express include a wide array of servers and storage: HP Integrity,
HP ProLiant, HP Integrity Server Blades, HP ProLiant Server Blades, HP BladeSystem,
HP 9000 servers as well as the MSA1xxx, VA7xxx, EVA, XP, rackable tape libraries
and configurable network switches.
For more information on Factory Express
services for your specific server model please contact your sales representative
or go to: http://www.hp.com/go/factory-express.
HP
Enterprise Configurator
The HP eConfigure Enterprise
Configurator now provides factory default racking for our HP hardware portfolio.
This approach is aligned with our strategic direction to meet the needs
and expectations of our valued customers. If you require "custom"
rack configuration, please contact HP's Customer Business Center or an Authorized
Partner for assistance. For additional information please visit: http://h30099.www3.hp.com/configurator/
Service
and Support
HP Premium Services are available for the HP Integrity BL860c server
blade. These services offer integrated hardware and software support to
help customers maintain a robust, stable, flexible IT environment that
enhances their business agility. They encompass today's most popular products,
including UNIX, Windows and Linux servers, as well as mobile technology,
network devices, desktops, printers, storage solutions, management software
and more.
All of these Premium offerings let customers leverage HP Services multi-vendor,
multi-technology experience and expertise; global reach with delivery
capabilities from 600 offices in 160 countries; single-point-of-contact
problem diagnosis and resolution; advanced remote monitoring and performance
enhancement technologies; and proven support management processes based
on IT best practices.
HP Services professionals can help customers identify the Premium support
offering that fits their business and technology goals. HP Premium Hardware
and Software Services include:
Mission
Critical Partnership – custom services to help you achieve
your strategic business goals and fulfill your most demanding service-level
commitments through continual service-quality improvements
HP
Critical Service – comprehensive preventive services and super-responsive
support to maximize availability and minimize downtime risk exposure
in mission-critical environments
HP
Proactive 24 Service – collaborate with HP Services professionals
to improve operational effectiveness, performance, and stability through
joint services planning and 24x7 hardware/Software Support
Support
Plus 24 – 24x7x365 onsite hardware and over-the-phone Software
Support for HP and selected multi vendor products, plus software updates
at substantial subscription savings
Support
Plus – the economical choice for single-source hardware/Software
Support delivered during extended business hours, as well as cost-saving
software updates
This product is covered by a global limited warranty and supported by
HP Services.
Care Pack services provide a range of life cycle support options that
let you choose the service levels that meet your business requirements,
from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available
including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13
hours, 5 day to 24 hours, 7 days call window with options including
4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support.
System Management, Performance Services and Mission Critical Support
Solution
HP Care Pack services for the c7000 Enclosure
cover the enclosure, power supplies and fans. HP qualified rack options
are covered by these services when installed within the same rack. HP
Supported Ethernet devices covered include the Ethernet Pass-Through Module,
Fibre Channel Pass-Through Module and GbE2c Ethernet Blade Switch and
Cisco Catalyst 3020 Blade Switch.
Configuration Information - Factory Integrated Models
NOTE:
This section lists some of the steps required to configure a Factory Integrated
Model. To ensure only valid configurations are ordered, HP recommends the use
of an HP approved configurator. Contact your local sales representative for information
on CTO product offerings and requirements. NOTE: HP does not allow
factory integration of options into standard models listed above. Configure-to-order
servers must start with a CTO Chassis. NOTE: FIO indicates that this
option is a Factory Installable Option.
Step
1: Base Server Blade Configuration
Models
HP
Integrity BL860c Server Blade NOTE: Choose
from base models above. NOTE: Adding Option code "#0D1" to
the Server Blade PN will integrate the configured blade into the enclosure (which
must be on the same order)
Configurable
Model ships with:
Four embedded Gigabit
Ethernet NIC ports plus (1) additional 10/100 NIC dedicated to Integrity iLO 2
Management
Integrated
LSI 1068 hardware RAID controller
Two small form factor
(SFF) SAS hot plug hard drive bays
HP Integrity Integrated
Lights-Out 2 Advanced Pack
Step 2: Choose
Required Options (one of the following from each list unless otherwise noted):
HP Processors
Select a base model
(either 2P or 1P models) which has the desired CPU offering.
HP
Memory
HP BL860c 4GB PC4300
DDR-SDRAM Dual Memory
AD344A
HP BL860c 8GB PC4300
DDR-SDRAM Dual Memory
AD345A
NOTE:
Memory Modules consist of pairs of DIMMs
NOTE:
DIMMs must be installed in pairs
RAID
1 Configuration Upgrade Option
Factory configured
hardware RAID 1
AD248A#106
NOTE:
Requires two (2) SAS Hard Drives identical in speed and capacity NOTE: Ordering AD242A#106 provides factory configuration of the embedded
LSI 1068 SAS controller to RAID1.
Step
3: Choose Additional Options for Factory Integration
HP
Hard Drives
NOTE:
Hard drives have either a one year or three year warranty; refer to specific
hard drive QuickSpecs for details.
SAS Hot Plug SFF(2.5-inch)
Enterprise (ENT) Drives
HP 600GB 6G SAS 10K
rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 4X DDR IB Dual
Port Mezzanine HCA NOTE: Supported with HP-UX 11i.
448262-B21
HP
c-Class Mezzanines
HP PCI Express Mezzanine
pass-thru card for HP BladeSystem
431643-B21
NOTE:
Required to support the HP StorageWorks SB40c Storage Blade (P/N 411243-B21)
with HP c-Class BladeSystem full-height server blades NOTE: Adding option "0D1" to these options indicates factory
integration of that product.
HP
Ethernet Mezzanine Options
Gigabit Ethernet
Mezzanines
HP NC364m Quad Port
1GbE BL-c Adapter
447883-B21
NOTE:
Provides four additional Gigabit Ethernet ports per I/O expansion slot. NOTE: BL860c supports HP Virtual Connect Ethernet Interconnect Modules.
See http://www.hp.com/go/bladesystem/virtualconnect
for complete details
10 Gigabit Ethernet
Mezzanines
HP NC532m Dual Port
Flex-10 10GbE BL-c Adapter
467799-B21
NOTE:
Provides Flex-10 connectivity when used in conjunction with the HP Virtual
Connect Flex-10 10Gb Ethernet Module for the c-Class BladeSystem Option
(P/N 455880-B21). NOTE: Supported with HP-UX 11i v3 and Windows; requires 2GB of system
memory to be ordered for each card in the blade. To obtain the software
and instructions required to run the NC532m in a Windows Integrity environment,
please contact: windows_integrity_nic@hp.com
Step 4: Choose
Additional Options for Field Upgrades
NOTE:
For additional options, please refer to the "Core Options" and
"Additional Options" section below. For additional options, including
server blade enclosures interconnect and mezzanine options and power subsystem
options; please see the Core Options and Additional sections below; or the
following:
NOTE:
For additional options please refer to the "Options" section below.
HP Ethernet Mezzanine
Options
Gigabit Ethernet Mezzanines
HP NC364m Quad Port 1GbE BL-c
Adapter
447883-B21
NOTE: Provides
four additional Gigabit Ethernet ports per each I/O expansion slot.
HP
NC360m Dual Port 1GbE BL-c Adapter
445978-B21
NOTE: Provides
two additional Gigabit Ethernet ports per each I/O expansion slot.
10 Gigabit Ethernet Mezzanines
HP NC532m Dual Port Flex-10 10GbE
BL-c Adapter
467799-B21
NOTE: Provides
Flex-10 connectivity when used in conjunction with the Provides Flex-10
connectivity when used in conjunction with the HP Virtual Connect Flex-10
10Gb Ethernet Module for the c-Class BladeSystem Option (P/N 455880-B21). NOTE: Supported with HP-UX 11i v3 and Windows; requires 2GB of system
memory to be ordered for each card in the blade. To obtain the software
and instructions required to run the NC532m in a Windows Integrity environment,
please contact: windows_integrity_nic@hp.com
HP Fibre Channel Mezzanine
Options
QLogic QMH2562 8Gb Fibre Channel
Host Bus Adapter for c-Class BladeSystem
451871-B21
Emulex LPe1205 8Gb Fibre Channel
Host Bus Adapter for c-Class BladeSystem
456972-B21
QLogic QMH2462 4Gb Fibre Channel
Host Bus Adapter for c-Class BladeSystem
NOTE: The P700M
will function as a SAS RAID controller when connected to MDS600 disk subsystem
via the StorageWorks 3Gb SAS Switch. In the RAID mode, HP-UX 11iv3 and v2,
OpenVMS 8.3-1H1, and Integrity for Windows 6.2 are supported. NOTE: The P700M will function as a Pass-Thru when connected to the
MAS200sa SAS Storage Array via the StorageWorks 3Gb SAS Switch. In the Pass-Thru
mode, HP-UX 11i v3 and Integrity for Windows 6.2 are supported. NOTE: The optional battery is required for RAID 6 and highly recommended
for RAID 5 implementations.
HP
Processors
(field upgrade only)
HP BL860c Intel®
Itanium 9110N (1.6GHz/1-core/12MB) Processor Kit
AD395A
HP BL860c Intel®
Itanium 9120N (1.42GHz/2-core/12MB) Processor Kit
AD394A
HP BL860c Intel®
Itanium 9140M (1.66GHz/2-core/18MB) Processor Kit
AD396A
NOTE:
HP Integrity BL860c processor upgrade kits contain one processor. Processors
must be identical. No mixing of processor models is allowed.
NOTE:The Integrity BL860c only supports 1 or
2 processor configurations.
HP Memory
HP BL860c 4GB PC4300 DDR-SDRAM
Dual Memory
AD344A
HP BL860c 8GB PC4300 DDR-SDRAM
Dual Memory
AD345A
NOTE: Memory Modules
consist of pairs of DIMMs
DIMMS must be installed in pairs
NOTE: DIMMs must
be installed in decreasing capacity with the largest DIMMs installed in
the lowest numbered slots.
HP Hard Drives
NOTE: Hard drives
have either a one year or three year warranty; refer to specific hard drive
QuickSpecs for details.
SAS Hot Plug SFF(2.5-inch) Enterprise
(ENT) Drives
HP 600GB 6G SAS 10K rpm SFF (2.5-inch)
Dual Port Enterprise 3yr Warranty Hard Drive
HP PCI Express Mezzanine pass-thru
card for HP BladeSystem
431643-B21
NOTE: Required
to support the SB40c storage blade (P/N 411243-B21) or PCI-Express Expansion
Blade (P/N 448018-B21) with HP c-Class BladeSystem full-height server blades.
NOTE: The HP Mobile
USB DVD/RW solution includes the DVD/RW Drive (BU516AA), power adaptor,
power cable and USB Y-connector and 7-foot USB extension cable (SH046AA). NOTE: HP Monster 700 A-A 7ft USB Extension Cable (SH046AA) will be
added automatically when the drive is ordered. NOTE: The USB Y-connector goes between the extension cable (SH046AA)
and the 9-inch USB cable fixed with DVD drive. NOTE: The Y-connector should NOT be placed between the server blade
and the 7-foot Extension cable.
HP Care Pack Services
NOTE: The HP
Care Pack service part numbers below for the Integrity BL860 c-Class server blades,
cover the server blade and all HP branded hardware options qualified for the server,
purchased at the same time or afterwards, internal to the server.
NOTE: HP Care
Pack services for the c7000 Enclosure cover the enclosure, power supplies and
fans. HP qualified rack options are covered by these services when installed within
the same rack. HP Supported Ethernet devices covered include the Ethernet Pass-Through
Module, Fibre Channel Pass-Through Module, Cisco Catalyst 3020 Blade Switch and
GbE2c Ethernet Blade Switch.
NOTE: The services
listed below are available for both Integrity and ProLiant blades, as well as
the c7000 enclosure, when ordering flexible services
Support
Plus
Support Plus, 1 Year
HA109A1
Support
Plus, 3 Years
HA109A3
Support
Plus 24, 1 Year
HA110A1
Support
Plus 24, 3 Years
HA110A3
HP
Proactive Service
HP Proactive Service, 24 Hour,
1 Year
HA111A1
HP
Proactive Service, 24 Hour, 3 Year
HA111A3
HP
Critical Service
Hardware Only, Critical Service,
7-Day x 24 Hour, 1 Year
HA112A1
Hardware
Only, Critical Service, 7-Day x 24 Hour, 3 Years
HA112A3
Installation
Services
Integrity BL860c Server Blade
Hardware Installation
HA113A1
ProLiant
BL c-Class Enclosure and Server Blade Hardware Installation
HA113A1
Installation
& Start-up Services
Provides
for the Installation and Start-up of Insight Essentials Rapid Deployment Pack
NOTE: Provides installation on a Customer
supplied server designated as a Deployment Server. Includes the deployment of
a single server. This new server will be deployed using either one of the pre-configured
scripts or an image. In addition, the service will provide for the capture and
storage of the configuration of the newly deployed server and orientation on product
usage. To be delivered during standard office ours, standard office days.
HA114A1
Provides
for the Installation and Start-up of Rapid Deployment Pack Implementation of Rapid
Deployment Pack (Basic) (Electronic)
HA114A1
Provides
for the Installation and Start-up of System Insight Manager (Electronic)
HA124A1
HP
Installation & Startup Service for HP BladeSystem Infrastructure
HA114A1
Provides for an integrated hardware and software implementation that includes
remote service planning, onsite deployment of hardware and software, installation
verification testing and customer orientation. Hardware deployment covers the
installation of a single BladeSystem enclosure that includes server blades (up
to 16), Ethernet network interconnect, and power options. Software deployment
covers the installation and configuration, where required of HP BladeSystem Essential
Insight Control Datacenter Edition which includes Systems Insight Manager (SIM),
HP Rapid Deployment Pack (RDP) and Performance Management Pack (PMP), HP-UX ignite
server or HP-UX manual load, and deploy up to two editions of either Windows or
Linux, using scripted operating system installation software.
SAS Hot Plug SFF (2.5-inch)
Enterprise (ENT) Drives NOTE: Hard drives have either a one
year or three year warranty; refer to specific hard drive QuickSpecs for
details.
*All temperature ratings shown are for sea level. An altitude derating of 1°C
per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct
sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia.
Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. **Storage maximum humidity of 95% is based on a maximum temperature of 45°C
(113°F). Altitude maximum for storage corresponds to a pressure minimum of
70 KPa.
SAS RAID LSI 1068 Controller
Disk
Drive and Enclosure Interface
3G
SAS (Serial Attached SCSI)
SAS Connectors
2 internal
(SFF8484) x4 wide port connectors
Cache Memory Speed
DDR-1/266
MHz provides up to 4.2 GB/s maximum bandwidth.
Server Interface
x8 2.5G
PCIe provides 2GB/s maximum bandwidth.
SAS Speed
x8 3G SAS provides
2.4GB/s maximum bandwidth.
Cache Memory
40-bit 64MB
or 128MB cache: ECC protection, battery-backed, and transportable
Logical Drives Supported
Up
to 32 logical volumes
Maximum Logical Drive Capacity
292GB
(2 x 300GB)
Host
Memory Addressing
64-bit, supporting
greater than 4GB server memory space
RAID Support
RAID 1 (Mirroring)
Upgradeable Firmware
Upgradeable
Firmware
Embedded Dual Broadcom 5704 Gigabit NICs
Network Interface
1000Base-Sx
Compatibility
IEEE 802.3ab 1000Base-Sx
Data Transfer Method
PCI
Express, four lanes (x4)
Network
Transfer Rate (Theoretical Maximum Values)
1000Base-SX
2000 Mb/s
Connector
RJ-45 (at SWM of enclosure)
Cable Support
1000
Base-TX
Cable Support 1000 Base-TX
Category 5 UTP up to 328 ft (100 m)
Environment-friendly Products
and Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
Canadian Site
DL QuickSpecs
Search:
US QuickSpecs
403621-B21
© 2013 USA PartsDirect
