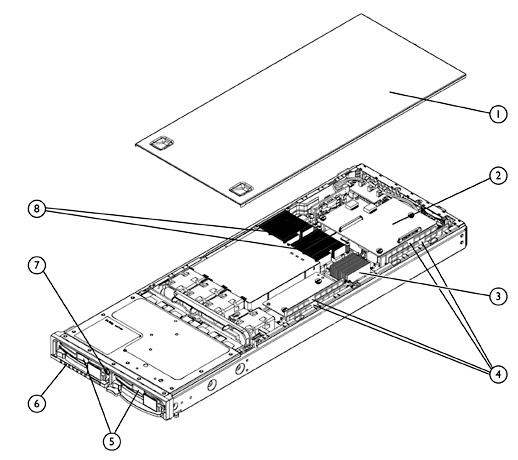

Supports up to two Intel Itanium 2™ 1.6 GHz/3MB L3 Cache
processors.
HP's high performance zx1 chipset for Intel Itanium™.
Memory:
PC2100 Registered ECC 133MHz DDR1 memory, 2 x 1 Interleaved Memory
4 DIMM slots, expandable to 8 GB. When the same density DIMMs are
loaded in quads the Chip Sparing functionality is automatically
enabled. HP's Chip Sparing will logically replace a SDRAM which
has experienced a multi-bit error.
Storage Controller:
Two (2) embedded Fibre Channel Ports (2-Gb per port)
Internal Drive Support:
Ultra320 SCSI Drive Cage (standard) supports up to two Ultra320
SCSI hot-plug hard disk drives
Network Controller:
Five total network ports:
Four (4) PCI-X Gigabit Ethernet embedded ports consisting
of two (2) Braodcom 5704 NICs.
One additional 10/100T NIC dedicated to Integrated Lights-Out
(iLO) Management
USB Ports:
Local I/O cable provides two USB ports, one video port, one iLO
port and serial port
Form Factor:
Plugs vertically into 6U enclosure, up to 8 server blades per
enclosure
Management:
Integrated Lights-Out (iLO) for Integrity remote management (embedded
hardware and firmware on system board)
Deployment/Serviceability:
Integrated Access Tool for server blade management and enhanced
server blade documentation including Best Practices and Common Procedures
guides
Other Features:
Compatible with HP ProLiant Server Blades in a single enclosure
HP Integrity BL60p server blade supporting HP-UX for BladeSystems
Warranty:
Protected by HP Services with a three-year Next Business Day,
on-site limited global warranty. Certain restrictions and exclusions
apply. Pre-Failure Notification on processors, memory, and SCSI
hard drives.
NOTE: All U320
Universal Hot Plug Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller to support U320 transfer
rates.
PC2100 DDR SDRAM running at
133MHz and 266MHz transfers/second
Standard
0 or 4 GB (depending on model)
Maximum
8 GB
NOTE:
Memory must be installed in pairs. Chip Sparing is enabled if all four DIMMs
are the same size/density.
Network Adapter
Five network ports total:
Four (4) PCI-X Gigabit Ethernet
ports consisting of two Broadcom 5704s
One 10/100 iLO NIC dedicated
to management NOTE: Must use a HP BladeSystem p-class
server blade enclosure with enhanced backplane (281404-B22, 243564-B22 or
380625-B22). NOTE: For more information on HP BladeSystems p-Class Infrastructure,
please see the following QuickSpecs: HP BladeSystem p-Class Infrastructure
QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12330_div/12330_div.html
Expansion Slots
No I/O expansion slots; all
I/O features are standard/embedded
I/O cable connectors:
(2)USB 2.0 ports, and (1) serial
console port NOTE: The iLO LAN port and the VGA
video ports on the I/O cable are not supported on the HP Integrity BL60p
server blade.
(2) I/O cables ship with every
server blade enclosure
NOTE: The HP
Integrity BL60p server blade uses the same BladeSystems I/O cable
Tested USB devices are listed
in the "Options" section of this QuickSpecs
Integrated Manageability
Integrated Lights-Out (iLO)
remote ,management (embedded hardware and firmware)
(Supports standard Integrity CLI (Command Line Interface) and BladeSystems
Management Functions)
Internal Storage
Hard Drives
2 x 36GB Ultra320, hard drives
Maximum Internal Storage
600GB (internal drive cage)
2 x 300GB Ultra320, hard drives
Fiber Channel on the
HP Integrity BL60p server blade
Two standard fiber channel ports are embedded on the HP Integrity BL60p.
QLogic-FC Controller
Utilizes a QLogic ISP2312 chipset
Two ports provide a redundant Fibre Channel connection
HP Integrity BL60p server blades are optimized for StorageWorks arrays:
EVA, XP48, XP128, XP256, XP512, XP1024, XP10000, XP12000, HP StorageWorks
Modular Smart Array 1000 and 1500 cs, HP StorageWorks Disk System (DS)
2405HP and HP StorageWorks Virtual Arrays.
HP
offers a comprehensive set of integrated tools for seamless management of HP Integrity
servers. HP Systems Insight Manager (SIM) and HP Integrity Essentials help you
control IT infrastructure with unified management of your HP Integrity server
environment. http://www.hp.com/go/integrityessentials
HP Systems Insight Manager
HP Systems Insight Manager (SIM) is the foundation for HP's unified server-storage
management strategy. It is a multiple operating system, hardware level management
product that supports HP Integrity, HP ProLiant and HP 9000 servers. HP SIM is
easily extensible, integrating other HP management products and value-add plug-ins
such as HP Integrity Essentials. For more details on HP Systems Insight Manager
visit http://www.hp.com/go/hpsim
Software Deployment
HP Ignite-UX for installation and deployment of the HP-UX operating system
HP Software Distributor-UX for software and patch management
Update-UX
automates updates to HP-UX operating environments.
Software Package
Builder packages software into SD-UX packages
Configuration
Management
HP System
Management Homepage/System Administration Manager for HP-UX system administration
HP HP-UX 11i version 2 Foundation Operating Environment (Standard)
HP HP-UX 11i version 2 Enterprise Operating Environment (Optional) NOTE: Each HP Integrity BL60p server
blade includes a two processor License-to-Use for HP-UX Foundation Operating
Environment. NOTE: For more information about HP-UX go to: http://www.hp.com/go/hp-ux.
Intelligent Manageability
Integrated Lights-Out for Integrity (iLO)
Dedicated LAN Connectivity
Dedicated embedded manageability processors (BMC & MP)
Web Graphical User Interface (GUI) - Access iLO from anywhere using any
of standard browsers
Telnet access
Virtual Power and reset control
Remote text console - Operating system-independent, text-based console
to display and control remote host server activities such as shutdown
or start-up- remotely view HPUX console
Command line and scripting interfaces - Flexible operation, configuration
and maintenance
SSL encryption - All data transmitted between iLO processors and client
browsers
Embedded System Health
iLO and server diagnostics - Detailed status, logs
Automatic IP Configuration via DHCP/DNS
Remote Firmware Update
SNMP identification
IPMI over LAN
Integrated Lights-Out (iLO)
for Integrity Advanced (Included)
Directory Services Integration for iLO User Management using LDAP based
Directory Services
Secure Shell (SSH encryption) support for secure access to iLO
iLO Group Actions for managing multiple systems using HP Systems Insight
Manager
Full suite of HP-UX diagnostic
utilities
HP Systems Insight Manager integration
Advanced Configuration and Power Interface Specification Compliant (ACPI)
Availability
Intel Itanium2™ Enterprise Class Processor Itanium Enhanced Machine Check
Architecture (MCA) with Extensive ECC - a comprehensive set of features and protocols
for handling random system errors
Processor cache parity
/ ECC System bus ECC Data poisoning on double-bit errors Hardware
error logging for root cause analysis DPR (dynamic processor resiliency) for
HPUX
Dual-Port Fibre Channel for redundant SAN connection
HP-UX Mirror-UX for disc mirroring with HP HP-UX 11i version 2 Enterprise Operating
Environment ECC Memory with Chip Sparing Network adapter teaming (network
fault tolerance, transmit load balancing, switch-assisted load balancing)
Security
Power-on password
Administrator's password
Integrated Lights-Out for Integrity has 19 customizable user accounts and
SSL encryption
Integrity Integrated Lights-Out LAN access methods can be individually enabled
and disabled.
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration, customization, integration
and deployment services for HP servers and storage products. Customers
can choose how their factory solutions are built, tested, integrated,
shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging and custom packaging.
HP products supported through Factory Express include: a wide array of
servers and storage: HP Integrity, HP ProLiant & HP ProLiant Server
Blades, HP Integrity Server Blade, HP BladeSystem, HP 9000 servers as
well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable
network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to http://www.hp.com/go/factory-express.
Service
and Support
HP Premium Services are available for the HP Integrity BL60p server blade.
These services offer integrated hardware and software support to help
customers maintain a robust, stable, flexible IT environment that enhances
their business agility. They encompass today's most popular products,
including UNIX, Windows, and Linux servers, as well as mobile technology,
network devices, desktops, printers, storage solutions, management software
and more.
All of these Premium offerings let customers leverage HP Services multi-vendor,
multi-technology experience and expertise; global reach with delivery
capabilities from 600 offices in 160 countries; single-point-of-contact
problem diagnosis and resolution; advanced remote monitoring and performance
enhancement technologies; and proven support management processes based
on IT best practices.
HP Services professionals can help customers identify the Premium support
offering that fits their business and technology goals. HP Premium Hardware
and Software Services include:
Mission
Critical Partnership - custom services
to help you achieve your strategic business goals and fulfill your most
demanding service-level commitments through continual service-quality
improvements
HP
Critical Service - comprehensive preventive
services and super-responsive support to maximize availability and
minimize downtime risk exposure in mission-critical environments
HP
Proactive 24 Service - collaborate with HP
Services professionals to improve operational effectiveness,
performance, and stability through joint services planning and 24x7
hardware/Software Support
Support
Plus 24 - 24x7x365 onsite hardware and
over-the-phone Software Support for HP and selected multi vendor
products, plus software updates at substantial subscription savings
Support
Plus - the economical choice for single-source hardware/Software
Support delivered during extended business hours, as well as cost-saving
software updates
This product is covered by a global limited warranty and supported by
HP Services: NOTE:Server Blade Limited Warranty
includes 3 year Parts, 3 year Labor, 3-year on-site support. NOTE: Server Blade Enclosure Limited Warranty includes 3 year Parts,
3 year Labor, 3-year on-site support.
Care Pack services provide a range of life cycle support options that
let you choose the service levels that meet your business requirements,
from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available
including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from
same business day 13 hours, 5 day to 24 hours, 7 days call window with
options including 4-hour response or 6-hour Call To Repair
Comprehensive range of software technical
support.
System Management, Performance Services and Mission Critical Support
Solution
NOTE:
The Pre-configured model is designed for ease of ordering and deployment. This
model has no available expansion slots (no processor, memory, or drive bays) for
options, but can be factory installed in an enclosure with a Factory Express order.
The HP-UX operating environment can be loaded on the hard drive, using HP Ignite
UX or an USB DVD drive. The HP-UX Operating Environment can be factory loaded
on the Drive-0 hard drive with the appropriate ordered options.. Upgrades to HP-UX
Enterprise Operating Environment (HP-UX EOE) can be factory load the HP-UX EOE
to be loaded on Drive-0.
Two
(2) Intel Itanium2™ processors: 1.6 GHz (2 standard)
Cache
Memory
3MB Level 3 cache
BL60p G1 Memory
4
GB 2-way interleaved PC2100 DDR SDRAM running at 133MHz
Network
Adapter (Standard)
Four
(4) PCI-X Gigabit Ethernet embedded ports consisting of two (2) Broadcom 5704
controllers One additional 10/100 NIC dedicated to iLO Management
Storage Controller (Standard)
Two
(2) FC Qlogic ISP2312 controllers (2 Gb ports) One (1) LSI U320 controller
for hot plug U320 SCSI drives
Hard
Drives
Two (2) 36GB 15,000 rpm U320
SCSI hard drives
Internal
Storage
Up to 600GB maximum (with optional,
U320 SCSI hard drives)
Optical
Drive
None
Form
Factor
Plugs vertically into
HP BladeSystem p-Class Server Blade Enclosure (full height server blade)
Operating Environment
HP
HP-UX 11i version 2 Foundation Operating Environment
NOTE:
Option 0D1 installs in a server blade enclosure when ordered with Factory
Express; which is installed in a HP Rack 10000 series on a shock pallet.
NOTE: Please use BL p-Class sizing tool to determine power based on your
configuration http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls.
Base Models
NOTE:
The Base model allows for the most configuration flexibility. This model
does not support factory configuration or integration. This model requires
the customer (or reseller) to assemble the options on site, after which
the HP-UX OE can be loaded on the hard drive (using HP IgniteUX or a USB
DVD drive). The base model also includes an HP-UX Foundation OE two processor
License-to-use, which can be upgraded to HP-UX Enterprise OE two processor
License-to-use.
Integrity BL60p
1.6GHz/3MB
AD000A
Processor(s)
One (1) Itanium2™ 1.6 GHz (Up
to 2 supported)
Cache Memory
3MB Level 3 cache
Memory
None
Network Adapter
(Standard)
Four (4) 1-Gigabit Ethernet
embedded ports
One additional 10/100 NIC dedicated to iLO Management
Storage Controller
(Standard)
Two (2) Fibre Channel 2-Gigabit
per second Ports
Hard Drives
None
Internal Storage
Up to 600GB maximum (with optional,
U320 SCSI hard drives)
Optical Drive
None
Form Factor
Plugs vertically into HP BladeSystem
p-Class Server Blade Enclosure (full height blade server)
Operating Environment
HP-UX Foundation Operating Environment
2 Processor License-to-Use
NOTE:
Base Models do not support factory configuration or integration and requires
customer and/or reseller to assemble options on site. The HP-UX operating
environment can be loaded on the hard drive, using HP Ignite UX or an USB
DVD drive. NOTE: Please use BL p-Class sizing tool to determine power based
on your configuration http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls.
HP BL60p Intel Itanium2M 1.6 GHz/3MB
Processor Option Kit
AD115A
NOTE: If 2 processors
are desired for base models, please select one AD115A.
Operating System
HP-UX 11iv.2
Upgrade to Enterprise Operating Environment
BA535AC
MEDIA NOTE: Choose
Foundation or Enterprise OE media corresponding to license.
Choose Instant Ignition option 0D1 to pre-load the appropriate OE on the
Pre-Configured models ONLY. The Base Model is BTO (build to order and the
customer must install HP-UX. (HP-UX cannot be factory loaded on the base
model). Choose one of the localization options to determine startup language
for instant ignition and HP-UX documentation. One copy of the DVD media
is required for each site.
HP-UX
11i v.2 Foundation Operating Environment media for Itanium servers NOTE: Kit includes: DVD media; Factory Integrated
(pre-loads HP-UX 11i v.2; online diagnostics and drivers; HP-UX 11i
version 2; Select appropriate language option for system messages and
documentation.
B9106AA
HP-UX
11i v.2 Enterprise Operating Environment media for Itanium servers NOTE: Kit includes: DVD media; Factory Integrated (pre-loads HP-UX
11i v.2; online diagnostics and drivers; HP-UX 11i version 2; Select appropriate
language option for system messages and documentation.
B8482AA
BL60p G1 Memory
(SDRAM DIMMs)
HP Integrity 1 GB PC2100 DDR Memory
Module/Kit (2 x 512 MB)
AD195A
HP Integrity 2 GB PC2100 DDR
Memory Module/Kit (2 x 1 GB)
AD196A
HP Integrity 4 GB PC2100 DDR
Memory Module/Kit (2 x 2 GB)
AD197A
NOTE: When selecting
the base models, one of the above memory modules (pair) must be selected.
A maximum of two modules are supported. NOTE: No memory is included in the Pre-Configured models. You must
choose at least one of the memory modules (pair). A maximum of two modules
are supported. NOTE: Memory DIMMs must be installed in modules (pairs).
BL60p Hard Drives
Ultra320 SCSI – Universal
Hot Plug Hard Drives
300-GB 15,000 rpm U320 Universal Hot Plug Hard Drive
NOTE: All U320
Universal Hot Plug Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller to support U320 transfer
rates.
NOTE: Please see
the StorageWorks Modular Smart Array 1500 cs QuickSpecs for additional options
and configuration information at: http://www.hp.com/go/MSA1500cs
NOTE: xxxxxx-B22
(shock pallet) used to ship racks with equipment installed (by custom systems,
VARs and Channels). NOTE: It is mandatory to use a shock pallet in order to ship racks
with equipment installed.
NOTE:
Cat5e cables are required to connect Interface Adapters to Console Switches.
Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
NOTE: Cat5e
cables are required to connect Serial Adapters to Serial Console Servers.
Additional Serial Adapters and Cat5e cables can be found at the following
URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
Service and Support Offerings
(HP Care Pack Services)
Support Plus
Support Plus, 1 Year
HA109A1
Support Plus, 3 Years
HA109A3
Support Plus 24, 1 Year
HA110A1
Support Plus 24, 3 Years
HA110A3
HP Proactive Service
HP Proactive Service, 24
Hour, 1 Year
HA111A1
HP Proactive Service, 24
Hour, 3 Year
HA111A3
HP Critical Service
Hardware Only, Critical
Service, 7-Day x 24 Hour, 1 Year
HA112A1
Hardware Only, Critical
Service, 7-Day x 24 Hour, 3 Years
HA112A3
Installation Services
Hardware Installation and
Network Configuration, 1 Year
Both DIMM slots in a memory bank must be
populated.
Both DIMM slots in a memory bank must be
identical.
Processor 1 memory bank 1 must always be populated.
NOTE: Two-way memory interleaving is
enabled when an identical pair of DIMMs is installed. NOTE: Chip Sparing is automatically enabled with 4 DIMMs of the
same size/density installed.
Standard Memory
4096 MB PC2100 DDR SDRAM DIMM installed (4 x 1024 MB DIMM) running at
133-MHz
Standard Memory Replaced with Optional Memory
Up to 8192 MB of PC2100 DDR SCRAM DIMM memory is available with the removal
of standard memory and the installation of optional PC2100 DDR SDRAM DIMM
memory expansion modules/kits.
BL60p G1 Memory
Slot
1
2
3
4
Standard
4096 MB
1024 MB
1024 MB
1024
MB
1024 MB
Maximum
8192
MB
2048 MB
2048 MB
2048
MB
2048 MB
Following are memory options
available from HP:
HP Integrity 1 GB PC2100 DDR SDRAM MemoryModule Kit (2 x 512 MB)
AD195A
HP Integrity 2 GB PC2100 DDR SDRAM
Memory Module
K it (2 x 1 GB)
AD196A
HP Integrity 4 GB PC2100 DDR SDRAM
Memory Module
Kit (2 x 2 GB)
*NOTE:
All temperature ratings shown are for sea level. An altitude derating of
1° C per 304.8 m (1.8° F per 1,000 ft) to 3048 m (10,000 ft) is
applicable. No direct sunlight allowed. Upper operating limit is 3,048m
(10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000
ft) or 30.3 KPa/4.4 psia.
**NOTE: Storage maximum humidity of 95% is based on a maximum temperature
of 45° C (113° F). Altitude maximum for storage corresponds to a
pressure minimum of 70 KPa.
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
