Two (2) small form factor (SFF) hot-plug drive bays
2.
Internal USB connector
6.
Local I/O Connector
3.
Twelve (12) DDR3 Registered or Unbuffered DIMM
Memory Slots
7.
Internal SD card slot
8.
Up to two (2) Intel® Xeon® 5500 or 5600 series processors
4.
HP Smart Array P410i Controller (under drive bays)
9.
Access Panel
What's New
Support for HP 900GB 6G SAS 10K SFF (2.5-inch) Enterprise 3yr Warranty
Hard Drive
At A Glance
This document covers the HP ProLiant BL460c G7 server blade only. For
more information on HP BladeSystems c-Class Enclosures and HP BladeSystem
c-Class Interconnect and Mezzanine Components, please see the following:
The HP ProLiant BL460c G7 provides greater 2P x86 server blade density
without compromise and maximum power-efficiency with flexibility and choice.
HP ProLiant BL460c G7 server blade includes:
Processor:
Up to two (2) Intel® Xeon® 5500 or 5600 Series processors
Intel® 5520 Chipset
Memory:
Twelve (12) DIMM slots
Up to 384GB, using PC3-10600 DDR3 Registered (RDIMM) memory, operating
at 800MHz when fully populated at 2 DIMMs per Channel in 12 slots
Up to 48GB, using PC3-10600 DDR3 Unbuffered (UDIMM) memory, operating
at 1333MHz when fully populated at 2 DIMMs per Channel in 12 slots
Storage Controller:
HP Smart Array P410i Controller (RAID 0/1)
Internal Drive Support:
Up to two (2) small form factor (SFF) SAS or SATA hot plug hard
disk drives or SATA solid state drives
Network Controller:
Integrated NC553i Dual Port FlexFabric 10Gb Adapter supporting
stateless TCP/IP offload, TCP Offload Engine (TOE), Fibre Channel
over Ethernet (FCoE) and iSCSI protocols NOTE: Fibre Channel over
Ethernet (FCoE) capability requires the use of an HP Virtual Connect
FlexFabric 10Gb/24-port Module or HP 10GbE Pass-Thru Module. Learn
more at: www.hp.com/go/virtualconnect. NOTE: Each port is autosensing 1 Gb/10 Gb, and can interoperate
with 1 Gb HP BladeSystem c-Class interconnect components. Both ports
will operate at the same speed.
One (1) additional 10/100 server adapter dedicated to iLO 3 Management
Mezzanine Support:
Two (2) I/O expansion mezzanine slots
Supports up to two (2) mezzanine cards
Dual Port FlexFabric Adapter mezzanine option
Dual-Port Fibre Channel Mezzanine (4-Gb or 8-Gb) options for
SAN connectivity
Ethernet server adapter mezzanine options for additional network
ports
InfiniBand (IB) Mezzanine options for low latency and high
bandwidth server interconnectivity
I/O Accelerator mezzanine options for high transaction rate
local storage
SAS mezzanine option for external direct attach and shared
SAS storage
Expansion Blade Support:
Supports one (1) optional storage, tape, or PCI expansion blade
Internal Media Support:
One (1) internal USB 2.0 connector for security key devices and
USB drive keys
One (1) internal SD-HC Card slot
Trusted Platform Module:
One (1) internal TPM 1.2 module connector
Form Factor:
HP ProLiant BL460c G7 is a half-height server blade that plugs
into the HP BladeSystem c3000 and c7000 enclosures
Infrastructure Management:
This server blade requires the latest version of the Onboard
Administrator firmware. This firmware release may also require other
subsystem firmware upgrades. For information on the latest firmware
versions, please see the Blades Firmware Maintenance website at:
http://h18004.www1.hp.com/products/blades/components/c-class-compmatrix.html
HP Integrated Lights-Out 3 (iLO 3) management processor for simplified
server setup, health monitoring and recovery, power and thermal
control, and lights-out remote administration.
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to
deploy, migrate, monitor, control and optimize your IT infrastructure
through a single, simple management console. Insight Control supports
both Windows and Linux-based central management servers.
HP Insight Dynamics for ProLiant, a product option, is an integrated
command center that enables IT Staff personnel to continuously analyze
and optimize a converged infrastructure, while automating and reducing
the cost of common data center tasks by as much as 40 percent. This
ultimately enables them to dynamically keep pace with the organization's
changing business requirements.
Operating Systems and Virtualization Software:
Supports Windows, RHEL, SLES, Oracle Solaris, VMware, and Citrix
XenServer NOTE: For more information
on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your
server, please visit our Support Matrix at: http://www.hp.com/go/ossupport
and our driver download page
Enclosures:
HP offers two different c-Class server blade enclosures to meet
your individual needs:
The HP BladeSystem c7000 rack enclosure is 10U high and holds
up to sixteen (16) ProLiant BL460c G7 servers plugged vertically.
The HP BladeSystem c3000 rack enclosure is 6U high and holds
up to eight (8) HP ProLiant BL460c G7 servers plugged horizontally.
Server blades, storage blades, interconnect modules, power supplies,
fans, and redundant Onboard Administrator modules are all designed
to fit into the c3000 and c7000 enclosures.
This product is covered by a global limited warranty and supported
by HP Services and a worldwide network of HP Authorized Channel
Partners. Hardware diagnostic support and repair is available for
three years from date of purchase. Support for software and initial
setup is available for 90 days from date of purchase. Enhancements
to warranty services are available through HP Care Pack services
or customized service agreements. Certain restrictions and exclusions
apply. Hard drives have either a one year or three year warranty;
refer to specific hard drive QuickSpecs for details. NOTE: Server warranty includes
3 year Parts, 3 year Labor, 3-year on-site support. Warranty repairs
may be accomplished through the use of Customer Self Repair (CSR)
parts. These parts fall into two categories: 1) Mandatory CSR parts
are designed for easy replacement. A travel and labor charge will
result when customers decline to replace a Mandatory CSR part; 2)
Optional CSR parts are also designed for easy replacement but may
involve added complexity. Customers may choose to have HP replace
Optional CSR parts at no charge. Additional information regarding
worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
NOTE: HT indicates
that the processor model supports Intel® Hyper-Threading Technology. NOTE: Turbo indicates the maximum potential frequency increment when
using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active
(on Four Core processors) or with 6, 5, 4, 3, 2, and 1 cores active (on
Six Core processors). NOTE: DDR3 speed is the maximum memory speed of the processor. Actual
memory speed may depend on the quantity and type of DIMMs installed. NOTE: For the Intel 5500 and 5600 Series, the letter preceding the
model number indicates the performance/wattage of the processor. "X"
denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage
(Mainstream); and "L" denotes Lower Wattage.
Upgradeability
Upgradeable to two (2) processors
Cache Memory One of the following depending on Model
4MB shared L3 cache
8MB shared L3 cache
12MB shared L3 cache
Chipset
Intel® 5520 Chipset
Memory
Type
DDR3 Registered (RDIMM) or Unbuffered
(UDIMM)
Standard
6 GB (3 x 2GB) RDIMM
Maximum (RDIMM)
384GB (12 x 32 GB) for Registered
Memory configurations
Maximum (UDIMM)
48 GB (12 x 4 GB) for Unbuffered
Memory configurations
NOTE:
A minimum of 2GB of memory must be installed. NOTE: Depending on the memory configuration and processor model the
memory speed may run at 1333MHz, 1066MHz or 800MHz. Please see the Online
Memory Configuration Tool for details: www.hp.com/go/ddr3memory-configurator
Integrated NC553i Dual Port
FlexFabric 10Gb Adapter NOTE: FlexFabric capability requires
the use of an HP Virtual Connect FlexFabric module or HP 10GbE Pass-Thru
Module. Learn more at: www.hp.com/go/virtualconnect.
One (1) additional 10/100 NIC
dedicated to iLO 3 Management
I/O Expansion Slots
Two (2) I/O expansion mezzanine
slots (x8 PCI Express)
Integrated Manageability
HP Integrated Lights-Out 3 (iLO
3) management processor
Storage Controller
Type
HP Smart Array P410i Controller
(RAID 0/1) with no cache
Available Options:
256MB cache, 1G and 512MB Flash Backed Write Cache (FBWC), and Smart Array
Advanced Pack.
NOTE:
Supports two (2) Small Form Factor (SFF) Hot Plug drive bays.
Maximum Internal
Storage One of the following depending on Model
Hot Plug SAS
2TB
2 x 1TB Serial SCSI
Hot Plug SATA
2TB
2 x 2TB Serial ATA
Hot Plug SATA SSD
240GB
2 x 120GB Serial ATA SSD
Graphics
Integrated Matrox
G200
Resolution Color Depths
1600 x 1200, 64K, 256, 16
1280 x 1024, 16.7M, 64k, 256, 16
1024 x 768, 16.7M, 64k, 256,16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16
NOTE:
Maximum resolution available via HP Integrated Lights-Out 3 (iLO 3) remote
console is 1280 x 1024.
Fibre Channel Support
Two (2) optional Fibre Channel HBAs are supported by the HP ProLiant
BL460c G7. Both mezzanine circuit boards connect directly to the server
blade system board. These Fibre Channel HBAs are available via option
kits and must be ordered separately.
HBA mezzanine card option kits:
Emulex LPe1105 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
(403621-B21)
Based on the same field-proven ASIC, firmware, and driver technology
as Emulex's renowned LPe1150 HBA, the Emulex LPe1105-HP is fully driver
compatible with all Emulex HBAs
Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
(456972-B21)
Exceptional performance, enhanced security, and scalable management
for virtual server and enterprise-class applications
QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
(403619-B21)
Uses common drivers which means that customers can standardize on
one QLogic driver whether they are using the QMH2462 or other HBAs powered
by QLogic
QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
(451871-B21)
Provides a first step into the 8Gb future, advanced, embedded support
for virtualized environments and reduced power consumption
HP BLc Brocade 804 8Gb Fibre Channel Host Bus Adapter (590647-B21)
Application oriented Quality of Service (AQoS) providing the ability
to configure, prioritize, and optimize traffic flows from virtual machines
and/or applications to the target port
Brocade, Emulex and QLogic Fibre Channel HBAs for HP BladeSystem c-Class
feature:
Optimal performance utilizing PCI Express
4/2/1Gb/s auto negotiating speeds (4Gb HBAs)
8/4/2Gb/s auto negotiation speeds (8Gb HBAs)
Dual-ports for redundant path connections
Up to two FC HBAs per server blade providing redundant FC HBA support
Optimized for HP StorageWorks and supported by third party SAN vendors
Support for Microsoft® Windows® and Linux operating system
environments
Compatible SAN
HP ProLiant BL460c G7 server blades are optimized for HP StorageWorks
MSA, EVA and XP.
HP Virtual Connect is an interconnect option for BladeSystem c-Class
that simplifies server connectivity to data and storage networks, and
reduces costs. Unique HP Flex-10 and FlexFabric technologies make maximum
use of network bandwidths, provide dynamic tuning and enable extreme flexibility
to meet individual server and infrastructure requirements. HP Virtual
Connect Enterprise Manager (VCEM) provides a central console to administer
network connections and workloads for thousands of servers. For more information
on Virtual Connect Ethernet, Fibre Channel, Converged Network and management
options see: www.hp.com/go/virtualconnect
HP Insight management software
HP Insight Foundation
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecycle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: http://www.hp.com/go/foundation.
The foundation pack includes:
NOTE: In an effort to support reducing
our environmental impact, the HP Insight Foundation Suite for ProLiant
media will be available as a selectable option for this server at time
of order of a Factory Integrated Model. This will allow customers to order
the number of media kits that best meet their needs and eliminate receiving
unnecessary duplicate media.
HP Integrated Lights-Out (iLO)
HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring,
power and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP iLO functions without additional software and
can be accessed from any location via a web browser. HP iLO works hand-in-hand
with HP Systems Insight Manager, Insight Control suites, and Insight Dynamics
for ProLiant, helping customers unleash the value of the ProLiant platform
and deliver the highest possible quality of IT service. For more information,
visit: www.hp.com/go/iLO
HP Insight Control
HP Insight Control, a product option, delivers
essential infrastructure management that can help save time and money by
making it easy to deploy, migrate, monitor, remote control, and optimize
your IT infrastructure through a single, simple management console.
Two versions of Insight Control are available, to serve environments requiring
either a Linux-based or a Windows-based central management server: HP Insight
Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol
HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, please
visit: http://www.hp.com/services/insight.
HP Insight Dynamics for ProLiant
HP Insight Dynamics for ProLiant, a product
option, is advanced infrastructure management software that enables IT staff
to instantly adjust their environments to meet dynamic business demands
by provisioning, optimizing and protecting complex infrastructure in minutes.
It's a powerful toolkit, integrated-by-design, that accelerates complex
technology projects and simplifies daily operations, transforming data center
economics. With Insight Dynamics IT professionals can plan capacity and
power continuously, balance workloads across physical and virtual resources,
and ensure cost-effective high availability. It also enables IT organizations
to provision infrastructure consistently and automatically from pools of
shared resources using a self-service portal. Resources provisioned can
range from a single virtual machine to complex multi-tier environments and
their associated physical and virtual resource requirements. In addition
to the previous functional benefits, it also provides a cost-effective disaster
recovery for physical and virtual environments that works with HP StorageWorks
Continuous Access software for both the Enterprise Virtual Array and the
XP storage array allowing application environments to be reactivated in
minutes with the touch of a button to a remote location.
HP Cluster Platforms are specifically engineered, factory-integrated
large-scale ProLiant clusters optimized for High Performance Computing,
with a choice of servers, networks and software. Operating system options
include specially priced offerings for Red Hat Enterprise Linux and Novell
SLES, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator
simplifies ordering. http://www.hp.com/go/clusters
HP HPC Interconnects
High Performance Computing (HPC) interconnect technologies are available
for this server as part of the HP Cluster Platform portfolio. These high-speed
InfiniBand and Gigabit interconnects are fully supported by HP when integrated
within an HP cluster. Flexible, validated solutions can be defined with
the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management Utility
HP Cluster Management Utility (CMU) is an
HP-licensed and HP-supported suite of tools that are used to manage large-scale
Linux ProLiant systems. CMU includes software for the centralized provisioning,
management and monitoring of nodes. CMU makes the administration of clusters
user friendly, efficient, and effective. http://www.hp.com/go/cmu
HP HPC Linux Value Pack
HP HPC Linux Value Pack (Value Pack) is an
HP-licensed and HP-supported specially priced software bundle for the development
and deployment of applications on HPC Cluster Platforms. Value Pack includes
the Platform HPC Enterprise Edition suite of tools including the LSF workload
scheduler, the HP-MPI parallelization library. Also included are the HP
Unified Parallel C compiler and the HP Shmem library, as well as the execution
environments for the libraries and compiler. HP
HPC Linux Value Pack
Operating Systems and Virtualization Software Support for ProLiant Servers
NOTE:
For more information on HP's Certified and Supported ProLiant Servers for
OS and Virtualization Software and latest listing of software drivers available
for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport
and our driver download page http://www.hp.com/support/BL460cG7
Availability
Dual-Port Fibre Channel Mezzanine Card options for redundant SAN
connection
Dual-port embedded 10 Gigabit Ethernet adapters for redundant LAN
connections
Two (2) hot-plug SAS/SATA hard drive bays and integrated RAID (HP
Smart Array P410i Controller)
Optional Battery-backed and Flash-backed write cache module for integrated
RAID controller
Redundant ROM
Advanced ECC Memory
Support for Memory Mirroring Mode and Memory Lock-Step Mode
Support for Memory Online Spare Mode with Xeon 5600 Series processors
ACPI 2.0 Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
USB 2.0 Support
IMPI 2.0 Compliant
SMASH CLP Compliant
Security
Power-on password
Administrator's password
Keyboard password (QuickLock)
Integrated Lights-Out 3 with:
12 customizable user accounts
SSL encryption
Secure Shell version 2
Advanced Encryption Standard (AES) and Triple Data Encryption
Standard (3DES) on browser, CLP and XML scripting interface
AES and RC4 encryption of video
Disable via a global setting
Keyboard password
External USB port enable/disable
Network server mode
Serial interface control
TPM (Trusted Platform Module) 1.2 option
Security - Trusted Platform
Module
The TPM (Trusted Platform Module)
is a microcontroller chip that can securely store artifacts used to authenticate
the server platform. These artifacts can include passwords, certificates
and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker)
is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module
(TPM) version 1.2. The TPM works with BitLocker to help protect user data
and to ensure that a server running Windows Server 2008 has not been tampered
with while the system was offline.
NOTE: For more information about
TPM, including a white paper, go to: http://www.hp.com/go/TPM NOTE: ProLiant OS pre-installed units will come with the partition
required for TPM deployment. NOTE: The TPM key is unique to every TPM deployed server and must
be retained. Misplacing or losing the key could result in data loss.
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and storage
products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of servers
and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem,
HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries
and configurable network switches.
For more information on Factory Express services on your specific server
model please contact your sales representative or go to: http://www.hp.com/go/factory-express.html
HP Enterprise Configurator
The HP e-Configure Enterprise
Configurator now provides factory default racking for our HP hardware portfolio.
This approach is aligned with our strategic direction to meet the needs
and expectations of our valued customers. If you require "custom"
rack configuration, please contact HP's Customer Business Center or an Authorized
Partner for assistance. http://www.hp.com/products/configurator
HP Technology Services for
Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires
a service partner who understands your increasingly complex business technology
environment. That's why it makes sense to team up with the people who know
HP infrastructure hardware and software best - the experienced professionals
at HP Services.
What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test,
integrate, support, and manage IT and infrastructure solutions. This way,
HP proposes services solutions that include more than just uplift of base
warranty. You can get the support you need by choosing from one of a number
of service packaged solutions we have designed to address wider set of customer
support needs:.
HP Technology Services meets business challenges with services offered
in three packages
Optimized Care Package, Standard Care Package, and Basic Care Package -
available for each product group. Such packaged solutions enable customers
to optimize technology operations, minimize risk and drive better business
outcomes with easy-to-buy, easy-to-use scalable support packages for servers,
storage, networking and software.
Optimized Care Package
Supports maintaining servers
at optimum performance availability
HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure
for c3000/c7000 enclosure
Provides for the installation and startup of a BladeSystem c3000 Infrastructure
in a single blade enclosure including hardware and software, including deployment
of OS, HP SIM, RDP, RDP, PMP and VPM. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW
3-Year HP Critical Advantage for c3000/c7000 enclosure + 3-Year HP Critical
Advantage for Blade server
Provides end-to-end infrastructure support solution for business critical
applications running on virtualized/x86 infrastructures, enabling the customers
to cost effectively build, operate, and continuously improve their IT environment.
http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA3-1772ENW
HP Installation and Startup Service for HP BladeSystem c-Class Enhanced
Network
HP Provides for the configuration and testing of BladeSystem Ethernet interconnect
switches to facilitate proper implementation of network protocols and access
to advanced features. http://h20195.www2.hp.com/V2/GetPDF.aspx/4aa0-5969ENW
Package that maintains high
level of server availability
HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure
for c3000/c7000 enclosure
Provides for the installation and startup of a BladeSystem c3000 Infrastructure
in a single blade enclosure including hardware and software, including deployment
of OS, HP SIM, RDP, RDP, PMP and VPM. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW
HP Installation and Startup Service for HP BladeSystem c-Class Enhanced
Network
HP Provides for the configuration and testing of BladeSystem Ethernet interconnect
switches to facilitate proper implementation of network protocols and access
to advanced features. http://h20195.www2.hp.com/V2/GetPDF.aspx/4aa0-5969ENW
3-Year, HP 6 hour Hardware Support Onsite Call-to-Repair Service for
c3000/c7000 enclosure + 3-Year, HP 6 hour Hardware Support Onsite Call-to-Repair
Service for Blade server
Provides an IT manager with a team of support specialists who will quickly
begin troubleshooting the system to help return the hardware to operating
condition within 6 hours of the initial service request to the HP Global
Solution Center. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN
3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf
Additional Services: Software OS (Microsoft, Linux (SUSE/Red Hat)
& VMware Installation & Start Up and Software Support); Microsoft
or Linux or VMware education courses; +60 Proactive Select Credits, Factory
Express.
Basic Care Package
Delivers minimum recommended support service level
HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure
for c3000/c7000 enclosure
Provides for the installation and startup of a BladeSystem c3000 Infrastructure
in a single blade enclosure including hardware and software, including
deployment of OS, HP SIM, RDP, RDP, PMP and VPM. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW
3-Year, HP 24x7 4 hour Response, Hardware Support Onsite Service for
c3000/c7000 enclosure + 3-Year, HP 24x7 4 hour Response, Hardware Support
Onsite Service for Blade server
Provides you with rapid remote support and if required an HP authorized
representative who will arrive on site any time and day of the year to
begin hardware maintenance service within 4 hours of the service request
being logged. http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE
3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf
Additional Services: Startup Blade System c-Cass Enhanced Network
Service; Software OS (Microsoft, Linux (SUSE/Red Hat) & VMware Installation
& Start Up and Software Support); +30 Proactive Select Credits, Factory
Express.
Insight Remote Support
The packages include HP Insight Remote Support that uses proven technology
to deliver secure, reliable 24x7 remote monitoring, diagnoses, and problem
resolution. It is available at no additional cost to all warranty, HP
Care Pack Service, and service agreement customers.
For more information
To learn more on HP ProLiant servers and HP BladeSystem servers, please
contact your HP sales representative or HP Authorized Channel Partner.
Or visit: www.hp.com/services/bladesystem
12 GB (3 x 4 GB) PC3-10600 (DDR3-1333)
Registered DIMMs
6 GB (3 x 2 GB) PC3-10600 (DDR3-1333) Registered DIMMs
12GB (3 x 4 GB) PC3L-10600 (DDR3-1333) Low Voltage Registered DIMMs
Network Adapter
Embedded NC553i Dual Port FlexFabric
10Gb Adapter and one (1) additional 10/100 server adapter dedicated to iLO
3 Management
Storage Controller
HP Smart Array P410i Controller
(RAID 0/1)
Hard Drives
None ship standard
Internal Storage
Two Hot Plug SFF Drive Bays
Optical Drive
None
Form Factor
Up to eight (8) half-height
blades supported in the HP BladeSystem c3000 Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure
Configuration Information - Factory Integrated Models
NOTE:
This section lists some of the steps required to configure a Factory Integrated
Model. To ensure only valid configurations are ordered, HP recommends the
use of an HP approved configurator. Contact your local sales representative
for information on CTO product offerings and requirements. NOTE: HP does not allow factory integration of options into standard
models listed above.
Configure-to-order server blades must start with a CTO Blade. NOTE: FIO indicates that this option is a Factory Installable Option.
Step
1: Base Server Blade Configuration (Select a configurable Blade)
Models
HP ProLiant BL460c
G7 Configure-to-order Server
603718-B21
Configurable Model
ships with:
Integrated NC553i
Dual Port FlexFabric 10Gb Adapter and one (1) additional 10/100 server adapter
dedicated to iLO 3 management
Smart Array P410i/ZM
Controller
Integrated Lights-Out
3 Standard Blade Edition
Step
2: Choose Required Options (one of the following from each list unless otherwise
noted)
HP
Processors
For single processor
configuration choose:
Six Core Processor
Option Kits NOTE: If two processors are desired,
select one xxxxxx-B21 and one xxxxxx-B21.
HP BL460c G7 Intel®
Xeon® X5675 (3.06GHz/6-core/12MB/95W) FIO Processor Kit
NOTE:

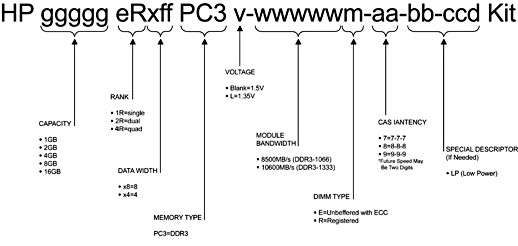

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool: www.hp.com/go/ddr3memory-configurator.
NOTE:
PC3L is low voltage memory.
Step 3: Choose
Additional Options for Factory Integration
HP NC325m PCI Express Quad Port
1Gb Server Adapter for c-Class BladeSystem NOTE: If the NC325m is installed
in mezzanine slot 1 of a half-height server, connectivity will be provided
on 2 of the 4 ports.
416585-B21
HP NC364m Quad Port 1GbE BL-c
Adapter NOTE: If the NC364m is installed
in mezzanine slot 1 of a half-height server, connectivity will be provided
on only 2 of the 4 ports.
447883-B21
HP NC382m Dual Port 1GbE Multifunction
BL-c Adapter
453246-B21
NOTE: The Gigabit
Ethernet adapters above transmit from the server at 2000 Mbps, full duplex
per port only. For more information, see the "Network Controller"
segment in the Standards Features section.
10 Gigabit Ethernet Mezzanines
NOTE: A 10 Gigabit
Ethernet adapter is required for each server blade connecting to a 10Gb
interconnect in bays 3-8 (HP BladeSystem c7000 Enclosure) or bays 2-4 (HP
BladeSystem c3000 Enclosure). NOTE: Each 10 Gigabit Ethernet adapter requires a minimum of 2GB
of server memory. NOTE: Each 10 Gigabit Either adapter supports linking at 1000Mbps
or 10000Mbps when not connected to a Flex-10 enabled module and will link
with all current 1Gb switches at 1Gb. NOTE: The ROM Based Setup Utility (RBSU) feature allows for the configuring
of a FlexFabric Adapter to any of the supported protocols. For example iSCSI
to FCoE (Fibre Channel over Ethernet). Note that a HP Virtual Connect profile
takes precedence over the setting in this menu. Also, some FlexFabric Adapters
may require that network boot be enabled in order to configure the protocol.
If the protocol is configured without enabling network boot with certain
FlexFabric Adapters, the protocol may not take effect. Once the protocol
has taken effect on the first boot after configuring this option, network
boot may be disabled if desired.
HP NC532m Dual Port 10GbE BL-c
Adapter
467799-B21
HP NC542m Dual Port Flex-10 10GbE
Multifunction BL-c Adapter
539857-B21
HP BLc NC552m Flex-10GbE Dual
Port Adapter
610609-B21
HP NC553m 10Gb 2-port FlexFabric
Adapter
613431-B21
HP Fiber Channel Mezzanine
Options
HP BLc Brocade 804 8Gb Fibre Channel
Host Bus Adapter
590647-B21
Emulex LPe1205 8Gb Fibre Channel
Host Bus Adapter for c-Class BladeSystem
456972-B21
Emulex LPe1105 4Gb Fibre Channel
Host Bus Adapter for c-Class BladeSystem
NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator.
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and
the server backplane) should operate at the same data transfer rate or the
system bandwidth will be negotiated down to an acceptable level for all
components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise
(ENT) Drives
HP 900GB 6G SAS 10K rpm SFF (2.5-inch)
Enterprise 3yr Warranty Hard Drive
619291-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch)
Dual Port Enterprise 3yr Warranty Hard Drive
HP Insight Control including 1yr
24x7 Technical Support and Updates Electronic License
T9074BAE
HP S-Buy Insight Control including
1yr 24x7 Technical Support and Updates Electronic License
T9074ASE
HP Insight Control including 1yr
24x7 Technical Support and Updates Single Server License
452148-B22
HP S-Buy Insight Control, Single-Server
License including 1 year of 24x7 Technical Support and Updates
452148-S22
HP Insight Software Media Kit NOTE: Insight Software DVD media
without licenses. Contains Insight Control, Insight Dynamics and Virtual
Connect Enterprise Manager. Uses an integrated installer to perform quick
and accurate software installation and updates.
436222-B21
NOTE: Licenses
ship without media. The HP Insight Control Media Kit can be ordered separately,
or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses
with a single activation key. NOTE: Customer will receive a license entitlement certificate, which
must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support &
Update Service. NOTE: For additional license kits, including bundles with HP BladeSystem
enclosures, please see the Insight Control QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html
HP Insight Control for Linux
HP Insight Control for Linux including
1yr 24x7 Support Electronic License
TC213AAE
HP S-Buy Insight Control for Linux
including 1yr 24x7 Support Electronic License
TC213ASE
NOTE:
This part number can be purchased as a single license or as multiple licenses
with a single activation key. Customer will receive a license entitlement
certificate via e-mail. The license entitlement certificate must be redeemed
online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support and Update Service.
HP Insight Control for Linux including
1yr 24x7 Support Single Server License
TC209A
HP Insight Control for Linux Media
Kit NOTE: This optional Media pack DVD
contains the ISO image for HP Insight Control for Linux, HP Systems Insight
Manager, HP Insight Control power management, HP Insight Control virtual
machine management, and an integrated installer. Servers must be acquired
separately. NOTE: This Media pack is optional because the latest ISO image and
latest updates may be downloaded at no cost from: http://www.hp.com/go/ic-linux
(click on Download button).
TC208A
NOTE: Licenses
ship without media. The Media Kit for Insight Control for Linux can be ordered
separately, or can be downloaded at: http://www.hp.com/go/ic-linux
(click on Download button). NOTE: Electronic licenses can be used to purchase multiple licenses
with a single activation key. NOTE: Customer will receive a license entitlement certificate, which
must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support Service. NOTE: For additional License Kits, including electronic licensing
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html
HP Integrated Lights-Out (iLO)
Advanced for ProLiant BladeSystem Remote Management
HP iLO Advanced for BladeSystem
including 1yr 24x7 Support Electronic License
TA851AAE
HP iLO Advanced for BladeSystem
including 1yr 24x7 Support Single Server License
512488-B21
NOTE: Electronic
licenses can be used to purchase multiple licenses with a single activation
key. NOTE: Customer will receive a license entitlement certificate, which
must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support Service. NOTE: For additional license kits please see the HP Integrated Lights-Out
(iLO) QuickSpecs at: www.hp.com/go/iLO.
High Performance Clusters
HP Cluster Management Utility
HP Cluster Management Utility
Compute Node Flexible License NOTE: This part number can be used
to purchase one certificate for multiple licenses with a single activation
key. Each license is for one node (server). Customer will receive a printed
end user license agreement and license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online in
order to obtain a license key.
QL803A
HP Cluster Management Utility
License and Media NOTE: Order a minimum of one license
per cluster to purchase media including software and documentation, which
will be delivered to the customer, and also licenses CMU management. No
license key is delivered or required.
HP High Performance Computing
Linux Value Pack 1 Processor Flexible License NOTE: This part number can be used
to purchase one certificate for multiple licenses with a single activation
key. Each license is for one socket (a.k.a. processor). Customer will receive
a printed end user license agreement and license entitlement certificate
via physical shipment. The license entitlement certificate must be redeemed
online in order to obtain a license key.
TC293B
HP High Performance Computing
Linux Value Pack Media Kit NOTE: This part number can be used
to purchase media including software and documentation, which will be delivered
to the customer.
HP Trusted Platform Module (TPM)
Kit NOTE: The TPM key is unique to every
TPM deployed server and must be retained. Misplacing or losing the key could
result in data loss.
488069-B21
HP Storage Controllers
HP Smart Array P700m Controller
HP Smart Array P711m/1G 6Gb FBWC
4-ports Ext Mezzanine SAS Controller
HP Smart Array Advanced Pack including
1yr 24x7 Technical Support and Updates Single Server License NOTE: A license key, a minimum of
256MB cache, and battery kit is required to enable Smart Array Advanced
Pack features. For more information go to: http://www.hp.com/go/saap
HP StorageWorks D2200sb PCIe Storage
Blade NOTE: The HP PCI Express Mezzanine
Pass-Thru Card (P/N 431643-B21) is required to support the HP StorageWorks
D2200sb PCIe Storage Blade with the BL620c G7. Up to two storage blades
are supported per server mix and match (Ultrium Tape, D2200sb PCIe Storage,
and/or PCI Expansion Blades). NOTE: The HP PCI Express Mezzanine Pass-Thru Card can be placed in
mezzanine slot 2 and/or 3. NOTE: Please see the HP StorageWorks D2200sb PCIe Storage Blade QuickSpecs
for technical specifications and additional information at: http://h18006.www1.hp.com/storage/bladesystem/index.html.
AP880A
HP Expansion Blade
HP PCI Expansion Blade NOTE: Ships with one pre-installed
PCI-X connect board. Also includes one PCIe connect board which requires
installation. NOTE: Please see the QuickSpecs for Technical Specifications and
additional information: http://h18000.www1.hp.com/products/quickspecs/12753_na/12753_na.html
448018-B21
HP USB and SD Options
HP USB 2-Button Optical Scroll
Mouse (Carbonite/Silver)
HP 2GB USB Flash Media Drive Key NOTE: HP qualified blank USB key
for use with HP ProLiant servers that support the VMware virtualization
environment and other HP value-add software like Smartstart. HP recommends
this industry standard USB flash device for use with VMware ESXi. USB device
must be installed in the internal slot of the ProLiant server for use with
VMware ESXi. Refer to HP
VMware Getting Started Guide for installation instructions.
608447-B21
HP 4GB SD Flash Media
580387-B21
NOTE: Blank SD
media devices are supported for use with VMware and Citrix. SD media must
be installed in the internal slot of the ProLiant server. Learn more at:
http://www.hp.com/go/proliantvirtualization
HP Care Pack Services
NOTE: The HP Care
Pack service part numbers below for ProLiant BL c-Class server blades, cover
the server blade and all HP branded hardware options qualified for the server,
purchased at the same time or afterwards, internal to the server.
Hardware Services On-site Service
4-Hour On-site Service, 5-Day
x 13-Hour Coverage, 3 Years, Electronic
UK065E
4-Hour On-site Service, 7-Day
x 24-Hour Coverage, 3 Years, Electronic
UK066E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UK067E
Smart Buy Care Pack
Services
NOTE:
The HP Care Pack service part numbers below for ProLiant BL c-Class server
blades, cover the server blade and all HP branded hardware options qualified
for the server, purchased at the same time or afterwards, internal to the
server.
Hardware Services On-site Service
S-Buy 4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
UH959E
S-Buy 4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
UH960E
S-Buy 6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
Some DIMM installation guidelines are summarized below:
For the HP ProLiant BL460c G7 server with twelve (12) memory slots:
There are three (3) channels per processor; six (6) channels per
server
There are two (2) DIMM slots for each memory channel; twelve (12)
total slots.
Memory channel 1 consists of the two (2) DIMMs that are closest
to the processor
Memory channel 3 consists of the two (2) DIMMs that are furthest
from the processor
DIMM slots that are white should be populated first
Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs).
Do not install DIMMs if the corresponding processor is not installed
If only one processor is installed in a 2CPU system, only half of
the DIMM slots are available
To maximize performance, balance the total memory capacity between
all installed processors
It is not required, but it is recommended to load the channels similarly
if possible
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank)
within a channel
Heaviest load (DIMM with most ranks) within a channel goes furthest
from the processor
For memory mirroring mode, channel 3 must be unpopulated. Channels
1 and 2 are populated identically
For lock-step mode, channel 3 must be unpopulated. DIMMs in channels
1 and 2 will be installed in pairs. The paired slots will be 1,4; 2,5
on the BL460c G7
Low Voltage DIMMs can only be used with Intel Xeon 5600 series processors.
If mixing DIMM voltage is a requirement, please note that the DIMMs
will run at 1.5V since all 1.35V are capable of supporting 1.5V operations
DIMM slot/capacity/populated
speed table
DIMM Type
Registered
DIMMS (RDIMMs)
Unbuffered
with ECC DIMMs (UDIMMs)
DIMM Rank
Single Rank (1R)
Dual Rank
(2R)
Quad Rank
(4R)
Single Rank (1R)
Dual Rank
(2R)
DIMM Capacity
4GB
2GB
4GB
8GB
16GB
16GB
32 GB
1GB
2GB
4GB
DIMM Native Speed (MHz)
1333
1333
1333
1333
1333
1066
1066
1333
1333
1333
DIMM Voltage
LV/Std
Std
Std
LV/Std
LV/Std
Std
LV/Std
Std
Std
Std
SLOTS THAT CAN BE POPULATED
12 slot servers
12
12
12
12
12
12
12
12
12
12
MAXIMUM CAPACITY (GB)
48
24
48
96
192
192
384
12
24
48
POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel
1333
1333
1333
1333
1333
1066
1066
1333
1333
1333
2 DIMM Per Channel
1066/
1333*
1333
1333
1066/
1333*
1066/
1333*
800
800
1333
1333
1333
* By default,
Low Voltage (LV) DIMMs will operate at standard voltage (1.5V) and
operate at 1333MHz in a 2 DIMM per channel configuration. For power
savings, this behavior can be changed in RBSU to operate at low voltage
(1.35V) and 1066MHz.
NOTES:
PC3-10600 DIMMs have a maximum speed of 1333MHz. PC3-8500 DIMMs have
a maximum speed of 1066MHz.
Mixing DIMM speeds is allowed, but the system processor speed rules
always override the DIMM capabilities
If you do mix DIMM speeds, the memory bus will default to the minimum
clock rate of all DIMMs in the system - even if the slower DIMM is on
the other processor
If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in
channel 2, the maximum speed will be 1066MHz
If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with
1 DIMM Per Channel (DPC) in each of the other channels, the maximum
speed will be 1066MHz
Maximum memory speed will also depend on the processor installed
References to the above MHz speeds are for the various speeds of DDR3
DIMMs; 1333 refers to DDR3-1333, etc.
HP ProLiant BL460c G7 Server Blade
DIMM slot and configuration diagrams
Basic memory slot and population diagram
Population order; start with "A" first, "B" second,
"C" third, etc.
12
DIMM SLOTS (6 per CPU node)
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D
1
D
Chnl 1
2
A
2
A
Chnl 2
3
E
3
E
Chnl 2
4
B
4
B
Chnl 3
5
F
5
F
Chnl 3
6
C
6
C
HP ProLiant BL460c G7 Server Blade
(1P Model)
Standard memory configuration (1 CPU model)
6GB (3 x 2GB) of PC3-10600 (DDR3-1333) RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D: empty
1
D: empty
Chnl 1
2
A: 2GB DIMM
2
A: empty
Chnl 2
3
E: empty
3
E: empty
Chnl 2
4
B: 2GB DIMM
4
B: empty
Chnl 3
5
F: empty
5
F: empty
Chnl 3
6
C: 2GB DIMM
6
C: empty
Standard Memory Plus Optional Memory (1 CPU model)
30 GB of PC3-10600 (DDR3-1333) RDIMMs (3 x 2GB plus 3 x 8GB)
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D: 2GB DIMM
1
D: empty
Chnl 1
2
A: 8GB DIMM
2
A: empty
Chnl 2
3
E: 2GB DIMM
3
E: empty
Chnl 2
4
B: 8GB DIMM
4
B: empty
Chnl 3
5
F: 2GB DIMM
5
F: empty
Chnl 3
6
C: 8GB DIMM
6
C: empty
Standard Memory Replaced with Optional Memory (1 CPU model)
96GB of PC3-8500 Quad-Rank RDIMMs (6 x 16GB)
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D: 16GB DIMM
1
D: empty
Chnl 1
2
A: 16GB DIMM
2
A: empty
Chnl 2
3
E: 16GB DIMM
3
E: empty
Chnl 2
4
B: 16GB DIMM
4
B: empty
Chnl 3
5
F: 16GB DIMM
5
F: empty
Chnl 3
6
C: 16GB DIMM
6
C: empty
UDIMM maximum configuration (1 CPU model)
24GB, consisting of six (6) 4GB dual-rank PC3-10600 UDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D: 4GB DIMM
1
D: empty
Chnl 1
2
A: 4GB DIMM
2
A: empty
Chnl 2
3
E: 4GB DIMM
3
E: empty
Chnl 2
4
B: 4GB DIMM
4
B: empty
Chnl 3
5
F: 4GB DIMM
5
F: empty
Chnl 3
6
C: 4GB DIMM
6
C: empty
Standard Memory Replaced with Optional Memory (2 CPU Model)
RDIMM maximum configuration
384GB, consisting of twelve (12) 32GB quad-rank PC3-8500 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D: 32GB DIMM
1
D: 32GB DIMM
Chnl 1
2
A: 32GB DIMM
2
A: 32GB DIMM
Chnl 2
3
E: 32GB DIMM
3
E: 32GB DIMM
Chnl 2
4
B: 32GB DIMM
4
B: 32GB DIMM
Chnl 3
5
F: 32GB DIMM
5
F: 32GB DIMM
Chnl 3
6
C: 32GB DIMM
6
C: 32GB DIMM
UDIMM maximum configuration (2 CPU model)
48GB, consisting of twelve (12) 4GB dual-rank PC3-10600 UDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D: 4GB DIMM
1
D: 4GB DIMM
Chnl 1
2
A: 4GB DIMM
2
A: 4GB DIMM
Chnl 2
3
E: 4GB DIMM
3
E: 4GB DIMM
Chnl 2
4
B: 4GB DIMM
4
B: 4GB DIMM
Chnl 3
5
F: 4GB DIMM
5
F: 4GB DIMM
Chnl 3
6
C: 4GB DIMM
6
C: 4GB DIMM
NOTE: Capacity references are rounded to the common Gigabyte values.
NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator.
2 x SFF SAS or SATA Hot Plug Hard
Drives or SATA solid state drives
Hard Drives NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, firmware, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch)
Enterprise (ENT) Drives
Quantity Supported
Position Supported
Controller
900GB 6G SAS 10K
600GB 6G SAS 10K
450GB 6G SAS 10K
300GB 6G SAS 10K
146GB 6G SAS 15K
146GB 6G SAS 10K
72GB 6G SAS 15K
2
1-2
HP Smart Array P410i Controller
SAS Hot Plug SFF (2.5-inch)
Midline (MDL) Drives
Quantity Supported
Position Supported
Controller
1TB 6G SAS 7.2K
500GB 3G SAS 7.2K
2
1-2
HP Smart Array P410i Controller
SATA Non-Hot Plug
SFF (2.5-inch) Midline (MDL) Drives
Quantity Supported
Position Supported
Controller
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
2
1-2
HP Smart Array P410i Controller
SATA Hot Plug SFF Midline solid
state drives
Quantity Supported
Position Supported
Controller
60GB 3G SATA SSD
120GB 3G SATA SSD
2
1-2
HP Smart Array P410i Controller
External Storage
Quantity
Supported
Position
Supported
Host Controller or Adapter
XP Disk Array Systems
Please see the XP Disk Array Systems QuickSpecs below
to determine configuration requirements
External
Please see the XP Disk Array Systems
Quick Specs for the latest list of supported HBAs
10° to 35°C (50° to 95°F) at sea level with an altitude
derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above
sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight.
Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may
be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above
30°C (86°F).
Non-operating
-30° to 60°C (-22°
to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10 to 90% relative humidity (Rh),
28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating
5 to 95% relative humidity (Rh),
38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude
Operating
3050 m (10,000 ft). This value
may be limited by the type and number of options installed. Maximum allowable
altitude change rate is 457 m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500 ft/min).
64-bit, supporting servers memory
space greater than 4 GB
RAID Support
RAID 1( Mirroring)
RAID 0 (Striping)
Upgradeable Firmware
Controller: Upgradeable Firmware
with Recovery ROM feature
Online Drive Flash (with SAS drives) requires 256MB, 512MB, or 1GB module
Embedded HP NC553i Dual
Port FlexFabric 10Gb Adapter
Type
Integrated dual-port KR 10Gb with
FlexFabric (FCoE or iSCSI) capability
Network Processor
ServerEngines BE3
Data Transfer Method
x8 PCI Express 2.0
Network Transfer Rate
Two ports, each at 20 Gbps full
duplex; 40 Gbps aggregate full duplex theoretical bandwidth NOTE: Each port is autosensing 1
Gb / 10 Gb, and can interoperate with 1 Gb HP BladeSystem c-Class interconnect
components. Both ports will operate at the same speed. NOTE: Each port on the NC553i adapter transmits from the server at
20 Gbps (theoretical) full duplex.
IEEE Compliance
802.1p QoS, 802.1Q VLAN tagging,
802.3ad link aggregation, 802.3ap 10GBase-KR, and 802.3x flow control
Standard Features
ProLiant Teaming including Network Fault Tolerance, Transmit Load
Balancing, and Switch-Assisted Load Balancing
9K Jumbo frames (4K Jumbo frames when in FCoE mode)
Microsoft Windows Receive Side Scaling (RSS)
Accelerated iSCSI
HP Integrated Lights-Out
3 (iLO 3)
integrated on system board
Architecture
PCI Express based health and remote
management ASIC
Processor
PCI Express RISC processor core
running at 250MHz
Upgradeability
Option firmware upgradeable via
Flash ROM
Video Support
1600 x 1200 DVR max resolution
Interfaces
One Ethernet Sideband connection
(10/100/1000 Mb/s)
One Ethernet network connection
(10/100Mb/s)
Memory
128-MB DDR with ECC
Operating System Support
Microsoft Windows 2008 R2
Microsoft Windows 2008 (32 bit
and 64 bit)
Microsoft Windows Server 2008
Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008
Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003
and Windows Server 2003 R2, and Windows Server 2003 for Extended Systems
Standard Edition, Enterprise Edition
Red Hat Enterprise Linux 5.4 (32
bit and 64 bit)
SUSE LINUX Enterprise Server 11
(32bit and 64bit)
SUSE LINUX Enterprise Server 10
(32bit and 64bit)
VMware ESX 4.0
VMware ESX 3.5.0
Client System Support
Microsoft Windows 7
Microsoft Windows XP Professional
Edition
Microsoft Windows Vista Business
and Ultimate Editions
Red Hat Enterprise Desktop 5.00
SUSE Linux Enterprise Desktop
11
SUSE Linux Enterprise Desktop
10
Client Browser Support
Microsoft Internet Explorer 8
Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows
and Linux systems)
Firefox 3.0 (on supported Windows
and Linux systems)
Command Line Support
Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2
Security
Advanced Encryption Standard (AES)
and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting
interface
AES encryption of video
RC4 encryption of video
Directory Support Services
Active Directory v1.0 (Windows
2003)
Driver Support
HP ProLiant iLO3 Management Controller
Driver Package
Management protocols supported
SNMP, IPMI 2.0 (system and LAN
interface), DMTF Systems Management Architecture for Server Hardware Command
Line Protocol (SMASH CLP), HP RIBCL XML
Environment-friendly Products and
Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment
information for each product type for use by treatment facilities. This
information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
Canadian Site
DL QuickSpecs
Search:
US QuickSpecs
637406-B21
© 2013 USA PartsDirect
