At A Glance
Maximum density HP ProLiant BL30p server blade
High density, dual-processor capable server blade for the ProLiant
BL p-Class
Up to two Intel Xeon 3.2-GHz/533-MHz with 2MB L3 cache processors
ServerWorks GC-LE chipset
1024-MB PC2100-MHz Registered ECC DDR memory (1 x 1-GB), expandable
to 4-GB, flex memory supports interleaved and non-interleaved memory
configurations
Integrated Lights-Out (iLO) Advanced Pack with new static IP
bay configuration and HP BladeSystem wizard features
Two (2) NC7781 PCI-X Gigabit NICs (embedded)
One 10/100T NIC (embedded) dedicated to iLO management
Supports up to two optional small form factor ATA 60-GB hard
drives
BIOS-Enhanced RAID for Linux enables both primary and secondary
hard drives to be bootable
Dual-Port Fibre Channel Adapter (2-Gb) option for SAN connectivity
HP ProLiant BL30p server blade plugs vertically into blade sleeve
and sleeve plugs into 6U blade enclosure
Local I/O cable provides two USB ports, one video port, one iLO
port and serial port
Integrated Access Tool for blade management and enhanced server
blade documentation including Best Practices and Common Procedures
guides
Up to 96 HP ProLiant BL30p server blades fit in 42U rack in non-redundant
power configuration; up to 80 HP ProLiant BL30p server blades fit
in 42U in full power redundant configuration
HP BladeSystem p-Class Enhanced Server Blade Enclosures
Blade iLO signals are physically consolidated to an RJ-45 port
on the server blade management module
Option kit available for field upgrade of backplanes to existing,
deployed blade enclosures
Each server blade enclosure is 6U and holds up to 16 HP ProLiant
BL30p server blades (HP BladeSystem p-class blade sleeve is required
for each pair of HP ProLiant BL30p server blades installed)
Types of interconnects available: GbE Interconnect Switches,
GbE2 and CGESM Interconnect Switches with optional Fibre Channel
pass through, Patch Panels or Patch Panel 2 with Fibre Channel pass
through
HP BladeSystem p-Class Power Enclosures
HP BladeSystem p-Class rack-centralized power enclosure holds
hot-plug power supplies
Choose the HP BladeSystem p-Class 3U power enclosure or the HP
BladeSystem p-Class 1U power enclosure
3 phase power enclosure highly recommended for BL30p deployments
HP BladeSystem p-Class power enclosures with power supplies not
needed if using facility -48VDC ± 10% (Facility DC option
kit required)
HP BladeSystem p-Class Power Distribution (only required with
the 3U power enclosure)
Carries power from the power enclosure(s) to the server blade
enclosures
Three power distribution choices:
mini bus bars (support up to 3 blade enclosures)
scalable bus bars (support up to 5 blade enclosures)
power bus box (supports a single blade enclosure)
New dual power input option kit allows support for two power enclosures
on mini bus bars
Server blade enclosures, interconnects and power enclosures protected
by a limited three year warranty with optional service uplifts available.
HP ProLiant BL30p Server Blade Limited Warranty includes 3 year Parts,
1 year Labor, 1-year on-site support.
NOTE: All ATA hard drives offered by
HP carry a one year warranty regardless of the base system in which they
are installed. NOTE: Power requirements for a ProLiant BL p-Class system: 200V
- 240V AC, 30 amp or facility DC -48V ± 10%.

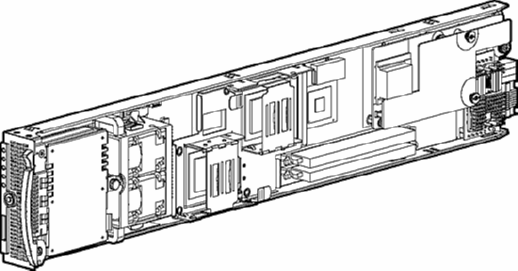

HP ProLiant BL30p Server Blade
+

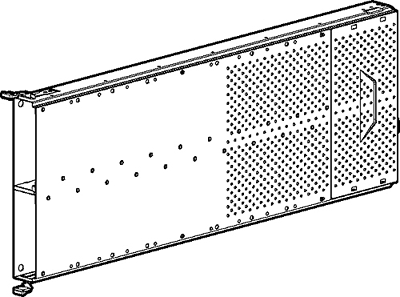

HP BladeSystem p-Class Blade Sleeve (holds 2 HP
ProLiant BL30p server blades)
+

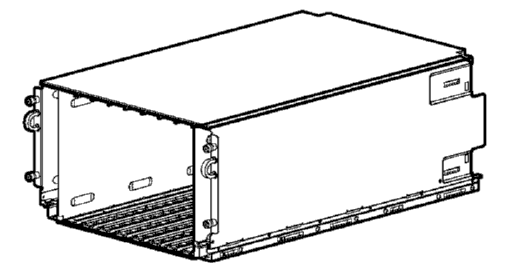

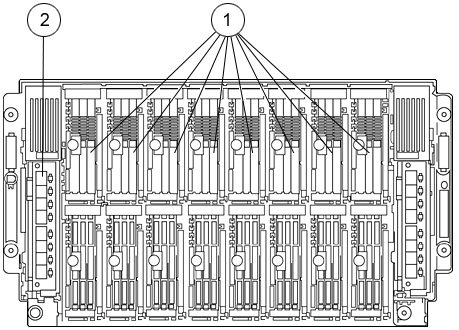

HP BladeSystem p-Class Enhanced Server Blade Enclosure
+
OR
Patch Panel (shown) or
Patch Panel 2
GbE Interconnect Switch (shown) or GbE2 Interconnect
Switch or CGESM Interconnect Switch
(fiber or copper-based)
BL p-Class Interconnects
+

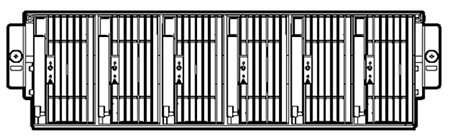

HP BladeSystem p-Class 3U power enclosure(s) and
power supplies (three phase recommended)
OR
HP BladeSystem p-Class 1U power enclosures and
power supplies
OR
Facility DC
OR
OR

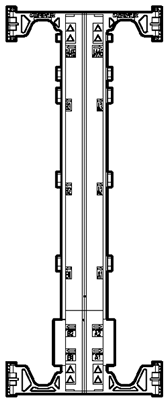

Mini bus bars
Bus boxes
Scalable bus bars
Dual power input kit for mini bus bar option
HP BladeSystem p-Class power distribution (only
required with 3U power enclosure)
Configuration Steps
For a complete HP ProLiant BL30p server blade solution, do the following:
Select desired model, configuration and quantity
of HP ProLiant BL30p server blades
PLUS
Determine how many HP BladeSystem p-Class blade sleeves
are required. Each p-Class blade sleeve holds two HP ProLiant BL30p
server blades and one server blade enclosure holds up to eight sleeves.
PLUS
Determine how many HP BladeSystem p-Class Enhanced
Server Blade Enclosures are required. Each enhanced server blade enclosure
can hold up to 16 HP ProLiant BL30p server blades.
NOTE: HP BladeSystem p-Class
enhanced server blade enclosures are required to support HP ProLiant
BL30p server blades.
Enhanced server blade enclosures can be purchased with licenses for
Rapid Deployment Pack:
HP BladeSystem p-Class enhanced server blade enclosure with 8 Rapid
Deployment Pack licenses (281404-B22)
Or
HP BladeSystem p-Class enhanced server blade enclosure with Rapid
Deployment Pack trial (243564-B22)
Or
HP BladeSystem p-Class server blade enclosure with the HP BladeSystem
Management Suite which is delivered in a convenient to purchase pack
that includes a single copy of Systems Insight Manager (SIM) and 8
licenses for each of the following products: Rapid Deployment Pack
(RDP) Performance Management Pack (PMP) and the Vulnerability and
Patch Management Pack (VPM). ( 380625-B22)
PLUS
Select an Interconnect Kit. Each Interconnect Kit
contains a pair of interconnects except the CGESM which includes a
single interconnect switch. One interconnect kit is required with
each server blade enclosure:
RJ-45 Patch Panel 2 with Fibre Channel pass through. This is the required
patch panel model for Fibre Channel connectivity on HP ProLiant BL30p
server blade (306465-B21).
Or
RJ-45 Patch Panel ( 230766-B21)
Or
Quantity (2) Cisco Gigabit Switch Module for HP BladeSystem p-Class
Interconnect Kit (with 16 10/100/1000 T/TX/T downlink ports, 2 RJ-45
10/100/1000 T/TX/T uplink ports, and 4 SFP ports) (378926-B21), with
or without any combination of up to 4 10/100/1000 T/TX/T RJ-45 SFP
Module (378928-B21) or 1000BASE SX Fiber SFP Module (378929-B21),
with or without ProLiant BL p-Class Storage Connectivity Kit (with
16 Fibre Channel connectors) (321745-B21) (required for ProLiant
BLXXp server blade Fibre Channel connectivity when using the CGESM
Interconnect Switch)
Or
Quantity (2) Cisco Gigabit Switch Module for HP BladeSystem p-Class
Interconnect Kit (with 16 10/100/1000 T/TX/T downlink ports, 2 RJ-45
10/100/1000 T/TX/T uplink ports, and 4 SFP ports populated with (2)
10/100/1000 T/TX/T SFP modules) (378927-B21), with or without optional
ProLiant BL p-Class Storage Connectivity Kit (with 16 Fibre Channel
connectors) (321745-B21) (required for ProLiant BLXXp server blade
Fibre Channel connectivity when using the CGESM Interconnect Switch)
Or
BL p-Class C-GbE2 Interconnect Kit (with 16 10/100/1000 T/TX/T downlink
ports, 6 RJ-45 10/100/1000 T/TX/T uplink ports ) ( 283192-B21), with
or without optional ProLiant BL p-Class Storage Connectivity Kit (with
16 Fibre Channel connectors) (321745-B21) (required for ProLiant
BLXXp server blade Fibre Channel connectivity when using the GbE2
Interconnect Switch)
Or
BL p-Class F-GbE2
Interconnect (with 16 10/100/1000 T/TX/T downlink ports, 4 LC 1000 SX
and 2 RJ-45 10/100/1000 T/TX/T uplink ports) ( 283193-B21), with or
without optional ProLiant BL p-Class Storage Connectivity Kit (with 16
Fibre Channel connectors) (321745-B21) (required for ProLiant BLXXp server blade Fibre
Channel connectivity when using the GbE2 Interconnect Switch)
PLUS
Select HP BladeSystem p-Class power enclosure(s)
and power supplies based on configuration. NOTE: 3 phase power enclosure
options are highly recommended for deployments of HP ProLiant BL30p
server blades.
Use the ProLiant BL p-Class sizing utility to help determine power
configuration: http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls
. NOTE: Power enclosures and supplies are not needed if using
facility DC (-48V ± 10%).
Single phase 3U power enclosure with four power supplies (Single-phase
3U power enclosure holds a maximum of four power supplies) (NA/JPN-
239162-001) (INTL - 239162-421)
Or
Three-phase 3U power enclosure with six power supplies (Three-phase
3U power enclosure holds a maximum of six power supplies) (NA/JPN-
230769-001) (INTL - 230769-421)
(3U Power enclosures and supplies can also be purchased separately
see options list)
Or
1U power enclosure with six power supplies ( 378284-B21)
Or
1U power enclosure with two power supplies ( 380314-B21)
(Additional power supplies can also be purchased separately - see
options list)
PLUS
Select power distribution option (only required with
3U power enclosures):
Mini bus bars (support up to 3 server blade enclosures) (240559-B21). NOTE: Two mini-bar configurations
can be stacked to fill a 42U rack.
Or
Scalable bus bars (support up to 5 server blade enclosures*)
( 240560-B21)
Or
Power Bus Box (supports a single server blade enclosure*)
(240562-B21)
Or
Dual Power Input Kit for Mini Bus Bar - required for support of two
power enclosures. (364565-B21)
Or
HP Modular Distribution Unit 40 Amp (NA/JPN) (P/N 252663-D75)**
Or
HP Modular Distribution Unit 40 Amp (Int'l) (P/N 252663-B34)**
Or
HP Modular Distribution Unit 32 Amp (Int'l) (P/N 252663-B33)**
Or
HP Modular Distribution Unit 24 Amp (NA/JPN) (P/N 252663-D74)**
*NOTE: Maximum depends upon
power input
**NOTE: The Modular Distribution Unit Kits excludes the extension
bars as they are not required with the HP BladeSystem p-class 1U power
enclosure.
HP BladeSystem p-Class Enhanced Server Blade Enclosures
Installed in 42U Rack
Redundant Power Configuration (left) and Non-Redundant Power Configurations
(right)
Memory interleaving when an
identical pair of DIMMs is installed (P/N 287494-B21)
Memory
Type
PC2100 DDR SDRAM running at
266MHz
Standard
1024-MB (1 x 1-GB) NOTE: non-interleaved unless a second
DIMM option installed 287497-B21
Maximum
4-GB
Network Adapter
Three (3) network adapters total:
Two (2) NC7781 PCI-X Gigabit
NICs (embedded) with WOL and PXE
One 10/100T NIC (embedded) dedicated
to iLO management
Integrated Manageability
Integrated Lights-Out (iLO)
Management Advanced Pack with new static IP bay configuration feature
iLO integrated HP BladeSystem wizard simplifies iLO, blade server and operating
system installation and configuration.
Internal Storage
Hard Drives
None ship standard
Maximum Internal Storage
ATA
120-GB (2 x 60-GB small form
factor ATA, 5400rpm hard drives)
Fiber Channel on
the HP ProLiant BL30p server blade
The following items are needed
to connect the HP ProLiant BL30p server blade to a SAN via Fibre Channel:
1. HP ProLiant BL30p server
blade with Dual-Port Fibre Channel Adapter (option) installed
The Dual-Port Fibre Channel Adapter option 354054-B21 is compatible
with the HP ProLiant BL30p server blade (not compatible with HP ProLiant
BL20p server blades series)
Two ports on each configured blade provide redundant Fibre Channel
connections
Supports up to 2 Gb/s Fibre Channel equipment
Based on the QLogic ISP2312 chipset
Kit includes two small form factor pluggable transceivers with LC
connectors for installation into the interconnect option kit (see 2A
and 2B below)
Enables pass through of both Ethernet and Fibre Channel signals
Ethernet signals exit the rear of the RJ-45 Patch Panel 2 interconnects
Fibre Channel signals exit the front of the RJ-5 Patch Panel 2 interconnects
8 Fibre Channel small form factor pluggable (SPF) transceiver
cages on the front of each Patch Panel 2 interconnect (16 Fibre
Channel SPF transceiver cages per server blade enclosure)
SPF transceivers are included with the BL30p Dual-Port Fibre
Channel Adapter kit (option)
OR
2B. C-GbE2 or F-GbE2 or CGESM
Interconnect Kit plus the Storage Connectivity Kit (option)
Enables Ethernet signal consolidation and pass through of Fibre Channel
signals
Both Ethernet and Fibre Channel signals exit the rear of the CGESM
or GbE2 Interconnect Switch (with the Storage Connectivity Kit option)
8 Fibre Channel small form factor pluggable (SPF) transceiver
slots on the back of each Interconnect Switch (16 Fibre Channel
SPF transceiver cages per server blade enclosure)
SPF transceivers included with the BL30p Dual-Port Fibre Channel
Adapter kit (option)
Standard Features (Server Blade Enclosure and Interconnects)
HP BladeSystem
p-Class Enhanced Server Blade Enclosures and ProLiant BL p-Class Interconnects
HP BladeSystem p-Class
Enhanced Server Blade Enclosure
6U (10.5-inch), 19-inch wide
Holds up to:
Eight (8) HP ProLiant BL20p server blades series
Sixteen (16) HP ProLiant BL30p server blades series (HP ProLiant BL30p
server blade sleeves required)
Two (2) HP ProLiant BL40p server blades series
A combination of the above
NOTE: HP BladeSystem p-Class enhanced
server blade enclosures are required to support HP ProLiant BL30p server
blades. See compatibility matrix: http://www.hp.com/go/bladesystem/enclosure/compatibility. NOTE: Server Blade Enclosure Upgrade Kit (354100-B21) contains
enhanced backplane components and enables a field upgrade of a blade enclosure
to support HP ProLiant BL30p server blades series and provide a single,
physical iLO port for the enclosure.
Two (2) outside bays for interconnects
(Patch Panel, Patch Panel 2, GbE Interconnect Switch, GbE2, or CGESM Interconnect
Switch)
Server blade management module
on the rear of the server blade enclosure is hot-plug, has a centralized
10/100T iLO port for all installed blades, reports events of all installed
blades and provides asset and inventory information via SNMP.
HP BladeSystem p-Class
Power Requirements
Redundant 208V 30amp 3-phase
4 wire, NA
Redundant 380 - 415V 20A 3-phase 5 wire, Intl NOTE: 3 phase power highly recommended
for BL30p deployments.
Redundant 200V - 240V AC, 30 amp single-phase for NA and International
Redundant -48VDC ± 10%
ProLiant
BL p-Class Interconnect Switch
Option
(A pair of switches per kit)
(Each HP BladeSystem p-Class server blade enclosure requires a pair of
interconnects - patch panels or interconnect switches)
Interconnect Switch interconnects
consolidate the Ethernet signals from the server blades to a smaller set
of external copper-based or fiber-based uplink ports for connection to the
network infrastructure. Like the Patch Panel interconnects, an option is
also available to pass through individual HP ProLiant BL20p G2 and HP ProLiant
BL30p Fibre Channel signals. The interconnect switches provide up to a 32-to-1
server network cable reduction per server enclosure depending on the mix
of HP ProLiant BL20p server blade series, HP ProLiant BL30p server blade
series, and HP ProLiant BL40p server blades series. Each interconnect switch
pair reduces up to sixteen internal server network (NIC) ports to one to
six external ports (four on a modular rear mounting interconnect and two
on the switch front panel). This provides a total of twelve external ports
per server blade enclosure.
The Cisco GESM and GbE2 Interconnect Kits (C-GbE2 and F-GbE2) are for applications
that require network adapter consolidation to 1000 Mbps (Gigabit Ethernet)
and HP ProLiant BL30p Fibre Channel pass-through.
The Cisco Gigabit Ethernet Switch Module (CGESM) Interconnect Kit is
for applications that require network adapter consolidation to 1000 Mbps
(Gigabit Ethernet) in a Cisco infrastructure. The CGESM supports the same
and HP ProLiant BL30p Fibre Channel pass-through as the GbE2.
The Cisco Gigabit Ethernet Switch Module Interconnect kit includes
one CGESM Interconnect Switch or one CGESM Interconnect Switch populated
with two (2) RJ-45 10/100/1000 T/TX/T Small Form Factor Pluggable (SFP)
Modules.
Quantity 2 Cisco Gigabit Ethernet Switch Module Interconnect kits
provide two CGESM Interconnect Switches providing any combination of
up to twelve (12) RJ-45 10/100/1000 T/TX/T or Fiber SX external ports
per server blade enclosure.
The optional ProLiant BL p-Class Storage Connectivity Kit (321745 -B21)
is required for HP ProLiant BL30p Fibre Channel pass-through when using
either the CGESM Interconnect Kit.
The GbE2 Interconnect Kits (C-GbE2 and F-GbE2) provide NIC consolidation
to 1000 Mbps (Gigabit Ethernet), advanced network feature, Fibre Channel
pass-through (for HP ProLiant BL20p server blade series and HP ProLiant
BL30p server blades series), and 1 Gigabit Ethernet bandwidth connectivity
to the network.
The ProLiant BL p-Class F-GbE2 Interconnect Kit includes two GbE2
Interconnect Switches and two QuadSX Interconnect Modules that provide
eight (8) LC 1000 SX and four (4) RJ-45 10/100/1000 T/TX/T external
ports per server blade enclosure.
The ProLiant BL p-Class C-GbE2 Interconnect Kit includes two GbE2
Interconnect Switches and two QuadT2 Interconnect Modules that provide
twelve (12) RJ-45 10/100/1000 T/TX/T external ports per server blade
enclosure.
The optional ProLiant BL p-Class Storage Connectivity Kit (321745
-B21) is required for Fibre Channel pass-through when using either the
C-GbE2 or F-GbE2 Interconnect Kit.
The GbE Interconnect Kits (C-GbE and F-GbE) provide NIC consolidation
to 100 Mbps (Fast Ethernet).
The ProLiant BL p-Class F-GbE Interconnect Kit includes two GbE Interconnect
Switches and two DualTSX Interconnect Modules that provide four (4)
LC 1000 SX and eight (8) RJ-45 10/100 T/TX external ports per server
blade enclosure.
The ProLiant BL p-Class C-GbE Interconnect Kit includes two GbE Interconnect
Switches and two QuadT Interconnect Modules that provide four (4) RJ-45
10/100/1000 T/TX/T and eight (8) RJ-45 10/100 T/TX external ports per
server blade enclosure.
Also included (per Interconnect
Switch):
One (1) RS-232 DB-9 front panel out-of-band management port
Redundant crosslink ports connecting the two interconnect switches
Redundant power inputs and on-board redundant fans
Hot-plug and hot- remove with configuration retention and no need
to cable/re-cable
Power ON, management, and per port status and speed LED indicators
Reset/power momentary push-button switch
HP ProLiant BL Interconnect Switch Management Utilities and User Documentation
CD
Fully pre-configured for rapid deployment and immediate operation
The
GbE Interconnect Kits (C-GbE and F-GbE) are for applications that require network
adapter consolidation to 100 Mbps (Fast Ethernet).
The ProLiant BL
p-Class F-GbE Interconnect Kit includes two GbE Interconnect Switches and two
DualTSX Interconnect Modules that provide four (4) LC 1000 SX and eight (8) RJ-45
10/100 T/TX external ports per server blade enclosure.
The ProLiant BL
p-Class C-GbE Interconnect Kit includes two GbE Interconnect Switches and two
QuadT Interconnect Modules that provide four (4) RJ-45 10/100/1000 T/TX/T and
eight (8) RJ-45 10/100 T/TX external ports per server blade enclosure.
ProLiant BL Interconnect Switch
Management System and Utilities:
Full featured web-based and
scriptable command line (CLI) interfaces, password protected multi-level
user accounts, Telnet, SNMP, BootP client, port mirroring, port-based VLANs
and VLAN tagging, EtherChannel compatible multi-port trunking, network time
protocol, spanning tree protocol, broadcast/multicast storm control, flow
control, human readable/writeable configuration file, TFTP client, IP address
security restrictions, auto-MDI/MDIX, auto-negotiation and auto-sensing
of speed and duplex mode, and more.
ProLiant BL p-Class Storage
Connectivity Kit Option
(supports a pair of two CGESM or GbE2 switches)
The Storage Connectivity Kit
(option) is required for Fibre Channel signal pass-through when using the
CGESM or a GbE2 Interconnect Switch Kit. Both Ethernet cable consolidation
and Fibre Channel connectivity is possible using a single interconnect option.
Order one Storage Connectivity Kit per server blade enclosure for Fibre
Channel pass through of HP ProLiant BL20p and HP ProLiant BL30p server blades
series.
The Storage Connectivity Kit includes two OctalFC Interconnect Modules that
provide sixteen open transceiver cages for the pluggable small form factor
transceivers that come with each HP ProLiant BL30p Dual-Port Fibre Channel
Adapter (option) and each HP ProLiant BL20p Dual Port Fibre Channel Adapter.
The Storage Connectivity Kit supports up to eight HP ProLiant BL20p server
blade series, up to sixteen HP ProLiant BL30p server blades series or combinations
thereof.
ProLiant
BL p-Class
RJ-45 Patch Panel
(A pair of patch panels provided per kit)
(Each server blade enclosure requires a pair of interconnects - patch
panels or interconnect switches)
6U (10.5-inch), plugs into HP
BladeSystem p-Class server blade enclosures.
Passes through Ethernet NIC
signals, from all installed server blades, individually out as RJ-45 connections.
Supports Gigabit Ethernet network
adapters.
16 RJ-45 connectors on the back
of each RJ-45 Patch Panel (32 RJ-45 connections per server blade enclosure).
The benefits to the RJ-45 Patch
Panel are that it:
- Allows the customer to connect signals to their own LAN infrastructure
components.
- Provides very economical option enabling the lowest cost blade solution.
- Is completely passive and requires no software or management.
(Each server blade enclosure requires a pair of interconnects - patch
panels or interconnect switches)
NOTE: Either Patch Panel 2 or
a Switch Interconnect Kit is required for SAN connectivity with HP ProLiant
BL20p server blade series and HP ProLiant BL30p server blades series.
6U (10.5-inch),
plugs into HP BladeSystem p-Class server blade enclosures
Passes through Ethernet
NIC signals, from all installed server blades, individually out as RJ-45
connections.
Supports Gigabit
Ethernet network adapters.
16 RJ-45 connectors
on the back of each RJ-45 Patch Panel 2 (32 RJ-45 connections per server
blade enclosure).
Passes through Fibre
Channel signals, from all installed HP ProLiant BL20p and HP ProLiant BL30p
server blades series, individually out through small form factor pluggable
(SPF) transceiver cages.
Supports 2 Gb/s
Fibre Channel signals and backward compatible with existing 1 Gb/s Fibre
Channel equipment.
8 Fibre Channel
small form factor pluggable (SPF) transceiver cages on the front of each
Patch Panel 2 (16 Fibre Channel SPF transceiver cages per server blade enclosure).
The benefits to
the RJ-45 Patch Panel 2 are that it:
- Allows the customer to connect signals to their own LAN and SAN infrastructure
components.
- Provides a very economical option enabling the lowest cost blade solution.
- Is completely passive and requires no software or management.
- Electrically isolates the Ethernet and Fibre Channel signals from each
other.
ProLiant
BL p-Class Fibre Channel pass through
Fibre Channel signals travel
from a HP ProLiant BL20p server blade series and/or HP ProLiant BL30p server
blades series through the server blade enclosure backplane. Fibre Channel
signals are terminated through the RJ-45 Patch Panel 2 CGESM or GbE2 Interconnect
Switch (with Storage Connectivity Kit) in the interconnect bays. To provide
redundancy each server blade has two Fibre Channel signals; one Fibre Channel
signal terminates through the right interconnect, the other Fibre Channel
signal terminates through the left interconnect.
Eight Fibre Channel small form
factor pluggable (SPF) transceiver cages exist on the front of each RJ-45
Patch Panel 2 and rear of each GbE2 Interconnect Switch (16 Fibre Channel
connections per server blade enclosure). The SPF cages are used for insertion
of SPF transceivers included with the HP ProLiant BL20p G2 Dual-port Fibre
Channel Mezzanine Card and the HP ProLiant BL30p Dual-Port Fibre Channel
Adapter.
3U (5.25-inch), 19-inch wide,
29-inch deep (0.48-meter wide, 0.74-meter deep), dual input single phase
and three phase models available.
HP BladeSystem p-Class 3U power enclosure provides scalable rack-centralized,
hot-plug power without the need for PDUs.
Each 3 phase power enclosure houses six hot-plug power supplies
Each single-phase power enclosure holds four hot-plug power supplies
Please use the sizing utility to determine the power needed for each configuration http://www.hp.com/go/bladesystem/powercalculator NOTE: 3 phase power enclosure options
highly recommended for HP ProLiant BL30p server blade deployments.
Power enclosures and power supplies
are not needed if using facility DC (-48V DC ± 10%). If using facility
DC, Facility DC Power Connection kit (240563-B21) is needed.
HP BladeSystem p-Class
1U Power Enclosure
1U (1.75-inch), 19-inch wide,
29-inch deep (0.48-meter wide, 0.74-meter deep), Multi-input single phase
or three phase operation.
HP BladeSystem p-Class 1U power enclosure provides external, hot-plug
power. Each 1U power enclosure houses up to six hot-plug power supplies
to power up to one server blade enclosure, fully populated with BL p-Class
server blades and interconnects.
Please use the sizing utility to determine the power needed for each configuration http://www.hp.com/go/bladesystem/powercalculator
Power enclosures and power supplies
are not needed if using facility DC (-48V DC ± 10%). If using facility
DC, only Facility DC Power Connection kit part number (240563-B21) is needed.
HP BladeSystem p-Class
Power Distribution (only required with 3U power enclosures)
In the HP BladeSystem
p-Class infrastructure, redundant -48 VDC power (from the power enclosures
or facility DC power) is carried from the power enclosures to the server
blade enclosures through bus bars (for multiple enclosures) or power bus
boxes (for a single enclosure). Hinges attach the HP BladeSystem bus bars
to the rack rails and provide easy rear access to the blade enclosures and
interconnects. Power is distributed through independent A- and B-sided bus
bars.
Three power distribution solutions are available depending on the size
of the intended deployment (see table).
Power Enclosures Supported
Server Blade Enclosures Supported
Max. Rack Space Occupied
Scalable Bus Bar
1 or 2
up to 5
36U
Mini Bus Bar
1 or 2*
up to 3
24U
Power Bus Box
1
1
9U
NOTE*:
Dual power input kit for mini bus bar option (364565-B21) required to support
two power enclosures. NOTE: To support a full 42U rack of BL p-Class server blades, use
two stacked pairs of mini bus bars.
Required
Power Source
Two 30-Amp redundant power feeds per power enclosure
Connectors:
NEMA receptacles (NA/Japan)
NA 1-phase L6-30, 250v, 30A 3-wire
NA 3-phase L15-30, 250V, 30A, 4-wire
IEC 309 Pin & Sleeve connectors (International)
Intl 1-phase 250V, 32A, 3- pin (2 pole + ground)
Intl 3-phase 380-415V, 32A, 5--pin (4 pole + ground)
Optimized for power cabling from rack bottom and network cabling
from rack top
ProLiant Essentials Foundation Pack Software for
the ProLiant BL Server
ProLiant Essentials Rapid
Deployment Pack
Rapid Deployment Pack (RDP) is an automated deployment and provisioning
solution for all ProLiant servers. RDP includes the Altiris Deployment
Solution and ProLiant Integration Module featuring ProLiant server
pre-configured events for OS installation, and optimized software
drivers, firmware and management agents. Every RDP CD includes 10-node
trial licenses for evaluation purposes. RDP requires a license for
each server deployed and are available for purchase with blade servers.
For more information, visit http://www.hp.com/servers/rdp.
HP Systems Insight Manger
HP Systems Insight Manager
(HP SIM) help maximize system uptime and performance and reduce system
maintenance costs by providing proactive notification of problems
before those problems result in unplanned downtime or reduced productivity.
HP SIM is easy to set up to work with the Insight Management Agents,
integrated Light-Out and Remote Insight Light-Out Edition, and Version
Control Agents to deliver robust fault, configuration, and asset management
as well as remote administration. With HP Systems Insight Manager
customers will also be able to take advantage of role-based security;
the ability to manage ProLiant, Integrity, and HP9000 systems; and
plug-ins for storage, client, printer, and power management as well
as server rapid deployment, performance management, and workload management.
For more details on HP Systems Insight Manager visit http://www.hp.com/go/hpsim.
Management Agents
The Management Agents
form the foundation for HP's Intelligent Manageability strategy. They
provide direct, browser-based access to in-depth instrumentation built
into HP servers, workstations, desktops, and portables, and send alerts
to HP Systems Insight Manager and other enterprise management applications
in case of subsystem or environmental failures. For additional information
about the Management Agents and other management products from HP,
please visit the management Web site at http://www.hp.com/servers/manage.
Subscriber's Choice
Subscriber's Choice Driver
and Support Alerts/Notifications is a web-based email subscription
service that provides software and driver change notifications for
ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice.
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq, support software,
and
configuration utilities
The latest software, drivers,
and firmware fully optimized and tested for your ProLiant server and
options, available in the RDP CD, SmartStart or downloadable from
Software and Drivers download pages, linked from the SmartStart website
at http:www.hp.com/go/support.
Insight Diagnostics Online
Edition
The most advanced configuration analysis, reporting and troubleshooting
utilities used by HP and at your fingertips, available in SmartStart.
Optional software offerings that selectively extend the functionality
of an Adaptive Infrastructure to address specific business problems and
needs:
Workload Management Pack - provides easier management of complex environments,
improving overall server utilization and enabling customers for the
first time to confidently deploy multiple applications on a single multiprocessor
ProLiant Server.
Performance Management Pack - identifies and explains hardware performance
bottlenecks on ProLiant servers and attached options enabling users
to better utilize their valuable resources.
Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken network linkages and steers traffic to the optimum route based
on network conditions.
Vulnerability and Patch Management Pack - identifies and remediates
software security vulnerabilities due to missing patches as well operating
system configurations that can be exploited by viruses, worms, and other
blended threats.
Virtual Machine Management Pack - provides central management and
control of virtual machines from Microsoft and VMware. Integrated approach
provides the ability to manage both physical and virtual resources from
a single management console. Integrated approach provides the ability
to manage both physical and virtual resources from a single management
console.
NOTE:Flexible and volume quantity
license kits are available for ProLiant Essentials Value Packs. Refer
to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information.
SmartStart
SmartStart is a tool that simplifies
single server setup, providing a rapid way to deploy reliable and consistent
server configurations. To obtain a copy of SmartStart for your blade server,
redeem the coupon that is included with your Blade server or order your
copy from the SmartStart web site. For more information, please visit the
SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 6.20
OS
Support
Microsoft® Windows®
LINUX
VMware Virtualization Software
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA3000
& EVA5000, XP, rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to http://www.hp.com/go/factory-express.
Intelligent Manageability
Integrated Lights-Out (iLO) Advanced Pack
HP BladeSystem wizard - new feature iLO, blade
and OS installation and configuration
Static IP bay configuration -- new feature for
ProLiant BL p-Class blades
Virtual Text and Graphical Remote Console
Virtual CD-ROM and Virtual Floppy
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer
(SSL) Security
IML and iLO Event Logging
Support for 12 user accounts with customizable access privileges
Automatic Server Recovery-2
(ASR-2)
Redundant ROM
Remote Flash ROM
ROM Based Setup Utility (RBSU)
Advanced Configuration and Power Interface Specification Ready (ACPI)
Server and Interconnect Switch Health Logs
Redundant Power Supply Utility
Pre-Failure Warranty (covers processors, as well as hard drives and memory)
Interconnect Switch Management System and Utilities (Interconnect Switch
option)
Integrated Management Log (IML)
Dynamic sector repairing and drive parameter tracking (with Smart Array
controllers)
Network adapter teaming set-up utility
HP BladeSystem p-Class
Availability Features
Power redundancy:
hot-plug power supplies
redundant AC feeds (requires two power enclosures when using blade
enclosures with enhanced backplane components)
interconnects options and server blade management module share
power from both A- and B- side power buses
Dual-Port Fibre Channel Mezzanine Card for redundant SAN connections
Hot-plug and hot- remove with configuration retention and no need
to cable/re-cable
Two network connections per HP ProLiant BL30p server blade routed
to independent interconnect switches
Redundant Ethernet inter-switch communication with two sets of redundant
Ethernet uplink ports per each interconnect switch
Redundant front panel ports per each interconnect switch for diagnostics,
management, and additional uplinks
Redundant serial ports
Compatibility with PVST+ (CGESM or GbE2 switch) and 802.1D Spanning
tree protocol support for loop-free path redundancy
Static IEEE 802.3ad (EtherChannel compatible) trunking with automatic
port load balancing and failover
Redundant configuration files and operating system firmware images
in memory (GbE2 switch)
Redundant fans per each interconnect switch
Redundant power to each interconnect switch
Support for ProLiant network adapter teaming
Redundant configurable community strings and SNMP trap manager hosts
Redundant configurable syslog server, DNS server, and default gateways
(GbE2 switch)
Security
Power-on password
Administrator's password
Integrated Lights-Out provides user authentication via directory services
or 12 customizable user accounts
Integration Lights-Out supports SSH and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting
Interconnect switch multilevel user names and passwords, management interface
time out period setting, SSH*, SCP
secure copy protocol*, port-based
IEEE 802.1Q tagged VLANs, RADIUS user authentication and authorization*,
and IP address restriction *NOTE: CGESM or GbE2 Interconnect
Switch only
Minimum Rack Requirements
Mounts in ProLiant, and Telco
racks and Third Party racks that meet the following criteria:
Compatible with 19-inch Standard EIA rail sets
EIA rail-to-rail depth is 29 - 30"
Cabinet depth must be at least 36-inch deep overall (Additional min.
3.5-inch clearance from rear RETMA rail to rear door, inclusive in the
36-inch overall depth)
Ample room for top and bottom cable egress (approximately 8 square
inches for full rack configuration with patch panel)
Must be capable of supporting 1600 lb (for full rack configuration)
Perforated front and rear doors to accommodate front-to-back cooling
Must have 65% open perforation on server blade enclosure doors to
support airflow requirements
Optimized for use with the HP 10000 Series racks
NOTE: If using
Compaq 7000 Series rack, Rack Extension Kit and High Air Flow Rack Door
options are required.
Rack Airflow Requirements
HP 10000 series racks provide enhanced airflow for maximum cooling,
allowing racks to be fully loaded with servers and server blades using
the latest server technologies.
CAUTION: If
a third-party rack is used, observe the following additional requirements
to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your
42U server rack includes closing front and rear doors, you must allow
830 square inches (5,350 sq cm) of hole evenly distributed from top
to bottom to permit adequate airflow (equivalent to the required 64
percent open area for ventilation).
Side: The clearance between the installed rack
component and the side panels of the rack must be a minimum of 2.75
inches (7 cm).
CAUTION: Always
use blanking panels to fill all remaining empty front panel U-spaces in
the rack. This arrangement ensures proper airflow. Using a rack without
blanking panels results in improper cooling that can lead to thermal damage.
NOTE: For additional
information, refer to the Setup and Installation Guide or the Documentation
CD provided with the server, or to the server documentation located in the
Support section on the HP ProLiant BL30p server blade website: http://www.hp.com/servers/bl30p.
Service and Support
Three-year limited warranty, including hardware diagnostic support, pre-failure
warranty (coverage of processors, memory and SCSI hard drives). The warranty
is fully supported by HP Services and a worldwide network of resellers
and service providers. In addition 90-day's getting started software telephone
support may be covered under the warranty or available for an additional
fee. Enhancements to warranty services are available through HP Care Pack
services.
NOTE: Server Blade Limited Warranty
includes 3 year Parts, 1 year Labor, 1-year on-site support. NOTE: Server Blade Enclosure and Interconnects Limited Warranty
includes 3 year Parts, 3 year Labor, 3-year on-site support.
Care Pack services provide a range of life cycle support options that
let you choose the service levels that meet your business requirements,
from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available
including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13
hours, 5 day to 24 hours, 7 days call window with options including
4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft, Linux,
ProLiant Essentials and VMWare-based IT solutions helping to deliver
high level of application availability. Response times range from 30
mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support
Solution
HP has introduced a new building block approach which allows customers
to purchase the right coverage at the right time whether purchasing an
initial server blade plus enclosure or purchasing additional ProLiant
server blades over time. HP will offer two sets of Care Pack services,
one designed to support the server blade and one designed to support the
enclosure.
HP Care Pack services for HP ProLiant Server Blades cover the server blade
and all HP branded hardware options qualified for the server, purchased
at the same time or afterwards, internal to the server.
HP Care Pack services for HP BladeSystem p-Class Server Blade Enclosure
covers the enclosure including patch panels, HP supported Ethernet interconnects,
power enclosure with power supplies and power distribution.
NOTE: For more information regarding the Blade service portfolio visit
our worldwide web site on the internet at: http://h20219.www2.hp.com/services/cache/81725-0-0-225-121.html
NOTE:
For more information on HP Care Pack services, contact any of our worldwide
sales offices or resellers or visit our worldwide Web site on the internet
at: http://www.hp.com/hps/carepack NOTE: For more complete information on HP Services offerings, customers
and resellers, please visit us at: http://www.hp.com/hps NOTE: Additional information regarding worldwide limited warranty
and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
Two (2) Intel Xeon 3.2-GHz standard
(up to 2 supported)
Cache Memory
2-MB Level 3 writeback per processor
Memory
1024-MB (standard) to 4-GB (maximum)
of PC2100 DDR SDRAM running at 266-MHz (1 x 1-GB); 2-way interleaved when
an identical pair installed
Network Adapter
Two (2) NC7781 PCI-X Gigabit
NICs (embedded) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives
None ship standard
Internal Storage
Up to 120-GB maximum (with optional
hard drives)
Optical Drive
None
Form Factor
Plugs vertically into HP BladeSystem
p-class blade sleeve. Blade sleeve supports 1 or 2 HP ProLiant BL30p server
blades. Blade sleeve plugs vertically into HP BladeSystem p-Class Enhanced
Server Blade Enclosure.
ProLiant BL30p
X3.2-1MB, 1GB (2P)
368271-B21
Processor(s)
Two (2) Intel Xeon 3.2-GHz standard
(up to 2 supported)
Cache Memory
1-MB Level 3 writeback per processor
Memory
1024-MB (standard) to 4-GB (maximum)
of PC2100 DDR SDRAM running at 266-MHz (1 x 1-GB); 2-way interleaved when
an identical pair installed
Network Adapter
Two (2) NC7781 PCI-X Gigabit
NICs (embedded) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives
None ship standard
Internal Storage
Up to 120-GB maximum (with optional
hard drives)
Optical Drive
None
Form Factor
Plugs vertically into HP BladeSystem
p-class blade sleeve. Blade sleeve supports 1 or 2 HP ProLiant BL30p server
blades. Blade sleeve plugs vertically into HP BladeSystem p-Class Enhanced
Server Blade Enclosure.
Two (2) Intel Xeon 3.06-GHz
standard (up to 2 supported)
Cache Memory
512-KB Level 2 writeback per
processor
Memory
1024-MB (standard) to 4-GB (maximum)
of PC2100 DDR SDRAM running at 266MHz (1 x 1-GB), 2-way interleaved when
an identical pair installed
Network Adapter
Two (2) NC7781 PCI-X Gigabit
NICs (embedded) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives
None ship standard
Internal Storage
Up to 120-GB maximum (with optional
hard drives) 2 x 60-GB
Optical Drive
None
Form Factor
Plugs vertically into HP BladeSystem
p-class blade sleeve. Blade sleeve supports 1 or 2 HP ProLiant BL30p server
blades. Blade sleeve plugs vertically into HP BladeSystem p-Class Enhanced
Server Blade Enclosure.
One (1) Intel Xeon 3.06-GHz
standard (up to 2 supported)
Cache Memory
512-KB Level 2 writeback per
processor
Memory
1024-MB (standard) to 4-GB (maximum)
of PC2100 DDR SDRAM running at 266-MHz (1 x 1-GB), 2-way interleaved when
an identical pair installed
Network Adapter
Two (2) NC7781 PCI-X Gigabit
NICs (embedded) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives
None ship standard
Internal Storage
Up to 120-GB maximum (with optional
hard drives)
Optical Drive
None
Form Factor
Plugs vertically into HP BladeSystem
p-class blade sleeve. Blade sleeve supports 1 or 2 HP ProLiant BL30p server
blades. Blade sleeve plugs vertically into ProLiant BL p-Class Enhanced
Server Blade Enclosure.
ProLiant 3.2-GHz
BL30p Server Blade Multi-Pack
368272-B21 NOTE: Multi-pack contains 8 HP ProLiant
BL30p server blades, 4 HP ProLiant BL30p server blade sleeves and 8 licenses
for Rapid Deployment Pack.
Processor(s)
Each blade is configured with
Two (2) Intel Xeon 3.2-GHz standard (up to 2 supported)
Cache Memory
2-MB Level 3 writeback per processor
Memory
1024-MB (standard) to 4-GB (maximum)
of PC2100 DDR SDRAM running at 266-MHz (1 x 1-GB), 2-way interleaved when
identical pair installed
Network Adapter
Two (2) NC7781 PCI-X Gigabit
NICs (embedded) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives
None ship standard
Internal Storage
Up to 120-GB maximum (with optional
hard drives) 2 x 60-GB
ProLiant 3.06-GHz BL30p Server Blade Multi-Pack
354051-B21 NOTE: Multi-pack contains 8 HP
ProLiant BL30p server blades, 4 HP ProLiant BL30p server blade sleeves
and 8 licenses for Rapid Deployment Pack.
Processor(s)
Each blade is configured with
Two (2) Intel Xeon 3.06-GHz standard (up to 2 supported)
Cache Memory
512-KB Level 2 writeback per
processor
Memory
1024-MB (standard) to 4-GB (maximum)
of PC2100 DDR SDRAM running at 266-MHz (1 x 1-GB), 2-way interleaved when
identical pair installed
Network Adapter
Two (2) NC7781 PCI-X Gigabit
NICs (embedded) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives
None ship standard
Internal Storage
Up to 120-GB maximum (with optional
hard drives) 2 x 60-GB
Configuration Information - Factory Integrated Models (North America only)
NOTE:
For Configure to Order requirements within EMEA region, please consult local
Sales Contact.
NOTE: HP does not allow factory integration of options into standard
models listed above.
Configure-to-order servers must start with a CTO Chassis. NOTE: This product offering does not support HP Factory Express Server
Configuration Level 1.
Step 1: Base Server
Blade Configuration
Model
HP ProLiant BL30p
Configurable Model (North America)
367243-405
Configurable Model
ships with:
- Two embedded NC7781 PCI-X Gigabit NICs plus one 10/100T NIC for iLO
- Integrated Lights-Out (iLO) Management with Advanced Pack features
Step 2: Choose
Required Options (only one of the following from each list unless otherwise
noted)
Processor
Intel Xeon 3.06GHz/512-KB
cache Processor Kit (option) NOTE: If 2 processors are desired,
select one 354053-B21and one 354053-B21
Step 3: Choose
Additional Options for Factory Integration
Hard Drive
ATA Hard Drive Kit
for ProLiant BL35p and ProLiant BL30p, 2.5" parallel ATA drive, 60GB,
5400 rpm
354052-B21
Fibre
Channel Option
Dual-Port Fibre Channel
Adapter (2-Gb) Kit for HP ProLiant BL30p or HP ProLiant BL35p server blades
354054-B21
NOTE:
For additional options, including HP BladeSystem p-Class blade sleeve,
enhanced server blade enclosure, interconnect options and power subsystem
options, please refer to the "Options" section below.
Emulex-based Dual Port Fibre Channel
Adapter (2-Gb) Kit (option) NOTE: Supports the HP ProLiant 25p/30p/35p/45p
Server Blades
394588-B21
Dual-Port Fibre Channel Adapter
(2-Gb) Kit (option) for HP ProLiant BL30p or HP ProLiant BL35p server blades* NOTE: This Fibre-Channel adapter is Qlogic-based *NOTE: When using this adapter, Patch
Panel 2, CGESM, or a GbE2 Interconnect Switch Kit (with Storage Connectivity
Kit) must be used to provide pass through of the Fibre Channel signals.
ProLiant Essentials Vulnerability
and Patch Management Pack, Single-Server License
371645-B21
ProLiant Essentials Vulnerability
and Patch Management Pack, 10-Server License
372029-B21
ProLiant Essentials Vulnerability
and Patch Management Pack, Flexible-Quantity License
371646-B21
ProLiant Essentials Vulnerability
and Patch Management Pack, Tracking License for New Servers
371647-B21
ProLiant Essentials Vulnerability
and Patch Management Pack, Tracking License for Installed servers
378372-B21
ProLiant Essentials Server Migration
Pack, 25 - Server License
391674-B21
ProLiant Essentials Server Migration
Pack, 50 - Server License
391675-B21
ProLiant Essentials Server Migration
Pack, 100 - Server License
391676-B21
ProLiant Essentials Server Migration
Pack, 10 - Server License NOTE: This license allows 10 servers
to be migrated from a physical server to 10 virtual machines. Or this license
can be used to migrate 10 virtual machines from one virtualization layer
i.e. VMware GSX to a different virtualization layer such as VMware ESX or
Microsoft Virtual Server 2005.
390739-B21
ProLiant Essentials Server Migration
Pack, Single-Server License
375345-B21
ProLiant Essentials Server Migration
Pack, Flexible-Quantity License
375346-B21
ProLiant Essentials Server Migration
Pack, Tracking license
375347-B21
ProLiant Essentials Virtual Machine
Management Pack, SINGLE LIC IP CCAO-
WGR
372214-B21
ProLiant Essentials Virtual Machine
Management Pack, FLEX LIC IP CCAO-WGR
372215-B21
ProLiant Essentials Virtual Machine
Management Pack, TRACKING LIC IP CCAO-WGR
372216-B21
ProLiant Essentials Performance
Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license
activation key and documentation.
306696-B21
ProLiant Essentials Performance
Management Pack, 10-Server License NOTE: For use with up to 10 servers.
Contains 10 licenses with one unique license
activation key and documentation.
374055-B21
ProLiant Essentials Performance
Management Pack, Flexible-Quantity License NOTE: For use with multiple servers.
This part number can be used to purchase multiple licenses with a single
activation key. The quantity ordered of this part number will be the quantity
of licenses included in the kit in the form of a corresponding activation
key. Use the same key to activate all licenses in the actual quantity ordered.
For a given order, one kit will be delivered with activation key, and documentation.
306697-B21
ProLiant Essentials Performance
Management Pack, Tracking license NOTE: For use with signed and implemented
Activation Key Agreements only. Purchase of this part number entitles the
customer to deploy additional licenses of the product under the terms of
the existing Activation Key Agreement. NOTE: Nothing is delivered in conjunction with the purchase of this
part number. Visit http://h18004.www1.hp.com/products/servers/proliantessentials/license/akalic.html
for more information on Activation Key Agreements.
306698-B21
Rapid Deployment Pack, 10 User,
V1.x
269817-B21
Rapid Deployment Pack, 10 User,
V1.x (Japan)
269817-291
NOTE:
The above license allows 10 servers to be managed and deployed via the Deployment
Server. NOTE:
Not necessary if you purchase the HP ProLiant BL30p Multi-Pack (354051-B21)
or server blade enclosure with 8 Rapid Deployment Pack licenses 281404-B22. NOTE: Rapid Deployment pack is now
available in a Linux Edition for Linux-only environments.
Rapid Deployment Pack, 1 User,
V1.x
267196-B21
Rapid Deployment Pack, 1 User,
V1.x (Japan)
267196-291
NOTE:
The above license allows 1 server to be managed and deployed via the Deployment
Server. NOTE: Not necessary if you purchase the HP ProLiant BL30p Multi-Pack
(354051-B21) or server blade enclosure with 8 Rapid Deployment Pack licenses
281404-B22. NOTE: Rapid Deployment pack is now available in a Linux Edition for
Linux-only environments.
Flexible Quantity License Kit
302127-B21
License-Only - for use with a
Master License Agreement
302128-B21
ProLiant Essentials Intelligent
Networking Pack, Single Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
ProLiant Essentials Intelligent
Networking Pack, Flexible License NOTE: For use with multiple servers.
This part number can be used to purchase multiple licenses with a single
activation key. The quantity ordered for this part number will be the quantity
of licenses included in the kit in the form of a corresponding activation
key. Use the same key to activate all licenses in the actual quantity ordered.
For a given order, one kit will be delivered with the activation key, and
documentation.
372950-B21
ProLiant Essentials Intelligent
Networking Pack, Tracking License NOTE: For use with signed and implemented
Activation Key Agreements only. Purchase of this part number entitles the
customer to deploy additional licenses of the product under the terms of
the existing Activation Key Agreement. NOTE: Nothing is delivered in conjunction with the purchase of this
part number. Visit http://h18004.www1.hp.com/products/servers/proliantessentials/license/akalic.html
for more information on Activation Key Agreements.
NOTE: Flexible
and volume quantity license kits are available for ProLiant Essentials Value
Packs. Refer to URL http://hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for
more information.
NOTE: There is
no option kit offered for the HP ProLiant BL30p server blade with Intel
Xeon 3.2GHz processor because all models ship with two processors installed.
Memory
(SDRAM DIMMs)
4096-MB of Advanced ECC PC2100
DDR SDRAM DIMM Memory Kit (2 x 2-GB)
1024-MB
of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 1-GB) NOTE: This DIMM option is an identical match to the DIMM installed
on the HP ProLiant BL30p server blade base model and therefore provides
2-way interleaving when installed on a base model HP ProLiant BL30p server
blade.
HP BladeSystem p-Class
Enhanced Server
Blade Enclosures
HP BladeSystem p-Class Enhanced
Server Blade Enclosure with the HP BladeSystem Management Suite NOTE: Includes an HP BladeSystem
p-Class Enhanced Server Blade Enclosure, a single copy of Systems Insight
Manager (SIM) and 8 licenses for each of the following products: Rapid Deployment
Pack (RDP), Performance Management Pack (PMP) and the Vulnerability and
Patch Management Pack (VPM).
HP BladeSystem Management Suite
(Software Licenses Only) NOTE: Adds 8 licenses to ProLiant
BL p-Class Server Blade Enclosure with the HP BladeSystem Management Suite
,P/N 380625-B22 (above) for a total of 16 for a fully populated enclosure
of BL30p blades. Includes a single copy of Systems Insight Manager (SIM)
and 8 licenses for each of the following products: Rapid Deployment Pack
(RDP), Performance Management Pack (PMP) and the Vulnerability and Patch
Management Pack (VPM).
389403-B21
HP BladeSystem p-Class Enhanced
Server Blade Enclosure (includes enhanced backplane components)
243564-B22
HP BladeSystem p-Class Enhanced
Server Blade Enclosure with eight (8) ProLiant Essentials Rapid Deployment
Pack Licenses (includes enhanced backplane components) NOTE: HP BladeSystem p-Class enhanced
server blade enclosures are required to support HP ProLiant BL30p server
blades.
281404-B22
HP BladeSystem p-Class Server
Blade Enclosure Upgrade Kit (option) NOTE: Server Blade Enclosure Upgrade
Kit (354100-B21) contains enhanced backplane components and enables a field
upgrade of a blade enclosure to support HP ProLiant BL30p server blades
series and provide a single, physical iLO port for the enclosure.
NOTE:
Only one interconnect kit required per server blade enclosure.
Cisco
Gigabit Ethernet Switch Module for HP BladeSystem p-Class Interconnect Kit
Base Unit only
378926-B21
NOTE:
Two CGESM interconnect kits required per server blade enclosure.
Cisco Gigabit Ethernet
Switch Module for HP BladeSystem p-Class Interconnect Kit Base Unit (populated
with two RJ-45 10/100/1000 T/TX/T Small Form Factor Pluggable (SFP) Modules
378927-B21
NOTE:
Two CGESM interconnect kits required per server blade enclosure.
Cisco RJ-45 10/100/1000
T/TX/T SFP Module
378928-B21
Cisco Fiber SX SFP
Module
378929-B21
ProLiant BL p-Class
Storage Connectivity Kit (with pair of OctalFC Interconnect Modules and
two Fibre Channel signal conditioning cards)
321745-B21
NOTE:
Required for HP ProLiant BL30p and HP ProLiant BL35p Fibre Channel signal
pass through when using the CGESM or GbE2 Interconnect Switch. NOTE: Only one Storage Connectivity Kit required per each GbE2 Interconnect
Kit. NOTE: Only one Storage Connectivity Kit required for (2) CGESM Interconnect
Kit
Single Phase Power
Enclosure with 4 power supplies (NA/JPN)
(Single Phase Power Enclosure holds a maximum of 4 power supplies; no need
to order additional power supplies with this option kit)
Single Phase Power
Enclosure with 4 power supplies (Int'l)
(Single Phase Power Enclosure holds a maximum of 4 power supplies; no need
to order additional power supplies with this option kit)
239162-421
3 Phase Power Enclosure
with 6 power supplies (NA/JPN)
(3 Phase Power Enclosure holds a maximum of 6 power supplies; no need to
order additional power supplies with this option kit)
3 Phase Power Enclosure
with 6 power supplies (Int'l)
(3 Phase Power Enclosure holds a maximum of 6 power supplies; no need to
order additional power supplies with this option kit)
230769-421
Single Phase Power
Enclosure (empty) (NA/JPN)
(Holds up to 4 power supplies; power supplies are not included in this kit)
231710-001
Single Phase Power
Enclosure (empty) (Int'l)
(Holds up to 4 power supplies; power supplies are not included in this kit)
231710-421
3 Phase Power Enclosure
(empty) (NA/JPN)
(Holds up to 6 power supplies; power supplies are not included in this kit)
231709-001
3 Phase Power Enclosure
(empty) (Int'l)
(Holds up to 6 power supplies; power supplies are not included in this kit)
NOTE: The Modular
Distribution Unit Kits excludes the extension bars as they are not required
with the HP BladeSystem p-class 1U power enclosure.
HP BladeSystem Power Extension
Kit NOTE: This kit is specifically for
HP BladeSystem p-Class customers who want to upgrade their standard server
blade enclosures to enhanced server blade enclosures and would like to install
an additional, redundant 3U power enclosure above the server blade enclosures
rather than below them. The option kit consists of two extension cable assemblies
- one for each side (A and B).
MSL6060, 2 drive, 60 slot Ultrium
460, with embedded FC router
AD604A
NOTE: Please reference
the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the MSL5026S2 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the MSL5052S2 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http:/www.hp.com/go/ebs
NOTE: Please reference
the MSL5060 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the ESL E-Series Tape Libraries QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution. Reference
current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks EML E-Series
Tape Libraries
EML103e Tape Library, 0 drive,
103 LTO slots
AD560A
EML 245e Tape Library, 0 drive,
245 LTO slots
AD561A
NOTE:
Please reference the EML E-Series Tape Libraries QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution. Reference
current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks Virtual Library
Systems
HP 6105 Virtual Library System
AD728A
HP 6510 Virtual Library System
AD729A
NOTE: Please reference
the Virtual Library Systems Tape Libraries QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution. Reference
current compatibility information at http://www.hp.com/go/ebs
Magneto-Optical Jukeboxes
HP StorageWorks 9.1 GB Mid-range
Optical Jukeboxes
NOTE: Please reference the
Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical
for additional information needed to create a complete solution
NOTE: Please reference the
Ultra Density Optical Jukebox QuickSpecs at http://www.hp.com/go/optical
for additional information needed to create a complete solution
HP Rack 10842 (42U) - Pallet NOTE: Server Blade Enclosures must
be field integrated into the 10842 racks. Factory integration of Server
Blade Enclosures into the 10842 is not supported.
HP Rack 10842 (42U) - Shock Pallet NOTE: Server Blade Enclosures must
be field integrated into the 10842 racks. Factory integration of Server
Blade Enclosures into the 10842 is not supported.
NOTE: -B21 (pallet)
used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom
systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks
Not all HP equipment is qualified to be shipped in the Rack 10000 series.
Service
and Support Offerings (HP Care Pack Services)
NOTE:
The HP Care Pack service part numbers below for ProLiant BL p-Class
server blades, cover the server blade and all HP branded hardware
options qualified for the server, purchased at the same time or
afterwards, internal to the server.
Hardware Services On-site
Service
Next Business Day On-Site
Service, 5-Day x9-Hour Coverage, 3 Years, Electronic
UD186E
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
UD187E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
UD188E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UD189E
NOTE: The
HP Care Pack service part numbers below for HP BladeSystem p-Class
server blade enclosure covers the enclosure including patch panels,
HP supported Ethernet interconnects, power enclosure with power supplies
and power distribution.
Hardware Services On-site
Service
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
HC031E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
HC032E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
HC033E
NOTE: The
HP Care Pack service part numbers below covers the HP BladeSystem
Brocade and McData SAN Switches.
Hardware Services On-site
Service
Next Business Day On-site
Service, 5-Day x 9-Hour Coverage,
3 Years, Electronic
UC007E
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
UC008E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
UC009E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UC023E
Installation & Start-up Services
HP Installation & Startup
Service for HP BladeSystem Infrastructure - provides for an integrated
hardware and software implementation that includes remote service
planning, onsite deployment of hardware and software, installation
verification testing and customer orientation. Hardware deployment
covers the installation of a single BladeSystem enclosure that include
server blades (up to 16), Ethernet network interconnect, and power
options. Software deployment covers the installation and configuration
of HP Systems Insight Manager (SIM), HP Rapid Deployment Pack (RDP),
and deploy up to two operating system editions of either Windows or
Linux, using scripted operating system installation software
UC905E
ProLiant BL p-Class Blade
Server Hardware Installation, Electronic
UA219E
ProLiant BL p-Class Enclosure
and Server Blade Hardware Installation, Electronic
U4971E
Provides for the Installation
and Start-up of ProLiant Essentials Rapid Deployment Pack on a Customer
supplied server designated as a Deployment Server. Includes the deployment
of a single server. This new server will be deployed using either
one of the pre-configured scripts or an image. In addition, the service
will provide for the capture and storage of the configuration of the
newly deployed server and orientation on product usage. To be delivered
during standard office ours, standard office days. Electronic.
U5683E
Provides for the Installation
and Start-up of Rapid Deployment Pack Implementation of Rapid Deployment
Pack (Basic) (Electronic)
UA042E
HP ProLiant Essentials Vulnerability
and Patch Management Pack Installation and Startup Service. Service
coverage: onsite installation of the Vulnerability and Patch Management
(VPM) software on a customer designated server, configuration of the
VPM software to acquire security patches, enabling the VPM software
to scan up to five (5) systems, applying the security patches to the
designated servers, generating a report from VPM that shows the vulnerability
assessment results, and providing customer with an orientation to
the software.
UC929E
Provides for the Installation
and Start-up of System Insight Manager (Electronic)
UA041E
Provides for the Installation
and Start-up of System Insight Manager (Electronic)
Standard Memory 1024-MB PC2100 MHz Registered DDR SDRAM
DIMM installed (1 x 1-GB SDRAM DIMM)
Standard Memory Replaced with Optional Memory Up to 4096-MB of DDR SDRAM DIMM memory is available with the removal
of standard memory and the installation of optional SDRAM DDR DIMM memory
expansion kits.
Memory
Slot
1
2
Standard
1024 MB
1024 MB
Optional
1024 MB
512 KB
512 KB
Optional
2048 MB
1024 MB
1024 MB
Maximum
4096 MB
2048 MB
2048 MB
Following are memory options available from HP:
4096-MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
HP BladeSystem p-Class
Enhanced Server Blade Enclosure
Dimensions
Height
10.5 in (26.67 cm)
Width
17.60 in (44.70 cm)
Depth
28.86 in (73.30 cm)
Input Specifications
Rated input voltage
-43 VDC to -53 VDC
Nominal -48 VDC
Rated input current
125 A at -48 VDC
Rated input Power
6000 W
Individual Server Blade
Bay Ratings
Rated input voltage
-43 VDC to -53 VDC
Nominal -48 VDC
Rated input current
14.6 A at -48 VDC
Rated input Power
700 W
Temperature Range
Operating
50° to 95° F
(10° to 35° C)
Non-Operating
-22° to 140°
F (-30° to 60° C)
Relative Humidity
(non-condensing)
Operating
20% to 80%
Non-Operating
5% to 95%
Wet Bulb Temperature
Operating
82.4° F (28°
C)
Non-Operating
101.7° F (38.7°
C)
NOTE: Operating
temperature has an altitude derating of 34° F (1° C) per 1,000 ft
(304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048
m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144
m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on
a maximum temperature of 113° F (45° C). Altitude maximum for storage
is 70 KPa.
Operating and
Performance
Specifications for ProLiant BLp-Class RJ-45 Patch Panel 2 with Fiber Channel
pass through
Dimensions
Height
10.405 in (26.43 cm)
Width
1.535 in (3.899 cm)
Depth
27.697 in (70.35 cm)
Capability
IEEE
802.2, 802.3, 802.3u
Network Transfer Rate
10 Base-T (half-duplex)
10 Mbps
10
Base-T (full-duplex)
20
Mbps
100 Base-TX
(half-duplex)
100 Mbps
100 Base-TX (full-duplex)
200
Mbps
1000 Base-TX
(full-duplex)
1000 Mbps
Fiber Channel SAN
Velio
VC1070 re-timer
Auto-rate negotiate
between 2G and 1G
Connector
Network
32 RJ-45 in the back.
Fiber Channel
SAN
16 Pluggable SFP optical cages in
the front
Cable Support
10 Base-TX
Categories
3, 4, or 5 UTP (2 or 4 pair); up to 328 ft (100 m)
100
Base-TX
Category 5 UTP (2 pair);
up to 328 ft/100 m
1000
Base-TX
Category 5E (4 pair); up
to 328 ft (100 m)
Fiber
Channel
SFP optical cable
EMI
FCC
Class A
ICES-003
Class A
AS/NZS
3548 Class A
VCCI
Class A
NOTE:
Operating temperature has an altitude derating of 34° F (1° C) per
1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048
m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m) or
30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum
temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.
Operating and
Performance
Specifications for ProLiant BL p-Class RJ-45 Patch Panel
Dimensions
Height
10.405 in (26.43 cm)
Width
1.535 in (3.899 cm)
Depth
27.697 in (70.35 cm)
Capability
IEEE
802.2, 802.3, 802.3u
Network Transfer Rate
10 Base-T (half-duplex)
10 Mbps
10
Base-T (full-duplex)
20
Mbps
100 Base-TX
(half-duplex)
100 Mbps
100 Base-TX (full-duplex)
200
Mbps
1000 Base-TX
(full-duplex)
1000 Mbps
Connector
Network
16 RJ-45 in the back
Cable Support
10
Base-TX
Categories 3, 4, or 5 UTP
(2 or 4 pair); up to 328 ft (100 m)
100
Base-TX
Category 5 UTP (2 pair);
up to 328 ft (100 m)
1000
Base-TX
Category 5E (4 pair); up
to 328 ft (100 m)
Power Requirements
200
mA at + 5V DC; 500 mA at -48V
Temperature
Range
Operating
50°
to 95° F (10° to 35° C)
Non-operating
-22°
to 140° F (-30° to 60° C)
Relative
Humidity (non-condensing)
Operating
20%
to 80%
Non-operating
5%
to 95%
Wet
Bulb Temperature
Operating
82.4°
F (28° C)
Non-operating
101.7°
F (38.7° C)
NOTE:
Operating temperature has an altitude derating of 34° F (1° C) per
1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048
m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m) or
30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum
temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.
Operating and
Performance
Specifications for ProLiant BL p-Class GbE Interconnect Switch
Dimensions
Height
10.405 in (26.43 cm)
Width
1.535 in (3.899 cm)
Depth
27.697 in (70.35 cm)
Weight
11.5 lb/5.2 kg per interconnect
switch
Performance
9.6 Gbps external port
bandwidth per server blade enclosure (full duplex)
Forwarding rate 0.15
million pps per 10/100 port, 1.5 million pps per gigabit port, (64-byte
packets)
Non-blocking, full-wire
speed for all connections
Auto-MDI/MDIX, auto-negotiation
and auto-sensing with full-duplex support
Forwarding Mode
Store and forward
MAC Addresses
8,191 per interconnect
switch; MAC address based filtering and MAC address packet priority configuring
Forwarding Table
Age Time
Maximum age: 1 to 1,000,000
seconds; default: 300 seconds
Memory
32MB Main, 6MB flash
and 16MB packet buffer per interconnect switch
-48VDC: 1050 mA, 50
W maximum (per interconnect switch)
Temperature
R range
Operating
50° to 95° F (10° to
35° C)
Non-operating
-22° to 140° F (-30°
to 60° C)
Relative Humidity
(non-condensing)
Operating
20% to 80%
Non-operating
5% to 95%
Wet Bulb
Temperature
Operating
82.4° F (28° C)
Non-operating
101.7° F (38.7° C)
NOTE: Operating
temperature has an altitude derating of 34° F (1° C) per 1,000 ft
(304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048
m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144
m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on
a maximum temperature of 113° F (45° C). Altitude maximum for storage
is 70 KPa.
Operating and Performance
Specifications for ProLiant BL p-Class GbE2 Interconnect Switch
Dimensions
Height
10.405 in (26.43 cm)
Width
1.535 in (3.899 cm)
Depth
27.697 in (70.35 cm)
Weight
12.0 lb/5.4 kg per interconnect
switch
Performance
24 Gbps External port
bandwidth per server blade enclosure (full duplex)
Forwarding rate 1.5
million pps per gigabit port (64-byte packets)
Auto-MDI/MDIX, auto-negotiation
and auto-sensing with full-duplex support
Forwarding Mode
Store and forward
MAC Addresses
2,048 per interconnect
switch
Forwarding Table
Age Time
Maximum age: 1 to 65535
seconds; default: 300 seconds
Memory
128MB Main, 32MB flash
and 2MB packet buffer per interconnect switch
48VDC: 2040 mA, 98 W
maximum (per interconnect switch without Storage Connectivity Kit)
48VDC: 2355 mA, 113 W maximum (per interconnect switch with Storage Connectivity
Kit)
Temperature
Range
Operating
50° to 95° F (10° to
35° C)
Non-operating
-22° to 140° F (-30°
to 60° C)
Relative Humidity
(non-condensing)
Operating
20% to 80%
Non-operating
5% to 95%
Wet Bulb
Temperature
Operating
82.4° F (28° C)
Non-operating
101.7° F (38.7° C)
NOTE: Operating
temperature has an altitude derating of 34° F/1° C per 1,000 ft/304.8
m. No direct sunlight. Upper operating limit is 10,000 ft/3,048 m or 70Kpa/10.1
psia. Upper non-operating limit is 30,000 ft/9,144 m or 30.3 KPa/4.4 psia.
Storage maximum humidity of 95% is based on a maximum temperature of 113°
F/45° C. Altitude maximum for storage is 70 KPa.
Operating and
Performance
Specifications for CGESM
Interconnect Switch
Dimensions
Height
10.405 in (26.43 cm)
Width
1.6 in (4.06 cm)
Depth
28 in (71.12 cm)
Weight
11.5 lb/5.2 kg per interconnect
switch
Performance
28 Gbps Maximum Forwarding
Bandwidth. 38.7mpps Maximum Forwarding Rate (64 Byte Packets)
9018Bytes Jumbo Frames
MTU
Non-blocking architecture.
Wire Speed Performance on all ports
Auto-MDI/MDIX, auto-negotiation
and auto-sensing with full-duplex support
Forwarding Mode
Store and forward
MAC Addresses
8000 MAC/physical address
Table Size
Memory
128MB DRAM Memory. 16MB
Flash Memory
Compliance
IEEE 802.1s, IEEE 802.1w,
IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX,
and, IEEE 802.1D Spanning-Tree Protocol, IEEE 802.1p CoS Prioritization,
IEEE 802.1Q VLAN, IEEE 802.3 10BASE-T specification, IEEE 802.3u 100BASE-TX
specification, IEEE 802.3ab 1000BASE-T specification, IEEE 802.3z 1000BASE-X
specification, RMON I and II standards, SNMPv1, SNMPv2c, and SNMPv3 (RFC1493)
, CISCO-CDP-MIB, CISCO-CLUSTER-MIB, CISCO-CONFIG-MAN-MIB, CISCO-ENTITY-FRU-CONTROL-MIB,
CISCO-ENVMON-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-IGMP-FILTER-MIB,
CISCO-IMAGE-MIB, CISCO IP-STAT-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB,
CISCO-PAGP-MIB, CISCO-PING-MIB, CISCO-PROCESS-MIB, CISCO-RTTMON-MIB, CISCO-STP-EXTENSIONS-MIB,
CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB,
CISCO-VTP-MIB, ENTITY-MIB, ETHERLIKE-MIB, IF-MIB (in and out counters for
VLANs are not supported), IGMP-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASH-MIB,
OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB,
OLD-CISCO-TS-MIB, RFC1213-MIB (per the agent capabilities specified in the,
CISCO-RFC1213-CAPABILITY.my), RFC1253-MIB, RMON-MIB, RMON2-MIB, SNMP-FRAMEWORK-MIB,
SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-TARGET-MIB, SNMPv2-MIB, TCP-MIB,
UDP-MIB 1000BASE-T ports, 1000BASE-X (SFP), 1000BASE-SX
Network Transfer
Rate
10 Base-T (half-duplex)
10 Mbps
10 Base-T (full-duplex)
20 Mbps
100 Base-TX (half-duplex)
100 Mbps
100 Base-TX (full-duplex)
200 Mbps
1000 Base-TX (half and full-duplex)
2000 Mbps
1000 Base-SX (full-duplex)
2000 Mbps
Connector
4 SFP, 2 RJ-45 10/100/1000
T/TX/T, 1 DB-9
EMI
FCC Part 15 Class A
EN 55022: 1998 (CISPR22)
EN 55024: 1998 (CISPR24)
CNS 13438 Class A MIC
CD
MIC
AS/NZS 3548 Class A
CE
VCCI Class A
Safety
UL to UL 60950, Third
Edition
C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
TUV/GS to EN 60950:2000
CB to IEC 60950 with all country deviations
NOM to NOM-019-SCFI
CE Marking
Power
Requirements
-48VDC: 1050 mA, 125
W maximum (per interconnect switch)
Temperature Range
Operating
50 to 95º F (10 to 35º
C)
Non-operating
-22 to 140º F (-30 to 60º
C)
Relative Humidity
(non-condensing)
Operating
20% to 85%
Non-operating
5% to 95%
Wet Bulb
Temperature
Operating
82.4° F (28° C)
Non-operating
101.7° F (38.7° C)
NOTE: Operating
temperature has an altitude derating of 34° F (1° C) per 1,000 ft
(304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048
m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m)
or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum
temperature of 113° F (45° C). Altitude maximum for storage is 70
KPa.
Operating and Performance
Specifications for 3U HP BladeSystem
p-Class Power Enclosures
(North America/Japan)
Single-Phase Model
3-Phase Model
Dimensions
Height
5.25
in (13.34 cm)
5.25 in (13.34 cm)
Width
27.15
in (68.96 cm)
27.15 in (68.96 cm)
Depth
17.60
in (44.7 cm)
17.60 in (44.7 cm)
Weights
No
Hot-Plug Power Supplies
47.5
lb (21.55 kg)
47.5 lb (21.55 kg)
All Hot-Plug Power Supplies
99.5 lb (45.13 kg)
125.5
lb (56.93 kg)
Input
Requirements
Rated input voltage
200
VAC to 240 VAC
200 VAC to 240 VAC
line to line
Rated input
frequency
50 Hz to 60 Hz
50
Hz to 60 Hz
Rated input
current per side
24A
24A
per phase
Rated input
power per side
5760 W
9976
W
Power cord
1
NEMA L6-30P per side
1 NEMA L15-30
per side
Output
Voltage Specifications
Rated
output voltage
-48.8 VDC to -54
VDC
-48.8 VDC to -54 VDC
Rated output current
99A
170A
Rated output power
4298
W
8310 W
Nominal
power
4158 W at 208 VAC
7202
W at 208 VAC
Ambient
Temperature
Range(See NOTE)
Operating
50°
to 95° F (10° to 35° C)
50°
to 95° F (10° to 35° C)
Shipping
-22°
to 140° F (-30° to 60° C)
-22°
to 140° F (-30° to 60° C)
Relative
humidity, non-condensing (See NOTE)
Operating
20%
to 80%
20% to 80%
Non-operating
5%
to 95%
5% to 95%
Wet Bulb Temperature
Operating
82.4°
F (28° C)
82.4° F (28°
C)
Non-operating
101.7°
F (38.7° C)
101.7° F (38.7°
C)
NOTE:
Operating temperature has an altitude derating of 34° F (1° C) per
1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048
m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m) or
30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum
temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.
Operating and Performance
Specifications for 3U HP BladeSystem
p-Class Power Enclosures
(International)
Single-Phase Model
3-Phase Model
Dimensions
Height
5.25
in (13.34 cm)
5.25 in (13.34 cm)
Width
27.15
in (68.96 cm)
27.15 in (68.96 cm)
Depth
17.60
in (44.7 cm)
17.60 in (44.7 cm)
Weights
No
Hot-Plug Power Supplies
47.5
lb (21.55 kg)
47.5 lb (21.55 kg)
All Hot-Plug Power Supplies
99.5 lb (45.13 kg)
125.5
lb (56.93 kg)
Input
Requirements
Rated input voltage
200
VAC to 240 VAC
6.25 A at -48 VDC
200 VAC to 240 VAC line to neutral
Rated
input frequency
50 Hz to 60 Hz
50
Hz to 60 Hz
Rated input
current per side
24A
20A
per phase
Rated input
power per side
5760 W
10,552
W
Power cord
1
IEC 309 3-pin, 32A per side
1
IEC 309 5-pin, 32A per side
Output
Voltage Specifications
Rated
output voltage
-48.8 VDC to -54
VDC
-48.8 VDC to -54 VDC
Rated output current
99A
180A
Rated output power
4798
W
8790 W
Nominal
power
4598 W at 208 VAC
8790
W at 230 VAC L-N
Ambient
Temperature
Range(See NOTE)
Operating
50°
to 95° F (10° to 35° C)
50°
to 95° F (10° to 35° C)
Shipping
-22°
to 140° F (-30° to 60° C)
-22°
to 140° F (-30° to 60° C)
Relative
humidity, non-condensing (See NOTE)
Operating
20%
to 80%
20% to 80%
Non-operating
5%
to 95%
5% to 95%
Wet Bulb Temperature
Operating
82.4°
F (28° C)
82.4° F (28°
C)
Non-operating
101.7°
F (38.7° C)
101.7° F (38.7°
C)
NOTE:
Operating temperature has an altitude derating of 34° F (1° C) per
1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048
m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m) or
30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum
temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.
Operating and Performance
Specifications for HP BladeSystem p-Class Power Distribution Devices
Power Bus Box
Mini Bus Bar
Scalable Bus Bar
Power
Enclosures or facility DC feeds Supported
(3U each)
1
1 or 2
1 or 2
Server blade enclosures supported
(6U each)
1
up to 3
up to 5
Total rack height of supported
enclosures
9U
24U
36U
Dimensions
Height
5.1 in (12.95 cm)
19.45 in (49.40 cm)
48.57 in (123.37 cm)
Width
3.6 in (9.14 cm) each
19.74 in (50.14 cm)
19.74 in (50.14 cm)
Depth
3.25 in (8.26 cm)
2.2 in (5.59 cm)
2.2 in (5.59 cm)
Weight
3.62 lb (1.64 kg)
13.2 lb (5.9 kg)
26 lb (11.79 kg)
Rated Operating
Voltage
-43.2 VDC to -54 VDC
-43.2 VDC to -54 VDC
-43.2 VDC to -54 VDC
Max Total Power
Supported
3000 W
9000 W
15000 W
Total Max Input Current
At Minimum Voltage
69.44 A at -43.2VDC
208.32 A at -43.2 VDC
347.2 A at -43.2 VDC
(equivalent of 175A per feed)
Total Max Input Current
At Nominal Voltage
62.5 A at -48VDC
187.5 A at -48 VDC
312.5 A at -48 VDC
(equivalent of 175A per feed)
Max Current Per Power Feed
70A
70A
210A
Max Local Ambient
Temperature
149° F (65° C)
149° F (65° C)
149° F (65° C)
NOTE: All
systems support redundant A & B feeds. Scalable bus bar supports dual
A and dual B feeds.
Operating and
Performance
Specifications for
Facility DC
Voltage
Nominal input voltage
-48 VDC
Operating voltage range
-48VDC ± 10% or -43.2 VDC to -52.8 VDC
Max Input voltage slew rate
0.5V/uS
Redundant feed voltages*
(A & B)
*A and B feeds must differ by no
more than 5VDC during steady state operation
Ripple/Noise
480 mV PARD**
Overshoot
Must remain within regulation limits
on all feeds during startup or shutdown
Voltage transients
Must not exceed -60 VDC
Current
Max steady state input current
62.5A per server blade enclosure
installed at -48VDC
Max steady state current per feed/total
Power bus boxes
70 A/70A
Mini bus bars
210 A/210A
Scalable bus bars
210 A/350A or equivalent of 175A
per feed*
In-rush current
Must support up to 2X the maximum
operating current per server blade enclosure (125 A) for up to 1.0 mS
Input over-current
Customer provided fusing for facility
DC feeds that protects the system from catastrophic over-current within
20 uS. Fuse should sustain all in-rush and operating currents.
Max Input Current Slew Rate
1A/uS
Max Rated Power
3000W per server blade enclosure
Connections and Cables
HP provided facility
DC cable connection kit:
The facility DC connection kit supports the connection of up to four
-48VDC, RETURN pairs and ground
The power cable assemblies consist
of 1/0AWG, color-coded, flexible cable rated at 105° C, terminated with
bus mating connectors at one end and unterminated at the other end. The
cable length provided enables the customer to route to a fuse panel within
or adjacent to the rack.
NOTE: *All systems
support redundant A and B feeds. Scalable bus bars support dual A and dual
B feeds.
** Periodic and random
noise (PARD). Maximum allowable peak-to-peak ripple and noise (as measured
at the load on any output channel). The ripple and noise is measured over
a 20 Hz to 100 MHz frequency band. A resistive load (non-electronic) is
used for this measurement. Each output is by-passed to return by a 10uF
tantalum capacitor with an ESR less than 100 milli-Ohms in parallel with
a 0.47 uF ceramic capacitor, at the point of load. The load cable is 12
feet of twisted wire capable of carrying the current. The printed wiring
board assembly is installed in its enclosure for this measurement, or the
measurement leads are properly shielded with Earth grounds applied to the
insert.
Canadian Site
DL QuickSpecs
Search:
US QuickSpecs
380625-B22
© 2013 USA PartsDirect
