   Proliant ML570 G4 QuickSpecs  US QuickSpecs
  ML570 G4 Hard Drives   ML570 G4 Processors   ML570 G4 Memory
  ML570 G4 Controllers   ML570 G4 Networking   ML570 G4 Power Supplies
  ML570 G4 Quickspecs   ML570 G4 Quickspecs-Options   ML570 G4 Options
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML570 G4 Options      ML570 G4 Memory      Storage      Power Specifications      ML570 G4 QuickSpecs images/line.gif (50 bytes)

Proliant ML570 G4 Overview

HP ProLiant ML570 Generation 4 (G4)

HP ProLiant ML570 G4 Model (tower)
Proliant ML570 G4 Front View:Proliant ML570 G4 Rear View:
1.Four Memory Boards1.Two Multifunction Gigabit NIC ports
2.Ten PCI slots2.2 USB ports
3.Four Intel Xeon Processors3.Integrated Lights-Out 2 (iLO2) NIC port
4.Four Hot Plug Fans4.Parallel port
5.Front video5.PCI-X slot
6.Two USB (on front)6.PCI-Express x4 slot
7.Front Panel LEDs - Diagnostic Lighting7.Power supply
8.High Speed IDE Slimline DVD Combo Drive8.Optional redundant power supply
9.5.25-inch Removable Media Bay (optional)9.Service tool
10.1.44-MB Diskette Drive (optional)10.Unit Identification LED
11.Front Bezel11.Keyboard port
12.Hot Plug Drive SFF SAS Bays (18 Standard)12.Mouse port
13.Two Hot Plug Fans13.Video port
  14.Serial port

HP ProLiant ML570 G4 Model (Rack)

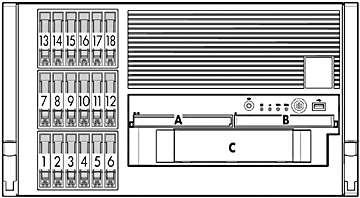

Proliant ML570 G4 Front View:Proliant ML570 G4 Rear View:
1. Front video/USB ports1.Two Multifunction Gigabit NIC ports
2.Front Panel LEDs - Diagnostic Lighting2.2 USB ports
3.5.25-inch Removable Media Bay (optional)3.Integrated Lights-Out 2 (iLO2) NIC port
4.High Speed IDE Slimline DVD Combo Drive4.Parallel port
5.1.44-MB Diskette Drive (optional)5.PCI-X slot
6.Hot Plug Drive SFF SAS Bays (18 Standard)6.PCI-Express x4 slot
7.Rack handles7.Power supply
 8.Optional redundant power supply
9.Service tool
10.Unit Identification LED
11.Keyboard port
12.Mouse port
13.Video port
14.Serial port

contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML570 G4 Options      ML570 G4 Memory      Storage      Power Specifications      ML570 G4 QuickSpecs images/line.gif (50 bytes)

Configuration Information

Processors HP X7140M DC 570 G4 Kit, Factory Integrated Only
HP X7130M DC 570 G4 Kit, Factory Integrated Only
HP X7120M DC 570 G4 Kit, Factory Integrated Only
HP X7110M DC 570 G4 Kit, Factory Integrated Only
HP X7041 DC 570 G4 Kit, Factory Integrated Only
HP X7030 DC 570 G4 Kit, Factory Integrated Only
NOTE: Up to 3 additional xxxxxx-B21 processors for each HP ProLiant ML570 G4 server may be ordered. If selecting a Performance Pack option, a second processor is included and should not be ordered.
Base Memory
8 GB (2 x 4 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
4 GB (2 x 2 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
4 GB (2 x 2 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
2 GB (2 x 1 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
1 GB (2 x 512 MB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
Storage Controllers
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
Smart Array 642 Controller
HP Smart Array 6402/512 FIO Cntrlr
HP Smart Array 6404/512 FIO CNTRLR
Optical Drive
Slimline CD-RW/DVD-ROM Combo Drive Option Kit
Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers)

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Options" section below.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML570 G4 Options      ML570 G4 Memory      Storage      Power Specifications      ML570 G4 QuickSpecs images/line.gif (50 bytes)

Options

NOTE: Some options may not be integrated at the factory. Contact your local sales representative for additional information.
HP ProLiant ML570 G4 Unique OptionsML570 G4 Hot-plug Memory Expansion Board
403702-B21
Hot-plug Redundant Fan Kit
NOTE: Includes three fans. Included in 2P models.
348108-B21
ProLiant Tower to Rack Conversion Kit
NOTE: This Tower to Rack Conversion Kit (PN 407318-B21) supports the HP ProLiant ML570 G4.
407318-B21
ProLiant Rack to Tower Conversion Kit
NOTE: This Rack to Tower Conversion Kit (PN 348113-B21) supports the HP ProLiant ML570 G4.
348113-B21

HP Insight Control Management SuitesNOTE: Electronic licensing options are available for Insight Control suites software products. Please see the appropriate Insight Control QuickSpecs for additional information.
HP Insight Control Environment

HP Insight Control Environment, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: This part number can be purchased as a single license or as multiple licenses with a single activation key. Customer will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service. Only available directly from HP and select resellers in the Americas region.

452148-B22
HP Insight Control Management Software Media Kit
NOTE: Insight Control Management DVD media without licenses. Contains Insight Manager and Essentials software products and components licensed by Insight Control Management suites. Uses an integrated installer to perform quick and accurate software installation and updates.
436222-B21
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html

Server Management Stand Alone Software Product - ProLiant EssentialsNOTE: Electronic licensing options are available for select ProLiant Essentials software products. Please see the appropriate ProLiant Essentials QuickSpecs for additional information.
Deploy
ProLiant Essentials Rapid Deployment Pack
ProLiant Essentials Rapid Deployment Pack No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 server to be deployed and managed via RDP. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.html
452151-B21
HP Server Migration Pack - Universal Edition
HP Server Migration Pack - Universal Edition, No Media, Physical / Virtual to ProLiant Single Migration License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 physical to ProLiant or virtual to ProLiant migration. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
460750-B21
HP Server Migration Pack - Universal Edition, No Media, Physical / Virtual to Virtual Single Migration License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 physical to virtual or virtual to virtual migration. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
460753-B21
HP Server Migration Pack - Universal Edition, No Media, 1-Year Unlimited Migration License, including 1 year of 24x7 Technical Support
NOTE: This license allows unlimited migrations (physical to ProLiant, physical to virtual, virtual to virtual, and virtual to ProLiant) for one year. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service
460756-B21
NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12855_na/12855_na.html

Control
Integrated Lights-Out Select Pack
ProLiant Essentials Integrated Lights-Out Select Pack, No Media, 1-Server License
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_na/12362_na.html
452158-B21
Integrated Lights-Out Advanced Pack
Integrated Lights-Out Advanced Pack, No Media ,1 Server License
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/10861_na/10861_na.html
452141-B21
Optimize
Accelerated iSCSI Pack
ProLiant Essentials Accelerated iSCSI Pack, No Media, Single License
NOTE: For use with a single NIC port. Contains one license with a unique license activation key and documentation.
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12466_na/12466_na.html
452679-B21
RDMA Pack
RDMA Pack for Embedded Multifunction Gigabit Server Adapters, No Media, 1-Server License
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12573_na/12573_na.html
452681-B21
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to: http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials QuickSpecs for more information.

Processor Dual-Core 64-bit Intel® Xeon®7140M Processor (3.40 GHz, 150Watts, 800MHz FSB)
NOTE: This processor option kit (PN 430816-B21 430816-B21) supports the HP ProLiant ML570 G4 and the HP ProLiant DL580 G4.
430816-B21 430816-B21
Dual-Core 64-bit Intel® Xeon®7130M Processor (3.20 GHz, 150 Watts, 800MHz FSB)
NOTE: This processor option kit (PN 430817-B21 430817-B21) supports the HP ProLiant ML570 G4 and the HP ProLiant DL580 G4.
430817-B21 430817-B21
Dual-Core 64-bit Intel® Xeon®7120M Processor (3.00 GHz, 95 Watts, 800MHz FSB)
NOTE: This processor option kit (PN 430818-B21 430818-B21) supports the HP ProLiant ML570 G4 and the HP ProLiant DL580 G4.
430818-B21 430818-B21
Dual-Core 64-bit Intel® Xeon®7110M Processor (2.60 GHz, 95 Watts, 800MHz FSB)
NOTE: This processor option kit (PN 430819-B21 430819-B21) supports the HP ProLiant ML570 G4 and the HP ProLiant DL580 G4.
430819-B21 430819-B21
Dual-Core 64-bit Intel® Xeon®7041 Processor (3.00 GHz, 165 Watts, 800MHz FSB)
NOTE: This processor option kit (PN 404752-B21 404752-B21) supports the HP ProLiant ML570 G4 and the HP ProLiant DL580 G4.
404752-B21 404752-B21
Dual-core 64-bit Intel® Xeon® 7030 (2.80GHz, 800MHz FSB) Processor Option Kit
NOTE: This processor option kit (PN 404753-B21 404753-B21) supports the HP ProLiant ML570 G4 and the HP ProLiant DL580 G4.
404753-B21 404753-B21

Memory (DIMMs)

8 GB (2 x 4 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
4 GB (2 x 2 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
4 GB (2 x 2 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
2 GB (2 x 1 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
1 GB (2 x 512 MB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
ML570 G4 Hot-plug Memory Expansion Board
403702-B21

Optical Drives Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers)
NOTE: This drive is supported in the removable media bay.
Slimline CD-RW/DVD-ROM Combo Drive Option Kit
NOTE: This drive is supported in the DVD-ROM bay and floppy bay
HP DVD+R/RW 8X Slim
Slimline CD-ROM Drive 24X

Diskette Drive Slimline Floppy Diskette Drive Option Kit
390164-B21

ML570 G4 Hard Drives Serial Attached SCSI (SAS) SFF Hot Plug

HP 146GB 3G SAS 10K SFF SP HDD
HP 146GB 3G SAS 10K SFF DP HDD
HP 72GB 3G SAS 10K SFF SP HDD
HP 72GB 3G SAS 10K SFF DP HDD
HP 72GB 3G SAS 15K SFF SP HDD
HP 72GB 3G SAS 15K SFF DP HDD
HP 36GB 3G SAS 15K SFF SP HDD
HP 36GB 3G SAS 15K SFF DP HDD
NOTE: SATA drives have a 1 year warranty. Please see the QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html

PCI Option HP x4-x8 PCI-E Bus Expander Option Kit
403724-B21
NOTE: When installed into a x4 PCI Express expansion slot, the optional x4-x8 PCI-Express Bus Expander converts an adjacent x4 PCI Express expansion slot into a x8 PCI Express expansion slot.
The HP ProLiant ML570 G4 Server can support up to three x4-x8 PCI Express bus expander cards. The card can only be installed in expansion slots 6, 8, and 10.


Storage Controllers SAS Controllers
HP Smart Array E500 Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400 Controller
HP Smart Array P400/256MB Controller
NOTE: The Smart Array P400 Controller supports internal Serial Attached SCSI and Serial ATA drives. This controller model ships standard on 1P Models.
HP Smart Array P400/512MB BBWC Controller
NOTE: The Smart Array P400 Controller supports internal Serial Attached SCSI and Serial ATA drives. This controller model ships standard on 2P Models.
512MB DDR BBWC Upgrade
NOTE: For Smart Array P400 Controller only.
Battery-backed write cache upgrade
NOTE: For Smart Array P400 Controller only.
HP Smart Array P600 Controller
HP Smart Array P600/256 BBWC Controller
512MB DDR BBWC Upgrade
NOTE: For Smart Array P600 Controller only.
HP Smart Array P800 Controller
HP Smart Array P800/512 BBWC Controller
NOTE: Please see the following Controller QuickSpecs for additional information including Technical Specifications:
http://h18000.www1.hp.com/products/quickspecs/12700_na/12700_na.html
(Smart Array E500 Controller)
http://h18000.www1.hp.com/products/quickspecs/12400_na/12400_na.html
(Smart Array P400 Controller)
http://h18000.www1.hp.com/products/quickspecs/12247_na/12247_na.html
(Smart Array P600 Controller)
http://h18000.www1.hp.com/products/quickspecs/12616_na/12616_na.html
(Smart Array P800 Controller)
SAS HBA
HP SC44Ge Host Bus Adapter
HP 8 Internal Port SAS HBA with RAID
NOTE: Please see the HBA QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/12617_na/12617_na.html (SC44Ge HBA)
http://h18004.www1.hp.com/products/quickspecs/12332_na/12332_na.html
(8 Internal Port SAS HBA)

SCSI Controllers for External Drive/Storage Support
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Ultra320 Expansion Module for SA-6402
Smart Array 642 Controller
128-MB BBWC (Battery-Backed Write Cache) Enabler
NOTE: Supports the Smart Array 642 Controller.
351580-B21 351580-B21
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2 374654-B21 374654-B21
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.html
(Smart Array 6400 Series)
http://h18000.www1.hp.com/products/quickspecs/12069_na/12069_na.html
(Smart Array 642)
http://h18000.www1.hp.com/products/quickspecs/11943_na/11943_na.html
(U320 G2 Adapter)

Communications HP NC110T PCI Express Gigabit Server Adapter
NOTE: Does not support Windows 2000.
HP NC364T PCI Express Quad Port Gigabit Server Adapter
NOTE: Does not support Windows 2000.
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
NOTE: Supported on a full length-full height slot only.
HP NC510F PCIe 10 Gigabit Server Adapter
NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510F adapter.

HP NC510C PCIe 10 Gigabit Server Adapter
NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510C adapter.

414129-B21 414129-B21


Redundant Options

Hot-plug Redundant Fan Kit
NOTE: Includes three fans. Included in 2P models.
348108-B21
910W (low line), 1300W (high line) Hot Plug Redundant Power Supply
348114-001
910W (low line), 1300W (high line) Hot Plug Redundant Power Supply
NOTE: Includes C14 to C19 IEC cable.
348114-B21

Tape Drives

NOTE: For the complete listing of Tape Drive offerings, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
USB Tape Drives
HP DAT160 USB Internal Tape Drive for ProLiant
Q1580A
SAS Tape Drives
NOTE: For the ML570 G4, HP recommends purchasing the HP SC44Ge HBA (416096-B21 416096-B21) for a dedicated SAS HBA for tape.
HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
DW085A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
EH847A
HP StorageWorks 1U SAS Rack-mount kit with one LTO-4 Ultrium 1760
EH946A
NOTE: Please refer to the "Tape Drives, Tape Autoloaders & Tape Libraries" table in the Storage section of this document for a list of SAS controllers with tape support.
Ultrium Tape Drives
HP StorageWorks LTO-1 Ultrium 232 Internal Tape Drive (Carbonite)
NOTE: HP recommends combining this tape drive with the 1U SCSI Rack-Mount kit (A7445B A7445B) for a complete rack-mount solution.
HP StorageWorks LTO-2 Ultrium 448 SCSI Internal Tape Drive (Carbonite)
DW016A
HP StorageWorks LTO-3 Ultrium 920 SCSI Internal Tape Drive
EH841A
HP StorageWorks 3U SCSI Rack-Mount with 1 LTO-4 Ultrium 1840 Tape Drive
EH926A
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
http://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
http://h18006.www1.hp.com/products/quickspecs/12128_na/12128_na.html
NOTE: For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U SCSI Rack-Mount kit
NOTE: The 1U Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 40, DAT 72, DAT 160, DLT VS160, LTO-1 Ultrium 232, LTO-2 Ultrium 448 and LTO-3 Ultrium 920 tape drives.
HP StorageWorks 1U USB Rack-Mount Kit
NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 40 USB, DAT 72 USB and DAT 160 tape drives.
HP StorageWorks 1U SAS Rack-Mount Kit
NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 160 SAS, LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920 SAS tape drives.
AE459A
HP StorageWorks 3U Rack-mount kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple LVD SCSI tape drives including DAT 40, DAT 72, DLT VS160, SDLT 600, LTO-1 Ultrium 232, LTO-2 Ultrium 460, LTO-2 Ultrium 448, LTO-3 Ultrium 920, LTO-3 Ultrium 960 and LTO-4 Ultrium 1840 tape drives.
274338-B22
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
http://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.html

HP D2D Backup System

HP StorageWorks D2D110 Backup System
NOTE: 1TB of Disk Storage
EH880A
HP StorageWorks D2D110 Backup System with Data Protector Express Software Kit
NOTE: 1TB of Disk Storage
EH923A
HP StorageWorks D2D120 Backup System
NOTE: 2TB of Disk Storage
EH884A
HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit
NOTE: 2TB of Disk Storage
EH924A
HP StorageWorks D2D130 Backup System
NOTE: 3TB of Disk Storage.
EH950A
HP StorageWorks D2D130 Backup System with Data Protector Express Software Kit
NOTE: 3TB of Disk Storage.
EH951A
HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive
NOTE: 3TB of Disk Storage.
EH952A
NOTE: Please see the HP D2D Backup Systems QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12651_na/12651_na.html

Tape Autoloaders HP StorageWorks DAT Autoloader
HP StorageWorks DAT 72x10 tape autoloader
AE313B
HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
AK377A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 Tape Autoloader
AH165A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader
AH558A
HP StorageWorks 1/8 G2 LTO-2 Ultrium 448 Tape Autoloader
AH164A
HP StorageWorks 1/8 G2 LTO-1 Ultrium 232 Tape Autoloader
AH163A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions
AH166A
NOTE: Please reference the Tape Autoloader QuickSpecs at: http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at: http://www.hp.com/go/ebs

Tape Libraries HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ033A
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 4GB FC Library
AJ034A
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library
AK378A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 SCSI Drive Library
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 4GB FC Library
AG326B
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library
AH559A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SCSI Drive Library
AH169A
HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ035A
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 4GB FC Library
AJ036A
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library
AK380A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 SCSI Drive Library
AG322A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 4GB FC Library
AG324B
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library
AH560A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SCSI Drive Library
AH171A
HP StorageWorks MSL4048 1 LTO-2 Ultrium 448 SCSI Drive Library
AG320A
NOTE: Please reference the MSL2024, MSL4048, MSL8096 and MSL6000 Tape Library QuickSpecs at: http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at: http://www.hp.com/go/ebs.

High Availability Cluster OptionsHP Serviceguard Linux x86 Server License & Media including One Year 24x7 Software Support & Updates
463831-B21
HP Serviceguard Linux Oracle Single Instance Database Toolkit x86 Cluster License & Media including One Year 24x7 Software Support & Updates
463833-B21
HP Serviceguard Linux Extension for SAP (SGeSAP/LX) x86 Server License & Media including One Year 24x7 Software Support & Updates
463834-B21
HP Serviceguard Linux Extended Distance Cluster (XDC) x86 Server License & Media including One Year 24x7 Software Support & Updates
463835-B21
NOTE: For a detailed list of supported configuration/certification options for HP Serviceguard for Linux please refer to the HP Serviceguard for Linux Certification Matrix at: http://www.hp.com/go/sglx/info
NOTE: HP Serviceguard for Linux products running on x86 platforms now include one year of 24 x 7 Software Technical Support and Updates. Please see the Support Information section of the HP Serviceguard for Linux QuickSpecs for details.
NOTE: For additional information including a complete list of Product Numbers for HP Serviceguard for Linux, please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_na/11518_na.html

StorageWorks Options NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
HP StorageWorks FC2142SR 4Gb PCI-e HBA
HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e HBA
HP StorageWorks FC1142SR 4Gb PCI-e HBA
HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBA
HP StorageWorks FC2143 4Gb PCI-X 2.0 -to-Fibre Channel HBA
HP StorageWorks FC2243 Dual Channel 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1143 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1243 Dual Channel 4Gb PCI-X 2.0 HBA
HP StorageWorks 81Q PCI-e FC HBA

HP StorageWorks Modular Smart Array 20 HP StorageWorks Modular Smart Array 20
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
335921-B21 335921-B21
NOTE: Please see the Modular Smart Array 20 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/11942_na/11942_na.html


HP StorageWorks Modular Smart Array 30HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies.
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies.
302970-B21
NOTE: Please see the Modular Smart Array 30 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/11738_na/11738_na.html

HP StorageWorks Modular Smart Array 50 HP StorageWorks Modular Smart Array 50 Enclosure
NOTE: Please see the Modular Smart Array 50 QuickSpecs for additional options and configuration information at:
http://h18000.www1.hp.com/products/quickspecs/12245_na/12245_na.html

HP Uninterruptible Power Systems - Tower

HP, T1000 UPS
AF403A
HP, T1500 UPS
AF406A
HP, R/T 2200 UPS
AF409A

Uninterruptible Power Systems – Rack

HP, R1.5kVA UPS, 1U
AF419A
HP R3000 VA UPS, 2U, L5-30
AF422A
HP R3000 VA UPS, 2U, L6-20
AF423A
HP R5500 VA UPS
AF426A

HP Monitored Power Distribution Unit (PDU) HP Monitored Power Distribution Unit: Full Rack Version

HP 17.3 kVA S2324 Monitored PDU- dual input, 3U, 24A
AF503A
HP 8.3 kVA S1324 Monitored PDU- single input, 3U, 24A
AF504A
HP 16.6 kVA S2140 Monitored PDU- dual input, 1U, 40A
AF505A
HP 8.6 S1140 Monitored PDU- single input, 1U, 40A
AF506A
HP Monitored Power Distribution Unit: Half Rack Version
HP 17.3 kVA S348 Monitored PDU- single input, 3Ø, 48A
HP 4.9kVA S124 Monitored PDU- single input, 1U, 24A
AF914A

Modular PDUs 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with
the unit (optimized for 10000 and 9000 series racks).

3.6kVA Model - mPDU, 16A, High

252663-B24 252663-B24

2.8 kVA Model - mPDU, 24A, Low

252663-D71 252663-D71

4.9kVA Model - mPDU, 24A, High

252663-D72 252663-D72

8.3kVA Model - mPDU, 40A, High

252663-B21 252663-B21

8.3kVA Model - mPDU, 40A, High (power cord attached)
252663-D73
8.3kVA Model - mPDU 40A, High (core only)
252663-D75
4.9kVA Model - mPDU 24A, High (core only)
252663-D74
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.html

USB Options USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B DC172B
1.44MB External USB Floppy Drive DC141B
HP USB 04 Standard Keyboard DT528A#ABA
HP 1GB USB 2.0 Floppy Drive Key 442085-B21
HP 256MB USB 2.0 Floppy Drive Key 442084-B21

Tower/Rack Conversion Kits

ProLiant Tower to Rack Conversion Kit
NOTE: This Tower to Rack Conversion Kit (PN 407318-B21) supports the HP ProLiant ML570 G4.
407318-B21
ProLiant Rack to Tower Conversion Kit
NOTE: This Rack to Tower Conversion Kit (PN 348113-B21) supports the HP ProLiant ML570 G4.
348113-B21

HP Rack 5000 Series (Graphite Metallic)HP 5642 Rack-Unassembled
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12074_na/12074_na.html
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)
10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
10622 G2 (22U) Rack Cabinet - Pallet
AF021A
10622 G2 (22U) Rack Cabinet - Shock Pallet
AF022A
10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet
AF041A
10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet
AF042A
10647 G2 (47U) Rack Cabinet - Pallet
AF031A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.html

NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HP Rack 10000 Series
(Graphite Metallic)

HP Rack S10614 (14U) Rack Cabinet – Shock Pallet

NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels).



NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all HP equipment is qualified to be shipped in the Rack 10000 series



NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.html



NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.




Keyboards and Monitors

TFT7210R Rack Mounted 17" Monitor
TFT7600 Rackmount Keyboard Monitor
1U Rackmount Keyboard with USB
NOTE: For additional information regarding Rack Options, please see the following URL: http://www.hp.com/go/rackandpower.

HP KVM Switch Options 2x1x16 IP Console Switch with Virtual Media
4x1x16 IP Console Switch with Virtual Media
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
USB Interface Adapter, 1 pack
Serial Interface adapter - 1 Pack with power supply
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
HP 1x4 Console Switch
PS2 Server Console Cable, 6 ft, 2 pack
USB Server Console Cable, 6 ft, 2 pack
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

HP Serial Console Server Options HP 16 Port Serial Console Server
HP 48 Port Serial Console Server
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

Service and Support Offerings
(HP Care Pack Services)
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4591E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4592E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4593E
Installation & Start-up Services
Hardware Installation, Electronic
U4601E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4602E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4603E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4604E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic

U6314E

Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U9237E
NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML570 G4 Options      ML570 G4 Memory      Storage      Power Specifications      ML570 G4 QuickSpecs images/line.gif (50 bytes)

Memory

HP ProLiant ML570 G4 1P Tower Models
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

Standard Memory
2 GB PC2-3200 Registered Memory (DDR2-400) DIMM installed (2 x 1 GB SDRAM DIMM)

Standard Memory Plus Optional Memory
Up to 58 GB of memory is available with the optional installation of 4 GB DIMMs.

Standard Memory Replaced with Optional Memory
Up to 64 GB of memory is available with the removal of the standard 2048 MB of memory and the optional installation of 4 GB DIMMs.

  • Loads:
    • Single rank (SR) DIMM => 1 load
    • Dual rank (DR) DIMM => 2 loads
  • DIMMs must be installed in pairs on board.
    • Each DIMM pair must be identical, e.g. both SR or both DR, and same capacity, technology and density.
  • Each HP ProLiant ML570 G4 memory board supports 8 loads, thus valid maximum DIMM configurations per memory board for the HP ProLiant ML570 G4 are:
    • 6 SR DIMMs = 6 loads, or
    • 4 DR DIMMs = 8 loads, or
    • 2 DR DIMMS + 4 SR DIMMs = 8 loads
  • Advance Memory Protection support
    • Online Spare is supported with 1, 2, 3 or 4 boards
      • Each board can failover to its Online Spare Bank independent of the other memory boards.
      • The minimum valid Online Spare configuration for a memory board requires at least one bank of dual-rank DIMMs or two banks of single-rank DIMMs.
      • HP Recommends (for maximum memory usage efficiency):
        • If only single -rank DIMMs are used on a memory board, all DIMMs should be of the same size on that memory board.
        • If only dual-rank DIMMs are used on a memory board, all DIMMs should be of the same size on that memory board.
        • If a mixture of single- and dual-rank DIMMs are used on a memory board, the dual-rank DIMMs should be two times (2x) the size of any single-rank DIMM
    • Hot-Plug Mirrored Memory is supported with 2 or 4 boards
      • Memory boards within a mirrored pair must have the same amount of total memory. However, each board of the mirrored pair may have different DIMM configurations as long as they have equal total size.
      • The amount of memory between mirrored pairs can be different in quadboard Mirrored Memory mode.
    • Hot-Plug RAID Memory is only supported with 4 boards
      • All four memory boards must have the same amount of total memory. However, each board may have different DIMM configurations as long as they have equal total size

NOTE: This chart does not represent all possible memory configurations.
NOTE: Four memory boards would be required to configure up to 58GB or maximum memory using 4GB DIMMs.

ML570 G4 Memory
Slot


1

2
3
4
5
6

Standard

2 GB
1 GB
1 GB
Empty
Empty
Empty
Empty

Optional

58 GB
1 GB
1 GB
4 GB
4 GB
Empty
Empty
Maximum
64 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty
ML570 G4 Memory
Slot

7
8
9
10
11
12

Standard

2 GB
Empty
Empty
Empty
Empty
Empty
Empty

Optional

58 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty
Maximum
64 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty
ML570 G4 Memory
Slot


13

14
15
16
17
18

Standard

2 GB
Empty
Empty
Empty
Empty
Empty
Empty

Optional

58 G8
4 GB
4 GB
4 GB
4 GB
Empty
Empty
Maximum
64 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty
ML570 G4 Memory
Slot

19
20
21
22
23
24

Standard

2 GB
Empty
Empty
Empty
Empty
Empty
Empty

Optional

58 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty
Maximum
64 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty


Following are memory options available from HP:



8 GB (2 x 4 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit

348106-B21 348106-B21

4 GB (2 x 2 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit

375004-B21 375004-B21

4 GB (2 x 2 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit

343057-B21 343057-B21

2 GB (2 x 1 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit

343056-B21 343056-B21

1 GB (2 x 512 MB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit

343055-B21 343055-B21

ML570G4 Hot-plug Memory Expansion Board

403702-B21
NOTE: Memory is interchangeable between the HP ProLiant ML570 G3 and HP ProLiant ML570 G4, but the memory boards are not.

HP ProLiant ML570 G4 2P High Performance Models
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

Standard Memory
4 GB PC2-3200 Registered Memory (DDR2-400) installed (4 x 1 GB SDRAM DIMMs)

Standard Memory Plus Optional Memory
Up to 52 GB of memory is available with the optional installation of 4 GB DIMMs.

Standard Memory Replaced with Optional Memory
Up to 64 GB of memory is available with the removal of the standard 4GB of memory and the optional installation of 4 GB DIMMs.

NOTE: This chart does not represent all possible memory configurations.
NOTE: Four memory boards would be required to configure up to 52 GB or maximum memory using 4 GB DIMMs.

ML570 G4 Memory
Slot

1

2
3
4
5
6

Standard

4 GB
1 GB
1 GB
1 GB
1 GB
Empty
Empty

Optional

52 GB
1 GB
1 GB
1 GB
1 GB
Empty
Empty
Maximum
64 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty
ML570 G4 Memory
Slot
7
8
9
10
11
12

Standard

4 GB
Empty
Empty
Empty
Empty
Empty
Empty

Optional

52 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty
Maximum
64 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty
ML570 G4 Memory
Slot

13

14
15
16
17
18

Standard

4 GB
Empty
Empty
Empty
Empty
Empty
Empty

Optional

52 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty
Maximum
64 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty
ML570 G4 Memory
Slot
19
20
21
22
23
24

Standard

4 GB
Empty
Empty
Empty
Empty
Empty
Empty

Optional

52 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty
Maximum
64 GB
4 GB
4 GB
4 GB
4 GB
Empty
Empty


Following are memory options available from HP:



8 GB (2 x 4 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit

348106-B21 348106-B21

4 GB (2 x 2 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit

375004-B21 375004-B21

4 GB (2 x 2 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit

343057-B21 343057-B21

2 GB (2 x 1 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit

343056-B21 343056-B21

1 GB (2 x 512 MB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit

343055-B21 343055-B21

ML570G4 Hot-plug Memory Expansion Board

403702-B21
NOTE: Memory is interchangeable between the HP ProLiant ML570 G3 and HP ProLiant ML570 G4, but the memory boards are not.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML570 G4 Options      ML570 G4 Memory      Storage      Power Specifications      ML570 G4 QuickSpecs images/line.gif (50 bytes)

Storage

1-18
Eighteen SFF SAS Drive Bays
A
1.44-MB Slimline Diskette Drive (optional)
B
Slimline DVD/CD-RW
C
One available removable media bay for storage. A half-height tape drive, or a USB tape drive may be installed in the removable media bay.


Drive Support

Hard Drives

Hot Plug SFF SAS 2.5" Drives



Quantity
Supported

Position
Supported


Controller

146GB 3G SAS 10K SP
146GB 3G SAS 10K DP
72GB 3G SAS 10K SP
72GB 3G SAS 10K DP
72GB 3G SAS 15K SP
72GB 3G SAS 15K DP
36GB 3G SAS 15K SP
36GB 3G SAS 15K DP

Up to 18
1-18

HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller


External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter

Modular Smart Array 20 Family
1 per SCSI VHDCI connector
External
Smart Array 6404/256 Controller

Modular Smart Array 30 Family

Up to 28

External

Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
Modular Smart Array 50 Enclosure
Up to 32
External
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

Maximum Storage Capacity - (ML570 SFF SAS Drive Cage, 8 port SAS controller in 4 slots & MSA50 enclosures)

Internal

2.628TB (18 x 146 GB SFF SAS Drives)
External40.880TB (28 MSA50 Enclosures x 10 drive bays each x 146GB SFF SAS Drives)
Total43.508TB

Tape Drives, Tape Autoloaders, Tape Libraries & D2D Backup

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/north_america/10233.html

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below, please see the following: http://h18000.www1.hp.com/products/quickspecs/north_america/10809.html

NOTE: For complete listing of tape drive offerings see: http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

NOTE: SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller using split cable (supplied with tape drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs into SAS drive connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard drive cage would mean drive bay 8 is deactivated.



Position
Supported

Controller

Controller Part Number

HP StorageWorks SCSI Tape Drives, External
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-2 Ultrium 460
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
DLT VS160
SDLT 600
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Host Bus Adapter


HP StorageWorks USB Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U USB Rack-Mount Kit
External
USB 2.0 Port
N/A


HP StorageWorks SAS Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC44Ge Host Bus Adapter
NOTE: Recommended.
HP Smart Array E500 Controller
NOTE: The following SAS Smart Array controllers require ROM Flash version 2.04 or higher for SAS tape support
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB Controller


HP StorageWorks SCSI Tape Automation, External
DAT 72x10 Autoloader 1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
MSL6000
External
HP SC11Xe Host Bus Adapter
HP U320e SCSI Host Bus Adapter
NOTE: Only valid for MSL tape libraries.


HP StorageWorks SAS Tape Automation, External
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP SC44Ge Host Bus Adapter
NOTE: Please visit: http://www.hp.com/go/connect for details about minimum SAS controller firmware version and SAS cabling requirements.


HP StorageWorks Fibre Tape Automation, External
MSL2024
MSL4048
MSL6000
External
NOTE: Please consult the EBS connectivity matrix at: http://www.hp.com/go/ebs for detailed connectivity information.
N/A



HP StorageWorks D2D Backup Systems
D2D110
D2D120
D2D130

External
Embedded Network Controller
N/A
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML570 G4 Options      ML570 G4 Memory      Storage      Power Specifications      ML570 G4 QuickSpecs images/line.gif (50 bytes)

Power Specifications

Part Number

337867-001
Spare Kit 364360-001
Operational Input Voltage Range (Vrms) 90 to 264
Frequency Range (Nominal) (Hz)47 to 63 (50/60)




Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
910
910
1300
1300
1300
1300
Nominal Input Current (A rms)
11.9
10.2
7.7
7.3
6.9
6.6
Max Rated Input Wattage Rating (Watts)
1163
1148
1566
1566
1548
1548
Max. Rated VA (Volt-Amp)
1186
1172
1598
1598
1579
1579

Efficiency (%)

80
81
83
83
84
84

Power Factor

0.98
0.98
0.98
0.98
0.98
0.98

Leakage Current (mA)

0.43
0.50
0.90
0.96
1.00
1.04

Maximum Inrush Current (A peak)

100
100
100
100
100
100

Maximum Inrush Current duration (mS)

10
10
10
10
10
10

System Specifications
To determine power specifications for various system configurations, please use the online HP Power Calculator Tool referenced below.
Power cord requirements
Tower model comes with local power cord
Option no. See chart below
Spare no. See chart below

Rack models come with PDU jumper cord and/or local power cord.
Option no. See chart below
Spare no. See chart below
NOTES:

* - To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls

- Click on the Power Calculator for the server of interest. Example: ML570 G4

- There are certain Dual-Core, lowline, max configurations that are not supported. All highline
configurations are supported. Consult the Power Calculator to determine if your lowline configuration is supported.

Standard Tower Model Power CordsDescription
 Nema 5-15P to IEC320-C19
Standard Rack Model Power CordsDescription



IEC320-C14 to IEC320-C19
Optional Country Power Cords and Jumper CordsDescription
Option Power Cord Part Number
 Nema 5-15P to IEC320-C19
235603-001
 Nema 6-20P to IEC320-C19
235604-001
 IEC320-C19, 20A, 250V, US
340653-001
  IEC320-C14 to IEC320-C19 Jumper (10A, IEC, 6ft/2.0m)
313227-B21
  IEC320-C14 to IEC320-C19 Jumper (10A, IEC, 8ft/2.5m)
291034-B21
  IEC320-C14 to IEC320-C19 Jumper (10A, IEC, 10ft/3.0m)
310927-B21
 IEC320-C14 to IEC320-C19 Jumper (10A, IEC, 12ft/3.6m)
313228-B21
 IEC320-C19 to IEC320-C20 Jumper (16A, IEC, 8ft/2.5m)
295633-B22
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML570 G4 Options      ML570 G4 Memory      Storage      Power Specifications      ML570 G4 QuickSpecs images/line.gif (50 bytes)

Quickspecs

System Unit Tower Dimensions
(H x W x D)
(with feet/bezel)
20.0 x 11.11 x 28.80 in (50.8 x 28.2 x 73.2 cm)
Rack Dimensions
(H x W x D)
(with bezel)
11.11 x 19.00 x 28.80 in (28.2 x 48.3 x 71.1 cm)
Weight
(approximate)
Maximum
(all hard drives, power supplies, and processors installed)
137 lb (62.14 kg)
Minimum
(one hard drive, power supply, and processor installed)
93 lb (42.18 kg)
Input Requirements
(per power supply)
Rated Line Voltage 90 -- 132 VAC,
180 - 264 VAC
Rated Input Current 12A (at 100 VAC),
8 A (at 200 VAC)
Rated Input Frequency 47 to 63 Hz
Rated Input Power 1161 W (at 100 VAC),
1598 W (at 200 VAC)
BTU Rating Maximum 3985 BTU/hr (at 100 VAC),
5457 BTU/hr (at 200 VAC)
Power Specifications To review typical system power ratings use the Power Calculator which is available via the online tool located at URL:

http://h30099.www3.hp.com/configurator/calc/Power%
20Calculator%20Catalog.xls

- Click on the system of interest. Example: ML570 G4
- Follow the instructions of the next screens.

Power Supply Output Power (per power supply) Rated Steady-State Power 910 W (at 100 VAC),
1300 W (at 200 VAC)
Maximum Peak Power
(10 sec max)
960 W (at 100 VAC),
1420 W (at 200 VAC)
System Inlet Temperature Operating
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Storage 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude Operating 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-Operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
LWAd
7.7 B
LpAm
60 dBA
Operating
LWAd
7.7 B
LpAm
60 dBA

Slimline CD-RW/DVD-ROM 24X Combo Drive (Multibay) Shipping Dimensions
13.88 x 11.38 x 9.25 in (35.26 x 28.91 x 23.50 cm)
Shipping Weight
5 lb (2.27 kg)
Disk Applicable Disk DVD-ROM
DVD-R (Read Only)
2.6 GB/side DVD-RAM (Read Only)
5.2 GB/side DVD-RAM (Read Only)
CD-ROM Mode-1 data disc
CD-ROM Mode-2 data disc
CD Audio disc
CD-Extra
CD-RW
CD-R
CD Text
PhotoCD
CD-I (mode 2)
CD-I Ready
CD-Bridge
Capacity DVD-ROM DVD-SL 4.7 GB/side
DVD-DL 8.5 GB/side
Double Sided 9.40 GB/side
DVD-R   3.95 GB/side
DVD-RAM   2.6 GB/side and 5.2 GB
CD-ROM Mode-1 650 MB (550 MB)
Mode-2 742 MB (640 MB)
DVD   2,048 bytes
CD   2,352 (Mode-0)
  2352, 2340, 2336, 2048 bytes
(Mode-1)
  2352, 2340, 2336, 2048 bytes
(Mode-2)
Diameter 120 mm (4.7 in), 80 mm (3.1 in)(with adapter at vertical mounting mode)
Loading Mechanism Tray type
Interface EIDE (ATAPI)
Access Times (typical) Random DVD-ROM < 120 ms, CD-ROM < 110 ms
Full-Stroke DVD-ROM < 240 ms, CD-ROM < 160 ms
Audio Output Level (typical) Line-out CD 0.7 Vrms at 47 Kohms Load
Data Transfer Rate (sustained) DVD-ROM Single Layer 10.8 MB/sec. Max.
DVD-RAM 2.77 MB/sec. Max
CD-ROM 7.2 MB/sec. Max.
Cache Buffer 2 MB
Spin-up Time (typical) less than 10 seconds
MTBF 120,000 Power On Hours (POH)
Ambient Temperature Operating -22° to 140° F (-30° to 60° C)
Relative Humidity Operating 10% to 80%
Storage/Transportation 5% to 95%
Dimensions (HxWxD, maximum) 0.5 x 5.04 x 5.1 in (12.7 x 128 x 129.4 mm)
Option Kit Contents DVD-ROM drive with installation guide, warranty card, registration card

Integrated Lights-Out 2 Standard (integrated on system board)

Architecture 32-bit PCI-based health and remote management ASIC (Application Specific Integrated Circuit)
Processor
32-bit RISC processor core running at 66 MHz
Upgradability Option firmware upgradable via flash ROM.
Video Support Utilizes the host server's embedded video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600 (256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256 colors)
Interfaces
One Ethernet network connection (10/100 Mb/s)
ML570 G4 Memory 2-MB Flash ROM
8-MB SDRAM
Operating System Support Microsoft Windows NT 4.0 Server
Windows NT 4.0 Enterprise Edition
Windows 2000 Server
Windows 2000 Advanced Server
Red Hat 7.x
SuSE 7.0
Novell NetWare 5.x, 6.x
Client Browser Support
Microsoft Internet Explorer 5.5 or later.
iLO 2 Standard Features Virtual Text Remote Console
Virtual KVM
Virtual Power Button Control
Virtual UID Control
Power Regulator Control
Dedicated LAN Connectivity
Secure access using web browser
Secure access using Secure Shell (SSH) client
Serial connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO2 Event Logging
Support for up to 12 user accounts with customizable access privileges
iLO 2 Advanced Features (optional) Virtual Graphical Remote Console
Virtual Floppy/USB Key drive
Virtual CD-ROM drive
Directory Services Integration
Processor States Reporting
Terminal Services Integration

Smart Array P400 Controller

Disk Drive and Enclosure Interface 3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology Attachment)
SAS Connectors 2 internal (SFF8484) x4 wide port connectors
Cache Memory Speed DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.
Server Interface x8 2.5G PCIe provides 2GB/s maximum bandwidth.
SAS Speed x8 3G SAS provides 2.4GB/s maximum bandwidth.
Cache Memory 40-bit 256MB cache (72-bit 512MB module upgrades available); ECC protection, battery-backed, and transportable
Logical Drives Supported Up to 32 logical drives
Maximum Logical
Drive Capacity
2TB
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
RAID Support RAID 6 with ADG (Advanced Data Guarding) requires Battery Backed Write Cache Upgrade
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)

contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML570 G4 Options      ML570 G4 Memory      Storage      Power Specifications      ML570 G4 QuickSpecs images/line.gif (50 bytes)

Models

HP ProLiant ML570 G4 High Performance Models

ML570R04 X7140M, 4GB (2P)
430056-001
ML570R04 X7130M, 4GB (2P)
430054-001

Processor(s)
Two of the following depending on Model.
Up to 4 supported.
(2) Dual-Core 64-bit Intel® Xeon® 7140M Processor (3.40 GHz, 150Watts, 800MHz FSB)
(2) Dual-Core 64-bit Intel® Xeon® 7130M Processor (3.20 GHz, 150 Watts, 800MHz FSB)
Cache Memory
One of the following depending on Model.
16MB Integrated Level 3 Cache
8MB Integrated Level 3 Cache
2x2MB Integrated Level 2 Cache
2x1MB Integrated Level 2 Cache
Memory (1) Memory Cartridges (up to 4 supported)
4 GB PC2-3200 Registered Memory (DDR2-400) (Standard) to 64 GB (Maximum) (2x1 interleaved memory and Advanced Memory Protection Technology)
NOTE: Four memory boards would be required to configure up to 64 GB using 4 GB DIMMs
Network Controller Two embedded NC371i Multifunction Server Adapters
Storage Controller HP Smart Array P400/512MB BBWC Controller
Hard Drive None ship standard
Internal Storage 2.628TB maximum (with optional hard drives)
Optical Drive DVD/CD-RW combo drive
Diskette Drive Optional
Power Supplies Two 910W/1300W Power Supplies standard (second power supply for redundancy)
Fans Three Hot-Plug Fans plus three Hot-Plug Fans for redundancy standard
Form Factor Rack (6U)

HP ML570 G4 Base Models

ML570R04 X7120M, 2GB (1P)
430046-001
ML570R04 X7110M, 2GB (1P)
430369-001
ML570T04 X7140M, 2GB (1P)
430057-001
ML570T04 X7130M, 2GB (1P)
430055-001
ML570T04 X7120M, 2GB (1P)
430050-001
ML570T04 X7110M, 2GB (1P)
430372-001

Processor(s)
One of the following depending on Model.
Dual-Core 64-bit Intel® Xeon® 7140M Processor (3.40 GHz, 150Watts, 800MHz FSB)
Dual-Core 64-bit Intel® Xeon® 7130M Processor (3.20 GHz, 150 Watts, 800MHz FSB)
Dual-Core 64-bit Intel® Xeon® 7120M Processor (3.00 GHz, 95 Watts, 800MHz FSB)
Dual-Core 64-bit Intel® Xeon® 7110M Processor (2.60 GHz, 95 Watts, 800MHz FSB)
Cache Memory
One of the following depending on Model.
16MB Integrated Level 3 Cache
8MB Integrated Level 3 Cache
4MB Integrated Level 3 Cache
2x2MB Integrated Level 2 Cache
2x1MB Integrated Level 2 Cache
Memory (1) Memory Cartridges (up to 4 supported)
2 GB PC2-3200 Registered Memory (DDR2-400) (Standard) to 64 GB (Maximum) (2x1 interleaved memory and Advanced Memory Protection Technology)
NOTE: Four memory boards would be required to configure up to 64 GB using 4 GB DIMMs
Network Controller Two embedded NC371i Multifunction Server Adapters
Storage Controller HP Smart Array P400/256MB Controller
Hard Drive None ship standard
Internal Storage 2.628TB maximum (with optional hard drives)
Optical Drive DVD/CD-RW combo drive
Diskette Drive Optional
Power Supplies One 910W/1300W Power Supply standard (second power supply for redundancy)
Fans Three Hot-Plug Fans standard (three hot-plug redundant fans optional)
Form Factor Tower or Rack (6U)
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML570 G4 Options      ML570 G4 Memory      Storage      Power Specifications      ML570 G4 QuickSpecs images/line.gif (50 bytes)

Standard Features

NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/ERC/downloads/4AA0-7326ENW.pdf.
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
Dual-Core 64-bit Intel® Xeon® 7140M Processor (3.40 GHz, 150Watts, 800MHz FSB)
Dual-Core 64-bit Intel® Xeon® 7130M Processor (3.20 GHz, 150 Watts, 800MHz FSB)
Dual-Core 64-bit Intel® Xeon® 7120M Processor (3.00 GHz, 95 Watts, 800MHz FSB)
Dual-Core 64-bit Intel® Xeon® 7110M Processor (2.60 GHz, 95 Watts, 800MHz FSB)
NOTE: High Performance models ship standard with two processors while all other models ship with one processor as standard.

Cache Memory
One of the following depending on Model
16MB Integrated Level 3 Cache
NOTE: Dual-Core 7140M Model only.
8MB Integrated Level 3 Cache
NOTE: Dual-Core 7130M Model only.
4MB Integrated Level 3 Cache
NOTE: Dual-Core 7120M and 7110M Models only.
2x2MB Integrated Level 2 cache
NOTE: Dual-Core 7041 Model only.
2x1MB Integrated Level 2 cache
NOTE: Dual-Core 7030 Model only.

Upgradeability HP ProLiant ML570 G4 servers with Intel® Xeon® 7041 and 7030 processors can be upgraded with Intel Xeon 71x0 processors. All HP ProLiant ML570 G4 servers can support up to 4 processors.

Chipset Intel® E8501 chipset
NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.

Memory Protection
Advanced ECC
Hot-Plug RAID Memory
Hot-Plug Mirrored Memory
Online Spare Memory

ML570 G4 Memory
TypePC2-3200 Registered Memory (DDR2-400)
Standard
(1P Base Models)
2 GB (2 X 1 GB)
Standard
(High Performance models)
4 GB (4 x 1 GB)
Maximum64 GB
NOTE: For more information regarding Advanced Memory Protection, please see the following URL:
http://h18000.www1.hp.com/products/servers/technology/memoryprotection.html.

Network Controller Two embedded NC371i Multifunction Gigabit Network Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit

Expansion Slots
Expansion Slot #
Technology
Width
Connector Width*
Bus Number**
Form Factor
Notes
1
PCI-X
64-bit
N/A
7
FH/FL
100MHz
2
PCI-X
64-bit
N/A
7
FH/FL
100MHz
3
PCI-X
64-bit
N/A
3
FH/FL
100MHz
4
PCI-X
64-bit
N/A
3
FH/FL
100MHz
5
PCI Express
x4
x8
11
FH/FL
6
PCI Express
x4
x8
14
FH/FL
7
PCI Express
x4
x8
17
FH/FL
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
FH = Full height; FL = Full length; HL = half-length.

Bus Expansion

The x4-x8 PCI Express Bus Expander is a half-length expansion board. When installed into a x4 PCI Express expansion slot, the x4-x8 PCI Express bus expander converts the adjacent x4 PCI Express expansion slot into a x8 PCI Express expansion slot.

NOTE: The HP ProLiant ML570 G4 Server can support up to three x4-x8 PCI Express bus expander cards. The card can only be installed in expansion slots 6, 8, and 10.


Storage Controllers
One of the following depending on Model

HP Smart Array P400/256MB Controller (in a PCI-Express slot)
NOTE: Standard on 1P Base Models.
HP Smart Array P400/512MB BBWC Controller (in a PCI-Express slot)
NOTE: Standard on 2P High Performance Models.

Storage Diskette Drives 1.44 MB Slimline Drive (optional)
Optical Drive Slimline DVD/CD-RW Combo Drive
Hard Drives None

Maximum Internal Storage Type Hot Plug SAS 2.628TB 18 x 146GB SFF SAS
Hot Plug SATA 2.160TB 18 x 120GB SFF SATA

Interfaces Parallel 1
Serial 1
Pointing Device (Mouse) 1
Front video
1
Rear video
1
Keyboard
1
iLO 2 Remote Management 1
USB 2.0 Ports
5 total: 2 front, 2 rear, 1 internal dedicated port for tape drive
NOTE: Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html
Network RJ-45 2

Graphics Integrated ATI-RN50 with 32MB DDR memory

Form Factor Tower or Rack (6U)

Product DemoTo view the Product Demo, please see the following URL, then click on "PRODUCT TOUR": www.hp.com/servers/proliantml570.

HP Insight Control Management Suites

HP Insight Control Environment delivers foundation management, including remote monitoring, hardware resource deployment, health monitoring, software version control, performance monitoring, vulnerability scanning and patch management, and power management.

HP Insight Control Environment installs and licenses the following components by default using a wizard-based integrated installer:

  • HP Systems Insight Manager
  • HP iLO Advanced Pack
  • HP Rapid Deployment Pack
  • HP Insight Power Manager
  • HP Performance Management Pack
  • HP Vulnerability and Patch Management Pack

Additional ProLiant Essentials software and management tools included on the Insight Control Management kit can be installed manually

  • HP Server Migration Pack - Universal Edition
  • HP Open Service Event Manager
  • HP Instant Support Enterprise Edition

NOTE: Server Migration Pack - Universal Edition can be installed from the SMP Universal CD included in the Insight Control Management media kit.
NOTE: For additional product and licensing information about HP Insight Control Environment, visit: http://www.hp.com/go/ice.

HP Insight Control management suites and most HP ProLiant Essentials include a one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.


Server Management Stand Alone Software Product - ProLiant EssentialsHP Systems Insight ManagerHP Systems Insight Manager (HP SIM) provides a unified, secure and extensible standards-based environment to centrally manage servers, storage and other infrastructure devices, (both HP and non-HP) across multiple operating system platforms.
ProLiant Essentials Rapid Deployment PackRapid Deployment Pack (RDP) extends HP Systems Insight Manager with a complete deployment solution for HP ProLiant servers. RDP provides a central location to configure server hardware, deploy Windows, Linux and VMware ESX operating environments and install HP ProLiant Support Pack drivers using images and scripted profiles. For more information, visit: http://www.hp.com/go/rdp.
ProLiant Essentials Server Migration Pack - Universal Edition

Upgrading, replacing, or virtualizing your existing server? Effortlessly transition to new virtual or physical HP ProLiant servers or BladeSystem with automated, accurate and affordable migration of OS, application and data. SMP Universal automates the manual processes required for migrating servers between physical or virtual platforms, whether migrating to VMware or Microsoft virtual machines. SMP Universal allows all of the following migrations:

  • physical to ProLiant
  • physical to virtual
  • virtual to virtual
  • virtual to ProLiant

NOTE: For more information, visit: http://www.hp.com/go/migrate.

ProLiant Essentials Performance Management PackPerformance Management Pack (offered exclusively through the Insight Control suites) - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources
Integrated Lights-Out Advanced PackUpgrades the iLO 2 processor with comprehensive remote control including Virtual KVM remote graphical console, enhanced console sharing and replay, virtual media (floppy, CD/DVD, USB key), virtual folders, and enterprise security (directory services and two-factor authentication).
ProLiant Essentials Accelerated iSCSI PackEnables the embedded Multifunction network controller to serve as both a NIC and an iSCSI HBA providing access to SAN storage over the same connection used for networking. Processing of the protocol stack is offloaded to the NIC reducing CPU utilization and greatly improving the speed with which the requests are processed and sent to the network.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to: http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.

Core Infrastructure ManagementSmartStartSmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at: http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.50
Insight Management Agents

The Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers.

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack

For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at http://www.hp.com/servers/manage.

Subscriber's ChoiceSubscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides software and driver change notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ProLiant Support Packs and ROMPaq, softwareThe latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options, available through ProLiant Support Packs the ProLiant Essentials Rapid Deployment Pack, SmartStart or downloaded from software and drivers download pages website at http://www.hp.com/go/support.

Industry Standard Compliance ACPI 2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Physical Address Extension (PAE) Support
Microsoft® Logo certifications

Availability HP Advanced Memory Protection Technology - delivers unsurpassed memory protection and server availability with the following supported modes of operation:
  • Advanced ECC (1 or More Memory Boards)
    Advanced ECC Memory is the default memory protection mode for the HP ProLiant ML570 G4. In Advanced ECC, the server is protected against correctable memory errors. The server will provide notification if the level of correctable errors exceeds a predefined threshold rate. The server does not fail because of correctable memory errors.
    Advanced ECC provides additional protection over Standard ECC in that it is possible to correct certain memory errors that would otherwise be uncorrectable and result in server failure. Whereas Standard ECC can correct single-bit memory errors, Advanced ECC can correct single-bit and multi-bit memory errors if all failed bits are on the same DRAM device on the DIMM. Advanced ECC is the only mode in which hot-add operations are supported by adding a memory board with memory to the server while it is running.
  • Online Spare Memory (1 or More Memory Boards)
    Offers a higher level of memory protection than Advanced ECC alone. If the number of single-bit correctable errors on a bank exceeds the pre-defined error threshold, that bank will fail over to the online spare bank without intervention or server interruption. The failed memory can then be replaced at the user's convenience during a scheduled maintenance window. Online Spare Memory is achieved by protecting active memory with online spare memory on the same memory board. No operating system support is required.
  • Hot Plug Mirrored Memory (2 or 4 Memory Boards)
    Hot Plug Mirrored Memory provides a higher level of availability than Advanced ECC and Online Spare Memory. With Hot Plug Mirrored Memory, the server is protected against uncorrectable memory errors that would otherwise result in server failure. Hot Plug Mirrored Memory allows the server to keep two copies of all memory data on separate memory boards. If an uncorrectable error is encountered, the proper data is retrieved from the memory board that did not fail. In addition, Hot Plug Mirrored Memory allows failed or degraded DIMMs to be replaced while the server is running without requiring server downtime. The memory board with the failed DIMMs can be removed from the front of the server, failed DIMMs replaced, and the board re-inserted into the server without disengaging the server from the rack or interrupting the operating system.
  • Hot Plug RAID Memory (4 Memory Boards)
    Hot Plug RAID Memory provides a similar level of protection as Hot Plug Mirrored Memory but obtains this protection using a smaller percentage of the installed memory. While Hot Plug Mirrored Memory keeps two copies of all memory data, Hot Plug RAID Memory keeps only one copy of all memory data and additional parity information. If an uncorrectable memory error is encountered, the server can create the proper data using data from the parity information and the other memory boards that contain no failures. In a Hot Plug RAID Memory configuration, 75% of the installed memory is available to the Operating System; 50% more than in a Hot Plug Mirrored Configuration. As with Hot Plug Mirrored Memory, Hot Plug RAID Memory allows failed DIMMs to be replaced while the server remains running and safely engaged in the rack.
# of Memory Boards Installed
Supported Modes
1 Board
2 Boards
3 Boards
4 Boards
Number of DIMMs Supported (Dual Ranked / Single Ranked)
4 / 6
8 / 12
12 / 18
16 / 24
Maximum Memory Supported (4GB Dual Ranked / 2GB SingleRanked)
16 GB / 12 GB
32 GB / 24 GB
48 GB / 36 GB
64 GB / 48 GB
Advanced ECC Memory Protection
Yes
Yes
Yes
Yes
Online Spare Memory
Yes
Yes
Yes
Yes
Hot Plug Mirrored Memory
No
Yes
No
Yes
Hot Plug RAID Memory
No
No
No
Yes
NOTE: All Advanced Memory Protection modes require the use of additional memory cards. All HP ProLiant ML570 G4 servers ship standard with one or two memory boards. Additional memory boards are optional (P/N 403702-B21).
NOTE: All Advanced Memory Protection modes are user configurable through the ROM-Based Setup Utility (RBSU) and viewable through Systems Insight Manager and the Integrated Management Log (IML.).
  • Smart Array P400 Controller with optional Battery Backed Write Cache (BBWC) Enabler provides transportable data protection and increases overall controller performance. Up to 512MB Battery Backed Write Cache protection optional on HP ProLiant ML570 G4 (512MB BBWC ships standard with 2P models).
  • Hot Plug Redundant Fans - Six Hot Plug Redundant Fans ship standard with all 2P High Performance Models (three Hot Plug Redundant Fans are optional with 1P base models).
  • Hot Plug Universal Drives - Up to eighteen Hot Plug Universal SFF SAS drives are supported.
  • Hot Plug Redundant Power Supplies - Two Hot Plug Redundant Power Supplies ship standard with all 2P High Performance Models (2nd Hot Plug Redundant Power Supply is optional with 1P base models).

Manageability

Integrated Lights-Out (iLO 2) Management 2

  • Virtual Text Remote Console (pre-OS only)
  • Remote Serial Console
  • Virtual Power Button Control
  • Virtual Unit ID control
  • Integrated Remote Console (ActiveX Control client)
  • Dedicated & full function shared network connectivity with VLAN
  • Embedded system health
  • Present power consumption
  • Browser, command line and scripted access
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell security (SSH)
  • Advanced Encryption Standard (AES)/Triple Data Encryption Standard (3DES)
  • OS independent hardware health status
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privilege

Intelligent Manageability HP Systems Insight Manager
SmartStart
Redundant ROM
Remote Flash ROM
Management Agent
Integrated Management Log
Automatic Server Recovery (ASR)
Dynamic Sector Repairing (with Smart Array Controllers)
Drive Parameter Tracking (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, SAS hard drives and memory)

Security Power-on password
Hot plug keyboard password
External USB port enable/disable
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Locking tower bezel door
Lockable access hood

Server Power Cords Tower Models

  • -001
  • Tower models ship with one local power cord
  • Localized cables included with geographic specific models in other world regions
Rack Models
  • -001
  • Rack models all ship with one C19 to C14 jumper cable
  • Localized cables included with geographic specific models in other world regions

UPS and PDU Power Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/index.html.

Power Supply One 910W/1300W Hot Plug Power Supply ships standard. Second power supply is needed for redundancy.
Two 910W/1300W Hot Plug Power Supplies ship standard in High Performance Models.

System Fans Three fans ship standard with three additional fans for redundancy
NOTE: High Performance models ship standard with redundant fans

Required CablingFor required cabling information, refer to the Web site at: www.hp.com/servers/proliantml570.

OS SupportMicrosoft Windows 2000 Server
Microsoft Windows 2003 Server
Microsoft Windows 2008 Server
Red Hat Enterprise Linux
SuSE Linux Enterprise Server
Novell NetWare
SCO OpenServer, UnixWare
Sun Solaris Intel Platform Edition
VMware Virtualization Software
NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos.
NOTE: For an up-to-date listing of the latest software and drivers available for your server, please select your server: http://h20000.www2.hp.com/bizsupport/TechSupport/Product.jsp?lang=en&cc
=us&taskId=135&prodTypeId=15351&prodCatId=241435
.
NOTE: For more Linux OS support & certification information, please visit our the ProLiant & BladeSystem Server Linux matrix http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html.

Rack Airflow Requirements

Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

    • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
    • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: http://www.hp.com/servers/proliantml570.

Rack Kit HP ProLiant ML570 G4 rack models have universal sliding rails which provide tool-free support for square and round hole racks (including Compaq/HP 7000, 9000, 10000, HP/E series and H9 series) with an adjustment range from 23 ¾" to 36" depth. The snap-on cable management arm is now ambidextrous.

Telco Rack Support Support for all 2-post Telco racks requires an additional option kit from Rack Solutions. The Rack Solutions brackets can be purchased at: http://www.racksolutions.com/hp.

HP Factory Express Capabilities HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

HP Enterprise Configurator The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.
http://www.hp.com/products/configurator.

Service and Support

HP Care Pack services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server and purchased at the same time or afterward that are internal to the enclosure. This also includes the 22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, and standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions, provides a range of support services designed to meet the varying needs of your business. Whether an SMB, or large global corporation, HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service - simplify ProLiant solution implementation, maintenance, and management.

  • Support: 3 Year 4 Hour response 24x7 Same Business Day Coverage only
  • Deployment Service: Installation and Start up only

Enhanced Service - optimize service level to increase IT performance and availability.

  • Support: 3 Year Support Plus 24 only

Refer to the information on "Installation & Start-Up" for service on ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.

NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack

Two embedded NC371i Multifunction Server Adapters Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method64-bit/133MHz PCI-X

Network Transfer Rate

10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and Full-Duplex)2000 Mb/s

Connector

Two RJ-45
Cable Support10Base-TCategories 3, 4 or 5 UTP;
up to 328 ft (100 m)
100Base-TXCategory 5 or higher UTP;
up to 328 ft (100 m)
1000BaseTXCategory 5 or higher UTP;
up to 328 ft (100 m)

Environment-friendly Products and ApproachEnd-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


USAPartsDirect          Ph: 1.613.599.1287                   Fax: 1.613.599.8120
serversServers |bladesBlades | Hard DrivesU2/U3 |u320 Hard DrivesU320 |SAS/SATA Hard DrivesSAS/SATA |Fibre Hard DrivesFibre |MemoryMemory |ControllersControllers |Processors Processors |Tape DrivesTape Drives |Power SuppliesPower Supplies
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

Legal | Privacy | | Primary Site | Contact us | Site Problem?  |
