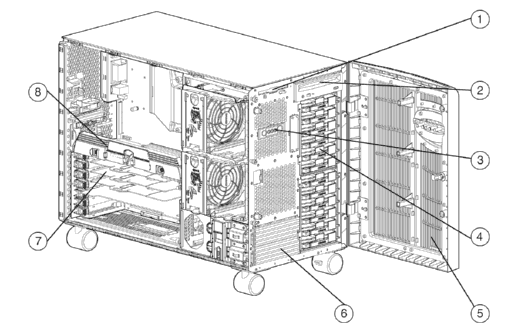

4. Wide Ultra3/Ultra320 Hot Plug Drive Bays (12
x 1" Standard)
5. Front Bezel
6. 5.25-inch Removable Media
Bays
7. Seven PCI-X slots
8. Memory Board

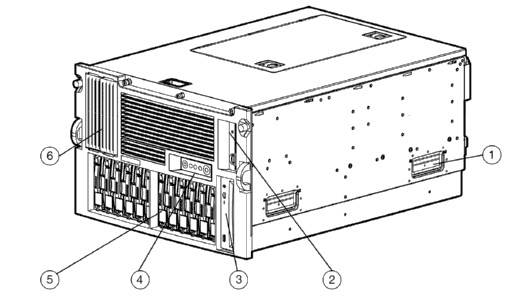

1. Rack Handles
2. 1.44MB Diskette Drive
3. High Speed IDE CD-ROM
4. Diagnostic Lighting
5. Wide Ultra3/Ultra320 Hot Plug
Drive Bays (12 x 1" Standard)
6. 5.25-inch Removable Media
Bays
What's New
Intel® Xeon 3.0GHz Processors with 400MHz system
bus
At A Glance
Designed for maximum application performance and
user workload, the ML530 Generation 2 (G2) offers customers the first
2P expansion server with Mirrored Memory
Intel Xeon 3.0 GHz, 2.80 GHz or 2.40 GHz Processors with 400MHz system
bus
Seven 64-Bit/100 MHz PCI-X slots; 4 Hot Plug Slots
Two Ultra3 SCSI Drive Cages standard support up to 12 1" hot
plug hard drives
Internal mass storage capacity up to 4.20 TB (12 x 300 GB + 2 x 300
GB 1" hot plug drives) with optional ML5xx Internal Two Bay Hot
Plug SCSI Drive Cage (with fan)
Advanced Memory Protection including Mirrored Memory and Online Spare
Memory
600-Watt Hot Plug Power Supply with optional 1+ 1 redundancy
Hot Plug System Fans with optional redundancy
Embedded NC3163 Fast Ethernet NIC PCI 10/100 WOL (Wake On LAN) and
PXE support
Integrated Dual Channel Wide Ultra3 SCSI Adapter
Protected by HP Services, including a three-year, Next Business Day
on-site, limited, Global warranty and extended Pre-Failure Warranty
that covers processors, memory and disk drives - Certain restrictions
and exclusions apply. Consult the HP Customer Support Center at 1-800-345-1518
for details.
Integrated Rage XL Video Controller
with 8 MB SDRAM Video Memory
Form Factor
Tower or Rack (7U)
ProLiant
Essentials Foundation Pack Software
HP Systems Insight Manager
HP's new HP Systems Insight
Manager (HP SIM) helps maximize system uptime and performance and
reduce system maintenance costs by providing proactive notification
of problems before those problems result in unplanned downtime or
reduced productivity. HP SIM are both easy to set up work with the
Insight Management Agents, integrated Light-Out and Remote Insight
Light-Outs Edition, and Version Control Agents to deliver robust fault,
configuration, and asset management as well as remote administration.
With HP SIM customers will also be able to take advantage of role-based
security; the ability to manage ProLiant, Integrity, and HP 9000 systems;
and plug-ins for storage, client, printer, and power management as
well as server rapid deployment, performance management, and workload
management. For more details on HP SIM visit http://www.hp.com/go/hpsim.
Management Agents
The Management Agents
form the foundation for HP's Intelligent Manageability strategy. They
provide direct, browser-based access to in-depth instrumentation built
into HP servers, workstations, desktops, and portables, and send alerts
to Insight Manager 7 and other enterprise management applications
in case of subsystem or environmental failures. For additional information
about the Management Agents and other management products from HP,
please visit the management Web site at http://www.hp.com/servers/manage.
SmartStart
SmartStart is a tool that
simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please
visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 6.40.
Subscriber's Choice
Subscriber's Choice Driver
and Support Alerts/Notifications is a web-based email subscription
service that provides automatic delivery of software and driver change
notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest software, drivers,
and firmware fully optimized and tested for your ProLiant server and
options available in SmartStart or downloadable from Software and
Drivers download pages, linked from the SmartStart website at http://www.hp.com/servers/smartstart.
Survey
Utility and diagnostics utilities
The most advanced configuration
analysis, reporting and troubleshooting utilities used by HP and at
your fingertips, available in SmartStart.
Optional
ProLiant Essentials Value Packs
Optional software offerings
that selectively extend the functionality of an Adaptive Infrastructure
to address specific business problems and needs:
Rapid Deployment Pack – an automated solution for multi-server
deployment and provisioning, enabling companies to quickly and
easily adapt to changing business demands.
Workload Management Pack – provides easier management of
complex environments, improving overall server utilization and
enabling Windows 2000 customers for the first time to confidently
deploy multiple applications on a single multiprocessor ProLiant
Server.
Performance Management Pack – a performance management
solution that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better
utilize their valuable resources.
Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken network linkages and steers traffic to the optimum route
based on network conditions.
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials.
Industry Standard
Compliance
ACPI 1.0b Compliant
PCI 2. 2 Compliant
PCI-X 1.0 Compliant
WOL Support
Microsoft® Logo certifications
Novell certified
Availability
Advanced Memory Protection Technology – delivers unsurpassed memory
protection and server availability:
Advanced ECC Memory
ECC protection provides the ability to detect and correct single bit
memory errors while Advanced ECC extends this coverage to include protection
against multiple simultaneous errors on a DIMM. Advanced ECC detects
and corrects 4bit memory errors that occur within a single DRAM chip
on a DIMM. Advanced ECC algorithms work in combination with industry
standard ECC DIMMS.
Advanced Memory Protection
Configurations
Online Spare Memory
Offers a higher level of memory protection than Advanced ECC alone.
The system is configured with a spare bank of memory. If the number
of single-bit correctable errors on a bank exceeds the pre-defined error
threshold, the failing bank will fail over to the Online Spare bank
without intervention or server interruption. The failed memory can then
be replaced at the user's convenience during a scheduled maintenance
window.
Single-Board Mirrored Memory
Single-board mirrored memory provides a higher level of availability
than Advanced ECC and Online Spare Memory because it protects against
multi-bit errors. Single-board Mirrored Memory uses a single memory
board that is configured with a mirrored/redundant set of memory. The
system writes to both sets of memory, but reads from one. If a memory
bank has a multi-bit error or full DIMM failure, the system simply reads
from the mirrored bank instead. This process occurs without intervention
or server interruption, and the failed DIMM can be replaced during a
regularly scheduled shutdown.
NOTE: All Advanced Memory Protection modes are configured in the
ROM-Based Setup Utility (RBSU) and viewable through Insight Manager 7
(CIM 7) and the Integrated Management Log (IML).
PCI-X Hot Plug Technology (Four 64bit/100MHz PCI-X hot plug slots
available)
One 600W Hot Plug Power Supply standard
Two Hot Plug System Fans standard
Intelligent Manageability
Insight Manager 7
HP Systems Insight Manager
Redundant ROM
Remote Flash ROM Utility
Remote Lights-Out Edition (optional)
Automatic Server Recovery-2 (ASR-2)
Integrated Management Log
Server Health Logging
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty (covers processors, hard drives and memory)
Security
Power-on password
Hot plug keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Disk configuration lock
Server Power Cords
One Lowline power cord ships
standard
Power Supply
One 600W Hot Plug Power Supply
standard
Optional 2nd Power Supply for 1+1 redundancy
NOTE: Redundant
Hot Plug Power Supplies standard on 2P servers. NOTE: North American variants ship with IEC320-C13 to Nema 5-15P
detachable power cord. (Rack models only).
System Fans
Two Hot Plug System Fans standard
Optional Hot Plug Redundant Fan kit includes two more
NOTE: Hot Plug
Redundant Fans standard on 2P servers.
Microsoft Windows NT® Server
Microsoft Windows NT Enterprise Edition
Microsoft Windows 2000
Windows Server 2003
Novell NetWare
SCO UnixWare
LINUX (Red Hat, SuSE)
Sun Solaris Intel Platform Edition
Caldera OpenUnix
OS/2 e-Business
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION:
If a third-party rack is used,
observe the following additional requirements to ensure adequate airflow
and to prevent damage to the equipment:
Front and rear doors: If your 42U
server rack includes closing front and rear doors, you must allow 830
square inches (5,350 sq cm) of hole evenly distributed from top to bottom
to permit adequate airflow (equivalent to the required 64 percent open
area for ventilation).
Side: The clearance between the installed
rack component and the side panels of the rack must be a minimum of
2.75 inches (7 cm).
CAUTION: Always use blanking panels
to fill all remaining empty front panel U-spaces in the rack. This arrangement
ensures proper airflow. Using a rack without blanking panels results in
improper cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation Guide
or the Documentation CD provided with the server, or to the server documentation
located in the Support section at the following URL: http://h18000.www1.hp.com/products/servers/ProLiantml530/index.html.
Installation of HP servers into
Third Party Round Hole Racks
If a Third Party rack is used,
an additional rack kit will need to be used with the rack kit that comes
with the server. The additional rack kit part number is Compaq part number
274739-B21. The rack kit comers with all necessary brackets, hardware and
installation instructions. NOTE: Third party square-holed racks
are supported using the standard rack rail kit that ships with the rack
server models.
Installation of HP servers into
Telco Racks
If
a Telco is used, an additional rack kit and brackets will need to be used with
the rack kit that comes with the server (optional Third Party Rack Kit (PN: 274739-B21)).
Please see the following URL to purchase the brackets (rack kit and brackets come
with all necessary brackets, hardware, and installation instructions: http://www.racksolutions.com/compaq/products.htm.
HP Factory Express Capabilities
HP Factory Express gives you
the flexibility to choose from a full menu of factory capabilities all in
one manufacturing facility, in one process, with one touch giving you full
control and access to HP's World class manufacturing facility anytime. This
approach provides you the speed to deploy your IT needs, with total quality
assurance, reliability, and predictability to lower your total cost of ownership
by letting HP install, rack, and customize your software and hardware options
for you.
Service
and Support
Three-year limited warranty,
including hardware diagnostic support, pre-failure warranty (coverage of
hard drives, memory and processors). The warranty is fully supported by
HP Services and a worldwide network of resellers and service providers.
In addition 90-day's getting started software telephone support may be covered
under the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services.
NOTE: Limited warranty includes 3 year
parts, 3 year labor, 3-year on-site support
Care Pack services provide a range of life cycle support options that
let you choose the service levels that meet your business requirements,
from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available
including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13
hours, 5 day to 24 hours, 7 days call window with options including
4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft, Linux,
ProLiant Essentials and VMWare-based IT solutions helping to deliver
high level of application availability. Response times range from 30
mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support
Solution
HP Care Pack Services include HP branded hardware options qualified for
the server, purchased at the same time or afterwards, internal to the
enclosure, as well as 22" and smaller external monitors and tower
UPS options up to 3KVA. 22" and smaller external monitors will be
covered at the same service level and coverage period as the server. For
servers or storage systems installed within a rack, service also covers
all HP qualified rack options installed within the same rack.
NOTE: For more information on HP Care
Pack services, contact any of our worldwide sales offices or resellers
or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack
NOTE: For more complete information
on HP Services offerings, customers and resellers, please visit us at:
http://www.hp.com/hps
ProLiant Essentials
Virtual Machine Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
372214-B21
ProLiant Essentials
Virtual Machine Management Pack, Flexible-Quantity License NOTE: For use with multiple servers.
This part number can be used to purchase multiple licenses with a single
activation key.
372215-B21
ProLiant Essentials
Virtual Machine Management Pack, Tracking License NOTE: For use with signed and implemented
Activation Key Agreements only. Purchase of this part number entitles the
customer to deploy additional licenses of the product under the terms of
the existing Activation Key Agreement.
372216-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, Single-Server License
371645-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, 10-Server License
372029-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, Flexible-Quantity License
371646-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, Tracking license for new servers
371647-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, Tracking license for installed
servers
378372-B21
NOTE:
Flexible and volume quantity license kits are available for ProLiant
Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for
more information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials.
NOTE: All U320
Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller or U320 SCSI HBA to support
U320 transfer rates.
256-MB Battery-Back Cache Module NOTE: This 256-MB Battery-Backed
Cache Module supports the Smart Array 5300 series controllers, HP StorageWorks
Modular Smart Array 1000 and the HP StorageWorks Modular Smart Array 500.
NOTE: In
order to install certain tape drives internally, you may need to remove
the rails that come standard on the drives and then re-insert the
screws in the mounting holes. Mounting screws are shipped standard
with server.
NOTE: External
tape devices, including both tape drives and tape arrays/enclosures,
can be directly connected to the VHDCI SCSI port located on the back
of the server. Use of a SCSI adapter to connect these devices is optional,
not required.
Internal, External,
and Rack-Mount Ultrium Tape Drives
HP StorageWorks Ultrium
215 Tape Drive, External (Carbon)
HP StorageWorks Ultrium
230 Tape Drive, Internal (Carbon) NOTE: When purchasing this
internal drive a cooling fan also needs to be ordered. The fan kit
part number is 344257-B21 and comes with installation instructions
to install inside the server.
NOTE:
Needs to be ordered when purchasing an internal Ultrium 230 drive
that will be installed inside of an ML 530 G1/G2 or ML 570 G1/G2.
Kit includes fan and instructions to install fan inside of server
in drive bay.
Internal, External
and Rack-mount SDLT Tape Drives
HP StorageWorks SDLT 320
Tape Drive, Internal (Carbon) WW NOTE: When purchasing this
internal drive a cooling fan also needs to be ordered. The fan kit
part number is 344257-B21 and comes with installation instructions
to install inside the server.
HP StorageWorks SDLT 320
Tape Drive, External (Carbon) Int'l
257319-B31
HP StorageWorks SDLT 320
Tape Drive, External (Carbon) Japan
257319-291
Fan Option - Internal Cooling
Fan Kit
344257-B21
NOTE:
Needs to be ordered when purchasing an internal SDLT 320 drive that
will be installed inside of an ML530 G1/G2 or ML570 G1/G2. Kit includes
fan and instructions to install fan inside of server in drive bay.
HP StorageWorks 1U Rack-Mount
Kit NOTE: The 1U Rack-mount Kit
can support up to 2 half-height tape drives and compatible with multiple
Single-Ended and LVD SCSI tape drives including DAT 24, DAT40, DAT72,
DLT VS 80, and Ultrium 215 tape drives.
HP StorageWorks 3U Rack-Mount
Kit NOTE: The 3U Rack-Mount Kit
can support up to 2 full-height or 4 half-height tape drives and compatible
with multiple Single-Ended and LVD SCSI tape drives including DAT,
DLT VS80, SDLT 320, Ultrium 215, Ultrium 230, and Ultrium 460 Tape
Drives.
HP StorageWorks 5U Rack-Mount
Kit NOTE: The 5U Rack-Mount Kit
can support up to 4 full-height tape drives and is compatible with
SDLT 320, Ultrium 230, and Ultrium 460 tape drives.
NOTE: Required
to install the 1/8 tape autoloader in a standard 19-inch rack
NOTE: Please reference
the 1/8 Tape Autoloader QuickSpecs at www.hp.com/go/automation for additional
information needed to create a complete solution; reference current compatibility
information at http://www.hp.com/go/ebs
HP StorageWorks SSL1016
Tape Autoloader
SSL1016 Ultrium 460 Tape Autoloader
330821-B21
SSL1016 SDLT 320 Tape Autoloader
330816-B21
NOTE: Please reference
the SSL1016 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE:Please reference the MSL5026S2
Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the MSL5052S2 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the MSL5030 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the MSL5060 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the ESL9000 Series Tape Libraries QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
Magneto-Optical Jukeboxes
HP StorageWorks 9.1 GB Entry-level
Optical Storage
220mx, 1 drive, 24 slot jukebox
C1118M
220mx, 2 drive, 24 slot jukebox
C1119M
NOTE: Please reference the Magneto-Optical
Jukebox data sheets at http://www.hp.com/go/optical
for additional information needed to create a complete solution
HP StorageWorks 9.1 GB Mid-range Optical
Jukeboxes
300mx, 2 drive, 32 slot jukebox
C1150M
600mx, 4 drive, 64 slot jukebox
C1160M
700mx, 2 drive, 76 slot jukebox
C1170M
NOTE: Please reference the Magneto-Optical
Jukebox data sheets at http://www.hp.com/go/optical
for additional information needed to create a complete solution
Ultra Density Optical Jukeboxes
700ux, 1 drive, 24 slot jukebox
AA962A
700ux, 2 drive, 24 slot jukebox
AA963A
1100ux, 2 drive, 38 slot jukebox
AA964A
1000ux, 2 drive, 32 slot jukebox
AA965A
1900ux, 4 drive, 64 slot jukebox
AA966A
1900ux, 4 mixed drive, 64 slot jukebox
AA968A
2300ux, 2 drive, 76 slot jukebox
AA967A
NOTE: Please reference the
Ultra Density Optical Jukebox QuickSpecs at http://www.hp.com/go/optical
for additional information needed to create a complete solution
External Storage
– Tower & Rack
HP StorageWorks Modular Smart
Array 20 NOTE: Rack-mountable 12 (SATA) drive
enclosure with U320 Host connectivity, redundant power supplies.
NOTE: Please see
the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options
and configuration information at: http://www.hp.com/go/MSA1500cs
HP Power Distribution Unit with
Power Monitoring Model S2316 - dual input, 3 phase, 16A (INTL)
370963-B31
HP Power Distribution Unit with
Power Monitoring Model S1316 - single input, 3 phase, 16A (INTL)
370964-B31
HP Power Distribution Unit with
Power Monitoring Model S2132 - dual input, 1 phase, 32A (INTL)
370965-B31
HP Power Distribution Unit with
Power Monitoring Model S1132 - single input, 1 phase, 32A (INTL)
370966-B31
Modular PDUs – 1U/0U (up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped
with the unit (optimized for 10000
and 9000 series racks).
HP Modular Power Distribution
Units (mPDU), Low Volt Model, 24A (100-127 VAC) (NA, Japan) NOTE: The above mPDU may also be
used to connect to the low volt model of the UPS R3000 XR.
HP Modular Power Distribution
Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW) NOTE: This PDU has a detachable input
power cord and allows for adaptability to country specific power requirements.
This model may also be used with the high volt UPSs R3000 XR and R6000.
NOTE: -B21 (pallet) used to ship empty
racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom
systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks
NOTE: It is mandatory to use a shock
pallet in order to ship racks with equipment installed. Not all HP equipment
is qualified to be shipped in the Rack 10000 series
Rack Adapter Kit NOTE: This kit allows HP rack servers
to fit in racks that are 24" wide.
332815-B21
Third Party Rack Kit NOTE: The Third party rack kit is
required for round hole racks or for square hole racks that do not conform
to the adjustment range of the standard rail that ships with the server.
274739-B21
HP Factory Express
Factory Installation, Racking, and Customization Services
Factory Express Server Configuration Level 1
293355-888
NOTE:
Free Installation of HP Options - Installation of HP Options memory, NICs, hard
drives, controllers, processors, I/O cards, pre-install standard OEM OS image,
and tape drives. Installation fees will apply to all non-HP certified hardware
and asset tags.
Factory Express Server Configuration
Level 2
266326-888
NOTE:
Includes Level 1 Customer Intent of a ProLiant server and options configuration,
OS installation, custom image download, IP addressing, network setting, and custom
packaging. Customer unique requirements (quick restore creation, cd duplication,
test reports, real-time reporting of server MAC address, password, and RILOE).
Customer access, validation and control through VPN (price/server).
Factory Express Rack Integration
Level 3 with 1 – 3 servers or storage enclosures
325736-888
Factory
Express Rack Integration Level 3 with 4 – 9 servers or storage enclosures
232539-888
Factory
Express Rack Integration Level 3 with 10 or more servers or storage enclosures
325735-888
NOTE:
Includes Level 1 Customer Intent for standard mounted servers and storage units
plus standard cable mgmt, RAID configuration, servers & storage, power distribution,
networking gear and accessories (price/rack). NOTE:
Available on ProLiant rack models only.
Factory Express Rack Integration
Level 4 with 1 – 3 servers or storage enclosures
325734-888
Factory
Express Rack Integration Level 4 with 4 – 9 servers or storage enclosures
232540-888
Factory
Express Rack Integration Level 4 with 10 or more servers or storage enclosures
325733-888
NOTE:
Includes Level 2 Customer Intent plus customer defined cable management and naming
convention, customer furnished image download, IP addressing, cluster configurations
(SQL, External storage RAID). Quick restore creation, cd duplication, test reports,
real-time reporting of server MAC address, password, RILOE). Customer access and
validation through VPN (price/rack). NOTE:
Available on ProLiant rack models only.
Factory Express Rack Integration
Level 5 with 1 – 3 servers or storage enclosures
325732-888
Factory
Express Rack Integration Level 5 with 4 – 9 servers or storage enclosures
232541-888
Factory
Express Rack Integration Level 5 with 10 or more servers or storage enclosures
325731-888
NOTE:
Includes Level 4 Customer Intent plus Custom SW layering and extended test, Customer
access, validation and control through VPN, Clustered racks with networking gear
and / or external storage array, Start-up installation services custom quote.
(price/rack). NOTE:
Available on ProLiant rack models only. NOTE:
Factory Express Engineered Solution Level 6 is a custom solutions available through
Factory Express. Please contact your local reseller or Account Manager.
Service and Support Offerings (HP
Care Pack Services)
Hardware Services
On-site Service
Next Business Day On-site
Service, 5-Day x 9-Hour Coverage, 3 Years
U4462A
Next Business Day On-site
Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
U4462E
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years
U4463A
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
U4463E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years
U4464A
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
U4464E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years
U4465A
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4465E
Installation &
Start-up Services
Hardware Installation
U4473A
Hardware Installation, Electronic
U4473E
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays.
U4474A
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays, Electronic
U4474E
Support Plus
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays.
U4475A
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4475E
Onsite HW support, 8am-9pm,
M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at
HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays.
U4477A
Onsite HW support, 8am-9pm,
M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at
HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electcronic
U4477E
Support Plus 24
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays.
U4476A
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4476E
Onsite HW support 24x7,
4hr response and Linux O/S SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays.
U4478A
Onsite HW support 24x7,
4hr response and Linux O/S SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays, Electronic
Advanced ECC Memory Standard
1024 MB (2 x 512-MB) PC1600- ECC SDRAM installed
Advanced ECC Memory Standard Plus Optional Memory
Up to 13,312-MB memory is available with the optional installation of
PC1600- ECC SDRAM memory kits
Advanced ECC Memory Standard Replaced with Optional
Memory
Up to 16,384-MB of memory is available with the removal of the standard
1024-MB of memory and the optional installation of PC1600-MHz ECC SDRAM
memory kits.
NOTE: This chart does not represent
all possible memory configurations.
NOTE:
-Online Spare Memory: Bank D is the Online Spare Bank.
-Mirrored Memory: Bank C mirrors Bank A, Bank D mirrors Bank B. NOTE: This chart does not represent all possible memory configurations.
NOTE: All U320 Universal
Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require
an optional U320 Smart Array Controller or U320 SCSI HBA to support U320
transfer rates
To drill down to calculators: - Click on: "ProLiant
Servers" - Click on the Server of interest. Example:
ML530 G2 - Click on: "Power Calculator" link (You
may need to scroll down to see it.)
US Site
DL Quickspecs
Search:
316898-B21
© 2012 Canada PartsDirect
