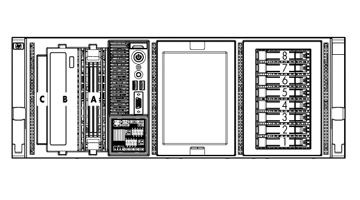

HDD

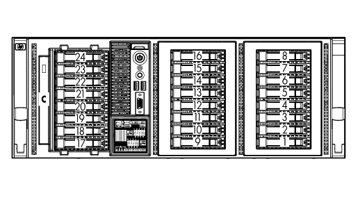

Optional drive cage bay

Optional drive cage bay

• Support for the new Intel® Xeon® 5600 series processor refresh.
• Support for the new 16GB DDR3-1333 low-power memory RDIMMs.
• Support for the HP RDX 1TB Internal Removable Disk Backup System
• Support for HP Infiniband Dual Port HCAs
• Support for the HP NC523SFP 10Gb 2-port Server Adapter

10

The Common Slot (CS) Power Supply provides the customer with commonality in power supplies across multiple platforms to save on the cost of spares and allows HP to offer multiple power solutions to fit the customers' needs. Many HP ProLiant Servers come with or are compatible with high-efficiency HP CS Power Supplies. These power supplies are designed to provide high-efficiency power without degrading performance of the ProLiant server. All HP Common Slot power supplies are hot-plug and meet the requirements for UL and CE Mark Compliance.
It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for your needs.

HP's ProLiant Common Slot Power supplies (460W & 750W) meet multiple Energy Efficiency Initiatives including Climate Savers Computing Initiative (CSCI) GOLD and ECOS Consulting/80PLUS GOLD certifications.

The HP 1200W CS Power Supply meets multiple Energy Efficiency Initiatives including CSCI Silver and ECOS Consulting/80PLUS Silver certifications.

Redundant Power: Optional (1+ 1 redundant) power supplies can be purchased through power supply option kits (see Redundant Options for part numbers).

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware
HP Citrix Essentials for XenServer

Integrated ATI RN50, 64 MB video standard

• 16 bit color: maximum resolution of 1600 x 1200
• 32 bit color: maximum resolution of 1280 x 1024

NOTE: Maximum resolution available via iLO 2 remote console is 1280 x 1024.

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters.

HP provides management solutions that are designed to simplify a server's installation, configuration and maintenance throughout the entire server lifecycle. This provides the customer with higher levels of operational efficiency and highly reliable systems: www.hp.com/go/foundation.
The foundation pack includes:

• HP SmartStart

• HP Management DVD

• HP ProLiant Smart Update Firmware DVD


SmartStart version supported (minimum): SmartStart 8.20
http://www.hp.com/servers/smartstart

NOTE: In an effort to support reducing our environmental impact, the HP Insight Foundation Suite for ProLiant media will be available as a selectable option for this server at time of order of a CTO SKU. This will allow customers to order the number of media kits that best meet their needs and eliminate receiving unnecessary duplicate media.

HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP iLO functions without additional software and can be accessed from any location via a web browser. HP iLO works hand-in-hand with HP Systems Insight Manager, Insight Control suites, and Insight Dynamics for ProLiant, helping customers unleash the value of the ProLiant platform and deliver the highest possible quality of IT service. For more information, visit: www.hp.com/go/iLO

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HP Insight Control

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and ROI
When you buy HP server and storage products and solutions, it's also a good time to think about what levels of support you may need. Our portfolio of service options reduce deployment and management worries while helping you get the most out of your server and storage investments. We take a holistic approach to your environment, bridging servers, blades, storage, software and network infrastructures with our packaged HP Care Pack Services for servers and storage.

Protect your business beyond warranty
When it comes to robustness and reliability, standard computing equipment warranties have matured along with technology. Good news that can also create problems stemming from depending on standard warranties designed to only protect against product defects and some downtime causes. Using a standard approach to warranty uplifts, such as HP Care Pack Services, helps reduce downtime risks and provides operational consistency for mission-critical and standard business computing.

HP Care Pack Services: Upgrading or extending standard server and storage warranties cost effectively
HP Care Pack Services offer a standard reactive hardware and software support services suite sold separately, or combined with our Support Plus and Support Plus 24 services. The portfolio also provides a combination of integrated proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition with HP Proactive Select, you can acquire the specific proactive constancy and technical services. HP Proactive Select menu offers a broad set of service options that you can mix and match depending on your specific requirements. Proactive service options include offers for server, storage, network, SAN device, software, environment and education services.

HP server and storage lifecycle support services offer a full spectrum of customer care-from technology support to complex migrations to complete managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP Education Services offer flexible, comprehensive training on to help your IT staff get the most out of your server and storage investments. HP Financial solutions extend innovative financing and cost-effective asset management programs-from purchase to equipment retirement.

Learn more: www.hp.com/services/servers and www.hp.com/services/storage

NOTE: Care Pack Services availability may vary by product and country.

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

• Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
• Customers purchasing from a commercial reseller can find HP Care Pack Services at http://www.hp.com/go/lookuptool

3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour
Provides your IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 or 24 hours of the initial service request to the HP Global Solution Center.

HP is committed to repairing your hardware within a maximum of six or twenty four hours. The benefits include:

• Improved system uptime
• Predictable repair times
• More effective IT resource planning
• Consistent level of hardware support across your multi-technology systems

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN

3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7
Provides you with rapid remote support and if required an HP authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

This service provides a trained HP service specialist to perform an installation that meets HP quality standards, for:

• Help improve or maintain system uptime
• Convenient onsite support
• Committed response time

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE

HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

• Expedited installation, with all service prerequisites met before the installation is performed
• Installation in accordance with manufacturer's specifications, enhancing the supportability of your HP-installed hardware and software
• Service delivery at a mutually scheduled time
• Allows your IT resources to stay focused on their core tasks and priorities
• Availability of an HP service specialist to answer questions during the onsite delivery of this service

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN

3-Year HP Support Plus 24
As an alternative to our recommended support level, for customers who need access to responsive 24x7 hardware and software support plus software updates on HP and selected third party products:

For a higher return on your server and storage technology, our 3-year combined reactive support service delivers integrated onsite hardware/software support services available 24x7x365, including access to HP technical resources, 4-hour response onsite hardware support and software updates.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EEE

3-Year HP Proactive 24
As an alternative to our recommended support level, for customers who want enhanced operational effectiveness and proactive problem identification:

Provides improved stability, availability and operational effectiveness with an integrated hardware and software support service that combines industry-leading reactive technical assistance with proactive account services, giving your IT manage support from a team of service specialists.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-1614ENUC

HP Proactive Select Service
Customer needs on demand access to consulting, technical proactive services and education courses

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN

HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

• Access to self-solve tools (including search technical knowledge base)
• Efficient logging and tracking of support cases
• Collaboration with other business and IT professionals
• Download of patches and drivers
• Access to diagnostic tools
• Proactive notification of relevant information

Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit: http://www.hp.com/support

HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24 X 7, so you can spend less time solving problems and more time focused on your business. You can have your systems remotely monitored for hardware failure using secure technology that's been proven at thousands of companies around the world. In many cases, you can avoid problems before they occur.

In today's cost-conscious business environment, IT professionals, developers, consultants and users face an interesting challenge: how to keep up with the latest technologies and expand important skills while delivering profitable results on current projects. To help address this challenge, HP offers innovative training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix, Microsoft® and open source/Linux-related topics-while spending less time away from business-critical activities.

HP Technology Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction.

To learn more on HP ProLiant servers, HP BladeSystem servers and HP StorageWorks storage products, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: www.hp.com/services/proliant or www.hp.com/services/bladesystem or http://www.hp.com/hps/storage

Base Rack Models

Performance Rack Models

HP ML370 G6 E5649 2.53GHz 6-core 1P 6GB-R P410i/512 8 SFF 750W PS Base Server
625589-001

HP ProLiant ML370 G6 E5540 2.53GHz 4-core 1P 6GB-R P410i/256 8 SFF 750W PS Base Server
487791-001

(1) Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)

HP ProLiant ML370 G6 E5620 2.40GHz 4-core 1P 4GB-R P410i/256 8 SFF 460W PS Entry Server
625591-001

HP ProLiant ML370 G6 E5520 2.26GHz 4-core 1P 4GB-R P410i/256 8 SFF 460W PS Entry Server
487795-001

The ProLiant Smart Buy program offers a collection of promotional server and option products that are configured with SMB in mind, offered at discounted prices, and positioned for quick delivery. Smart Buy server offers are available for a limited time only.

HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Integrated Lights-Out embedded
HP Smart Array P410i/Zero Memory Controller
(8) Hot-Plug (SFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
Tower Form Factor

483874-B21

HP Drive Cage Options

HP Optical Drives

HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License

 462828-B21

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator

Some DIMM installation guidelines are summarized below:

• For servers with eighteen (18) memory slots:
  • There are three (3) channels per processor; six (6) channels per server
  • There are three (3) DIMM slots for each memory channel; eighteen (18) total slots
  • Memory channel 1 consists of the three (3) DIMMs that are closest to the processor
  • Memory channel 3 consists of the three (3) DIMMs that are furthest from the processor
• DIMM slots that are white should be populated first
• Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
• Do not install DIMMs if the corresponding processor is not installed
• If only one processor is installed in a 2CPU system, only half of the DIMM slots are available
• To maximize performance, balance the total memory capacity between all installed processors
• It is not required, but it is recommended to load the channels similarly if possible
• If any Quad rank DIMMs are installed, all channels are limited to only 2 DIMMs per channel.
• You can only install two quad-rank DIMMs per channel
• You can only install two UDIMMs per channel; if available, the third slot in the channel must remain empty
• Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel
• Heaviest load (DIMM with most ranks) within a channel goes furthest from the chipset
• For memory mirroring mode, channel 3 must be unpopulated. Channels 1 and 2 are populated identically
• For lock-step mode, channel 3 must be unpopulated. DIMMs in channels 1 and 2 will be installed in pairs. The paired slots will be 1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
• Low Voltage DIMMs can only be used with the Intel® Xeon® processors 5600 series
• If mixing DIMM voltage is a requirement, please note that the DIMMs will run at 1.5V since all 1.35V are capable of supporting 1.5V operations

DIMM slot and configuration diagrams
Basic memory slot & population diagram

• Population order; start with "A" first, "B" second, "C" third, etc.

Standard memory configuration (1 CPU model)

• 6GB, consisting of three (3) 2GB dual-rank PC3-10600 RDIMMs

Standard memory plus optional memory (1 CPU model)

• 54GB, consisting of three (3) 2GB RDIMMs plus six (6) 8GB RDIMMs
  • 3x 2GB dual-rank PC3-10600 RDIMMs
  • 6x 8GB dual-rank PC3-10600 or PC3-8500 RDIMMs

Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration

• 72GB, consisting of nine (9) 8GB dual-rank PC3-10600 or PC3-8500 RDIMMs

UDIMM maximum configuration (1 CPU model)

• 24GB, consisting of six (6) 4GB dual-rank PC3-10600 UDIMMs

Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration

• 192GB, consisting of twelve (12) 16GB Quad-Rank PC3-8500 RDIMMs

UDIMM maximum configuration (2 CPU model)

• 48GB, consisting of twelve (12) 4GB dual-rank PC3-10600 UDIMMs

External Storage

Rack Weight
(approximate)

To review typical system power ratings use the HP Power Advisor which is available via the online tool located at URL: www.hp.com/go/proliant-energy-efficient

- Click on the system of interest. Example: DL370 G6 or ML370 G6
- Follow the instructions of the next screens.

Smart Array P410i Controller

RAID 6, 6+0 (Advanced Data Guarding)
NOTE: RAID 6, 6+0 can be enabled with one of the following combinations:

• 256 MB cache, Battery kit and Smart Array Advanced Pack License key option upgrades

• 512 MB BBWC/FBWC and Smart Array Advanced Pack License key option upgrades

• 1G FBWC and Smart Array Advanced Pack License key option upgrades

32-bit PCI-based health and remote management ASIC

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
