The HP ProLiant ML350 G6 is the best
price-performance DP Tower server that delivers excellence with performance,
expandability and availability. The G6 server has more memory capacity
and HDD expandability than previous generations. It combines the latest
Intel Xeon 5600 processors with QPI technology, best-in-class availability
features, and unsurpassed flexibility in a system ideal for growing businesses
and especially well suited to meet the needs of remote branch offices.

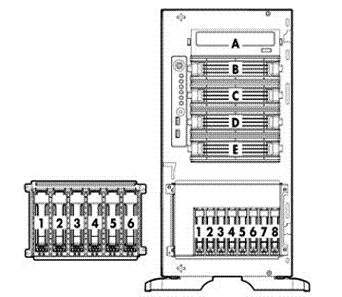

Front View:
Rear View:
1.
SATA DVD ROM or DVD RW optical drive
1.
PS/2 mouse port
2.
Four (4) removable media bays
2.
Serial port
3.
Eight (8) SFF (2.5") (shown) or six
(6) LFF (3.5") SAS or SATA hot plug drive bays
3.
Dedicated remote management port
4.
Two (2) USB ports
4.
Six (6) expansion slots
5.
LEDs: System power, Health, Power cap, NIC
1&2, UID
5.
Two (2) network ports
6.
Six (6) expansion slots
6.
Two (2) USB ports
7.
Nine (9) DIMM slots (Processor 2): DDR3 Registered
(RDIMM) or Unbuffered (UDIMM) memory
7.
Video port
8.
Processor heatsink
8.
Power supply bay 1
9.
System fans
9.
PS/2 keyboard port
10.
Nine (9) DIMM slots (Processor 1): DDR3 Registered
(RDIMM) or Unbuffered (UDIMM) memory
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section.
NOTE: HT indicates
that the processor model supports Intel® Hyper-Threading Technology. NOTE: Turbo indicates the maximum potential frequency increment when
using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active. NOTE: DDR3 speed is the maximum memory speed of the processor. Actual
memory speed may depend on the quantity and type of DIMMs installed. NOTE: For the Intel 5600 and 5500 Series, the letter preceding the
model number indicates the performance/wattage of the processor. "X"
denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage
(Mainstream); and "L" denotes Lower Wattage. NOTE: Customers transitioning from 5500 series processors to 5600
series processors must include a third fan along with the two fans present
on the server
Cache Memory One of the following depending on Model
12MB (1 x 12MB) Level 3 cache NOTE: For 5600 series processors
8MB (1 x 8MB) Level 3 cache
NOTE: For E5606/E5607/X5570/X5560/X5550/E5540/E5530/E5520/L5520
processors
4MB (1 x 4MB) Level 3 cache
NOTE: For E5603/E5507/E5506/E5504/E5503/E5502/L5506
processors
Upgradeable to two processors NOTE: total 4, 8 or 12 cores
Memory Protection
Advanced ECC
Mirroring mode
Lock-step mode
Online Spare (Requires X5600
or E5600 processor family)
Memory One of the following depending on model
Type
DDR3 Registered (RDIMM) or Unbuffered
(UDIMM)
Standard (Performance Models)
12 GB (6 x 2 GB) RDIMM
Standard (Base Models)
6 GB (3 x 2 GB) RDIMM
Standard (Entry Models)
4 GB (2 x 2 GB) RDIMM
Standard (Entry Models)
4 GB (1 x 4 GB) RDIMM
Maximum (RDIMM)
288 GB (18 x 16 GB) RDIMM
Maximum (UDIMM)
48 GB (12 x 4 GB)
NOTE:
Depending on the memory configuration and processor model, the memory speed
may run at 1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration
Tool at: www.hp.com/go/ddr3memory-configurator.
NOTE:
The 16 GB memory module is a quad ranked 800MHz DDR3 memory.
Network Controller
Embedded NC326i PCI Express
Dual Port Gigabit Server Adapter
Expansion
Slots
Expansion
Slot #
Technology
Bus
Width
Connector
Width
Bus Number
Form
Factor
Notes
6
PCI
Express Gen2
x4
x8
5
Standard
Height/Length
5
PCI
Express Gen2
x4
x8
8
Standard
Height/Length
4
PCI
Express Gen2
x8
x16
11
Standard
Height/Length
3
PCI
Express Gen2
x8
x8
14
Standard
Height/Length
2
PCI
Express Gen2
x4
x8
17
Standard
Height/Length
1
PCI
Express Gen2
x4
x8
20
Standard
Height/Length
NOTE:
Bus number - Default bus assignment (in decimal). Inserting cards with PCI bridges
may alter the actual bus assignment number NOTE: Indicates the number of physical electrical lanes running to
the connector. NOTE: Six total expansion slots. One PCI-Express x16 Gen2 (x8 speed);
One PCI-Express x8 Gen2 (x8 speed); Four PCI-Express x8 Gen2 (x4 speed).
Optional PCI-X Expander provides additional two 64-bit/100-MHz PCI-X slots
by using a single PCI Express slot.
Storage Controller One of the following depending on model
Entry Models
Embedded HP Smart Array P410i/Zero
Memory Controller (RAID 0/1/1+0)
Base Models
Embedded HP Smart Array P410i/256MB
Controller (RAID 0/1/1+0/5/5+0)
Embedded HP Smart Array P410i/512
MB BBWC Controller (RAID 0/1/1+0/5/5+0)
Performance Models
Embedded HP Smart Array P410i/1GB
FBWC Controller
Available upgrades:
256MB, 512MB with BBWC, Battery kit upgrade (for BBWC), and Smart Array
Advanced Pack (SAAP)
Internal Storage
Devices
Diskette
Drive
None included standard
(not supported)
Optical
Drives
HP Half-Height SATA DVD-ROM
Optical Drive
Hard
Drives
None standard
Maximum Internal
Storage One of the following depending on model
ACPI V2.0 Compliant
PCI-Express Gen2
PXE Support
WOL Support
PCI-X 1.0a Compliant
Novell Certified
Microsoft® Logo certifications
USB 2.0 Support
SMBIOS 2.6.1
Server Power Cords
ProLiant ML servers in a rack-mount
configuration no longer ship standard with NEMA power cords that allow connection
to 110V US wall outlets in a home or office. These servers are primarily
connected to PDU's in data center racks so they now ship standard with only
a PDU power cord (416151-B21). If a user wishes to power a ProLiant ML rack-mount
server using a 110V receptacle (NEMA-15), the NEMA power cord must be ordered
separately. The 12' cord (AF556A) or 6' cord (187335-001) can be purchased
online at HP.COM. In a tower configuration, the servers ship standard with
a 6' NEMA power cord. If customers require a power cord, they can check
the power cord matrix for the appropriate sku. Please see the following
power cord matrix: http://www.hp.com/go/powercordmatrix.
Common Slot Power Supplies
HP has a new design for ProLiant power- the new Common Slot Power Supply
bay. This design provides the customer with commonality in power supplies
across multiple platforms to save on the cost of spares and allows HP
to offer multiple power solutions to fit the customers' needs. Many HP
ProLiant Servers come with Common Slot, High Efficiency and Right-Size
Power Supplies. The new HP Common Slot power supplies are designed for
the highest power efficiency without degrading performance of the ProLiant
server. Power Supplies have efficiency ratings up to 92%. There are three
Right Size power options available depending on the configuration of your
server. To make sure you select the correct power supply to meet your
configuration, please use the HP Power Advisor at: www.hp.com/go/proliant-energy-efficient
or www.hp.com/go/hppoweradvisor.
All HP Common Slot power sources are UL, CE Mark Compliant, Hot Plug and
Redundant.
It is highly recommended that you use the HP Power Advisor in defining
the "Right-Size" power supply for your needs.
The HP ProLiant Common Slot Power supplies meet multiple Energy Efficiency
Initiatives: Climate Savers Computing Initiative GOLD and ECOS Consulting
80PLUS GOLD for the 460w and 750w Power Supplies and Climate Savers Computing
Initiative Silver, ECOS Consulting 80PLUS Silver for 1200w Power Supply.
HP has also been working with the EPA on developing an ENERGY STAR? Computer
Server specification and plans on offering models that meet the requirements
when they are published. Please visit the ENERGY STAR website at www.energystar.gov
for updates on the specification development process and approved platforms.
The HP Power Advisor is located at: www.hp.com/go/proliant-energy-efficient
or www.hp.com/go/hppoweradvisor
System
Fans
3 system fans ship standard NOTE: Does not include power supply
or processor heat sink fans. Processor heat sink fans packed in processor
kit. N+1 fan redundancy standard
Required Cabling
For required cabling information, refer to the HP ProLiant ML350 G6 cabling
matrix at: http://www.hp.com/servers/proliantML350. NOTE: Please see the "Storage"
section of this QuickSpecs for important information on controllers and
cables required to support SAS or SATA hard drives as well as storage
management software available for SATA hard drives.
Operating
Systems and Virtualization Software Support for ProLiant Servers
NOTE: For more information on
HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server,
please visit our Support Matrix at: http://www.hp.com/go/ossupport
and our driver download page www.hp.com/support/ML350G6.
Graphics
Integrated ATI RN50, 64MB video standard
16 bit color: maximum resolution of 1600 x 1200
32 bit color: maximum resolution of 1280 x 1024
NOTE: Maximum resolution available via
iLO remote console is 1280 x 1024.
Form Factor
Tower or Rack (5U)
NOTE: Rack models (with a Tower to Rack conversion kit) support:
Square or round hole racks 24"- 36" deep, including HP Rack
System /E and HP Systems
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecycle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: http://www.hp.com/go/foundation
The foundation pack includes:
HP SmartStart
HP Management DVD
HP ProLiant Smart Update Firmware DVD
NOTE: In an effort to support reducing
our environmental impact, the HP Insight Foundation Suite for ProLiant
media will be available as a selectable option for this server at time
of order of a CTO SKU. This will allow customers to order the number of
media kits that best meet their needs and eliminate receiving unnecessary
duplicate media.
HP Integrated Lights-Out (iLO)
HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring,
power and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP iLO functions without additional software and
can be accessed from any location via a web browser. HP iLO works hand-in-hand
with HP Systems Insight Manager, Insight Control suites, and Insight Dynamics
for ProLiant, helping customers unleash the value of the ProLiant platform
and deliver the highest possible quality of IT service. For more information,
visit: www.hp.com/go/iLO
Intelligent Manageability
HP Systems Insight Manager
SmartStart
Redundant ROM
System Firmware Update
ROMPaq
ProLiant RBSU (ROM-Based Setup Utility)
Automatic Server Recovery-2 (ASR-2)
Dynamic Sector Repairing (with Smart Array Controller)
Drive Parameter Tracking (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory, and SAS hard drives)
Security
Power-on password Setup password Serial interface control Disk
configuration lock Power switch security
Warranty
This product is covered by
a global limited warranty and supported by HP Services and a worldwide network
of HP Authorized Channel Partners resellers. Hardware diagnostic support
and repair is available for three years from date of purchase. Support for
software and initial setup is available for 90 days from date of purchase.
Enhancements to warranty services are available through HP Care Pack services
or customized service agreements. Hard drives have either a one year or
three year warranty; refer to the specific hard drive QuickSpecs for details. NOTE: Server Warranty includes 3-Year
Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
Warranty repairs may be accomplished through the use of Customer Self Repair
(CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts
are designed for easy replacement. A travel and labor charge will result
when customers decline to replace a Mandatory CSR part; 2) Optional CSR
parts are also designed for easy replacement but may involve added complexity.
Customers may choose to have HP replace Optional CSR parts at no charge.
Additional information regarding worldwide limited warranty and technical
support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
HP Insight Control, a product option, delivers
essential infrastructure management that can help save time and money by
making it easy to deploy, migrate, monitor, remote control, and optimize
your IT infrastructure through a single, simple management console.
Two versions of Insight Control are available, to serve environments
requiring either a Linux-based or a Windows-based central management server:
HP Insight Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol
HP Insight Control includes one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff and
proactive delivery of software updates. For more information about this
service, please visit: http://www.hp.com/services/insight.
HP Insight Dynamics
HP Insight Dynamics for ProLiant, a product option,
is advanced infrastructure management software that enables IT staff to
instantly adjust their environments to meet dynamic business demands by
provisioning, optimizing and protecting complex infrastructure in minutes.
It's a powerful toolkit, integrated-by-design, that accelerates complex
technology projects and simplifies daily operations, transforming data
center economics. With Insight Dynamics IT professionals can plan capacity
and power continuously, balance workloads across physical and virtual
resources, and ensure cost-effective high availability. It also enables
IT organizations to provision infrastructure consistently and automatically
from pools of shared resources using a self-service portal. Resources
provisioned can range from a single virtual machine to complex multi-tier
environments and their associated physical and virtual resource requirements.
In addition to the previous functional benefits, it also provides a cost-effective
disaster recovery for physical and virtual environments that works with
HP StorageWorks Continuous Access software for both the Enterprise Virtual
Array and the XP storage array allowing application environments to be
reactivated in minutes with the touch of a button to a remote location. NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics
HPC Interconnects
NOTE: High Performance Computing (HPC)
interconnect technologies are available for this server under the HP Cluster
Platform product portfolio. These high-speed interconnects are fully supported
by HP when they are part of these configure to order clusters. Solutions
can be defined with a lot of flexibility with the help of configuration
tools. Please visit the following URL to configure HPC Clusters with InfiniBand
Interconnects: http://www.hp.com/techservers/clusters/ucp/index.html
InfiniBand
PCI-Express Generation 2 adapters
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and storage
products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of servers
and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem,
HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries
and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eConfigure Enterprise
Configurator now provides factory default racking for our HP hardware portfolio.
This approach is aligned with our strategic direction to meet the needs
and expectations of our valued customers. If you require "custom"
rack configuration, please contact HP's Customer Business Center or an Authorized
Partner for assistance. For additional information please visit: http://www.hp.com/products/configurator
HP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires
a service partner who understands your increasingly complex business technology
environment. That's why it makes sense to team up with the people who
know HP infrastructure hardware and software best - the experienced professionals
at HP Services.
What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test,
integrate, support, and manage IT and infrastructure solutions. This way,
HP proposes services solutions that include more than just uplift of base
warranty. You can get the support you need by choosing from one of a number
of service packaged solutions we have designed to address wider set of
customer support needs:.
HP Technology Services meets business challenges with services offered
in three packages -
Optimized Care Package, Standard Care Package, and Basic Care Package
- available for each product group. Such packaged solutions enable customers
to optimize technology operations, minimize risk and drive better business
outcomes with easy-to-buy, easy-to-use scalable support packages for servers,
storage, networking and software.
Optimized Care Package
Supports maintaining servers
at optimum performance availability
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
HP Installation and Startup for Insight Control Software
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf
3-Year HP Critical Advantage
Provides end-to-end infrastructure support solution for business critical
applications running on virtualized/x86 infrastructures, enabling the
customers to cost effectively build, operate, and continuously improve
their IT environment http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA3-1772ENW
Additional Services: Microsoft or Linux or VMware education courses
+ Facility & technology environmental assessment services + Energy
Efficiency Design, Factory Express
Standard Care Package
Package that maintains high
level of server availability
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
HP Installation and Startup for Insight Control Software
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf
3-Year HP 6 hour Hardware Support Onsite Call-to-Repair Service
Provides an IT manager with a team of support specialists who will quickly
begin troubleshooting the system to help return the hardware to operating
condition within 6 hours of the initial service request to the HP Global
Solution Center http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN
3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf
Additional Services - Software OS (Microsoft, Linux (SUSE/Red
Hat) & VMware Installation & Start Up, and Software Support; Install
and Startup Services for Insight Control; Microsoft or Linux or VMware
education courses; +30 Proactive Select Credits, Factory Express
Basic Care Package
Delivers minimum recommended
support service level
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
HP Installation and Startup for Insight Control Software
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf
3-Year HP 24x7 4 hour Response, Hardware Support Onsite Service
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf
3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf
Additional Services: Software OS (Microsoft, Linux (SUSE/Red Hat)
& VMware Installation & Start Up and Software Support); +10 Proactive
Select Credits, Factory Express
Insight Remote Support
The packages include HP Insight
Remote Support that uses proven technology to deliver secure, reliable 24x7
remote monitoring, diagnoses, and problem resolution. It is available at
no additional cost to all warranty, HP Care Pack Service, and service agreement
customers.
For more information
To learn more on HP ProLiant
servers and HP BladeSystem servers, please contact your HP sales representative
or HP Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant
NOTE: For the
Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section. NOTE: Pre-configured models ship with the configurations below. Options
can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured
models. Any additional options purchased will be shipped separately. NOTE: If you desire a custom configuration please see "Configuration
Information - Factory Integrated Models" section of this QuickSpecs.
Base Models
HP ProLiant ML350 G6 E5645 1P 6GB-R P410i/256 750W RPS SFF Server
638181-001
The ProLiant Smart
Buy program offers a collection of promotional server and option products
that are configured with SMB in mind, offered at discounted prices, and
positioned for quick delivery. Smart Buy server offers are available for
a limited time only.
Configuration Information - Factory Integrated Models
NOTE:
This section lists some of the steps required to configure a Factory Integrated
Model. To ensure only valid configurations are ordered, HP recommends the
use of an HP approved configurator. Contact your local sales representative
for information on configurable product offerings and requirements. NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis. NOTE: FIO indicates that this option is only available as a factory
installable option.
Step
1: Base Configuration (choose one of the following configurable models)
HP
Models
ML350G6
Tower Models
HP ProLiant ML350
G6 Small Form Factor (SFF) Configure-to-order Tower Chassis
483447-B21
Includes:
Embedded
NC326i PCI Express Dual Port Gigabit Server Adapter
Embedded Smart Array P410i Controller
Eight (8) Hot-Plug (SFF) SAS/SATA Drive Bays
Seven (7) HDD blanks
Six (6) Expansion slots: One Express x16 Gen2 (x8 speed); One PCI-Express
x8
Gen2 (x8 speed); Four PCI-Express x8 Gen2 (x4 speed)
Six (6) USB ports
PS/2 Keyboard & Mouse (selection required)
Tower Form Factor
HP ProLiant ML350
G6 Large Form Factor (LFF) Configure-to-order Tower Chassis
483448-B21
Includes:
Embedded NC326i
PCI Express Dual Port Gigabit Server Adapter
Embedded Smart Array P410i Controller
Six (6) Hot-Plug (LFF) SAS/SATA Drive Bays
Five (5) HDD blanks
Six (6) Expansion slots: One Express x16 Gen2 (x8 speed); One PCI-Express
x8 Gen2(x8 speed); Four PCI-Express x8 Gen2 (x4 speed)
Six (6) USB ports
P/S 2 Keyboard & Mouse (selection required)
Tower Form Factor
ML350G6 Rack Models
HP ProLiant ML350
G6 Small Form Factor (SFF) Configure-to-order Rack Server
483443-B21
Includes:
Embedded NC326i PCI
Express Dual Port Gigabit Server Adapter
Embedded Smart Array P410i Controller
Eight (8) Hot-Plug (SFF) SAS/SATA Drive Bays
Seven (7) HDD blanks
Six (6) Expansion slots: One Express x16 Gen2 (x8 speed); One PCI-Express
x8 Gen2 (x8 speed); Four PCI-Express x8 Gen2 (x4 speed)
Six (6) USB ports
Rack (5U) Form Factor
HP ProLiant ML350
G6 Large Form Factor (LFF) Configure-to-order Rack Server
483444-B21
Includes:
Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Embedded Smart Array P410i Controller
Six (6) Hot-Plug (LFF) SAS/SATA Drive Bays
Five (5) HDD blanks
Six (6) Expansion slots: One Express x16 Gen2 (x8 speed); One PCI-Express
x8 Gen2 (x8 speed); Four PCI-Express x8 Gen2 (x4 speed)
Six (6) USB ports
Rack (5U) Form Factor
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted)
HP
Processors
Six-Core Processors
HP ML350 G6 Intel®
Xeon® X5675 (3.06GHz/6-core/12MB/95W) FIO Processor Kit
638315-B21
HP ML350 G6 Intel®
Xeon® X5670 (2.93GHz/6-core/12MB/95W) FIO Processor Kit
601236-B21
HP ML350 G6 Intel®
Xeon® X5660 (2.80GHz/6-core/12MB/95W) FIO Processor Kit
601238-B21
HP ML350 G6 Intel®
Xeon® X5650 (2.66GHz/6-core/12MB/95W) FIO Processor Kit
601240-B21
HP ML350 G6 Intel®
Xeon® E5649 (2.53GHz/6-core/12MB/80W) FIO Processor Kit
638316-B21
HP ML350 G6 Intel®
Xeon® E5645 (2.40GHz/6-core/12MB/80W) FIO Processor Kit
638317-B21
Quad-Core Processors
HP ML350 G6 Intel®
Xeon® X5672 (3.20GHz/4-core/12MB/95W) FIO Processor Kit
638314-B21
HP ML350 G6 Intel®
Xeon® E5640 (2.66GHz/4-core/12MB/80W) FIO Processor Kit
601242-B21
HP ML350 G6 Intel®
Xeon® E5630 (2.53GHz/4-core/12MB/80W) FIO Processor Kit
601244-B21
HP ML350 G6 Intel®
Xeon® E5620 (2.40GHz/4-core/12MB/80W) FIO Processor Kit
601246-B21
HP ML350 G6 Intel®
Xeon® E5607 (2.26GHz/4-core/8MB/80W) FIO Processor Kit
638318-B21
HP ML350 G6 Intel®
Xeon® E5606 (2.13GHz/4-core/8MB/80W) FIO Processor Kit
638319-B21
HP ML350 G6 Intel®
Xeon® E5603 (1.60GHz/4-core/4MB/80W) FIO Processor Kit
638320-B21
HP ML350 G6 Intel®
Xeon® E5530 (2.40GHz/4-core/8MB/80W) FIO Processor Kit
495912-B21
HP ML350 G6 Intel®
Xeon® E5520 (2.26GHz/4-core/8MB/80W) FIO Processor Kit
495914-B21
HP ML350 G6 Intel®
Xeon® E5506 (2.13GHz/4-core/4MB/80W) FIO Processor Kit
495916-B21
HP ML350 G6 Intel®
Xeon® E5504 (2.00GHz/4-core/4MB/80W) FIO Processor Kit
495918-B21
HP ML350 G6 Intel®
Xeon® L5630 (2.13GHz/4-core/12MB/40W) FIO Processor Kit
601252-B21
Dual-Core Processors
HP ML350 G6 Intel®
Xeon® E5503 (2.0GHz/2-core/4MB/80W) FIO Processor Kit
NOTE:
Prior to making a power supply selection it is highly recommended that the
HP Power Advisor is run to determine the right size power supply for your
server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor
HP 460W Common Slot
Gold Hot Plug Power Supply Kit
HP 256MB Factory
Integrated P-Series Cache Module NOTE: Available for P410i only.
534108-B21
HP
Performance Packs
Performance Packs
are necessary to configure a HP ProLiant ML350 G6 to a High Performance
Model which includes the latest performance technologies and enterprise
class availability features pre-installed for convenience and value. The
Performance Pack includes a 2nd processor, 512MB cache with BBWC for P410i
(650 mAh P-Series Battery), redundant fan, and (1) 750W CS HE Power supply
kit. NOTE: Must also select 447326-B21
(SATA DVD ROM) to achieve parity to ML350 G6 High Performance Models.
HP ML350G6 E5530
HPM FIO Kit
530547-B21
HP
Insight Software
HP Insight Control
including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License
582765-B21
HP Insight Control
for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License
TC203A
Step
4: Choose Additional Options for Factory Integration
NOTE:
For additional options, please refer to the "Core Options" and "Additional
Options" section below.
NOTE:
Some options may not be integrated at the factory. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator.
Contact your local sales representative for additional information.
HP Unique Options
HP ML350 G6 Redundant Fan/Baffle
Kit
515081-B21
HP ML350 G6 2 Slot PCI-X Riser
Kit NOTE: The HP PCI-X Expander kit converts
a single PCI Express slot (Slot 1) into two full height, full length 64-bit
100MHz PCI-X slots. The PCI-X Expander Kit can only be plug in Slot 1.
488413-B21
HP ML350G6 Tower to Rack Conversion
Kit NOTE: See "Redundant Options"
section below for Hot Plug Redundant Power supplies.
534534-B21
HP 2.5 Hard Disk Drive Blank Kit
503771-B21
HP Processors
Six-Core Processors
HP ML350 G6 Intel® Xeon®
X5675 (3.06GHz/6-core/12MB/95W) Processor Kit
638315-B21
HP ML350 G6 Intel® Xeon®
X5670 (2.93GHz/6-core/12MB/95W) Processor Kit
601236-B21
HP ML350 G6 Intel® Xeon®
X5660 (2.80GHz/6-core/12MB/95W) Processor Kit
601238-B21
HP ML350 G6 Intel® Xeon®
X5650 (2.66GHz/6-core/12MB/95W) Processor Kit
601240-B21
HP ML350 G6 Intel® Xeon®
E5649 (2.53GHz/6-core/12MB/80W) Processor Kit
638316-B21
HP ML350 G6 Intel® Xeon®
E5645 (2.40GHz/6-core/12MB/80W) Processor Kit
638317-B21
Quad-Core Processors
HP ML350 G6 Intel® Xeon®
X5672 (3.20GHz/4-core/12MB/95W) Processor Kit
638314-B21
HP ML350 G6 Intel® Xeon®
E5640 (2.66GHz/4-core/12MB/80W) Processor Kit
601242-B21
HP ML350 G6 Intel® Xeon®
E5630 (2.53GHz/4-core/12MB/80W) Processor Kit
601244-B21
HP ML350 G6 Intel® Xeon®
E5620 (2.40GHz/4-core/12MB/80W) Processor Kit
601246-B21
HP ML350 G6 Intel® Xeon®
E5607 (2.26GHz/4-core/4MB/80W) Processor Kit
638318-B21
HP ML350 G6 Intel® Xeon®
E5606 (2.13GHz/4-core/4MB/80W) Processor Kit
638319-B21
HP ML350 G6 Intel® Xeon®
E5603 (2.00GHz/2-core/4MB/80W) Processor Kit
638320-B21
HP ML350 G6 Intel® Xeon®
X5570 (2.93GHz/4-core/8MB/95W) Processor Kit
495904-B21
HP ML350 G6 Intel® Xeon®
X5560 (2.80GHz/4-core/8MB/95W) Processor Kit
495906-B21
HP ML350 G6 Intel® Xeon®
X5550 (2.66GHz/4-core/8MB/95W) Processor Kit
495908-B21
HP ML350 G6 Intel® Xeon®
E5540 (2.53GHz/4-core/8MB/80W) Processor Kit
495910-B21
HP ML350 G6 Intel® Xeon®
E5530 (2.40GHz/4-core/8MB/80W) Processor Kit
495912-B21
HP ML350 G6 Intel® Xeon®
E5520 (2.26GHz/4-core/8MB/80W) Processor Kit
495914-B21
HP ML350 G6 Intel® Xeon®
E5507 (2.26 GHz/4-core/4MB/80W) Processor Kit
601248-B21
HP ML350 G6 Intel® Xeon®
E5506 (2.13GHz/4-core/4MB/80W) Processor Kit
495916-B21
HP ML350 G6 Intel® Xeon®
E5504 (2.00GHz/4-core/4MB/80W) Processor Kit
495918-B21
HP ML350 G6 Intel® Xeon®
L5630 (2.13GHz/4-core/12MB/40W) Processor Kit
601252-B21
HP ML350 G6 Intel® Xeon®
L5520 (2.26GHz/4-core/8MB/60W) Processor Kit
505513-B21
HP ML350 G6 Intel® Xeon®
L5506 (2.13GHz/4-core/4MB/60W) Processor Kit
495902-B21
Dual-Core Processors
HP ML350 G6 Intel® Xeon®
E5503 (2.0GHz/2-core/4MB/80W) Processor Kit
601250-B21
HP ML350 G6 Intel® Xeon®
E5502 (1.86GHz/2-core/4MB/80W) Processor Kit
NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
HP Drive Cage
Options
HP ML350/370 G6 8 Small Form Factor
(SFF) 2nd Drive Cage Kit
507803-B21
NOTE: The Second
drive cage installation replaces 2 internal optical bays. It is required
to purchase a SAS RAID controller or SAS Expander Card to support over 8
HDD NOTE: To cover a empty SFF HDD slot, please order the following SFF
hard drive blank spare kit: 392613-001
HP ML350/ML/DL370G6 2 Large Form
Factor Drive Kit
487936-B21
NOTE: The Second
drive cage installation replaces 2 internal optical bays. NOTE: To cover a empty LFF HDD slot, please order the following LFF
hard drive blank spare kit: 389015-001
HP Optical Drives
HP Half-Height SATA DVD-ROM Optical
Drive
447326-B21
HP Half-Height SATA DVD-RW Optical
Drive
447328-B21
NOTE: Please note
that some of the earlier BTO models may not support adding SATA Optical
Drives. To ensure compatibility of the SATA Optical Drives, please add additional
optical drives only on models with Quad-Core 5400 Series.
HP Hard Drives
SAS Hot Plug SFF (2.5-inch) Enterprise
(ENT) Drives
HP 600GB 6G SAS 10K rpm SFF (2.5-inch)
Dual Port Enterprise 3yr Warranty Hard Drive
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and
the server backplane) should operate at the same data transfer rate or the
system bandwidth will be negotiated down to an acceptable level for all
components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
HP NC364T PCI-E Quad Port Gigabit
Server Adapter NOTE: Does not support Windows 2000. NOTE: There is a maximum of five NC364T PCI Express Quad Port Gigabit
Server Adapter NICs allowed in this server.
NOTE: Please see
the QuickSpecs for Technical Specifications and additional information:
www.hp.com/go/ProLiantNICs
HP Power Supplies
NOTE: Prior to
making a power supply selection it is highly recommended that the HP Power
Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
Power Supplies
HP 460W Common Slot Gold Hot Plug
Power Supply Kit
HP Insight Control for Linux including
1yr 24x7 Support Electronic License
TC213AAE
HP Smart Buy Insight Control
for Linux, 1-server license, including one year of 24x7 Technical Support
and Updates, Electronic
TC213ASE
HP Insight Control for Linux including
1yr 24x7 Support Single Server License
TC209A
HP Insight Control for Linux Media
Kit
TC208A
NOTE: Media pack
DVD contains the ISO image for HP Insight Control for Linux, HP Systems
Insight Manager, HP Insight Control power management, HP Insight Control
virtual machine management, and an integrated installer. Servers must be
acquired separately. NOTE: Licenses ship without media. The Media Kit for Insight Control
for Linux can be ordered separately, or can be downloaded at: http://www.hp.com/go/ic-linux
(click on Download button). NOTE: Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single set of activation keys.
NOTE:
Insight Software DVD media without licenses. Contains Insight Manager
and Essentials software products and components licensed by Insight Control
Environment suite. Uses an integrated installer to perform quick and accurate
software installation and updates.
HP Insight Control including 1yr
24x7 Technical Support and Updates Single Server License
452148-B22
HP Smart Buy Insight Control,
No Media 1-Server License including 1 year of 24x7 Technical Support and
Updates
452148-S22
HP Insight Control including 1yr
24x7 Support ProLiant ML/DL/BL-bundle Electronic License
TC278AAE
NOTE:
Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key. NOTE: Customer will receive a license entitlement certificate. The
license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service. NOTE: Licenses ship without media. The HP Insight Control Media Kit
can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
HP iLO Advanced including 1yr
24x7 Technical Support and Updates Single Server License
512485-B21
NOTE:
This license allows 1 server to be deployed and managed via HP iLO Advanced.
Customer will receive a printed license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online or
via fax in order to obtain the license activation key(s). Includes one year
of 24 x 7 HP Software Technical Support Service
HP Trusted Platform Module Option NOTE: The TPM (Trusted Platform Module)
is a microcontroller chip that can securely store artifacts used to authenticate
the server platform. These artifacts can include passwords, certificates
and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker)
is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module
(TPM) version 1.2. The TPM works with BitLocker to help protect user data
and to ensure that a server running Windows Server 2008 has not been tampered
with while the system was offline. For more information about TPM, including
a white paper, go to: www.hp.com/go/TPM. NOTE: ProLiant OS pre-installed units will come with the partition
required for TPM deployment. NOTE: The TPM key is unique to every TPM deployed server and must
be retained. Misplacing or loosing the key could result in data loss.
488069-B21
HP Storage Controllers
SAS Controllers
HP Smart Array P212 Controller
HP Smart Array P212/ZM 1-ports
Int/1-ports Ext PCIe x8 SAS Controller
NOTE: HP NHP Internal
SAS/SATA 4 Port Cable Kit (487734-B21) is required when adding Smart Array
P410 Controller on Non-Hot Plug SATA/SAS server models.
HP Smart Array P411 Controller
HP Smart Array P411/256 2-ports
Ext PCIe x8 SAS Controller
NOTE: Supported
on the Smart Array P410i Controller only.
HP Smart Array Advanced Pack including
1yr 24x7 Technical Support and Updates Single Server License
516471-B21
NOTE: This part
number can be used to purchase a single license or to order multiple licenses
with a single activation key. Customers will receive a license entitlement
certificate via e-mail. The license entitlement certificate must be redeemed
online or via fax in order to obtain the license activation key(s). Include
one year of 24x7 HP Software Technical Support Services.
NOTE: For the
complete range of StorageWorks tape drives, autoloaders, libraries and media
see: http://www.hp.com/go/tape.
For hardware and software compatibility of HP StorageWorks tape backup products
see: http://www.hp.com/go/connect.
HP StorageWorks DAT 160 SAS Internal
Tape Drive
Q1587A
HP StorageWorks DAT 160 USB Internal
Tape Drive
Q1580A
HP StorageWorks DAT 320 USB Internal
Tape Drive
AJ825A
HP StorageWorks DAT 320 SAS Internal
Tape Drive
AJ830A
NOTE: Connection
using HP SC44Ge SAS Host Bus Adapter ( 416096-B21) recommended.
HP StorageWorks Ultrium 448 SAS
Internal Drive
DW085A
HP StorageWorks LTO-4 Ultrium
1760 SAS Internal WW Tape Drive
EH919A
NOTE:
Connection using HP SC44Ge SAS Host Bus Adapter ( 416096-B21) recommended.
HP
StorageWorks LTO-4 Ultrium 1840 SAS External WW Drive
EH861A
NOTE:
Connection using HP SC44Ge SAS Host Bus Adapter ( 416096-B21) recommended.
HP StorageWorks LTO-5 Ultrium
3000 SAS Internal Tape Drive
EH957A
HP StorageWorks LTO-5 Ultrium
3000 SAS External Tape Drive
EH958A
NOTE: Connection
using HP SC44Ge SAS Host Bus Adapter ( 416096-B21) recommended.
HP
StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
AK377A
NOTE: Requires
HP 1U Tape Autoloader Rack Kit (AH166A) for rack installation. Connection
using HP SC44Ge SAS Host Bus Adapter ( 416096-B21) recommended.
HP StorageWorks MSL2024 1 LTO-5
Ultrium 3000 SAS Tape Library
BL537A
HP StorageWorks MSL4048 2 LTO-4
Ultrium 1760 SAS Tape Library
AK380A
HP StorageWorks MSL2024 1 LTO-4
Ultrium 1760 SAS Tape Library
HP StorageWorks RDX Removable
Disk Backup Systems USB
HP StorageWorks RDX320 Internal
Removable Disk Backup System
AJ767A
NOTE: For installation
into 1U USB Rack-Mount Kit ( A8007A). No peripheral bay available for drive
installation into the server. 320GB of disk capacity per data cartridge.
HP
StorageWorks RDX500 Internal Removable Disk Backup System
AJ934A
NOTE: For installation
into 1U USB Rack-Mount Kit ( A8007A). No peripheral bay available for drive
installation into the server. 500GB of disk capacity per data cartridge.
HP StorageWorks RDX160 Internal
Removable Disk Backup System
AJ765A
HP StorageWorks RDX 1TB Internal
Removable Disk Backup System
HP R/T3000 2880VA Low Voltage
2U Rackmount Uninterruptible Power System
AF452A
HP R/T3000 2880VA Low Voltage
2U Rackmount Uninterruptible Power System S-Buy
AF452S
HP R/T3000 3300VA High Voltage
2U Rackmount Uninterruptible Power System
AF453A
HP R/T3000 3300VA High Voltage
2U Rackmount Uninterruptible Power System S-Buy
AF453S
NOTE: For additional
information on HP Uninterruptable Power Systems please go to: www.hp.com/servers/rackups.
NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection
and Management page. Under Power Cords, click on the “HP Power Cord Matrix”
link. That link will list cable descriptions, requirements, and specifications
for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
NOTE: HP qualified
blank USB key for use with HP ProLiant servers that support the VMware virtualization
environment and other HP value-add software like SmartStart. HP recommends
this industry standard USB flash device for use with VMware ESXi. USB device
must be installed in the internal slot of the ProLiant server for use with
VMware ESXi. Refer to HP
VMware Getting Started Guide for installation instructions.
HP 4GB Secure Digital High Capacity
Flash Media Kit
580387-B21
NOTE: Blank SD
media device is supported for use with VMware and Citrix. SD media must
be installed in the internal slot of the ProLiant server. Learn more at
http://www.hp.com/go/proliantvirtualization.
Some DIMM installation guidelines are summarized below:
For servers with eighteen (18) memory slots:
There are three (3) channels per processor; six
(6) channels per server
There are three (3) DIMM slots for each memory
channel; eighteen (18) total slots
Memory channel 1 consists of the three (3) DIMMs
that are closest to the processor
Memory channel 3 consists of the three (3) DIMMs
that are furthest from the processor
DIMM slots that are white should be populated first
Do not mix Unbuffered memory (UDIMMs) with Registered
memory (RDIMMs)
Do not install DIMMs if the corresponding processor
is not installed
If only one processor is installed in a 2CPU system,
only half of the DIMM slots are available
To maximize performance, balance the total memory
capacity between all installed processors
It is not required, but it
is recommended to load the channels similarly if possible
If any Quad rank DIMMs are
installed, all channels are limited to only 2 DIMMs per channel
You can only install two quad-rank DIMMs per channel
You can only install two UDIMMs per channel; if available,
the third slot in the channel must remain empty
Populate DIMMs from heaviest load (quad-rank) to
lightest load (single-rank) within a channel
Heaviest load (DIMM with most ranks) within a channel
goes furthest from the chipset
For memory mirroring mode, channel 3 must be unpopulated.
Channels 1 and 2 are populated identically
For lock-step mode, channel 3 must be unpopulated.
DIMMs in channels 1 and 2 will be installed in pairs. The paired slots
will be 1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
Low Voltage DIMMs can only be used with Intel®
Xeon® processor 5600 series processors
If mixing DIMM voltage is a requirement, please note
that the DIMMs will run at 1.5V since all 1.35V are capable of supporting
1.5V operations
DIMM slot/capacity/populated
speed table
DIMM Type ->
Registered
DIMMS (RDIMMs)
Unbuffered
with ECC DIMMs (UDIMMs)
DIMM Rank ->
Single Rank (1R)
Dual Rank
(2R)
Quad Rank
(4R)
Single Rank (1R)
Dual Rank
(2R)
DIMM Capacity ->
4GB
2GB
4GB
8GB
8GB
16GB
4GB
16GB
1GB
2GB
4GB
DIMM Native Speed (MHz) ->
1333
1333
1333
1067
1333
1333
1067
1067
1333
1333
1333
Voltage
LV/Std
Std
Std
Std
LV/Std
LV/Std
Std
Std
Std
Std
Std
SLOTS THAT CAN BE POPULATED
18 slot servers
18
18
18
18
18
18
12
12
12
12
12
MAXIMUM CAPACITY (GB)
18 slot servers
72
36
72
144
144
288
48
192
12
24
48
POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel
1333
1333
1333
1067
1333
1333
1067
1067
1333
1333
1333
2 DIMM Per Channel
1333*
1333*
1333*
1067
1333*
1066/
1333**
800
800
1333
1333
1333*
3 DIMM Per Channel
800
800
800
800
800
800***
n/a
n/a
n/a
n/a
n/a
* Supported
with ROM update via ROM Based Setup Utility (RBSU). UDIMM support
is only on 12-slot servers.
** 2DPC: LV runs at 1066, Std voltage runs at 1333
** 3DPC: LV/Std voltage runs at 800
NOTES:
PC3-10600 DIMMs have a maximum speed of 1333MHz. PC3-8500 DIMMs have
a maximum speed of 1066MHz
Mixing DIMM speeds is allowed, but the system processor speed rules
always override the DIMM capabilities
If you do mix DIMM speeds, the memory bus will default to the minimum
clock rate of all DIMMs in the system - even if the slower DIMM is on
the other processor
If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in
channel 2, the maximum speed will be 1066MHz If you install 1x 1066MHz
DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC)
in each of the other channels, the maximum speed will be 1066MHz
If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with
1 DIMM Per Channel (DPC) in each of the other channels, you run at 1066MHz
If you install 3DPC in one channel (if applicable) and 1DPC in all
other channels, you run at 800MHz
Maximum memory speed will also depend on the processor installed
References to the above MHz speeds are for the various speeds of DDR3
DIMMs; 1333 refers to DDR3-1333, etc.
DIMM
slot and configuration diagrams
Basic memory slot & population diagram
Population order;
start with "A" first, "B" second, "C" third, etc.
18
DIMM SLOTS (9 per CPU node)
CPU1
CPU2
slot
#
population order
slot
#
population order
Chnl 1
1
G
1
G
Chnl
1
2
D
2
D
3
A
3
A
Chnl 2
4
H
4
H
Chnl
2
5
E
5
E
6
B
6
B
Chnl 3
7
I
7
I
Chnl
3
8
F
8
F
9
C
9
C
Standard memory configuration
(1 CPU model)
6GB, consisting of three (3) 2GB dual-rank PC3-10600
RDIMMs (Base Model)
CPU1
CPU2
slot
#
population order
slot
#
population order
Chnl 1
1
G;
empty
1
G;
empty
Chnl 1
2
D;
empty
2
D;
empty
3
A;
2GB DIMM
3
A;
empty
Chnl 2
4
H;
empty
4
H;
empty
Chnl 2
5
E;
empty
5
E;
empty
6
B;
2GB DIMM
6
B;
empty
Chnl 3
7
I;
empty
7
I;
empty
Chnl 3
8
F;
empty
8
F;
empty
9
C;
2GB DIMM
9
C;
empty
Standard memory plus optional
memory (1 CPU model)
54GB, consisting of three (3) 2GB RDIMMs
plus six (6) 8GB RDIMMs (Base Model)
3x 2GB dual-rank PC3-10600 RDIMMs
6x 8GB dual-rank PC3-8500 RDIMMs
CPU1
CPU2
slot
#
population order
slot
#
population order
Chnl 1
1
G;
8GB DIMM
1
G;
empty
Chnl 1
2
D;
8GB DIMM
2
D;
empty
3
A;
2GB DIMM
3
A;
empty
Chnl 2
4
H;
8GB DIMM
4
H;
empty
Chnl 2
5
E;
8GB DIMM
5
E;
empty
6
B;
2GB DIMM
6
B;
empty
Chnl 3
7
I;
8GB DIMM
7
I;
empty
Chnl 3
8
F;
8GB DIMM
8
F;
empty
9
C;
2GB DIMM
9
C;
empty
Standard memory replaced
with optional memory (1 CPU model) RDIMM maximum configuration (1 CPU model)
96GB,
consisting of six (6) 16GB quad-rank PC3-8500 RDIMMs
CPU1
CPU2
slot
#
population order
slot
#
population order
Chnl 1
1
G;
empty
1
G;
empty
Chnl 1
2
D;
16GB DIMM
2
D;
empty
3
A;
16GB DIMM
3
A;
empty
Chnl 2
4
H;
empty
4
H;
empty
Chnl 2
5
E;
16GB DIMM
5
E;
empty
6
B;
16GB DIMM
6
B;
empty
Chnl 3
7
I;
empty
7
I;
empty
Chnl 3
8
F;
16GB DIMM
8
F;
empty
9
C;
16GB DIMM
9
C;
empty
UDIMM maximum configuration (1 CPU model)
24GB, consisting of six (6) 4GB dual-rank PC3-10600 UDIMMs
CPU1
CPU2
slot
#
population order
slot
#
population order
Chnl 1
1
G;
empty
1
G;
empty
Chnl 1
2
D; 4GB DIMM
2
D;
empty
3
A; 4GB DIMM
3
A;
empty
Chnl 2
4
H;
empty
4
H;
empty
Chnl 2
5
E; 4GB DIMM
5
E;
empty
6
B; 4GB DIMM
6
B;
empty
Chnl 3
7
I;
empty
7
I;
empty
Chnl 3
8
F; 4GB DIMM
8
F;
empty
9
C; 4GB DIMM
9
C;
empty
Standard memory replaced
with optional memory (2 CPU model) RDIMM maximum configuration (2 CPU model)
288GB, consisting of eighteen (18) 16GB dual-rank PC3L-10600 RDIMMs
CPU1
CPU2
slot
#
population order
slot
#
population order
Chnl 1
1
G;
empty
1
G;
empty
Chnl 1
2
D;
16GB DIMM
2
D;
16GB DIMM
3
A;
16GB DIMM
3
A;
16GB DIMM
Chnl 2
4
H;
empty
4
H;
empty
Chnl 2
5
E;
16GB DIMM
5
E;
16GB DIMM
6
B;
16GB DIMM
6
B;
16GB DIMM
Chnl 3
7
I;
empty
7
I;
empty
Chnl 3
8
F;
16GB DIMM
8
F;
16GB DIMM
9
C;
16GB DIMM
9
C;
16GB DIMM
UDIMM maximum configuration
(2 CPU model)
48GB, consisting of twelve (12) 4GB dual-rank PC3-10600 UDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 4GB DIMM
2
D; 4GB DIMM
3
A; 4GB DIMM
3
A; 4GB DIMM
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 4GB DIMM
5
E; 4GB DIMM
6
B; 4GB DIMM
6
B; 4GB DIMM
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 4GB DIMM
8
F; 4GB DIMM
9
C; 4GB DIMM
9
C; 4GB DIMM
NOTE: Capacity
references are rounded to the common Gigabyte values.
8
x 2.5" (SFF) Hot-Plug SAS/SATA hard drive bays or 2 x 3.5"
(LFF) Hot-Plug SAS/SATA hard drive bays
Drive Support
Quantity Supported
Position Supported
Controller
Removable Media
HP Half-Height SATA DVD-ROM Optical
Drive
Up to 1
A-E
Integrated
SATA Controller
HP
Half-Height SATA DVD RW Optical Drive
Up
to 1
A-E
Integrated
SATA Controller
Hard Drives NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, firmware, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch)
Enterprise (ENT) Drives
Quantity Supported
Position Supported
Controller
600GB 6G SAS 10K DP
450GB 6G SAS 10K DP
300GB 6G SAS 10K DP
146GB 6G SAS 15K DP
146GB 6G SAS 10K DP 72GB 6G SAS 15K DP
Up to 16 SFF
1-8 and D+E
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SAS Hot Plug LFF (3.5-inch)
Enterprise (ENT) Drives
Quantity Supported
Position Supported
Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
300GB 6G SAS 15K DP
Up to 8 LFF
1-6 and D+E
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SAS Hot Plug LFF (3.5-inch)
Midline (MDL) Drives
Quantity Supported
Position Supported
Controller
2TB 6G SAS 2.7K DP
1TB 6G SAS 2.7K DP
Up to 6 LFF
1-6 and D+E
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SAS Hot Plug SFF (2.5-inch)
Midline (MDL) Drives
Quantity Supported
Position Supported
Controller
1TB 6G SAS 7.2K DP
500GB 6G SAS 7.2K DP
Up to 16 SFF
1-8 and D+E
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug SFF
(2.5-inch) Midline (MDL) Drives
Quantity Supported
Position Supported
Controller
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 16
1-8 and D+E
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
Quantity Supported
Position Supported
Controller
SATA Hot Plug LFF (3.5-inch)
Midline (MDL) Drives
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
Up to 6 LFF
1-6 and D+E
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug LFF (3.5-inch)
Entry (ETY) Drives
Quantity Supported
Position Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 8
1-6 and D+E
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug Midline (MDL)
Solid State Drives
Quantity Supported
Position Supported
Controller
120GB 3.0G SATA
60GB 3.0G SATA
Up to 16
1-8 and D+E
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug 3.5" Midline
(MDL) Solid State Drives
Quantity Supported
Position Supported
Controller
120GB 3.0G SATA
60GB 3.0G SATA
Up to 8
1-6 and D+E
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
External Storage
Quantity
Supported
Position
Supported
Host Controller or Adapter
60 Modular Smart Array
Up to 4
External
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
Up to 8
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP Smart Array P800 Controller
70 Modular Smart Array
Up to 2
External
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
Up to 4
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP Smart Array P800 Controller
HP 2000sa Modular Smart Array
Controller
Up to 4
External
HP SC08Ge Host Bus Adapter
D2700 Disk Enclosure
Up to 2
Up to 4
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
Tape and Disk-Based Backup
NOTE:
For the complete range of StorageWorks tape drives, autoloaders, libraries
and media, including the internal fitting models, see: http://www.hp.com/go/tape.
For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d.
For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx.
For hardware and software compatibility of HP StorageWorks disk and tape
backup products see: http://www.hp.com/go/connect.
Position
Supported
Controller
Controller/HBA Option
Kit Part Number
HP StorageWorks SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
Internal or External
HP SC11Xe Host Bus Adapter
HP U320e SCSI Dual Channel Controller NOTE: Please check the full compatibility
information at: http://www.hp.com/go/connect
HP StorageWorks USB Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
Internal or External
USB 2.0 Port
N/A
HP StorageWorks USB Rack Mount
Kits
1U USB Rack-Mount Kit
External
USB 2.0 Port
HP StorageWorks SAS Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280
Internal or External
HP Modular Smart Array SC44Ge
1-ports Int/1-ports Ext PCIe x8 SAS Host Bus Adapter NOTE: Please check the full compatibility
information at: http://www.hp.com/go/connect
HP StorageWorks SAS Rack Mount
Kits
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP Modular Smart Array SC44Ge
1-ports Int/1-ports Ext PCIe x8 SAS Host Bus Adapter NOTE: Please check the full compatibility
information at: http://www.hp.com/go/connect
HP StorageWorks SAS Tape Autoloaders and Libraries
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP Modular Smart Array SC44Ge
1-ports Int/1-ports Ext PCIe x8 SAS Host Bus Adapter NOTE: Please check the full compatibility
information at: http://www.hp.com/go/connect
HP StorageWorks Fibre Channel
Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity
matrix at: http://www.hp.com/go/ebs
for connectivity information and the supported Fibre Channel HBAs shown
in this QuickSpec.
HP StorageWorks USB RDX Removable
Disk Backup System
RDX160
RDX320
RDX500
RDX750
RDX1TB
Internal or External
USB 2.0 port
N/A
HP StorageWorks D2D Backup
Systems, iSCSI
D2D2500i
D2D4000i
External
Embedded Network Controller. If
the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host
Bus Adapter is recommended.
HP StorageWorks D2D Backup
Systems, Fibre Channel
D2D4000fc
NOTE: To review typical system power ratings use the HP Power
Advisor which is available online located at url: www.hp.com/go/proliant-energy-efficient
or www.hp.com/go/hppoweradvisor.
NOTE: Option Kits contain optional power supply, an IEC power cable
and PDU IEC cables.
To review typical system power ratings use the HP Power Advisor which
is available via the online tool located at URL: www.hp.com/go/proliant-energy-efficient
- Click on the system of interest. Example: ML350 G6
- Follow the instructions of the next screens.
Power Supply Output (per power supply)
Rated
Steady-State Power
460(750) W (at 100 VAC),
460(750) W (at 200 VAC)
Maximum
Peak Power
460(750) W (at 100 VAC),
460(750) W (at 200 VAC) NOTE: See Power Supply Specifications
tables for complete details on 460W PSU and optional 750W and 1200W Power
Supply Options.
System
Inlet Temperature
Operating
10°
to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C
per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of
3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the type and number of options
installed. System performance may be reduced if operating with a fan fault
or above 30°C (86°F).
Non-operating
-30°
to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10
to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature,
non-condensing.
Non-operating
5
to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature,
non-condensing.
Altitude
Operating
3050
m (10,000 ft). This value may be limited by the type and number of options installed.
Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating
9144
m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared average
bystander position A-Weighted sound pressure levels (LpAm) when the product is
operating in a 23°C ambient environment. Noise emissions were measured in
accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA
109).
Idle
L WAd
4.7
B (1P Non-Redundant) 4.6 B (2P Redundant)
L
pAm
32.48dB (1P Non-Redundant)
31.18dB (2P Redundant)
Operating
L WAd
4.8
B (1P Non-Redundant) 4.7 B (2P Redundant)
L
pAm
32.39dB (1P Non-Redundant)
31.62dB (2P Redundant)
NOTE:
The Listed sound levels apply to standard shipping configurations. Additional
options may result in increased sound levels.
Emissions
Classification (EMC)
FCC Rating
Class
B
Normative Standards
CISPR
22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24;
EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE:
Product conformance to cited product specifications is based on sample (type)
testing, evaluation, or assessment. This product or family of products is eligible
to bear the appropriate compliance logos and statements.
Smart Array P410i Controller
Dimensions
Embedded
Disk Drive and Enclosure Interface
- Transfer rate
6Gb/s SAS (Serial Attached SCSI)
3Gb/s SATA (Serial ATA)
SAS Connectors
2 internal 4X connectors
Cache Memory Speed
DDR2-800MHz with 40 or 72-bit
wide bus
Server Interface
x4 PCIe 2.0 provides 2GB/s maximum
bandwidth
SAS Speed
8 6Gb/s SAS links provide 4.8GB/s
maximum bandwidth
Cache Memory
Zero Memory RAID has no cache
memory
40-bit 256MB ECC protected cache (battery upgrade available)
72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC
Logical Drives Supported
Zero Memory, Up to 2 logical volumes
(8 physical drives)
Up to 64 logical drives with cache
Host Memory Addressing
64-bit, supporting greater than
4GB server memory space
RAID Support
RAID 6, 6+0 (Advanced Data Guarding) NOTE: RAID 6, 6+0 can be enabled
with one of the following combinations:
RAID 5, 5+0 (Distributed Data
Guarding) NOTE: A minimum or 256 MB cache is
required to enable RAID 5, 5+0 support
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping), RAID 1 (Mirroring)
Embedded NC326i PCI
Express Dual Port Gigabit Server Adapter
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method
PCI Express, four
lanes (x4)
Controller
BCM5715
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and Full-Duplex)
2000Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to
328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100
m)
Environment-friendly Products and
Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment
information for each product type for use by treatment facilities. This
information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
US Site
DL Quickspecs
Search:
500656-B21
© 2012 Canada PartsDirect
