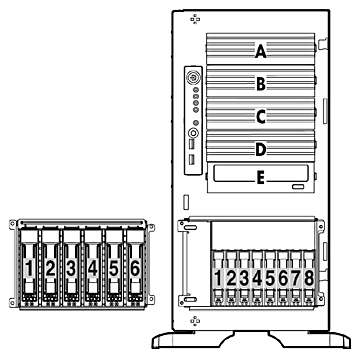

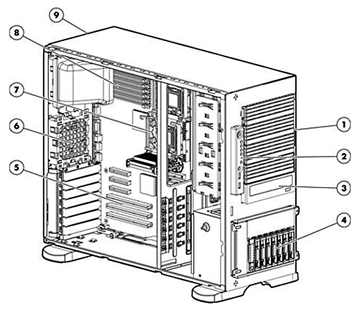

Eight SFF (2.5")
(shown) or six LFF (3.5") SAS or SATA Hot Plug drive bays
6.
PCI
Express x4
7.
PCI-X
64/100
5.
Six expansion slots (three
PCI Express, three PCI-X)
8.
PCI-X
64/133
6.
Two
system fans standard with support for optional redundant system fans
9.
Access
to add 2nd redundant power supply
10.
Mouse
port
7.
Support
for two Intel® Dual-Core or Quad-Core Xeon® 5000 sequence processors
11.
Keyboard
port
12.
Power
8.
Eight
PC2-5300 FB-DIMM (DDR2 667) memory sockets
9.
Single
Hot-Plug power supply standard, optional second redundant supply for availability
At
A Glance
Building on a tradition of excellence, the
HP ProLiant family introduces the fifth generation HP ProLiant ML350 server.
The HP ProLiant ML350 G5 server provides Multi-Core performance, enterprise
level management, and highly available redundant options in a modular server
form factor. New for this generation is a smaller and quieter chassis, embedded
Smart Array E200i Controller and 5 media bays.
Processors:
Quad-Core and Dual-Core Intel® Xeon® processors for blazing
performance; systems support up to 2 processors
1333/1066/667 MHz front side bus (FSB)
Intel® 5000Z chipset
Memory:
Eight PC2-5300 Fully Buffered DIMMs (DDR2 667) sockets with online-spare
support for cost-effective memory configuration and expansion and
2:1 interleaving
Up to 16 GB of memory supported on Dual-Core 5000 and 5100 series
Up to 32 GB of memory supported on Dual-Core 5200 series, Quad-Core
5300 and 5400 series
Storage Controllers:
Entry Models: HP Smart Array E200i/64MB Controller (integrated
SAS/SATA Hot-Plug Controller with RAID 0/1/1+0 support)
128MB BBWC optional upgrade kit for RAID 5 support also available
Base Models: HP Smart Array E200i/128 BBWC Controller (RAID 0/1/1+0/5)
Internal Drive Support:
Up to eight SFF (2.5") or six LFF (3.5") Hot Plug Serial
Attached SCSI (SAS) or Serial-ATA (SATA) hard drives
Maximum of 6TB of internal storage capacity (using Hot-Plug SATA
drives)
Network Controller:
Embedded NC373i Multifunction Gigabit Network Adapter with TCP/IP
Offload Engine, including support for Accelerated iSCSI through
an optional Licensing Kit
Expansion Slots:
Six total expansion slots
One 64-bit/133-MHz PCI-X; two 64-bit/100-MHz PCI-X; three x8 PCI
Express (x4 speed)
Optional PCI-X Expander provides additional two 64-bit/100-MHz
PCI-X slots by converting a single PCI Express slot
A single x8 PCI Express slot with x8 bus speed can be achieved
by attaching the x4/x8 PCIE Bus Expander option kit. (Please see
the chart and notes in the Expansion Slots under Standard Features
below for more details)
USB Ports:
Six USB 2.0 ports: (2) front; (2) rear; (2) internal
Redundancy:
Optional Hot plug redundant power supplies
Support for optional redundant system fans
Infrastructure Management:
Convenient slide-out Systems Insight Display for quick and easy
front view server diagnostics, along with status LEDs, Automatic
Server Recovery (ASR), ROM Based Setup Utility (RBSU)
HP ProLiant Onboard Administrator (powered by the HP Integrated
Lights-Out 2 management processor) for simplified server setup,
health monitoring and recovery, power and thermal control, and lights-out
remote administration.
HP Insight Control a product option, delivers essential infrastructure
management that can help save time and money by making it easy to
deploy, migrate, monitor, control and optimize your IT infrastructure
through a single, simple management console. Insight Control supports
both Windows and Linux-based central management servers.
HP Insight Dynamics for ProLiant, a product option, is an integrated
command center that enables IT Staff personnel to continuously analyze
and optimize a converged infrastructure, while automating and reducing
the cost of common data center tasks by as much as 40 percent. This
ultimately enables them to dynamically keep pace with the organization's
changing business requirements.
Operating Systems and Virtualization Software Support for ProLiant
Servers:
Supports Windows, RHEL, SLES, OEL, NetWare
Deployment/Serviceability:
Optional parallel and second serial port available without using
a PCI slot
Tool-free chassis entry and component access
Tool-free motherboard removal
Universal rail solution supporting both square and round hole
rack environments
Customer Self Repair (CSR): HP products are designed with many
CSR parts to minimize repair time and allow for greater flexibility
in performing defective parts replacement
Warranty:
This product is covered by a global limited warranty and supported
by HP Services and a worldwide network of HP Authorized Channel
Partners resellers. Hardware diagnostic support and repair is available
for three years from date of purchase. Support for software and
initial setup is available for 90 days from date of purchase. Enhancements
to warranty services are available through HP Care Pack services
or customized service agreements. Hard drives have either a one
year or three year warranty; refer to the specific hard drive QuickSpecs
for details.
NOTE: Server Warranty includes
3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business
day response. Warranty repairs may be accomplished through the use
of Customer Self Repair (CSR) parts. These parts fall into two categories:
1) Mandatory CSR parts are designed for easy replacement. A travel
and labor charge will result when customers decline to replace a
Mandatory CSR part; 2) Optional CSR parts are also designed for
easy replacement but may involve added complexity. Customers may
choose to have HP replace Optional CSR parts at no charge. Additional
information regarding worldwide limited warranty and technical support
is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
NOTE:
For a brief, printer friendly data sheet that describes this product and
informs you of the essential capabilities and specifications, please visit:
http://h71028.www7.hp.com/ERC/downloads/4AA0-6362ENW.pdf.
NOTE: For the Standard Features shipped in the "Factory Integrated
Models", please see the "Configuration Information - Factory Integrated
Models" section.
Dual-Core Intel® Xeon®
Processor 5150 (2.66 GHz, 65 Watts, 1333 FSB) NOTE: Available via Configure-To-Order only. See Factory Integrated
Models section for more information.
Cache Memory One of the following depending on Model
12MB (2 x 6MB) Level 2 cache
(5400 series)
8MB (2 x 4MB) Level 2 cache
(5300 series)
6MB (1 x 6MB) Level 2 cache
(5200 series)
4MB (1 x 4MB) Level 2 cache
(5100 series)
4MB (2 x 2MB) Level 2 cache
(5000 series)
Upgradeability
Upgradeable to 2 processors
(4 or 8 cores)
NOTE: Future
upgradeable to Xeon® Series 5400/5300 Quad-Core processors (Please contact
your regional sales support to determine quad core upgradeability. Some
of the earlier shipping models may not support this upgrade). 5100 Dual-Core
models are not upgradeable to the 5200 Dual-Core processors.
Maximum
(Dual-Core 5200, Quad-Core 5300 & 5400 series)
32
GB (8 x 4 GB)
Network Controller
Embedded NC373i Multifunction
Gigabit Network Adapter with TCP/IP Offload Engine, including support for
Accelerated iSCSI through an optional Licensing Kit
Expansion Slots
Expansion
Slot #
Technology
Bus Width
Connector Width*
Bus Number**
Form Factor
Notes
6
PCI Express
x4
x8
15
Standard Height/Length
5
PCI Express
x4
x8
6
Standard Height/Length
4
PCI Express
x4
x8
9
Standard Height/Length
3
64-bit / 100MHz
PCI-X
NA
NA
12
Standard Height/Length
PCI-X 100MHz
2
64-bit / 100MHz
PCI-X
NA
NA
12
Standard Height/Length
PCI-X 100MHz
1
64-bit / 133MHz
PCI-X
NA
NA
20
Standard Height/Length
PCI-X 133MHz
NOTES:
* Default bus assignment. Inserting cards with PCI bridges may alter the
actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from
lowest to highest Device ID by bus (starting with the lowest bus).
Storage
Controller
Entry Models
HP
Smart Array E200i/64MB Controller
Base
Models
HP Smart Array E200i/128
BBWC Controller
NOTE:
Supports RAID 0/1/1+0 with 64MB of Cache, upgradeable to 128MB with BBWC for
RAID 5 support.
Storage
Diskette Drives
None included standard
Optical Drive One of the following depending on model
Quad-Core 5400 series: 16x SATA
DVD-ROM drive
Quad-Core 5300 series: 16x PATA
DVD-ROM drive
Dual-Core: 48x IDE CD-ROM drive
NOTE: Quad-Core
5400 series BTO Models are configured with SATA optical drive.
Hard Drives
None included standard
Maximum
Internal Storage One of the following depending
on model
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecycle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: http://www.hp.com/go/foundation.
HP ProLiant Onboard Administrator (powered by the HP Integrated Lights-Out
2 management processor) simplifies server setup, health monitoring, power
and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP ProLiant Onboard Administrator functions without
additional software, and can be accessed from any location via a web browser.
It works hand-in-hand with HP Systems Insight Manager, Insight Control
suites, and the Insight Dynamics for ProLiant helping customers unlock
the value of the ProLiant platform and deliver the highest possible quality
of IT service to the business. See: www.hp.com/go/ProLiantOA
HP Insight Control
HP Insight Control, a product
option, delivers essential infrastructure management that can help save
time and money by making it easy to deploy, migrate, monitor, remote control,
and optimize your IT infrastructure through a single, simple management
console.
Two versions of Insight Control are available, to serve environments requiring
either a Linux-based or a Windows-based central management server: HP Insight
Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol
HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, please
visit: http://www.hp.com/services/insight.
HP Insight Dynamics for ProLiant
HP Insight Dynamics for ProLiant,
a product option, is an integrated command center that enables IT Staff
personnel to continuously analyze and optimize a converged infrastructure,
while automating and reducing the cost of common data center tasks by as
much as 40 percent. As a powerfully integrated by design toolkit to accelerate
complex technology projects and simplify daily operations that ultimately
enable IT Staff personnel to dynamically keep pace with the organizations
changing business requirements. It enables them to plan capacity and power
continuously, balance across physical and virtual resources, and ensure
cost-effective high availability. It also enables IT organizations to provision
infrastructure consistently and automatically from pools of shared resources
using a self-service portal. Resources provisioned can range from a single
virtual machine to complex multi-tier environments and their associated
physical and virtual resource requirements. In addition to the previous
functional benefits, it also provides a cost-effective disaster recovery
for physical and virtual environments that works with HP StorageWorks Continuous
Access software for both the Enterprise Virtual Array and the XP storage
array allowing application environments to be reactivated in minutes with
the touch of a button to a remote location.
ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
PCI-X 1.0a Compliant
Novell Certified
Microsoft® Logo certifications
USB 2.0
Availability
Optional Hot-Plug, Redundant
Power supply
Online-Spare Memory
Optional Dual Redundant System Fans
System Management
HP Systems Insight Manager
SmartStart
Redundant ROM
System Firmware Update
ROMPaq
ProLiant RBSU (ROM-Based Setup Utility)
Automatic Server Recovery-2 (ASR-2)
Dynamic Sector Repairing (with Smart Array Controller)
Drive Parameter Tracking (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory, and SAS hard drives)
Security
Power-on password
Setup password
Diskette boot control
Parallel and serial interface control
Disk configuration lock
Power switch security
Server
Power Cords
ProLiant ML servers
in a rack-mount configuration no longer ship standard with NEMA power cords that
allow connection to 110V wall outlets in a home or office. These servers are primarily
connected to PDU's in data center racks so they now ship standard with only a
PDU power cord (416151-B21). If a user wishes to power a ProLiant ML rack-mount
server using a 110V receptacle (NEMA-15), the NEMA power cord must be ordered
separately. The 12' cord (AF556A) or 6' cord (187335-001) can be purchased online
at HP.COM. In a tower configuration, the servers ship standard with a 6' NEMA
power cord. If customers require a local power cord, they can check the power
cord matrix for the appropriate sku. Please see the following power cord matrix:
http://www.hp.com/go/powercordmatrix.
UPS
and PDU Power Cord Matrix
Please see the UPS and PDU cable
matrix's on the HP Power Protection and Management page. Under Power Cords,
click on the "HP Power Cord Matrix" link. That link will list
cable descriptions, requirements, and specifications for UPS and PDU units.
Please see the following link: www.hp.com/products/powercords.
Power Supply
800 Watt-CE Mark Compliant
Hot Plug Power Supply (1000 Watt high line)
Optional second Power Supply provides redundant capability NOTE: Please see the "Power Specifications" section later
in this document for low line and high line requirements.
System Fans
2 fans ship standard, dual redundant fans
are optional, 4 fans total supported (does not include power supply or
processor heat sink fans)
Required
Cabling
For required cabling
information, refer to the HP ProLiant ML350 G5 cabling matrix at: http://www.hp.com/servers/proliantML350. NOTE: Please see the "Storage"
section of this QuickSpecs for important information on controllers and cables
required to support SAS or SATA hard drives as well as storage management software
available for SATA hard drives.
Operating
Systems and Virtualization Software Support for ProLiant Servers
NOTE: For more
information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available
for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport
and our driver download page www.hp.com/support/ML350G5.
Installation of Server into
Telco Racks
Support for all 2-post Telco
racks requires the use of the HP ProLiant ML350 G5 rack kit and an additional
option kit from Rack Solutions. http://www.hp.com/go/rackandpower
Factory
Express Portfolio for Servers and Storage
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP,
rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eConfigure-Enterprise Configurator now provides factory default
racking for our HP hardware portfolio. This approach is aligned with our
strategic direction to meet the needs and expectations of our valued customers.
If you require "custom" rack configuration, please contact HP's
Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
Service and Support
HP Care Pack services provide total care and support
expertise with committed response designed to meet your IT and business
needs.
HP Care Pack services include coverage for the HP branded
hardware options qualified for the server and purchased at the same time
or afterward that are internal to the enclosure. This also includes the
22" and smaller external monitors and tower UPS options up to 3kVA.
These items will be covered at the same service level and for the same
coverage period as the server. Coverage of UPS Battery is not included,
and standard warranty terms & conditions apply. For servers or storage
systems installed within a rack, service also covers all HP qualified
rack options installed within the same rack.
To fully capitalizing on your HP ProLiant servers'
capabilities requires a service partner who thoroughly understands your
server technology and systems environment. HP Services, an industry leader
in provision of multi vender support solutions, provides a range of support
services designed to meet the varying needs of your business. Whether
an SMB, or large global corporation, HP has a ProLiant server support
offer to help you speedily deploy and maximize system uptime.
Recommended Service - simplify ProLiant solution implementation,
maintenance, and management.
Support - 3-Year 4-Hour response 24x7 Same Business Day Coverage
only
Deployment Service - Installation and Start up only
Enhanced Service - optimize service level to increase IT performance
and availability.
Support - 3-Year Support Plus 24 only
Refer to the information on "Installation & Start-Up" for
service on ProLiant server and Microsoft or Linux O/S per the Customer
Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm,
M-F, excluding HP holidays.
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section. NOTE: Please note that SFF tower or rack models can only be
configured with SFF 2.5" SAS or SATA hard drives and LFF tower or rack models
can be only configured with LFF 3.5" SAS or SATA hard drives.
HP
ML350 G5 Entry Models
Tower Quad-Core Models HP
ML350T05 E5420 LFF 458239-001 HP ML350T05
E5410 LFF
458244-001
Rack Quad-Core Models HP ML350R05
E5420 LFF 458240-001
Processor(s) One of the following depending on Model
Configuration Information - Factory Integrated Models
NOTE:
This section lists some of the steps required to configure a Factory Integrated
Model. To ensure only valid configurations are ordered, HP recommends the
use of an HP approved configurator. Contact your local sales representative
for information on CTO product offerings and requirements. NOTE: HP does not allow factory integration of options into standard
models listed above. Configure-to-order servers must start with a CTO Chassis. NOTE: FIO indicates that this option only available as a Factory
Installable Option.
Step
1: Base Configuration (choose one of the following configurable models)
Models
ML350 G5 Tower Models
LFF - 3.5" Drives
HP ProLiant ML350G5
LFF SAS/SATA Tower CTO Chassis
412645-B21
Includes:
Embedded NC373i Multifunction
Gigabit Server Adapter
Integrated Smart
Array E200i Controller
Six Hot-Plug (LFF)
SAS/SATA Drive Bays
Six expansion slots:
one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express
(with x8 connectors)
Six USB ports
800W Hot-Plug Power
Supply
Tower Form Factor
Keyboard
2-button Mouse
SFF - 2.5" Drives
HP ProLiant ML350G5
SFF SAS/SATA Tower CTO Chassis
395570-B21
Includes:
Embedded NC373i Multifunction
Gigabit Server Adapter
Integrated Smart
Array E200i Controller
Eight Hot-Plug (SFF)
SAS/SATA Drive Bays
Six expansion slots:
one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express
(with x8 connectors)
Six USB ports
800W Hot-Plug Power
Supply
Tower Form Factor
Keyboard
2-button Mouse
ML350 G5 Rack Models
LFF - 3.5" Drives
HP ProLiant ML350G5
LFF SAS/SATA Rack CTO Chassis
412644-B21
Includes:
Embedded NC373i Multifunction
Gigabit Server Adapter
Integrated Smart
Array E200i Controller
Six Hot-Plug (LFF)
SAS/SATA Drive Bays
Six expansion slots:
one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express
(with x8 connectors)
Six USB ports
800W Hot-Plug Power
Supply
Rack (5U) Form Factor
SFF - 2.5" Drives
HP ProLiant ML350G5
SFF SAS/SATA Rack CTO Chassis
395569-B21
Includes:
Embedded NC373i Multifunction
Gigabit Server Adapter
Integrated Smart
Array E200i Controller
Eight Hot-Plug (SFF)
SAS/SATA Drive Bays
Six expansion slots:
one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express
(with x8 connectors)
Six USB ports
800W Hot-Plug Power
Supply
Rack (5U) Form Factor
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted)
NOTE:
Some options may not be factory configurable. Please contact your local
sales representative for additional information.
HP
ProLiant ML350 G5 Unique Options
HP Redundant Fan
ML350 G5 Kit
409579-B21
HP PCI-X Expander
Kit (2 x 64-bit 100MHz PCI-X slots) NOTE: The HP PCI-X Expander kit converts a single PCI Express slot
(slot 6) into two full height, full length 64-bit 100MHz PCI-X slots. NOTE: The HP PCI-X Expander kit can support a maximum of one (1)
HP Smart array, HBA, or SCSI PCI-X adapter. Prioritize internal slots for
use with PCI-X storage controllers. Please refer to the ML350G5 user guide
for additional details.
NOTE: Please note
that some of the earlier BTO models may not support adding SATA Optical
Drives. To ensure compatibility of the SATA Optical Drives, please add additional
optical drives only on models with Quad-Core 5400 Series processors.
Hard Drives
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and
the server backplane) should operate at the same data transfer rate or the
system bandwidth will be negotiated down to an acceptable level for all
components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF Enterprise (ENT)
Drives NOTE: Please note that SFF 2.5"
(small form factor) drives can only be installed on tower or rack models
with SFF chassis (models).
SAS Hot Plug 3.5" Enterprise
(ENT) Drives NOTE: Please note that LFF 3.5"
(large form factor) drives can only be installed on tower or rack models
with LFF chassis (models).
NOTE: The previous
generation of 1.5G SATA drives are still supported. These drives can be
purchased as an option, however they are no longer configurable. NOTE: Please see the QuickSpecs for Technical Specifications and
additional information: http://h18004.www1.hp.com/products/quickspecs/11940_na/11940_na.html
HP NC364T PCI Express Quad Port
Gigabit Server Adapter NOTE: Does not support Windows 2000. NOTE: There is a maximum of five NC364T PCI Express Quad Port Gigabit
Server Adapter NICs allowed in this server.
HP NC522SFP Dual Port 10GbE Server
Adapter NOTE: A minimum of two gigabyte (2
GB) of server memory is required per each NC522SFP adapter. NOTE: Direct Attach Cable (DAC) for copper environments or fiber
transceivers and cables for fiber-optic environments must be purchased separately.
HP Insight Control
server deployment, Electronic License including 1 year of 24x7 Technical
Support and Updates
T9082AAE
NOTE:
Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key. NOTE: Electronic software is available in all countries except China
and Japan. Customers in China and Japan should order the physical equivalent. NOTE: Customer will receive a license entitlement certificate. The
license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service. NOTE: Licenses ship without media. The HP Insight Control Media Kit
can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the Insight Control
QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html
HP Insight Control
for Linux
HP Insight Control
for Linux, 1-server license, including one year of 24x7 Technical Support
and Updates, Electronic
T9084BAE
HP Insight Control
for Linux, No Media, 1-Server license, including one year of 24x7 Technical
Support and Updates
464423-B22
HP Insight Control
for Linux, Media pack (DVD) - No licenses included NOTE: Media pack DVD contains the
ISO image for HP Insight Control for Linux, HP Systems Insight Manager,
HP Insight Control power management, HP Insight Control virtual machine
management, and an integrated installer. Servers must be acquired separately.
464422-B22
NOTE:
Licenses ship without media. The HP Insight Control Media Kit can be ordered
separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic software is available in all countries except China
and Japan. Customers in China and Japan should order the physical equivalent. NOTE: Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single set of activation keys. NOTE: For additional License Kits, including electronic licensing
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html
HP Integrated Lights-Out
Advanced
HP Integrated Lights-Out
Advanced, No Media, 1-Server License, including 1 year of 24x7 Technical
Support and Updates NOTE: This license allows 1 server
to be deployed and managed via HP iLO Advanced. Customer will receive a
printed license entitlement certificate via physical shipment. The license
entitlement certificate must be redeemed online or via fax in order to obtain
the license activation key(s). Includes one year of 24 x 7 HP Software Technical
Support Service NOTE: For additional license kits, including electronic delivery
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_na/12362_na.html
512485-B21
HP Insight Rapid
Deployment software
HP Insight Rapid
Deployment software No Media 1-Server License including 1 year of 24x7 Technical
Support and Updates NOTE: This license allows 1 server
to be deployed and managed via RDP. Customer will receive a printed license
entitlement certificate via physical shipment. The license entitlement certificate
must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support Service NOTE: For additional license kits, including electronic delivery
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.html
HP SA-P400 and SA-E500 24 In Battery
Cable Kit NOTE: This option kit contains a
24" battery cable and adhesive material for installing a battery into
the server if a Smart Array P400 is integrated outside of the factory. For
all solutions, please refer to the server QuickSpecs and User's Manual for
detailed installation instructions.
HP x4-x8 PCI-E Bus Expander Option
Kit NOTE: The HP x4/x8 PCI Express Bus
Expander kit converts 2 x4 PCI Express slots into a single x8 PCI Express
slot for high performance x8 PCI Express cards.
SAS Tape Drives NOTE: For the ML350 G5, HP recommends
purchasing the HP SC44Ge HBA ( 416096-B21) for a dedicated SAS HBA for tape.
HP StorageWorks LTO-2 Ultrium
448 SAS Internal Tape Drive
DW085A
HP StorageWorks LTO-3 Ultrium
920 SAS Internal Tape Drive
EH847A
HP StorageWorks LTO-4 Ultrium
1760 SAS Internal Tape Drive
EH919A
HP DAT 320 SAS Internal Tape Drive
AJ830A
DAT 320 WW SAS External Tape Drive
AJ828A
NOTE: Please refer
to the "Tape and Disk-Based Backup" table in the Storage section
of this document for a list of SAS controllers with tape support.
For an up-to-date listing
of the latest O/S and software support details for HP Ultrium tape drives,
please visit: http://www.hp.com/go/connect.
HP StorageWorks 1/8 G2 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium
1760 SAS Tape Autoloader
AK377A
HP StorageWorks 1/8 G2 LTO-3 Ultrium
920 SAS Autoloader
AH558A
HP StorageWorks 1/8 G2 Tape Autoloader
Rack Kit NOTE: Required to install the 1/8
G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount
instructions.
AH166A
NOTE: Please reference
the Tape Autoloader QuickSpecs at: http://www.hp.com/go/automation
for additional information needed to create a complete solution.
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4
Ultrium 1760 SAS Drive Library
AK378A
HP StorageWorks MSL2024 1 LTO-3
Ultrium 920 SAS Drive Library
AH559A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 2 LTO-4
Ultrium 1760 SAS Drive Library
AK380A
HP StorageWorks MSL4048 1 LTO-3
Ultrium 920 SAS Drive Library
AH560A
NOTE: Please reference
the MSL Tape Library QuickSpecs at: http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at: http://www.hp.com/go/ebs.
Disk-Based Backup
RDX Removable Disk Backup
HP StorageWorks RDX500 Internal
Removable Disk Backup System NOTE: 500 GB of Disk Storage.
10647 G2 (47U) Rack Cabinet 1200mm
Deep - Shock Pallet NOTE: Due to handling and shipping
requirements, AF044A is only orderable through HP Factory Express. It is
not for direct sales. Customer site surveys are required before an order
is approved. CTO orders may require additional lead time.
AF044A
10647 G2 (47U) Rack Cabinet 1200mm
Deep - Pallet
AF045A
NOTE: It is mandatory
to use a shock pallet when shipping racks with equipment installed. NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment
installed (by custom systems, VARs and Channels).
NOTE: Cat5e cables
are required to connect Interface Adapters to Console Switches. Cat5e cables
can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
NOTE: Cat5e cables
are required to connect Serial Adapters to Serial Console Servers. Additional
Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
Service and Support Offerings (HP Care Pack Services)
Hardware
Services On-site Service
NOTE: To attach
3 year, 4-Hour On-site Service to Smart Buy servers, Smart Buy Care Packs must
be used. For other service levels, order standard Care Pack part numbers.
4-Hour On-site Service, 5-Day
x 13-Hour Coverage, 3 Years (Electronic)
U4512E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (Electronic)
U4513E
NOTE:
Use one of the following Smart Buy Care Packs to attach 3 year, 4-Hour On-site
Service to Smart Buy servers. For other service levels, order standard Care Pack
part numbers.
ML350 Smart Buy 4-Hour On-site
Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UE901E
ML350 Smart Buy 4-Hour On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UE902E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years (Electronic)
U4514E
O/S
and Hardware Installation
Hardware Installation (Electronic)
U4522E
Installation
& Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer
Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays. (Electronic)
U4523E
Support
Plus
Onsite HW support, 8am-9pm, M-F,
4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion,
8am-9pm, M-F 2hr response time excl. HP holidays. (Electronic)
U4524E
Support
Plus 24
Onsite HW support 24x7, 4hr response
and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr
response time incl. HP holidays, Electronic
U4525E
Onsite
HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6308E
Onsite
HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite
at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant ML350 G5 Memory Configuration The HP ProLiant ML350 G5 requires memory interleaving
when more than one DIMM is installed. For interleaving, DIMMs must be
configured in identical pairs. The system will not boot properly if multiple
DIMMs of varying density or type are installed in the system.
Standard Memory
All HP ProLiant ML350 G5 models ship with PC2-5300 Fully Buffered DIMMs
(DDR2-667).
Entry models include a single 512 MB DIMM (Dual-Core) or two 512 MB DIMMs
(Quad-Core).
Base models include two 512 MB DIMMs (1 GB total memory) or two 1 GB DIMMs
(2 GB total memory)
Factory Integrated Models include the memory capacity of your choice.
Common Memory Configuration
Valid DIMM pair combinations use slots 1/5, slots 2/6, slots 3/7, and
slots 4/8. Maximum supported memory is 16 GB for Dual-Core 5000 and 5100
series models and 32 GB on Quad-Core 5300 and 5400 series models. NOTE: Chart does not represent
all possible memory configurations.
Online spare memory configuration FBDIMMs can either be single-rank
or dual-rank. Certain FBDIMM configuration requirements are based on these classifications.
A dual-rank FBDIMM is similar to having two separate FBDIMMs, or ranks, on the
same module. Although only a single FBDIMM module, a dual-rank FBDIMM acts as
two separate FBDIMMs.
In online spare mode, a single rank of memory acts
as the spare memory. For single-rank FBDIMMs, the entire FBDIMM acts as the spare
memory. For a dual-rank FBDIMM, only half of the FBDIMM acts as the spare memory
while the other half is available for operating system and application usage.
Online spare FBDIMM configuration requirements (in addition to general
configuration requirements):
When only bank A is being used,
it must be fully populated with dual-rank FBDIMMs.
For optimum memory
usage, HP recommends all FBDIMMs be the same size with the same HP part number.
If different sized FBDIMMs are used, a portion of the installed memory may not
be utilized.
In online spare mode, FBDIMMs must be populated as specified
in the following table:
Configuration 1 (Bank A only) is only supported
if using bank A, populated with dual-rank FBDIMMs.
After installing FBDIMMs,
use RBSU to configure the system for online spare memory support.
Hard Drives NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, firmware, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF Enterprise
(ENT) Drives
Quantity
Supported
Position
Supported
Controller
300GB 6G SAS 10K DP
300GB 3G SAS 10K DP
146GB 6G SAS 15K DP 146GB 3G SAS 15K DP
146GB 6G SAS 10K DP
146GB 3G SAS 10K DP 72GB 6G SAS 15K DP
72GB 3G SAS 10K DP
72GB 3G SAS 15K DP
Up to 8 SFF
1-8
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
SAS Hot Plug SFF Midline
(MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 6G SAS 7.2K DP
Up to 8 SFF
1-8
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
SAS Hot Plug 3.5"
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
450GB 3G SAS 15K DP
400GB 3G SAS 10K DP
300GB 6G SAS 15K DP
300GB 3G SAS 15K DP
146GB 3G SAS 15K DP
Up to 6 LFF
1-6
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
SAS Hot Plug SFF Midline
(MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 6G SAS 7.2K DP
Up to 8
1-8
HP Smart Array P800/512 BBWC
Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
SAS Hot Plug 3.5"
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
1TB 3G SAS 7.2K DP
750GB 3G SAS 7.2K DP
Up to 6 LFF
1-6
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
SATA Hot Plug SFF Midline
(MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 8 SFF
1-8
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
SATA Hot Plug SFF
Entry (ETY) Drives
Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 5.4K
120GB 1.5G SATA 5.4K
Up to 8
1-8
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
NOTE:
HP Systems Insight Manager should not be used to view the status of SATA
hard drives and SATA RAID configurations.
SATA Hot Plug 3.5"
Entry (ETY) Drives
Quantity
Supported
Position
Supported
Controller
160GB 3G SATA 7.2K
Up to 6
1-6
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
SATA Hot Plug 3.5"
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
1TB 3G SATA 7.2K
750GB 3G SATA 7.2K
500GB 3G SATA 7.2K
250GB 3G SATA 7.2K
Up to 6
1-6
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
3.5” SATA
Hot Plug Drives
Quantity
Supported
Position
Supported
Controller
750GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
Up to 6
1-6
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
SATA Hot Plug Midline
(MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 8
1-8
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
SATA Hot Plug 3.5"
Midline (MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 6
1-6
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
SAS Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1760 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount Kit
3U Rack-Mount Kit
To drill down to calculators: - Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML350 G5
- Click on: "Power Calculator"
link. (You may need to scroll down to see it)
- Click on the system of interest. Example:
ML350 G5
- Follow the instructions of the next screens.
Power Supply Output
(per power supply)
Rated Steady-State
Power
800 W (at 100
VAC) 850 W (at 120 VAC) 1000 W (at 200-240 VAC)
Maximum
Peak Power
800 W (at 100 VAC)
850 W (at 120 VAC) 1000 W (at 200-240 VAC)
System Inlet Temperature
Operating
10°
to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C
per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of
3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the type and number of options
installed. System performance may be reduced if operating with a fan fault
or above 30°C (86°F).
Non-operating
-30°
to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative
Humidity (non-condensing)
Operating
10
to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature,
non-condensing.
Non-operating
5
to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature,
non-condensing.
Altitude
Operating
3050
m (10,000 ft). This value may be limited by the type and number of options installed.
Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating
9144
m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed
are the declared A-Weighted sound power levels (LWAd) and declared average bystander
position A-Weighted sound pressure levels (LpAm) when the product is operating
in a 23°C ambient environment. Noise emissions were measured in accordance
with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
L
WAd
5.2 B
L pAm
35
dBA
Operating
L
WAd
5.3 B
L pAm
35
dBA
Emissions
Classification (EMC)
FCC
Rating
Class B
Normative
Standards
CISPR 22; EN55022; EN55024;
FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3;
EN 60950-1; IEC 60950-1
NOTE:
Product conformance to cited product specifications is based on sample (type)
testing, evaluation, or assessment. This product or family of products is eligible
to bear the appropriate compliance logos and statements.
Smart Array E200i Controller
Disk Drive and Enclosure
Interface
3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology
Attachment)
SAS Connectors
2 internal (SFF8484) x4 wide port
connectors
Cache Memory Speed
DDR-1/266 MHz provides up to 4.2
GB/s maximum bandwidth.
Embedded NC373i Multifunction Gigabit Server Adapter
Network
Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
IEEE
802.3 10Base-T
IEEE
802.3ab 1000Base-T
IEEE
802.3u 100Base-TX
Data
Transfer Method
PCI
Express, four lanes (x4)
Network
Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T
(Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100
Mb/s
100Base-TX (Full-Duplex)
200
Mb/s
1000Base-TX (Half
and Full-Duplex)
2000Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories
3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX
Category
5 UTP; up to 328 ft (100 m)
Environment-friendly Products and Approach
End-of-life
Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will be recycled,
recovered or disposed of in a responsible manner.
The EU WEEE directive
(2002/95/EC) requires manufacturers to provide treatment information for each
product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
US Site
DL Quickspecs
Search:
493457-B21
© 2012 Canada PartsDirect
