The HP ProLiant ML310 G5p is
an affordable, single processor tower server engineered to meet the needs
of corporate small sites It is designed to provide the solid network foundation
essential to fuel thriving small offices. Processing power ranging from
single-core Celeron to quad-core Xeon combines with industry-leading management
and essential data protection features for a secure, affordable platform
that helps you run your business efficiently.

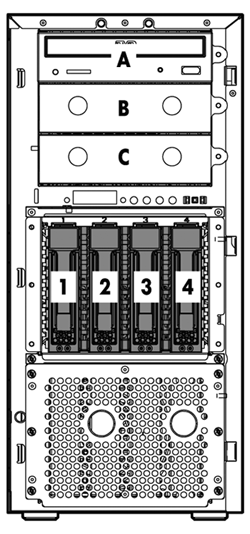

Front View:
Rear View:
1.
SATA DVD-ROM
1.
Power cord connections for Non-Redundant
Power Supply
2.
Removable Media Bays
2.
PS/2 Mouse connector
3.
LED Indicators and Power Button
3.
PS/2 Keyboard connector
4.
Upfront USB Ports
4.
10/100/1000 NIC 1 Shared iLO
2
5.
Four DIMM Sockets for up to
8GB DDR2 memory
5.
10/100/1000 NIC 2
6.
Processor Socket
(Intel® Xeon®, Core™2, Pentium® or
Celeron®)
6.
USB 2.0 (qty 2)
7.
Video Port
7.
System Fan
8.
Serial Port
8.
410W Non-Hot Plug Non-Redundant
Power Supply or 430W Hot Plug Redundant Power Supplies
9.
Up to Five Expansion Slots (Four
PCI Express and One PCI-X (Optional))
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section.
Expansion Slots NOTE: Up to 5 Total: (1) PCI Express
x8, (3) PCI Express x1, Optional Extender Board for (1) 64-bit/100MHz PCI-X.
Expansion Slots #
Technology
Bus Width***
Connector Width
Bus Number*
Device No.**
Form Factor
Notes
7
PCIe
x1
x8
4
0
Half length, full height slot
6
PCIe
x1
x8
7
0
Half length, full height slot
5
PCIe
x1
x8
10
0
Full length, full height slot
3
PCIe
x8
x8
18
0
Full length, full height slot
1
(Optional)
PCI-X (100MHz, 3.3V)
64-bit
Not applicable
14
2
Full length, full height slot
*
Default bus assignment (in decimal). Inserting cards with PCI bridges may
alter the actual bus assignment number
** Slots are enumerated differently based on OS. MS OS's enumerate from
lowest to highest Device ID by bus (starting with the lowest bus).
*** Indicates the number of physical electrical lanes running to a PCI-e
connector.
Storage Controllers
The HP ProLiant ML310 G5p supports
Serial ATA (SATA) and Serial Attached SCSI (SAS) hard drives. Models described
as SAS models include an 8 port HBA or controller that supports both SATA
and SAS hard drives in non-RAID, RAID 0, or RAID 1 configurations. Models
described as SATA/SAS support SATA hard drives standard and require the
installation of an HBA or controller to support SAS.
Embedded HP SC40Ge SAS HBA
with RAID 0, 1 NOTE: Use of the embedded SATA RAID
feature with a Linux operating system requires installation of a driver
from a floppy drive. The supported floppy drive can be a USB drive key (except
Windows 2003), USB floppy drive, half-height internal floppy drive, or virtual
floppy via Integrated Lights-Out 2 (iLO 2).
NOTE: See the
"Storage" section of these QuickSpecs for information on required
to support SATA and SAS hard drive configurations.
Internal Storage
Devices
Diskette Drive
Optional 1.44 MB Diskette Drive NOTE: Use of the embedded SATA RAID
feature with a Linux operating system requires installation of a driver
from a floppy drive. The supported floppy drive can be a USB drive key,
USB floppy drive, half-height internal floppy drive, or virtual floppy via
Integrated Lights-Out 2 (iLO 2).
Optical Drive
SATA DVD-ROM Drive Standard
Hard Drives
None Standard
Maximum Internal
Storage
Hot Plug SAS (3.5")
4.0TB
4 x 1TB
Hot Plug SATA (3.5")
8.0TB
4 x 2TB
NOTE:
See the "Storage" section of these QuickSpecs for information
on controllers required to support SATA and SAS hard drive configurations.
All models ship with one 1.8m
(6 foot) standard low-line power cord. NOTE: HP ProLiant ML310 a C13 to
C14 2.8M jumper cord ships standard. If customers require a power cord,
they can check the power cord matrix for the appropriate sku. Please see
the following power cord matrix: http://www.hp.com/go/powercordmatrix.
Power Supply
410 Watt PFC (Power Factor Correcting)
non-hot plug non-redundant power supply or 430 Watt PFC hot plug redundant
power supplies (ships with two power supplies) NOTE: To review typical system power
ratings use the HP Power Advisor which is available online located at url:
www.hp.com/go/proliant-energy-efficient
or www.hp.com/go/hppoweradvisor
System Fans
1 - Non-hot plug, Non-redundant
system fans; 1 optional fan for PCI-X Extender Board NOTE: Does not include fan in power
supply.
NOTE: For more
information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available
for your server including how to purchase from HP, please visit our OS Support
Site at: http://www.hp.com/go/ossupport
and our driver download page www.hp.com/support/ML310G5p.
Graphics
Integrated ATI ES1000, 32 MB video standard
16 bit color: maximum resolution of 1600 x 1200
32 bit color: maximum resolution of 1280 x 1024
NOTE: Maximum resolution available via
iLO 2 remote console is 1280 x 1024.
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecycle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: www.hp.com/go/foundation.
NOTE: In an effort to support
reducing our environmental impact, the HP Insight Foundation Suite for
ProLiant media will be available as a selectable option for this server
at time of order of a CTO SKU. This will allow customers to order the
number of media kits that best meet their needs and eliminate receiving
unnecessary duplicate media.
HP Integrated Lights-Out (iLO)
HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring,
power and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP iLO functions without additional software and
can be accessed from any location via a web browser. HP iLO works hand-in-hand
with HP Systems Insight Manager, Insight Control, and Insight Dynamics
for ProLiant, helping customers unleash the value of the ProLiant platform
and deliver the highest possible quality of IT service. For more information,
visit: www.hp.com/go/iLO
Intelligent Manageability
HP Systems Insight Manager
Online ROM Flash Utility
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory and SAS hard drives)
BIOS Serial Console
Security
Power-on password
Setup password
Diskette boot control
Power switch security
Warranty
This product is covered by a
global limited warranty and supported by HP Services and a worldwide network
of HP Authorized Channel Partners. Hardware diagnostic support and repair
is available for one year, with 1 year Next Business Day and year on-site
support from date of purchase. Support for software and initial setup is
available for 90 days from date of purchase. Expanded support may be covered
under the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services or customized service
agreements. Hard drives have either a one year or three year warranty; refer
to the specific hard drive QuickSpecs for details NOTE: Server Warranty includes 1-Year
Parts, 1-Year Labor, 1-Year Onsite support with next business day response.
Warranty repairs may be accomplished through the use of Customer Self Repair
(CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts
are designed for easy replacement. A travel and labor charge will result
when customers decline to replace a Mandatory CSR part; 2) Optional CSR
parts are also designed for easy replacement but may involve added complexity.
Customers may choose to have HP replace Optional CSR parts at no charge.
Additional information regarding worldwide limited warranty and technical
support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
HP Insight Control, a product
option, delivers essential infrastructure management that can help save
time and money by making it easy to deploy, migrate, monitor, remote control,
and optimize your IT infrastructure through a single, simple management
console.
Two versions of Insight Control are available, to serve environments requiring
either a Linux-based or a Windows-based central management server: HP Insight
Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol
HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, please
visit: http://www.hp.com/services/insight.
HP Insight Dynamics for ProLiant
HP Insight Dynamics for ProLiant,
a product option, is an integrated command center that enables IT Staff
personnel to continuously analyze and optimize a converged infrastructure,
while automating and reducing the cost of common data center tasks by as
much as 40 percent. As a powerfully integrated by design toolkit to accelerate
complex technology projects and simplify daily operations that ultimately
enable IT Staff personnel to dynamically keep pace with the organizations
changing business requirements. It enables them to plan capacity and power
continuously, balance across physical and virtual resources, and ensure
cost-effective high availability. It also enables IT organizations to provision
infrastructure consistently and automatically from pools of shared resources
using a self-service portal. Resources provisioned can range from a single
virtual machine to complex multi-tier environments and their associated
physical and virtual resource requirements. In addition to the previous
functional benefits, it also provides a cost-effective disaster recovery
for physical and virtual environments that works with HP StorageWorks Continuous
Access software for both the Enterprise Virtual Array and the XP storage
array allowing application environments to be reactivated in minutes with
the touch of a button to a remote location.
KVM Switches, Serial Console Servers, Rackmount Monitors, Keyboards:
For additional information regarding KVM switches, Serial Console
servers, rack mount monitors, keyboards and all related options please
see the following URL: http://www.hp.com/go/kvm.
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and storage
products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of servers
and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem,
HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries
and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eConfigure-Enterprise
Configurator now provides factory default racking for our HP hardware portfolio.
This approach is aligned with our strategic direction to meet the needs
and expectations of our valued customers. If you require "custom"
rack configuration, please contact HP's Customer Business Center or an Authorized
Partner for assistance. http://www.hp.com/products/configurator.
HP Care Pack Services: Packaged server and storage services for increased
uptime, productivity and ROI
When you buy HP server and storage products and solutions, it's also a
good time to think about what levels of support you may need. Our portfolio
of service options reduce deployment and management worries while helping
you get the most out of your server and storage investments. We take a
holistic approach to your environment, bridging servers, blades, storage,
software and network infrastructures with our packaged HP Care Pack Services
for servers and storage.
Protect your business beyond warranty
When it comes to robustness and reliability, standard computing equipment
warranties have matured along with technology. Good news that can also
create problems stemming from depending on standard warranties designed
to only protect against product defects and some downtime causes. Using
a standard approach to warranty uplifts, such as HP Care Pack Services,
helps reduce downtime risks and provides operational consistency for mission-critical
and standard business computing.
HP Care Pack Services: Upgrading or extending standard server and
storage warranties cost effectively
HP Care Pack Services offer a standard reactive hardware and software
support services suite sold separately, or combined with our Support Plus
and Support Plus 24 services. The portfolio also provides a combination
of integrated proactive and reactive services, such as Proactive 24 Service
and Critical Service. In addition with HP Proactive Select, you can acquire
the specific proactive constancy and technical services. HP Proactive
Select menu offers a broad set of service options that you can mix and
match depending on your specific requirements. Proactive service options
include offers for server, storage, network, SAN device, software, environment
and education services.
HP server and storage lifecycle support services offers a full spectrum
of customer care-from technology support to complex migrations to complete
managed services. HP Factory Express provides customization, integration
and deployment services for turnkey solutions. HP Education Services offer
flexible, comprehensive training on to help your IT staff get the most
out of your server and storage investments. HP Financial solutions extend
innovative financing and cost-effective asset management programs-from
purchase to equipment retirement.
Recommended HP
Care Pack Services for optimal satisfaction with your HP product
Recommended Services
3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6-
or 24-hour
Provides your IT manager with a team of support specialists who will quickly
begin troubleshooting the system to help return the hardware to operating
condition within 6 or 24 hours of the initial service request to the HP
Global Solution Center.
HP is committed to repairing your hardware within a maximum of six or
twenty four hours. The benefits include:
Improved system uptime
Predictable repair times
More effective IT resource planning
Consistent level of hardware support across your multi-technology
systems
3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7
Provides you with rapid remote support and if required an HP authorized
representative who will arrive on site any time and day of the year to
begin hardware maintenance service within 4 hours of the service request
being logged.
This service provides a trained HP service specialist to perform an installation
that meets HP quality standards, for:
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner.
Expedited installation, with all service prerequisites met before
the installation is performed
Installation in accordance with manufacturer's specifications, enhancing
the supportability of your HP-installed hardware and software
Service delivery at a mutually scheduled time
Allows your IT resources to stay focused on their core tasks and priorities
Availability of an HP service specialist to answer questions during
the onsite delivery of this service
Optional HP Care
Pack Services that will enhance your HP product experience
Optional Services
3-Year HP Support Plus 24
As an alternative to our recommended support level, for customers who
need access to responsive 24x7 hardware and software support plus software
updates on HP and selected third party products:
For a higher return on your server and storage technology, our 3-year
combined reactive support service delivers integrated onsite hardware/software
support services available 24x7x365, including access to HP technical
resources, 4-hour response onsite hardware support and software updates.
3-Year HP Proactive 24
As an alternative to our recommended support level, for customers who
want enhanced operational effectiveness and proactive problem identification:
Provides improved stability, availability and operational effectiveness
with an integrated hardware and software support service that combines
industry-leading reactive technical assistance with proactive account
services, giving your IT manage support from a team of service specialists.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-1614ENUC
HP Proactive Select Service
Customer needs on demand access to consulting, technical proactive services
and education courses
Provides a flexible way to purchase HP best-in-class consultancy and technical
services. You can buy Proactive Select Service Credits when you purchase
your hardware and then use the credits over the next 12 months.
HP eSupport is a portfolio of technology-based services that assist you
with managing your business environment - from the desktop to the data
center.
Support Portal
The HP support portal provides one-stop access to the information, tools
and services you need to manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service
agreement. To access the support portal, visit: http://www.hp.com/support
HP Insight Remote Support software delivers secure remote support for
your HP Servers and Storage, 24 X 7, so you can spend less time solving
problems and more time focused on your business. You can have your systems
remotely monitored for hardware failure using secure technology that's
been proven at thousands of companies around the world. In many cases,
you can avoid problems before they occur.
Customer Technical Training
In today's cost-conscious business environment, IT professionals, developers,
consultants and users face an interesting challenge: how to keep up with
the latest technologies and expand important skills while delivering profitable
results on current projects. To help address this challenge, HP offers
innovative training solutions that help keep you up-to-date on virtualization,
server, storage, Insight Control, Citrix, Microsoft® and open source/Linux-related
topics-while spending less time away from business-critical activities.
HP Services Awards
HP Technology Services continues to be recognized for service and support
excellence by customers, partners, industry organizations and publications
around the world. Recent honors and award reflect our services team's
dedications, technical expertise, professionalism and uncompromising commitment
to customer satisfaction.
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section. NOTE: Pre-configured models ship with the configurations below. Options
can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured
models. Any additional options purchased will be shipped separately. NOTE: If you desire a custom configuration please see "Configuration
Information - Factory Integrated Models" section of this QuickSpecs.
Configuration Information - Factory Integrated Models
NOTE:
This section lists some of the steps required to configure a Factory Integrated
Model. To ensure only valid configurations are ordered, HP recommends the
use of an HP approved configurator. Contact your local sales representative
for information on configurable product offerings and requirements. NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis. NOTE: FIO indicates that this option is only available as a factory
installable option.
Step
1: Base Configuration
HP Models
HP ProLiant ML310 G5p Configure-to-order
Tower Chassis
445343-B22
Factory
Integrated Models ship with:
Embedded NC326i Gigabit Server
Adapter
Integrated Four Port SATA Controller
(HP-SATA/SAS chassis only)
Keyboard and Mouse
NOTE:
The ML310G5p CTO chassis offers pluggable SATA/SAS Drives. It is required
to purchase a Smart Array controller if hot plug function is needed.
Step 2: Choose Required
Options (only one of the following from each list unless otherwise noted)
NOTE: Prior to
making a power supply selection it is highly recommended that the HP Power
Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor
430W Hot-plug Redundant Power
Supply Kit, FIO NOTE: Hot plug redundant power supply
Kit ships with two power supplies.
431652-B21
410W Non-hot-plug Power Supply,
FIO NOTE: Non-hot plug power supply ships
with one power supply.
NOTE: When hot-plug
SATA hard drives are installed, SATA LED functionality and full SATA hot-plug
capability are not supported with the embedded controller. For full LED
and hot-plug support, an optional SATA/SAS RAID controller must be installed.
SAS Controllers support both SAS and SATA hard drives. Some SAS Controllers
also have SAS tape support. Please refer to the "Tape and Disk-Based
Backup" table in the Storage section for a list of SAS Controllers
with tape support.
HP Smart Array E200/128 BBWC 2-ports
Int PCIe x4 SAS Controller NOTE: RAID 0, 1, 1+0, 5.
HP Modular Smart Array SC44Ge
1-ports Int/1-ports Ext PCIe x8 SAS Host Bus Adapter NOTE: RAID 0, 1. NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard
Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
HP 64/133 2-ports Int PCI-X SAS
Host Bus Adapter NOTE: When using the 8 Internal Port
SAS HBA with SATA Hard Drives, 1.5G SATA Hard Drives are required. NOTE: Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
NOTE: Some options may not be integrated
at the factory. To ensure only valid configurations are ordered, HP recommends
the use of an HP approved configurator. Contact your local sales representative
for additional information.
HP Memory
HP 2GB (1x2GB) Dual Rank PC2-6400
(DDR2-800) Unbuffered Memory Kit
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and
the server backplane) should operate at the same data transfer rate or the
system bandwidth will be negotiated down to an acceptable level for all
components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details. NOTE: A HP Smart Array Controller is required for hot plug functionality.
SAS Hot Plug LFF (3.5-inch) Enterprise
(ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch)
Dual Port Enterprise 3yr Warranty Hard Drive
NOTE: Please see
the QuickSpecs for Technical Specifications and additional information:
www.hp.com/go/ProLiantNICs
HP I/O Expansion Options
HP ML310 G5p PCI-X Extender Board
Kit NOTE: An additional fan is required
with PCI-X Extender Board. This fan is included in the HP ML310 G5p PCI-X
Extender Board Kit.
451778-B21
HP ProLiant Second Serial / Parallel
port option kit
NOTE:
Some options may not be integrated at the factory. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator.
Contact your local sales representative for additional information.
HP
Insight Software
HP Insight Control
HP Insight Control including 1yr 24x7 Technical
Support and Updates Electronic License
T9074BAE
HP Insight Control including 1yr 24x7 Support
ProLiant ML/DL/BL-bundle Electronic License
TC278AAE
HP Insight Control including 1yr 24x7 Technical
Support and Updates Single Server License
452148-B22
HP Insight Control including 1yr 24x7 Support
ProLiant ML/DL/BL-bundle Tracking License
TC275A
HP Insight Software Media Kit NOTE: Insight Software DVD media
without licenses. Contains HP Systems Insight Manager, HP Insight Control,
HP Insight Dynamics, HP Insight Control for Microsoft System Center, and
Virtual Connect Enterprise Manager software. Uses an integrated installer
to perform quick and accurate software installation and updates.
436222-B21
NOTE:
Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key. NOTE: Customer will receive a license entitlement certificate. The
license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service. NOTE: Licenses ship without media. The HP Insight Control Media Kit
can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates. NOTE: For additional license options please see the Insight Control
QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html
HP Insight Control
for Linux
HP Insight Control
for Linux including 1yr 24x7 Support Electronic License
TC213AAE
HP Insight Control
for Linux including 1yr 24x7 Support Single Server License
TC209A
HP Insight Control
for Linux Media Kit NOTE: Media pack DVD contains the
ISO image for HP Insight Control for Linux, HP Systems Insight Manager,
HP Insight Control power management, HP Insight Control virtual machine
management, and an integrated installer. Servers must be acquired separately.
TC208A
NOTE:
Licenses ship without media. The Media Kit for Insight Control for Linux
can be ordered separately, or can be downloaded at: http://www.hp.com/go/ic-linux
(click on Download button). NOTE: Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single set of activation keys. NOTE: For additional License Kits, including electronic licensing
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html
HP Integrated Lights-Out
(iLO) Advanced
HP iLO Advanced
including 1yr 24x7 Technical Support and Updates Electronic License
TA850AAE
HP iLO Advanced
including 1yr 24x7 Technical Support and Updates Single Server License
512485-B21
NOTE:
This license allows 1 server to be deployed and managed via HP iLO Advanced.
Customer will receive a printed license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online or
via fax in order to obtain the license activation key(s). Includes one year
of 24 x 7 HP Software Technical Support Service NOTE: For additional license kits, including electronic delivery
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_na/12362_na.html
HP Security - TPM
HP Trusted Platform Module Option
Kit
488069-B21
NOTE: The TPM
(Trusted Platform Module) is a microcontroller chip that can securely store
artifacts used to authenticate the server platform. These artifacts can
include passwords, certificates and encryption keys. Windows® BitLocker™
Drive Encryption (BitLocker) is a data protection feature available in Windows
Server® 2008. BitLocker leverages the enhanced security capabilities
of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker
to help protect user data and to ensure that a server running Windows Server
2008 has not been tampered with while the system was offline. For more information
about TPM, including a white paper, go to: www.hp.com/go/TPM. NOTE: ProLiant OS pre-installed units will come with the partition
required for TPM deployment. NOTE: The TPM key is unique to every TPM deployed server and must
be retained. Misplacing or loosing the key could result in data loss.
HP Storage Controllers
SAS Cable NOTE: A SAS HBA or Controller is
required if SAS hard drives are selected. SAS HBAs support both SAS and
SATA hard drives. Some SAS HBAs also have SAS tape support. Please refer
to the "Tape and Disk-Based Backup" table in the Storage section
for a list of SAS HBAs with tape support.
SAS Controllers NOTE: Any Smart Array Controller
or SAS HBA requires the purchase of the HP SAS Cable (p/n 460310-B21)
for the ML310 G5p. Smart Array P212/P410/P411 Controller for SAS models
require the purchase of the HP mini SAS Cable (p/n 496015-B21) for the
ML310 G5p.
Smart Array E200 Controller
HP Smart Array E200/128 BBWC 2-ports Int PCIe x4 SAS
Controller
HP Smart Array P400 Battery Attach
Kit NOTE: This option kit contains a
24" battery cable and adhesive material for installing a batter into
the server if a Smart Array E500 is integrated outside of the factory. For
all solutions, please refer to the server QuickSpecs and User's Manual for
detailed installation instructions.
HP Mini SAS to 8484 18in/24in
Cable Assembly NOTE: This part number must be used
with Smart Array P212/P411 Controller for SAS models.
496015-B21
HP Smart Array Advanced Pack including
1yr 24x7 Technical Support and Updates Single Server License NOTE: This part number can be used
to purchase a single license or to order multiple licenses with a single
activation key. Customers will receive a license entitlement certificate
via e-mail. The license entitlement certificate must be redeemed online
or via fax in order to obtain the license activation key(s). Include one
year of 24x7 HP Software Technical Support Services.
HP Modular Smart Array SC44Ge
1-ports Int/1-ports Ext PCIe x8 SAS Host Bus Adapter NOTE: When using the SC44Ge with
SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5
Gb/s SATA, 3 Gb/s SAS.
HP 64/133 2-ports Int PCI-X SAS
Host Bus Adapter NOTE: When using the 8 Internal Port
SAS HBA with SATA Hard Drives, 1.5G SATA Hard Drives are required. NOTE: Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
HP SC11Xe Ultra320 Single Channel/
PCIe x4 SCSI Host Bus Adapter NOTE: Recommended HBA for SCSI tape
drive connect. NOTE: If a Non-Hot Plug SCSI Tape Drive is selected in any model,
then customer must add 412911-B21.
NOTE: For the
complete range of StorageWorks tape drives, autoloaders, libraries and media
see: http://www.hp.com/go/tape.
For hardware and software compatibility of HP StorageWorks tape backup products
see: http://www.hp.com/go/connect.
Rack-Mount Tape Solutions
HP StorageWorks 1/8 G2 LTO-4 Ultrium
1760 SAS Tape Autoloader NOTE: Requires HP 1U Tape Autoloader
Rack Kit (AH166A) for rack installation.
AK377A
HP StorageWorks DAT 160 USB Internal
Tape Drive
Q1580A
HP StorageWorks DAT 320 USB External
Tape Drive
AJ823A
HP StorageWorks DAT 320 USB Internal
Tape Drive
AJ825A
HP StorageWorks DAT 320 SAS External
Tape Drive
AJ828A
HP StorageWorks DAT 320 SAS Internal
Tape Drive NOTE: Connection using HP SC44Ge
SAS Host Bus Adapter ( 416096-B21) recommended.
AJ830A
HP StorageWorks Ultrium 448 SAS
Internal Drive NOTE: Connection using HP P212 Smart
Array Controller SAS ( 462828-B21) recommended.
DW085A
HP StorageWorks 1/8 G2 Ultrium
920 SAS Autoloader NOTE: Requires HP 1U Tape Autoloader
Rack-Mount Kit (AH166A) for rack installation. Connection using HP P212
Smart Array Controller SAS ( 462828-B21) recommended.
AH558A
HP StorageWorks LTO-4 Ultrium
1760 SAS Internal WW Tape Drive NOTE: Connection using HP SC44Ge
SAS Host Bus Adapter ( 416096-B21) recommended.
EH919A
HP StorageWorks LTO-5 Ultrium
3000 SAS Internal Tape Drive NOTE: Connection using HP SC44Ge
SAS Host Bus Adapter ( 416096-B21) recommended.
EH957A
HP StorageWorks MSL2024 0-Drive
Tape Library
AK379A
HP StorageWorks MSL2024 1 LTO-4
Ultrium 1760 SAS Tape Library
AK378A
HP StorageWorks MSL2024 Ultrium
920 SAS Tape Library
AH559A
HP StorageWorks MSL4048 2 LTO-4
Ultrium 1760 SAS Tape Library
AK380A
HP StorageWorks MSL4048 0-Drive
Tape Library
AK381A
HP StorageWorks MSL4048 Ultrium
920 SAS Tape Library
AH560A
HP StorageWorks MSL8048 0-drive
Tape Library
AU300A
HP StorageWorks 1/8 G2 Tape Autoloader
Rack Kit NOTE: Required to install the unit
in a standard 19-inch rack; includes rails and rackmount instructions.
HP StorageWorks RDX Removable
Disk Backup Systems USB
HP StorageWorks RDX320 Internal
Removable Disk Backup System NOTE: For installation into 1U USB
Rack-Mount Kit ( A8007A). No peripheral bay available for drive installation
into the server. 320GB of disk capacity per data cartridge.
AJ767A
HP RDX 1TB Int Removable Disk
Backup Sys
BV847A
HP StorageWorks Options
StorageWorks SCSI HBA
HP StorageWorks U320e SCSI Dual
Channel Host Bus Adapter NOTE: Recommended HBA for MSL SCSI
Tape Library connect.
NOTE: For additional
information on HP Uninterruptible Power Systems please go to: www.hp.com/servers/rackups. NOTE: For additional information on sizing your server, please reference:
http://www.upssizer.com.
NOTE: Please see
the UPS and PDU cable matrix's on the HP Power Protection and Management
page. Under Power Cords, click on the "HP Power Cord Matrix" link. That
link will list cable descriptions, requirements, and specifications for
UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
HP Rack Options
Rack Kits
HP Tower to Rack Conversion Tray
Universal Kit
417705-B21
NOTE: This is
a Rack Enabling Kit that supports the HP ProLiant ML110 and HP ProLiant
ML310 servers (system & tray occupy 6U). NOTE: Support for racks with round or square mounting holes (including
all Compaq and HP Rack System /E and HP Systems), with an adjustment range
of 24" - 36".
HP USB and SD Options
HP 2GB USB Flash Media Drive Key NOTE: HP qualified blank USB key
for use with HP ProLiant servers that support the VMware virtualization
environment and other HP value-add software like SmartStart. HP recommends
this industry standard USB flash device for use with VMware ESXi. USB device
must be installed in the internal slot of the ProLiant server for use with
VMware ESXi. Refer to HP
VMware Getting Started Guide for installation instructions.
608447-B21
HP Care Pack Services
Hardware Services On-site Service
Next Business Day On-site Service,
5-Day x 9-Hour Coverage, 3 Years, Electronic
U4445E
4-Hour On-site Service, 5-Day
x 13-Hour Coverage, 3 Years, Electronic
U4446E
4-Hour On-site Service, 7-Day
x 24-Hour Coverage, 3 Years, Electronic
U4447E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4448E
Installation & Start-up Services
Hardware Installation, Electronic
U4456E
Installation & Start-Up of
a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl.
HP holidays, Electronic
U4457E
Support Plus
Onsite HW support, 8am-9pm, M-F,
4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion,
8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4458E
Support Plus 24
Onsite HW support 24x7, 4hr response
and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7
2hr response time incl. HP holidays, Electronic
U4459E
Onsite HW support 24x7, 4hr response
and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7
2hr response time incl. HP holidays, Electronic
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant ML310 G5p Memory Configuration
Standard Memory
All HP ProLiant ML310 G5p models ship with unbuffered, ECC PC2-6400 DDR2
SDRAM running at 800MHz.
All models include a single 1GB DIMM.
Factory Integrated Models include the memory capacity of your choice.
Standard Memory Replaced with Optional Memory
Up to 8 GB memory is available with the optional installation of four
2 GB PC2-6400 Unbuffered ECC DDR2 SDRAM DIMM kits.
DIMM upgrades do not need to be installed in pairs although
installation of pairs (an equal size DIMM for each channel) provides the
best performance. The BIOS will detect the DIMM population and initialize
the system accordingly as follows:
Single-channel mode - DIMMs installed for one channel
only
Dual-channel asymmetric mode - DIMMs installed for
both channels but of unequal channel capacities.
Dual-channel interleaved mode (recommended) - DIMMs
installed for both channels and offering equal channel capacities, providing
the highest performance.
The first DIMM should be installed in Socket 1. A DIMM
should not be installed in Socket 2 without a DIMM in Socket 1. Likewise
a DIMM should not be installed in Socket 4 without a DIMM in Socket 3.
A DIMM need not be installed in Socket 2 in order to install a DIMM in
Socket 3.
Table 3-1 shows some of the suggested memory configurations for these
systems. NOTE: Table 3-1 does not list all
possible configurations. Balanced-capacity, dual-channel loading yields
best performance.
Channel A
Channel B
Total
Mode
Socket 1
Socket 2
Socket 3
Socket 4
512 MB
none
none
none
512 MB
Single-channel
512 MB
none
512 MB
none
1 GB
Single-channel interleaved
1 GB
none
none
none
1 GB
Single-channel
1 GB
none
1 GB
none
2 GB
Single-channel interleaved
1 GB
1 GB
1 GB
none
3 GB
Dual-channel asymmetric
1 GB
1 GB
1 GB
1 GB
4 GB
Dual-channel interleaved
1 GB
2 GB
1 GB
2 GB
6 GB
Dual-channel interleaved
2 GB
2 GB
2 GB
2 GB
8 GB
Dual-channel interleaved
Following
are memory options available from HP:
HP Memory
HP 2GB (1x2GB) Dual
Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit
Hard Drives NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, firmware, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug LFF (3.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
300GB 6G SAS 15K DP
Up to 4
1-4
HP SC40Ge SAS HBA with RAID 0,
1 NOTE: When using the SC40Ge with
SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5
Gb/s SATA, 3 Gb/s SAS.
HP 8 Internal Port SAS HBA with RAID NOTE: Transfer rate: 1.5 Gb/s SATA,
3 Gb/s SAS.
HP Smart Array P212 0 MB Controller
HP Smart Array E200/128 BBWC Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P400/512 MB BBWC Controller
HP Smart Array P800/512 BBWC Controller
NOTE:
Use of SAS hard drives in SATA/SAS models requires installation of one of
the controllers or HBAs listed above.
SAS Hot Plug LFF (3.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
1TB 6G SAS 7.2K DP
Up to 4
1-4
HP SC40Ge SAS HBA with RAID NOTE: When using the SC40Ge with
SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5
Gb/s SATA, 3 Gb/s SAS.
HP 8 Internal Port SAS HBA with RAID NOTE: Transfer rate: 1.5 Gb/s SATA,
3 Gb/s SAS.
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 MB BBWC Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
NOTE:
Use of SAS hard drives in SATA/SAS models requires installation of one of
the controllers or HBAs listed above.
SATA Hot Plug LFF (3.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
Up to 2
Up to 4 NOTE: depending on model.
1-2
1-4 NOTE: depending on model.
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P800/512MB BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
NOTE:
Hot plug capability and drive LED status support requires installation of
one of the controllers or HBAs listed above.
SATA Hot Plug 3.5"
Midline (MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 4
1-4
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
External Storage
Quantity
Supported
Position
Supported
Controller
60 Modular Smart Array
Up to 8
Up to 8
Up to 4
External
External
External
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
70 Modular Smart Array
Up to 4
Up to 4
Up to 2
External
External
External
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Tape and Disk Backup
NOTE: For the complete range of StorageWorks
tape drives, autoloaders, libraries and media, including the internal
fitting models, see: http://www.hp.com/go/tape.
For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d.
For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx.
For hardware and software compatibility of HP StorageWorks disk and tape
backup products see: http://www.hp.com/go/connect.
Position
Supported
Controller
Part
Number
HP StorageWorks
SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
Internal
or External
HP SC11Xe Ultra320 Single Channel/
PCIe x4 SCSI Host Bus Adapter
HP StorageWorks Fibre Channel
Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity
matrix at: http://www.hp.com/go/ebs
for connectivity information and the supported Fibre Channel HBAs shown
in this QuickSpecs.
HP StorageWorks USB RDX Removable
Disk Backup System
RDX160
RDX320
RDX500
RDX750
Internal or External
USB 2.0 Port
N/A
HP StorageWorks D2D Backup
Systems, iSCSI
D2D2500i
D2D4000i
External
Embedded Network Controller. If
the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host
Bus Adapter is recommended.
HP StorageWorks D2D Backup
Systems, Fibre Channel
D2D4000fc
- Click on the system of interest. Example: ML310 G5p
- Follow the instructions of the next screens.
Power Supply Output
(per power supply)
Rated Steady-State Power
400 W (at 100 VAC),
400 W (at 200 VAC)
Maximum Peak Power
400 W (at 100 VAC),
400 W (at 200 VAC)
System Inlet Temperature
Operating
10° to 35°C (50° to
95°F) at sea level with an altitude derating of 1.0°C per every
305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050
m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the type and number of
options installed.
System performance may be reduced if operating with a fan fault or above
30°C (86°F).
Non-operating
-30° to 60°C (-22°
to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10 to 90% relative humidity (Rh),
28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating
5 to 95% relative humidity (Rh),
38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude
Operating
3050 m (10,000 ft). This value
may be limited by the type and number of options installed. Maximum allowable
altitude change rate is 457 m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared
A-Weighted sound power levels (LWAd) and declared average bystander position
A-Weighted sound pressure levels (LpAm) when the product is operating in
a 23°C ambient environment. Noise emissions were measured in accordance
with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
L WAd (BELS)
5.0 B
L pAm (dBA)
32 dBA
Operating
L WAd (BELS)
5.0 B
L pAm (dBA)
32 dBA
Emissions Classification
(EMC)
FCC Rating
B
Normative Standards
CISPR 22; EN55022; EN55024; FCC
CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3;
EN 60950-1; IEC 60950-1
NOTE:
Product conformance to cited product specifications is based on sample (type)
testing, evaluation, or assessment. This product or family of products is
eligible to bear the appropriate compliance logos and statements.
SNMP 2, IPMI 2.0 (KCS interface),
DMTF Server Management Command Line Protocol Specification
(SM CLP), DMTF Web Services Management
Specification (WS Management)
Environment-friendly Products
and Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment
information for each product type for use by treatment facilities. This
information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
US Site
DL Quickspecs
Search:
450260-B21
© 2012 Canada PartsDirect
