The HP ProLiant ML310 G5 is an affordable, single
processor tower server designed to provide the solid network foundation essential
to fuel thriving small offices. Processing power ranging from single-core Celeron
to quad-core Xeon combines with industry-leading management and essential data
protection features for a secure, affordable platform that helps you run your
business efficiently.
Up to 8 GB of PC2-6400 800MHz unbuffered DDR2 SDRAM with ECC capabilities
and optional interleaving
Storage Controller:
SAS Models: HP SC40Ge SAS HBA with RAID 0,1 in a PCI Express slot NOTE: When using the SC40Ge with SATA Hard
Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s
SAS.
SATA Models: Embedded SATA with integrated SATA RAID 0,1 NOTE: Transfer rate: 1.5 Gb/s SATA, 3 Gb/s
SAS.

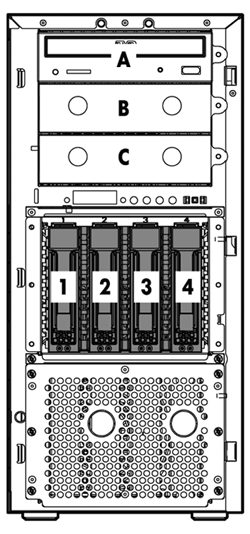

Internal Drive Support:
Supports up to four hot plug SAS or SATA hard drives for up to 4.0TB internal
storage
Models support SAS and SATA hard drives
Network
Controller:
Embedded NC326i Gigabit Server Adapter
Expansion
Slots:
Up to 5 Total: (1) PCI Express x8, (3) PCI Express x1, Optional
Extender Board for (1) 64-bit/100MHz PCI-X
HP
Insight Control suite delivers essential management, including proactive health
management, lights out remote control, optimization of power usage, rapid server
deployment, performance analysis, vulnerability scanning and patch management
and virtual machine management. For more information, go to: www.hp.com/go/ice.
HP ProLiant Onboard Administrator (powered by the Integrated Light-Out 2 management
processor) for simplified server setup, health monitoring and recovery, power
and thermal control, and lights-out remote administration
Integrated Lights-Out
2 Advanced unlocks the full capabilities of the ProLiant Onboard Administrator
with high performance Integrated Remote Console, multi-user console sharing, video
record and replay, and virtual media, including virtual folders for rapid server
updates.
System Insight Display on the front bezel for quick and easy server
diagnostics
Operating Systems and Virtualization
Software Support for ProLiant Servers:
Supports
Windows, RHEL, SLES, OEL, VMware, and NetWare
Deployment/Serviceability:
Customer Self Repair (CSR): HP products are designed
with many CSR parts to minimize repair time and allow for greater flexibility
in performing defective parts replacement
Form
Factor:
Tower (5U)
Optional Tower-to-Rack Enabling Kit available,
system & tray occupy 6U
Warranty:
This product is covered by a global limited warranty and supported by HP
Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic
support and repair is available for one year, with 1 year Next Business Day and
year on-site support from date of purchase. Support for software and initial setup
is available for 90 days from date of purchase. Expanded support may be covered
under the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services or customized service agreements.
SATA hard drives have a one-year warranty. NOTE:
Warranty repairs may be accomplished through the use of Customer Self Repair (CSR)
parts. These parts fall into two categories: 1) Mandatory CSR parts are designed
for easy replacement. A travel and labor charge will result when customers decline
to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy
replacement but may involve added complexity. Customers may choose to have HP
replace Optional CSR parts at no charge. Additional information regarding worldwide
limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
NOTE:
For a brief, printer friendly data sheet that describes this product and informs
you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/ERC/downloads/4AA1-5499ENW.pdf.
NOTE: For the Standard Features shipped in the "Factory Integrated
Models", please see the "Configuration Information – Factory Integrated
Models" section.
NOTE:
The processors listed above available via Configure to Order only. Please
see "Configuration Information - Factory Integrated Models" section
of this QuickSpecs.
Cache
Memory One
of the following depending on Model
12
MB L2 Cache NOTE: For Models with Intel
Xeon processor X3350, X3360 and X3370.
8
MB L2 Cache NOTE: For Models with Intel
Xeon processor X3220 and X3210.
6
MB L2 Cache NOTE: For Models with Intel
Xeon processor X3320, X3330, E3110 and E3120.
4
MB L2 Cache NOTE: For Models with the
Intel Xeon processor 3075 and 3065.
2
MB L2 Cache NOTE: For Models with the
Intel Core2 processor E4600.
1
MB L2 Cache NOTE: For Models with the
Intel Pentium processor E2160.
512
KB L2 Cache NOTE: For Models with the
Intel Celeron processor 420.
Memory Protection
ECC
Memory One of the following depending on Model
Type
PC2-6400 unbuffered DDR2 SDRAM
(800MHz)
Standard - Xeon 3075 and Xeon
3065 Models
512 MB (1 x 512 MB)
Standard - Xeon X3210 and Xeon
E3110 Models
1 GB (1 x 1 GB)
Maximum
8 GB
Network Controller
Embedded NC326i Gigabit Server
Adapter
Expansion Slots
Expansion Slots #
Technology
Bus Width***
Connector Width
Bus Number*
Device No.**
Form Factor
Notes
7
PCIe
x1
x8
4
0
Half length, full height slot
6
PCIe
x1
x8
7
0
Half length, full height slot
5
PCIe
x1
x8
10
0
Full length, full height slot
3
PCIe
x8
x8
18
0
Full length, full height slot
1 (Optional)
PCI-X (100MHz, 3.3V)
64-bit
Not applicable
14
2
Full length, full height slot
Storage
Controllers
The HP ProLiant
ML310 G5 supports Serial ATA (SATA) and Serial Attached SCSI (SAS) hard drives.
Models described as SAS models include an 8 port HBA that supports both SATA and
SAS hard drives in non-RAID, RAID 0, or RAID 1 configurations. Models described
as SATA/SAS support SATA hard drives standard and require the installation of
an HBA or controller to support SAS.
HP SC40Ge SAS HBA with RAID
(in PCIe slot) (SAS Models) NOTE: When using the SC40Ge with
SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5
Gb/s SATA, 3 Gb/s SAS.
Embedded
SATA with integrated SATA RAID 0,1 (SATA/SAS Models) NOTE: Use
of the embedded SATA RAID feature with a Linux operating system requires installation
of a driver from a floppy drive. The supported floppy drive can be a USB drive
key, USB floppy drive, half-height internal floppy drive, or virtual floppy via
Integrated Lights-Out 2 (iLO 2).
NOTE:
Any Smart Array Controller or SAS HBA requires the purchase of the HP SAS
Cable for the ML310 G5.
NOTE:
See the "Storage" section of these QuickSpecs for information on required
to support SATA and SAS hard drive configurations.
Storage
Optical
Drive
SATA DVD-ROM Drive Standard
Diskette Drive
Optional
1.44 MB Diskette Drive NOTE: Use of the embedded SATA RAID
feature with a Linux operating system requires installation of a driver
from a floppy drive. The supported floppy drive can be a USB drive key,
USB floppy drive, half-height internal floppy drive, or virtual floppy via
Integrated Lights-Out 2 (iLO 2).
Maximum
Internal Storage
Hot Plug SAS
(3.5")
4.0TB
4 x 1TB SAS
Hot Plug
SATA (3.5")
4.0TB
4 x 1TB SATA
NOTE:
See the "Storage" section of these QuickSpecs for information on controllers
required to support SATA and SAS hard drive configurations.
HP Insight Control suite delivers essential infrastructure management,
including proactive health management, lights out remote control, optimization
of power usage, rapid server deployment, performance analysis, vulnerability
scanning and patch management and virtual machine management.
HP Insight Control suite installs and licenses the following components
by default using a wizard-based integrated installer:
HP Systems Insight Manager (SIM)
HP iLO Advanced Pack
HP Insight Rapid Deployment software (RDP)
HP Insight Power Manager (IPM)
HP Insight Performance Manager module (PMP)
HP Insight Vulnerability and Patch Manager module (VPM)
HP Insight Virtual Machine Manager software for ProLiant (VMM)
Additional Insight software standalone products and management tools
included on the Insight Software media kit can be installed manually:
HP Insight Server Migration software for ProLiant (SMP) NOTE: HP Insight Server Migration
software for ProLiant is licensed separately from Insight Control suite.
HP Open Service Event Manager
HP Insight Remote Support Standard
HP Insight Remote Support Advanced (previously Service Essentials
Remote Support Pack)
NOTE: Insight Server Migration
software for ProLiant can be installed from the SMP CD included in the
Insight Software media kit. NOTE: For additional product and licensing information about HP
Insight Control suite, visit: http://www.hp.com/go/ice.
NOTE: As of Feb. 1, 2009, HP iLO Power Management Pack is being
discontinued. Customers can either purchase HP Insight Control suite which
contains all the components of IPMP or the standalone components which
include iLO Advanced, Insight Power Manager and Systems Insight Manager.
HP Insight Control suite and most Insight software products include one
year of 24 x 7 HP Software Technical Support and Update Service ensuring
rapid access to HP support staff and proactive delivery of software updates.
For more information about this service, please visit: http://www.hp.com/services/insight.
HP ProLiant Onboard Administrator
HP ProLiant Onboard Administrator (powered by the Integrated Lights-Out
2 management processor) simplifies server setup, health monitoring, power
and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP ProLiant Onboard Administrator functions without
additional software, and can be accessed from any location via a web browser.
It works hand-in-hand with HP Systems Insight Manager, Insight Control,
and Insight Dynamics - VSE suite helping customers unlock the value of
the ProLiant platform and deliver the highest possible quality of IT service
to the business.
Capabilities of the HP ProLiant Onboard Administrator embedded in ProLiant
ML/DL servers include, but are not limited to the following:
Rom-based Setup Utility (RBSU) and Option Rom Configuration for Arrays
(ORCA)
Hot Spare Boot NOTE: Upon the event of a failed
processor in a multi-processing environment, the system will automatically
reboot and attempt to use the remaining good processor.
Unlock the full remote administration capabilities of HP ProLiant Onboard
Administrator with Integrated Lights-Out 2 Advanced.
Server Management
Stand Alone Software Product - Insight software
HP Systems Insight Manager (SIM)
HP Systems Insight Manager (HP
SIM) provides a unified, secure and extensible standards-based environment
to centrally manage servers, storage and other infrastructure devices, (both
HP and non-HP) across multiple operating system platforms.
For additional information, please see: www.hp.com/go/hpsim
HP Insight Rapid Deployment
software (RDP)
HP Insight Rapid Deployment Software (RDP) extends HP Systems Insight
Manager with a complete deployment solution for HP ProLiant servers. RDP
provides a central location to configure server hardware, deploy Windows,
Linux and VMware ESX operating environments and install HP ProLiant Support
Pack drivers using images and scripted profiles. For more information,
visit: http://www.hp.com/go/rdp.
HP Insight Server Migration
software for ProLiant (SMP)
Upgrading, replacing, or virtualizing your existing server? Effortlessly
transition to new virtual or physical HP ProLiant servers or BladeSystem
with automated, accurate and affordable migration of OS, application and
data. Insight Server Migration software for ProLiant (SMP) automates the
manual processes required for migrating servers between physical or virtual
platforms, whether migrating to VMware or Microsoft virtual machines.
SMP allows all of the following migrations:
The HP Insight Dynamics - VSE
suite for ProLiant is advanced infrastructure management software that allows
you to analyze and optimize your adaptive infrastructure to manage physical
and virtual resources in the same way. HP Insight Dynamics - VSE gives you
a powerful toolkit to accelerate complex technology projects and simplify
daily operations. It enables you to plan capacity and power continuously,
balance across physical and virtual resources, ensure cost-effective high
availability and provision infrastructure consistently. NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics
HP Integrated Lights-Out (iLO)
Advanced Pack
Unlocks the full capabilities
of the ProLiant Onboard Administrator with comprehensive remote control
including Virtual KVM remote graphical console, power management capabilities
such as power measurement, regulation, and capping, new iLO Text Console,
automatic and on-demand video recording of server events, global team collaboration
for up to four remote users, virtual media (floppy, CD/DVD, USB key), virtual
folders, and enterprise security (directory services and two-factor authentication).
For additional information, please see: www.hp.com/go/iLO
HP Insight Virtual Machine Manager
software for ProLiant (VMM)
Get the most out of server virtualization
by unifying the management of physical and virtual servers in HP Systems
Insight Manager software. The Insight Virtual Machine Manager software for
ProLiant provides central management and control of VMware and Microsoft
virtual machines and provides physical host to virtual machine association.
For additional information, please see: http://www.hp.com/go/vm-manage.
NOTE:
Flexible and volume quantity license kits are available for Value Packs.
Refer to: http://www.hp.com/servers/proliantessentials
or the various Value Pack product QuickSpecs for more information.
Core Infrastructure
Management
HP Foundation Pack
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecyle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: www.hp.com/go/foundation.
The Insight Management Agents should be installed on all HP servers to
present system instrumentation, health and configuration information into
HP Systems Insight Manager and the HP System Management Homepage. The
HP System Management Homepage aggregates systems data from Insight Management
Agents and other HP management tools, providing a consolidated browser-based
interface for managing individual servers.
Insight Management Agents and The HP System Management Homepage are included
on ProLiant Support Packs, and can also be installed using the server
profiles provided with the Rapid Deployment Pack.
For additional information about the Management Agents and the HP System
Management Homepage please visit the management Web site at: http://www.hp.com/servers/manage.
Subscriber's Choice
Subscriber's Choice Driver and
Support Alerts/Notifications is a web-based email subscription service that
provides software and driver change notifications for ProLiant products.
Sign up at: http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ProLiant Support Packs and ROMPaq,
software
The latest software, drivers,
and firmware fully optimized and tested for your ProLiant server and options,
available through ProLiant Support Packs the Rapid Deployment Pack, SmartStart
or downloaded from software and drivers download pages website at: http://www.hp.com/go/support.
Industry
Standard Compliance
ACPI V1.0b
and 2.0 Compliant PCI 3.0 Compliant PCI-X 3.0 Compliant PCI-Express
3.0 Compliant PXE Support WOL Support Microsoft Logo certifications
Novell Logo certifications USB 2.0
Manageability
HP Systems Insight Manager
Online ROM Flash Utility
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory and SAS hard drives)
BIOS Serial Console
Security
Power-on password
Setup password
Diskette boot control
Power switch security
Server
Power Cords
All models ship
with one 1.8m (6 foot) standard low-line, power cord. Localized cables included
with models in other world regions. NOTE:
HP ProLiant ML310 a C13 to C14 2.8M jumper cord ships standard. If customers require
a local power cord, they can check the power cord matrix for the appropriate sku.
Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.
410 Watt PFC (Power Factor
Correcting) non-hot plug non-redundant power supply or 430 Watt PFC hot plug redundant
power supplies (ships with two power supplies)
NOTE: The ML310 Embedded SATA RAID
feature is not available for use with Netware. NOTE: For more information on HP's Certified and Supported ProLiant
Servers for OS and Virtualization Software and latest listing of software
drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport
and our driver download page www.hp.com/support/ML310G5.
Factory
Express Portfolio for Servers and Storage
HP
Factory Express offers configuration, customization, integration and deployment
services for HP servers and storage products. Customers can choose how their factory
solutions are built, tested, integrated, shipped and deployed.
Factory Express
offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such
as image loading, asset tagging, and custom packaging. HP products supported through
Factory Express include a wide array of servers and storage: HP Integrity, HP
ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as
the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services for your specific
server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
KVM
Switches, Serial Console Servers, Rackmount Monitors, Keyboards:
For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following
URL: http://www.hp.com/go/kvm.
HP Enterprise Configurator
The
HP eConfigure-Enterprise Configurator now provides factory default racking for
our HP hardware portfolio. This approach is aligned with our strategic direction
to meet the needs and expectations of our valued customers. If you require "custom"
rack configuration, please contact HP's Customer Business Center or an Authorized
Partner for assistance. http://www.hp.com/products/configurator.
Service and Support
HP Care Pack Services provide total care and support expertise with committed
response times designed to meet your IT and business needs.
HP Care Pack services include coverage for the HP branded hardware options
qualified for the server that are purchased at the same time or afterward
and internal to the enclosure. It also includes the 22-inch and smaller
external monitors and tower UPS options up to 3kVA. These items will be
covered at the same service level and for the same coverage period as
the server. Coverage of UPS Battery is not included and standard warranty
terms & conditions apply. For servers or storage systems installed
within a rack, service also covers all HP qualified rack options installed
within the same rack.
To fully capitalizing on your HP ProLiant servers' capabilities requires
a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of support
solutions provides a range of support services designed to meet the varying
needs of your business. Whether an SMB, or large global corporation, HP
has ProLiant server support offers to help you speedily deploy and maximize
system uptime.
Recommended Service – simplify ProLiant solution implementation,
maintenance, and management.
Support – 3-Year 9x5 Next Business Day coverage, excluding
HP holidays only
Deployment Service – HW Installation only
Enhanced Service – optimize service level to increase IT
performance and availability.
Support – 3-Yyear 13x5 Same Business Day, 4-Hour response
coverage only
Deployment Service – Installation and Start up only
Refer to the information on the Installation of a ProLiant on the ProLiant
Data Sheet; to be delivered on a scheduled basis 8am-5pm, M-F, excluding
HP holidays.
HP SC40Ge SAS HBA with RAID
0, 1 in a PCIe slot NOTE: When using the SC40Ge with
SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5
Gb/s SATA, 3 Gb/s SAS.
Hard
Drives
None ship standard (up
to 4 hot plug SAS or SATA 3.5" drives supported)
Internal
Storage
SAS: 4.0TB maximum;
SATA: 4.0TB maximum
Optical
Drive
SATA DVD-ROM Drive
Diskette Drive
None
ship standard (Optional 1.44 MB Diskette Drive available)
Power
Supply
410W non-hot plug non-redundant
power supply
Form
Factor
Tower (5U) (Optional
Tower to Rack Enabling Kit available, system & tray occupy 6U)
The
ProLiant Smart Buy program offers a collection of promotional server and option
products that are configured with SMB in mind, offered at discounted prices, and
positioned for quick delivery. Smart Buy server offers are available for a limited
time only.
Configuration Information - Factory Integrated Models
NOTE:
This section lists some of the steps required to configure a Factory Integrated
Model. To ensure only valid configurations are ordered, HP recommends the
use of an HP approved configurator. Contact your local sales representative
for information on CTO product offerings and requirements. NOTE: HP does not allow factory integration of options into standard
models listed above. Configure-to-order servers must start with a CTO Chassis. NOTE: FIO indicates that this option only available as a Factory
Installable Option.
Step 1: Base Configuration
Models
HP ProLiant ML310 G5 CTO Chassis
445343-B21
Factory Integrated Models ship
with:
Embedded NC326i Gigabit Server
Adapter
Integrated Four Port SATA Controller
(HP-SATA/SAS chassis only)
Keyboard and Mouse
Step 2: Choose Required
Options (only one of the following from each list unless otherwise noted)
HP SC40Ge SAS HBA, FIO NOTE:
RAID 0, 1. NOTE: When using the SC40Ge with SATA Hard Drives, 1.5G
SATA Hard Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
449176-B21
HP
SC44Ge Host Bus Adapter NOTE: RAID
0, 1. NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA
Hard Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
NOTE: When SATA
hard drives are installed, SATA LED functionality and full SATA hot-plug
capability are not supported with the embedded controller. For full LED
and hot-plug support, an optional SAS RAID controller must be installed. NOTE: When hot-plug SATA hard drives are installed, SATA LED functionality
and full SATA hot-plug capability are not supported with the embedded controller.
For full LED and hot-plug support, an optional SATA RAID or SAS controller
must be installed. SAS Controllers support both SAS and SATA hard drives.
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and
the server backplane) should operate at the same data transfer rate or the
system bandwidth will be negotiated down to an acceptable level for all
components.
SAS Hot Plug 3.5" Enterprise
(ENT) Drives NOTE: SAS HBA or array controller
is required.
NOTE:
Electronic licensing options are available for Insight Control suite software
products. Please see the appropriate Insight Control QuickSpecs for additional
information. www.hp.com/go/ice
HP Insight Control Environment (ICE)
HP Insight Control Environment, No Media
1-Server License including 1 year of 24x7 Technical Support and Updates NOTE:
This part number can be purchased as a single license or as multiple licenses
with a single activation key. Customer will receive a license entitlement certificate
via e-mail. The license entitlement certificate must be redeemed online or via
fax in order to obtain the license activation key(s). Includes one year of 24
x 7 HP Software Technical Support and Update Service. Only available directly
from HP and select resellers in the Americas region.
452148-B22
HP Insight Software Media Kit NOTE:
Insight Software DVD media without licenses. Contains Systems Insight Manager
and Insight software products and components licensed by Insight Control suite.
Uses an integrated installer to perform quick and accurate software installation
and updates.
436222-B21
HP Insight Control suite for Linux (ICE-LX)
HP Insight Control suite for Linux, Media
pack (DVD) - No licenses included NOTE:
This optional Media pack DVD contains the ISO image for HP Insight Control suite
for Linux, HP Systems Insight Manager, HP Insight Power Manager, HP Insight Virtual
Machine Manager software for ProLiant, and an integrated installer. Servers must
be acquired separately. NOTE: This Media pack is optional because the
latest ISO image and latest updates may be downloaded at no cost from: http://www.hp.com/go/ice-linux
(click on Download button).
464422-B22
HP Insight Control suite for Linux, No Media,
1-Server license, including one year of 24x7 Technical Support and Updates NOTE: This part number can be used to purchase
one (1) license with a single activation key. Customer will receive a printed
license entitlement certificate via physical shipment. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license
activation key(s). Includes one year of 24 x 7 HP Software Technical Support and
Update Service. NOTE: One certificate is shipped for each license.
Server
Management Stand Alone Software Products - Insight software
NOTE:
Electronic licensing options are available for select software products. Please
see the appropriate Insight Software standalone product QuickSpecs for additional
information.
Deploy
HP Insight Rapid Deployment software (RDP)
HP Insight Rapid Deployment software No
Media 1-Server License including 1 year of 24x7 Technical Support and Updates NOTE: This license allows 1 server to be
deployed and managed via RDP. Customer will receive a printed license entitlement
certificate via physical shipment. The license entitlement certificate must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support Service NOTE: For
additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.html
452151-B21
HP Insight Server Migration software for
ProLiant (SMP)
HP Insight Server Migration software for
ProLiant, No Media, Physical / Virtual to ProLiant Single Migration License, including
1 year of 24x7 Technical Support and Updates NOTE:
This license allows 1 physical to ProLiant or virtual to ProLiant migration. Customer
will receive a printed license entitlement certificate and documentation via physical
shipment. The license entitlement certificate must be redeemed online or via fax
in order to obtain the license activation key(s). Includes one year of 24 x 7
HP Software Technical Support and Update Service.
460750-B21
HP Insight Server Migration software for
ProLiant, No Media, Physical / Virtual to Virtual Single Migration License, including
1 year of 24x7 Technical Support and Updates NOTE:
This license allows 1 physical to virtual or virtual to virtual migration. Customer
will receive a printed license entitlement certificate and documentation via physical
shipment. The license entitlement certificate must be redeemed online or via fax
in order to obtain the license activation key(s). Includes one year of 24 x 7
HP Software Technical Support and Update Service.
460753-B21
HP Insight Server Migration software for
ProLiant, No Media, 1-Year Unlimited Migration License, including 1 year of 24x7
Technical Support NOTE: This license
allows unlimited migrations (physical to ProLiant, physical to virtual, virtual
to virtual, and virtual to ProLiant) for one year. Customer will receive a printed
license entitlement certificate and documentation via physical shipment. The license
entitlement certificate must be redeemed online or via fax in order to obtain
the license activation key(s). Includes one year of 24 x 7 HP Software Technical
Support Service.
HP Insight Dynamics-VSE with Insight Control
Environment, 1-server license including 1 year of 24x7 Technical Support and Updates NOTE: This license supports HP ProLiant
ML/DL servers. Customer will receive a printed license entitlement certificate
via physical shipment.
483527-B21
HP Insight Dynamics-VSE without Insight
Control Environment, 1-server license including 1 year of 24x7 Technical Support
and Updates NOTE: This license supports
HP ProLiant ML/DL and c-Class Blade and c-Class Blade servers. Customer will receive
via email a receipt and link to a license entitlement certificate.
HP Insight Virtual Machine Manager software
for ProLiant (VMM)
Insight Virtual Machine Manager software
for ProLiant, No Media, 1-Server License, including 1 year of 24x7 Technical Support
and Updates NOTE: Customer will receive
a printed license entitlement certificate via physical shipment. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license
activation key(s). Includes one year of 24 x 7 HP Software Technical Support and
Update Service. NOTE: For additional License Kits, please see the QuickSpecs
at: http://h18000.www1.hp.com/products/quickspecs/12328_na/12328_na.html
452153-B21
NOTE: Flexible and volume
quantity license kits are available for Insight software products. Refer to: http://www.hp.com/go/insightcontrol
or the various Insight software product QuickSpecs for more information.
Storage Controllers
SAS Cable NOTE:A
SAS HBA or Controller is required if SAS hard drives are selected. SAS HBAs
support both SAS and SATA hard drives. Some SAS HBAs also have SAS tape
support. Please refer to the "Tape Drives, Tape Autoloader & Tape
Libraries" table in the Storage section for a list of SAS HBAs with
tape support.
HP SAS Cable ML310 G5
460310-B21
NOTE:
Any SAS HBA or Smart Array Controller requires the purchase of the
HP SAS Cable ML310 G5 (460310-B21).
HP SA-P400 and SA-E500 24 In Battery
Cable Kit NOTE: This option kit contains a
24" battery cable and adhesive material for installing a batter into
the server if a Smart Array E500 is integrated outside of the factory. For
all solutions, please refer to the server QuickSpecs and User's Manual for
detailed installation instructions.
HP SC44Ge Host Bus Adapter NOTE: When using the SC44Ge with
SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5
Gb/s SATA, 3 Gb/s SAS.
HP 8 Internal Port SAS HBA with
RAID NOTE: When using the 8 Internal Port
SAS HBA with SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer
rate: 1.5 Gb/s SATA, 3 Gb/s SAS. NOTE: Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
SCSI Controllers for External
Drive/Storage Support
64-Bit/133-MHz Single Channel
Ultra320 SCSI HBA G2 NOTE: If a Non-Hot Plug SCSI Tape
Drive is selected in any model, then customer must add either 374654-B21
or 412911-B21.
HP SC11Xe Host Bus Adapter NOTE: Recommended HBA for SCSI tape
drive connect. NOTE: If a Non-Hot Plug SCSI Tape Drive is selected in any model,
then customer must add either 374654-B21 or 412911-B21.
HP ML310 G5 PCI-X Extender Board
Kit NOTE: An additional fan is required
with PCI-X Extender Board. This fan is included in the HP ML310 G5 PCI-X
Extender Board Kit.
451778-B21
Serial / Parallel Port Kit
HP ProLiant Second Serial / Parallel
port option kit
SAS Tape Drives NOTE: For the ML310 G5, HP recommends
purchasing the HP SC44Ge HBA ( 416096-B21) for a dedicated SAS HBA for tape.
HP StorageWorks LTO-2 Ultrium
448 SAS Internal Tape Drive
DW085A
HP StorageWorks LTO-4 Ultrium
1760 SAS Internal Tape Drive
EH919A
NOTE: Please refer
to the "Tape Drives, Tape Autoloaders & Tape Libraries" table in the
Storage section of this document for a list of SAS controllers with tape
support.
For
an up-to-date listing of the latest O/S and software support details for
HP Ultrium tape drives, please visit: http://www.hp.com/go/connect
Disk-Based Backup
RDX Removable Disk Backup
HP StorageWorks RDX320 Internal
Removable Disk Backup System NOTE: 320GB of Disk Storage.
AJ767A
D2D Backup
HP StorageWorks D2D2502i Backup
System NOTE: 2 TB raw capacity/1.5 TB useable
capacity.
EJ001A
HP StorageWorks D2D2504i Backup
System NOTE: 4 TB raw capacity/3 TB useable
capacity.
EJ002A
NOTE: Please see
the HP D2D Backup Systems QuickSpecs for additional information: http://www.hp.com/go/d2d
Tape Autoloaders
HP StorageWorks 1/8 G2 Tape
Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium
1760 SAS Tape Autoloader
AK377A
HP StorageWorks 1/8 G2 LTO-3 Ultrium
920 SAS Autoloader
AH558A
HP StorageWorks 1/8 G2 Tape Autoloader
Rack Kit NOTE: Required to install the 1/8
G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount
instructions
AH166A
NOTE: Please
reference the Tape Autoloader QuickSpecs at: http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at: http://www.hp.com/go/ebs
Tape Libraries
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4
Ultrium 1760 SAS Drive Library
AK378A
HP StorageWorks MSL2024 1 LTO-3
Ultrium 920 SAS Drive Library
AH559A
HP StorageWorks MSL4048 Tape
Library
HP StorageWorks MSL4048 2 LTO-4
Ultrium 1760 SAS Drive Library
AK380A
HP StorageWorks MSL4048 1 LTO-3
Ultrium 920 SAS Drive Library
AH560A
NOTE: Please reference
the MSL Tape Library QuickSpecs at: http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at: http://www.hp.com/go/ebs.
StorageWorks Options
StorageWorks SCSI HBA
HP U320e SCSI Host Bus Adapter NOTE: Recommended HBA for MSL SCSI
Tape Library connect.
NOTE:
For additional information on HP Uninterruptable Power Systems please go to:
www.hp.com/servers/rackups.
Rack Kits
ProLiant Rack
Enabling Kit (RoHS Compliant)
417705-B21
NOTE:
This is a Rack Enabling Kit that supports the HP ProLiant ML110 and HP ProLiant
ML310 servers (system & tray occupy 6U). NOTE: Support for racks
with round or square mounting holes (including all Compaq and HP Rack System /E
and HP Systems), with an adjustment range of 24" - 36".
USB Options
HP USB-P/S2 Optical Mouse
DC369A
USB 1.44-MB External Diskette
Drive (Carbonite)
DC141B
HP USB 04 Standard Keyboard
DT528A#ABA
HP 1GB USB 2.0 Floppy Drive Key
442085-B21
Service
and Support Offerings
(HP Care Pack Services)
Hardware Services On-site Service
Next Business Day On-site Service,
5-Day x 9-Hour Coverage, 3 Years, Electronic
U4445E
NOTE: To attach
3 year, 4-Hour On-site Service to Smart Buy servers, Smart Buy Care Packs
must be used. For other service levels, order standard Care Pack part numbers.
4-Hour On-site Service, 5-Day
x 13-Hour Coverage, 3 Years, Electronic
U4446E
4-Hour On-site Service, 7-Day
x 24-Hour Coverage, 3 Years, Electronic
U4447E
NOTE: Use one
of the following Smart Buy Care Packs to attach 3 year, 4-Hour On-site Service
to Smart Buy servers. For other service levels, order standard Care Pack
part numbers.
ML310 Smart Buy 4-Hour On-site
Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UE899E
ML310 Smart Buy 4-Hour On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UE900E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4448E
Installation & Start-up Services
Hardware Installation, Electronic
U4456E
Installation & Start-Up of
a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl.
HP holidays, Electronic
U4457E
Support Plus
Onsite HW support, 8am-9pm, M-F,
4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion,
8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4458E
Support Plus 24
Onsite HW support 24x7, 4hr response
and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7
2hr response time incl. HP holidays, Electronic
U4459E
Onsite HW support 24x7, 4hr response
and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7
2hr response time incl. HP holidays, Electronic
U6306E
Onsite HW support 24x7, 4hr response
and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion,
24x7 2hr response time incl. HP holidays, Electronic
NOTE: Memory
configurations listed do not apply to "Factory Integrated Models".
HP ProLiant ML310 G5 Memory Configuration
Standard Memory
All HP ProLiant ML310 G5 models ship with unbuffered, ECC PC2-6400 DDR2
SDRAM running at 800MHz.
Dual-core models include a single 512 MB DIMM. Quad-core models include
a single 1GB DIMM.
Factory Integrated Models include the memory capacity of your choice.
Standard Memory Replaced with Optional Memory
Up to 8 GB memory is available with the optional installation of four
2 GB PC2-6400 Unbuffered ECC DDR2 SDRAM DIMM kits.
DIMM upgrades do not need to be installed in pairs
although installation of pairs (an equal size DIMM for each channel) provides
the best performance. The BIOS will detect the DIMM population and initialize
the system accordingly as follows:
Single-channel mode – DIMMs installed
for one channel only
Dual-channel asymmetric mode – DIMMs installed
for both channels but of unequal channel capacities.
Dual-channel interleaved mode (recommended)
– DIMMs installed for both channels and offering equal channel
capacities, providing the highest performance.
The first DIMM should be installed in Socket 1. A DIMM
should not be installed in Socket 2 without a DIMM in Socket 1. Likewise
a DIMM should not be installed in Socket 4 without a DIMM in Socket 3.
A DIMM need not be installed in Socket 2 in order to install a DIMM in
Socket 3.
Table 3-1 shows some of the suggested memory configurations
for these systems. NOTE: Table 3-1 does not list all
possible configurations. Balanced-capacity, dual-channel loading yields
best performance.
Hard Drives NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, firmware, and the server
backplane) should operate at the same data transfer rate or the system
bandwidth will be negotiated down to an acceptable level for all components.
SAS Hot Plug 3.5"
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
450GB 3G SAS 15K DP
400GB 3G SAS 10K DP
300GB 3G SAS 15K SP
300GB 3G SAS 15K DP
146GB 3G SAS 15K SP
146GB 3G SAS 15K DP
72GB 3G SAS 15K SP
72GB 3G SAS 15K DP
Up to 4
1-4
HP SC40Ge SAS HBA with RAID NOTE: When using the SC40Ge with
SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5
Gb/s SATA, 3 Gb/s SAS.
HP 8 Internal Port SAS HBA with RAID NOTE: Transfer rate: 1.5 Gb/s SATA,
3 Gb/s SAS.
HP Smart Array E200/128 BBWC Controller
HP Smart Array E500/256 MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 MB BBWC Controller
HP Smart Array P800/512 BBWC Controller
NOTE:
Use of SAS hard drives in SATA/SAS models requires installation of one of
the controllers or HBAs listed above.
SAS Hot Plug 3.5"
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
1TB 7.2K DP
750GB 7.2K DP
Up to 4
1-4
HP SC40Ge SAS HBA with RAID NOTE: When using the SC40Ge with
SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5
Gb/s SATA, 3 Gb/s SAS.
HP 8 Internal Port SAS HBA with RAID NOTE: Transfer rate: 1.5 Gb/s SATA,
3 Gb/s SAS.
HP Smart Array E200/128 BBWC Controller
HP Smart Array E500/256 MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 MB BBWC Controller
HP Smart Array P800/512 BBWC Controller
NOTE:
Use of SAS hard drives in SATA/SAS models requires installation of
one of the controllers or HBAs listed above.
SATA Hot Plug 3.5"
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
1TB 3G SATA 7.2K
750GB 3G SATA 7.2K
500GB 3G SATA 7.2K
250GB 3G SATA 7.2K
Up to 2
Up to 4 NOTE: depending on model.
1-2
1-4 NOTE: depending on model.
HP 8 Internal Port SAS HBA with
RAID NOTE: Transfer rate: 1.5 Gb/s SATA,
3 Gb/s SAS.
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P800/512MB BBWC Controller
NOTE:
Hot plug capability and drive LED status support requires installation of
one of the controllers or HBAs listed above.
SATA Hot Plug 3.5"
Entry (ETY) Drives
Quantity
Supported
Position
Supported
Controller
160GB 3G SATA 7.2K
Up to 4
1-4
HP 8 Internal Port SAS HBA with
RAID NOTE: Transfer rate: 1.5 Gb/s SATA,
3 Gb/s SAS.
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P800/512MB BBWC Controller
NOTE:
Hot plug capability and drive LED status support requires installation of
one of the controllers or HBAs listed above.
3.5” SATA Hot
Plug Drives
Quantity
Supported
Position
Supported
Controller
750GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
Up to 4
1-4
HP SC44Ge Host Bus Adapter NOTE: When using the SC44Ge with
SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5
Gb/s SATA, 3 Gb/s SAS.
HP 8 Internal Port SAS HBA with RAID NOTE: When using the 8 Internal Port
SAS HBA with SATA Hard Drives, 1.5G SATA Hard Drives are required. NOTE: Transfer rate: 1.5 Gb/s SATA,
3 Gb/s SAS.
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P800/512MB BBWC Controller
NOTE:
Hot plug capability and drive LED status support requires installation of
one of the controllers or HBAs listed above.
External Storage
Quantity
Supported
Position Supported
Controller
60
Modular Smart Array
Up to 8
External
HP
Smart Array P800/512 BBWC Controller HP Smart Array E500/256 MB Controller
70 Modular Smart Array
Up to 4
External
HP
Smart Array P800/512 BBWC Controller HP Smart Array E500/256 MB Controller
HP 2000sa Modular Smart Array
Controller
Up to
4
External
HP
SC08Ge Host Bus Adapter
Tape
and Disk-Based Backup
NOTE: For a complete listing of compatible
tape and disk-based backup offerings, please visit: www.hp.com/go/connect
Position
Supported
Controller
Controller/HBA Option Kit Part
Number
HP
StorageWorks SCSI Tape Drives, Internal LTO-1 Ultrium 232 LTO-2
Ultrium 448 LTO-3 Ultrium 920 LTO-4 Ultrium 1760 DAT 40 DAT 72 DAT
160
HP
StorageWorks SAS Tape Drives, External DAT 160 SAS LTO-2 Ultrium
448 SAS LTO-3 Ultrium 920 SAS LTO-4 Ultrium 1760 SAS LTO-4 Ultrium
1840 SAS 1U Rack-Mount Kit 3U Rack-Mount Kit
HP StorageWorks SAS Tape Automation,
External 1/8 G2 Autoloader MSL2024 MSL4048
External
HP SC44Ge Host Bus Adapter NOTE:
Please visit: http://www.hp.com/go/connect
for details about minimum SAS controller firmware version and SAS cabling requirements.
To review typical system power ratings use the Active Answers HP Power
Advisor which is available via the online tool located at URL: www.hp.com/go/proliant-energy-efficienct
- Click on the system of interest. Example: ML310 G5 - Follow
the instructions of the next screens.
Power
Supply Output
(per power supply)
Rated
Steady-State Power
400 W (at
100 VAC), 400 W (at 200 VAC)
Maximum
Peak Power
400 W (at 100 VAC),
400 W (at 200 VAC)
System
Inlet Temperature
Operating
10°
to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C
per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of
3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the type and number of options
installed. System performance may be reduced if operating with a fan fault
or above 30°C (86°F).
Non-operating
-30°
to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative
Humidity (non-condensing)
Operating
10
to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature,
non-condensing.
Non-operating
5
to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature,
non-condensing.
Altitude
Operating
3050
m (10,000 ft). This value may be limited by the type and number of options installed.
Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating
9144
m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed
are the declared A-Weighted sound power levels (LWAd) and declared average bystander
position A-Weighted sound pressure levels (LpAm) when the product is operating
in a 23°C ambient environment. Noise emissions were measured in accordance
with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
L
WAd (BELS)
5.0 B
L
pAm (dBA)
32 dBA
Operating
L
WAd (BELS)
5.0 B
L
pAm (dBA)
32 dBA
Emissions
Classification (EMC)
FCC
Rating
B
Normative
Standards
CISPR 22; EN55022; EN55024;
FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3;
EN 60950-1; IEC 60950-1
NOTE:
Product conformance to cited product specifications is based on sample (type)
testing, evaluation, or assessment. This product or family of products is eligible
to bear the appropriate compliance logos and statements.
120 mm, 80 mm (with adapter at
vertical mounting mode)
Loading Mechanism
Tray type Auto Loading
Interface
SATA 1.5
Access Times (typical)
Random
DVD-ROM < 140 ms, CD-ROM <
125 ms
Full-Stroke
DVD-ROM < 250 ms, CD-ROM <
210 ms
Data Transfer Rate (sustained)
DVD-ROM
21.6 MB/sec. Max.
CD-ROM
6 MB/sec. Max.
Cache Buffer
2 MB
Spin-up Time (typical)
less than 10 seconds
MTBF
125,000 Power On Hours (POH)
Ambient Temperature
Operating
41° to 122° F (5°
to 50° C)
Storage/Transportation
-40° to 120° F (-40°
to 60° C)
Relative Humidity
Operating
10% to 90%
Storage/Transportation
5% to 95%
Drive Dimensions (HxWxD, maximum)
1.62 x 5.75 x 7.87 in (41.3 x
146 x 200 mm)
HP SC40Ge SAS Host Bus Adapter with RAID
RAID
Support
RAID 1 (Mirroring) RAID
0 (Striping)
Logical
Drives Supported
Up to 2 Logical
Volumes Up to 10 drives total in all RAID volumes Up to 2 Drives per RAID
1 Up to 8 Drives per RAID 0
Maximum
Capacity
4TB (4 x 1TB)
Data Transfer Method
64-bit
wide, PCIe 133 MHz (1 GB/s maximum bandwidth)
Port
Transfer Rate
12 Gb/s per x4 Wide
SAS Port (4 x 3 Gb/s)
Simultaneous
Drive Transfer Ports
2 x4 Wide SAS
Connectors
Protocols
3 Gbps SAS (Serial Attached SCSI) 1.5 Gbps SATA (Serial Advanced Technology
Attachment)
External
SAS Connectors
None
Internal SAS Connectors
2
internal SFF8484 x4 SAS Connectors
Upgradeable
Firmware
4MB flashable ROM
Embedded NC326i Gigabit Server Adapter
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method
Four lane (x4), 100MHz PCI Express
Reference Clock
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and Full-Duplex)
2000Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to
328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100
m)
Environment-friendly Products
and Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
US Site
DL Quickspecs
Search:
450260-B21
© 2012 Canada PartsDirect
