Powered by latest AMD Opteron™
6 Core Processors, the HP ProLiant DL785 G6, is the next generation server
of the award winning HP ProLiant DL785 G5. HP ProLiant DL785 G6 is an 8
socket x86 server, supporting up to eight Six-Core AMD Opteron™ Processors,
512GB of memory, 11 PCI-e I/O slots or an optional I/O backplane with 7
PCI-e & 2 HTx I/O slots. With this highly expandable feature set, the
DL785 G6 is an ideal choice for the growing enterprise class database, consolidation
and virtualization environments seeking to improve server utilization and
reduce server and virtualization sprawl, while continuing to leverage all
the familiar and easy to use ProLiant management tools and options.

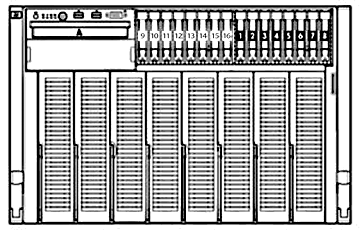

Front View:
Rear View:
1.
Front Panel LED display (internal and external health, Unit ID button
& LED, NIC LED and Power Button
1.
NIC connector 1
2.
Keyboard connector
2.
System Insight Display (SID)
3.
USB connector
3.
Slimline Media Bay
4.
Video connector
4.
Processor Memory Cells (1 - 8)
5.
Serial connector
5.
Eight bay Small
Form Factor (SFF) Serial Attached SCSI (SAS) drive cage
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section.
Processor Four or eight of the following depending
on Model
NOTE: Processor
wattage references reflect Average CPU Power (ACP). For more information
on ACP visit: http://www.amd.com/powernow.
NOTE: 4 or 8
supported. NOTE: Up to 2.8GHz clock speed.
Cache
Memory One of the following depending on Model
512 KB Level 2 cache memory
per core
6 MB Level 3 cache memory
Chipset
Serverworks HT-2100 Northbridge
and HT-1000 Southbridge chipset
Upgradeability
Supports up to 8
processors
Memory Protection
Advanced ECC
Memory One of the following depending on Model
Type
REG PC2-5300 DIMMs (DDR2-667)
REG PC2-6400 DIMMs (DDR2-800)
Standard PC2-6400
64 GB (16 x 4 GB)
32 GB (8 x 4 GB)
Maximum
512 GB (64 x 8 GB)
NOTE: Support
of low-power or regular PC2-5300 or PC2-6400 registered DIMMs.
Network Controller
Two HP NC371i Multifunction Gigabit
Network Adapters with TCP/IP Offload Engine, including support for Accelerated
iSCSI through an optional Licensing Kit
Expansion Slots
I/O backplane with 11 PCIe slots
Expansion Slots
#
Technology
Bus
Width
Connector Width
Bus
Number
Form
Factor
Notes
1
PCIe
x8
x16
4
Full-size
2
PCIe
x4
x8
7
Full-size
3
PCIe
x4
x8
10
Full-size
4
PCIe
x4
x8
13
Full-size
5
PCIe
x16
x16
65
Full-size
6
PCIe
x4
x8
68
Full-size
7
PCIe
x4
x8
71
Full-size
8
PCIe
x16
x16
129
Full-size
9
PCIe
x8
x16
132
Full-size
10
PCIe
x16
x16
193
Full-size
11
PCIe
x8
x16
196
Full-size
NOTE:
Bus Number - Default bus assignment (in Decimal format). Inserting cards
with PCI bridges may alter the actual bus assignment number NOTE: Bus Width - Indicates the number of physical electrical lanes
running to the connector NOTE: All slots are non-hot-plug Default bus assignment. Inserting
cards with PCI bridges may alter the actual bus assignment number. Slots
are enumerated differently based on the operating system. Microsoft operating
systems enumerate from lowest to highest Device ID by bus (starting with
the lowest bus). NOTE: 11 total slots: (3) x16 PCI-Express; (3) x8 PCI-Express; (5)
x4 PCI-Express. Optional backplane with 9 total slots: (2) x16 HTx ; (1)
x16 PCI-Express; (1) x8 PCI-Express; (5) x4 PCI-Express. NOTE: VMware is not supported on DL785 G6 with backplane that has
(2) HTx slots and (7) PCI-Express slots.
I/O backplane with
7 PCIe & 2 HTx slots
Expansion Slots
#
Technology
Bus
Width
Connector Width
Bus
Number
Form
Factor
Notes
1
PCIe
x8
x16
4
Full-size
2
PCIe
x4
x8
7
Full-size
3
PCIe
x4
x8
10
Full-size
4
PCIe
x4
x8
13
Full-size
5
PCIe
x16
x16
65
Full-size
6
PCIe
x4
x8
68
Full-size
7
PCIe
x4
x8
71
Full-size
8
HTx
N/A
128
Full-Height/Full-Length
No Slot
10
HTx
x16
N/A
192
Full-Height/Full-Length
No Slot
NOTE:
Bus Number - Default bus assignment (in Decimal format). Inserting cards
with PCI bridges may alter the actual bus assignment number NOTE: Bus Width - Indicates the number of physical electrical lanes
running to the connector NOTE: All slots are non-hot-plug Default bus assignment. Inserting
cards with PCI bridges may alter the actual bus assignment number. Slots
are enumerated differently based on the operating system. Microsoft operating
systems enumerate from lowest to highest Device ID by bus (starting with
the lowest bus). NOTE: This optional IO backplane with 7 PCIe and 2 HTX slots replaces
standard I/O backplane with 11 PCIe slots NOTE: VMware is not supported on DL785 G6 with backplane that has
(2) HTx slots and (7) PCI-Express slots
Storage Controllers
All Models
HP Smart Array P400i Controller
Available upgrades: 256MB, 512MB
with BBWC, Battery kit upgrade (for the 256MB cache), 512MB, 1G with FBWC,
and Smart Array Advanced Pack (SAAP).
Internal Storage
Devices
Diskette Drive
None standard
Optical Drive
Slimline DVD/CD-RW Drive Standard
on some models - ejectable for security and serviceability
Hard Drives
None ship standard
Hard Disk Drive
Backplane
Standard: Internal SAS backplane
supports up to eight SFF hard disk drives
Optional: Adding the optional
SAS Option Kit enables the second SAS backplane to support an additional
eight SFF hard disk drives
WOL Support (with embedded NC371i
Multifunction Gigabit Network Adapters)
Physical Address Extension (PAE)
Support
Microsoft® Logo certifications
USB 2.0 Support
Server Power Cords
NOTE: The HP
ProLiant DL785 G6 servers ship standard worldwide with a 6-foot IEC 320-C14
to IEC320-C13 jumper cord. If you require a local power cord, please check
the Power Specifications below for the appropriate country-specific power
cord, or consult the Power Cord Matrix: http://www.hp.com/go/powercordmatrix.
Power Supply One of the following depending on Model
1200 Watts- High Efficiency
Power Supply (Redundant Hot Plug, Autoswitching), CSCI 2007/2008 NOTE: Three Hot Plug Power Supplies
ship standard with the AM439A sku. Three optional power supplies may be
added for redundancy. NOTE: Six Hot Plug Power Supplies ship standard with the AM438A sku
(the 4th, 5th and 6th power supplies are for redundancy).
System Fans
6 Hot plug, redundant fans
NOTE: Fans are
N+1 hot plug redundant and individually removable.
NOTE: For more
information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available
for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport
and our driver download page www.hp.com/support/DL785G5.
Graphics
Integrated ATI ES1000, 32MB
video standard
Form Factor
Rack (7U = 12.25 inches), ships
with sliding rails and cable management system
Space saving form factor (7U) provides space efficiencies while providing
maximum deployment flexibility
HP Insight Management Control Software
HP Insight Foundation
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecycle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: http://www.hp.com/go/foundation.
NOTE: In an effort to support reducing
our environmental impact, the HP Insight Foundation Suite for ProLiant
media will be available as a selectable option for this server at time
of order of a CTO SKU. This will allow customers to order the number of
media kits that best meet their needs and eliminate receiving unnecessary
duplicate media.
HP Integrated Lights-Out
(iLO)
HP Integrated Lights-Out
(iLO) simplifies server setup, health monitoring, power and thermal control,
and lights-out remote administration of ProLiant ML, DL, and BL servers.
HP iLO functions without additional software and can be accessed from any
location via a web browser. HP iLO works hand-in-hand with HP Systems Insight
Manager, Insight Control suites, and Insight Dynamics for ProLiant, helping
customers unleash the value of the ProLiant platform and deliver the highest
possible quality of IT service. For more information, visit: www.hp.com/go/iLO
Intelligent Manageability
HP Systems Insight Manager software
SmartStart
Redundant ROM
Remote Flash ROM
Management Agents
Integrated Management Log (IML)
Automatic Server Recovery-2 (ASR-2)
ROM-Based Setup Utility (RBSU)
Dynamic Sector Repairing (with Smart Array Controllers)
Drive Parameter Tracking (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, SAS hard drives and memory)
Redundant/adaptive load balancing NIC Support
Security
Power-on password
Keyboard password
External USB port enable/disable
Network Server Mode
Serial interface control
Administrator's password
Removable Diskette drive (optional)
Removable optical drive
Warranty
This product is covered by a
global limited warranty and supported by HP Services and a worldwide network
of HP Authorized Channel Partners resellers. Hardware diagnostic support
and repair is available for three years from date of purchase. Support for
software and initial setup is available for 90 days from date of purchase.
Enhancements to warranty services are available through HP Care Pack services
or customized service agreements. Hard drives have either a one year or
three year warranty; refer to the specific hard drive QuickSpecs for details. NOTE: Server Warranty includes 3-Year
Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
Warranty repairs may be accomplished through the use of Customer Self Repair
(CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts
are designed for easy replacement. A travel and labor charge will result
when customers decline to replace a Mandatory CSR part; 2) Optional CSR
parts are also designed for easy replacement but may involve added complexity.
Customers may choose to have HP replace Optional CSR parts at no charge.
Additional information regarding worldwide limited warranty and technical
support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
HP Insight Control,
a product option, delivers essential infrastructure management that can
help save time and money by making it easy to deploy, migrate, monitor,
remote control, and optimize your IT infrastructure through a single, simple
management console.
Two versions of Insight Control are available, to serve environments
requiring either a Linux-based or a Windows-based central management server:
HP Insight Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol
HP Insight Control includes one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff and
proactive delivery of software updates. For more information about this
service, please visit: http://www.hp.com/services/insight.
HP Insight Dynamics
HP Insight Dynamics
for ProLiant, a product option, is an integrated command center that enables
IT Staff personnel to continuously analyze and optimize a converged infrastructure,
while automating and reducing the cost of common data center tasks by as
much as 40 percent. As a powerfully integrated by design toolkit to accelerate
complex technology projects and simplify daily operations that ultimately
enable IT Staff personnel to dynamically keep pace with the organizations
changing business requirements. It enables them to plan capacity and power
continuously, balance across physical and virtual resources, and ensure
cost-effective high availability. It also enables IT organizations to provision
infrastructure consistently and automatically from pools of shared resources
using a self-service portal. Resources provisioned can range from a single
virtual machine to complex multi-tier environments and their associated
physical and virtual resource requirements. In addition to the previous
functional benefits, it also provides a cost-effective disaster recovery
for physical and virtual environments that works with HP StorageWorks Continuous
Access software for both the Enterprise Virtual Array and the XP storage
array allowing application environments to be reactivated in minutes with
the touch of a button to a remote location.
HP Cluster Platforms
are specifically engineered, factory-integrated large-scale ProLiant clusters
optimized for High Performance Computing, with a choice of servers, networks
and software. Operating system options include specially priced offerings
for Red Hat Enterprise Linux and Novell SLES, as well as Microsoft Windows
HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters.
HPC Interconnects
High Performance Computing (HPC) interconnect technologies
are available for this server as part of the HP Cluster Platform portfolio.
These high-speed InfiniBand and Gigabit interconnects are fully supported
by HP when integrated within an HP cluster. Flexible, validated solutions
can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management
Utility
HP Cluster Management
Utility (CMU) is an HP-licensed and HP-supported suite of tools that are
used to manage large-scale Linux ProLiant systems. CMU includes software
for the centralized provisioning, management and monitoring of nodes. CMU
makes the administration of clusters user friendly, efficient, and effective.
http://www.hp.com/go/cmu
HP HPC Linux Value
Pack
HP HPC Linux Value
Pack (Value Pack) is an HP-licensed and HP-supported specially priced software
bundle for the development and deployment of applications on HPC Cluster
Platforms. Value Pack includes the Platform LSF workload scheduler, the
HP-MPI parallelization library, the HP Unified Parallel C compiler and the
HP Shmem library, as well as the execution environments for the libraries
and compiler. HP
HPC Linux Value Pack
Solutions
The very scalable 8-socket x86 ProLiant DL785 G6, with Quad-Core processing
power, delivers outstanding flexibility, scalability and performance for
customers growing Enterprise class database, consolidation and virtualization
environments. Specifically, the HP ProLiant DL785 G6 would be excellent
for running the following types of applications:
Typical Usage:
Consolidation and Virtualization
Large database applications
High Performance Computing (HPC)
Electronic Design Automation (EDA)/Semiconductor
Financial
ERP / CRM
Petrochemical
Life Science and Material Science
Video Rendering
Factory
Express Portfolio for Servers and Storage
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP,
rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model, please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eConfigure Enterprise Configurator now provides factory default
racking for our HP hardware portfolio. This approach is aligned with our
strategic direction to meet the needs and expectations of our valued customers.
If you require "custom" rack configuration, please contact HP's
Customer Business Center or an Authorized Partner for assistance. For
additional information please visit: http://www.hp.com/products/configurator
HP Care Pack Services provide total care and support expertise with committed
response designed to meet your IT and business needs.
HP Care Pack services include coverage for the HP branded hardware options
qualified for the server that are purchased at the same time or afterward
and internal to the enclosure. It also includes the 22" and smaller
external monitors and tower UPS options up to 3kVA. These items will be
covered at the same service level and for the same coverage period as
the server. Coverage of UPS Battery is not included and standard warranty
terms & conditions apply. For servers or storage systems installed
within a rack, service also covers all HP qualified rack options installed
within the same rack.
To fully capitalize on your HP ProLiant servers' capabilities requires
a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of multi
vender support solutions provides a range of support services designed
to meet the varying needs of business. Whether an SMB or large global
corporation HP has a ProLiant server support offer to help you speedily
deploy and maximize system uptime.
Recommended Service - Simplify ProLiant solution implementation,
maintenance, and management.
Support - 3-Year 9x5 Next Business Day coverage, excluding
HP holidays only
Deployment Service – hardware Installation only
Enhanced Service - Optimize service level to increase IT performance
and availability.
Support - 3-Year 13x5 Same Business Day, 4-Hour response coverage
Deployment Service – Installation and Start-up only
Refer to the information on "Installation & Start-Up" for
service on ProLiant server and Microsoft or Linux O/S per the Customer
Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm,
M-F, excluding HP holidays.
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section. NOTE: Pre-configured models ship with the configurations below. Options
can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured
models. Any additional options purchased will be shipped separately. NOTE: If you desire a custom configuration please see "Configuration
Information - Factory Integrated Models" section of this QuickSpecs.
NOTE: Not all models are available in all regions. Check with your
local country HP offices for availability.
Performance Models
HP ProLiant
DL785 G6 8439SE 2.8GHz Six Core 4P 64GB ICE Rack Server
AM438A
Processor
6 Core AMD Opteron™ 8400
Series Processors
Cache Memory
6MB shared L3 cache per processor
Memory
64GB (16 X 4GB) of PC2-6400
DDR SDRAM standard
Network Controller
Two embedded NC371i Multifunction
Gigabit Network Adapters
Storage Controller
HP Smart Array P400i/512MB BBWC
Controller
Hard Drive
None
Internal Storage
8.0 TB max
Optical Drive
Slimline CD-RW/DVD-ROM 24x Combo
Drive
Power Supply
Six 1200W Power Supplies standard
Fans
6 Hot plug, redundant fans
Insight Control
HP Insight Control Environment
No Media single server license, including 1 year of 24x7 Technical Support
and Updates
Form Factor
7U
Warranty
Server Warranty includes 3-Year
Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
Base Models
HP ProLiant
DL785 G6 8431 2.4GHz Six Core 4P 32GB Rack Server
AM439A
Processor
6 Core AMD Opteron™ 8400
Series Processors
Cache Memory
6MB shared L3 cache per processor
Memory
32GB (8 X 4GB) of PC2-6400 DDR
SDRAM standard
Network Controller
Two embedded NC371i Multifunction
Gigabit Network Adapters
Storage Controller
HP Smart Array P400i/512MB BBWC
Controller
Hard Drive
None
Internal Storage
8.0 TB max
Optical Drive
Slimline CD-RW/DVD-ROM 24x Combo
Drive
Power Supply
Three 1200W Power Supplies standard
Fans
6 Hot plug, redundant fans
Form Factor
7U
Warranty
Server Warranty includes 3-Year
Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
NOTE:
This section lists some of the steps required to configure a Factory Integrated
Model. To ensure only valid configurations are ordered, HP recommends the
use of an HP approved configurator. Contact your local sales representative
for information on configurable product offerings and requirements. NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis. NOTE: FIO indicates that this option is only available as a factory
installable option.
Step
1: Base Configuration
HP
Models
HP ProLiant DL785
G6 Rack CTO Chassis
AM437A
Factory
Integrated Models ship with:
Two embedded NC371i Multifunction Gigabit Network Adapters
HP Smart Array P400i Controller
HP Integrated Lights-Out 2 (iLO 2) management processor management
Six (6) Redundant Hot Plug Fans
Three Hot Plug Power Supply
Rack 7U Form Factor
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted)
HP
Processors
NOTE:
If eight processors are desired, select one xxxxxx-B21 and one xxxxxx-B21.
NOTE: A minimum
of two DIMMs (1 kit) must be installed per processor. NOTE: Memory must be ordered in like-pairs, i.e. two of the same
size. NOTE: When only PC2-6400 DIMMs modules are installed with a processor
then the memory bus speeds for 4 or fewer, 6 or 8 DIMMs per processor will
operate at PC2-6400, PC2-5300 and PC2-4200 respectively. All other processor
and memory configurations will operate at PC2-5300 with 4 or fewer DIMMs
and PC2-4200 with 6 or more DIMMs.
HP Storage Controllers
Upgrade Options
HP Smart Array P400 256MB FIO
Cache NOTE: Supports Smart Array P400 Controller
and Smart Array P400i Controller only.
NOTE:
Some options may not be integrated at the factory. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator.
Contact your local sales representative for additional information.
HP
Processor
6-Core Processors
HP DL785 G6 AMD Opteron™
8439SE (2.80GHz/6-core/6MB/105W) Processor Kit
575261-B21
HP DL785 G6 AMD Opteron™
8431 (2.40GHz/6-core/6MB/75W) Processor Kit
575260-B21
HP DL785 G6 AMD Opteron™
8425HE (2.10GHz/6-core/6MB/55W) Processor Kit
575259-B21
HP Memory
HP 2GB (2x1GB) Single Rank PC2-5300
(DDR2-667) Registered Low Power Memory Kit
NOTE: A minimum
of two DIMMs (1 kit) must be installed per processor. NOTE: Memory must be ordered in like-pairs, i.e. two of the same
size. NOTE: When only PC2-6400 DIMMs modules are installed with a processor
then the memory bus speeds for 4 or fewer, 6 or 8 DIMMs per processor will
operate at PC2-6400, PC2-5300 and PC2-4200 respectively. All other processor
and memory configurations will operate at PC2-5300 with 4 or fewer DIMMs
and PC2-4200 with 6 or more DIMMs.
HP Drive Cage
Options
HP DL785 G5 SAS Drive Option Kit
AH267A
NOTE: The SAS
Option Kit enables the second drive cage to support an additional eight
SFF SAS hard disk drives, for a total internal support of sixteen SFF SAS
hard disk drives. NOTE: When choosing the HP DL785 G5 SAS Option Kit, customer must
also order one of the following Smart Array Controllers: HP Smart Array
P400 Controller, HP Smart Array P800 Controller, HP Smart Array P812 Controller,
or the HP Smart Array P410 Controller. NOTE: The SAS Option Kit enables the second drive cage to support
an additional eight SFF SAS hard disk drives, for a total internal support
of sixteen SFF SAS hard disk drives.
NOTE: Please see
the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13415_na/13415_na.pdf NOTE: HP P410/256 Smart Array Controller or HP SAS Expander Card
must be used for adding the SATA Hot Plug Midline (MDL) solid state drives
as internal drives in HP ProLiant DL785 G6. NOTE: SAS Expander card must be used with the HP Smart Array P410
Controller. NOTE: SATA Hot Plug Midline(MDL) solid state drives are not supported
for factory integration.
HP NC364T PCI-E Quad Port Gigabit
Server Adapter NOTE: There is a maximum of five
NC364T PCI Express Quad Port Gigabit Server Adapter NICs allowed in this
server.
NOTE:
No more than two 10GbE I/O devices are supported in a single ProLiant server.
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required
per each adapter. NOTE: Direct Attach Cable (DAC) for copper environments or fiber
transceivers and cables for fiber-optic environments must be purchased separately
NOTE: Please see
the QuickSpecs for Technical Specifications and additional information:
www.hp.com/go/ProLiantNICs.
HP DL785 G5 I/O PCI-e and HTx
Backplane Upgrade Kit
AH262A
HP Power Supplies
NOTE: Prior to
making a power supply selection it is highly recommended that the HP Power
Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
HP 1200W 12V Hot Plug AC Power
Supply NOTE: Three additional power supply
units are required for full redundancy. NOTE: If you require a local power cord, please check the Power Specifications
below for the appropriate country-specific power cord, or consult the Power
Cord Matrix: http://www.hp.com/go/powercordmatrix.
HP Insight Control including 1yr 24x7 Technical
Support and Updates Single Server License
452148-B22
HP Insight Software
Media Kit NOTE: Insight Software DVD media
without licenses. Contains Insight Manager and Essentials software products
and components licensed by Insight Control Environment suite. Uses an integrated
installer to perform quick and accurate software installation and updates.
436222-B21
HP Insight Control
including 1yr 24x7 Support ProLiant ML/DL-bundle Electronic License
TC278AAE
HP Insight Control
including 1yr 24x7 Technical Support and Updates Electronic License
T9074BAE
NOTE:
Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key. NOTE: Customer will receive a license entitlement certificate. The
license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service. NOTE: Licenses ship without media. The HP Insight Control Media Kit
can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE:
This optional Media pack DVD contains the ISO image for HP Insight Control
for Linux, HP System Insight Manager, HP Insight Power Manager, HP Virtual
Machine Management Pack, and an integrated installer. Servers must be acquired
separately. NOTE: This Media pack is optional because the latest ISO image and
latest updates may be downloaded at no cost from: http://www.hp.com/go/ice-linux
(click on Download button).
HP Insight Control
for Linux including 1yr 24x7 Support Single Server License
TC209A
HP Insight Control
for Linux including 1yr 24x7 Support Electronic License
HP iLO Advanced including
1yr 24x7 Technical Support and Updates Single Server License
512485-B21
NOTE:
This license allows 1 server to be deployed and managed via HP iLO Advanced.
Customer will receive a printed license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online or
via fax in order to obtain the license activation key(s). Includes one year
of 24 x 7 HP Software Technical Support Service. NOTE: For additional license kits, including electronic delivery
options, please see the ProLiant OA/iLO QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_na/12362_na.html
HP iLO Advanced including
1yr 24x7 Technical Support and Updates Electronic License
TA850AAE
High
Performance Clusters
HP Cluster Management Utility
AH267A
HP Cluster Management
Utility License and Media
433257-B21
HP Cluster Management
Utility Compute Node Flexible License
436284-B21
HP High Performance
Computing Linux Value Pack 1 Processor Flexible License
TC293A
HP High Performance
Computing Linux Value Pack Media Kit
TC294A
HP
I/O Accelerator
Options
HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers NOTE:A low-profile PCI bracket is
included for use in low-profile slots.
600278-B21
HP 320GB Multi Level
Cell PCIe ioDrive for ProLiant Servers NOTE:A low-profile PCI bracket is
included for use in low-profile slots.
NOTE:
AM436A - HP DL785 Smart Array Controller cable option kit is included when
ordered on the DL785 with factory integration. NOTE: AM436A HP DL785 Smart Array Controller cable option kit is
required each time the Smart Array P410 Controller is ordered without factory
integration and will be used to control internal drives 9-16.
NOTE: AM436A HP
DL785 Smart Array Controller cable option kit is required each time the
Smart Array P812 Controller is ordered without factory integration and will
be used to control internal drives 9-16.
Optional Upgrades
HP Smart Array P400 Battery Attach
Kit NOTE: This option kit contains a
24" battery cable and adhesive material for installing a battery into
the server if a Smart Array E500 is integrated outside of the factory. For
all solutions, please refer to the server QuickSpecs and User's Manual for
detailed installation instructions.
HP 512MB w/Battery Smart Array
Battery Back Write Cache Enabler NOTE: For Smart Array P400 Controller
only. NOTE: If you install the 512MB DDR BBWC as an upgrade to a Smart
Array P400/256MB Controller, you must also order part 417836-B21 (HP SA-P400
and SA-E500 24 In Battery Cable Kit).
HP Smart Array Cache Battery Kit NOTE: For Smart Array P400 Controller
only. NOTE: If you install the Battery-backed write cache as an upgrade
to a Smart Array P400/256MB Controller, you must also order part 417836-B21
(HP SA-P400 and SA-E500 24 In Battery Cable Kit).
HP 256MB P-Series Cache Upgrade NOTE: Option kit not supported for
factory integration. NOTE: Supported on HP Smart Array P212 Controller and P410 Controller
only.
HP 512MB P-Series Battery Backed
Write Cache Upgrade NOTE: Option kit not supported for
factory integration. NOTE: Supported on HP Smart Array P212 Controller and P410 Controller
only.
HP 650 mAh P-Series Battery NOTE: Option kit not supported for
factory integration. NOTE: To enable BBWC on the 256MB cache. NOTE: Supported on HP Smart Array P212 Controller, HP Smart Array
P410 Controller, and HP Smart Array P411 Controller only.
HP 24 Bay 3Gb SAS Expander Card NOTE: Option kit not supported for
factory integration. NOTE: Enables a single Smart Array P410 Controller to control all
of the embedded HDD's. Allows the configuration of a RAID array with up
to 16 embedded HDD's. The Controller must be installed in PCIe Slot 1 and
the Expander in PCIe Slot 2. The embedded SA P400i controller is not used. NOTE: AM440A HP DL785 SAS Expander cable option kit required. NOTE: Requires SA P410 Controller with Cache memory. NOTE: Please see the following QuickSpecs for Technical Specifications
and additional information: http://h18004.www1.hp.com/products/quickspecs/13232_na/13232_na.html
(SAS Expander Card)
HP DL785 G6 SAS Expander Cable
Option Kit NOTE: Option kit not supported for
factory integration NOTE: Required each time the 468406-B21 HP SAS Expander card is ordered.
Provides (6) cables to connect the Smart Array Controller to the Expander,
and the Expander to the Primary and Optional SAS backplanes. The SAS cables
provided with the DL785 and the Expander are not used.
HP High Power Graphics Card Cable NOTE: High Line Voltage is required
with this kit. Using Low Line Voltage will halt the system. However if the
total power usage is validated using the HP Power Advisor, the system halt
condition with Low Line Voltage may be overridden by pressing "F9"
to enter the RBSU and enabling the "Power Supply Override" setting
under "Advanced Options".
AH270A
HP DL785 G6 Smart Array Controller
Cable Option Kit NOTE: Option kit not supported for
factory integration NOTE: Supports internal connection of Smart Array P410 and P812 Controllers.
Provides (2) cables to connect the Controller to the Optional SAS Backplane
(HP DL785 G5 SAS Option Kit - AH267A). This is required each time one of
the Smart Array P410 and P812 Controllers is ordered without factory integration
and will be used to control internal drives 9-16.
AM436A
HP Tape Backup
Tape Autoloaders
HP StorageWorks 1/8 G2 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium
1760 SAS Tape Autoloader
AK377A
HP P212 Smart Array Controller
SAS ( 462828-B21) is recommended for a dedicated HBA for SAS tape connection
Tape Libraries
HP StorageWorks MSL2024 1 LTO-4
Ultrium 1760 SAS Tape Library
AK378A
HP StorageWorks MSL4048 2 LTO-4
Ultrium 1760 SAS Tape Library
AK380A
HP StorageWorks MSL8096 2 LTO-4
Ultrium 1760 SAS Tape Library
AK382A
HP Disk Backup
D2D Backup
HP StorageWorks D2D2504i Backup
System
EJ002A
HP StorageWorks D2D4112 Backup
System
EH993A
HP StorageWorks D2D4009i Backup
System
EH939A
HP StorageWorks RDX Removable
Disk Backup Systems USB
HP StorageWorks RDX 1TB Internal
Removable Disk Backup System NOTE: For installation into 1U USB
Rack-Mount Kit ( A8007A). No peripheral bay available for drive installation
into the server. 1 TB of disk capacity per data cartridge.
NOTE: For additional
information on HP Uninterruptible Power Systems please go to: www.hp.com/servers/rackups. NOTE: Please see the UPS and PDU cable matrix’s on the HP Power Protection
and Management page. Under Power Cords, click on the “HP Power Cord Matrix”
link. That link will list cable descriptions, requirements, and specifications
for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
HP Power Distribution
Units
Monitored PDUs
HP Monitored Power Distribution
Unit: Full Rack Version
HP Single Input 3 Phase 24A Monitored
Power Distribution Unit
AF504A
HP Single Input 1 Phase 40A Monitored
Power Distribution Unit
AF506A
HP Single Input 3 Phase 16A Monitored
Power Distribution Unit
AF508A
HP Single Input 1 Phase 32A INT
Monitored Power Distribution Unit
AF510A
HP Monitored Power Distribution
Unit: Half Rack Version
HP Single Input 1 Phase 24A Monitored
Power Distribution Unit
AF914A
HP Single Input 1 Phase 32A Monitored
Power Distribution Unit
AF915A
Modular PDUs
HP 24A High Voltage Modular Power
Distribution Unit
HP 16A High Voltage Modular Power
Distribution Unit NOTE: This PDU has a detachable input
power cord and allows for adaptability to country specific power requirements.
HP 32A High Voltage Modular Power
Distribution Unit
252663-B31
HP 40A High Voltage Modular Power
Distribution Unit
252663-D73
NOTE: Please see
the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs
for additional options including shorter jumper cables and country specific
power cords: http://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.html NOTE: For additional information on HP Power Distribution Units including
accessories please go to: www.hp.com/go/pdu. NOTE: Please see the UPS and PDU cable matrix’s on the HP Power
Protection and Management page. Under Power Cords, click on the “HP
Power Cord Matrix” link. That link will list cable descriptions, requirements,
and specifications for UPS and PDU units. Please see the following link:
www.hp.com/products/powercords.
NOTE: The increasing power
of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced
airflow for maximum cooling, allowing these racks to be fully loaded with
servers using the latest processors. CAUTION: If a third-party rack is used, observe the following additional
requirements to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and
rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly
distributed from top to bottom to permit adequate airflow (equivalent to
the required 64 percent open area for ventilation). Side: The clearance
between the installed rack component and the side panels of the rack must
be a minimum of 2.75 inches (7 cm). CAUTION: Always use blanking panels to fill all remaining empty front
panel U-spaces in the rack. This arrangement ensures proper airflow. Using
a rack without blanking panels results in improper cooling that can lead
to thermal damage.
NOTE: Quick deploy rail system
provides tool-free support for racks with square or round mounting holes
(including Compaq/HP 7000, 9000, 10000 G2 and HP series), with an adjustment
range of 24" - 36". The ambidextrous cable management arm can
be mounted on either the left or right side for improved cable management.
HP Rack Options
Keyboards and Monitors
HP TFT7600 G2 KVM Console Rackmount
Keyboard Monitor
AZ870A
HP TFT7600 G2 KVM Console Rackmount
Keyboard TAA Monitor
HP 0x2x16 KVM Server Console Switch
G2 with Virtual Media CAC Software
AF618A
HP 0x2x32 KVM Server Console Switch
G2 with Virtual Media CAC Software
AF619A
HP 1x1Ex8 KVM IP Console Switch
G2 with Virtual Media CAC Software
AF620A
HP 2x1Ex16 KVM IP Console Switch
G2 with Virtual Media CAC Software
AF621A
HP 4x1Ex32 KVM IP Console Switch
G2 with Virtual Media CAC Software
AF622A
HP USB and SD Options
HP 1.44MB USB External Floppy
Drive
DC141B
HP 2GB USB Flash Media Drive Key
Kit
608447-B21
NOTE:
HP qualified blank USB key for use with HP ProLiant servers that support
the VMware virtualization environment and other HP value-add software like
SmartStart. HP recommends this industry standard USB flash device for use
with VMware ESXi. USB device must be installed in the internal slot of the
ProLiant server for use with VMware ESXi. Refer to HP
VMware Getting Started Guide for installation instructions.
HP 3 year 4 hour 13x5 ProLiant
DL785 G6 Server Hardware Support
US137E
HP 3 year 4 hour 24x7 ProLiant
DL785 G6 Server Hardware Support
US139E
Hardware Services 6-Hour Call
to Repair On-site Service
HP 3 year 6 hour 24x7 Call to
Repair ProLiant DL785 G6 Server Hardware Support
US141E
Installation & Start-up Services
HP Install ProLiant DL785 Service
UM450E
HP Startup ProLiant DL785 Service
Customer Description and/or Data Sheet. To be delivered on a scheduled basis
8am-5pm, M-F, excl. HP holidays, Electronic
UM451E
Support Plus 24
HP 3 year Support Plus 24 for
Microsoft OS for Proliant DL785 G6 Service
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite,
onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
US143E
HP 3 year Support Plus 24 for
Linux RedHat for Proliant DL785 G6 Service
Onsite HW support 24x7, 4hr response and Red Hat AS Linux SW Tech support
offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays,
Electronic
US144E
HP 3 year Support Plus 24 for
Linux SuSe for Proliant DL785 G6 Service
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite,
onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
US145E
HP 3 year Support Plus 24 ICE
for Proliant DL785 G6 Service
Onsite HW support 24x7, 4hr response and Insight Control ( ICE ) SW Tech
support offsite, onsite at HP's discretion, 24x7 2hr response time incl.
HP holidays, Electronic
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models."
HP
ProLiant DL785 G6 4P Models
Standard Memory (One of the following, depending on Model)
64 GB PC2-6400 Double Data Rate 2 (DDR2) SDRAM (Registered SDRAM) memory
running at 800 MHz with Advanced ECC or 32 GB PC2-6400 Double Data Rate
2 (DDR2) SDRAM (Registered SDRAM) memory running at 800 MHz with Advanced
ECC
At least one pair of DIMMs must be installed in slots 1A and 2A to operate
the server. Observe the following DIMM installation guidelines to add
additional memory to the server:
DIMMs must be installed in pairs.
DIMM installed on the same memory bank must have the same part number.
DIMMs installed in different banks can be of different sizes.
DIMMs must be installed in decreasing capacity with the largest DIMMs
installed in the banks furthest away from each processor.
Standard
Memory Configuration (model AM439A)
Total Memory = 32 GB
1
(Slot furthest from processor)
2
3
4
5
6
7
8
(Slot closest to processor)
Processor
1 Memory Bus
4 GB
4 GB
Empty
Empty
Empty
Empty
Empty
Empty
Processor
2 Memory Bus
4 GB
4 GB
Empty
Empty
Empty
Empty
Empty
Empty
Processor
3 Memory Bus
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Processor
4 Memory Bus
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Processor
5 Memory Bus
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Processor
6 Memory Bus
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Processor
7 Memory Bus
4 GB
4 GB
Empty
Empty
Empty
Empty
Empty
Empty
Processor
8 Memory Bus
4 GB
4 GB
Empty
Empty
Empty
Empty
Empty
Empty
Standard
Memory Configuration (model AM438A)
Total Memory = 64GB
1
(Slot furthest from processor)
2
3
4
5
6
7
8
(Slot closest to processor)
Processor
1 Memory Bus
4 GB
4 GB
4 GB
4 GB
Empty
Empty
Empty
Empty
Processor
2 Memory Bus
4 GB
4 GB
4 GB
4 GB
Empty
Empty
Empty
Empty
Processor
3 Memory Bus
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Processor
4 Memory Bus
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Processor
5 Memory Bus
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Processor
6 Memory Bus
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Processor
7 Memory Bus
4 GB
4 GB
4 GB
4 GB
Empty
Empty
Empty
Empty
Processor
8 Memory Bus
4 GB
4 GB
4 GB
4 GB
Empty
Empty
Empty
Empty
Examples of other optional configurations include, but
are not limited to:
Example
#1: Optional Memory Configuration with DIMM mixing Standard Memory
plus Optional Memory and Processors Total Memory = 64 GB
1
2
3
4
5
6
7
8
Processor 1
Memory Bus
4
GB
4
GB
2
GB
2
GB
1
GB
1
GB
1
GB
1
GB
Processor 2
Memory Bus
4
GB
4
GB
2
GB
2
GB
1
GB
1
GB
1
GB
1
GB
Processor 3
Memory Bus
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Processor 4
Memory Bus
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Processor 5
Memory Bus
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Processor 6
Memory Bus
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Processor 7
Memory Bus
4
GB
4
GB
4
GB
4
GB
2
GB
2
GB
1
GB
1
GB
Processor 8
Memory Bus
2
GB
2
GB
2
GB
2
GB
2
GB
2
GB
1
GB
1
GB
Example
#2: Optional Memory Configuration with Partial Bus Population Standard
Memory plus Optional Memory and Processors Total Memory
= 32 GB
1
2
3
4
5
6
7
8
Processor 1
Memory Bus
1 GB
1
GB
1 GB
1
GB
Empty
Empty
Empty
Empty
Processor 2
Memory Bus
1 GB
1
GB
1 GB
1
GB
Empty
Empty
Empty
Empty
Processor 3
Memory Bus
1 GB
1
GB
1 GB
1
GB
Empty
Empty
Empty
Empty
Processor 4
Memory Bus
1 GB
1
GB
1 GB
1
GB
Empty
Empty
Empty
Empty
Processor 5
Memory Bus
1 GB
1
GB
1 GB
1
GB
Empty
Empty
Empty
Empty
Processor 6
Memory Bus
1 GB
1
GB
1 GB
1
GB
Empty
Empty
Empty
Empty
Processor 7
Memory Bus
1 GB
1
GB
1 GB
1
GB
Empty
Empty
Empty
Empty
Processor 8
Memory Bus
1 GB
1
GB
1 GB
1
GB
Empty
Empty
Empty
Empty
Example
#3: Maximum Memory Configuration
Maximum Memory (Standard replaced with Optional Memory) Total Memory = 512 GB
1
2
3
4
5
6
7
8
Processor
1 Memory Bus
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
Processor 2
Memory Bus
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
Processor 3
Memory Bus
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
Processor 4
Memory Bus
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
Processor 5
Memory Bus
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
Processor 6
Memory Bus
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
Processor 7
Memory Bus
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
Processor 8
Memory Bus
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
The
following memory options are available from HP:
Memory
HP 4GB (2x2GB) Single Rank PC2-6400 (DDR2-800) Registered Memory Kit
NOTE:
A minimum of two DIMMs (1 kit) must be installed per processor. NOTE: Memory must be ordered in like-pairs, i.e. two of the same
size. NOTE: When only PC2-6400 DIMMs modules are installed with a processor
then the memory bus speeds for 4 or fewer, 6 or 8 DIMMs per processor will
operate at PC2-6400, PC2-5300 and PC2-4200 respectively. All other processor
and memory configurations will operate at PC2-5300 with 4 or fewer DIMMs
and PC2-4200 with 6 or more DIMMs.
Hard Drives NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, firmware, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details. NOTE: All the internal drives in HP ProLiant DL785 G6 will operate
at a maximum data transfer rate of 3Gb/s. NOTE: Up to 16 disks in position 1-16 are supported if HP SAS Expander
and P410 Controller is used.
SAS Hot Plug SFF (2.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 10K DP
450GB 6G SAS 10K DP
300GB 6G SAS 10K DP
146GB 6G SAS 15K DP
146GB 6G SAS 10K DP
72GB 6G SAS 15K DP
Up to 8
1-8
HP Smart Array P400i Controller
Up to 8
9-16
HP Smart Array E500/256MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 MB Controller with BBWC
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SAS Hot Plug SFF (2.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 10K DP
450GB 6G SAS 10K DP
300GB 6G SAS 10K DP
146GB 6G SAS 15K DP
146GB 6G SAS 10K DP
72GB 6G SAS 15K DP
Up to 16
1-16
HP Smart Array E500/256MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 MB Controller with BBWC
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP SAS Expander Card NOTE: SAS Expander card can only
be used with the HP Smart Array P410 Controller.
SAS Hot Plug SFF (2.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 6G SAS 7.2K
DP
Up to 8
1-8
HP Smart Array P400i Controller
Up to 8
9-16
HP Smart Array E500/256MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 MB Controller with BBWC
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SAS Hot Plug SFF (2.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 6G SAS 7.2K DP
Up to 16
1-16
HP Smart Array E500/256MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 MB Controller with BBWC
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP SAS Expander Card NOTE: SAS Expander card can only
be used with the HP Smart Array P410 Controller.
SATA Hot Plug SFF
Midline (MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD 120GB 3.0G
SATA SSD
Up to 8
Up to 8
1-8
9-16
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SAS Hot Plug SFF Midline
(MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD 120GB 3.0G
SATA SSD
Up to 16
1-8
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP SAS Expander Card NOTE: SAS Expander card can only
be used with the HP Smart Array P410 Controller.
NOTE:
SATA Hot Plug Midline(MDL) solid state drives are not supported for
factory integration
External Storage
Quantity
Supported
Position
Supported
Host Controller or Adapter
60 Modular Smart Array
Up to 4
External
HP Smart Array P212/256 MB Controller
Up to 8
HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
70 Modular Smart Array
Up to 2
External
HP Smart Array P212/256 MB Controller
Up to 4
HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP 2000sa Modular Smart Array
Controller
Up to 4
External
HP SC08Ge Host Bus Adapter
D2700 Disk Enclosure
Up to 2
External
HP Smart Array P212/256 MB Controller
Up to 4
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
Maximum Storage Capacity - (External Enclosure
Attached)
Internal
8.000TB (16 x 500GB
SFF SAS Drives)
Tape and Disk-Based
Backup
NOTE:
For the complete range of StorageWorks tape drives, autoloaders, libraries
and media, including the internal fitting models, see: http://www.hp.com/go/tape.
For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d.
For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx.
For hardware and software compatibility of HP StorageWorks disk and tape
backup products see: http://www.hp.com/go/connect.
Position
Supported
Controller
Controller Part Number
HP StorageWorks
SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Host Bus Adapter NOTE: Please check the full compatibility
information at: http://www.hp.com/go/connect
HP StorageWorks Fibre Channel
Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity matrix at: http://www.hp.com/go/ebs
for connectivity information and the supported Fibre Channel HBAs shown
in this QuickSpecs
N/A
HP StorageWorks USB RDX Removable
Disk Backup System
RDX160
RDX320
RDX500
RDX750
RDX1TB
External
USB 2.0 Port
N/A
HP StorageWorks D2D Backup Systems, iSCSI
D2D2500i
D2D4000i
External
Embedded Network Controller. If the server requires a
hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.
HP StorageWorks D2D Backup
Systems, Fibre Channel
D2D4000fc
There are certain lowline, max configurations that are not supported.
All highline configurations are supported. Consult the HP Power Advisor
to determine if your lowline configuration is supported.
Standard Rack Model Power Cords / Jumper
Cords
Description
Asia Pacific
IEC320-C14 to IEC320-C13 Jumper Cord
Europe
IEC320-C14 to IEC320-C13 Jumper Cord
Japan
JIS C8303 to IEC320-C13
IEC320-C14 to IEC320-C13 Jumper Cord
Click on the system of interest. Example:
DL785 G6
Follow the instructions of the next screens
Power
Supply Output (per power supply)
Rated
Steady-State Power
800 W (at 100
VAC), 1200 W (at 200 VAC)
Maximum
Peak Power
800 W (at 100 VAC),
1200 W (at 200 VAC)
System Inlet Temperature
Operating
10°
to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C
per every 305 m (1.8°F per every 1000ft) above sea level to a maximum of 3050
m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the type and number of options
installed. System performance may be reduced if operating with a fan fault or
above 30°C (86°F).
Non-operating
-30°
to 60° (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative
Humidity (non-condensing)
Operating
10% to 90% relative humidity (Rh),
28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating
5%
to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature,
non condensing.
Altitude
Operating
3050
m (10,000 ft). This value may be limited by the type and number of options installed.
Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating
9144
m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Acoustic
Noise
Listed
are the declared A-Weighted sound power levels (LWAd) and declared average bystander
position A-Weighted sound pressure levels (LpAm) when the product is operating
in a 23°C ambient environment. Noise emissions were measured in accordance
with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
L WAd
7.6
B
L
pAm
58 dBa
Operating
L WAd
7.6
B
L
pAm
58 dBa
Emissions
Classification (EMC)
FCC
Rating
Class A
Normative
Standards
CISPR 22; EN55022; EN55024;
FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3;
EN 60950-1; IEC 60950-1
NOTE:
Product conformance to cited product specifications is based on sample (type)
testing, evaluation, or assessment. This product or family of products is eligible
to bear the appropriate compliance logos and statements.
Slimline CD-RW/DVD-ROM 24X Combo Drive
Shipping Dimensions
13.88 x 11.38 x 9.25
in (35.26 x 28.91 x 23.50 cm)
Shipping Weight
5 lb (2.27 kg)
Disk
Applicable Disk
DVD-ROM
DVD-R (Read Only)
2.6 GB/side DVD-RAM (Read Only)
5.2 GB/side DVD-RAM (Read Only)
CD-ROM Mode-1 data disc
CD-ROM Mode-2 data disc
CD Audio disc
CD-Extra
CD-RW
CD-R
CD Text
PhotoCD
CD-I (mode 2)
CD-I Ready
CD-Bridge
Capacity
DVD-ROM
DVD-SL
4.7 GB/side
DVD-DL
8.5 GB/side
Double Sided
9.40 GB/side
DVD-R
3.95 GB/side
DVD-RAM
2.6 GB/side and 5.2 GB/
CD-ROM
Mode-1
650 MB (550 MB)
Mode-2
742 MB (640 MB)
Block Size
DVD
2,048 bytes
CD
2,352 (Mode-0)
2352, 2340, 2336, 2048 bytes
(Mode-1)
2352, 2340, 2336, 2048 bytes
(Mode-2)
Diameter
120 mm, 80 mm (with adapter at vertical mounting mode)
Loading Mechanism
Tray type
Interface
EIDE (ATAPI)
Access
Times (typical)
Random
DVD-ROM < 120 ms, CD-ROM < 110 ms
Full-Stroke
DVD-ROM < 240 ms, CD-ROM < 160 ms
Audio Output Level (typical)
Line-out
CD 0.7 Vrms at 47 Kohms Load
Data
Transfer Rate (sustained)
DVD-ROM
Single Layer
10.8 MB/sec. Max.
DVD-RAM
2.77 MB/sec. Max
CD-ROM
7.2 MB/sec. Max.
Cache Buffer
2 MB
Spin-up Time (typical)
less than 10 seconds
MTBF
120,000 Power On Hours (POH)
Ambient Temperature
Operating
-22° to 140° F (-30° to 60° C)
Relative Humidity
Operating
10% to 80%
Storage/Transportation
5% to 95%
Dimensions
(HxWxD, maximum)
0.5 x 5.04 x 5.1 in (12.7 x 128 x 129.4 mm)
Option Kit Contents
DVD-ROM drive with installation
guide, warranty card, registration card
Smart Array P400i Controller
Disk Drive and Enclosure Interface
3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology Attachment)
SAS Connectors
2 internal (SFF8484) x4 wide port
connectors
Cache Memory Speed
DDR2-533MHz with 40 or 72-bit
wide bus provides up to 4.2 GB/s maximum bandwidth.
64-bit, supporting greater than
4GB server memory space
RAID Support
RAID 6 with ADG (Advanced Data
Guarding) requires Battery Backed Write Cache Upgrade
RAID 5 (Distributed Data Guarding)
RAID 1, 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Two embedded NC371i Multifunction Gigabit Server Adapters
Network Interface
10/100/1000-T
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method
PCI Express, four
lanes (x4)
Controller
BCM5706
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and Full-Duplex)
2000 Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4, or 5 UTP; up
to 328 ft (100 m)
10/100/1000 Base-TX
Category 5 UTP up to 328 ft (100
m)
HP Integrated Lights-Out 2 (iLO 2)
integrated on system board
Architecture
32-bit PCI-based health
and remote management ASIC
Processor
32-bit RISC processor
core running at 66MHz
Upgradeability
Option firmware upgradeable
via Flash ROM
Operating System Support
Microsoft Windows
Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003 and Windows Server 2003 R2, and Windows Server
2003 for Extended Systems Standard Edition, Enterprise Edition
Red Hat Enterprise Linux 5.4 (32bit and 64bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 3.5.0
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Red Hat Enterprise Linux Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10
Client Browser Support
Microsoft Internet
Explorer 7
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)
Command Line Support
Telnet, Secure Shell
and serial port access
Secure Socket Layer
Secure Shell version 2 (Password and certificate)
Security
Advanced Encryption
Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP
and XML scripting interface
RC4 encryption of video
SNMP 2, IPMI 2.0 (KCS
interface), DMTF Server Management Command Line Protocol Specification
(SM CLP), DMTF Web Services Management Specification (WS Management)
Environment-friendly Products and Approach
End-of-life
Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will be recycled,
recovered or disposed of in a responsible manner.
The EU WEEE directive
(2002/95/EC) requires manufacturers to provide treatment information for each
product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
US Site
DL Quickspecs
Search:
497765-B21
© 2012 Canada PartsDirect
