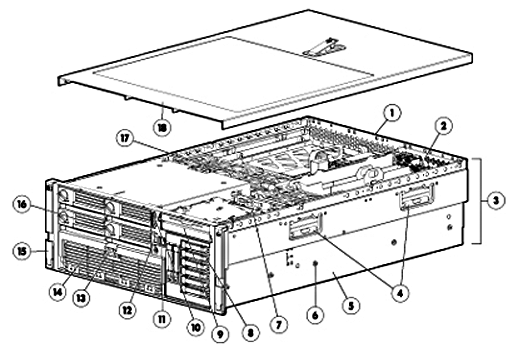

Dual Hot Plug Redundant Power Supplies (one standard
with 1P Models, requires optional RPS for redundancy)
2.
Up to Six Available I/O Slots: 3 Standard PCI-Express
x4 and 1 Standard 64-bit/133MHz PCI-X. Optional Mezzanine adds
Two Hot Plug 64-bit/133MHz PCI-X or two X4 PCI Express, or one
X8 PCI Express
3.
4U (7" Height) Rack Form Factor
4.
Server Lifting Handles
5.
Ships with HP Smart Array P400/256MB Controller.
Optional 512MB Battery Backed Write Cache (BBWC ships standard
with 2P models)
Second generation small form factor (SFF) SAS hard disk drives
with double the capacity of current SFF SAS drives up to 146GB.
Internal mass storage capacity up to 1.168TB (8 x 146GB hot plug
SFF SAS drives)
RDMA support for embedded Multi-function NIC:
HP ProLiant Essentials RDMA Pack for Multifunction Gigabit Server
Adapter licensing to enable RDMA functionality on embedded Multifunction
NICs
At A Glance

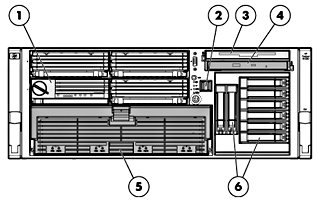

The ProLiant DL580 G4 server
is an enterprise class, 4 socket server designed for maximum scalability
and high availability. Its innovative chassis offers unsurpassed flexibility
and serviceability in a versatile, rack-optimized form factor.
Based upon the latest industry standard processing, memory, I/O and networking
technologies, the ProLiant DL580 G4 provides the highest levels of performance
demanded by today's compute intensive applications. Unparalleled high
availability features, including front-accessible Hot Plug RAID Memory,
and hot-plug redundant components, guarantee maximum uptime. Integrated
Lights-Out 2 (iLO2) technology allows remote administration from a standard
web-browser without ever having to visit the server. Within the 4U dense
form factor, it's highly expandable architecture provides maximum application
deployment flexibility with the ability to add PCI-Express, hot plug PCI-X
or battery-backed write cache options. Innovative features, such as the
ability to access processors, memory, hard drives, and power supplies
while the unit remains secured in the rack, enable rapid response to service
events, radically decreasing overall IT costs and server downtime.
Processors:
Supports up to four Dual-Core 64-bit Intel Xeon Processors and
HT Technology, with Dual Independent 800MHz Front Side Buses with
L3 shared cache
HP Smart Array P400/512MB BBWC Controller standard on High Performance
Models.
Internal Drive Support:
Support for up to eight hot-plug SFF SAS drives
Slimline DVD Combo Drive standard, Floppy Drive
optional on all models (ejectable)
Network Controller:
Embedded NC371i Multifunction Gigabit Server
Adapters with TCP/IP Offload Engine, including support for Accelerated
iSCSI and RDMA through optional ProLiant Essentials Licensing Kits
Expansion Slots:
More PCI-Express slots with up to five available
PCI-Express x4 slots with mezzanine option
Up to Six Available I/O Slots: 3 Standard PCI-Express
x4 and 1 Standard 64-bit/133MHz PCI-X Optional Mezzanine adds Two
Hot Plug 64-bit/133MHz PCI-X, Two X4 PCI Express, or One X8 PCI
Express
Optional x4-x8 PCI-Express Bus Expander provides
flexibility to configure I/O slots for different requirements, specifically
by converting a x4 slot to a x8 for greater bandwidth/performance
Rear accessible Hot Plug Redundant Power Supplies
(RPS optional on some models)
Hot Plug Fans with full redundancy
Management:
New Integrated Lights-Out 2 featuring Integrated
Remote Console with KVM over IP performance over shared network
access
Power Regulator for ProLiant, delivering server
level, policy based power management with industry leading energy
efficiency and savings on system power and cooling costs
Automatic Server Recovery (ASR), ROM Based Setup
Utility (RBSU), HP Systems Insight Manager, Status LED's including
system health and UID, and SmartStart
Form Factor:
Dense form factor - 4U rack models
Deployment/Serviceability:
Front and rear video ports
Front accessible Processor and Processor Power
Modules allow server to stay safely secured in the rack during servicing
Quick Deploy Rail System includes sliding universal
rails, an ambidextrous cable management arm and quick release levers
for fast and easy serviceability and in-rack tool-less access to major
components
Tool-less access to all system components for easy
in rack serviceability
Warranty:
Protected by HP Services and a worldwide network of resellers
and service providers. Three-year Next Business Day, on-site limited
global warranty. Certain restrictions and exclusions apply. Pre-Failure
Notification on processors, memory, and SAS hard drives. SATA hard
drives have a one-year warranty.
2x2MB Integrated
Level 2 cache NOTE: Dual-Core 7041 Model only.
2x1MB Integrated
Level 2 cache NOTE: Dual-Core 7030 Model only.
Upgradeability
HP ProLiant DL580
G4 servers with Intel Xeon 7041 and 7030 processors can be upgraded with
Intel Xeon 71x0 processors. All ProLiant DL580 G4 servers can support up
to 4 processors.
NOTE:
64 GB achieved with use of four memory cartridges and sixteen 4 GB PC2-3200
Memory Modules. The HP ProLiant DL580 G4 will accept both single rank and
dual rank DIMMs in all sockets.
Network Controller
Dual embedded NC371i Multifunction
Gigabit Server Adapters with TCP/IP Offload Engine, including support for
Accelerated iSCSI and RDMA through optional ProLiant Essentials Licensing
Kits
Expansion Slots with
No Mezzanine Option
Bus speed
Bus number
Hot Plug
PCI Voltage
Notes
1
N/A
N/A
N/A
N/A
N/A
2
N/A
N/A
N/A
N/A
N/A
3
64-bit / 133 MHz PCI-X
10
No
3.3 Volt
Standard
4
PCI Express X4
13
No
Recommended for SA-P400
5
PCI Express X4
16
No
Standard
6
PCI Express X4
19
No
Standard
7
PCI Express X4
22
No
Standard
Expansion Slots with
PCI-X Mezzanine Option
Bus speed
Bus number
Hot Plug
PCI Voltage
Notes
1
64-bit / 133 MHz PCI-X
3
Yes
3.3 Volt
Optional
2
64-bit / 133 MHz PCI-X
6
Yes
3.3 Volt
Optional
3
64-bit / 133 MHz PCI-X
11
No
3.3 Volt
Standard
4
PCI Express X4
14
No
Recommended for SA-P400
5
PCI Express X4
17
No
Standard
6
PCI Express X4
20
No
Standard
7
PCI Express X4
23
No
Standard
Expansion Slots with
PCI Express X4 Mezzanine Option
Bus speed
Bus number
Hot Plug
PCI Voltage
Notes
1
PCI Express X4
2
No
Optional
2
PCI Express X4
5
No
Optional
3
64-bit / 133 MHz PCI-X
10
No
3.3 Volt
Standard
4
PCI Express X4
13
No
Recommended for SA-P400
5
PCI Express X4
16
No
Standard
6
PCI Express X4
19
No
Standard
7
PCI Express X4
22
No
Standard
Expansion Slots with
PCI Express X8 Mezzanine Option
Bus speed
Bus number
Hot Plug
PCI Voltage
Notes
1
PCI Express X8
2
No
Optional
2
N/A
N/A
N/A
N/A
N/A
3
64-bit / 133 MHz PCI-X
10
No
3.3 Volt
Standard
4
PCI Express X4
13
No
Recommended for SA-P400
5
PCI Express X4
16
No
Standard
6
PCI Express X4
19
No
Standard
7
PCI Express X4
22
No
Standard
Bus Expansion
The x4-x8 PCI Express
Bus Expander is a half-length expansion board. When installed into an x4
PCI Express expansion slot, the x4-x8 PCI Express bus expander converts
the adjacent x4 PCI Express expansion slot into a x8 PCI Express expansion
slot.
The HP ProLiant DL580 G4 Server can support up to two x4-x8 PCI Express
bus expander boards. The bus expander can only be installed in expansion
slots 5 and 7 to convert the adjacent lower-numbered expansion slot to
a PCI Express x8 expansion slot. For example, installing the board into
expansion slot 5 converts expansion slot 4 to a PCI Express x8 expansion
slot.
Manageability
Integrated Lights-Out (iLO 2) Management 2 (integrated on motherboard)
Virtual KVM (text mode)
Virtual Power Button Control
Integrated Remote Console
Remote Serial Console
Dedicated & full function shared network Connectivity
Browser, command line and scripted access
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell
security (SSH)
OS independent hardware health status
IML and iLO Event Logging
Support for 12 user accounts with customizable access privilege
Storage Controllers One of the following depending on Model
HP Smart Array P400/256MB
Controller (in a PCI-Express slot) NOTE: Standard on 1P Base Models.
HP Smart Array P400/512MB
BBWC Controller (in a PCI-Express slot) NOTE: Standard on 2P High Performance
Models.
Storage
Data Protection
The Battery-Backed
Write Cache (BBWC) Enabler for the Smart Array P400 Controller protects
up to 512-MB write cache memory from hard boot, power, controller, or system
board failures.
Standard on 2P Models, optional with others
Battery charge/life:
Up to 72 hours/3 years
Transportable data protection
Increases
overall controller performance
NOTE:
Safely transport your write cache data to another HP ProLiant DL580
G4 in the data center by removing the BBWC Enabler and Smart Array P400
Controller Memory Module simultaneously (connected by short cable).
Storage
Diskette Drive
None Standard - Optional Slimline
Floppy Drive available (ejectable)
Optical Drive
Slimline DVD/CD-RW Drive Standard
on all models (ejectable)
Hard Drives
None ship standard
Hard Disk Drive
Backplane
Internal SAS backplane supports
up to eight SFF hard disk drives
Rack (4U = 7 inches), ships
with Quick Deploy Sliding Rail System, an ambidextrous cable management
arm and quick release levers for fast and easy serviceability and in-rack
tool-less access to major components.
Space saving form factor (4U) provides space efficiencies while providing
maximum deployment flexibility.
ProLiant Essentials
Foundation Pack Software
HP
Systems Insight Manager
HP Systems Insight Manager
(HP SIM) provides a unified, secure and extensible environment to
centrally manage servers, storage and other infrastructure devices
across multiple operating system platforms.
Through a single management view, HP SIM provides core management
services that include device discovery and identification, event
views, health monitoring, inventory data collection, software version
control and reporting. HP SIM is built on industry standards and
is extensible with value-added ProLiant Essentials, Integrity Essentials
and Storage Essentials software to meet individual management needs.
For more details on HP SIM visit http://www.hp.com/go/hpsim.
HP SIM provides organizations with the following benefits:
Simplifies and consolidates infrastructure lifecycle management
using task and query based functionality
Provides the foundation for infrastructure automation and virtualization
Enables IT management based on business processes not hardware
platforms
Lowers infrastructure maintenance cost and frees resources for
innovation
Maximizes resource utilization with virtualization technologies
Provides a central point of integration between infrastructure
and Enterprise management tools such as HP OpenView
SmartStart
SmartStart is a tool that
simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please
visit the SmartStart Web site at http://www.hp.com/servers/smartstart. SmartStart version supported (minimum):
SmartStart 7.50.
Insight Management Agents
Insight Management Agents
should be installed on all HP servers to present system instrumentation,
health and configuration information into HP Systems Insight Manager
and the HP System Management Homepage. The HP System Management Homepage
aggregates systems data from Insight Management Agents and other HP
management tools, providing a consolidated browser-based interface
for managing individual servers,
Insight Management Agents and The HP System Management Homepage
are included on ProLiant Support Packs, and can also be installed
using the server profiles provided with the ProLiant Essentials
Rapid Deployment Pack. For additional information about the Management
Agents and the HP System Management Homepage please visit the management
Web site at http://www.hp.com/servers/manage
Subscriber's Choice
Subscriber's
Choice Driver and Support Alerts/Notifications is a web-based email subscription
service that provides automatic delivery of software and driver change notifications
for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available,
on a weekly or monthly basis.
ROMPaq,
support software, and configuration utilities
The
latest software, drivers, and firmware fully optimized and tested for your ProLiant
server and options available in SmartStart or downloadable from Software and Drivers
download pages, linked from the SmartStart website at http://www.hp.com/servers/smartstart.
Survey Utility and diagnostics
utilities
The most advanced configuration
analysis, reporting and troubleshooting utilities used by HP and at
your fingertips, available in SmartStart.
Insight Diagnostics
The most advanced configuration
analysis, reporting and troubleshooting utilities used by HP and at
your fingertips, available in SmartStart.
Optional
ProLiant Essentials Value Packs
Optional software offerings that selectively extend the functionality
of an Adaptive Infrastructure to address specific business problems
and needs:
Rapid Deployment Pack (RDP) is an automated deployment and provisioning
solution for all ProLiant servers. RDP includes the ProLiant Integration
Module featuring ProLiant server pre-configured events for OS
installation, and optimized software drivers, firmware and management
agents. Every RDP disc includes 10-node trial licenses for evaluation
purposes. RDP requires a license for each server deployed and
is available for purchase with HP servers. For more information,
visit: http://www.hp.com/servers/rdp.
Workload Management Pack - provides easier management of complex
environments, improving overall server utilization and enabling
Windows® 2000 customers for the first time to confidently
deploy multiple applications on a single multiprocessor ProLiant
Server.
Performance Management Pack - a performance management solution
that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better
utilize their valuable resources.
Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken network linkages and steers traffic to the optimum route
based on network conditions, plus it provides an extra layer of
protection. The virus throttle feature of the solution slows the
propagation of fast spreading virus.
Vulnerability and Patch Management Pack - identifies and remediates
software security vulnerabilities due to missing patches as well
operating system configurations that can be exploited by viruses,
worms, and other blended threats.
Virtual Machine Management Pack - provides central management
and control of virtual machines from Microsoft and VMware. Integrated
approach provides the ability to manage both physical and virtual
resources from a single management console.
Server Migration Pack - The Server Migration Pack automates
the manual processes required for migrating servers between physical
or virtual platforms (P2V, V2P, and V2V).
Server Migration Pack - P2P Edition: Upgrading or replacing
your existing server? Effortlessly transition to new servers with
automated, accurate and affordable migration of OS, application
and data.
Accelerated iSCSI Pack - enables the embedded Multifunction
network controller to serve as both a NIC and an iSCSI HBA providing
access to SAN storage over the same connection used for networking.
Processing of the protocol stack is offloaded to the NIC reducing
CPU utilization and greatly improving the speed with which the
requests are processed and sent to the network.
Optional Remote Management
Packs
Integrated Lights-Out Advanced Pack - upgrades the iLO 2 processor
with comprehensive remote control including Virtual KVM graphical
console, virtual media, power management and enterprise security.
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more information. NOTE: For more information regarding ProLiant Essentials Software, please
see the following URL: http://www.hp.com/servers/proliantessentials.
Industry Standard
Compliance
ACPI 1.0a. Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Physical Address Extension (PAE)
Support
Microsoft® Logo certifications
USB 2.0 Support
Remote
Management
Integrated Lights Out 2 (iLO 2) Standard Management:
Virtual Text Remote Console
Virtual Power Button Control
Integrated Remote Console
Dedicated & full function shared network connectivity
Browser, command line and scripted access
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell
security (SSH)
OS independent hardware health status
IML and iLO Event Logging
Support for 12 user accounts with customizable access privilege
Intelligent
Manageability
HP Systems Insight Manager
SmartStart
Redundant ROM
Remote Flash ROM
Management Agents
Integrated Management Log (IML)
Automatic Server Recovery-2 (ASR-2)
ROM-Based Setup Utility (RBSU)
Dynamic Sector Repairing (with Smart Array Controllers)
Drive Parameter Tracking (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, SAS hard drives and memory)
Redundant/adaptive load balancing NIC Support
Hot Spare Boot NOTE: Upon the event of a failed
processor or VRM in a multi-processing environment, the system will automatically
reboot and use the remaining good processor(s).
Availability
HP Advanced Memory Protection Technology - delivers unsurpassed
memory protection and server availability with the following supported
modes of operation:
Advanced ECC (1 or More Memory Boards)
Advanced ECC Memory is the default memory protection mode for the HP
ProLiant DL580 G4. In Advanced ECC, the server is protected against
correctable memory errors. The server will provide notification if the
level of correctable errors exceeds a predefined threshold rate. The
server does not fail because of correctable memory errors.
Advanced ECC provides additional protection over Standard ECC in that
it is possible to correct certain memory errors that would otherwise
be uncorrectable and result in server failure. Whereas Standard ECC
can correct single-bit memory errors, Advanced ECC can correct single-bit
and multi-bit memory errors if all failed bits are on the same DRAM
device on the DIMM. Advanced ECC is the only mode in which hot-add operations
are supported by adding a memory board with memory to the server while
it is running.
Online Spare Memory (1 or More Memory Boards)
Offers a higher level of memory protection than Advanced ECC alone.
If the number of single-bit correctable errors on a bank exceeds the
pre-defined error threshold, that bank will fail over to the online
spare bank without intervention or server interruption. The failed memory
can then be replaced at the user's convenience during a scheduled maintenance
window.
Online Spare Memory is achieved by protecting active memory with online
spare memory on the same memory board. No operating system support is
required.
Hot Plug Mirrored Memory (2 or 4 Memory Boards)
Hot Plug Mirrored Memory provides a higher level of availability than
Advanced ECC and Online Spare Memory. With Hot Plug Mirrored Memory,
the server is protected against uncorrectable memory errors that would
otherwise result in server failure. Hot Plug Mirrored Memory allows
the server to keep two copies of all memory data on separate memory
boards. If an uncorrectable error is encountered, the proper data is
retrieved from the memory board that did not fail. In addition, Hot
Plug Mirrored Memory allows failed or degraded DIMMs to be replaced
while the server is running without requiring server downtime. The memory
board with the failed DIMMs can be removed from the front of the server,
failed DIMMs replaced, and the board re-inserted into the server without
disengaging the server from the rack or interrupting the operating system.
Hot Plug RAID Memory (4 Memory Boards)
Hot Plug RAID Memory provides a similar level of protection as Hot Plug
Mirrored Memory but obtains this protection using a smaller percentage
of the installed memory. While Hot Plug Mirrored Memory keeps two copies
of all memory data, Hot Plug RAID Memory keeps only one copy of all
memory data and additional parity information. If an uncorrectable memory
error is encountered, the server can create the proper data using data
from the parity information and the other memory boards that contain
no failures. In a Hot Plug RAID Memory configuration, 75% of the installed
memory is available to the Operating System; 50% more than in a Hot
Plug Mirrored Configuration. As with Hot Plug Mirrored Memory, Hot Plug
RAID Memory allows failed DIMMs to be replaced while the server remains
running and safely engaged in the rack.
# of Memory Boards Installed
Supported Modes
1 Board
2 Boards
3 Boards
4 Boards
Number of DIMMs Supported
4
8
12
16
Maximum Memory Supported
16 GB
32 GB
48 GB
64 GB
Advanced ECC Memory Protection
Yes
Yes
Yes
Yes
Online Spare Memory
Yes
Yes
Yes
Yes
Hot Plug Mirrored Memory
No
Yes
No
Yes
Hot Plug RAID Memory
No
No
No
Yes
PCI-X Hot Plug Technology (Two 64bit/133-MHz PCI-X hot plug slots
available with the Hot Plug PCI-X Mezzanine Option).
Smart Array P400 Controller with optional Battery Backed Write Cache
(BBWC) Enabler provides transportable data protection and increases
overall controller performance. Up to 512MB Battery Backed Write Cache
protection optional on HP ProLiant DL580 G4 (512MB BBWC ships standard
with 2P models).
Hot Plug Redundant Fans - Six Hot Plug Redundant Fans ship standard
with all models.
Front Accessible Chassis - Redesigned chassis allows access to memory,
processors and hard drives from the front of the server while it remains
safely engaged in the rack. This provides easier serviceability and
lowers the chance of interfering with neighboring servers' cables and
components.
Hot Plug Universal Drives - Up to eight Hot Plug Universal SFF SAS
drives are supported.
Hot Plug Redundant Power Supplies - Two Hot Plug Redundant Power Supplies
ship standard with all 2P High Performance Models (2nd Hot Plug Redundant
Power Supply is optional with 1P base models).
Serviceability
Front and Rear accessibility provides unsurpassed serviceability
by allowing the server to remain safely secured in the rack while maintaining
Hot Plug RAID Memory, Hot Plug Universal Hard Drives, Hot Plug Redundant
Power Supplies, as well as Processors and Processor Power Modules.
Innovative Diagnostic Lighting
Systems Insight Display - precisely depicts all major subsystems of
the server (PCI I/O, Memory, CPU, Redundant Cooling, Interlock, Thermtrip)
and gives instant visual indication of fault status. Located on top
front of server.
LED display on front panel indicates power, internal health, external
health, Unit ID light.
LED display on Memory board indicates Memory status, health, and protection
mode.
LED display on Processor board indicates Processor and Processor Power
Module health.
Tool-less, virtually cable-less interior design
Tool-less access to interior of server
Up to two, Slimline media drives are removable without the use
of tools (ejectable)
Rear Access to Hot Plug Redundant Power Supplies
PCI Card Guides locks full length PCI cards in place
Six individually removable fans connect without cables to the
system board
Processor/PPM Retention Cage securely locks Processors into their
sockets
Tool-less removal of system board
Quick Deploy Rails
Tool-less design "snap in" rail and ambidextrous cable
management arm
Security
Power-on password
Keyboard password
Diskette drive control enable/disable
Diskette boot control enable/disable
External USB port enable/disable
Network Server Mode
Serial interface control
Administrator's password
Disk configuration lock
Removable Diskette drive (optional)
Removable CD-ROM or DVD drive
Power Supply
910W (low line), 1300W (high
line) with 12V main output. Size is 2.8"(H) X 4.9"(W) X 7.5"(L).
NOTE: One Hot Plug Power Supply ships
standard with 1P Base Models (optional Redundant Hot Plug Power Supply Option
Kit). NOTE: Two Hot Plug Power Supplies ship standard with 2P High Performance
Models.
Windows Server 2003
Microsoft Windows 2000
Red Hat Enterprise Linux
SuSE Linux Enterprise Server
Novell NetWare
SCO OpenServer
SCO UnixWare
Sun Solaris Intel Platform Edition
VMware Virtualization Software
NOTE: For a
more complete and up-to-date listing of supported OSs and versions, please
visit our OS Support Matrix at: http://www.hp.com/go/supportos.
NOTE: For
an up-to-date listing of the latest drivers available for the HP ProLiant
DL580, please see: http://www.hp.com/support.
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION: If
a third-party rack is used, observe the following additional requirements
to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing
front and rear doors, you must allow 5,350 sq cm (830 square inches)
of hole evenly distributed from top to bottom to permit adequate airflow
(equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component
and the side panels of the rack must be a minimum of 7 cm (2.75 inches).
CAUTION: Always
use blanking panels to fill all remaining empty front panel U-spaces in
the rack. This arrangement ensures proper airflow. Using a rack without
blanking panels results in improper cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation
Guide or the Documentation CD provided with the server, or to the server
documentation located in the Support section at the following URL: http://www5.HP.com/products/servers/proliantdl580/index.html.
Rack Mounting Requirements
HP ProLiant DL580 G4 rack models provide tool-free support for racks
with square or round mounting holes (including Compaq/HP 7000, 9000, 10000,
HP/E series and H9 series) with an adjustment range from 24" - 36"
in depth. The ambidextrous cable management arm can be mounted on either
the left or right side for improved cable management. NOTE: Cable management arm must
be removed to access Hot Plug Power Supplies when the cable management
arm is mounted on the right.
HP ProLiant DL580 G4 in Telco Racks
Support for all 2-post Telco racks requires the use of the standard rack
kit and an additional option kit from Rack Solutions (http://www.racksolutions.com/hp/)
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and storage
products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP,
rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eCo-Enterprise Configurator now provides factory default racking
for our HP hardware portfolio. This approach is aligned with our strategic
direction to meet the needs and expectations of our valued customers.
If you require "custom" rack configuration, please contact HP's
Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator.
Service and Support
This product is covered by a global limited warranty and supported by
HP Services and a worldwide network of resellers and service providers.
Hardware diagnostic support and repair is available for three years from
date of purchase. Support for software and initial setup is available
for 90 days from date of purchase. Additional support may be covered under
the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services or customized service
agreements.
HP Care Pack services include coverage for the HP branded hardware options
qualified for the server, purchased at the same time or afterward, internal
to the enclosure, as well as 22" and smaller external monitors and
tower UPS options up to 3kVA; these items will be covered at the same
service level and for the same coverage period as the server. Coverage
of UPS Battery is not included, standard warranty terms & conditions
apply. For servers or storage systems installed within a rack, service
also covers all HP qualified rack options installed within the same rack.
HP services provide continuous care and support expertise with committed
response designed to meet your IT and business needs.
To fully capitalizing on your HP ProLiant servers' capabilities requires
a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of multi
vender support solutions provides a range of support services designed
to meet the varying needs of business. Whether an SMB or large global
corporation HP has a ProLiant server support offer to help you speedily
deploy and maximize system uptime.
Enhanced Care - Minimum recommended service support offer designed to
ensure customers have access to expert assistance, whenever they need
it.
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years
Continuous Care - Recommended service delivering cost-effective support
options designed to extend HP Services committed response and guaranteed
fix times, designed to speed problem identification and resolution.
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage,
3 Years
Total Care - Highest HP Support service level recommend to help increase
IT performance and availability with comprehensive, integrated hardware
and software services
Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft
O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response
time incl. HP holidays
Deployment Services - HP Installation and Start Up services designed
to take time, risk, and worry out of the deployment of ProLiant servers
- and free customers IT support staff to focus on what they do best, their
business.
Installation & Start-Up of a ProLiant server and Microsoft
or Linux O/S per the Customer Description and/or Data Sheet. To be delivered
on a scheduled basis 8am-5pm, M-F, excl. HP holidays
The HP ProLiant DL580 G4 server is an enterprise class, 4-processor server
designed for maximum scalability and high availability. It's radically
redesigned chassis offers unsurpassed flexibility and serviceability in
a versatile, rack-optimized form factor.
Based upon the latest industry standard processing, memory, I/O and networking
technologies, the HP ProLiant DL580 G4 provides the highest levels of
performance demanded by today's compute intensive applications. Unparalleled
high availability features, including Hot Plug RAID Memory technology,
an integrated Smart Array P400 controller, and hot-plug redundant components
guarantee maximum uptime. The HP ProLiant DL580 G4's Integrated Lights-Out
2 technology, allows remote administration from a standard web-browser
without ever having to visit the server. Within the 4U dense form factor,
the HP ProLiant DL580 G4's highly expandable architecture provides maximum
application deployment flexibility with the ability to add PCI-Express,
hot plug PCI-X or battery-backed write cache options. Innovative new features,
such as the ability to access processors, memory, hard drives, and power
supplies while the unit remains secured in the rack, enable rapid response
to service events, radically decreasing overall IT costs and server downtime.
Typical Usage:
Space-constrained corporate data centers and service providers
With up to 1.168TB of internal storage, 16 DIMM sockets and PCI-Express
or hot-plug PCI-X mezzanine options; the HP ProLiant DL580 G4 packs
the storage, memory, and I/O you need in a versatile, 4U chassis
Ambidextrous cable management and a quick deploy rail solution make
racking a snap
Availability features including hot plug RAID memory, hot plug redundant
power, hot plug redundant fans, hot plug PCI-X and hot plug RAID hard
drives keep environments up and running and users productive
Database, Messaging and Business Applications
The latest 64-bit Intel® Xeon™ processors with Hyper-Threading,
DDR-2 memory, and large internal storage capacity provide scalability
for everything from web apps to mail servers to databases
Four standard PCI-Express x4 slots and one standard full-length PCI-X
slot and the ability to add either two additional X4 PCI Express, one
additional X8 PCI Express, or two additional hot plug PCI-X slots, provide
powerful and flexible I/O alternatives
Dual integrated multi-function gigabit NICs give you the connectivity
and bandwidth needed in today's database or business applications environments
Easily attach to SAN or NAS and manage from one location
Server Consolidation
Scalability, availability and built-in serviceability make the HP
ProLiant DL580 G4 the perfect platform for server consolidation solutions
The ProLiant HP DL580 G4 and ProLiant Essentials make it easy to deploy,
manage, and migrate virtualized servers with VMware or Microsoft Virtual
Server
Integrated Lights-Out 2 enables administrators to manage the HP ProLiant
DL580 G4 from remote locations
HP DL580R04 X7140M 4GB P400 DC 2P
430808-001 HP DL580R04 X7130M 4GB P400 DC 2P
430809-001 HP DL580R04 X7041 4GB P400 DC 2P
403413-001 HP DL580R04 X7030 4GB P400 DC 2P
403412-001
Processor(s) Two of the following depending on Model.
Up to 4 supported.
2) Memory Cartridges (up to
4 supported)
4 GB PC2-3200R registered ECC SDRAM (Standard) to 64 GB (Maximum) (2x1 interleaved
memory and Advanced Memory Protection Technology) NOTE: Four memory boards would be
required to configure up to 64 GB using 4 GB DIMMs
Network Controller
Dual embedded NC371i Multifunction
Gigabit Server Adapters
Storage Controller
HP Smart Array P400/512MB BBWC
Controller
Manageability
Integrated Lights-Out 2 (iLO
2) Standard Management
Hard Drives
None ship standard
Internal Storage
1.168TB
max (with optional 146GB SFF SAS Hot Plug hard drives)
Power Supplies
Two 910W/1300W Power Supplies
standard (second power supply for redundancy)
Optical Drive
Slimline DVD/CD-RW Drive (8X/24X)
(ejectable)
Diskette Drive
None ship standard (optional
Ejectable Slimline Floppy Drive)
Form Factor
Rack 4U
HP DL580 G4
Base Models
HP DL580R04 X7120M 2GB P400 DC 1P
430810-001 HP DL580R04 X7110M 2GB P400 DC 1P
430811-001
Processor(s) One of the following depending on Model.
Up to 4 supported.
(1) Memory Cartridge (up to
4 supported)
2 GB PC2-3200R registered ECC SDRAM (Standard) to 64GB (Maximum)
(2x1 interleaved memory and Advanced Memory Protection Technology) NOTE: Four memory boards would be
required to configure up to 64 GB using 4 GB DIMMs
Network Controller
Dual embedded NC371i Multifunction
Gigabit Server Adapters
Storage Controller
HP Smart Array P400/256MB Controller
Manageability
Integrated Lights-Out 2 (iLO
2) Standard Management
Hard Drives
None ship standard
Internal Storage
1.168TB
max (with optional 146GB SFF SAS Hot Plug hard drives)
Power Supplies
One 910W/1300W Power Supply
standard (second power supply for redundancy optional)
Optical Drive
Slimline DVD/CD-RW Drive (8X/24X)
(ejectable)
Diskette Drive
None ship standard (optional
Ejectable Slimline Floppy Drive)
Configuration Information - Factory Integrated Models
NOTE: HP does not allow factory integration of options into standard
models listed above.
Configure-to-order servers must start with a CTO Chassis. NOTE: This product offering does not support HP Factory Express
Server Configuration Level 1. NOTE: FIO indicates that this option only available as a Factory
Installable Option.
Step
1: Base Configuration
Models
HP ProLiant DL580
G4 Highly Serviceable Rack Chassis
410058-B21
Factory Integrated
Model ships with:
Dual embedded NC371i
Multifunction Gigabit Server Adapters
Four standard PCI-Express
x4 slots and one 64-bit/133MHz non-hot plug PCI-X slots
One (1) Hot Plug
Power Supply with One high-line IEC power cord
Six (6) Redundant
Hot Plug Fans
SFF SAS Drive Cage
Integrated Lights-Out
2 (iLO2) Standard Management
Rack (4U), 7-inch
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted)
Processors
HP X7140M DC 570
G4 Kit, Factory Integrated Only NOTE:If
more than one processor is desired, additional processor selections would
be 430816-B21 unless High Performance Model features are desired, then select
435280-B21 which includes a 2nd processor and select any desired additional
processors.
430816-L22
HP X7130M DC 570
G4 Kit, Factory Integrated Only NOTE: If more than one processor
is desired, additional processor selections would be 430817-B21 unless High
Performance Model features are desired, then select 435281-B21 which includes
a 2nd processor and select any desired additional processors.
430817-L22
HP X7120M DC 570
G4 Kit, Factory Integrated Only NOTE: If more than one processor
is desired, additional processor selections would be 430818-B21.
430818-L22
HP X7110M DC 570
G4 Kit, Factory Integrated Only NOTE: If more than one processor
is desired, additional processor selections would be 430819-B21.
430819-L22
Dual-Core 64-bit
Intel Xeon 7041 (3.00GHz, 2x2M L2) 580 G4 FIO NOTE: If more than one processor
is desired, additional processor selections would be 404752-B21 unless High
Performance Model features are desired, then select 410059-B21 which includes
a 2nd processor and select any desired additional processors.
404752-L22
Dual-Core 64-bit
Intel Xeon 7030 (2.80GHz, 2x1M L2) 580 G4 FIO NOTE: If more than one processor
is desired, additional processor selections would be 404753-B21 unless High
Performance Model features are desired, then select 410060-B21 which includes
a 2nd processor and select any desired additional processors.
4 GB (2 x 2 GB 2RANK)
PC2-3200 Registered Memory (DDR2-400) Option Kit NOTE: With Advanced ECC and online
spare memory capabilities. 2GB 2RANK DIMM's are recommended with the HP
ProLiant DL580 G4. However, 2GB 1RANK DIMM's are also supported for commonality
with other HP ProLiant servers.
The HP ProLiant DL580 G4 Performance Packs include the latest performance
technologies and enterprise class availability features pre-installed
for convenience and value. In addition to the standard features listed
in Step 1, the Performance Packs include the following:
2nd Intel Xeon Processor and Processor Power Module
2nd Rear Accessible Hot Plug Redundant Power Supplies
NOTE:
Some options may not be integrated at the factory. Contact your local
sales representative for additional information.
ProLiant
DL580 Unique Options
Hot Plug 64-bit/133MHz
PCI-X Mezzanine Option NOTE: Adds two Hot Plug PCI-X slots.
377520-B21
PCI Express X4 Mezzanine
Option NOTE: Adds two PCI Express (X4) I/O
slots. Each slot will accept PCI Express cards with X1 through X8 connectors
and utilize X4 lanes.
377522-B21
PCI Express X8 Mezzanine
Option NOTE: Adds one PCI Express (X8) I/O
slot. The slot will accept PCI Express Cards with X1 through X8 connectors
and utilize X8 lanes.
389876-B21
DL580
G4 Memory Expansion Board NOTE: The HP ProLiant DL580 G4 utilizes up to four Memory Expansion
Boards that support up to four DIMMs each. These memory boards are Front
accessible providing unsurpassed levels of memory protection as well as
scalability for the most memory-intensive applications. See Memory Configuration
Diagram. NOTE: One Memory Expansion Board ships standard with 1P models. Two
Memory Expansion Boards ship standard with High Performance 2P models.
ProLiant Essentials
Intelligent Networking Pack - Windows Edition, Single Server License NOTE: For use with a single server. Contains one license with a unique
license activation key and documentation.
ProLiant Essentials
Performance Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key, HP Management
CD and documentation. NOTE: The most recent version of the software can always be downloaded
at http://www.hp.com/products/pmp.
ProLiant Essentials
Virtual Machine Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
435661-B21
ProLiant Essentials
Server Migration Pack, Single-Migration License NOTE: Contains one license, enabling
1 server migration, with a unique license activation key and documentation.
435663-B21
ProLiant Essentials
Server Migration Pack - Physical to ProLiant Edition, Single-Migration License
412978-B21
HP ProLiant Essentials
Server Migration Pack - Physical to ProLiant Edition. 1 Year Unlimited Migration
License
412982-B21
NOTE:
This license allows 1 server to be migrated from a physical server to a
virtual machine. Or this license can be used to migrate a virtual machine
from one virtualization layer i.e. VMware GSX to a different virtualization
layer such as VMware ESX or Microsoft Virtual Server 2005.
ProLiant Essentials
Vulnerability and Patch Management Pack
ProLiant Essentials
Vulnerability and Patch Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials.
Remote
Management
Integrated Lights-Out
Advanced Pack
Integrated Lights-Out
Advanced Pack, 1 server Featuring:
Sophisticated virtual administration features for ultimate control of servers
in the data centers and remote sites.
Dual-Core 64-bit Intel® Xeon™
7140M Processor (3.40 GHz, 150Watts, 800MHz FSB) NOTE: This processor option kit supports
the HP ProLiant DL580 G4 and the HP ProLiant ML570 G4.
Dual-Core 64-bit Intel® Xeon™
7130M Processor (3.20 GHz, 150 Watts, 800MHz FSB) NOTE: This processor option kit supports
the HP ProLiant DL580 G4 and the HP ProLiant ML570 G4.
Dual-Core 64-bit Intel® Xeon™
7120M Processor (3.00 GHz, 95 Watts, 800MHz FSB) NOTE: This processor option kit supports
the HP ProLiant DL580 G4 and the HP ProLiant ML570 G4.
Dual-Core 64-bit Intel® Xeon™
7110M Processor (2.60 GHz, 95 Watts, 800MHz FSB) NOTE: This processor option kit supports
the HP ProLiant DL580 G4 and the HP ProLiant ML570 G4.
Dual-Core 64-bit Intel® Xeon™
7041 Processor (3.00 GHz, 165 Watts, 800MHz FSB) NOTE: This processor option kit supports
the HP ProLiant DL580 G4 and the HP ProLiant ML570 G4.
Dual-Core 64-bit Intel® Xeon™
7030 Processor (2.80 GHz, 165 Watts, 800MHz FSB) NOTE: This processor option kit supports
the HP ProLiant DL580 G4 and the HP ProLiant ML570 G4.
4 GB (2 x 2 GB 2RANK) PC2-3200
Registered Memory (DDR2-400) Option Kit NOTE: With Advanced ECC and online
spare memory capabilities. 2GB 2RANK DIMM's are recommended with the HP
ProLiant DL580 G4. However, 2GB 1RANK DIMM's are also supported for commonality
with other HP ProLiant servers.
DL580 G4 Memory Expansion Board NOTE: The HP ProLiant DL580 G4 utilizes
up to four Memory Expansion Boards that support up to four DIMMs each. These
memory boards are Front accessible providing unsurpassed levels of memory
protection as well as scalability for the most memory-intensive applications.
See Memory Configuration Diagram. NOTE: One Memory Expansion Board ships standard with 1P base models
and two Memory Expansion Boards ship standard with 2P High Performance models.
NOTE: SATA drives
have a 1 year warranty. Please see the SATA Hard Drive QuickSpecs for Technical
Specifications such as capacity, height, width, interface, transfer rate,
seek time, physical configuration, and operating temperature: http://h18000.www1.hp.com/products/quickspecs/11940_na/11940_na.HTML
Storage Controllers
PCI Option
x4-x8 PCI-Express Bus Expander
Option NOTE: The HP ProLiant DL580 Generation
4 Server can support up to two x4-x8 PCI Express bus expander boards. The
bus expander can only be installed in expansion slots 5 and 7 to convert
the adjacent lower-numbered expansion slot to a PCI Express x8 expansion
slot.
HP Smart Array P400/256MB Controller NOTE: The Smart Array P400 Controller
supports internal Serial Attached SCSI and Serial ATA drives. It is supported
in all HP ProLiant DL580 G4 Models. This controller model ships standard
on 1P Models.
HP Smart Array P400/512MB BBWC
Controller NOTE: The Smart Array P400 Controller
supports internal Serial Attached SCSI and Serial ATA drives. It is supported
in all HP ProLiant DL580 G4 Models. This controller model ships standard
on 2P Models.
Smart Array P400 Battery Attach
Kit NOTE: This option kit contains a
24" battery cable and adhesive material for installing a battery into
the server if a Smart Array P400 is integrated outside of the factory. For
all solutions, please refer to the server QuickSpecs and User's Manual for
detailed installation instructions.
HP Smart Array P600/256 BBWC Controller NOTE: The Smart Array P600 Controller
supports internal and external Serial Attached SCSI and Serial ATA drives.
It is supported in all HP ProLiant DL580 G4 Models.
HP StorageWorks DAT 72 USB Internal
Tape Drive (Carbonite) NOTE: HP recommends combining this tape drive with the 1U USB Rack-Mount
kit ( A8007A) for a complete rack-mount solution.
DW026A
SAS Tape Drives NOTE: Connecting hard drive cage and SAS tape to the same 8 Internal
Port SAS HBA ( 347786-B21) using split cable (supplied with tape drive) deactivates
1 of the hard drive bays. Actual hard drive bay deactivated depends on where
split cable plugs into SAS drive connector. Example: 3x SAS cable connector
plugged into SAS drive connector (5-8) on the back of the hard drive cage
would mean drive bay 8 is deactivated.
HP StorageWorks Ultrium 448 SAS
Internal Tape Drive NOTE: HP recommends combining this tape drive with the 1U SAS Rack-Mount
kit (AE459A) for a complete rack-mount solution.
DW085A
HP StorageWorks Ultrium 920 SAS
Internal Tape Drive NOTE: HP recommends combining this tape drive with the 1U SAS Rack-Mount
kit (AE459A) for a complete rack-mount solution.
EH847A
NOTE: Please refer
to the "Tape Drives, Tape Autoloaders & Tape Libraries" table
in the Storage section of this document for a list of SAS controllers with
tape support.
Ultrium Tape Drives
HP StorageWorks Ultrium 232 Internal
Tape Drive (Carbonite) NOTE: HP recommends combining this tape drive with the 1U SCSI Rack-Mount
kit ( A7445B) for a complete rack-mount solution.
For an up-to-date listing
of the latest O/S and software support details for HP Ultrium tape drives,
please visit: http://www.hp.com/go/connect
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U SCSI Rack-Mount
kit NOTE: The 1U Rack-Mount Kit can support up to (2) half-height tape
drives and is compatible with multiple Single-Ended and LVD SCSI tape drives
including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215,
Ultrium 232, Ultrium 448 and Ultrium 920 tape drives.
HP StorageWorks 1U USB Rack-Mount
Kit NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height
tape drives and is compatible with the DAT 24 USB, DAT 40 USB and DAT 72
USB tape drives.
HP StorageWorks 1U SAS Rack-Mount
Kit NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height
tape drives and is compatible with the Ultrium 448 SAS and Ultrium 920 SAS
tape drives.
AE459A
HP StorageWorks 3U Rack-mount
kit NOTE: The 3U Rack-mount Kit can support up to (2) full-height or
(4) half-height tape drives and compatible with multiple LVD SCSI tape drives
including DAT 40, DAT 72, DLT VS160, SDLT 320, SDLT 600, Ultrium 232, Ultrium
460, Ultrium 448, Ultrium 920 and Ultrium 960 tape drives.
HP StorageWorks 1/8 Ultrium 920
G2 Tape Autoloader
AH165A
HP StorageWorks 1/8 Ultrium 448
G2 Tape Autoloader
AH164A
HP StorageWorks 1/8 Ultrium 232
G2 Tape Autoloader
AH163A
HP StorageWorks 1/8 G2 Tape Autoloader
Rack Kit NOTE: Required to install the 1/8
G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount
instructions
AH166A
NOTE: Please reference
the Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
Tape Libraries
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium
960 Drive Library
HP StorageWorks MSL4048 2 Ultrium
960 4GB FC Drive Library
AG325B
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium
960 Dr LVDS Library
AD606B
HP StorageWorks MSL6030 1 Ultrium
960 Dr FC Library
AD608B
HP StorageWorks MSL6030 2 Ultrium
960 Dr LVDS Library
AD607B
HP StorageWorks MSL6030 2 Ultrium
960 Dr FC Library
AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium
460 Dr LVDS Library
AD598B
HP StorageWorks MSL6030 1 Ultrium
460 Dr FC Library
AD600B
HP StorageWorks MSL6030 2 Ultrium
460 Dr LVDS Library
AD599B
HP StorageWorks MSL6030 2 Ultrium
460 Dr FC Library
AD601B
NOTE: Please reference
the MSL2024, MSL4048 and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
HP Data Protector Express Software
HP
DP Express Backup Server Upgrade for ProLiant Software
BB117AP
HP
DP Express Package for Microsoft Small Business Server
BB118AA
NOTE: To obtain
a free licensed copy of HP Data Protector Express for ProLiant edition software,
please visit the "Protect Your Data" link accessible from your
ProLiant server's System Management Homepage (SMH) software (SmartStart
7.5 or later).
NOTE: Please see
the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options
and configuration information at: http://www.hp.com/go/MSA1500cs
Uninterruptible Power Systems - Rack
HP, R1.5kVA UPS, 1U
AF419A
HP R3000 VA UPS, 2U, L5-30 NOTE: Replaces non-RoHs compliant
part number 192186-001.
AF422A
HP R3000 VA UPS, 2U, L6-20 NOTE: Replaces non-RoHs compliant
part number 192186-002.
AF423A
HP R5500 VA UPS NOTE: Replaces non-RoHs compliant
part number 326529-D71.
AF426A
HP Monitored Power
Distribution Unit (PDU)
HP Monitored Power Distribution
Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU-
dual input, 3U, 24A NOTE: Replaces non-RoHs compliant
part number 370959-D71.
AF503A
HP 8.3 kVA S1324 Monitored PDU-
single input, 3U, 24A NOTE: Replaces non-RoHs compliant
part number 370960-D71.
AF504A
HP 16.6 kVA S2140 Monitored PDU-
dual input, 1U, 40A NOTE: Replaces non-RoHs compliant
part number 37061-D71.
AF505A
HP 8.6 S1140 Monitored PDU- single
input, 1U, 40A NOTE: Replaces non-RoHs compliant
part number 370962-D71.
AF506A
HP Monitored Power Distribution
Unit: Half Rack Version
HP 17.3 kVA S348 Monitored PDU-
single input, 3-phase, 60A
HP 4.9kVA S124 Monitored PDU-
single input, 1U, 24A
AF914A
Modular Power Distribution Units 1U/0U
(Up to 32 outlets) NOTE: 1U/0U mounting brackets
shipped with
the unit (optimized for 10000 and 9000 series racks).
NOTE: xxxxxx-B21 (pallet) used to
ship empty racks shipped on a truck. -B22 (shock pallet) used to ship
racks with equipment installed (by custom systems, VARs and Channels).
xxxxxx-B23 (crated) used for air shipments of empty racks.
NOTE: Cat5e cables
are required to connect Interface Adapters to Console Switches. Cat5e cables
can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
NOTE: Cat5e cables
are required to connect Serial Adapters to Serial Console Servers. Additional
Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
Service and Support Offerings (HP
Care Pack Services)
Hardware
Services On-site Service
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
U4607E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
U4608E
6-Hour Call to Repair,
On-site Service 7-Day x 24-Hour Coverage, 3 Years (U.S. Part Number)
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4609E
Installation &
Start-up Services
Hardware Installation, Electronic
U4617E
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays, Electronic
U4618E
Installation and Startup
for Essentials Rapid Deployment Pack, Electronic
U5683E
Support Plus
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4619E
Support Plus 24
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4620E
Onsite HW support 24x7,
4hr response and RedHat AS O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U9239E
Onsite HW support 24x7,
4hr response and SuSE O/S SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays, Electronic
HP ProLiant DL580
G4 2P Models NOTE: Memory configurations listed
do not apply to "Factory Integrated Models".
Standard Memory
4 GB PC2-3200 Registered Memory (DDR2-400) with Advanced ECC functionality
Standard Memory Plus Optional Memory and Optional
Memory Boards
Up to 52 GB of memory is available with the optional installation of PC2-3200
Registered (DDR2-400) Option Kits and the use of all four memory boards.
Standard Memory Replaced with Optional Memory and Optional memory board
Up to 64 GB of memory is available with the removal of the standard 4
GB of memory, the optional installation of PC2-3200 Registered (DDR2-400)
Option Kits and the use of all four memory boards.
NOTE: Memory must be added in
banks of two DIMMS. This chart does not represent all possible memory
configurations. Additional requirements may apply to enable Advanced Memory
Protection features.
Standard Memory
Standard Memory Board (Slots)
Standard (2P models come standard with
4GB of memory on two memory boards)
4 GB
1
2
3
4
1 GB
1 GB
Blank
Blank
Second Memory Board (Slots)
1
2
3
4
1 GB
1 GB
Blank
Blank
Optional Third Memory Board (Slots)
1
2
3
4
Blank
Blank
Blank
Blank
Optional Fourth Memory Board (Slots)
1
2
3
4
Blank
Blank
Blank
Blank
Optional Memory Summary
Standard Memory Board (Slots)
Optional (Standard Memory Plus Optional
Memory Boards and Optional Memory)
52 GB
1
2
3
4
1 GB
1 GB
4 GB
4 GB
Second Memory Board (Slots)
1
2
3
4
1 GB
1 GB
4 GB
4 GB
Optional Third Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Fourth Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Maximum Memory Summary
Standard Memory Board (Slots)
Maximum (Standard Memory Replaced with Optional
Memory with Optional Memory board)
64 GB
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Second Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Third Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Fourth Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
HP ProLiant DL580
G4 1P Models NOTE: Memory configurations listed
do not apply to "Factory Integrated Models".
Standard Memory
2 GB PC2-3200 Registered Memory (DDR2-400) with Advanced ECC functionality
Standard Memory Plus
Optional Memory and Optional Memory Boards
Up to 58 GB of memory is available with the optional installation of PC2-3200
Registered (DDR2-400) Option Kits and the use of all four memory boards.
Standard Memory Replaced with Optional Memory and
Optional memory board
Up to 64 GB of memory is available with the removal of the standard 2
GB of memory, the optional installation of PC2-3200 Registered (DDR2-400)
Option Kits and the use of all four memory boards.
NOTE: Memory
must be added in banks of two DIMMS. This chart does not represent all
possible memory configurations. Additional requirements may apply to enable
Advanced Memory Protection features.
Standard Memory
Standard Memory Board (Slots)
Standard (1P models come standard with
2GB of memory on one memory boards)
2 GB
1
2
3
4
1 GB
1 GB
Blank
Blank
Optional Second Memory Board (Slots)
1
2
3
4
Blank
Blank
Blank
Blank
Optional Third Memory Board (Slots)
1
2
3
4
Blank
Blank
Blank
Blank
Optional Fourth Memory Board (Slots)
1
2
3
4
Blank
Blank
Blank
Blank
Optional Memory Summary
Standard Memory Board (Slots)
Optional (Standard Memory Plus Optional
Memory Boards and Optional Memory)
58 GB
1
2
3
4
1 GB
1 GB
4 GB
4 GB
Optional Second Memory Board (Slots)
1
2
3
4
1 GB
1 GB
4 GB
4 GB
Optional Third Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Fourth Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Maximum Memory Summary
Standard Memory Board (Slots)
Maximum (Standard Memory Replaced with Optional
Memory with Optional Memory boards)
64 GB
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Second Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Third Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Fourth Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
The following memory options are available from HP:
4 GB (2 x 2 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option
Kit NOTE: With Advanced ECC and online
spare memory capabilities. 2GB 2RANK DIMM's are recommended with the
HP ProLiant DL580 G4. However, 2GB 1RANK DIMM's are also supported for
commonality with other HP ProLiant servers.
DL580 G4 Memory Expansion Board NOTE: The HP ProLiant DL580 G4
utilizes up to four Memory Expansion Boards that support up to four
DIMMs each. These memory boards are Front accessible providing unsurpassed
levels of memory protection as well as scalability for the most memory-intensive
applications. See Memory Configuration Diagram. NOTE: One Memory Expansion Board ships standard with 1P base
models and two Memory Expansion Boards ship standard with 2P High Performance
models.
410061-B21
NOTE: memory is interchangeable
between the HP ProLiant DL580 G3 and HP ProLiant DL580 G4, but the memory
boards are not.
Front-accessible DL580 G4 Processor
Board (allows front access to processors and Processor Power Modules)
6
8-Bay SAS/SATA Drive Cage. Supports
up to 8 Small Form Factor (SFF) SAS or SATA Hot Plug Drives
Drive Support
Quantity
Supported
Position
Supported
Controller
Slimline Drives (ejectable)
1.44-MB Slimline Diskette Drive
Up to 2
3 or 4
Integrated
IDE slimline CD-ROM Drive
Up to 2
3 or 4
Integrated IDE
Slimline DVD-ROM Drive (8X/24X)
Option Kit
Up to 2
3 or 4
Integrated IDE
NOTE: The HP ProLiant
DL580 G4 can support a maximum of two Slimline drives (ejectable). Additional
configuration settings may be required if running 2 Diskette Drives. When
running 1 diskette drive, the top bay is the default location, but can be
changed with additional configuration settings.
Hard Drives
SAS SFF Hot Pluggable Drives
Quantity
Supported
Position
Supported
Controller
146GB 3G SAS 10K SP 72GB 3G SAS
10K SP
72GB 3G SAS 15K SP
36GB 3G SAS 10K SP
36GB 3G SAS 15K SP
Up to 8
6
HP Smart Array E200/64MB Controller
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
SATA SFF Hot Pluggable Drives
Quantity
Supported
Position
Supported
Controller
60GB 1.5G SATA 5.4K
Up to 8
6
HP Smart Array E200/64MB Controller
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
NOTES:
To review typical system power ratings use the Active Answers Power Calculator
which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/powercalcs.asp.
To drill down to calculators:
Click on: "ProLiant Servers"
Click on the Server of interest. Example: DL580 G4
Click on: "Power Calculator" link. (You may need to scroll
down to see it)
There are certain Dual-Core, lowline, max configurations that are
not supported. All highline configurations are supported. Consult the
Power Calculator to determine if your lowline configuration is supported.
Standard Rack Model Power Cords / Jumper
Cords
Description
IEC320-C14 to IEC320-C19 Jumper Cord
Optional Country Power Cords and Jumper Cords
Description
Option Kit Part Number
5-15P to IEC320-C19
235603-001
6-20P to IEC320-C19
235604-001
L6-20P to IEC320-C19, 20A,
250V, US
340653-001
IEC320-C19 to IEC320-C14 Jumper
(10A, IEC, 6 ft/2.0m)
313227-B21
IEC320-C19 to IEC320-C14 Jumper
(10A, IEC, 8 ft/2.5m)
291034-B21
IEC320-C19 to IEC320-C14 Jumper
(10A, IEC, 10 ft/3.0m)
310927-B21
IEC320-C19 to IEC320-C14 Jumper
(10A, IEC, 12ft/3.7m)
313228-B21
IEC320-C19 to IEC320-C20 Jumper
(16A, IEC, 8ft/2.5m)
NOTE: Listed are
the declared A-weighted sound power levels LWAd and the declared average
bystander position sound pressure levels LpAm when operating in a 23°
C ambient environment. Noise emissions were measured in accordance with
ECMA 74 and declared in accordance with ECMA 109.
Idle (Fixed Disk Drives Spinning)
L WAd (BELS)
7.8
L pAm (dBA)
60
NOTE:
These values apply to 4U rack configuration. The configuration tested
included 4 processors, 4 15,000 rpm hard drives, (also 8 SFF SAS hard drives),
2 power supplies, and 6 system fans.
24X Max (or higher) IDE CD-ROM Drive Slim Line
Disk
Applicable Disk
CD-DA, CD-ROM (Mode 1 and 2)
CD-XA, CD-I (Mode 2, Form 1 and 2)
Photo CD (Single and Multi-session)
Mixed Mode (Audio and Data combined)
Capacity
540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
Diameter
4.7 x 3.15 in (12 x 8 cm)
Rotational Speed
4200 rpm maximum
Center Hole
0.6 in (15 mm) diameter
Thickness
0.05 in (1.2 mm)
Track Pitch
1.6 µm
Block Size
Mode 1
2,048
Mode 2
2,340, 2,336, 1,024 bytes
CD-DA
2,352 bytes
CD-XA
2,328 bytes
Interface
IDE (ATAPI)
Access Times (typical)
Random
100 ms
Full-Stroke
2000 ms
Audio Output Level
Line-Out
0.7 VRMS at 47 kOhms
Headphone
0.6 VRMS at 32 kOhms (maximum volume)
Data Transfer Rate
Sustained
150 KB/s (sustained 1X)
Burst
2100 to 3600 KB/s
Cache Buffer
128 KB
Start-up Time (typical)
< 7seconds
Stop Time
< 4seconds
Laser Parameters
Type
Semiconductor Laser GaA1As
Wave Length
780 ± 25 nm
Divergence Angle
53.5° ± 1.5°
Output Power
0.14 mW
Operating Conditions
Temperature
41° to 113° F (5° to 45° C)
Humidity
10% to 80%
Dimensions
(HxWxD, maximum)
1.69 x 5.75 x 8.19 in (4.29 x 15
x 20.8 cm)
Weight
2.66 lb (1.2 kg)
Slimline CD-RW/DVD-ROM 24X Combo Drive (Multibay)
Shipping
Dimensions
13.88 x 11.38
x 9.25 in (35.26 x 28.91 x 23.50 cm)
Shipping Weight
5 lb (2.27
kg)
Disk
Applicable Disk
DVD-ROM
DVD-R (Read Only)
2.6 GB/side DVD-RAM
(Read Only)
5.2 GB/side DVD-RAM
(Read Only)
CD-ROM Mode-1 data
disc
CD-ROM
Mode-2 data disc
CD
Audio disc
CD-Extra
CD-RW
CD-R
CD
Text
PhotoCD
CD-I
(mode 2)
CD-I
Ready
CD-Bridge
Capacity
DVD-ROM
DVD-SL
4.7
GB/side
DVD-DL
8.5
GB/side
Double
Sided
9.40 GB/side
DVD-R
3.95
GB/side
DVD-RAM
2.6
GB/side and 5.2 GB/
CD-ROM
Mode-1
650
MB (550 MB)
Mode-2
742
MB (640 MB)
Block
Size
DVD
2,048
bytes
CD
2,352
(Mode-0)
2352,
2340, 2336, 2048 bytes (Mode-1)
2352,
2340, 2336, 2048 bytes (Mode-2)
Diameter
120 mm (4.7 in), 80 mm (3.1 in)(with adapter at vertical mounting mode)
Loading
Mechanism
Tray type
Interface
EIDE (ATAPI)
Access Times
(typical)
Random
DVD-ROM < 120 ms, CD-ROM < 110 ms
Full-Stroke
DVD-ROM < 240 ms, CD-ROM < 160 ms
Audio Output Level (typical)
Line-out
CD
0.7 Vrms at 47 Kohms Load
Data
Transfer Rate (sustained)
DVD-ROM
Single Layer
10.8 MB/sec.
Max.
DVD-RAM
2.77
MB/sec. Max
CD-ROM
7.2
MB/sec. Max.
Cache
Buffer
2 MB
Spin-up Time (typical)
less than 10 seconds
MTBF
120,000 Power On Hours (POH)
Ambient Temperature
Operating
-22°
to 140° F (-30° to 60° C)
Relative
Humidity
Operating
10% to 80%
Storage/Transportation
5%
to 95%
Dimensions
(HxWxD, maximum)
0.5 x 5.04 x 5.1 in (12.7 x 128 x 129.4 mm)
Option
Kit Contents
DVD-ROM
drive with installation guide, warranty card, registration card
Integrated Lights-Out
2 Standard (integrated on system board)
Architecture
32-bit PCI-based health and remote
management ASIC (Application Specific Integrated Circuit)
Processor
32-bit RISC processor core running
at 66 MHz
Upgradability
Option firmware upgradable via flash
ROM.
Video Support
Utilizes the host server's embedded
video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600
(256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256
colors)
Interfaces
One Ethernet network connection
(10/100 Mb/s)
Memory
2-MB Flash ROM
8-MB SDRAM
Operating System Support
Microsoft Windows NT 4.0 Server
Windows NT 4.0 Enterprise Edition
Windows 2000 Server
Windows 2000 Advanced Server
Red Hat 7.x
SuSE 7.0
Novell NetWare 5.x, 6.x
Client Browser Support
Microsoft Internet Explorer 5.5
or later.
iLO 2 Standard Features
Virtual Text Remote Console
Virtual KVM
Virtual Power Button Control
Virtual UID Control
Power Regulator Control
Dedicated LAN Connectivity
Secure access using web browser
Secure access using Secure Shell
(SSH) client
Serial connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure
Sockets Layer (SSL) Security
IML and iLO2 Event Logging
Support for up to 12 user accounts
with customizable access privileges
iLO 2 Advanced Features (optional)
Virtual Graphical Remote Console
Virtual Floppy/USB Key drive
Virtual CD-ROM drive
Directory Services Integration
Processor States Reporting
Terminal Services Integration
Smart Array P400 Controller
Disk Drive and Enclosure Interface
3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology Attachment)
SAS Connectors
2 internal (SFF8484) x4 wide port
connectors
Cache Memory Speed
DDR2-533MHz with 40 or 72-bit
wide bus provides up to 4.2 GB/s maximum bandwidth.
US Site
DL Quickspecs
Search:
430816-B21
© 2012 Canada PartsDirect
