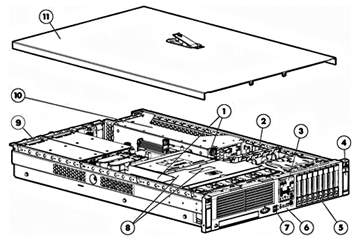

Eight
sockets for PC2-5300 DIMMs (DDR2-667) with Advanced ECC
1.
T-10/T-15
Torx screwdriver
2.
External
option blank
2.
Hot-plug
fans, full redundancy
3.
NIC 2 connector
3.
Systems
Insight Display
4.
NIC
1 connector
4.
Quick
release lever for rapid server access
5.
Power supply bay 2
5.
Support
for eight Small Form Factor hot plug hard drives bays
6.
Power cord connector
6.
Front LEDs (show server status)
and Unit Identification button/LED (for easy in rack server identification)
7.
Power supply bay 1 (populated)
8.
Integrated
Lights-Out 2 (iLO 2) connector
7.
Two front USB ports (+two rear, one internal
USB port)

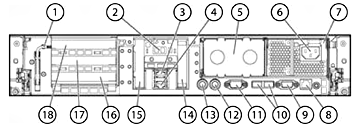

9.
Video
connector
8.
AMD Dual Core Rev. F Processor
(Performance models include two processors)
10.
USB connectors (2)
11.
Serial
connector
9.
Hot plug power supply, redundancy
option (High performance models include redundant power supply)
12.
Mouse connector
13.
Keyboard
connector
10.
Three PCI-E non-hot plug expansion
slots (or optional mixed PCI-X/E expansion cage or optional x16 PCI-E expansion
cage). Two additional PCI-E slots embedded on system board. This provides Four
available PCI-E non-hot plug expansion slots for use; one consumed by Smart Array
Controller
The
HP ProLiant DL385, the world's largest selling AMD server, delivers on its history
of design excellence with enterprise-class uptime and manageability, proven 2-way,
dual core AMD Opteron™ performance, and 2U density for a variety of rack
deployments and applications.
Processors:
AMD Dual-Core Rev F, 2200 series processors with
2MB (2 x 1MB) Level 2 cache for blazing performance; systems support
up to 2 processors (2 processors standard on all Performance models)
AMD Quad-Core, 2300 series processors with 2MB (4 x 512KB) Level
2 cache and 2MB (1 x 2MB) Level 3 cache
Preconfigured Performance models save valuable deployment time
at a discounted bundle price
Serverworks HT-2100 Northbridge and HT1000 Southbridge chipset
Memory:
Up to 32 GB PC2-5300 DIMMs (DDR2-667). Standard models support
2:1 Interleaving. Bank Interleaving (Data saved across 2 pairs of
DIMMs) and Node interleaving supported (data saved across 2 processors
memory sets) also available.
The Smart Array E200/64MB Controllers ships installed in slot
3
Internal Drive Support:
(8) small form factor (SFF) hot-plug drive bays to support Serial-attached
SCSI (SAS) and Serial ATA (SATA) drives
Network Controller:
Two embedded NC373i Multifunction Gigabit Network Adapters with
TCP/IP Offload Engine, including support for Accelerated iSCSI through
an optional Licensing Kit
Expansion Slots:
4 Total PCI-Express slots: three x8 and one x4.
Optional mixed 2 PCI-X / two x8 PCI-Express and Optional cage
with PCI-Express with one x8, one x16 and one x4 configurations
available.
USB 2.0 Ports:
5 total ports: (2) ports up front; (2) ports in back; (1) port
internal
Redundancy:
Fully redundant hot plug fans
Hot plug power supply with optional redundancy (Included in Performance
models)
Management:
Integrated Lights-Out 2 featuring Integrated Remote Console with
KVM over IP performance over shared network access
Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU),
HP System Insight Manager, Status LEDs including system health and
UID and SmartStart
System Insight Display on the front bezel for quick and easy server
diagnostics
Form Factor:
Rack (2U), (3.5-inch)
Deployment/Serviceability:
Quick Deploy Rail System includes sliding universal rails, an
ambidextrous cable management arm and quick release levers for fast
and easy serviceability
Tool-less access to all system components for easy in rack serviceability
Customer Self Repair (CSR): HP products are designed with many
CSR parts to minimize repair time and allow for greater flexibility
in performing defective parts replacement
Warranty:
This product is covered by a global limited warranty and supported
by HP Services and a worldwide network of HP Authorized Channel
Partners resellers. Hardware diagnostic support and repair is available
for three years from date of purchase. Support for software and
initial setup is available for 90 days from date of purchase. Enhancements
to warranty services are available through HP Care Pack services
or customized service agreements. SATA hard drives have a one-year
warranty. NOTE: Server Warranty includes
3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business
day response. Warranty repairs may be accomplished through the use
of Customer Self Repair (CSR) parts. These parts fall into two categories:
1) Mandatory CSR parts are designed for easy replacement. A travel
and labor charge will result when customers decline to replace a
Mandatory CSR part; 2) Optional CSR parts are also designed for
easy replacement but may involve added complexity. Customers may
choose to have HP replace Optional CSR parts at no charge. Additional
information regarding worldwide limited warranty and technical support
is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
NOTE:
For a brief, printer friendly data sheet that describes this product
and informs you of the essential capabilities and specifications, please
visit: http://h71028.www7.hp.com/erc/downloads/4AA0-8261enw.pdf.
NOTE: For the Standard Features shipped in the "Factory Integrated
Models", please see the "Configuration Information - Factory Integrated
Models" section.
NOTE: Up to
2 processors supported. High Performance Model configurations include two
processors, Upgraded memory to 512, BBWC, DVD/CDRW and Redundant Power Supply.
Cache Memory
2MB (2 x 1MB) Level 2 cache
(2200 series)
2MB (4 x 512KB) Level 2 cache
and 2MB (1 x 2MB) Level 3 cache (2300 series)
Chipset
Serverworks HT-2100 Northbridge
and HT1000 Southbridge Chipset
Upgradeability
Upgradeable to 2 processors
Memory Protection
Advanced ECC
Memory
Type
PC2-5300
DIMMs (DDR2-667) Standard models support 2:1 Interleaving, with Bank Interleaving
(Data saved across 2 pairs of DIMMs) and Node interleaving supported (data saved
across 2 processors memory sets) available. NOTE:
DIMM banks are active only when the corresponding processor socket is populated.
Standard (Entry Models)
1
GB (2 x 512 MB)
Standard (Base Models)
2 GB (2 x 1 GB)
Standard
(Performance Models)
4
GB (4 x 1 GB)
Maximum
32
GB (8 x 4 GB)
Network Controller
Two embedded NC373i Multifunction
Gigabit Network Adapters with TCP/IP Offload Engine, including support for
Accelerated iSCSI through an optional Licensing Kit
Expansion Slots
With
Standard PCIe Riser Installed NOTE: For PCIe only situations.
Expansion Slots
#
Technology
Bus Width**
Connector Width
Bus Number*
Form Factor
Notes
1
PCIe
x8
x8
70
Low profile slot
Reserved slot
for Smart Array P400 Controller
2
PCIe
x8
x8
67
Low profile slot
3
PCIe
x4
x8
11
Full length, full
height slot
4
PCIe
x8
x16
8
Full length, full
height slot
5
PCIe
x8
x16
5
Full length, full
height slot
*
Default bus assignment (in decimal). Inserting cards with PCI bridges may
alter the actual bus assignment number.
** Indicates the number of physical electrical lanes running to the connector.
With
Optional PCIe x16 150 W Riser Installed NOTE: For PCIe only situations.
Expansion Slots
#
Technology
Bus Width**
Connector Width
Bus Number*
Form Factor
Notes
1
PCIe
x8
x8
70
Low profile slot
Reserved slot
for Smart Array P400 Controller
2
PCIe
x8
x8
67
Low profile slot
3
PCIe
x4
x8
8
Full length, full
height slot
4
PCIe
x16
x16
5
Full length, full
height slot
Supports 150W
card
* Default
bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number.
** Indicates the number of physical electrical lanes running to the connector.
With
Optional PCIe/PCI-X Riser Installed NOTE: For PCI-X mixed situations.
Expansion Slots
#
Technology
Bus Width**
Connector Width
Bus Number*
Form Factor
Notes
1
PCIe
x8
x8
70
0
Low profile slot
2
PCIe
x8
x8
67
0
Low profile slot
3
PCIe
x8
x16
10
0
Full length, full
height slot
4
PCI-X (133MHz,
3.3 Volt)
64-bit
Not applicable
6
1
Full length, full
height slot
5
PCI-X (133MHz,
3.3 Volt)
64-bit
Not applicable
6
2
Full length, full
height slot
* Default
bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from
lowest to highest Device ID by bus (starting with the lowest bus).
*** Indicates the number of physical electrical lanes running to a PCI-e
connector.
Storage Controller One of the following depending on Model
Performance Models:
HP Smart Array P400/512MB BBWC
Controller (RAID 0/1/5/6)
Base Models:
HP Smart Array P400/256MB Controller
(RAID 0/1/1+0/5) Available upgrades: 512MB memory module for RAID 0/1/5/6, battery
for battery-backed write cache (BBWC).
Entry Models:
HP Smart Array E200/64MB Controller
(RAID 0/1) Available upgrades: 128MB memory module for RAID 0/1/5, battery for
battery-backed write cache (BBWC).
Storage
Diskette
Drive
None Standard
Optical Drive One of the following depending on Model
None Standard
IDE DVD-ROM/CDRW Combo included
on Performance models
Hard Drives
None Standard
Maximum
Internal Storage
Hot Plug SAS
1.168TB
8 x 146GB with standard internal
hot plug SFF SAS drive cage
Hot
Plug SATA
960GB
8
x 120GB
Remote Management
Integrated Lights Out 2 (iLO2) Standard Management:
Virtual Text Remote Console (pre-OS only)
Remote Serial Console
Virtual Power Button Control
Virtual Unit ID control
Integrated Remote Console
Dedicated & full function shared network connectivity
Embedded system health
Browser, command line and scripted access
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell
security (SSH)
OS independent hardware health status
IML and iLO Event Logging
Support for 12 user accounts with customizable access privilege
Intelligent Manageability
HP Systems Insight Manager
SmartStart
Management Agent
Redundant ROM
Remote Flash ROM
ROM-Based Setup Utility (RBSU)
Integrated Management Log
Automatic Server Recovery (ASR)
Dynamic Sector Repairing (with Smart Array controller)
Drive Parameter Tracking (with Smart Array controller) NOTE: Upon the event of a failed
processor in a multi-processing environment, the system will automatically
reboot and attempt to use the remaining good processor.
Pre-Failure Warranty (covers processors, SAS hard drives and memory)
NOTE:
Maximum resolution available via iLO 2 remote console is 1280 x 1024.
Form Factor
Rack (2U), (3.5-inch)
HP
Insight Control Environment Management Suite
HP
Insight Control Environment delivers foundation management, including remote monitoring,
hardware resource deployment, health monitoring, software version control, performance
monitoring, vulnerability scanning and patch management, and power management.
HP Insight Control Environment installs and licenses the following components
by default using a wizard-based integrated installer:
HP Systems Insight
Manager
HP iLO Advanced Pack
HP Insight Power Manager
HP
Rapid Deployment Pack
HP Performance Management Pack
HP Vulnerability
and Patch Management Pack
HP Virtual Machine Management Pack
Additional
ProLiant Essentials software and management tools included on the Insight Control
Management kit can be installed manually:
HP Server Migration Pack
- Universal Edition NOTE: HP Server
Migration Pack - Universal Edition is licensed separately from the Insight Control
Environment Suite.
HP Open Service Event Manager
HP Service
Essentials Remote Support Pack NOTE:
Server Migration Pack - Universal Edition can be installed from the SMP Universal
CD included in the Insight Control Management media kit. NOTE: For additional
product and licensing information about HP Insight Control Environment, visit:
http://www.hp.com/go/ice.
HP
iLO Power Management Pack is energy-efficient management software that delivers
centralized control, reliable security, and energy savings for your BladeSystem
infrastructure. iPMP combines the total control of iLO 2 Advanced in the area
of remote management with the energy monitoring and control of the Insight Power
Manager to deliver a robust solution capable of full remote control and power
management of ProLiant servers through a unified interface within HP Systems Insight
Manager.
HP Insight Control management suites and most HP ProLiant Essentials
include a one year of 24 x 7 HP Software Technical Support and Update Service
ensuring rapid access to HP support staff and proactive delivery of software updates.
For more information about this service, please visit: http://www.hp.com/services/insight.
Server
Management Stand Alone Software Product - ProLiant Essentials
HP
Systems Insight Manager
HP
Systems Insight Manager (HP SIM) provides a unified, secure and extensible standards-based
environment to centrally manage servers, storage and other infrastructure devices,
(both HP and non-HP) across multiple operating system platforms.
HP ProLiant Essentials Rapid Deployment
Pack
Rapid Deployment Pack
(RDP) extends HP Systems Insight Manager with a complete deployment solution for
HP ProLiant servers. RDP provides a central location to configure server hardware,
deploy Windows, Linux and VMware ESX operating environments and install HP ProLiant
Support Pack drivers using images and scripted profiles. For more information,
visit: http://www.hp.com/go/rdp.
HP ProLiant Essentials Server
Migration Pack - Universal Edition
Upgrading,
replacing, or virtualizing your existing server? Effortlessly transition to new
virtual or physical HP ProLiant servers or BladeSystem with automated, accurate
and affordable migration of OS, application and data. SMP Universal automates
the manual processes required for migrating servers between physical or virtual
platforms, whether migrating to VMware or Microsoft virtual machines. SMP Universal
allows all of the following migrations:
HP ProLiant
Essentials Performance Management Pack
Performance
Management Pack (offered exclusively through the Insight Control suites) - a performance
management solution that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better utilize their
valuable resources
HP
ProLiant Essentials Integrated Lights-Out (iLO 2) Advanced Pack
Upgrades
the iLO 2 processor with comprehensive remote control including Virtual KVM remote
graphical console, enhanced console sharing and replay, virtual media (floppy,
CD/DVD, USB key), virtual folders, and enterprise security (directory services
and two-factor authentication).
HP
iLO Power Management Pack
Energy-efficient
management software that delivers centralized control, reliable security, and
energy savings for your BladeSystem infrastructure. iPMP combines the total control
of iLO 2 Advanced in the area of remote management with the energy monitoring
and control of the Insight Power Manager to deliver a robust solution capable
of full remote control and power management of ProLiant servers through a unified
interface within HP Systems Insight Manager.
HP
ProLiant Essentials Accelerated iSCSI Pack
Enables
the embedded Multifunction network controller to serve as both a NIC and an iSCSI
HBA providing access to SAN storage over the same connection used for networking.
Processing of the protocol stack is offloaded to the NIC reducing CPU utilization
and greatly improving the speed with which the requests are processed and sent
to the network.
HP
Insight Power Manager (IPM)
Upgrades
the single-server remote management capabilities of iLO Select/Advanced to include
centralized reporting and policy-based management of power consumption and thermal
output provided by the Insight Power Manager. IPM unifies all of this functionality
within a single user interface - HP Systems Insight Manager.
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to: http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
Core
Infrastructure Management
SmartStart
SmartStart
is a tool that simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please visit the SmartStart
Web site at: http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum):
SmartStart 7.51.
Insight
Management Agents
The Insight
Management Agents should be installed on all HP servers to present system instrumentation,
health and configuration information into HP Systems Insight Manager and the HP
System Management Homepage. The HP System Management Homepage aggregates systems
data from Insight Management Agents and other HP management tools, providing a
consolidated browser-based interface for managing individual servers.
Insight
Management Agents and The HP System Management Homepage are included on ProLiant
Support Packs, and can also be installed using the server profiles provided with
the ProLiant Essentials Rapid Deployment Pack.
For additional information
about the Management Agents and the HP System Management Homepage please visit
the management Web site at: http://www.hp.com/servers/manage.
Subscriber's Choice
Subscriber's
Choice Driver and Support Alerts/Notifications is a web-based email subscription
service that provides software and driver change notifications for ProLiant products.
Sign up at: http://www.hp.com/go/subscriberschoice and
customize your profile to receive various new alerts as they become available,
on a weekly or monthly basis.
ProLiant
Support Packs and ROMPaq, software
The
latest software, drivers, and firmware fully optimized and tested for your ProLiant
server and options, available through ProLiant Support Packs the ProLiant Essentials
Rapid Deployment Pack, SmartStart or downloaded from software and drivers download
pages website at: http://www.hp.com/go/support.
HP
Serviceguard for Linux (SGLX)
HP Serviceguard for Linux is a high availability clustering
solution designed to protect applications and services from a wide variety of
software and hardware failures, monitoring the health of each server (node) and
quickly responding to failures such as those that affect system processes, system
memory, LAN media and adapters, and application processes.
The
following is a quick summary of HP Serviceguard for Linux features and support.
For the most recent list of Linux distributions & kernels, servers and storage
supported with Serviceguard for Linux, see the Serviceguard for Linux Datasheet,
available at: http://www.hp.com/go/sglx/info.
Supported
Linux Distributions:
Red Hat EL 4
Red Hat EL 5
SUSE SLES10
Supported
Server Platforms
HP Integrity BladeSystem to Superdome
HP ProLiant
BladeSystem p-Class & c-Class
HP ProLiant DL
HP ProLiant ML
IBM
System x
Dell PowerEdge
Sun x64
Fujitsu Siemens PRIMERGY
Hypervisors
HP
Integrity Virtual Machines
VMware ESX
Application Integration
Toolkits
HP Serivceguard for Linux Oracle Database Toolkit
HP Serviceguard
Extension for SAP on Linux (SGeSAP/LX)
Free Application Integration Toolkits:
Apache
MySQL
NFS
PostgreSQL
Samba
Tomcat
Sendmail
Disaster
Tolerant Solutions
HP Serviceguard for Linux Extended Distance Cluster
(XDC) extends cluster distances up to 100 km, utilizes software RAID mirroring
for data replication and is storage array independent
HP StorageWorks
XP/EVA Cluster Extension Software for Linux (CLX) works seamlessly with HP Serviceguard
for Linux, HP StorageWorks Continuous Access, and HP Disk Arrays to automate failover
and failback between sites
Software updates are distributed
by HP Services to customers with support contracts
NOTE:
For additional information on HP Serviceguard for Linux, visit: http://www.hp.com/go/sglx
or see the HP Serviceguard for Linux QuickSpecs. NOTE: HP Serviceguard
for Linux products for HP ProLiant and select 3rd party x86 class servers include
one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid
access to HP support staff and proactive delivery of software updates. For more
information about this service, please visit: http://www.hp.com/services/swsupport.
Industry
Standard Compliance
ACPI 2.0
Compliant PCI 2.2 Compliant WOL Support Microsoft® Logo certifications USB
2.0 Support
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Server Power Cords
One Highline IEC Power cord
ships standard (6') NOTE: ProLiant DL servers no longer
ship standard with NEMA power cords (187335-001) that allow connection to
110V US wall outlets in a home or office. ProLiant DL servers are primarily
connected to PDU's in data center racks so they now ship standard with only
a PDU power cord (416151-B21). If a user wishes to power a ProLiant DL server
using a 110V receptacle (NEMA-15), the NEMA power cord (187335-001) must
be ordered separately.
Microsoft Windows Server
2003 Microsoft Windows Small Business Server 2003, R2 Microsoft Windows
2008 Novell NetWare Red Hat Enterprise Linux SUSE Linux Enterprise
Server SCO UnixWare, OpenServer VMware Virtualization Software Solaris
10 32/64-bit
Rack
10000 series Cabinets The increasing power of new high-performance processor
technology requires increased cooling efficiency for rack-mounted servers. The
10000 Series Racks provide enhanced airflow for maximum cooling, allowing these
racks to be fully loaded with servers using the latest processors.
CAUTION:If a third-party rack is used, observe
the following additional requirements to ensure adequate airflow and to prevent
damage to the equipment:
Front
and rear doors: If your 42U server rack includes closing front and rear doors,
you must allow 830 square inches (5,350 sq cm) of holes evenly distributed from
top to bottom to permit adequate airflow (equivalent to the required 64 percent
open area for ventilation).
Side: The clearance
between the installed rack component and the side panels of the rack must be a
minimum of 2.75 inches (7 cm).
CAUTION:
Always use blanking panels to fill all remaining empty front panel U-spaces
in the rack. This arrangement ensures proper airflow. Using a rack without blanking
panels results in improper cooling that can lead to thermal damage.
NOTE: For additional
information, refer to the Setup and Installation Guide or the Documentation
CD provided with the server, or to the server documentation located in the
Support section at the following URL: www.hp.com/servers/dl385-g2.
Rack
Kit
The HP ProLiant DL385
quick deploy rail system provides tool-free support for racks with square or round
mounting holes (including Compaq/HP 7000*, 9000, 10000 and HP series), with an
adjustment range of 24" - 36". The ambidextrous cable management arm
can be mounted on either the left or right side for improved cable management.
NOTE: Cable management arm must be
removed to access hot-plug power supplies when the cable management arm is mounted
on the right. *High Airflow Inserts (High Air Flow Rack Door Insert
for the 7142 Rack (single) - PN: 327281-B21; or High Air Flow Rack Door Insert
for the 7142 Rack (6-pack) - PN: 327281-B22) are required to support the HP ProLiant
DL385 G2 in 7000 series racks. The DL385 G2 Cable Management Arm is not supported
on 7000 series racks.
Telco Rack Support
DL385 G2 Telco Rack Kit:
Support for all 2-post Telco racks requires the use of the standard rack
kit and an additional option kit from Rack Solutions (http://www.racksolutions.com/hp/)
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP,
rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eCo-Enterprise Configurator
now provides factory default racking for our HP hardware portfolio. This
approach is aligned with our strategic direction to meet the needs and expectations
of our valued customers. If you require "custom" rack configuration,
please contact HP's Customer Business Center or an Authorized Partner for
assistance. http://www.hp.com/products/configurator.
Service
and Support
HP Care Pack
services provide total care and support expertise with committed response designed
to meet your IT and business needs.
HP Care Pack services include coverage
for the HP branded hardware options qualified for the server and purchased at
the same time or afterward that are internal to the enclosure. This also includes
the 22" and smaller external monitors and tower UPS options up to 3kVA. These
items will be covered at the same service level and for the same coverage period
as the server. Coverage of UPS Battery is not included, and standard warranty
terms & conditions apply. For servers or storage systems installed within
a rack, service also covers all HP qualified rack options installed within the
same rack.
To fully capitalizing on your HP ProLiant servers' capabilities
requires a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of multi vender
support solutions, provides a range of support services designed to meet the varying
needs of your business. Whether an SMB, or large global corporation, HP has a
ProLiant server support offer to help you speedily deploy and maximize system
uptime.
Recommended Service - simplify ProLiant solution implementation,
maintenance, and management.
Support: 3-Year 4-Hour response
24x7 Same Business Day Coverage only
Deployment Service: Installation
and Start up only
Enhanced Service - optimize service level
to increase IT performance and availability.
Support: 3-Year
Support Plus 24 only
Refer to the information on "Installation
& Start-Up" for service on ProLiant server and Microsoft or Linux O/S
per the Customer Description and/or Data Sheet; to be delivered on a scheduled
basis 8am-5pm, M-F, excluding HP holidays.
NOTE: High
Performance Computing (HPC) interconnect technologies are available for
the DL385 under the Cluster Platform product portfolio. These high-speed
interconnects are fully supported by HP when they are part of these configure
to order clusters. Solutions can be defined with a lot of flexibility with
the help of configuration tools. Please visit the following URL to configure
HPC Clusters with InfiniBand, Gigabit Ethernet or Myrinet Interconnects:
http://www.hp.com/techservers/clusters/ucp/index.html
NOTE: For the Standard Features shipped in
the "Factory Integrated Models", please see the "Configuration
Information - Factory Integrated Models" section.
HP DL385 G2 Performance Models
HP DL385G2 2218 4G HPM
432195-001
HP DL385G2 2220 4G HPM 438816-001
Processor(s) One of the following depending on Model
The ProLiant Smart Buy program offers a collection
of promotional server and option products that are configured with SMB
in mind, offered at discounted prices, and positioned for quick delivery.
Smart Buy server offers are available for a limited time only.
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure
a Factory Integrated Model. To ensure only valid configurations are ordered,
HP recommends the use of an HP approved configurator. Contact your local
sales representative for information on CTO product offerings and requirements. NOTE: HP does not allow factory integration of options into standard
models listed above. Configure-to-order servers must start with a CTO
Chassis. NOTE: This product offering does not support HP Factory Express
Server Configuration Level 1. NOTE: FIO indicates that this option only available as a Factory
Installable Option.
Step
1: Base Configuration (choose one of the following configurable models)
Models
HP
ProLiant
DL385G2 Rack CTO Chassis
414109-B21
Factory Integrated Model ships with:
(8) SFF Serial Attached
SCSI (SAS) Drive Bays
Two Embedded NC373i Multifunction Gigabit Server Adapters
PCI-Express Riser Cage
800 Watt hot plug power supply, CE Mark Compliant
One IEC Power cord
Hot plug fans (fully redundant)
Rack (2U), (3.5-inch)
Step 1A: Choose SAS Controller (must choose only one
of the following)
SAS
Controllers
HP Smart Array P400/256
for DL380 G5/ DL385 G2 FIO Controller NOTE: PCI Express
The
HP ProLiant DL385 G2 performance packs are necessary to configure a HP ProLiant
DL385 G2 Performance Model. HP ProLiant DL385 G2 Performance model includes the
latest performance technologies and enterprise class availability features pre-installed
for convenience and value. The performance pack includes a 2nd processor and a
redundant power supply. To complete the configuration of a Performance model,
select the Slimline CD-RW/DVD-ROM Combo Option Kit ( 331903-B21).
HP DL385G2 2220 HPM FIO
Perf Pack
442239-B21
HP DL385G2 2218
HPM FIO Perf Pack
432858-B21
Step 4: Choose
Additional Options for Factory Integration
NOTE:
For additional options, please refer to the "Options" section
below.
NOTE:
Some options may not be factory integratable. Contact your local sales representative
for additional information.
HP ProLiant
DL385 G2 Unique Options
HP 2 Slot PCI-Express
x16 & x4 Riser DL385G2 ALL
410571-B21
HP
Insight Control Environment Management Suite
NOTE:
Electronic licensing options are available for Insight Control suites software
products. Please see the appropriate Insight Control QuickSpecs for additional
information.
HP Insight Control
Environment
HP Insight Control
Environment, No Media 1-Server License including 1 year of 24x7 Technical Support
and Updates NOTE: This part number
can be purchased as a single license or as multiple licenses with a single activation
key. Customer will receive a license entitlement certificate via e-mail. The license
entitlement certificate must be redeemed online or via fax in order to obtain
the license activation key(s). Includes one year of 24 x 7 HP Software Technical
Support and Update Service. Only available directly from HP and select resellers
in the Americas region.
452148-B22
HP
Insight Control Management Software Media Kit NOTE:
Insight Control Management DVD media without licenses. Contains Insight Manager
and Essentials software products and components licensed by Insight Control Management
suites. Uses an integrated installer to perform quick and accurate software installation
and updates.
HP Insight Control
Environment for Linux v2.0, Media pack (CD) - No licenses included NOTE:
This optional Media pack CD contains the ISO image for HP Insight Control
Environment for Linux, HP System Insight Manager, and an integrated installer.
Servers must be acquired separately. This Media pack is optional because the latest
ISO image and latest updates may be downloaded at no cost from: http://www.hp.com/go/ice-linux
(click on Download button).
464422-B21
HP Insight Control
Environment for Linux v2.0, No Media, 1-Server license, including One year of
24x7 Technical Support and Updates NOTE:
This part number can be used to purchase one (1) license with a single activation
key. Customer will receive a printed license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online or via fax
in order to obtain the license activation key(s). Includes one year of 24 x 7
HP Software Technical Support and Update Service. One certificate is shipped for
each license.
HP
iLO Power Management Pack, No Media, 1-Server License, including 1 year of 24x7
Technical Support and Updates NOTE: This
option kit includes 1 license for iLO Advanced and Insight Power Manager. NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12632_na/12632_na.html
452145-B21
Server
Management Stand Alone Software Product - ProLiant Essentials
NOTE:
Electronic licensing options are available for select ProLiant Essentials
software products. Please see the appropriate ProLiant Essentials QuickSpecs for
additional information.
Deploy
HP ProLiant Essentials Rapid Deployment
Pack
HP ProLiant Essentials Rapid Deployment
Pack No Media 1-Server License including 1 year of 24x7 Technical Support and
Updates NOTE: This license allows 1
server to be deployed and managed via RDP. Customer will receive a printed license
entitlement certificate via physical shipment. The license entitlement certificate
must be redeemed online or via fax in order to obtain the license activation key(s).
Includes one year of 24 x 7 HP Software Technical Support Service NOTE:
For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.html
452151-B21
HP Server Migration Pack - Universal
Edition
HP
Server Migration Pack - Universal Edition, No Media, Physical / Virtual to ProLiant
Single Migration License, including 1 year of 24x7 Technical Support and Updates NOTE: This license allows 1 physical to
ProLiant or virtual to ProLiant migration. Customer will receive a printed license
entitlement certificate and documentation via physical shipment. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license
activation key(s). Includes one year of 24 x 7 HP Software Technical Support and
Update Service.
460750-B21
HP Server Migration Pack - Universal Edition,
No Media, Physical / Virtual to Virtual Single Migration License, including 1
year of 24x7 Technical Support and Updates NOTE:
This license allows 1 physical to virtual or virtual to virtual migration.
Customer will receive a printed license entitlement certificate and documentation
via physical shipment. The license entitlement certificate must be redeemed online
or via fax in order to obtain the license activation key(s). Includes one year
of 24 x 7 HP Software Technical Support and Update Service.
460753-B21
HP Server Migration Pack - Universal Edition,
No Media, 1-Year Unlimited Migration License, including 1 year of 24x7 Technical
Support NOTE: This license allows
unlimited migrations (physical to ProLiant, physical to virtual, virtual to virtual,
and virtual to ProLiant) for one year. Customer will receive a printed license
entitlement certificate and documentation via physical shipment. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license
activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
HP ProLiant Essentials Accelerated iSCSI
Pack, No Media, Single License NOTE: For
use with a single NIC port. Contains one license with a unique license activation
key and documentation.
HP Insight Power Manager, No Media, 1-Server
License, including 1 year of 24x7 Technical Support and Updates NOTE:
Customers purchasing this upgrade must already have an iLO Advanced or Select
license on each managed server. Customer will receive a printed license entitlement
certificate via physical shipment. The license entitlement certificate must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support and Update Service. NOTE:
For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12623_na/12623_na.html
452677-B21
HP ProLiant Essentials Virtual Machine
Management Pack
HP ProLiant Essentials Virtual Machine Management
Pack, No Media, 1-Server License, including 1 year of 24x7 Technical Support and
Updates NOTE: Customer will receive
a printed license entitlement certificate via physical shipment. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license
activation key(s). Includes one year of 24 x 7 HP Software Technical Support and
Update Service. NOTE: For additional License Kits, please see the QuickSpecs
at: http://h18000.www1.hp.com/products/quickspecs/12328_na/12328_na.html
452153-B21
NOTE: Flexible and volume
quantity license kits are available for ProLiant Essentials Value Packs. Refer
to: http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials QuickSpecs for more information.
Processors
AMD Opteron™ Processor 2356
(2.3 GHz, 75 Watts)
449774-B21
AMD Opteron™ Processor 2352
(2.1 GHz, 75 Watts) NOTE: 2300 Series processor quad-core
upgrade requires purchase of a VRM kit for second socket (453059-B21) only
if second socket not already populated.
HP DL385G2/DL585G2 VRM Kit NOTE: 2300 Series processor quad-core
upgrade requires purchase of a VRM kit for second socket only if second
processor not already populated.
NOTE:
SATA drives have a 1 year warranty. Please see the QuickSpecs for Technical Specifications
such as capacity, height, width, interface, transfer rate, seek time, physical
configuration, and operating temperature: http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html
HP
SA-P400 and SA-E500 24 In Battery Cable Kit NOTE:
This option kit contains a 24" battery cable and adhesive material for installing
a batter into the server if a Smart Array P400 is integrated outside of the factory.
For all solutions, please refer to the server QuickSpecs and User's Manual for
detailed installation instructions.
SCSI Controllers for External
Drive/Storage Support NOTE:
All Ultra320 controllers are PCI-X and require the Mixed Riser Cage Option Kit
(PCI-E/PCI-X).
For recommended tape drive offerings for this ProLiant server see the following:
USB
Tape Drives
HP StorageWorks 1U USB Rack-Mount
Kit with one DAT 160 USB Tape Drive
AG703A
SAS
Tape Drives NOTE: For the DL385
G2, HP recommends purchasing the HP SC44Ge HBA ( 416096-B21) for a dedicated SAS
HBA for tape.
HP
StorageWorks DAT 160 SAS Internal Tape Drive NOTE:
HP recommends combining this tape drive with the 1U SAS Rack-Mount kit (AE459A)
for a complete rack-mount solution.
Q1587A
HP StorageWorks LTO-2 Ultrium
448 SAS Internal Tape Drive NOTE: HP
recommends combining this tape drive with the 1U SAS Rack-Mount kit (AE459A) for
a complete rack-mount solution.
DW085A
HP
StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive NOTE:
HP recommends combining this tape drive with the 1U SAS Rack-Mount kit (AE459A)
for a complete rack-mount solution.
EH847A
HP
StorageWorks 1U SAS Rack-mount kit with one LTO-4 Ultrium 1760
EH946A
NOTE: Please
refer to the "Tape Drives, Tape Autoloaders & Tape Libraries" table in the
Storage section of this document for a list of SAS controllers with tape support.
SCSI Tape Drives
HP
StorageWorks 1U SCSI Rack-mount kit with one LTO-2 Ultrium 448 SCSI Tape Drive
(Carbonite)
DW028B
HP StorageWorks 1U SCSI Rack-mount
kit with one LTO-3 Ultrium 920
For an up-to-date listing of the latest O/S and software support details
for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect.
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U SCSI Rack-Mount
kit NOTE: The 1U Rack-Mount Kit can
support up to (2) half-height tape drives and is compatible with multiple Single-Ended
and LVD SCSI tape drives including the DAT 40, DAT 72, DAT 160, DLT VS160, LTO-1
Ultrium 232, LTO-2 Ultrium 448, LTO-3 Ultrium 920 and LTO-4 Ultrium 1760 tape
drives.
HP StorageWorks 1U USB Rack-Mount
Kit NOTE: The 1U USB Rack-Mount Kit
can support up to (2) half-height tape drives and is compatible with the DAT 40
USB, DAT 72 USB and DAT 160 USB tape drives.
HP
StorageWorks 1U SAS Rack-Mount Kit NOTE:
The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and is
compatible with the LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920 SAS and LTO-4 Ultrium
1760 SAS tape drives.
HP
StorageWorks D2D120 Backup System NOTE:
2TB of Disk Storage.
EH884A
HP
StorageWorks D2D120 Backup System with Data Protector Express Software Kit NOTE: 2TB of Disk Storage.
EH924A
HP
StorageWorks D2D130 Backup System NOTE:
3TB of Disk Storage.
EH950A
HP
StorageWorks D2D130 Backup System with Data Protector Express Software Kit NOTE:
3TB of Disk Storage.
EH951A
HP
StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive NOTE:
3TB of Disk Storage.
EH952A
HP
StorageWorks D2D2503i Backup System NOTE:
3TB of Disk Storage.
HP
StorageWorks D2D4004i Backup System NOTE:
4.5TB of Disk Storage.
NOTE:
Please see the HP D2D Backup Systems QuickSpecs for additional information: http://www.hp.com/go/d2d.
Tape
Autoloaders
HP StorageWorks
DAT Autoloader
HP StorageWorks DAT 72x10 tape
autoloader
AE313B
HP StorageWorks 1/8 G2 Tape
Autoloader
HP
StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
AK377A
HP
StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SCSI Tape Autoloader
AJ816A
HP
StorageWorks 1/8 G2 LTO-3 Ultrium 920 Tape Autoloader
AH165A
HP
StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader
AH558A
HP
StorageWorks 1/8 G2 LTO-2 Ultrium 448 Tape Autoloader
AH164A
HP
StorageWorks 1/8 G2 Tape Autoloader Rack Kit NOTE:
Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes
rails and rackmount instructions
AH166A
NOTE: Please
reference the Tape Autoloader QuickSpecs at: http://www.hp.com/go/automation
for additional information needed to create a complete solution.
Tape
Libraries
HP StorageWorks
MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4
Ultrium 1840 SCSI Drive Library
AJ033A
HP
StorageWorks MSL2024 1 LTO-4 Ultrium 1840 4GB FC Library
AJ034A
HP
StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library
AK378A
HP
StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SCSI Drive Library
AJ817A
HP StorageWorks MSL2024
1 LTO-3 Ultrium 960 SCSI Drive Library
HP StorageWorks MSL4048 1 LTO-4
Ultrium 1840 SCSI Drive Library
AJ035A
HP
StorageWorks MSL4048 1 LTO-4 Ultrium 1840 4GB FC Library
AJ036A
HP
StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library
AK380A
HP
StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SCSI Drive Library
AJ818A
HP StorageWorks MSL4048 1 LTO-3
Ultrium 960 SCSI Drive Library
AG322A
HP
StorageWorks MSL4048 1 LTO-3 Ultrium 960 4GB FC Library
AG324B
HP
StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library
AH560A
HP
StorageWorks MSL4048 1 LTO-3 Ultrium 920 SCSI Drive Library
AH171A
NOTE:
Please reference the MSL Tape Library QuickSpecs at: http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference current
compatibility information at: http://www.hp.com/go/ebs.
High Availability Cluster Options
HP
Serviceguard for Linux
HP Serviceguard Linux for HP
ProLiant/x86 Servers Licensed per physical server Includes media and One
Year 24x7 Software Support & Updates
463831-B21
HP
Serviceguard Linux Oracle Database Toolkit for HP ProLiant/x86 Servers Licensed
per cluster Includes media and One Year 24x7 Software Support & Updates
463833-B21
HP
Serviceguard Extension for SAP on Linux for HP ProLiant/x86 Servers Licensed
per physical server Includes media and One Year 24x7 Software Support &
Updates
463834-B21
HP Serviceguard Linux Extended
Distance Cluster (XDC) for HP ProLiant/x86 Servers Licensed per physical server Includes
media and One Year 24x7 Software Support & Updates
463835-B21
NOTE:
For a detailed list of supported configuration/certification options for HP
Serviceguard for Linux please refer to the HP Serviceguard for Linux Certification
Matrix at: http://www.hp.com/go/sglx/info NOTE: HP Serviceguard for Linux products running on x86 platforms now include
one year of 24 x 7 Software Technical Support and Updates. Please see the Support
Information section of the HP Serviceguard for Linux QuickSpecs for details. NOTE: For additional information including a complete list of Product Numbers
for HP Serviceguard for Linux, please see the following QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11518_na/11518_na.html
HP U320e SCSI Host Bus Adapter NOTE: Recommended Dual Channel Ultra320 SCSI Controller for connecting
multi-drive MSL tape libraries to ProLiant servers.
NOTE: xxxxxx-B21
(pallet) used to ship empty racks shipped on a truck. -B22 (shock pallet) used
to ship racks with equipment installed (by custom systems, VARs and Channels).
xxxxxx-B23 (crated) used for air shipments of empty racks.
NOTE: It is mandatory
to use a shock pallet in order to ship racks with equipment installed. Not all
HP or Compaq equipment is qualified to be shipped in the Rack 10000 series.
NOTE:
Cat5e cables are required to connect Interface Adapters to Console Switches.
Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE:
For additional information regarding KVM switches, Serial Console servers, rack
mount monitors, keyboards and all related options please see the following URL:
http://www.hp.com/go/kvm.
NOTE: Cat5e cables
are required to connect Serial Adapters to Serial Console Servers. Additional
Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
Service and Support Offerings (HP Care Pack
Services)
Hardware
Services On-site Service
4-Hour
On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4544E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4545E
Hardware
Services 6-Hour Call to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
U4546E
Installation
& Start-up Services
Hardware
Installation, Electronic
U4554E
Installation
& Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer
Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays, Electronic
U4555E
Installation
and Startup for Essentials Rapid Deployment Pack, Electronic
U5683E
Support
Plus
Onsite
HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite,
onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4556E
Support
Plus 24
Onsite
HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4557E
Onsite
HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6312E
Onsite
HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite
at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
NOTE:
Memory configurations listed do not apply to "Factory Integrated
Models".
HP ProLiant DL385 G2 Base Models
Standard Memory
2 GB PC2-5300 DDR2 DIMMs (667 MHz) installed (2 x 1 GB)
Upgrading Memory and Memory
Interleaving
DIMMs must be installed in identical pairs. Bank interleaving is automatically
enabled on a processor node under the following conditions:
1) Four single ranked DIMMs populated per node (4 x 512 MB or 4 x 1 GB
for example) yields 2-way bank interleaving.
2) Two dual ranked DIMMs populated per node (2 x 2 GB or 2 x 4 GB for
example) yields 2-way bank interleaving.
3) Four dual ranked DIMMs populated per node (4 x 2 GB for example) yields
4-way bank interleaving.
If single and dual ranked DIMMs are mixed on the same node, bank interleaving
will not be enabled.
Node interleaving can be configured via RBSU if both
processors have the same memory footprint and it is independent of bank
interleaving.
DIMMs must be installed in decreasing capacity
with the largest DIMMs installed in the banks furthest away from each
processor.
Standard Memory Plus Optional Memory
Up to 26 GB memory is available with the standard memory of 1GB and the
optional installation of PC2-5300 DDR2 DIMMs (667 MHz) memory kits. -
6 slots would be available, and potentially could be filled with 4GB DIMMs.
Standard Memory Replaced with Optional Memory
Up to 32 GB of memory is available with the removal of the standard 1GB
of memory and the optional installation of PC2-5300 DDR2 4 GB DIMMs (667
MHz) memory kits.
NOTE: Chart does not represent
all possible configurations. NOTE: DIMM banks are active only when the corresponding processor
socket is populated.
Memory
Slot
1
2
3
4
5
6
7
8
Standard
2 GB
1 GB
1 GB
Empty
Empty
Empty
Empty
Empty
Empty
Optional
26 GB
4 GB
4 GB
1 GB
1 GB
4 GB
4 GB
4 GB
4 GB
Maximum
32 GB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB
HP ProLiant DL385 G2 Performance Models
Standard
Memory 4 GB PC2-5300 DDR2 DIMMs (667 MHz)
(4 x 1 GB)
Upgrading Memory
and Memory Interleaving DIMMs must be installed in identical pairs. Bank
interleaving is automatically enabled on a processor node under the following
conditions: 1) Four single ranked DIMMs populated per node (4 x 512 MB or
4 x 1 GB for example) yields 2-way bank interleaving. 2) Two dual ranked DIMMs
populated per node (2 x 2 GB or 2 x 4 GB for example) yields 2-way bank interleaving.
3) Four dual ranked DIMMs populated per node (4 x 2 GB or 4 x 4 GB for example)
yields 4-way bank interleaving. If single and dual ranked DIMMs are mixed
on the same node, bank interleaving will not be enabled.
Node
interleaving can be configured via RBSU if both processors have the same memory
footprint and it is independent of bank interleaving.
DIMMs
must be installed in decreasing capacity with the largest DIMMs installed in the
banks furthest away from each processor.
Standard
Memory Plus Optional Memory Up to 20 GB memory is available with the standard
memory of 4*1 GB and the optional installation PC2-5300 DDR2 DIMMs (667 MHz) memory
kits. - 4 slots available (4*4 GB + 4*1 GB standard = 20 GB).
Standard
Memory Replaced with Optional Memory Up to 32 GB of memory is available
with the removal of the standard 1GB of memory and the optional installation of
PC2-5300 DDR2 4 GB DIMMs (667 MHz) memory kits.
NOTE:
Chart does not represent all possible configurations.
Slimline CD-RW/DVD-ROM
Combo Option Kit NOTE: Included in
performance models.
Only
1 available removable media bay
Slimline
bay
Integrated IDE NOTE: Optional
Slimline
DVD-ROM Drive (8x/24x) Option Kit
Only
1 available removable media bay
Slimline
bay
Integrated IDE NOTE: Optional
HP
DVD+R/RW 8X Slim
Only
1 available removable media bay
Slimline
bay
Integrated IDE NOTE: Optional
Hard Drives
SAS - Hot Plug Drives
Quantity
Supported
Position
Supported
Controller
146GB 3G SAS 10K SP
146GB 3G SAS 10K DP 72GB 3G SAS 10K SP
72GB 3G SAS 10K DP
72GB 3G SAS 15K SP
72GB 3G SAS 15K DP
36GB 3G SAS 15K SP
36GB 3G SAS 15K DP
Up to 8
1-8
HP Smart Array E200/64MB Controller
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller NOTE: Optional mixed PCI-X/E required
for SA-P600.
HP Smart Array P800/512 BBWC Controller
SFF
SATA Hot Plug Entry (ETY) Drives
Quantity
Supported
Position
Supported
Controller
120GB
1.5G SATA 5.4K
Up
to 8
1-8
HP Smart Array E200/64MB Controller HP Smart Array E200/128 BBWC Controller HP
Smart Array P400/256MB Controller HP Smart Array P400/512MB BBWC Controller HP
Smart Array P600/256 BBWC Controller NOTE:
Optional mixed PCI-X/E required for SA-P600. HP Smart Array P800/512
BBWC Controller
NOTE:
SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller
using split cable (supplied with tape drive) deactivates 1 of the hard drive bays.
Actual hard drive bay deactivated depends on where split cable plugs into SAS
drive connector. Example: 3x SAS cable connector plugged into SAS drive connector
(5-8) on the back of the hard drive cage would mean drive bay 8 is deactivated.
Position
Supported
Controller
Controller Part Number
HP StorageWorks SCSI Tape Drives, External LTO-1 Ultrium 232 LTO-2
Ultrium 448 LTO-3 Ultrium 960 LTO-3 Ultrium 920 LTO-4 Ultrium 1760 LTO-4
Ultrium 1840 DAT 40 DAT 72 DAT 160 1U Rack-Mount Kit 3U Rack-Mount
Kit
HP
StorageWorks USB Tape Drives, External DAT 40 USB DAT 72 USB
DAT 160 USB 1U Rack-Mount Kit
External
USB 2.0 Port
N/A
HP
StorageWorks SAS Tape Drives, External DAT 160 SAS LTO-2 Ultrium
448 SAS LTO-3 Ultrium 920 SAS LTO-4 Ultrium 1840 SAS 1U Rack-Mount
Kit 3U Rack-Mount Kit
- Click on the system of interest. Example: DL385 G2 - Follow the instructions
of the next screens.
Power
Supply Output (per power supply)
Rated
Steady-State Power
800 W
(at 100 VAC), 850 W (at 120 VAC), 1000 W (at 200-240 VAC)
Maximum Peak Power
800
W (at 100 VAC), 850 W (at 120 VAC), 1000 W (at 200-240 VAC)
System Inlet Temperature
Operating
10°
to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C
per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of
3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the type and number of options
installed. System performance may be reduced if operating with a fan fault
or above 30°C (86°F).
Non-operating
-30°
to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative
Humidity (non-condensing)
Operating
10
to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature,
non-condensing.
Non-operating
5
to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature,
non-condensing.
Altitude
Operating
3050
m (10,000 ft). This value may be limited by the type and number of options installed.
Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating
9144
m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed
are the declared A-Weighted sound power levels (LWAd) and declared average bystander
position A-Weighted sound pressure levels (LpAm) when the product is operating
in a 23°C ambient environment. Noise emissions were measured in accordance
with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
LWAd
6.3 B
LpAm
47
dBA
Operating
LWAd
6.3 B
LpAm
47
dBA
Smart Array P400 Controller
Disk
Drive and Enclosure Interface
3
G SAS (Serial Attached SCSI) 1.5 G SATA (Serial Advanced Technology Attachment)
SAS Connectors
2
internal (SFF8484) x4 wide port connectors
Cache
Memory Speed
DDR2-533MHz with
40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.
Two Embedded NC373i
Multifuntion Gigabit Server Adapters
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method
PCI Express, four lanes
(x4)
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and Full-Duplex)
2000Mb/s
Connector
Two RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP;
up to 328 ft (100 m)
100Base-TX
Category 5 or higher UTP;
up to 328 ft (100 m)
1000BaseTX
Category 5 or higher UTP;
up to 328 ft (100 m)
The ProLiant Smart Buy program offers a collection
of promotional server and option products that are configured with SMB in mind,
offered at discounted prices, and positioned for quick delivery. Smart Buy server
offers are available for a limited time only.
2
GB (2 x 1 GB) PC2-5300 DIMMs (DDR2-667) with Advanced ECC capabilities
Network Controller
Two
Embedded NC373i Multifunction Gigabit Server Adapters
Storage
Controller
HP Smart Array P400/256MB
Controller (RAID 0/1/5)
Hard
Drive
None Ship Standard
Internal Storage
1.168TB
max - 8 x 146GB SAS drives (with optional hard drives)
Optical
Drive
Slimline DVD/CD-RW (8X/24X)
(ejectable)
Form
Factor
Rack (2U), (3.5-inch)
Availability
Hot
Plug Fully Redundant Fans and Redundant Power Supplies
Environment-friendly Products and Approach
End-of-life
Management and Recycling
Hewlett-Packard
offers end-of-life HP product return, trade-in, and recycling programs in many
geographic areas. For trade-in information, please go to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will be recycled,
recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC)
requires manufacturers to provide treatment information for each product type
for use by treatment facilities. This information (product disassembly instructions)
is posted on the Hewlett Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
US Site
DL Quickspecs
Search:
327281-B21
© 2012 Canada PartsDirect
