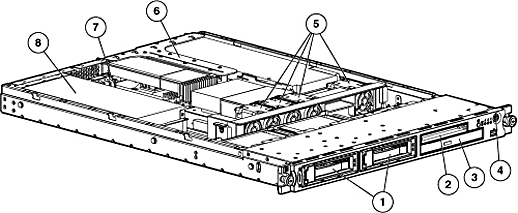

Four
PC2-4200 ECC DDR2 Memory Slots - 8 GB maximum
4.
Front LED Indicators
8.
Power Supply (450 Watt)
What's New
New Option: Dual Core Intel Pentium-D 950 processor
(3.4GHz, 2 x 2MB Cache, 800MHz Front Side Bus)
At a Glance
The HP ProLiant DL320 G4 Server delivers Enterprise
level features and performance at an entry level price. The Intel Dual
Core processors and DDR2 Memory support put the finishing touches on this
ultra-dense 1U solution for the savvy Enterprise and SMB customer.
The performance features of the ProLiant DL320 G4 include
up to 8GB of PC2-4200 DDR2 memory and the new Intel Pentium D 900 series
processors with 4 Megabytes of Level 2 cache. The ProLiant DL320 G4 also
features iLO 2, the Next generation Lights-Out management delivering server
remote control for any occasion. Dual PCI Express slots provide the ultimate
in I/O serial performance and investment protection, while the optional
PCI-X full length riser provides customers with legacy support. In addition
to dual integrated gigabit NICs, the ProLiant DL320 G4 also supports SATA
with RAID 0/1 standard, with Hot Plug SAS and SATA as an optional upgrade.
Processors:
Dual-core Pentium D 900 series processors
with 4M (2x2M) of L2 Cache
3.4 GHz, 3.2 GHz, 3.0 GHz, and 2.8 GHz Dual-core
Pentium D Processors with 4MB of L2 Cache (2x2MB)
Single core Pentium 4 600 series processors
with 2MB of L2 cache
3.6 GHz, 3.4 GHz, 3.0 GHz Single Core Pentium
4 Processors with 2MB of L2 Cache
Single core Celeron processors
2.93 GHz Celeron D Processor with 256KB of
L2 Cache
Intel E7230 Chipset with 800MHz Front Side Bus
(533MHz for Celeron Processors)
Ability to purchase Microsoft Windows Server
2003 for Embedded Systems with Microsoft ISA Server 2004 Standard
Edition configure to order from HP:
More details available at http://www.hp.com/servers/DL320FW-VPN-Cache
Memory:
Up to 8 GB of PC2-4200 UB DDR2 SDRAM Memory
Standard configurations of 512 MB to 2 GB of
memory
Storage Controller:
HP embedded 2 Port SATA Controller with RAID
0/1 support
Internal Drive Support:
Internal storage capacity of up to 1.5TB (2 x
750GB SATA hard drives) or 600GB (2 x 300GB SAS hard drives)
Optional CD,DVD, or DVD-RW drive and Floppy
drive
Network Controller:
Embedded NC324i PCI Express Dual Port Gigabit
server adapter
Expansion Slots:
Two total slots: (1) full length 64-bit/133
PCI Express x4 slot (x8 connector) (full-length PCI-X is available
with optional PCI-X riser card for models containing the 900 series
or 600 series processors); (1) half-length, low-profile PCI Express
x1 slot (x8 connectors)
Standard Dual PCI Express slots offers high
performance and investment protection for customers
Embedded Integrated Lights Out 2 (iLO 2) Remote
Management with full sideband (UMP) support
Integrated Remote Console
Virtual KVM technology
Automatic Server Recovery (ASR), ROM Based Setup
Utility (RBSU), HP System Insight Manager, Status LEDs including
system health and UID and SmartStart
Form Factor:
1U (1.70") Form Factor
Deployment/Serviceability:
Standard spring-loaded Universal sliding rails
for in rack servicing
Warranty:
Protected by HP Services and a worldwide network
of resellers and service providers. Three-year Next Business Day,
on-site limited global warranty (three year parts, one year labor,
one year on-site support). Certain restrictions and exclusions apply.
Pre-Failure Notification on processors, memory, and SAS hard drives.
SATA hard drives have a one-year warranty.
Integrated ATI ES1000 Video
Controller with 16 MB SDRAM Video Memory
Form Factor
Rack (1U), (1.70 in/4.45 cm)
ProLiant
Essentials Foundation Pack Software
HP
Systems Insight Manager
HP Systems Insight Manager
(HP SIM) provides a unified, secure and extensible environment to
centrally manage servers, storage and other infrastructure devices
across multiple operating system platforms.
Through a single management view, HP SIM provides core management
services that include device discovery and identification, event
views, health monitoring, inventory data collection, software version
control and reporting. HP SIM is built on industry standards and
is extensible with value-added ProLiant Essentials, Integrity Essentials
and Storage Essentials software to meet individual management needs.
For more details on HP SIM visit http://www.hp.com/go/hpsim.
HP SIM provides organizations with the following benefits:
Simplifies and consolidates infrastructure lifecycle management
using task and query based functionality
Provides the foundation for infrastructure automation and virtualization
Enables IT management based on business processes not hardware
platforms
Lowers infrastructure maintenance cost and frees resources
for innovation
Maximizes resource utilization with virtualization technologies
Provides a central point of integration between infrastructure
and Enterprise management tools such as HP OpenView
SmartStart
SmartStart is a tool that
simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please
visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.4.
Insight Management Agents
Insight Management Agents
should be installed on all HP servers to present system instrumentation,
health and configuration information into HP Systems Insight Manager
and the HP System Management Homepage. The HP System Management Homepage
aggregates systems data from Insight Management Agents and other HP
management tools, providing a consolidated browser-based interface
for managing individual servers.
Insight Management Agents and The HP System Management Homepage
are included on ProLiant Support Packs, and can also be installed
using the server profiles provided with the ProLiant Essentials
Rapid Deployment Pack. For additional information about the Management
Agents and the HP System Management Homepage please visit the management
Web site at http://www.hp.com/servers/manage.
Subscriber's Choice
Subscriber's Choice Driver
and Support Alerts/Notifications is a web-based email subscription
service that provides automatic delivery of software and driver change
notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq,
support software, and
configuration utilities
The latest software, drivers,
and firmware fully optimized and tested for your ProLiant server and
options available in SmartStart or downloadable from Software and
Drivers download pages, linked from the SmartStart website at http://www.hp.com/servers/smartstart.
Survey Utility and diagnostics
utilities
The most advanced configuration
analysis, reporting and troubleshooting utilities used by HP and at
your fingertips, available in SmartStart.
Optional
ProLiant Essentials Value Packs
Optional software offerings that selectively extend the functionality
of an Adaptive Infrastructure to address specific business problems
and needs:
Rapid Deployment Pack (RDP) is an automated deployment and provisioning
solution for all ProLiant servers. RDP includes the ProLiant Integration
Module featuring ProLiant server pre-configured events for OS
installation, and optimized software drivers, firmware and management
agents. Every RDP disc includes 10-node trial licenses for evaluation
purposes. RDP requires a license for each server deployed and
is available for purchase with HP servers. For more information,
visit: http://www.hp.com/servers/rdp.
Workload Management Pack - provides easier management of complex
environments, improving overall server utilization and enabling
Windows® 2000 customers for the first time to confidently deploy
multiple applications on a single multiprocessor ProLiant Server.
Performance Management Pack - a performance management solution
that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better
utilize their valuable resources.
Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken network linkages and steers traffic to the optimum route
based on network conditions, plus it provides an extra layer of
protection. The virus throttle feature of the solution slows the
propagation of fast spreading virus.
Vulnerability and Patch Management Pack - identifies and remediates
software security vulnerabilities due to missing patches as well
operating system configurations that can be exploited by viruses,
worms, and other blended threats.
Virtual Machine Management Pack - provides central management
and control of virtual machines from Microsoft and VMware. Integrated
approach provides the ability to manage both physical and virtual
resources from a single management console.
Server Migration Pack - The Server Migration Pack automates
the manual processes required for migrating servers between physical
or virtual platforms (P2V, V2P, and V2V)
Optional Remote Management
Packs
Integrated Lights-Out Advanced Pack - upgrades the Integrated
Lights-Out processor to full virtual presence and control with
graphical console and virtual media.
NOTE: Flexible
and volume quantity license kits are available for ProLiant Essentials Value
Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials
Industry Standard
Compliance
ACPI 2.0
PCI 3.0 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
USB 2.0
Intelligent
Manageability
Automatic Server Recovery (ASR)
iLO Advanced Pack (optional)
HP Systems Insight Manager
Integrated Management Log
Drive Parameter Tracking (with Smart Array Controllers)
Dynamic Sector Repairing (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, SAS hard drives, and memory)
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
USB Port control
Removable CD-ROM/Diskette Drive Assembly
Administrator's password
Server Power Cords
One 6' Lowline and one 6' Highline
(IEC-IEC) power cord ships standard
Power Supply
Auto-sensing 450-Watt PFC Power
Supply, CE Mark Compliant
Microsoft Windows 2000 Server
Windows Server 2003 (web and standard editions; standard edition for 64-bit
extensions)
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Microsoft Windows Server 2003 for Embedded Systems with Microsoft ISA Server
2004 Standard Edition
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional
requirements to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front
and rear doors, you must allow 5,350 sq cm (830 square inches) of hole evenly
distributed from top to bottom to permit adequate airflow (equivalent to the required
64 percent open area for ventilation).
Side: The clearance between
the installed rack component and the side panels of the rack must be a minimum
of 7 cm (2.75 inches)
CAUTION: Always use blanking panels to
fill all remaining empty front panel U-spaces in the rack. This arrangement ensures
proper airflow. Using a rack without blanking panels results in improper cooling
that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation
Guide or the Documentation CD provided with the server, or to the server
documentation located in the Support section at the following URL: http://h18004.www1.hp.com/products/servers/proliantdl320/index.html.
HP Factory Express Capabilities
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple
configuration, racking, installation, complex configuration and design services as well
as individual factory services, such as image loading, asset tagging, and
custom packaging. HP products supported through Factory Express include a wide
array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant
Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000,
VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to http://www.hp.com/go/factory-express.
Service and Support
This product is covered by a global limited warranty and supported by
HP Services and a worldwide network of resellers and service providers.
Hardware diagnostic support and repair is available for three years from
date of purchase. Support for software and initial setup is available
for 90 days from date of purchase. Additional support may be covered under
the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services or customized service
agreements.
HP Care Pack services include coverage for the HP branded hardware options
qualified for the server, purchased at the same time or afterward, internal
to the enclosure, as well as 22" and smaller external monitors and
tower UPS options up to 3kVA; these items will be covered at the same
service level and for the same coverage period as the server. Coverage
of UPS Battery is not included, standard warranty terms & conditions
apply. For servers or storage systems installed within a rack, service
also covers all HP qualified rack options installed within the same rack.
HP services provide continuous care and support expertise with committed
response designed to meet your IT and business needs.
To fully capitalizing on your HP ProLiant servers' capabilities requires
a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of multi
vender support solutions provides a range of support services designed
to meet the varying needs of business. Whether an SMB or large global
corporation HP has a ProLiant server support offer to help you speedily
deploy and maximize system uptime.
Extended Care - Minimum recommended service support offer designed to
ensure customers have access to expert assistance, whenever they need
it.
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years
Committed Care - Cost-effective service options designed to extend HP
Services committed response and guaranteed fix times, designed to speed
problem resolution.
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage,
3 Years
Committed Response - Highest HP Support service level recommend to help
increase IT performance and availability with comprehensive, consistent
hardware and software services
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW
Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response
time excl. HP holidays
Deployment Services - HP Installation and Start Up services designed
to take time, risk, and worry out of the deployment of ProLiant servers
- and free customers people to focus on what they do best, their business.
Installation & Start-Up of a ProLiant server and Microsoft or
Linux O/S per the Customer Description and/or Data Sheet. To be delivered
on a scheduled basis 8am-5pm, M-F, excl. HP holidays.
Configuration Information - Factory Integrated Models
NOTE:
HP does not allow factory integration of options into standard models listed
above. Configure-to-order servers must start with a CTO Chassis. NOTE: This product offering does not support HP Factory Express Server
Configuration Level 1. NOTE: FIO indicates that this option only available as a Factory
Installable Option.
Step
1: Base Configuration (choose one of the following configurable models)
Models
DL320G4 CTO Chassis
414105-B21
Factory
Integrated Model ships with:
Embedded NC324i
PCI Express Dual Port Gigabit server adapter
1 full length PCI
Express x8 slot and 1 half length low profile PCI Express x8 slot
Integrated Lights-Out
2 (iLO 2) embedded
Intel® 82801GR Integrated
Serial ATA Host Controller
Rack (1U) form factor,
(1.70 in/4.45 cm)
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted)
HP ProLiant DL320
G4 Security Server (pre-installed configure to order software only)
409564-B21
ProLiant
Essentials
Value Pack Software
ProLiant Essentials
Intelligent Networking Pack
ProLiant Essentials
Intelligent Networking Pack - Windows Edition, Single Server License NOTE: For use with a single server. Contains one license with a unique
license activation key and documentation.
ProLiant Essentials
Performance Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key, HP Management
CD and documentation. NOTE: The most recent version of the software can always be downloaded
at http://www.hp.com/products/pmp.
ProLiant Essentials
Vulnerability and Patch Management Pack
ProLiant Essentials
Vulnerability and Patch Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
NOTE:
Flexible and volume quantity license kits are available for ProLiant
Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials.
Remote
Management
Integrated Lights-Out
Advanced Pack
Integrated Lights-Out
Advanced Pack, 1 server Featuring: Sophisticated
virtual administration features for ultimate control of servers in the data
centers and remote sites.
NOTE: Serial Attached
SCSI - SAS Hard Drives are only supported with optional SAS HBA or RAID
cards.
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications
such as capacity, height, width, interface, transfer rate, seek time, physical
configuration, and operating temperature: http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html
NOTE: Please note
that Serial ATA hot-plug capability and drive LEDs are not supported by
the embedded SATA storage controller. NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications
such as capacity, height, width, interface, transfer rate, seek time, physical
configuration, and operating temperature: http://h18000.www1.hp.com/products/quickspecs/11940_na/11940_na.html
Storage Controllers
NOTE: For HP ProLiant
DL320 G4 models purchased with Celeron or Pentium-D 800 Series processors,
PCI-X is only supported as a Factory Integrated Option.
SAS Controllers
Smart Array E200 Controller
NOTE: The HP Smart Array E200 Controllers require the purchase of
the DL320 SAS/SATA Hot Plug Cable option kit ( 398307-B21).
Smart Array P400 Controller NOTE: The HP Smart Array P400
BBWC Controllers require the purchase of the DL320 SAS/SATA Hot Plug Cable
option kit ( 398307-B21).
Smart Array P400 Battery Attach
Kit NOTE: This option kit contains a 24" battery cable and adhesive
material for installing a battery into the server if a Smart Array P400
is integrated outside of the factory. For all solutions, please refer to
the server QuickSpecs and User's Manual for detailed installation instructions.
HP 8 Internal Port SAS HBA with
RAID NOTE: The HP 8 Internal Port SAS
HBA with RAID requires the purchase of the DL320 SAS/SATA Hot Plug Cable
option kit ( 398307-B21).
HP
SATA/SAS 1U Cable Kit NOTE: This option is required for the HP 8 Internal Port SAS HBA
with RAID, the HP Smart Array E200 Controller, and the HP Smart Array P400
Controller.
For recommended tape drive offerings for this ProLiant server see
the following:
USB Tape Drives
HP StorageWorks DAT 40 USB
Internal Tape Drive (Carbonite) NOTE: HP recommends combining
this tape drive with the 1U USB Rack-Mount kit ( A8007A) for a complete
rack-mount solution.
DW022A
HP StorageWorks DAT 72 USB
Internal Tape Drive (Carbonite) NOTE: HP recommends combining
this tape drive with the 1U USB Rack-Mount kit ( A8007A) for a complete
rack-mount solution.
DW026A
Ultrium Tape Drives
HP StorageWorks Ultrium
232 Internal Tape Drive (Carbonite) NOTE: No internal tape drives
fit inside this HP ProLiant server. The internal drive shown here
is for the 1U and 3U Rack-mount Kit.
HP
StorageWorks 1U SCSI Rack-Mount kit NOTE: The 1U Rack-Mount Kit can support up to (2) half-height
tape drives and is compatible with multiple Single-Ended and LVD SCSI
tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160,
Ultrium 215, Ultrium 232, Ultrium 448 and Ultrium 920 tape drives.
HP
StorageWorks 1U USB Rack-Mount Kit NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height
tape drives and is compatible with the DAT 24 USB, DAT 40 USB and
DAT 72 USB tape drives.
HP
StorageWorks 1U SAS Rack-Mount Kit NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height
tape drives and is compatible with the Ultrium 448 SAS tape drive.
AE459A
HP StorageWorks 3U Rack-mount
kit NOTE: The 3U Rack-mount Kit
can support up to (2) full-height or (4) half-height tape drives and
compatible with multiple Single-Ended and LVD SCSI tape drives including
DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, SDLT 320, SDLT 600, Ultrium
215, Ultrium 230, Ultrium 232, Ultrium 460, Ultrium 448, Ultrium 920
and Ultrium 960 tape drives.
HP StorageWorks 1/8 Ultrium
920 G2 Tape Autoloader
AH165A
HP StorageWorks 1/8 Ultrium
448 G2 Tape Autoloader
AH164A
HP StorageWorks 1/8 Ultrium
232 G2 Tape Autoloader
AH163A
HP StorageWorks 1/8 G2 Tape
Autoloader Rack Kit NOTE: Required to install the 1/8 G2 Autoloaders in a standard
19-inch rack; includes rails and rackmount instructions
AH166A
NOTE: Please
reference the Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
Tape Libraries
HP StorageWorks MSL2024
Tape Library
HP StorageWorks MSL2024
1 Ultrium 960 Drive Library
HP StorageWorks MSL4048
2 Ultrium 960 4GB FC Drive Library
AG325B
HP StorageWorks MSL6000
Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030
1 Ultrium 960 Dr LVDS Library
AD606B
HP StorageWorks MSL6030
1 Ultrium 960 Dr FC Library
AD608B
HP StorageWorks MSL6030
2 Ultrium 960 Dr LVDS Library
AD607B
HP StorageWorks MSL6030
2 Ultrium 960 Dr FC Library
AD609B
Ultrium 460 technology
HP StorageWorks MSL6030
1 Ultrium 460 Dr LVDS Library
AD598B
HP StorageWorks MSL6030
1 Ultrium 460 Dr FC Library
AD600B
HP StorageWorks MSL6030
2 Ultrium 460 Dr LVDS Library
AD599B
HP StorageWorks MSL6030
2 Ultrium 460 Dr FC Library
AD601B
NOTE: Please
reference the MSL2024 and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
HP Data Protector Express Software
HP DP Express Backup Server Upgrade
for ProLiant Software
BB117AP
HP DP Express Package for Microsoft Small Business Server NOTE: Please see the HP Data Protector
Express QuickSpecs for additional information regarding the purchase of
HP Data Protector Express software: http://h18000.www1.hp.com/products/quickspecs/12337_na/12337_na.html NOTE: To obtain a free licensed copy of HP Data Protector Express
for ProLiant edition software, please visit the "Protect Your Data"
link accessible from your ProLiant server's System Management Homepage
(SMH) software (SmartStart 7.5 or later).
BB118AA
HP StorageWorks Modular Smart Array 20
HP StorageWorks Modular Smart
Array 20 NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity,
redundant power supplies.
NOTE: Please see
the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options
and configuration information at: http://www.hp.com/go/MSA1500cs
HP R3000 VA UPS, 2U, L5-30 NOTE: Replaces non-RoHs compliant part number 192186-001.
AF422A
HP R3000 VA UPS, 2U, L6-20 NOTE: Replaces non-RoHs compliant part number 192186-002.
AF423A
HP R3000 VA UPS, 2U, L6-20 NOTE: Replaces non-RoHs compliant part number 192186-292.
AF424A
HP R3000 VA UPS, 2U, L5-30 NOTE: Replaces non-RoHs compliant part number 192186-291.
AF425A
HP R5500 VA UPS NOTE: Replaces non-RoHs compliant part number 326529-D71.
AF426A
USB
Options
USB Optical Scroll Mouse (Carbonite)
DD441B
USB 2.0 4-port HUB
DG954A
HP 1GB Drive Key II- USB 2.0
Flash Drive
AG382AA
HP 512MB DriveKey II- USB Flash
Drive
ED516AA
USB Floppy Drive
DC361B
ProLiant DL320 Deployment Options
1U Cable Management Arm NOTE: Package contains two cable management arms.
365403-B21
NOTE: Telco Rack
Support - Support for all 2-post Telco racks requires the use of the standard
rack kit and an additional option kit from Rack Solutions: http://www.racksolutions.com/hp
NOTE: xxxxxx-B21
(pallet) used to ship empty racks shipped on a truck. xxxxxx-B22 (shock
pallet) used to ship racks with equipment installed (by custom systems,
VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty
racks. NOTE: It is mandatory to use a shock pallet in order to ship racks
with equipment installed.
NOTE: xxxxxx-B21
(pallet) used to ship empty racks shipped on a truck. xxxxxx-B22 (shock
pallet) used to ship racks with equipment installed (by custom systems,
VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty
racks. NOTE: It is mandatory to use a shock pallet in order to ship racks
with equipment installed.
NOTE: Cat5e cables
are required to connect Interface Adapters to Console Switches. Cat5e cables
can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
NOTE: Cat5e cables
are required to connect Serial Adapters to Serial Console Servers. Additional
Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
Service and Support Offerings (HP Care Pack Services)
Hardware Services On-site
Service
Next Business Day On-site Service,
5-Day x 9-Hour Coverage, 3 Years, Electronic
U4479E
4-Hour On-site Service, 5-Day
x 13-Hour Coverage, 3 Years, Electronic
U4480E
4-Hour On-site Service, 7-Day
x 24-Hour Coverage, 3 Years, Electronic
U4481E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4482E
Installation & Start-up
Services
Hardware Installation, Electronic
U4490E
Installation & Start-Up of
a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl.
HP holidays, Electronic
U4491E
Support Plus
Onsite HW support, 8am-9pm, M-F,
4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion,
8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4492E
Support Plus 24
Onsite HW support 24x7, 4hr response
and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7
2hr response time incl. HP holidays, Electronic
U4493E
Onsite HW support 24x7, 4hr response
and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7
2hr response time incl. HP holidays, Electronic.
U6309E
Onsite HW support 24x7, 4hr response
and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion,
24x7 2hr response time incl. HP holidays, Electronic.
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
Standard Memory
512 MB PC2-4200 ECC UB DDR2 SDRAM installed (1 x 512 MB SDRAM DIMM) on
Celeron D model.
1 GB (1 x 1024 MB SDRAM DIMMs) on all Pentium D models.
Standard Memory Plus Optional Memory
Up to 8 GB memory is available with the optional installation of PC2-4200
ECC DDR2 SDRAM Memory kits.
NOTE:
The chart below represents the Pentium D models with 1 GB standard memory,
and does not represent all possible configurations. Memory can be populated
in any order with any of the supported DIMMs listed. For optimal performance,
the total amount of memory in slots 1A and 2A should equal to the total
amount of memory in slots 3B and 4B.
300GB 3G SAS 15K SP
146GB 3G SAS 15K SP
72GB 3G SAS 15K SP
36GB 3G SAS 15K SP
Up to 2
1-2
HP 8 Internal Port SAS HBA with
RAID
HP Smart Array E200/64MB Controller
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
Serial ATA Hard Drives
Quantity
Supported
Position
Supported
Controller
750GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
80GB 1.5G SATA 7.2K
Up to 2
1-2
HP embedded 2 Port SATA Controller
with RAID 0/1 support
HP 8 Internal Port SAS HBA with RAID
HP Smart Array E200/64MB Controller
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
External Storage
Quantity
Supported
Position
Supported
Host Controller or Adapter
Modular Smart Array 20
Please see the Modular Smart Array 20 QuickSpecs below
to determine configuration requirements
External
Please see the Modular Smart Array
20 QuickSpecs below see the list of supported controllers
ATA data-transfer modes
supported
SATA 1.0, SATA II
PIO modes 0-4
Multiword DMA modes 0-2
Ultra DMA modes 0-6
RAID levels
0, 1
Feature
Supports Warranty of
SATA Hard Drives
Supports multiple logical volumes
Setup through ROM based Array Configuration Utility
Installation scripting support
OS Support
Microsoft Windows 2000
Server
Microsoft Windows Server 2003 NOTE: In order to implement integrated
SATA RAID with Smart Start 7.4 on Windows 2000/2003, the use of a floppy
drive is necessary
Linux (Red Hat, SuSE, UnitedLinux)
NOTE:
This controller does not support LED functions
This controller does not support Hot Plug functions
US Site
DL Quickspecs
Search:
393354-B21
© 2012 Canada PartsDirect
