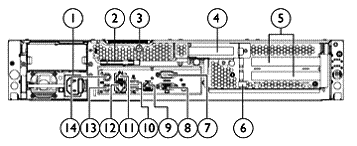

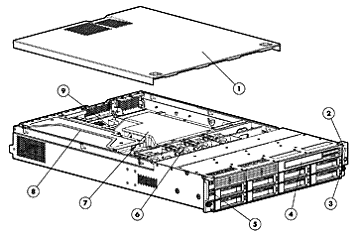

PCI
Expansion Card Slot (top is slot 2, bottom is slot 1)
6.
Non-Hot
Plug Non redundant fans (4 fans)
6.
Thumbscrew
For PCI Cage
7.
Air
Baffle
7.
Serial
Port
8.
PCI
Cage
8.
VGA
Port
9.
System
Board
9.
Management
LAN Port
10.
Two
USB 2.0 Ports
11.
GbE
LAN Port For NIC2
12.
GbE
LAN Port For NIC1
13.
PS/2
Keyboard Port (purple)
14.
PS/2
Mouse Port (green)
What's
New
Support for SATA Hot Plug 3.5" Midline (MDL) Hard Drives
Support for Smart Array Controller with BBWC
At
A Glance
The new HP ProLiant DL185 G5 is a 2U, dual processor server designed
for quality, performance, and flexible deployments to meet the needs of
the emerging markets, SMB market, and Corporate scale out.
Processors:
Supports up to two Quad-Core AMD Opteron™ 2300 sequence processors
Memory:
Supports up to 32 GB PC2-6400 DIMMs (DDR2-800) with Advanced ECC
Supports up to 64 GB PC2-5300 DIMMs (DDR2-667) with Advanced ECC
Internal Drive Support:
Internal storage capacity (up to 14 hard drives via CTO or up to
12 hard drives via BTO)
8 hard drive models:
SAS/SATA Capacity: Supports up to 16.0TB (8 x 2TB)
12 hard drive models:
SAS/SATA Capacity: Supports up to 24.0TB (12 x 2TB)
Optional 14 drive support available with Rear 2 Hard Drive Kit NOTE: Available via CTO
only
SAS/SATA Capacity: 24.0TB (14 x 2TB)
Network Controller:
o Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network
adapter
Storage Controllers:
8 hard drive models
HP Smart Array E200/128 BBWC Controller
12 hard drive models
HP Smart Array P400/256MB Controller
Expansion Slots:
Standard Riser: (1) x4 PCI-E (LP), (2) x8 PCI-E (FL/FH)
Option 2: Rear DVD optional riser, (2) x8 PCI-e FL/FH slots
(12HDD model only, replaces LP PCI-e slot)
Option 3: (1)x4 PCI-E (LP), Rear dual HDDs (12HDD model only,
replaces all FL/FH PCI-e slots)
Infrastructure Management:
HP ProLiant Lights Out 100i Remote Management support (IPMI 2.0
and SMASH support
Virtual Media plus Virtual KVM support with LO100i Advanced license
HP Insight Control for Linux, a product option, delivers essential
infrastructure management that can help save time and money by making
it easy to deploy, migrate, monitor, control and optimize your IT
infrastructure through a single, simple management console. Insight
Control for Linux supports Linux-based central management servers.
USB Ports:
Five USB ports (2) up front, (2) rear, (1) internal (optional)
Optical Drive:
Support for one (optional): Multi-bay DVD
NOTE: For 12 hard drive models,
optical drive support is available via rear DVD cage kit (P/N
513168-B21). DVD Drive not included.
Optional Floppy (USB only, USB key)
Power Supply:
750W Power Supply (Hot Plug, Autoswitching) ships standard
High Efficiency 1200W Power Supply (Redundant Hot Plug, Autoswitching)
(Optional) CSCI 2007/2008
Tooled access to all system components for easy in rack serviceability
Customer Self Repair (CSR): HP products are designed with many CSR
parts to minimize repair time and allow for greater flexibility in
performing defective parts replacement
Warranty:
This product is covered by a global limited warranty and supported
by HP Services and a worldwide network of HP Authorized Channel
Partners. Hardware diagnostic support and repair is available for
one year from date of purchase. Support for software and initial
setup is available for 90 days from date of purchase. Enhancements
to warranty services are available through HP Care Pack services
or customized service agreements. Hard drives have either a one
year or three year warranty; refer to the specific hard drive QuickSpecs
for details. NOTE:
Server Warranty includes
1 year Parts, 1 year Labor, 1-year on-site support (3-1-1-in AP
and Brazil) with next business day response. Warranty repairs may
be accomplished through the use of Customer Self Repair (CSR) parts.
These parts fall into two categories: 1) Mandatory CSR parts are
designed for easy replacement. A travel and labor charge will result
when customers decline to replace a Mandatory CSR part; 2) Optional
CSR parts are also designed for easy replacement but may involve
added complexity. Customers may choose to have HP replace Optional
CSR parts at no charge. Additional information regarding worldwide
limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.
NOTE: For the Standard Features shipped in the "Factory Integrated
Models", please see the "Configuration Information - Factory Integrated
Models" section.
Processor One of the following depending on Model
AMD
Opteron™ processor Quad-Core Model 2389 (2.9 GHz, 75W ACP)
AMD
Opteron™ processor Quad-Core Model 2384 (2.7 GHz, 75W ACP)
AMD Opteron™ processor Quad-Core
Model 2380 (2.5 GHz, 75W ACP)
AMD
Opteron™ processor Quad-Core Model 2379 (2.4 GHz, 55W ACP)
AMD Opteron™ processor Quad-Core
Model 2376 (2.3 GHz, 75W ACP)
AMD
Opteron™ processor Quad-Core Model 2374HE (2.2 GHz, 55W ACP)
AMD
Opteron™ processor Quad-Core Model 2356 (2.3 GHz, 75W ACP)
AMD
Opteron™ processor Quad-Core Model 2354 (2.2 GHz, 75W ACP)
AMD Opteron™ processor Quad-Core
Model 2352 (2.1 GHz, 75W ACP)
AMD
Opteron™ processor Quad-Core Model 2346HE (1.8 GHz, 55W ACP)
AMD Opteron™ processor Quad-Core
Model 2344HE (1.7 GHz, 55W ACP)
NOTE:
Processor wattage references reflect Average CPU Power (ACP). For more information
on ACP visit: http://www.amd.com/powernow.
Upgradeability
Upgradeable
to two processors
Chipset
ServerWorks HT2100 and HT1000
Cache
Memory One of the following depending
on Model
4 x 512 KB
Level 2 cache and 6 MB shared Level 3 cache (2300 sequence) 4 x 512 KB Level
2 cache and 2 MB shared Level 3 cache (2300 sequence) 2 x 1 MB Level 2 cache
(2200 sequence)
Memory
Protection
Advanced ECC capabilities
Memory One of the following depending on Model
Type
REG PC2-5300 DIMMs
(DDR2-667) NOTE: DIMM banks are active only
when the corresponding processor socket is populated.
Standard - 2200 series (8 Hard Drive Model)
1 GB
(2 x 512 MB)
Standard - 2300 series
(8 Hard Drive Model)
2 GB
(2 x 1 GB)
Standard (12 Hard Drive Model)
4 GB
(2 x 2 GB)
Maximum
64 GB
(8 x 8 GB)
Type
REG PC2-6400 DIMMs
(DDR2-800)
Standard - 2300 series
(8 Hard Drive Model)
2 GB
4 GB
(2 x 1 GB)
(2 x 2 GB)
Standard
(12 Hard Drive Model)
4 GB
(2 x 2 GB)
Maximum
32 GB
(8 x 4 GB)
Network
Controller
Embedded NC7782
Dual Port PCI-X 10/100/1000T Gigabit network adapter
Expansion Slots #
Technology
Bus Width
Connector Width*
Bus Number**
Form Factor
Notes
1
PCI-Express
x8
x8
4
Full Length/ Full Height
2
PCI-Express
x8
x8
3
Full Length/ Full Height
3
PCI-Express
x4
x8
5
Low Profile
1*
PCI-X
64-bit
N/A
Dynamic
Low Profile
Device Number 1
2*
PCI-X
1333
N/A
Dynamic
Low-Profile
Device Number 2
* Optional - With PCI-X
riser installed, replacing Full Length/Full Height PCI-e slots.
** Slots are enumerated differently based on OS. MS OS's enumerate from
lowest to highest Device ID by bus (starting with the lowest bus).
Storage
Controller
8 Hard Drive Models
HP Smart Array E200/128 BBWC
Controller
12 Hard
Drive Models
HP Smart Array
P400/256 MB Controller
NOTE:
A diskette drive is needed to install storage controller drivers during a
Windows operating system installation from CD.
Storage
Diskette
Drive
Via USB only
Optical Drives
None
standard
Optional
8x DVD-RW drive, slim NOTE: For 12
hard drive models, optical drive support is available via rear DVD cage kit (P/N
513168-B21).
Hard
Drives
None Standard
NOTE: Up to
14 Hot Plug SAS/SATA 3.5" hard drives supported via installation of the Rear
2 Hard Drive Option Kit (P/N 449736-B21). Supports 12 hard drive server models
only. Hard Drives not included.
Maximum
Internal Storage
Hot Plug SATA
24.0TB
14 x 2TB
Hot Plug SAS
14.0TB
14
x 1TB
NOTE:
Fourteen (14) hard drives are available via CTO only with the Rear 2 Hard
Drive Kit. For additional information; please see the Configuration to Order section
in this QuickSpecs.
Interfaces
Network RJ-45 (Ethernet)
2
10/100/1000 NIC ports (plus 1 dedicated for the HP ProLiant Lights Out 100i Remote Management)
HP Lights-Out 100i Remote Management delivers affordable, entry level
remote management capabilities for HP ProLiant 100 Series servers with
embedded LO100i. It allows customers or their service providers to remotely
manage ProLiant 100 Series servers remotely over a LAN or the Internet
and consists of the following:
LO100i Standard is embedded remote management and provides
basic remote control via telnet, browser, and IPMI 2.0 and SMASH
LO100i Advanced Pack License are upgrades for all the features
of LO100i Select plus Virtual KVM (graphical hardware-based, remote
console)
NOTE: Flexible and volume quantity
(AKA) license kits are available for Lights-Out 100 Advanced Pack licenses
as well as Electronic License To Use (E-LTU). AKA Tracking licenses require
a 100 unit minimum forecast at initial contract signing. For these additional
part numbers, please refer to each software products' QuickSpecs at this
link for more information: http://h18004.www1.hp.com/products/servers/management/
remotemgmt.html
HP Insight Control
management software
HP Insight Control for Linux
HP Insight Control for Linux,
as a product option, delivers essential infrastructure management that can
help save time and money by making it easy to deploy, monitor, remote control,
and optimize your IT infrastructure through a single, simple management
console. The Insight Control for Linux suite installs and license software
modules that are integrated into HP System Insight Manager.
The HP Insight Control suite for Linux (IC-Linux) serves environments requiring
a Linux-based management consoles. See www.hp.com/go/ic-linux
HP Insight Control suites include one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff and
proactive delivery of software updates. For more information about this
service, please visit: http://www.hp.com/services/insight.
Insight Control server deployment
HP Insight Control server deployment
is a deployment solution for HP ProLiant and Integrity servers hosted on
a Windows CMS. It automates the process of deploying and provisioning server
software, enabling companies to quickly and easily adapt to changing business
demands. Insight Control server deployment includes software optimizations
for HP servers, including the HP scripting toolkits, configuration jobs
for leading industry-standard operating systems, sample unattended files,
and HP server support packs that include software drivers, management agents,
and important documentation. Deploying servers can be accomplished either
through imaging or through scripting.
Insight Control server deployment is hosted on a Windows server and is intended
for heterogeneous environments deploying Windows, Linux, VMware ESX and
Microsoft Hyper-V systems.
Insight Control server deployment includes one year of 24 x 7 HP Software
Technical Support and Update Service ensuring rapid access to HP support
staff and proactive delivery of software updates. For more information about
this service, please visit: http://www.hp.com/services/insight.
Industry Standard
Compliance
ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
IPMI 2.0 Compliant
Manageability
Embedded HP ProLiant Lights Out 100i Remote Management with upgrades to LO100i
Advanced
Security
Power-on
password
Setup password
Server
Power Cords
One Highline
IEC Power cord ships standard (for connection to a Power Distribution Unit) NOTE:
HP ProLiant DL servers no longer ship standard with NEMA power cords that allow
connection to 110V US wall outlets in a home or office. HP ProLiant DL servers
are primarily connected to PDU's in data center racks so they now ship standard
with only a PDU power cord If a user wishes to power a ProLiant DL server using
a110V receptacle (NEMA-15), the NEMA power cord (AF556A) must be ordered separately.
NOTE: Redundant
Power Supply configuration for 1200W power supply requires both power supplies
to be 1200W. The 1200W and 750W power supplies cannot be mixed.
NOTE: For additional
information please see the Options section of this QuickSpecs.
System
Fans
4 system fans ship standard;
Non-hot plug, Non-redundant
NOTE: For more information on HP's Certified and Supported ProLiant
Servers for OS and Virtualization Software and latest listing of software drivers
available for your server, please visit our Support Matrix at: : http://www.hp.com/go/supportos
and our driver download page http://www.hp.com/support/DL185G5
Rack
Airflow Requirements
Rack 10000 G2 series Cabinets
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 G2 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION:
If a third-party rack is used, observe the following additional requirements to
ensure adequate airflow and to prevent damage to the equipment:
Front and
rear doors: If your 42U server rack includes closing front and rear doors, you
must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top
to bottom to permit adequate airflow (equivalent to the required 64 percent open
area for ventilation). Side: The clearance between the installed rack component
and the side panels of the rack must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels
to fill all remaining empty front panel U-spaces in the rack. This arrangement
ensures proper airflow. Using a rack without blanking panels results in
improper cooling that can lead to thermal damage.
Rack
Kit
HP ProLiant DL185 G5
servers have fixed rails which provide support for round or square mounting holes,
including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range
of 26" - 36".
Telco and Threaded Hole Rack
Support
Support for all 2-post Telco
racks and threaded hole racks requires an additional option kit from Rack
Solutions. The Rack Solutions brackets can be purchased at: www.hp.com/go/rackandpower
HP
Factory Express Capability
HP Factory Express offers configuration, customization, integration and deployment
services for HP servers and storage products. Customers can choose how their factory
solutions are built, tested, integrated, shipped and deployed.
Factory Express
offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such
as image loading, asset tagging, and custom packaging. HP products supported through
Factory Express include a wide array of servers and storage: HP Integrity, HP
ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as
the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services for your specific
server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP
Enterprise Configurator
The HP eConfigure Enterprise Configurator now provides factory default
racking for our HP hardware portfolio. This approach is aligned with our
strategic direction to meet the needs and expectations of our valued customers.
If you require "custom" rack configuration, please contact HP's
Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator.
Service
and Support
HP Care Pack
Services provide total care and support expertise with committed response designed
to meet your IT and business needs.
HP Care Pack services include coverage
for the HP branded hardware options qualified for the server that are purchased
at the same time or afterward and internal to the enclosure. It also includes
the 22" and smaller external monitors and tower UPS options up to 3kVA. These
items will be covered at the same service level and for the same coverage period
as the server. Coverage of UPS Battery is not included and standard warranty terms
& conditions apply. For servers or storage systems installed within a rack,
service also covers all HP qualified rack options installed within the same rack.
To
fully capitalize on your HP ProLiant servers' capabilities requires a service
partner who thoroughly understands your server technology and systems environment.
HP Services, an industry leader in provision of multi vender support solutions
provides a range of support services designed to meet the varying needs of business.
Whether an SMB or large global corporation HP has a ProLiant server support offer
to help you speedily deploy and maximize system uptime.
Recommended Service
– Simplify ProLiant solution implementation, maintenance and management.
Support Service – 3-Year 24x7 4 hr Response service support
coverage
Deployment Service – Hardware Installation only
Enhanced Service – Optimize service level to increase
IT performance and availability
Support Service - 3-Year 24x7 24 hr Call to repair service
support coverage
Support - 3-Year 24x7 6 hr Call to repair service support coverage
Support Plus - 24x7 4 hr Response service support including
OS coverage
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or
Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure a Factory
Integrated Model. To ensure only valid configurations are ordered, HP recommends
the use of an HP approved configurator. Contact your local sales representative
for information on CTO product offerings and requirements. NOTE: HP
does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis. NOTE: FIO
indicates that this option is a Factory Installable Option. NOTE: Eight
drive models cannot be field upgraded to twelve drive model. Fourteen drive servers
available via CTO only - customer must begin with the selection of the 12 drive
CTO chassis cage. NOTE: Customers requiring a DVD with a 12 hard drive
model must order a rear DVD option kit. The DVD drive must be ordered separately.
Step
1: Base Configuration
HP
ProLiant DL185 G5 CTO Chassis
444764-B21
Factory
Integrated Model ships with:
Embedded NC7782
Dual Port PCI-X 10/100/1000T Gigabit network adapter
Standard Riser:
(1) x4 PCI-E (LP), (2) x8 PCI-E (FL/FH) NOTE:
Optional PCI-X option kit includes: Slot 1 and 2: full-length/full-height
PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card is
installed in the server.
750W Power Supply
(Hot Plug, Autoswitching) (Standard)
One Highline IEC
Power Cord
Four
(4) Non-Hot Plug Fans
Rack Mount (2U),
(3.5 in/8.89 cm)
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted)
NOTE:
When ordering a Smart Array P400 Controller with BBWC the addition
of the HP SA-P400 and SA-E500 24 In Battery Cable Kit ( 417836-B21) is required.
HP SA-P400 and SA-E500
24 In Battery Cable Kit NOTE: This option kit contains a
24" battery cable and adhesive material for installing a battery into
the server if a Smart Array P400 is integrated outside of the factory. For
all solutions, please refer to the server QuickSpecs and User's Manual for
detailed installation instructions.
HP ProLiant DL185
PCI-X Riser Kit NOTE: This option kit replaces the
two full length/full height slots listed in step 1 base configuration. NOTE: Optional PCI-X option kit includes: Slot 1: full-length/full-height
PCI-X 100; Slot 2: Full length/Full-height PCI-X 100. PCI-X slots are 64
bits; 133 MHz capable if only one PCI-X card is installed in the server.
451286-B21
HP Rear Hard Drive
Kit
HP
DL185 Rear 2 Hard Drive Option Kit, FIO NOTE:
Supports 12 hard drive server models only. Hard Drives not included. NOTE: This option replaces the 2 Full
Length, Full Height x8 PCIe slots.
449736-B21
HP
Optical Drives
DVD-RW
Drive (optional)
395498-B22
DVD-ROM Drive (optional)
361040-B22
Step
4: Choose Additional Options for Factory Integration
NOTE:
For additional options, please refer to the "Core Options and Additional
Options" sections below.
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and
the server backplane) should operate at the same data transfer rate or the
system bandwidth will be negotiated down to an acceptable level for all
components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SATA Hot Plug LFF (3.5-inch) Midline
(MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch)
Midline 1yr Warranty Hard Drive
HP NC522SFP Dual Port 10GbE Server
Adapter NOTE: A minimum of two Gigabytes
(2 GB) of server memory is required per each NC522SFP adapter. NOTE: Direct Attach Cable (DAC) for copper environments or fiber
transceivers and cables for fiber-optic environments must be purchased separately.
HP LO100i Advanced, No Media 1-Server License
including 1 year of 24x7 Technical Support and Updates
530521-B21
NOTE: For additional information,
please see the Lights-Out 100i QuickSpecs at: www.hp.com/go/lo100.
HP Insight Software
HP Insight Control for Linux
HP Insight Control for Linux,
1-server license, including one year of 24x7 Technical Support and Updates,
Electronic NOTE: This part number can be purchased
as a single license or as multiple licenses with a single activation key.
Customer will receive a license entitlement certificate via e-mail. The
license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service. NOTE: Electronic LTUs are only available through limited points of
sales; if not available, order a printed license entitlement certificate
instead.
TC213AAE
HP Insight Control for Linux,
No Media, 1-Server license, including one year of 24x7 Technical Support
and Updates
TC209A
HP Insight Control for Linux,
Media pack (DVD) - No licenses included NOTE: This optional Media pack DVD
contains the ISO image for HP Insight Control for Linux, HP Systems Insight
Manager, HP Insight Control power management, HP Insight Control virtual
machine management, and an integrated installer. Servers must be acquired
separately. NOTE: This Media pack is optional because the latest ISO image and
latest updates may be downloaded at no cost from: http://www.hp.com/go/ic-linux
(click on Download button).
TC208A
NOTE: Licenses
ship without media. The Media Kit for Insight Control for Linux can be ordered
separately, or can be downloaded at: http://www.hp.com/go/ic-linux
(click on Download button). NOTE: Electronic licenses can be used to purchase multiple licenses
with a single activation key, and are available in all countries except
China and Japan. Customers in China and Japan should order the physical
equivalent. NOTE: Customer will receive a license entitlement certificate, which
must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support Service. NOTE: For additional License Kits, including electronic licensing
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
Insight Control server deployment
HP Insight Control server deployment
Electronic License including 1 year 24x7 Technical Support and Updates
T9082AAE
HP Insight Control server deployment
1-Server License including 1 year 24x7 Technical Support and Updates
452151-B21
NOTE: Licenses
ship without media. The Insight Control Media Kit can be ordered separately,
or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses
with a single activation key, and is available in all countries except China
and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which
must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support Service. NOTE: For additional license kits please see the Insight Control
QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Smart Array E500/256 MB Controller NOTE: For external use only. The
E500 only has external connectors. NOTE: When ordering a Smart Array E500 Controller with BBWC the addition
of the HP SA-P400 and SA-E500 24 In Battery Cable Kit (P/N 417836-B21) is
required.
Battery-backed write cache upgrade NOTE: For Smart Array P400 Controller
and Smart Array P400i Controller only. NOTE: When ordering a Smart Array P400 Controller with BBWC the addition
of the HP SA-P400 and SA-E500 24 In Battery Cable Kit (P/N 417836-B21) is
required.
HP SA-P400 and SA-E500 24 In Battery
Cable Kit NOTE: This option kit contains a
24" battery cable and adhesive material for installing a battery into
the server if a Smart Array P400 or Smart Array E500 Controller is integrated
outside of the factory. For all solutions, please refer to the server QuickSpecs
and User's Manual for detailed installation instructions.
Battery Kit upgrade (for BBWC) NOTE: To enable BBWC on the 256MB
cache. NOTE: Supported on HP Smart Array P212 Controller, HP Smart Array
P410 Controller, and HP Smart Array P411 Controller only.
462969-B21
HP 256MB P-Series Cache Module NOTE: Supported on HP Smart Array
P212 Controller.
HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160
USB Tape Drive NOTE: Pre-configured with one DAT
160 USB tape drive.
AG703A
NOTE: HP recommends purchasing the HP SC44Ge HBA ( 416096-B21)
for a dedicated SAS HBA for tape.
SAS Rack-Mount Tape
Solutions
HP StorageWorks 1U SAS Rack-Mount Kit with one LTO-4 Ultrium
1760 Tape Drive NOTE: Pre-configured with one LTO-4
Ultrium 1760 SAS tape drive.
EH946A
HP StorageWorks 1U SAS Rack-Mount Kit NOTE: Supports up to (2) half-height
SAS tape drives.
AE459A
HP StorageWorks DAT
160 SAS Internal Tape Drive NOTE: Mounts inside the 1U SAS Rack-Mount
Kit (AE459A).
Q1587A
HP StorageWorks LTO-2
Ultrium 448 SAS Internal Tape Drive NOTE: Mounts inside the 1U SAS Rack-Mount
Kit (AE459A).
DW085A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive NOTE: Mounts inside the 1U SAS
Rack-Mount Kit (AE459A).
EH847A
DAT 320 WW SAS External
Tape Drive
AJ828A
SCSI Rack-Mount Tape Solutions NOTE: SCSI Controller required.
HP recommends purchasing the HP SC11Xe HBA ( 412911-B21) for a dedicated
SCSI HBA for tape.
HP StorageWorks 1U SCSI Rack-mount kit with one LTO-2
Ultrium 448 SCSI Tape Drive (Carbonite) NOTE: Pre-configured with one LTO-2
Ultrium 448 SCSI tape drive.
DW028B
HP StorageWorks 1U SCSI Rack-mount kit with one LTO-3
Ultrium 920 NOTE: Pre-configured with one LTO-3
Ultrium 920 SCSI tape drive.
EH903A
HP StorageWorks 3U SCSI Rack-Mount with 1 LTO-4 Ultrium
1840 Tape Drive NOTE: Pre-configured with one LTO-4
Ultrium 1840 SCSI tape drive.
HP StorageWorks 1/8
G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
AK377A
HP StorageWorks 1/8
G2 LTO-3 Ultrium 920 SAS Autoloader
AH558A
HP StorageWorks 1/8
G2 LTO-2 Ultrium 448 Tape Autoloader
AH164A
HP StorageWorks 1/8
G2 Tape Autoloader Rack Kit NOTE: Required to install the 1/8
G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount
instructions.
AH166A
NOTE:
Please see the QuickSpecs for Technical Specifications: http://www.hp.com/go/automation
and for additional information needed to create a complete solution; reference
current compatibility information at: http://www.hp.com/go/ebs.
Tape Libraries
HP StorageWorks MSL2024
Tape Library
HP StorageWorks MSL2024
1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ033A
HP StorageWorks MSL2024
1 LTO-4 Ultrium 1760 SAS Drive Library
AK378A
HP StorageWorks MSL2024
1 LTO-3 Ultrium 960 SCSI Drive Library
HP StorageWorks MSL4048
1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ035A
HP StorageWorks MSL4048
2 LTO-4 Ultrium 1760 SAS Drive Library
AK380A
HP StorageWorks MSL4048
1 Ultrium 960 SCSI Drive Library
AG322A
HP StorageWorks MSL4048
1 Ultrium 920 SAS Drive Library
AH560A
NOTE:
Please reference the QuickSpecs for Technical Specifications: http://www.hp.com/go/automation
and additional information needed to create a complete solution; reference
current compatibility information at: http://www.hp.com/go/ebs.
HP Disk Backup
RDX Removable Disk Backup
HP StorageWorks RDX160 External
Removable Disk Backup System NOTE: 160GB of Disk Storage.
AJ766A
HP StorageWorks RDX320 External
Removable Disk Backup System NOTE: 320GB of Disk Storage.
AJ768A
HP StorageWorks RDX500 External
Removable Disk Backup System NOTE: 500GB of Disk Storage.
NOTE: Rack-mountable
12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA
1.5Gb/s 1" Hot Plug Hard Drives. NOTE: Please see the QuickSpecs for Technical Specifications and
additional information: http://h18000.www1.hp.com/products/quickspecs/11942_div/11942_div.html
(Worldwide)
NOTE: Rack-mountable
10 SFF drive enclosure with single I/O module, redundant hot plug power
supplies and hot plug fans. NOTE: Please see the QuickSpecs for Technical Specifications and
additional information: http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html
(Worldwide)
NOTE: Rack-mountable
12-drive (3.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity
and redundant power supplies. NOTE: Please see the QuickSpecs for Technical Specifications and
additional information: http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html
(Worldwide)
NOTE: Rack-mountable
25-drive (2.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity
and redundant power supplies. NOTE: Please see the QuickSpecs for Technical Specifications and
additional information: http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html
(Worldwide)
HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)
10642 G2 (42U) Rack Cabinet 1200mm
Deep - Shock Pallet
AF034A
10642 G2 (42U) Rack Cabinet 1200mm
Deep - Pallet
AF038A
10647 G2 (47U) Rack Cabinet 1200mm
Deep - Shock Pallet
AF044A
10647 G2 (47U) Rack Cabinet 1200mm
Deep - Pallet
AF045A
NOTE: Cat5e cables
are required to connect Interface Adapters to Console Switches. Cat5e cables
can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: It is mandatory
to use a shock pallet when shipping racks with equipment installed.
NOTE:
Cat5e cables are required to connect Interface Adapters to Console Switches.
Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
HP Serial Console Server Options
Server console switch 0x2x8
AF616A
Server console switch 0x2x16
AF617A
0x2x16 KVM Server Console G2 Switch
with Virtual Media and CAC
AF618A
0x2x32 KVM Server Console G2 Switch
with Virtual Media and CAC
AF619A
1x1Ex8 KVM IP Console Switch G2
with Virtual Media and CAC
AF620A
2x1Ex16 KVM IP Console Switch
G2 with Virtual Media and CAC
AF621A
4x1Ex32 KVM IP Console Switch
G2 with Virtual Media and CAC
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
Rack Kits
HP Rack Cable Management Velcro
Clips
379820-B21
HP USB and SD Options
USB 1.44-MB External Diskette
Drive
DC141B
HP USB 2-Button Optical Scroll
Mouse (Carbonite/Silver)
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant
DL185 G5 (all models)
Standard
Memory 1 GB (2 x 512 MB) PC2-5300 DIMM memory, with Advanced ECC Capabilities
memory installed. (8 Hard Drive Model) (2200 sequence) 2 GB (2 x 1 GB) PC2-5300
DIMM memory, with Advanced ECC Capabilities memory installed. (8 Hard Drive Model,
2300 sequence) 2 GB (2 x 1 GB) PC2-6400 DIMM memory, with Advanced ECC Capabilities
memory installed. (8 Hard Drive Model, 2300 sequence) 4 GB (2 x 2 GB) PC2-5300
DIMM memory, with Advanced ECC Capabilities memory installed. (12 Hard Drive Model) 4
GB (2 x 2 GB) PC2-6400 DIMM memory, with Advanced ECC Capabilities memory installed.
(8 Hard Drive Model, 12 Hard Drive Model) Maximum Memory Up to
64 GB memory is available with the optional installation of PC2-5300 Registered
DIMM memory kits. Up to 32 GB memory is available with the optional installation
of PC2-6400 Registered DIMM memory kits. Memory should be installed in pairs
and matched for optimum performance.
NOTE:
Chart does not represent all possible memory configurations. NOTE: DIMM banks are active only when the corresponding processor
socket is populated.
Twelve 3.5" Hot Plug SAS/SATA
Drive Bays NOTE:
As shown here, the rear hard drive cage replaces the two full-length PCIe
slots.
1
Two 3.5" Hot Plug SAS/SATA
Drive Bays, (Optional)
Drive
Support
Removable
Media
Quantity Supported
Position Supported
Controller
DVD-ROM
Up to 1
9
Integrated
IDE (ATAPI) (optional) - 8 HDD or 12 HDD w/ optional rear DVD FIO kit
DVD/CD RW
Up to 1
9
Integrated
IDE (ATAPI) (optional) - 8 HDD or 12 HDD w/ optional rear DVD FIO kit
Hard Drives NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, firmware, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components.
SATA Hot Plug LFF
(3.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
750GB 3G SATA 7.2K
500GB 3G SATA 7.2K
250GB 3G SATA 7.2K
Up to 8
1-8
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P410 Controller
HP Smart Array P212 Controller
HP Smart Array E500/256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP SC11Xe Host Bus Adapter
SATA Hot Plug 3.5"
Midline (MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3G SATA
120GB 3G SATA 250GB 3G SATA 7.2K
Up to 8
1-8
HP Smart Array P410 Controller
HP Smart Array P212 Controller
HP SC11Xe Host Bus Adapter
SATA Hot Plug LFF
(3.5-inch) Entry (ETY) Drives
Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 8
1-8
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P410 Controller
HP Smart Array P212 Controller
HP Smart Array E500/256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP SC11Xe Host Bus Adapter
SATA Hot Plug LFF
(3.5-inch) Drives
Quantity
Supported
Position
Supported
Controller
750GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
Up to 8
1- 8
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P410 Controller
HP Smart Array P212 Controller
HP Smart Array E500/256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP SC44Ge Host Bus Adapter NOTE: When using the SC44Ge with
SATA Hard Drives, 1.5G SATA Hard Drives are required.
HP SC11Xe Host Bus Adapter
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K
450GB 6G SAS 15K
450GB 3G SAS 15K
300GB 6G SAS 15K
300GB 3G SAS 15K
146GB 3G SAS 15K
Up to 8
Up to 12
1- 8
1-12
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P410 Controller
HP Smart Array P212 Controller
HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
HP SC44Ge Host Bus Adapter
HP SC11Xe Host Bus Adapter
HP
StorageWorks USB Tape Drives, External DAT 40 USB DAT 72 USB
DAT 160 USB 1U USB Rack-Mount Kit
External
USB 2.0 Port
N/A
HP StorageWorks SAS Tape Drives, External
DAT 160 SAS LTO-2 Ultrium 448 SAS LTO-3 Ultrium 920 SAS LTO-4 Ultrium
1760 SAS LTO-4 Ultrium 1840 SAS 1U Rack-Mount Kit 3U Rack-Mount Kit
Click on the system of interest. Example: DL185 G5
Follow the instructions of the next screens.
Power Supply Output
(per power supply)
Rated
Steady-State Power
750 W (at
100 VAC), 750 W (at 200 VAC)
Maximum
Peak Power
750 W (at 100 VAC),
750W (at 200 VAC)
System Inlet Temperature
Operating
50° to 95°F
(10° to 35°C) at sea level with an altitude derating of 1.8°F per
every 1000 ft (1.0°C per every 305 m) above sea level to a maximum of 10,000
ft (3050 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr
(10°C/hr). The upper limit may be limited by the type and number of options
installed. System performance may be reduced if operating with a fan fault
or above 86°F (30°C).
Non-operating
-22°
to 140° F (-30° to 60° C). Maximum rate of change is 36° F/hr
(20° C/hr).
Relative Humidity (non-condensing)
Operating
10 to 90% relative
humidity (Rh), 82.4° F (28° C) maximum wet bulb temperature, non-condensing.
Non-operating
5
to 95% relative humidity (Rh), 101.7° F (38.7° C) maximum wet bulb temperature,
non-condensing.
Altitude
Operating
10,000 ft (3050 m).
This value may be limited by the type and number of options installed. Maximum
allowable altitude change rate is 1500 ft/min (457 m/min).
Non-operating
30,000
ft (9144 m). Maximum allowable altitude change rate is 1500 ft/min (457 m/min).
Acoustic Noise
Listed
are the declared A-Weighted sound power levels (LWAd) and declared average bystander
position A-Weighted sound pressure levels (LpAm) when the product is operating
in a 23°C ambient environment. Noise emissions were measured in accordance
with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
LWAd
6.7
B
LpAm
51
dBA
Operating
LWAd
6.7
B
LpAm
51
dBA
Emissions
Classification (EMC)
FCC Rating
Class
A
Normative Standards
CISPR
22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24;
EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE:
Product conformance to cited product specifications is based on sample (type)
testing, evaluation, or assessment. This product or family of products is eligible
to bear the appropriate compliance logos and statements.
Smart
Array E200 Controller
Disk
Drive and Enclosure Interface
3
G SAS (Serial Attached SCSI)
1.5
G SATA (Serial Advanced Technology Attachment)
SAS
Connectors
2 internal (SFF8484)
x4 wide port connectors
Cache
Memory Speed
DDR1-266 MHz
provides up to 4.2 GB/s maximum bandwidth.
Server
Interface
x8 2.5 G PCIe provides
2 GB/s maximum bandwidth.
SAS
Speed
x8 3 G SAS provides
2.4 GB/s maximum bandwidth.
Cache
Memory
40-bit
64MB cache or a 128MB battery backed cache: ECC protection, battery-backed, and
transportable
Logical
Volumes Supported
Up
to 32 logical volumes
Maximum
Volume Capacity
3TB (6 x 500 GB)
Host
Memory Addressing
64-bit,
supporting greater than 4GB server memory space
64-bit,
supporting greater than 4GB server memory space
RAID
Support
RAID
6 with ADG (Advanced Data Guarding) requires Battery Backed Write Cache Upgrade
RAID 5 (Distributed Data Guarding) RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Embedded NC7782 Dual Port
PCI-X 10/100/1000T Gigabit network adapter
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method
64-bit, 133MHz PCI(X)1.0
Controller
BCM5704c
Network Transfer
Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and
Full-Duplex)
2000 Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up
to 328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP (2 Pair); up
to 328 ft (100 m)
Environment-friendly Products and Approach
End-of-life Management and
Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
US Site
DL Quickspecs
Search:
408850-B21
© 2012 Canada PartsDirect
