The HP ProLiant DL120 G7 Server
is an entry-level rack-optimized server providing you with all the confidence
of an HP ProLiant server. The single processor, 1U server is ideal for single-application
IT infrastructure, web and edge-of-network applications. The HP ProLiant
DL120 provides two PCI-Express slots with optional upgrades, including HP
HBAs and Smart Array Controllers, which provide support for SAS hard disk
drives. The DL120 G7 supports HP iLO 3 Remote Management which provides
cost-effective remote management from anywhere, anytime. Plus, you get the
cost-effective solution of a single-processor platform with the performance
advantages of quad-core technology.

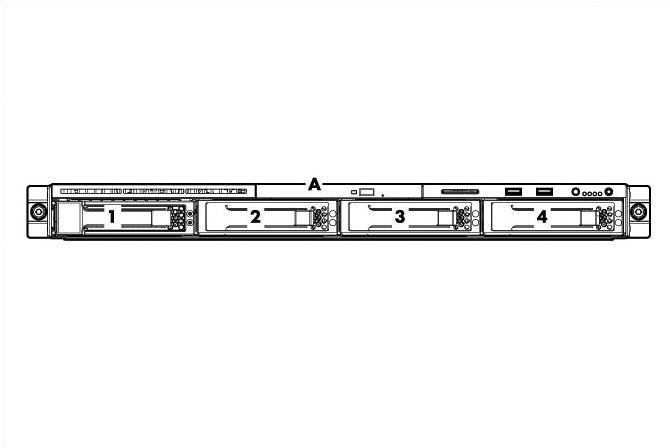

Front View:
Rear View:
1.
Cover
1.
Power cord connector
2.
Power Supply
2.
Video connector
3.
Optional Slim 9.5mm DVD ROM
3.
Serial connector
4.
System ID Tag
4.
NIC 1 connector / shared iLO3
management port
5.
Front USB connectors (2)
5.
NIC 2 connector
6.
Power Button, UID Button, and
Front LED Indicators
6.
iLO3 dedicated LAN port (optional)
7.
Support for up to four LFF Hot
Plug SATA/SAS or eight SFF Hot Plug SATA/SAS Hard Drives
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section.
Processor One of the following depending on Model
Quad-Core Processors
Intel® Xeon® processor
E3-1280 (3.5GHz, 95W, 8MB, 1333, HT, Turbo 1/2/3/4) NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® processor
E3-1270 (3.4GHz, 80W, 8MB, 1333, HT, Turbo 1/2/3/4) NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® processor
E3-1230 (3.2GHz, 80W, 8MB, 1333, HT, Turbo 1/2/3/4) NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® processor
E3-1220L (2.2GHz, 20W, 3MB, 1333, Turbo 0/0/0/10) NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Core™ processor
i3-2120 (3.3GHz, 65W, 3MB, 1333, HT) NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
NOTE: HT indicates
that the processor model supports Intel® Hyper-Threading Technology. NOTE: Turbo indicates the maximum potential frequency increment when
using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores are active. NOTE: DDR3 speed is the maximum memory speed of the processor. Actual
memory speed may depend on the quantity and type of DIMMs installed.
Cache Memory
Integrated 1x8MB Level3 Intel®
Smart Cache
Integrated 1x3MB Level3 Intel®
Smart Cache
Chipset
Intel® C200 Series Chipset
Memory Protection
ECC
Memory One of the following depending on Model
Type
DDR3 1333MHz Unbuffered (UDIMM)
DIMM Slots
Total 4 DIMM slots
Standard (Entry Model)
2GB (1x2GB) UDIMM
Standard (Base Models)
4GB (2x2GB) UDIMM
Standard (Performance Models)
4GB (2x2GB) UDIMM
Maximum Memory
Supports up to 16GB DDR3 1333
Unbuffered ECC DIMM.
Supports up to 4 UDIMMs
NOTE:
Depending on the memory configuration and processor model, the memory speed
may run at 1333MHz or 1066MHz. Please see the Online Memory Configuration
Tool at: www.hp.com/go/ddr3memory-configurator.
Network Controller
HP NC112i 1-Port Ethernet Server
Adapter
Expansion Slots
Technology
Bus
Width***
Connector Width
Bus Number*
Device No.**
Form
Factor
Notes
1
(Standard)
PCIe G2
X16
x16
0
1
Full length, full height slot
2
(Standard)
PCIe G2
X4
x8
0
6
Half height, low profile slot
* Default
bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number.
** Slots
are enumerated differently based on OS. MS OS's enumerate from lowest to
highest Device ID by bus (starting with the lowest bus)
*** Indicates
the number of physical electrical lanes running to a PCI-e connector.
Storage Controllers
Entry and Base Model
HP Smart Array B110i SATA RAID
Controller (RAID 0/1/1+0) NOTE: Transfer rate: 3Gb/s SATA NOTE: SATA Hot Plug available via Hot Plug Advance Pack for B110i NOTE: Hot Plug SAS and SATA controllers available via PCI card option. NOTE: Available upgrade: HP Smart Array Hot Plug Advance Pack for
B110i.
Performance Model
HP Smart Array P212/256MB Controller
(RAID 0/1/1+0/5/5+0) NOTE: Available upgrades: Battery
Kit upgrade (for BBWC), and Smart Array Advanced Pack (SAAP).
Internal Storage
Devices Drives
Optical Drive
Optional 9.5mm DVD-ROM,
or DVD-RW Drive
Hard Drives
Entry Model
(Cold Plug)
Up to 4 pluggable SATA/SAS 3.5"
drives supported.
1x250GB pluggable SATA 3.5" drive ships standard NOTE: SAS requires optional HBA or
SA card NOTE: SATA Hot Plug functionality available via Hot Plug Advance
Pack for B110i
Base Model
(Cold Plug)
Up to 4 pluggable SATA/SAS 3.5"
drives supported.
1x250GB pluggable SATA 3.5" drive ships standard NOTE: SAS requires optional HBA or
SA card. NOTE: SATA Hot Plug functionality available via Hot Plug Advance
Pack for B110i
Performance Model
(Hot Plug)
Up to 4 hot plug SATA/SAS 3.5"
drives supported. None ships standard
Maximum Internal
Storage
Hot Plug SAS
8.0TB
(4 x 2TB) 3.5" SAS
Hot Plug SATA
8.0TB
(4 x 2TB) 3.5" SATA
Interfaces
Serial
1
Graphics
1 (rear)
Network RJ-45
2
Optional iLO 3
remote RJ-45
management port
1 NOTE: This is shared NIC port for
iLO. If users do not purchase iLO dedicated NIC option card they can still
use this port as shared NIC Port
USB 2.0
7 (2 front, 1 internal, 4 rear) NOTE: Internal USB port (optional)
for flexible storage, security, or USB drive key deployment. NOTE: Please see the following URL for additional information regarding
USB support: http://h18004.www1.hp.com/products/servers/platforms/usb-support.html
Industry Standard
Compliance
ACPI 3.0a
PCI Express Rev 2.0
PXE Support
WOL Support
Microsoft® Logo certifications
USB 2.0
IPMI 2.0
DCMI 1.0
Serial ATA Gen ll
Server Power Cords
One 6' Highline (IEC-IEC) power
cord ships standard
NOTE: HP ProLiant
DL120 G7 server ship standard with a C13 to C14 2M Highline jumper cord.
If customers require a power cord, they can check the power cord matrix
for the appropriate cord. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.
NOTE: For more
information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available
for your server, including how to purchase from HP, please visit our OS
Support Site at: http://www.hp.com/go/supportos
and our driver download page http://www.hp.com/support/DL120G7
Graphics
Embedded Matrox G200
Form Factor
Rack (1U), (1.75 in/44.45 mm),
27.56" deep NOTE: Fixed mounting rails included
with all models.
HP Insight management software
HP Insight Foundation suite for ProLiant
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecycle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: www.hp.com/go/foundation.
The HP Insight Foundation suite for ProLiant keeps systems up-to-date,
and its products are available as free downloads as well as for purchase.
These tools and utilities provide management solutions that are designed
to simplify a server's installation, configuration, and maintenance throughout
the entire server life-cycle and provide customers with higher levels
of operational efficiency and highly reliable solutions. It provides a
complete server maintenance solution by combining
Smart Update Firmware DVD
Two SmartStart CDs (one supporting 32 bit operating systems and one
supporting 64 bit operating systems)
Management DVD that includes HP Systems Insight Manager (HP SIM).
SmartStart versions supported (minimum): SmartStart 8.40. On the web
downloads will be at Version 8.70. The media kit may still be shipping
with earlier versions. Info at: http://www.hp.com/servers/smartstart
NOTE: In an effort to support
reducing our environmental impact, the HP Insight Foundation Suite for
ProLiant media will be available as a selectable option for this server
at time of order of a Factory Integrated Model. This will allow customers
to order the number of media kits that best meet their needs and eliminate
receiving unnecessary duplicate media.
HP Integrated Lights-Out Standard (iLO 3)
HP Integrated Lights-Out Standard (iLO 3) simplifies server setup, health
monitoring, and lights-out remote administration of ProLiant ML, DL, and
BL servers. HP iLO functions without additional software and can be accessed
from any location via a web browser. HP iLO works hand-in-hand with HP
Systems Insight Manager, Insight Control suites, and Insight Dynamics
for ProLiant, helping customers unleash the value of the ProLiant platform
and deliver the highest possible quality of IT service. For more information,
visit: www.hp.com/go/iLO
Subscriber's Choice
Subscriber's Choice Driver and Support Alerts/Notifications
is a web-based email subscription service that provides software and driver
change notifications for ProLiant products. Sign up at: http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq, software and latest drivers
The latest software, drivers, and firmware fully optimized and tested
for your ProLiant server and options; downloaded from Software and Drivers
download pages website at: http://www.hp.com/go/support
and from www.hp.com/servers/easysetup.
Contains the following:
HP Insight Management Agents for Systems Insight Manager (SIM) Integration
HP Systems Management Homepage
Array Configuration Utility (ACU)
Array Diagnostics Utility (ADU)
HP Insight Diagnostics
Security
Power-on password
Keyboard password
USB Port control
Removable DVD-ROM Drive Assembly (optional)
Dedicated/Shared LO100 management NIC port
Administrator's password
iLO 3 (Integrated Lights-Out 3) has 12 customizable user accounts and SSL
encryption
iLO 3 can be disabled via a Global Setting
iLO Advanced supports directory services integration
Warranty
This product is covered by a global limited warranty and supported by
HP Services and a worldwide network of HP Authorized Channel Partners
resellers. Hardware diagnostic support and repair is available for three
years from date of purchase. Support for software and initial setup is
available for 90 days from date of purchase. Enhancements to warranty
services are available through HP Care Pack services or customized service
agreements. Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
Additional information regarding worldwide limited warranty and technical
support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
HP Insight Control, a product
option, delivers essential infrastructure management that can help save
time and money by making it easy to deploy, migrate, monitor, remote control,
and optimize your IT infrastructure through a single, simple management
console.
Two versions of Insight Control are available, to serve environments requiring
either a Linux-based or a Windows-based central management server: HP Insight
Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol
HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, please
visit: http://www.hp.com/services/insight.
Insight Control server deployment
HP Insight Control server deployment
is a deployment solution for HP ProLiant and Integrity servers hosted on
a Windows CMS. It automates the process of deploying and provisioning server
software, enabling companies to quickly and easily adapt to changing business
demands. Insight Control server deployment includes software optimizations
for HP servers, including the HP scripting toolkits, configuration jobs
for leading industry-standard operating systems, sample unattended files,
and HP server support packs that include software drivers, management agents,
and important documentation. Deploying servers can be accomplished either
through imaging or through scripting.
Insight Control server deployment is hosted on a Windows server and is intended
for heterogeneous environments deploying Windows, Linux, VMware ESX and
Microsoft Hyper-V systems.
Insight Control server deployment includes one year of 24 x 7 HP Software
Technical Support and Update Service ensuring rapid access to HP support
staff and proactive delivery of software updates. For more information about
this service, please visit: http://www.hp.com/services/insight.
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP,
rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eConfigure-Enterprise
Configurator now provides factory default racking for our HP hardware portfolio.
This approach is aligned with our strategic direction to meet the needs
and expectations of our valued customers. If you require "custom"
rack configuration, please contact HP's Customer Business Center or an Authorized
Partner for assistance. http://www.hp.com/products/configurator.
HP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires
a service partner who understands your increasingly complex business technology
environment. That's why it makes sense to team up with the people who
know HP infrastructure hardware and software best - the experienced professionals
at HP Services.
What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test,
integrate, support, and manage IT and infrastructure solutions. This way,
HP proposes services solutions that include more than just uplift of base
warranty. You can get the support you need by choosing from one of a number
of service packaged solutions we have designed to address wider set of
customer support needs.
HP Technology Services meets business challenges with services offered
in three packages:
Optimized Care Package, Standard Care Package, and Basic Care Package
Available for each product group. Such packaged solutions enable customers
to optimize technology operations, minimize risk and drive better business
outcomes with easy-to-buy, easy-to-use scalable support packages for servers,
storage, networking and software.
Optimized Care Package
Supports maintaining servers at optimum performance availability
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
3-Year HP 6 hour Hardware Support
Onsite Call-to-Repair Service
Provides an IT manager with a team of support specialists who will quickly
begin troubleshooting the system to help return the hardware to operating
condition within 6 hours of the initial service request to the HP Global
Solution Center. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN
Additional Services
Software OS (Microsoft, Linux (SUSE/Red Hat) Installation and Start Up and
Software Support) plus Microsoft or Linux education courses +30 Proactive
Select Credits, Factory Express.
Standard Care Package
Package that maintains high level of server availability
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
3-Year HP 24x7 4 hour Response,
Hardware Support Onsite Service
Provides you with rapid remote support and if required an HP authorized
representative who will arrive on site any time and day of the year to begin
hardware maintenance service within 4 hours of the service request being
logged. http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE
Additional Services
Software OS (Microsoft, Linux (SUSE/Red Hat) Installation and Start Up and
Software Support); +10 Proactive Select Credits, Factory Express.
Basic Care Package
Delivers minimum recommended support service level
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
3-Year HP 13x5 4 hour Response,
Hardware Support Onsite Service
Delivers increased equipment availability and productivity with rapid remote
support and onsite response for your HP server and storage hardware. http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE
Additional Services
Software OS (Microsoft, Linux (SUSE/Red Hat) Installation and Start Up and
Software Support), Factory Express.
Insight Remote Support
The packages include HP Insight Remote Support that uses proven technology
to deliver secure, reliable 24x7 remote monitoring, diagnoses, and problem
resolution. It is available at no additional cost to all warranty, HP
Care Pack Service, and service agreement customers.
For more information
To learn more on HP ProLiant servers and HP BladeSystem servers, please
contact your HP sales representative or HP Authorized Channel Partner.
Or visit: http://www.hp.com/services/proliant
NOTE: For the Standard Features shipped
in the "Factory Integrated Models", please see the "Configuration
Information - Factory Integrated Models" section.
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure
a Factory Integrated Model. To ensure only valid configurations are ordered,
HP recommends the use of an HP approved configurator. Contact your local
sales representative for information on CTO product offerings and requirements. NOTE: HP does not allow factory integration of options into standard
models listed above. Configure-to-order servers must start with a CTO
Chassis. NOTE: FIO indicates that this option only available as a Factory
Installable Option.
Step
1: Base Configuration (choose one of the following configurable models)
Models
HP ProLiant DL120
G7 Pluggable 4LFF Configure-to-order Server NOTE: Supports up to four large
form factor (3.5-inch) hard drives.
NOTE:
All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool: www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LP include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
NOTE:
Some options may not be integrated at the factory. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator.
Contact your local sales representative for additional information.
HP Unique Options
HP Internal USB Cable G6 Kit NOTE: This option required to connect
a USB device internally.
NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LP include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
HP Optical Drives
HP 9.5mm SATA DVD-ROM Optical
Drive
481045-B21
HP 9.5mm SATA DVD RW Optical Drive
481047-B21
HP Hard Drives
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and
the server backplane) should operate at the same data transfer rate or the
system bandwidth will be negotiated down to an acceptable level for all
components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise
(ENT) Drives
HP 600GB 6G SAS 10K
rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP Insight Control, Single-Server License
including 1 year of 24x7 Technical Support and Updates
452148-B22
HP Insight Control suite, No Media, Electronic
License including 1 year of 24x7 Technical Support and Updates
T9074BAE
HP Insight Control, Electronic License for
bundling with ProLiant ML/DL server, including 1 year of 24x7 Technical
Support and Updates
TC278AAE
HP Insight Control, Tracking License for
bundling with ProLiant ML/DL server, including 1 year of 24x7 Technical
Support and Updates
TC275A
HP Insight Software Media Kit NOTE: Insight Software DVD media
without licenses. Contains HP Systems Insight Manager, HP Insight Control,
HP Insight Dynamics, HP Insight Control for Microsoft System Center, and
Virtual Connect Enterprise Manager software. Uses an integrated installer
to perform quick and accurate software installation and updates.
436222-B21
NOTE: Electronic and Flexible-Quantity
licenses can be used to purchase multiple licenses with a single activation
key. NOTE: Customer will receive a license entitlement certificate. The
license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service. NOTE: Licenses ship without media. The HP Insight Control Media Kit
can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates. NOTE: For additional license options please see the Insight Control
QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html
HP Insight Control for Linux
HP Insight Control for Linux, 1-server license,
including one year of 24x7 Technical Support and Updates, Electronic
TC213AAE
HP Insight Control for Linux, No Media, 1-Server
license, including one year of 24x7 Technical Support and Updates
TC209A
HP Insight Control for Linux, Media pack
(DVD) - No licenses included NOTE: Media pack DVD contains the
ISO image for HP Insight Control for Linux, HP Systems Insight Manager,
HP Insight Control power management, HP Insight Control virtual machine
management, and an integrated installer. Servers must be acquired separately.
TC208A
NOTE: Licenses ship without
media. The Media Kit for Insight Control for Linux can be ordered separately,
or can be downloaded at: http://www.hp.com/go/ic-linux
(click on Download button). NOTE: Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single set of activation keys. NOTE: For additional License Kits, including electronic licensing
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html
HP Integrated Lights-Out (iLO) Advanced
HP Integrated Lights-Out Advanced, No Media,
1-Server License, including 1 year of 24x7 Technical Support and Updates NOTE: This license allows 1 server
to be deployed and managed via HP iLO Advanced. Customer will receive a
printed license entitlement certificate via physical shipment. The license
entitlement certificate must be redeemed online or via fax in order to obtain
the license activation key(s). Includes one year of 24 x 7 HP Software Technical
Support Service.
HP Insight Control server deployment, Electronic
License including 1 year of 24x7 Technical Support and Updates
T9082AAE
HP Insight Control server deployment , No
Media, 1-Server License, including 1 year of 24x7 Technical Support and
Updates
452151-B21
NOTE: Electronic and Flexible-Quantity
licenses can be used to purchase multiple licenses with a single activation
key. NOTE: Customer will receive a license entitlement certificate. The
license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service. NOTE: Licenses ship without media. The Insight Software Media Kit
can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightcontrol
(click on Download button). NOTE: For additional license options please see the Insight Control
QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html
HP Security-TPM
HP Trusted Platform Module Option
Kit
488069-B21
NOTE: The TPM
(Trusted Platform Module) is a microcontroller chip that can securely store
artifacts used to authenticate the server platform. These artifacts can
include passwords, certificates and encryption keys. Windows® BitLocker™
Drive Encryption (BitLocker) is a data protection feature available in Windows
Server® 2008. BitLocker leverages the enhanced security capabilities
of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker
to help protect user data and to ensure that a server running Windows Server
2008 has not been tampered with while the system was offline. NOTE: For more information about TPM, including a white paper, go
to: www.hp.com/go/TPM NOTE: ProLiant OS pre-installed units will come with the partition
required for TPM deployment. NOTE: The TPM key is unique to every TPM deployed server and must
be retained. Misplacing or losing the key could result in data loss.
HP Storage Controllers
SAS Controllers
Smart Array P212 Controller
HP Smart Array P212/ZM 1-ports
Int/1-ports Ext PCIe x8 SAS Controller
HP 650 mAh P-Series Battery NOTE: To enable BBWC on the 256MB
cache. NOTE: Supported on HP Smart Array P212 Controller, and HP Smart Array
P411only.
462969-B21
HP Smart Array Advanced Pack including
1yr 24x7 Technical Support and Updates Single Server License
516471-B21
HP Hot Plug Advance Pack for B110i
SATA RAID, 1-server, 1Yr 24X7 Support NOTE: This part number can be used
to purchase a single license or to order multiple licenses with a single
activation key. Customers will receive a license entitlement certificate
via e-mail. The license entitlement certificate must be redeemed online
or via fax in order to obtain the license activation key(s). Include one
year of 24x7 HP Software Technical Support Services.
TC421A
SCSI HBA
HP SC11Xe Ultra320 Single Channel/
PCIe x4 SCSI Host Bus Adapter
NOTE: For the complete range of StorageWorks tape drives, autoloaders,
libraries and media see: http://www.hp.com/go/tape.
For hardware and software compatibility of HP StorageWorks tape backup
products see: http://www.hp.com/go/connect. NOTE: Connection using the HP P212 SAS Smart Array Controller ( 462828-B21)
recommended.
HP StorageWorks DAT 160 SAS Internal
Tape Drive NOTE: For installation into 1U SAS
Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral
bay available for installation into the server.
Q1587A
HP StorageWorks DAT 320 USB in
1U Rack-mount Kit
AP835B
HP StorageWorks DAT 320 SAS Internal
Tape Drive NOTE: For installation into 1U SAS
Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral
bay available for installation into the server.
AJ830A
HP StorageWorks Ultrium 448 SAS
Internal Drive NOTE: For installation into 1U SAS
Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral
bay available for installation into the server.
DW085A
HP StorageWorks Ultrium 920 SAS
Internal Tape Drive NOTE: For installation into 1U SAS
Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral
bay available for installation into the server.
EH847A
HP StorageWorks 1/8 G2 Ultrium
920 SAS Autoloader NOTE: Requires HP 1U Tape Autoloader
Rack-Mount Kit (AH166A) for rack installation.
AH558A
HP StorageWorks MSL2024 Ultrium
920 SAS Tape Library
HP StorageWorks D2D Backup Systems
with Backup Data Deduplication
HP StorageWorks D2D2502i Backup
System NOTE: 1.5TB of usable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
EJ001B
HP StorageWorks D2D2504i Backup
System NOTE: 3.0TB of usable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
USB Removable Media RDX Disk Backup Systems
EJ002B
USB Removable Media RDX Disk Backup
Systems
HP StorageWorks RDX 1TB Internal
Removable Disk Backup System NOTE: For installation into 1U USB
Rack-Mount Kit ( A8007A). No peripheral bay available for drive installation
into the server. 1 TB of disk capacity per data cartridge.
BV847A
HP StorageWorks RDX320 Internal
Removable Disk Backup System NOTE: For installation into 1U USB
Rack-Mount Kit ( A8007A). No peripheral bay available for drive installation
into the server. 320GB of disk capacity per data cartridge.
AJ767A
HP StorageWorks RDX500 Internal
Removable Disk Backup System NOTE: For installation into 1U USB
Rack-Mount Kit ( A8007A). No peripheral bay available for drive installation
into the server. 500GB of disk capacity per data cartridge.
NOTE: Please see
the UPS and PDU cable matrix's on the HP Power Protection and Management
page. Under Power Cords, click on the "HP Power Cord Matrix" link. That
link will list cable descriptions, requirements, and specifications for
UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
HP Power Distribution Units
HP Monitored Power Distribution
Unit: Full Rack Version
HP 8.6 kVA S1324 Monitored PDU-
single input, 3Ø, 24A
AF504A
HP 8.3 S1140 Monitored PDU- single
input, 1Ø, 40A
AF506A
HP Monitored Power Distribution
Unit: Half Rack Version
HP 4.9 kVA S124 Monitored PDU-
single input, 1Ø, 24A
AF914A
Modular Power Distribution Units
1U/0U (Up to 32 outlets) NOTE: 1U/0U mounting brackets shipped
with the unit (optimized for 10000 and 9000 series racks).
HP Modular Power Distribution
Units (mPDU), High Volt Model, 24A (200-240 VAC)
HP Modular Power Distribution
Units (mPDU), High Voltage 8.3 kVA Modular PDU, 40A
252663-D73
HP Modular Power Distribution
Units (mPDU), High Volt Model, 16A (200-240 VAC) NOTE: This PDU has a detachable input
power cord and allows for adaptability to country specific power requirements.
NOTE: Please see
the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs
for additional options including shorter jumper cables and country specific
power cords: http://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.html NOTE: For additional information on HP Power Distribution Units including
accessories please go to: www.hp.com/go/pdu. NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection
and Management page. Under Power Cords, click on the "HP Power Cord
Matrix" link. That link will list cable descriptions, requirements,
and specifications for UPS and PDU units. Please see the following link:
www.hp.com/products/powercords.
NOTE: The increasing power of new high-performance processor technology
requires increased cooling efficiency for rack-mounted servers. The 10000
G2 Series Racks provide enhanced airflow for maximum cooling, allowing
these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional
requirements to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack
includes closing front and rear doors, you must allow 830 square inches
(5,350 sq cm) of hole evenly distributed from top to bottom to permit
adequate airflow (equivalent to the required 64 percent open area for
ventilation).
Side: The clearance between the installed rack component and the side
panels of the rack must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty
front panel U-spaces in the rack. This arrangement ensures proper airflow.
Using a rack without blanking panels results in improper cooling that
can lead to thermal damage.
NOTE: HP ProLiant
DL rack models have fixed rails which provide support for racks with round
mounting holes and tool-free support for racks with square mounting holes
(including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment
range of 26" - 36". NOTE: Support for all 2 and 4 post Telco racks and threaded hole
racks requires an additional option kit from Rack Solutions. The Rack Solutions
brackets can be purchased at: www.hp.com/go/rackandpower.
NOTE: Cat5e cables
are required to connect Serial Adapters to Serial Console Servers. Additional
Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
HP Care
Pack Services
Hardware Services On-site Service
4-Hour On-site Service, 5-Day
x 13-Hour Coverage, 3 Years, Electronic
UJ252E
4-Hour On-site Service, 7-Day
x 24-Hour Coverage, 3 Years, Electronic
UJ253E
Hardware Services Next Business
Day On-Site Service
9-Hour x 5-Day Coverage, 3 Years, Electronic
UJ251E
Installation Services
Hardware Services 6-Hour Call
to Repair On-Site Service
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
Standard Memory
SATA Models:
4GB of PC3-10600E DDR3 UDIMM running at 1333MHz with ECC capabilities memory
installed.
SAS Models
4GB of PC3-10600R UDIMM running at 1333MHz
Standard Memory Plus
Optional Memory
Up to 16 GB memory
is available with the optional installation of 4 x 4GB PC3-10600E UDIMM
ECC DDR3 SDRAM DIMM Memory kits, operating at 1333MHz when fully populated
at 2 DIMMs per Channel in 4 slots.
NOTE:
The below chart does not represent all possible memory configurations. NOTE: For best performance, it is recommended that customer installs
memory in identical pairs (Slots 1 and 3 are interleaving pair. Slots 2
and 4 are interleaving pair).
Some DIMM installation guidelines are summarized below:
The HP ProLiant DL120 G7 Server has four memory slots
There are two channels per server with two DIMM slot per channel
Memory channel A consists of the two (2) DIMMs that are closest to
the processor
Memory channel B consists of the two (2) DIMMs that are furthest from
the processor
Different types of processors have different types of memory support.
Support for single/dual-rank 1066/1333 MT/s ECC UDIMM (unbuffered
DIMMS)
The server supports up to 16 GB (4 x 4-GB) for Unbuffered DIMMs
No support for LV-DIMMs; RDIMMs; Non-ECC UDIMMs
Do not install DIMMs if the processor is not installed
Populate DIMMs from heaviest load (double-rank) to lightest load (single-rank)
Non-ECC DIMMs are not supported
Always use HP qualified DIMM
Farthest DIMM (either CHA or CHB) should always be populated first"
NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LP include Low Power DIMMs. For more information
on ProLiant energy efficient features, see: www.hp.com/go/proliant-energy-efficient
Optical Drive Bay: Optional DVD-ROM,
or DVD-RW drive
1-8
Eight SFF Hot-Plug SATA or SAS
drive bays
A
Optical Drive Bay: Optional DVD-ROM,
or DVD-RW drive
Drive Support
Quantity
Supported
Position
Supported
Controller
Removable Media
9.5mm IDE DVD-ROM or DVD-RW Drive
Up to 1
A
HP Smart Array B110i SATA RAID
Controller (RAID 0/1/1+0)
NOTE:
The components of a storage subsystem (e.g. the drive, the HBA/controller,
firmware, and the server backplane) should operate at the same data transfer
rate or the system bandwidth will be negotiated down to an acceptable level
for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 10K DP
450GB 6G SAS 10K DP
300GB 6G SAS 10K DP
146GB 6G SAS 10K DP
146GB 6G SAS 15K DP
72GB 6G SAS 15K DP
Up to 8
1-8
HP Smart Array P410 Controller
SAS Hot Plug LFF (3.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
300GB 6G SAS 15K DP
Up to 4
1-4
HP Smart Array P212 Controller
HP Smart Array P410 Controller
SAS Hot Plug LFF (3.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 6G SAS 7.2K
1TB 6G SAS 7.2K
Up to 4
1-4
HP Smart Array P212 Controller
HP Smart Array P410 Controller
SAS Hot Plug SFF (2.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 6G SAS 7.2K
Up to 8
1-8
HP Smart Array P410 Controller
SATA Hot Plug SFF (2.5-inch) Midline
(MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 8
1-8
HP Smart Array P410 Controller
SATA Hot Plug LFF (3.5-inch) Midline
(MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
Up to 4
1-4
HP Smart Array B110i SATA RAID
Controller (RAID 0/1/1+0) NOTE: Smart Array Hot Plug Advanced
Pack for B110i needs to be purchased to enable Hot Plug
HP Smart Array P212 Controller
HP Smart Array P410 Controller
SATA Hot Plug LFF (3.5-inch) Entry
(ETY) Drives
Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 4
1-4
HP Smart Array B110i SATA RAID
Controller (RAID 0/1/1+0) NOTE: Smart Array Hot Plug Advanced
Pack for B110i needs to be purchased to enable Hot Plug
HP Smart Array P212 Controller
HP Smart Array P410 Controller
Maximum Storage Capacity - (SAS drives)
Internal
8.0TB (4 x 2TB SAS)
External
16.0TB (8 x 2TB SAS)
Total
24.0TB
Maximum Storage Capacity - (SATA Drives)
Internal
8.0TB (4 x 2TB SATA)
External
16.0TB (8 x 2TB SATA)
Total
24.0TB
Tape and Disk Backup
NOTE:
For the complete range of StorageWorks tape drives, autoloaders, libraries
and media, including the internal fitting models, see: http://www.hp.com/go/tape.
For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d.
For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx.
For hardware and software compatibility of HP StorageWorks disk and tape
backup products see: http://www.hp.com/go/connect.
Position
Recommended Controller
Part Number
HP StorageWorks SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Ultra320 Single Channel/
PCIe x4 SCSI Host Bus Adapter
HP StorageWorks Fibre Channel
Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity
matrix at: http://www.hp.com/go/ebs
for connectivity information and the supported Fibre Channel HBAs shown
in this QuickSpecs.
HP StorageWorks USB RDX Removable
Disk Backup System
RDX160
RDX320
RDX500
RDX750
External
USB 2.0 port
N/A
HP StorageWorks D2D Backup Systems,
iSCSI
D2D2500i
D2D4000i
External
Embedded Network Controller. If
the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host
Bus Adapter is recommended.
HP StorageWorks D2D Backup Systems,
Fibre Channel
D2D4000fc
- Click on the system of interest. Example: DL120 G7
- Follow the instructions of the next screens.
Power Supply Output
(per power supply)
Rated Steady-State Power
400 W (at 100 VAC),
400 W (at 200 VAC)
Maximum Peak Power
430 W (at 100 VAC),
430 W (at 200 VAC)
System Inlet Temperature
Operating
10° to 35°C (50° to
95°F) at sea level with an altitude derating of 1.0°C per every
305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050
m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the type and number of
options installed.
System performance may be reduced if operating with a fan fault or above
30°C (86°F).
Non-operating
-30° to 65°C (-22°
to 149°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10 to 90% relative humidity (Rh),
28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating
5 to 95% relative humidity (Rh),
38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude
Operating
3050 m (10,000 ft). This value
may be limited by the type and number of options installed. Maximum allowable
altitude change rate is 457 m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared
A-Weighted sound power levels (LWAd) and declared average bystander position
A-Weighted sound pressure levels (LpAm) when the product is operating in
a 23°C ambient environment. Noise emissions were measured in accordance
with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
LWAd
6.30 B
LpAm
44.1 dBA
Operating
LWAd
6.34 B
LpAm
44.4 dBA
Emissions Classification
(EMC)
FCC Rating
Class A
Normative Standards
CISPR 22; EN55022; EN55024; FCC
CFR 47, Pt 15; ICES-003; CNS13438; GB9254; EN 61000-3-2; EN 61000-3-3; EN
60950-1; IEC 60950-1
NOTE:
Product conformance to cited product specifications is based on sample (type)
testing, evaluation, or assessment. This product or family of products is
eligible to bear the appropriate compliance logos and statements.
Integrated Lights-Out
Standard (iLO 3)
integrated on system board
Architecture
PCI Express based health and remote
management ASIC
Processor
PCI Express RISC processor core
running at 250MHz
Upgradeability
Option firmware upgradeable via
Flash ROM
Video Support
1600 x 1200 DVR max resolution
Interfaces
One Ethernet Sideband connection
(10/100/1000 Mb/s)
One Ethernet network connection (10/100Mb/s)
Memory
128-MB SDRAM with ECC
Operating System
Support
Microsoft Windows 2008 R2
Microsoft Windows 2008 (32 bit and 64 bit)
Microsoft Windows Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003 and Windows Server 2003 R2, and Windows Server
2003 for Embedded Systems Standard Edition, and Enterprise Edition
Red Hat Linux 5.5 (32 bit and 64 bit)
Red Hat Linux 6.0 (32 bit and 64 bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 4.1
Microsoft Windows 7
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Client System Support
Red Hat Enterprise Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10
Client Browser Support
Microsoft Internet Explorer 8
Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.6 (on supported Windows and Linux systems)
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)
Command Line Support
Secure Shell and serial port access
Security
Secure Socket Layer
Secure Shell version 2 (Password and certificate)
Advanced Encryption Standard (AES) and Triple Data Encryption
AES encryption of video
RC4 encryption of video
Directory Support Services
Standard (3DES) on browser, CLP
and XML scripting interface
Active Directory v1.0 (Windows 2003)
Supports multiple logical volumes
Setup through ROM based Array Configuration Utility
Installation scripting support NOTE: This controller does not support
Hot Plug functions or LED functions.
RAID OS Support
Microsoft Windows Server 2003 NOTE: In order to implement integrated
SATA RAID with Smart Start 7.90 on Windows 2000/2003, the use of a floppy
drive is necessary.
Linux (Red Hat, SuSE, UnitedLinux)
HP NC112i 1-port
Ethernet Server Adapter
Network Interface
10Base-T/
100Base-TX/
1000Base-TX
Ports
Single Port
802.3, 802.3u, 802.3x,
802.3ab, 802.3ad, 802.1p, 802.1Q
PCIe Rev. 2.0 (2.5 GHz) x1
FCC (U.S. only) Class B
DOC (Canada) Class B
CE EN 55024, EN55022 Class B
VCCI Class II
UL 1950
CSA 950
EN 60950
CE
ACPI 1.0
MicroSoft WHQL (Windows Hardware Quality Labs)
Data Transfer Method
Singlelane (x1)
Controller
Intel 82574L
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and Full-Duplex)
2000Mb/s
Connector
RJ-45 connector
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to
328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100
m)
HP 250GB 3G SATA
7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
571230-B21
Capacity
250,059MB
Height
1.04 in (26.4 mm)
Width
4.36 in (110.7 mm)
Depth
7.25 in (184.2 mm)
Interface
Serial ATA
Transfer Rate (Maximum)
3Gb/s
Native Command Queuing
Supported
Seek Time (typical
reads, including settling)
Single Track
2.0 ms
Average
<11 ms
Full-Stroke
21.0 ms
Rotational Speed
7,200 rpm
Physical Configuration
Bytes/Sector
512
Logical Blocks
488,397,168
Operating Temperature (system
inlet air temperature)
50° to 95° F
(10° to 35° C)
Environment-friendly Products
and Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment
information for each product type for use by treatment facilities. This
information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
US Site
DL Quickspecs
Search:
641916-B21
© 2012 Canada PartsDirect
