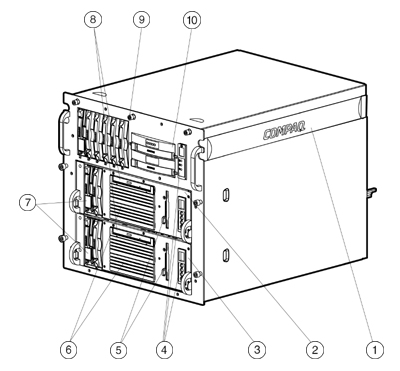

Support for up to two 1²
Wide Ultra2/Ultra3 SCSI hot plug drives (per server)
Support for one full height or two half height removable
media devices
Rack or Tower form factor – 10U
Removable servers, hot plug disks, power supplies and RAID
controllers for easy serviceability and toolless access to major components
Integrated Remote Console (IRC)
Automatic Server Recovery-2 (ASR-2 )
Hot Plug Redundant Power Supply (48 volt DC) (optional)
Pre-installed, low-profile High SpeedIDE CD-ROM
drive
Protected by Compaq Services, including a three-year,
on-site limited warranty and extended Pre-Failure Warranty which covers processors, memory
and disk drives on the server — Certain restrictions and exclusions apply. Consult
the Compaq Customer Support Center at 1-800-345-1518 for details.
In Canada, consult the Product Information Center at
1-800-567-1616 for details.
Compaq ProLiant™ CL1850 Available in multiple configurations.
Processor (per
server)
Intel Pentium III
processors 550 MHz
Cache Memory (per
server)
512-KB level 2
writeback cache per processor
Upgradability (per
server)
Upgradeable to dual
processing
Memory (per
server)
Standard
128 MB (100MHz Registered ECC
SDRAM memory)
Maximum
1 GB
Network Controller
(per server)
Compaq 10/100 TX
(embedded) UTP Controller with full-duplex Ethernet support for heartbeat connection
Compaq NC3123 Fast Ethernet NIC PCI 10/100 Wake on LAN occupying a PCI slot for LAN
connectivity
Expansion Slots (per
server)
I/O (Total)
4, 2 available
PCI
3, 1 available
Shared PCI /ISA
1
Storage Adapters (per
server)
64-Bit Dual Channel
Wide Ultra2 Adapter occupying a PCI slot (interface to shared storage system)
Integrated Dual
Channel Wide-Ultra SCSI-3 Adapter (utilized for server boot)
Storage
Diskette Drive
1.44 MB (per server)
CD-ROM
High Speed IDE CD-ROM Drive (per
server)
Hard Drives
None
Maximum Shared Internal Storage
218.4 GB (6 x 36.4-GB 1² Ultra3 drives)
Maximum Non-Shared Internal
Storage
145.6 GB (internal drive cage
with optional 2 x 1² Ultra2/Ultra3 Drive cage, per server)
Shared Storage (total
for cluster server system)
Shared Storage RAID
CR3500 controller one ship standard. Optionally up to two controllers in the shared
storage.
9.1-GB, 18.2-GB, or 36.4-GB Pluggable Wide Ultra2 SCSI 10,000 rpm 1² drives. None ship standard.
Up to six drives in the cluster server cabinet.
Interfaces (per
server)
Parallel
1
Serial
2
Pointing Device (mouse)
1
Graphics
1
Hot Plug Keyboard
1
External Wide-Ultra SCSI-3
1
Network RJ-45
1
Graphics (per
server)
Integrated 1024 x
768, 256 color on PCI local bus, 1-MB video memory
Form Factor (total
cluster)
Tower or Rack (10U),
(17.65-inch)
Compaq Software
Compaq Insight
Manager™
The comprehensive
system management tool that monitors the operation of Compaq servers, workstations and
clients
Compaq SmartStart™
The server
configuration and software integration tool from Compaq
Array Configuration
Utility (ACU) with Smart Array Controllers
Same easy to use yet
powerful Graphical User Interface (GUI) configuration utility and easy to navigate wizards
for all Smart Array Controllers
CR3500 Configuration
Utility
An easy to use yet
powerful GUI configuration utility for the CL1850 shared storage RAID controller(s).
Intelligent
Manageability
Automatic Server
Recovery-2 (ASR-2)
Integrated Remote Console (IRC)
Hardware Remote Console
Full Remote Server Reboot Capability
Reset and Failure Sequence Replay
Host Hardware Independent
Operating System Independent
Communication is out-of-band
Integrated Management Log
Server Health Logging
Revision History Table
Automatic Revision Tracking
Drive Parameter Tracking (with Smart Array Controllers)
Dynamic Sector Repairing (with Smart Array Controllers)
Off-Line Backup Processor
Pre-Failure Warranty(covers processors, hard drives on the server and memory)
Security
Power-on password
Hot plug keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Disk configuration lock
Power Supply
225 Watt, AC,
CE Mark Compliant, Auto-sensing
(Note: Total quantity of 4 ships standard:
Two Power Supplies in the Shared External Storage, and one in each
server node)
OS Support
Microsoft
Windows NT Server
Microsoft Windows 2000 Advanced Server
Novell NetWare Note: For a more complete and up-to-date
listing of supported OS’s and versions, please visit our OS Support Matrix at: ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf.
Note: For an up-to-date listing of the latest drivers available for the Compaq
ProLiant CL1850, please see: http://www.compaq.com/support/files/server/us/index.html Please note these web sites
are available in English only.
Service
and Support
Compaq Services
provides a wide range of service offerings, including a three-year, limited warranty fully
supported by a worldwide network of resellers and service providers, lifetime toll-free 7
x 24 hardware technical phone support, and Pre-Failure Warranty coverage of hard drives on
the server, memory and processors. Disaster recovery services are available through
partnership with Comdisco.
Note:
Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at
1-800-345-1518 for details.
In Canada, consult the Product Information Center at 1-800-567-1616 for details.
Models
6/550 Model 1 Tower
124707-001
Processor(s)
Intel Pentium III
processors 550 MHz
Network Controller
10/100 TX (embedded)
UTP Controller and NC3123 Fast Ethernet NIC PCI 10/100 Wake on LAN
64-Bit/66MHz Dual Channel
Wide Ultra3 SCSI Adapter
(The 64-Bit/66MHz Dual Channel Wide Ultra3 SCSI
Adapter ( 129803-B21) will default to Wide Ultra2, Wide-Ultra SCSI-3, Fast-Wide SCSI-2 or
Fast SCSI-2 when not used with the Wide Ultra3 hard drives.)
64-Bit/66MHz Single Channel
Wide Ultra3 SCSI Adapter
(The 64-Bit/66MHz Single Channel Wide Ultra3 SCSI
Adapter ( 154457-B21) will default to Wide Ultra2, Wide-Ultra SCSI-3, Fast-Wide SCSI-2 or
Fast SCSI-2 when not used with the Wide Ultra3 hard drives.)
Compaq NC3133 Fast Ethernet
Module 100 FX Upgrade Module for NC3134 and NC3131
338456-B25
Compaq NC6134 Gigabit NIC 64 PCI
1000 SX
174818-B21
Compaq NC4621 Token Ring NIC PCI
4/16 WOL
379956-B21
IBM 16/4 Token Ring
PCI Special
133749-B21
Internal Tape Drives
Note: In order to install certain tape drives internally, you may need
to remove the rails that come standard on the drives and then re-insert the screws in the
mounting holes.
Note: Please see
the Compaq 20/40-GB DAT Drive, Compaq 12/24-GB DAT Drive, Compaq 4/8-GB DAT Drive, Compaq
4/8-GB SLR Drive, Compaq 40/80-GB DLT Drive, Compaq 35/70-GB DLT Drive, Compaq 20/40-GB
DLT Drive, Compaq AIT 50-GB Tape Drive, or the Compaq AIT 35-GB Tape Drive, for an
up-to-date listing of the latest O/S Support details, please see the following: http://www.compaq.com/products/quickspecs/North_America/
10233_na.html Please note this web
site is available in English only.
Power Supply
Compaq Hot Plug
Redundant Power Supply (48 volt DC) (The ProLiant CL1850 comes standard with a 110
volt AC power supply. Each 48 volt DC option kit (328065-B21) contains one power supply.
Therefore, to convert to DC power supplies, four option kits must be purchased.)
Note:
Monitors larger than 17² may be too heavy for use in rack systems.
CRT
Code Key
Dash #
Description
-001
NA Kit with US Power Cord
-002
Carbon model with US Power Cord
-003
Touch Screen model with US Power
Cord
-004
NAFTA model with US Power Cord
(Made in Mexico)
-005
NA Kit with Powered Speakers
-006
GSA model with US Power Cord
-007
NH MPR model with US power cord
(Made in Mexico)
-B24
TCO model without power cord
(Digital Classic)
External
Tape Drives
External 20/40-GB DAT DDS-4 Tape
Drive
157770-001
External 40/80-GB DLT Drive
146197-B21
External 35/70-GB DLT Drive
242521-B21
External 20/40-GB DLT Drive
(Opal)
340744-B22
External AIT 50-GB Tape Drive
157767-001
External AIT 35-GB Tape Drive
388507-001
20/40-GB DAT 8 Cassette
Autoloader - External
166505-001
4-GB DDS-2 DAT Cassette
137611-001
DDS-4 Media (10 pack)
152842-001
20/40-GB DAT 8
Cassette Magazine w/Media
171532-B21
12-GB DDS-3 DAT Cassette (10
pack)
295515-B21
DAT Cleaning Cassette
242781-001
DLT IV Data Cartridges (7 pack)
295192-B21
DLT Cleaning Cartridge
199704-001
AIT 50-GB Data Cassette (5 pack)
152841-001
AIT 35-GB Data Cassette (5 pack)
402371-B21
AIT Cleaning Cassette
402374-B21
Note: Please see the Compaq 20/40-GB DAT Drive,
Compaq 40/80-GB DLT Drive, Compaq 35/70-GB DLT Drive, Compaq 20/40-GB DLT Drive, Compaq
AIT 50-GB Tape Drive, Compaq AIT 35-GB Tape Drive, or the Compaq 20/40-GB DAT DDS-4 8
Cassette Autoloader for an up-to-date listing of the latest O/S Support details, please
see the following: http://www.compaq.com/products/quickspecs/North_America/
10233_na.html Please note this web
site is available in English only.
Shared
External Storage
Compaq StorageWorks Enclosure
Model 4214T (tower)
124875-001
Compaq StorageWorks Enclosure
Model 4214R (rack-mountable)
103381-001
Compaq StorageWorks Enclosure
Model 4254R (rack-mountable)
138151-001
Compaq StorageWorks Enclosure
Model 4314T (tower)
190210-001
Compaq StorageWorks Enclosure
Model 4314R (rack-mountable)
Note:
The Compaq StorageWorks Enclosure 4200/4300 Family support the Wide Ultra2/Ultra3 1"
Hot Plug Hard Drives. Note: To properly connect the 4200/4300 enclosure you must order a Wide to VHDCI
SCSI cable option.
SCSI Cable, VHDCI / W,
6’ Note: To properly connect the 4200/4300
enclosure you must order a Wide to VHDCI SCSI cable option.
341176-B21
SCSI Cable, VHDCI / W,
12’ Note: To properly connect the 4200/4300
enclosure you must order a Wide to VHDCI SCSI cable option.
341177-B21
StorageWorks Enclosure 4200
Redundant Power Supply Option
StorageWorks Enclosure 4200 Tower
to Rack Conversion Kit
105213-B21
Non-Shared
External Storage
Rack-Mountable SCSI Storage
Expander II
332607-001
SCSI Storage Expander II
332609-001
ProLiant Storage System Tower
Model UE
348710-002
ProLiant Storage System Tower
Model U2
304110-B22
Rack-Mountable ProLiant Storage
System Model UE
348700-001
Rack-Mountable ProLiant Storage
System Model U2
304100-B22
Note:
The Compaq ProLiant Storage System Family supports the Wide-Ultra SCSI-3 Hot Plug Hard
Drives.
ProLiant Storage System/U
Redundant Power Supply
224206-001
Server
Recovery
ProLiant Storage System RSO/U
Tower
387490-002
Rack-Mountable ProLiant Storage
System RSO/U
387256-001
Note:
The Compaq ProLiant Storage System RSO/U Models support the Wide-Ultra SCSI-3 Drives.
StorageWorks
DLT Department Library
TL891 DLT library unit, 1 drive
Table Top, FWD
120875-B21
TL891 DLT library unit, 2 driveTable Top, FWD
120875-B22
TL891 DLT library unit, 1 drive
Rack, FWD
120876-B21
TL891 DLT library unit, 2 driveRack, FWD
120876-B22
TL881 DLT library unit, 1 drive
Table Top, FWD
128667-B21
TL881 DLT library unit, 2 drive
Table Top, FWD
128667-B22
TL881 DLT library unit 1 drive
Table Top, FWSE
128688-B21
TL881 DLT library unit 2 drive
Table Top, FWSE
128688-B21
TL881 DLT Library, 1 drive Rack,
FWD
128669-B21
TL881 DLT Library, 2 driveRack,
FWD
128669-B22
Add-On 20/40-GB Drive
for TL881
128671-B21
Add-On 35/70-GB Drive
for TL891
120878-B21
MiniLibrary Data Unit
128670-B21
MiniLibrary Expansion
Unit
120877-B21
StorageWorks
Dual Channel Ultra-Wide Differential Library Host Bus Adapter Note: The StorageWorks Dual Channel
Ultra-Wide Differential Library Host Bus Adapter is required to support FWD-based tape
libraries.
157229-B21
DLT IV Data
Cartridges (single pack)
295194-B21
DLT IV Data
Cartridges (7 pack)
295192-B21
DLT Cleaning
Cartridge
199704-001
MiniLibrary
pass-through Mechanism Kit
120880-B21
10 Slot Magazine
120881-B21
MiniLibrary Table Top
to Rack Mount Conversion Kit, Metric/RETMA racks
120882-B21
MiniLibrary Table Top
to Rack Mount Conversion Kit, Compaq racks
120883-B21
Note: Please see
the TL881, or the TL891 Automated DLT Tape Library Solution QuickSpecs for additional
information including Upgrade Kits, Accessories, ProLiant Connectivity Kits, Host Bus
Adapters, SCSI Cable Kits, and Localization Kits and additional options needed for a
complete solution at: http://www.compaq.com/products/quickspecs/North_America/
10233_na.html Please note this web
site is available in English only.
Automated
AIT Tape Library Solution
SSL2020 AIT Mini-Library 1 drive,
20 slot Table Top
Tabletop to Rackmount
Upgrade Kit for SSL2020 AIT Library, Compaq Rack
175199-B21
Tabletop to Rackmount
Upgrade Kit for SSL2020 AIT Library, RETMA racks
175199-B22
Note: Please see
the AIT Automated DLT Tape Library Solution QuickSpecs for additional information
including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for
a complete solution at: http://www.compaq.com/products/quickspecs/North_America/
10233_na.html Please note this web
site is available in English only.
Tape
Array Solution
TA1000 AIT Tape Array, Rackmount
175005-001
AIT 50-GB Data Cassette (5 pack)
152841-001
AIT Cleaning Cassette
402374-B21
DLT Tape Array III Model 40/80-4
161140-001
DLT Tape Array III Model 0
168047-001
DLT Tape Array Model 0
199860-001
DLT Tape Array II Model 35/70-4
no software
295165-001
DLT IV Data
Cartridges (single pack)
295194-B21
DLT IV Data
Cartridges (7 pack)
295192-B21
DLT Cleaning
Cartridge
199704-001
DLT Library Tabletop Conversion
Kit
350384-B21
Tape Array
Cable Kit
(Available for the DLT Tape Array and DLT Tape Array
II only.)
242427-001
DLT Tape Array III Model 0,
LVD Cable Kit Note: Available for the DLT Tape Array III
Model.
Note: Please see
the Compaq TA1000 AIT Tape Array, Compaq DLT Tape Array II, or the Compaq DLT Tape Array
III QuickSpecs for additional information including Tape Drives, Cartridges, Controllers,
and SCSI Cables and additional options needed for a complete solution at: http://www.compaq.com/products/quickspecs/North_America/
10233_na.html Please note this web
site is available in English only.
Uninterruptible Power Systems
UPS Model T2000 (100
to 127 volt)
242688-005
UPS Model T2400h-NA
(208 to 240 volt)
242688-007
Rack-Mountable UPS
R3000 (100 to 127 volt)
242705-001
Rack-Mountable UPS
R3000h-NA (208 to 240 volt) NDC (non-detached cord)
4-Hour On-site
Service, 9-Hour x 5-Day Coverage,
3 Years (2-5-2 Part Number for US)
FM-CW4HR-36
4-Hour On-site
Service, 9-Hour x 5-Day Coverage,
3 Years (2-5-2 Part Number for Canada)
FP-CW4HR-36
4-Hour On-site
Service, 24-Hour x 7-Day Coverage,
3 Years (2-5-2 Part Number for US)
FM-CW724-36
4-Hour On-site
Service, 24-Hour x 7-Day Coverage,
3 Years (2-5-2 Part Number for Canada)
FP-CW724-36
Installation
& Start-up Services
Install NT Server 4.0
and Microsoft Cluster Server on 2 servers (2-5-2 Part Number for US)
FM-WNTBM-IN
Install Microsoft
Cluster Server on 2 servers (2-5-2 Part Number for US)
FM-WNTBN-IN
Hardware Installation
(2-5-2 Part Number for US)
FM-CWINS-IN
Hardware Installation
(2-5-2 Part Number for Canada)
FP-CWINS-IN
O/S &
Hardware Installation (6-3 Part Number for US)
(Hardware installation plus two days O/S start-up
activity (install, config, network access & orientation).)
Quote
Business
Solutions Priority Service Plan - Priority Level
5 x 9 4-hour H/W, 5 x
9 2-hour O/S (NT & NetWare), Three Years (2-5-2 Part Number for US)
FP-CX106-36
5 x 9 4-hour H/W, 5 x
9 2-hour O/S (NT & NetWare), Three Years (2-5-2 Part Number for Canada)
FP-CZ106-36
Business
Solutions Priority Service Plan - Priority 24 Level
7 x 24 4-hour H/W, 7
x 24 2-hour O/S (NT & NetWare), Three years (2-5-2 Part Number for US)
FP-CX206-36
Business
Solutions Priority Service Plan – Priority Plus Level
7 x 24 4-hour H/W, 7
x 24 1-hour O/S (NT & NetWare), SPS account review, Three Years (2-5-2 Part Number for
US)
FP-CX306-36
7 x 24 4-hour H/W, 7
x 24 1-hour O/S (NT & NetWare), SPS account review, Three Years (2-5-2 Part Number for
Canada)
FP-CZ306-36
Business
Solutions Priority Service Plan – Priority Premier Level
7 x 24 2-hour H/W, 7
x 24 1-hour O/S (NT & NetWare), SPS Account Review, Proactive Management Review, named
S/w rep, Three Years (2-5-2 Part Number for US)
FP-CX506-36
7 x 24 2-hour H/W, 7
x 24 1-hour O/S (NT & NetWare), SPS Account Review, Proactive Management Review, named
S/w rep, Three Years (2-5-2 Part Number for Canada)
FP-CZ506-36
Business
Solutions Priority Service Plan – Priority Executive Premier Level
7 x 24 2-hour H/W, 7
x 24 30-minute O/S (NT & NetWare), SPS Account Review, Proactive Management Review,
named S/w rep, Three Years (2-5-2 Part Number for US)
FP-CX706-36
7 x 24 2-hour H/W, 7
x 24 30-minute O/S (NT & NetWare), SPS Account Review, Proactive Management Review,
named S/w rep, Three Years (2-5-2 Part Number for Canada)
FP-CZ706-36
Note: For more
information, customer/resellers can contact www.Compaq.com/services. Please note this web
site is available in English only.
Standard Memory (per server)
128-MB 100-MHz Registered ECC SDRAM installed (1 x 128-MB SDRAM DIMM)
Standard
Slot
1
2
3
4
128
MB
Empty
Empty
Empty
Standard Memory Plus Optional Memory (per server)
Up to 896-MB memory is available with the optional installation of 100-MHz Registered ECC
SDRAM memory kits.
Up To
Slot
1
2
3
4
896
MB
Standard Memory Replaced with Optional Memory (per
server)
Up to 1024 MB of memory is available with the removal of the standard 128-MB of memory and
the optional installation of 100-MHz Registered ECC SDRAM memory kits.
Up To
Slot
1
2
3
4
1024
MB
Note:
Chart does not represent all possible configurations.
Following are memory options available from Compaq:
Drives Supported
Storage Capacity
Data Transfer Method
Maximum SCSI Channel Transfer Rate
Up to 28 SCSI devices (14 per
channel)
1.019 TB
64-bit / 66-MHz PCI bus-master
160 MB/s per channel
Maximum Transfer Rate per PCI
Bus (peak)
532 MB/s per channel
SCSI Protocols
Wide Ultra3 SCSI
Wide Ultra2 SCSI
Wide-Ultra SCSI-3
Fast SCSI-2
Electrical Protocol
Low Voltage Differential (LVD)
SCSI Termination
Active Termination
External SCSI Connectors
Two 68-Pin VHDCI connectors
Internal SCSI Connectors
Two 68-Pin Wide Ultra SCSI-3
connectors
One 50-Pin Narrow Ultra connector
RAID
CR3500 Controller
Drives Supported
Internal SCSI ID’s are 9,
10, 11, 12, 13, 14. External storage is a split bus with SCSI ID’s 0, 1, 2, 3, 4, 5
and 8 on bus A and bus B, or single bus with SCSI ID’s 0, 1, 2, 3, 4, 5, 8, 15.
US Site
DL Quickspecs
Search:
313616-B21
© 2012 Canada PartsDirect
