Proliant BL680c G5 Overview

HP ProLiant BL680c Generation 5 (G5) Server Blade

HP ProLiant BL680c Generation 5 (G5) Server Blade

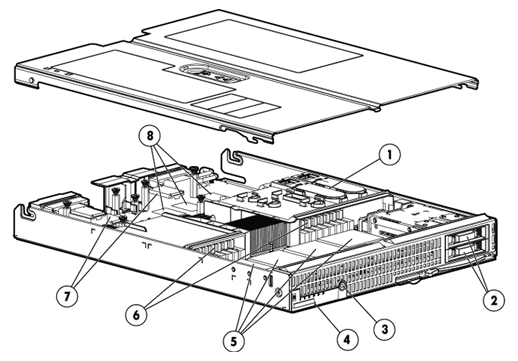

Front view image
1.
Cache battery modules
5.
Two or four Intel® Xeon® 7400 series processors providing up to 6 cores
2.
Two small form factor (SFF) hot-plug drive bays
6.
To 128 GB PC2-5300, DDR2 FB memory via 16 DIMMs
3.
Power button
7.
Three I/O expansion mezzanine slots
4.
Local I/O connector
8.
Four embedded Gigabit Ethernet adapter ports

At A Glance

This document covers the HP ProLiant BL680c G5 server blade only. For more information on the HP BladeSystem c-Class Enclosure and HP BladeSystem c-Class Interconnect and Mezzanine Components, please see the following:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html
HP BladeSystem c-Class Interconnect and Mezzanine Components:
http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

  • The HP ProLiant BL680c G5 Server Blade delivers no-compromise performance and expansion for a 4-core to 6-core BladeSystem Server. With two or four Intel Xeon 7400 series processors, 128 GB of fully buffered memory, two hot-plug serial attached SCSI (SAS) or serial ATA (SATA) hard drives, four embedded Gigabit Ethernet adapters (two multifunction) and three I/O expansion slots, the HP ProLiant BL680c G5 delivers the density you want with the performance you need to handle the most demanding enterprise class applications. The HP ProLiant BL680c G5 server blade includes:
  • Processor:
    • Two or four Intel Xeon 7400 series processors with up to 6 cores
      NOTE: The BL680c G5 supports either two or four processors. One and three processors are not supported.
      NOTE: All processors within the server must be identical.
    • Intel 7300 chipset supporting a 1066 MT/s Dedicated High-Speed Interconnect (DHSI)
    • Demand Based Switching (DBS) with Enhanced Intel SpeedStep® Technology on select models
    • Up to 16 MB of L3 cache
    • Intel® Virtualization Technology
  • Memory:
    • Sixteen (16) DIMM slots supporting:
      • 128 GB PC2-5300, fully buffered DDR2-667MHz memory
      • 64 GB PC2-5300, fully buffered DDR2-667MHz low power memory
      • Advanced ECC memory technology
      • Memory interleaving (2 x 1), memory mirroring, and online spare capacity
  • Storage Controller:
    • Integrated HP Smart Array P400i Controller with 256MB ECC protected cache and RAID 0 and 1
    • Upgrades include:
      • Battery-backed write cache (BBWC) for standard 256MB cache
      • 512MB ECC protected cache upgrade with BBWC
    • Optional Storage Works P700m Controller with either 256MB cache, or 512MB cache with or without BBWC
    • Optional StorageWorks IO Accelerator cards for high I/O performance
  • Internal Drive Support:
    • Up to two (2) small form factor (SFF) SAS or SATA hot-plug hard drives
    • Support for the optional StorageWorks SB40c Storage Blade
  • Network Controller:
    • Four (4) embedded network adapter ports, plus one (1) additional management network adapter port:
      • Two (2) embedded NC373i Multifunction Gigabit Server Adapters with TCP/IP offload engine for Microsoft Windows iSCSI boot, and optional accelerated iSCSI
      • One (1) NC326i Dual Port Gigabit Server Adapter
      • One (1) additional embedded 10/100 network adapter dedicated to iLO 2management
        NOTE: The Gigabit Ethernet adapters transmit from the server at 2000 Mbps, full duplex per port. For more information, see the "Network Controller" item in Standards Features section.
  • Mezzanine Support:
    • Three (3) mezzanine expansion slots; one Type I x4 PCIe (15 watts) and two x8 PCIe (25 watts). The expansion slots provide a choice of for additional I/O mezzanine including:
      • Dual Port 4Gb Fibre Channel for SAN connectivity (choice of Emulex or QLogic)
      • Multiple dual port 10Gb Ethernet adapter options for high bandwidth network connectivity
      • Multiple dual and quad port Gigabit Ethernet network adapter options for increased bandwidth and additional network ports
      • StorageWorks I/O Accelerators for high transaction rate local storage
      • 4X DDR InfiniBand (20Gb) for low latency, high bandwidth server interconnectivity
    • For additional I/O expansion, the BL680c G5 supports the PCI Expansion Blade, see: http://h18004.www1.hp.com/products/blades/expansion/index.html?jumpid=reg_R1002_USEN
  • Internal USB Support:
    • One (1) internal USB 2.0 connector for security key devices and USB drive keys
  • Infrastructure Management:
    • The server blade requires the latest version of the Onboard Administrator firmware. This firmware release may also require other subsystem firmware upgrades. For information on the latest firmware versions, please see the Blades Firmware Maintenance website at: http://h18004.www1.hp.com/products/blades/components/c-class-compmatrix.html.
    • HP Integrated Lights-Out 2 (iLO 2) management processor for simplified server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration.
    • HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, monitor, control and optimize your IT infrastructure through a single, simple management console. Insight Control supports both Windows and Linux-based central management servers.
    • HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. This ultimately enables them to dynamically keep pace with the organization's changing business requirements.
  • Operating System Support:
    • Microsoft Windows, RHEL, SLES, OEL, Sun Solaris, VMware ESX, and HP Essentials Citrix for XenServer
  • Form Factor:
    • The HP ProLiant BL680c G5 is a full height server blade that plugs into the HP BladeSystem c3000 and c7000 enclosures
  • Enclosures:
    • HP offers three different c-Class server blade enclosures to meet your individual needs:
      • The HP BladeSystem c7000 rack enclosure is 10U high and holds up to 8 HP ProLiant BL680c servers plugged vertically.
      • The HP BladeSystem c3000 rack enclosure is 6U high and holds up to 4 HP ProLiant BL680c servers plugged horizontally.
      • The HP BladeSystem c3000 tower enclosure is designed with casters for sites without racks and holds up to 4 HP ProLiant BL680c servers plugged vertically.
    • Server blades, storage blades, and interconnect modules are all designed to fit into the c7000 and c3000 enclosures.
    • For additional enclosure information, please see: http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html.
  • Warranty:
    • This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
      NOTE: Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Service and Support      Models      Configuration Information - Factory Integrated Models      BL680c G5 Core Options      Additional Options      BL680c G5 Memory      Storage      BL680c G5 QuickSpecs images/line.gif (50 bytes)

Standard Features

Processor Intel Xeon E7458 (6 core, 2.40 GHz, 16 MB L3 cache, 90W)
Intel Xeon E7450 (6 core, 2.40 GHz, 12 MB L3 cache, 90W)
Intel Xeon E7440 (4 core, 2.40 GHz, 16 MB L3 cache, 90W)
Intel Xeon E7430 (4 core, 2.13 GHz, 12 MB L3 cache, 90W)
Intel Xeon E7420 (4 core, 2.13 GHz, 8 MB L3 cache, 90W)
NOTE: Offered as Configure-To-Order. See the Factory Integrated Models section for more details.
Intel Xeon L7455 (6 core, 2.13 GHz, 12 MB L3 cache, 65W)
NOTE: Offered as Configure-To-Order. See the Factory Integrated Models section for more details.
Intel Xeon L7445 (4 core, 2.13 GHz, 12 MB L3 cache, 50W)
NOTE: Offered as Configure-To-Order. See the Factory Integrated Models section for more details.
NOTE: All processors within the server must be identical.
NOTE: The BL680c G5 supports either two or four processors. One and three processors are not supported.
NOTE: The letter preceding the model number indicates the performance/wattage of the processor. The "E" denotes enterprise performance/wattage and the "L" denotes lower wattage.
NOTE: If upgrading an existing BL680c G5 server to a different processor, the server's ROM must be flashed to the latest BIOS prior to the upgrade.

Upgradeability Upgradeable to four processors
NOTE: The server supports two or four processors. One and three processors are not supported.
NOTE: All processors within the server must be identical.
NOTE: If upgrading an existing BL680c G5 server to a different processor, the server's ROM must be flashed to the latest BIOS prior to the upgrade.

Cache Memory Up to 16 MB level 3 cache memory

Chipset Intel® 7300 chipset

Memory TypePC2-5300 Fully Buffered DIMMs operating at 667 MHz
Standard 8GB (2 x 4GB)
Maximum 128GB (16 x 8GB DIMMs)
64GB (16 x 4GB Low Power DIMMs)
NOTE: See the "DIMM installation guidelines" section for memory installation rules.

Network Controllers

Four (4) embedded Gigabit Ethernet network adapter ports, plus (1) additional management network adapter port:

  • Two (2) embedded NC373i Multifunction Gigabit Server Adapters with TCP/IP offload engine for Microsoft Windows, iSCSI boot, and optional accelerated iSCSI
  • One (1) NC326i Dual Port Gigabit Server Adapter
  • One (1) additional embedded 10/100 network adapter dedicated to iLO 2 management

NOTE: The Gigabit Ethernet adapters transmit from the server at 2000 Mbps, full duplex per port. However, within a Linux environment, the speed can be reduced or "throttled" using a feature available within the Linux operating system.

Once the adapter signal reaches the interconnect within the blade enclosure and communicates outside the blade enclosure to the LAN, the blade interconnect uplink types and settings determine the cable media, speed, duplex mode, and auto negotiation mode. Interconnects are available with Ethernet uplinks supporting 10/100/1000T, 10/100/1000 SFP, 1000 SX fiber, and 10Gb speeds.


Multifunction Networking

The embedded multifunction NC373i combines standard Gigabit Ethernet networking, TCP/IP offload engine (TOE) acceleration for Windows, iSCSI boot, and optional accelerated iSCSI into a single adapter.

  • TOE moves the processing of data in the TCP protocol stack from the server CPU to the network card, freeing CPU cycles for other activities. With TOE, network communications are improved, and server efficiency is increased. The NC373i offers TOE for Microsoft® Windows.
  • The iSCSI boot allows the BL680c G5 to boot from a remote operating system (OS) image located on a storage area network (SAN) within a Red Hat or SUSE Linux environment. The BL680c G5 uses an iSCSI firmware image (iSCSI boot option ROM) making the remote disk drive appear as a local, bootable C: drive. The BL680c G5 is configured to connect to and boot from the iSCSI target disk on the network and download the OS image from the iSCSI target disk. The iSCSI boot option ROM is supplied by HP at no cost. The additional cost and mezzanine slot usage of an add-in iSCSI HBA card is not required. Additionally, the HP iSCSI boot solution includes scripts to significantly simplify the installation process.

I/O Expansion Slots Three I/O expansion mezzanine slots; one Type I x4 PCIe (15 watts) and two x8 PCIe (25 watts).

Integrated Manageability HP Integrated Lights-Out 2 (iLO 2) - (includes but not limited to functionality in Integrated Lights-Out 2 Standard Blade Edition (iLO 2)

Storage Controller

The BL680c G5 includes an integrated Smart Array P400i Controller. The P400i is an x8 PCI Express serial attached SCSI (SAS) v1.0 embedded RAID controller and provides server performance and reliability through its support of advanced SCSI technology and RAID capabilities. The P400i includes 256MB of 40-bit ECC protected cache and supports RAID levels 0 (striping) and 1 (mirroring).

The controller supports both SAS and SATA hard drives letting you deploy drive technology as needed to fit your computing environment. The BL680c G5 provides two hot-plug drive bays for up to 1.0TB of SAS and 500GB of SATA storage.

Providing high availability data cache retention, the Smart Array P400i supports two battery backed write cache (BBWC) options:

  • BBWC for the existing 25MB cache.
  • Upgrade to 72-bit 512MB ECC protected cache with BBWC.

If additional direct or shared storage SAS or SATA drives are desired within the server blade enclosure, the BL680c G5 supports the StorageWorks SB40c Storage Blade through use of the HP PCI Express Mezzanine Pass-Thru Card installed in mezzanine slot 3. For additional information see the "Additional Options" section below and http://h18006.www1.hp.com/products/storageworks/sb40c/index.html


Maximum Internal StorageHot Plug Serial Attach
SCSI (SAS)
1.0TB SAS 2 x 500GB SAS
Hot Plug Serial Attach (SATA) 1.0TB SATA 2 x 500GB SATA

GraphicsIntegrated ATI RN-50 1280 x 1024 x 16M color (32 MB DDR1 memory)

Graphics ResolutionResolution Color Depths
1280 x 1024, 16.7M , 64k, 256,16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16

Fibre Channel

Up to three 4 Gb Fibre Channel HBA mezzanines are supported ordered separately:

  • Emulex LPe1105-HP 4Gb FC HBA for HP c-Class BladeSystem (403621-B21 403621-B21)
  • QLogic QMH2462 4Gb FC HBA for HP c-Class BladeSystem (403619-B21 403619-B21)

NOTE: For additional information on the optional 4 Gb Fibre Channel HBA mezzanines, see: http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html


Compatible SAN

HP ProLiant BL680c G5 server blades are optimized for HP StorageWorks MSA, EVA, and XP
HP ProLiant BL680c G5 server blades are compatible with select third party SANs (please see blade storage page for more details: http://h18004.www1.hp.com/products/blades/components/c-class-sans.html


HP Insight management software

HP Insight Foundation

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters.

HP provides management solutions that are designed to simplify a server's installation, configuration and maintenance throughout the entire server lifecycle. This provides the customer with higher levels of operational efficiency and highly reliable systems: www.hp.com/go/foundation.
The foundation pack includes:

NOTE: In an effort to support reducing our environmental impact, the HP Insight Foundation Suite for ProLiant media will be available as a selectable option for this server at time of order of a CTO SKU. This will allow customers to order the number of media kits that best meet their needs and eliminate receiving unnecessary duplicate media.

HP Integrated Lights-Out (iLO) HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP iLO functions without additional software and can be accessed from any location via a web browser. HP iLO works hand-in-hand with HP Systems Insight Manager, Insight Control, and Insight Dynamics for ProLiant, helping customers unleash the value of the ProLiant platform and deliver the highest possible quality of IT service. For more information, visit: www.hp.com/go/iLO
HP Insight Control HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, monitor, remote control, and optimize your IT infrastructure through a single, simple management console.

Two versions of Insight Control are available, to serve environments requiring either a Linux-based or a Windows-based central management server: HP Insight Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight
HP Insight Dynamics for ProLiant HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. As a powerfully integrated by design toolkit to accelerate complex technology projects and simplify daily operations that ultimately enable IT Staff personnel to dynamically keep pace with the organizations changing business requirements. It enables them to plan capacity and power continuously, balance across physical and virtual resources, and ensure cost-effective high availability. It also enables IT organizations to provision infrastructure consistently and automatically from pools of shared resources using a self-service portal. Resources provisioned can range from a single virtual machine to complex multi-tier environments and their associated physical and virtual resource requirements. In addition to the previous functional benefits, it also provides a cost-effective disaster recovery for physical and virtual environments that works with HP StorageWorks Continuous Access software for both the Enterprise Virtual Array and the XP storage array allowing application environments to be reactivated in minutes with the touch of a button to a remote location.

NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics

High Performance Clusters

HP Cluster Platforms

HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters

HP HPC Interconnects High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management Utility HP Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used to manage large-scale Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu
HP HPC Linux Value Pack HP HPC Linux Value Pack (Value Pack) is an HP-licensed and HP-supported specially priced software bundle for the development and deployment of applications on HPC Cluster Platforms. Value Pack includes the Platform LSF workload scheduler, the HP-MPI parallelization library, the HP Unified Parallel C compiler and the HP Shmem library, as well as the execution environments for the libraries and compiler. HP HPC Linux Value Pack

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server
Microsoft Windows Server Hyper V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Enterprise Linux (OEL)
Sun Solaris 10 for x86/x64 based Systems
VMware ESX Server
HP Citrix Essentials for XenServer

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page: http://www.hp.com/support/BL680cG5


Availability
  • Optional dual-port 4Gb Fibre Channel mezzanine cards for redundant SAN connection
  • Four (4) embedded Gigabit Ethernet adapters for redundant LAN connections
  • Multiple mezzanine I/O expansion slots each routed to redundant interconnect modules
  • Two (2) hot-plug SAS/SATA hard drive bays
  • Integrated Smart Array P400i Controller with ECC protected cache and battery backed write cache options
  • Advanced ECC Memory that can correct a multi-bit error (up to 4 bits) that occurs within one memory chip
  • Memory mirroring with memory online spare capacity
  • Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load balancing)

Industry Standard Compliance
  • ACPI 2.0 Compliant
  • PCI 2.2 Compliant
  • WOL Support
  • Microsoft® Logo certifications
  • USB 2.0 Support
  • PXE 2.1
  • IEEE (see the Technical Specifications section)

Security
  • One (1) internal USB 2.0 connector for security key devices and USB drive keys
  • Power-on password
  • Administrator's password
  • Integrated Lights-Out 2 has 12 customizable user accounts and SSL encryption
  • Integrated Lights-Out 2 can be disabled via a global setting

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services on your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.


HP Enterprise Configurator The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator.
contents
 Overview      Standard Features      Service and Support      Models      Configuration Information - Factory Integrated Models      BL680c G5 Core Options      Additional Options      BL680c G5 Memory      Storage      BL680c G5 QuickSpecs images/line.gif (50 bytes)

Service and Support

Service and Support

HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and ROI
When you buy HP server and storage products and solutions, it's also a good time to think about what levels of support you may need. Our portfolio of service options reduce deployment and management worries while helping you get the most out of your server and storage investments. We take a holistic approach to your environment, bridging servers, blades, storage, software and network infrastructures with our packaged HP Care Pack Services for servers and storage.

Protect your business beyond warranty
When it comes to robustness and reliability, standard computing equipment warranties have matured along with technology. Good news that can also create problems stemming from depending on standard warranties designed to only protect against product defects and some downtime causes. Using a standard approach to warranty uplifts, such as HP Care Pack Services, helps reduce downtime risks and provides operational consistency for mission-critical and standard business computing.

HP Care Pack Services: Upgrading or extending standard server and storage warranties cost effectively
HP Care Pack Services offer a standard reactive hardware and software support services suite sold separately, or combined with our Support Plus and Support Plus 24 services. The portfolio also provides a combination of integrated proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition with HP Proactive Select, you can acquire the specific proactive constancy and technical services. HP Proactive Select menu offers a broad set of service options that you can mix and match depending on your specific requirements. Proactive service options include offers for server, storage, network, SAN device, software, environment and education services.

HP server and storage lifecycle support services offers a full spectrum of customer care-from technology support to complex migrations to complete managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP Education Services offer flexible, comprehensive training on to help your IT staff get the most out of your server and storage investments. HP Financial solutions extend innovative financing and cost-effective asset management programs-from purchase to equipment retirement.

Learn more: www.hp.com/services/servers and www.hp.com/services/storage

NOTE: Care Pack Services availability may vary by product and country.

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

  • Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
  • Customers purchasing from a commercial reseller can find HP Care Pack Services at http://www.hp.com/go/lookuptool

Recommended HP Care Pack Services for optimal satisfaction with your HP product
Recommended Services

3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour
Provides your IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 or 24 hours of the initial service request to the HP Global Solution Center.

HP is committed to repairing your hardware within a maximum of six or twenty four hours. The benefits include:

  • Improved system uptime
  • Predictable repair times
  • More effective IT resource planning
  • Consistent level of hardware support across your multi-technology systems

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN



3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7
Provides you with rapid remote support and if required an HP authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

This service provides a trained HP service specialist to perform an installation that meets HP quality standards, for:

  • Help improve or maintain system uptime
  • Convenient onsite support
  • Committed response time

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE



HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

  • Expedited installation, with all service prerequisites met before the installation is performed
  • Installation in accordance with manufacturer's specifications, enhancing the supportability of your HP-installed hardware and software
  • Service delivery at a mutually scheduled time
  • Allows your IT resources to stay focused on their core tasks and priorities
  • Availability of an HP service specialist to answer questions during the onsite delivery of this service

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN


Optional HP Care Pack Services that will enhance your HP product experience
Optional Services

HP Enhanced Network Installation & Startup for BladeSystem Switches
Provides for the configuration and testing of BladeSystem Ethernet interconnect switches to facilitate proper implementation of network protocols and access to advanced features.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4aa0-5969ENW



3-Year HP Proactive 24
As an alternative to our recommended support level, for customers who want enhanced operational effectiveness and proactive problem identification:

Provides improved stability, availability and operational effectiveness with an integrated hardware and software support service that combines industry-leading reactive technical assistance with proactive account services, giving your IT manage support from a team of service specialists.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-1614ENUC



HP Proactive Select Service
Customer needs on demand access to consulting, technical proactive services and education courses

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN


eSupport

HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

  • Access to self-solve tools (including search technical knowledge base)
  • Efficient logging and tracking of support cases
  • Collaboration with other business and IT professionals
  • Download of patches and drivers
  • Access to diagnostic tools
  • Proactive notification of relevant information

Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit: http://www.hp.com/support

HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24 X 7, so you can spend less time solving problems and more time focused on your business. You can have your systems remotely monitored for hardware failure using secure technology that's been proven at thousands of companies around the world. In many cases, you can avoid problems before they occur.


Customer Technical Training

In today's cost-conscious business environment, IT professionals, developers, consultants and users face an interesting challenge: how to keep up with the latest technologies and expand important skills while delivering profitable results on current projects. To help address this challenge, HP offers innovative training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix, Microsoft® and open source/Linux-related topics-while spending less time away from business-critical activities.


HP Services Awards

HP Technology Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction.


Additional Services Information

To learn more on HP ProLiant servers, HP BladeSystem servers and HP StorageWorks storage products, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: www.hp.com/services/proliant or www.hp.com/services/bladesystem or http://www.hp.com/hps/storage

contents
 Overview      Standard Features      Service and Support      Models      Configuration Information - Factory Integrated Models      BL680c G5 Core Options      Additional Options      BL680c G5 Memory      Storage      BL680c G5 QuickSpecs images/line.gif (50 bytes)

Models

4 or 6-Core 7400 Series Models
NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.

HP ProLiant BL680c G5 E7458 6C 8G (2P)
517409-B21

HP ProLiant BL680c G5 E7450 6C 8G (2P)
492334-xx1

HP ProLiant BL680c G5 E7440 4C 8G (2P)
492335-B21

HP ProLiant BL680c G5 E7430 4C 8G (2P)
492336-xx1

Processor(s)
One of the following depending on model
(2) Intel Xeon E7458 (6 core, 2.40 GHz, 16 MB L3 cache, 90W)
(2) Intel Xeon E7450 (6 core, 2.40 GHz, 12 MB L3 cache, 90W)
(2) Intel Xeon E7440 (4 core, 2.40 GHz, 16 MB L3 cache, 90W)
(2) Intel Xeon E7430 (4 core, 2.13 GHz, 12 MB L3 cache, 90W)
Cache Memory
One of the following depending on model
16 MB Level 3 cache memory
12 MB Level 3 cache memory
8 MB Level 3 cache memory
Memory 8 GB (2x4 GB) PC2-5300, FBD DDR2-667
Network Controllers

Four (4) embedded Gigabit Ethernet network adapter ports, plus one (1) additional management network adapter port:

  • Two (2) embedded NC373i Multifunction Gigabit Server Adapters with TCP/IP offload engine for Microsoft Windows, iSCSI boot, and optional accelerated iSCSI
  • One (1) NC326i Dual Port Gigabit Server Adapter
  • One (1) additional embedded 10/100 network adapter dedicated to iLO 2 management
Storage Controller Integrated HP Smart Array P400i Controller with 256MB cache and RAID 0 and 1. Optional battery-backed write cache upgrades.
Hard Drives No drives included; supports up to two (2) SFF SAS/SATA drives
Internal Storage SAS: 1TB; SATA: 1TB
Optical DriveNone
Form Factor Up to 4 full-height blades in the HP BladeSystem c3000 enclosure
Up to 8 full-height blades in the HP BladeSystem c7000 enclosure

Country Code Key

xx=B2 Worldwide
xx=20 Brazil
contents
 Overview      Standard Features      Service and Support      Models      Configuration Information - Factory Integrated Models      BL680c G5 Core Options      Additional Options      BL680c G5 Memory      Storage      BL680c G5 QuickSpecs images/line.gif (50 bytes)

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.
NOTE: Configure-to-order servers must start with a CTO Blade.
NOTE: FIO indicates that this option is a factory installable option.
Step 1: Base Server Blade Configuration (Select a configurable Blade)
HP Models HP ProLiant BL680c G5 Configure-to-order Server
443527-B21
Configurable model ships with:
  1. Four (4) embedded Gigabit Ethernet network adapter ports, plus one (1) additional management network adapter port:
    • Two (2) embedded NC373i Multifunction Gigabit Server Adapters with TCP/IP offload engine for Microsoft Windows, iSCSI boot, and optional accelerated iSCSI
    • One (1) NC326i Dual Port Gigabit Server Adapter
    • One (1) additional embedded 10/100 network adapter dedicated to iLO 2 management
  2. Integrated HP Smart Array P400i Controller with RAID 0 and 1.
    NOTE: A controller cache module selection is required. In the "HP Storage Controllers" section of step 2 below, select either the 256 MB module (with or without optional BBWC) or the 512 MB module with BBWC.
  3. Two (2) small form factor (SFF) SAS/SATA hot-plug hard drive bays
  4. Three I/O expansion slots: one Type I x4 PCIe (15 watts) and two x8 PCIe (25 watts)
  5. Integrated Lights-Out 2 Standard Blade Edition


Step 2: Choose Required Options (one of the following from each list unless otherwise noted):
HP Processors NOTE: The BL680c G5 supports either two or four processors. One and three processors are not supported.
NOTE: All processors within the server must be identical.
NOTE: All processor kits contain two (2) processors.
NOTE: If 4 processors are desired, select one xxxxxx-B21 and one xxxxxx-B21.

HP BL680c G5 Intel® Xeon® E7458 (2.40GHz/6-core/16MB/90W) FIO Processor Kit 517411-B21
HP BL680c G5 Intel® Xeon® E7450 (2.40GHz/6-core/12MB/90W) FIO 2-processor Kit 492344-B21
HP BL680c G5 Intel® Xeon® E7440 (2.40GHz/4-core/16MB/90W) FIO 2-processor Kit 492345-B21
HP BL680c G5 Intel® Xeon® E7430 (2.13GHz/4-core/12MB/90W) FIO 2-processor Kit 492346-B21
HP BL680c G5 Intel® Xeon® E7420 (2.13GHz/4-core/8MB/90W) FIO 2-processor Kit 492347-B21
HP BL680c G5 Intel® Xeon® L7455 (2.13GHz/6-core/12MB/65W) FIO 2-processor Kit 492348-B21
HP BL680c G5 Intel® Xeon® L7445 (2.13GHz/4-core/12MB/50W) FIO 2-processor Kit 493577-B21
HP Memory HP 4GB Fully Buffered DIMM PC2-5300 2x2GB DDR2 Memory Kit
HP 4GB Fully Buffered DIMM PC2-5300 2x2GB Low Power DDR2 Memory Kit 461828-B21 461828-B21
HP 8GB Fully Buffered DIMM PC2-5300 2x4GB DDR2 Memory Kit
HP 8GB Fully Buffered DIMM PC2-5300 2x4GB Low Power DDR2 Memory Kit
HP 16GB Fully Buffered DIMM PC2-5300 2x8GB DDR2 Memory Kit
HP 64GB Fully Buffered DIMM PC2-5300 8x8GB DDR2 Memory Kit 495604-B21 495604-B21
NOTE: For more information low power memory option kits and other ProLiant energy efficient features, see:
http://h18004.www1.hp.com/products/servers/platforms/energyefficient/

NOTE: Two-way memory interleaving is enabled when an identical pair of DIMMs is installed.
HP Storage Controllers NOTE: Selection of either the 256 MB cache module or the 512 MB cache module with BBWC is required.
HP Smart Array P400 256MB FIO Cache Module
NOTE: Supports Smart Array P400 Controller and Smart Array P400i Controller.
HP 512MB w/Battery Smart Array Battery Back Write Cache Enabler
NOTE: Supports Smart Array P400 Controller and Smart Array P400i Controller.
405148-B21 405148-B21

Step 3: Choose Additional Options for Factory Integration
NOTE: For additional options, including server blade enclosures interconnect and mezzanine options and power subsystem options; please see the Core Options and Additional sections below and the following:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html
HP BladeSystem c-Class Interconnect and Mezzanine Components:
http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html
contents
 Overview      Standard Features      Service and Support      Models      Configuration Information - Factory Integrated Models      BL680c G5 Core Options      Additional Options      BL680c G5 Memory      Storage      BL680c G5 QuickSpecs images/line.gif (50 bytes)

BL680c G5 Core Options

NOTE: For additional "Core Options" and "Additional Options" please see the options sections below.
NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Ethernet Mezzanine Options Gigabit Ethernet Mezzanines
HP NC325m PCI Express Quad Port 1Gb Server Adapter for c-Class BladeSystem 416585-B21
HP NC326m PCI Express Dual Port 1Gb Server Adapter for c-Class BladeSystem
406771-B21
HP NC360m Dual Port 1GbE BL-c Adapter
445978-B21
HP NC364m Quad Port 1GbE BL-c Adapter
447883-B21
HP NC382m Dual Port 1GbE Multifunction BL-c Adapter 453246-B21
QLogic iSCSI Dual Port Adapter with Virtual Connect for c-Class BladeSystem 488074-B22
NOTE: The Gigabit Ethernet adapters above transmit from the server at 2000 Mbps, full duplex per port. For more information, see the "Network Controller" segment in the Standards Features section.
10 Gigabit Ethernet Mezzanines
HP NC522m Dual Port 10GbE Multifunction BL-c Adapter
NOTE: The NC522m requires a minimum of 2 GB of server memory.
NOTE: The NC522m supports linking at 1000Mbps or 10000Mbps when not connected to a Flex-10 enabled module and will link with all current 1GbE switches at 1Gb.
467801-B21
HP NC532m Dual Port Flex-10 10GbE Multifunction BL-c Adapter
NOTE: The NC532m network adapter card is required for each server blade connecting to a 10Gb interconnect in bays 3-8 (HP BladeSystem c7000 Enclosure) or bays 3-4 (HP BladeSystem c3000 Enclosure).
NOTE: The NC532m requires a minimum of 2 GB of server memory.
NOTE: The NC532m will downspeed to 1Gb if paired with a 1GbE interconnect.
467799-B21
HP NC550m 10GbE 2-port PCIe x8 Flex-10 Ethernet Adapter
NOTE: The NC550m network adapter card is required for each server blade connecting to a 10Gb interconnect in bays 3-8 (HP BladeSystem c7000 Enclosure) or bays 3-4 (HP BladeSystem c3000 Enclosure)
NOTE: The NC550m requires a minimum of 2 GB of server memory.
NOTE: The NC550m supports linking at 1000Mbps or 10000Mbps when not connected to a Flex-10 device. The NC550m will only support 1000Mbps when connected to a 1Gb Ethernet interconnect.
581204-B21

HP Fibre Channel Mezzanine Options Emulex LPe1105 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem

HP Processors NOTE: The BL680c G5 supports either two or four processors. One and three processors are not supported.
NOTE: All processors within the server must be identical.
NOTE: All processor kits contain two (2) processors.
NOTE: If upgrading an existing BL680c G5 server to a different processor, the server's ROM must be flashed to the latest BIOS prior to the upgrade.

HP BL680c G5 Intel® Xeon® E7458 (2.40GHz/6-core/16MB/90W) Processor Kit
517411-B21
HP BL680c G5 Intel® Xeon® E7450 (2.40GHz/6-core/12MB/90W) 2-processor Kit
492344-B21
HP BL680c G5 Intel® Xeon® E7440 (2.40GHz/4-core/16MB/90W) 2-processor Kit
492345-B21
HP BL680c G5 Intel® Xeon® E7430 (2.13GHz/4-core/12MB/90W) 2-processor Kit
492346-B21
HP BL680c G5 Intel® Xeon® E7420 (2.13GHz/4-core/8MB/90W) 2-processor Kit
492347-B21
HP BL680c G5 Intel® Xeon® L7455 (2.13GHz/6-core/12MB/65W) 2-processor Kit
492348-B21
HP BL680c G5 Intel® Xeon® L7445 (2.13GHz/4-core/12MB/50W) 2-processor Kit 493577-B21

HP Memory HP 4GB Fully Buffered DIMM PC2-5300 2x2GB DDR2 Memory Kit
HP 4GB Fully Buffered DIMM PC2-5300 2x2GB Low Power DDR2 Memory Kit 461828-B21 461828-B21
HP 8GB Fully Buffered DIMM PC2-5300 2x4GB DDR2 Memory Kit
HP 8GB Fully Buffered DIMM PC2-5300 2x4GB Low Power DDR2 Memory Kit
HP 16GB Fully Buffered DIMM PC2-5300 2x8GB DDR2 Memory Kit
HP 64GB Fully Buffered DIMM PC2-5300 8x8GB DDR2 Memory Kit

BL680c G5 Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507125-B21 507125-B21
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512545-B21 512545-B21
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507610-B21 507610-B21
NOTE: SAS Enterprise drives have a 3 year warranty.
NOTE: Please see the QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive 507750-B21 507750-B21
HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive 530888-B21 530888-B21
SATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive 460355-B21 460355-B21
HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive
NOTE: Please see the QuickSpecs for additional information: http://h18004.www1.hp.com/products/quickspecs/13021_div/13021_div.html
contents
 Overview      Standard Features      Service and Support      Models      Configuration Information - Factory Integrated Models      BL680c G5 Core Options      Additional Options      BL680c G5 Memory      Storage      BL680c G5 QuickSpecs images/line.gif (50 bytes)

Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Insight Software Insight Control
HP Insight Control, No Media, Electronic License including 1 year of 24x7 Technical Support and Updates
T9074BAE
HP Insight Control, Single-Server License including 1 year of 24x7 Technical Support and Updates
452148-B22
HP Insight Software Media Kit
NOTE: Insight Software DVD media without licenses. Contains HP Systems Insight Manager, HP Insight Control, HP Insight Dynamics, HP Insight Control for Microsoft System Center, and Virtual Connect Enterprise Manager software. Uses an integrated installer to perform quick and accurate software installation and updates.
436222-B21
NOTE: Licenses ship without media. The Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key, and are available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html

HP Insight Control for Linux
HP Insight Control for Linux, No Media, 1-Server license, including one year of 24x7 Technical Support and Updates
TC209A
HP Insight Control for Linux, 1-server license, including one year of 24x7 Technical Support and Updates, Electronic
NOTE: This part number can be purchased as a single license or as multiple licenses with a single activation key. Customer will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Electronic LTUs are only available through limited points of sales; if not available, order a printed license entitlement certificate instead.
TC213AAE
HP Insight Control for Linux, Media pack (DVD) - No licenses included
NOTE: This optional Media pack DVD contains the ISO image for HP Insight Control for Linux, HP Systems Insight Manager, HP Insight Control power management, HP Insight Control virtual machine management, and an integrated installer. Servers must be acquired separately.
NOTE: This Media pack is optional because the latest ISO image and latest updates may be downloaded at no cost from: http://www.hp.com/go/ic-linux (click on Download button).
TC208A
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: http://www.hp.com/go/ic-linux (click on Download button).
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key, and are available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html

HP Integrated Lights-Out (iLO) Advanced for ProLiant BladeSystem Remote Management
HP Integrated Lights-Out Advanced for BladeSystem, No Media, Electronic License, including 1 year of 24x7 Technical Support and Updates TA851AAE
HP Integrated Lights-Out (iLO) Advanced for ProLiant BladeSystem (1) Server License/(1) Key for BladeSystem, No Media, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 server to be managed via HP iLO Advanced for BladeSystem. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits, including electronic delivery options, please see the iLO QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html
512488-B21
HP Insight Control server deployment
HP Insight Control server deployment Electronic License including 1 year 24x7 Technical Support and Updates T9082AAE
HP Insight Control server deployment 1-Server License including 1 year 24x7 Technical Support and Updates 452151-B21
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key, and is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the Insight Control QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html


High Performance Clusters HP Cluster Management Utility
HP Cluster Management Utility Compute Node Flexible License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
436284-B21
HP Cluster Management Utility License and Media
NOTE: Order a minimum of one license per cluster to purchase media including software and documentation, which will be delivered to the customer, and also licenses CMU management. No license key is delivered or required.
433257-B21
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html
HP HPC Linux Value Pack
HP High Performance Computing Linux Value Pack 1 Processor Flexible License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one socket (a.k.a. processor). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
TC293A
HP High Performance Computing Linux Value Pack Media Kit
NOTE: This part number can be used to purchase media including software and documentation, which will be delivered to the customer.
TC294A
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/13485_div/13485_div.html

HP Storage Controllers HP Smart Array P700m/256 4-ports Ext PCIe x8 SAS Controller
HP Smart Array P700m/512 4-ports Ext PCIe x8 SAS Controller
Optional Upgrades
HP 512MB w/Battery Smart Array Battery Back Write Cache Enabler
NOTE: Supports Smart Array P400 Controller and Smart Array P400i Controller.
405148-B21 405148-B21
HP Smart Array Cache Battery Kit
NOTE: Supports Smart Array P400 Controller and Smart Array P400i Controller.
383280-B21 383280-B21
HP Smart Array P-Series Low Profile Battery 452348-B21 452348-B21

HP I/O Expansion Options HP StorageWorks 320GB IO Accelerator for BladeSystem c-Class
AJ878B
HP 640GB IO Accelerator for BladeSystem c-Class
BK836A
NOTE: Please see the QuickSpecs for technical specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13220_div/13220_div.html

HP c-Class Mezzanines HP InfiniBand Mezzanine Options
HP 4X DDR IB DUAL PORT Mezzanine HCA for HP BladeSystem c-Class 448262-B21
HP Pass Thru Card for HP BladeSystem c-Class
HP PCI Express Mezzanine Pass-Thru Card for HP BladeSystem c-Class
NOTE: Required to support the HP StorageWorks SB40c Storage Blade (P/N 411243-B21), PCI expansion Blade (P/N 448018-B21), and StorageWorks Ultrium tape blades with HP c-Class BladeSystem full-height server blades. The PCI Express Mezzanine Pass-Thru Card must be installed in mezzanine slot 3.
431643-B21

HP Tape Blades HP StorageWorks SB1760c Tape Blade
AQ697A
HP StorageWorks SB920c Tape Blade
AJ401A
HP StorageWorks Ultrium 448c Tape Blade 440947-B21
HP StorageWorks LTO-5 SB3000c Tape Blade BS580A
NOTE: The HP PCI Express Mezzanine Pass-Thru Card for HP BladeSystem c-Class (P/N 431643-B21) is required to support the HP StorageWorks Tape Blades. The PCI Express Mezzanine Pass-Thru Card must be installed in mezzanine slot 3 of the BL680c G5. Please see the QuickSpecs for technical specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12729_div/12729_div.html

HP StorageWorks SB40c Storage Blade HP StorageWorks SB40c Storage Blade
NOTE: The HP PCI Express Mezzanine Pass-Thru Card for HP BladeSystem c-Class (P/N 431643-B21) is required to support the HP StorageWorks SB40c Storage Blade. The PCI Express Mezzanine Pass-Thru Card must be installed in mezzanine slot 3 of the BL680c G5. Please see the QuickSpecs for technical specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12587_div/12587_div.html
411243-B21

HP Expansion Blade HP PCI Expansion Blade
NOTE: Ships with one pre-installed PCI-X connect board. Also includes one PCIe connect board which requires installation.
NOTE: The HP PCI Express Mezzanine Pass-Thru Card for HP BladeSystem c-Class (P/N 431643-B21) is required to support the HP PCI Expansion Blade with HP c-Class BladeSystem full-height server blades. The PCI Express Mezzanine Pass-Thru Card must be installed in mezzanine slot 3. Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12753_div/12753_div.html
448018-B21

HP USB and SD Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B DC172B
HP USB 04 Standard Keyboard DT528A#xxx
HP 2GB USB Flash Media Drive Key Kit
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software like SmartStart. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.
608447-B21

HP Care Pack Services NOTE: The HP Care Pack service part numbers below for ProLiant BL c-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.
Hardware Services On-site Service



4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UK108E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UK109E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UK110E
contents
 Overview      Standard Features      Service and Support      Models      Configuration Information - Factory Integrated Models      BL680c G5 Core Options      Additional Options      BL680c G5 Memory      Storage      BL680c G5 QuickSpecs images/line.gif (50 bytes)

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
NOTE: For a specific memory level, the best performance is achieved using a homogenous memory configuration.
DIMM installation guidelines:
  1. All memory must be PC2-5300 fully buffered DDR2 DIMMs operating at 667 MHz.
  2. Both DIMM slots in a memory bank must be populated.
  3. Banks must be populated in sequential alphabetic order, starting with bank A.
  4. Both DIMMs in a memory bank must be identical. Install identical DIMMs as pairs only, starting with DIMM socket 1, bank A.
  5. Standard memory and lower power DIMMs may be mixed within the same server, but not within the same memory bank (see #4 above).
  6. Low power DIMM kits save approximately 2 watts per server DIMM, plus any datacenter power savings resulting from reduced cooling of heat dissipated from the lower server watt usage.
  7. Multiple advanced memory protection (AMP) modes are supported based on fully buffered DIMM population and RBSU selection. The server blade defaults to advanced ECC.
Standard Memory
8GB (2 x 4GB) of PC2-5300, FBD DDR2-667 ECC DIMMs

Standard Memory Plus Optional Memory
Up to 116GB of memory is available with the installation of optional PC2-5300, FBD DDR2-667 DIMM memory expansion kits.

Standard Memory Replaced with Optional Memory
Up to 128GB of memory is available with the removal of standard memory and the installation of optional PC2-5300, FBD DDR2-667 DIMM memory expansion kits.

BL680c G5 Memory
Slot
Standard
8GB
1A
2C
3E
4G
5A
6C
7E
8G
4 GB
Empty
Empty
Empty
4 GB
Empty
Empty
Empty
9B
10D
11F
12H
13B
14D
15F
16H
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty









Optional

116GB

1A
2C
3E
4G
5A
6C
7E
8G
4 GB
8 GB
8 GB
8 GB
4 GB
8 GB
8 GB
8 GB
9B
10D
11F
12H
13B
14D
15F
16H
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB

Maximum
128GB
1A
2C
3E
4G
5A
6C
7E
8G
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
9B
10D
11F
12H
13B
14D
15F
16H
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB

HP ProLiant BL680c G5 memory options:
HP Memory Following are memory options available from HP:
HP 4GB Fully Buffered DIMM PC2-5300 2x2GB DDR2 Memory Kit 397413-B21 397413-B21
HP 4GB Fully Buffered DIMM PC2-5300 2x2GB Low Power DDR2 Memory Kit 461828-B21 461828-B21
HP 8GB Fully Buffered DIMM PC2-5300 2x4GB DDR2 Memory Kit 397415-B21 397415-B21
HP 8GB Fully Buffered DIMM PC2-5300 2x4GB Low Power DDR2 Memory Kit 466440-B21 466440-B21
HP 16GB Fully Buffered DIMM PC2-5300 2x8GB DDR2 Memory Kit 413015-B21 413015-B21
HP 64GB Fully Buffered DIMM PC2-5300 8x8GB DDR2 Memory Kit 495604-B21 495604-B21
contents
 Overview      Standard Features      Service and Support      Models      Configuration Information - Factory Integrated Models      BL680c G5 Core Options      Additional Options      BL680c G5 Memory      Storage      BL680c G5 QuickSpecs images/line.gif (50 bytes)

Storage

1-2
2 x SFF SAS or SATA hot-plug hard drives
Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

Quantity
Supported
Position
Supported
Controller
300GB 6G SAS 10K
146GB 6G SAS 10K
146GB 6G SAS 15K
72GB 6G SAS 15K
2
1-2
Smart Array P400i Controller
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
Controller
500GB 6G SAS 7.2K

2
1-2
HP Smart Array P400i Controller
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
Controller
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
2
1-2
HP Smart Array P400i Controller

SATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives

Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 5.4K
120GB 1.5G SATA 5.4K
2
1-2
Smart Array P400i Controller
contents
 Overview      Standard Features      Service and Support      Models      Configuration Information - Factory Integrated Models      BL680c G5 Core Options      Additional Options      BL680c G5 Memory      Storage      BL680c G5 QuickSpecs images/line.gif (50 bytes)

Quickspecs

System UnitDimensions
(H x W x D)
Full height server blade:
14.42 x 2.03 x 20.06 in (36.17 x 5.16 x 50.95 cm)
Weight
(approximate)
Maximum
(all hard drives and processors installed)
21 lb (9.5 kg)
Minimum
(one hard drive and processor installed)
19 lb (8.6 kg)

Power Specifications

For power specifications including input requirements, BTU rating, and power supply output, please see the HP BladeSystem c-Class Enclosures QuickSpecs located at:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/
12790_div.html

HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/
12810_div.html

To review typical system power ratings use the HP BladeSystem Power Sizer available at: http://www.hp.com/go/bladesystem/powercalculator.

System Inlet Temperature

Operating10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-Operating-30° to 60°C (-22° to 140°F), maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating10 to 85% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-Operating10 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
AltitudeOperating3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic NoiseFor acoustic noise specifications, please see the HP BladeSystem c-Class Enclosures QuickSpecs located at:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/
12790_div.html

HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/
12810_div.html

Smart Array P400i Controller

Disk Drive and Enclosure Interface

3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology Attachment)

SAS Connectors

2 internal (SFF8484) x4 wide port connectors

Cache Memory Speed

DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.

Server Interface

x8 2.5G PCIe provides 2 GB/s maximum bandwidth.

SAS Speed

x8 3G SAS provides 2.4 GB/s maximum bandwidth.

Cache Memory

40-bit 256 MB cache (72-bit 512MB module upgrades available); ECC protection, battery-backed, and transportable

Logical Drives Supported

Up to 32 logical drives

Maximum Logical Drive Capacity

1.0 TB (2 x 500 GB) SAS
1.0 TB (2 x 500 GB) SATA

Host Memory Addressing

64-bit, supporting greater than 4 GB server memory space

RAID Support

RAID 1 (Mirroring), RAID 0 (Striping)

Upgradeable Firmware

Upgradeable firmware with recovery ROM feature

Embedded NC326i Dual Port Gigabit Server AdapterNetwork ProcessorBroadcom 5715S
Data Transfer MethodFour lane (x4) PCI Express
Network Transfer Rate Two ports, each at 2000 Mb/s full duplex only (theoretical maximum)
IEEE Compliance802.1p, 802.1Q, 802.3, 802.3ad, and 802.3x
Standard Features
  • 9K Jumbo frames
  • TCP/IP checksum offload (TCO)
  • Large send offload (LSO)
  • Interrupt coalescence
  • Dual address cycles (DAC)
  • Wake-on-LAN (WOL)
  • Pre-boot execution environment (PXE) v2.1
  • ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing
  • IPv6 packet transmit and receive (excluding all offload capabilities); IPv6 aware SNMPv1 agents for Windows

Embedded NC373i Multifunction Gigabit Server AdaptersNetwork ProcessorBroadcom 5708S
Data Transfer MethodFour lane (x4) PCI Express
Network Transfer Rate2000 Mb/s per port full duplex only (theoretical maximum value)
IEEE Compliance802.1p, 802.1Q, 802.3, 802.3ad, and 802.3x
Standard Features
  • TCP/IP offload engine (TOE) for Microsoft Windows
  • iSCSI boot
  • Optional accelerated iSCSI
  • 9K Jumbo frames
  • TCP/IP checksum offload (TCO)
  • Large send offload (LSO)
  • Interrupt coalescence
  • Dual address cycles (DAC)
  • Wake-on-LAN (WOL)
  • Pre-boot execution environment (PXE) v2.1
  • ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing
  • IPv6 packet transmit and receive (excluding all offload capabilities); IPv6 aware SNMPv1 agents for Windows

HP Integrated Lights-Out 2 (iLO 2)
integrated on system board
Architecture 32-bit PCI-based health and remote management ASIC
Processor 32-bit RISC processor core running at 66MHz
Upgradeability Option firmware upgradeable via Flash ROM
Operating System Support Microsoft Windows Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003 and Windows Server 2003 R2, and Windows Server 2003 for Extended Systems Standard Edition, Enterprise Edition
Red Hat Enterprise Linux 5.4 (32bit and 64bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 3.5.0
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Red Hat Enterprise Linux Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10
Client Browser Support Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)
Command Line Support Telnet, Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2 (Password and certificate)
Security Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface
RC4 encryption of video
Directory Support Services Active Directory v1.0 (Windows 2003)
Driver Support Health Driver (HP ProLiant iLO 2 Management Controller Driver)
iLO Management Channel Interface Driver
Management protocols supported SNMP 2, IPMI 2.0 (KCS interface), DMTF Server Management Command Line Protocol Specification
(SM CLP), DMTF Web Services Management Specification (WS Management)

Environment-friendly Products and ApproachEnd-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


USAPartsDirect          Ph: 1.613.599.1287                   Fax: 1.613.599.8120
serversServers |bladesBlades | Hard DrivesU2/U3 |u320 Hard DrivesU320 |SAS/SATA Hard DrivesSAS/SATA |Fibre Hard DrivesFibre |MemoryMemory |ControllersControllers |Processors Processors |Tape DrivesTape Drives |Power SuppliesPower Supplies
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

Legal | Privacy | | Primary Site | Contact us | Site Problem?  |
